XLA48500TX27R/C Toys

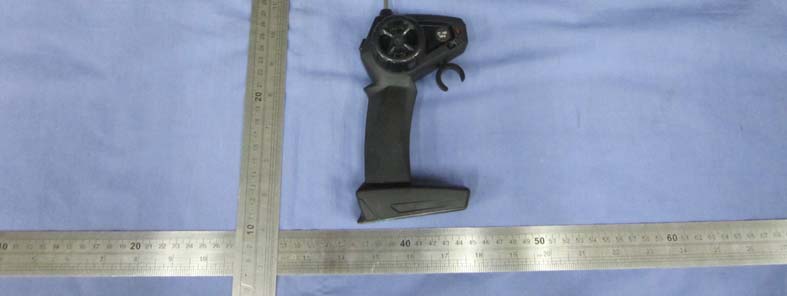

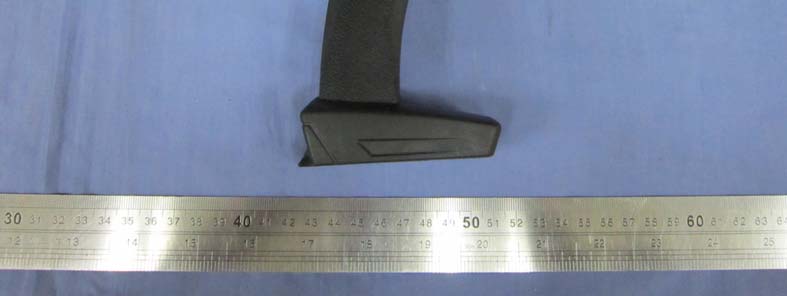

EXTERNAL PHOTOGRAPHS OF EUT The View of EUT-1 The View of EUT-2 The View of EUT-3

FCC ID : XLA48500TX27 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1.This device may not cause harmful interference, and 2.This device must accept any interference received, including interference that may cause undesired operation. Label Location Label Contents Label Size: L45mm*W15mm

INTERNAL PHOTOGRAPHS OF EUT Internal View of EUT Front View of PCB Rear View of PCB

Report No.: EESZE06140006 Page 2 of 20 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION ...................................................................................................................... 3 2. TEST SUMMARY ..................................................................................................................................... 3 3. MEASUREMENT UNCERTAINTY ........................................................................................................... 3 4. PRODUCT INFORMATION ...................................................................................................................... 4 5. FACILITIES AND ACCREDITATIONS ..................................................................................................... 4 5.1 TEST FACILITY................................................................................................................................ 4 5.2 TEST EQUIPMENT LIST.................................................................................................................. 4 6. SYSTEM TEST CONFIGURATION.......................................................................................................... 5 6.1 JUSTIFICATION............................................................................................................................... 5 6.2 EUT EXERCISING SOFTWARE ...................................................................................................... 5 7. RADIATED EMISSIONS MEASUREMENT ............................................................................................. 6 7.1 LIMITS .............................................................................................................................................. 6 7.2 BLOCK DIAGRAM OF TEST SETUP............................................................................................... 6 7.3 TEST PROCEDURE ........................................................................................................................ 7 7.4 TEST RESULT AND GRAPHS......................................................................................................... 8 8. OUT OF BAND EMISSION MEASUREMENT ....................................................................................... 13 8.1 LIMITS ............................................................................................................................................ 13 8.2 BLOCK DIAGRAM OF TEST SETUP............................................................................................. 13 8.3 TEST PROCEDURE ......................................................................................................................13 8.4 TEST RESULT ............................................................................................................................... 13 8.5 TEST GRAPH................................................................................................................................. 13 9. 20DB BANDWIDTH MEASUREMENT .................................................................................................. 14 9.1. LIMITS ............................................................................................................................................ 14 9.2. BLOCK DIAGRAM OF TEST SETUP............................................................................................. 14 9.3. TEST PROCEDURE ......................................................................................................................14 9.4. TEST RESULT ............................................................................................................................... 14 9.5. TEST GRAPH................................................................................................................................. 15 APPENDIX 1 PHOTOGRAPHS OF TEST SETUP......................................................................................... 16 APPENDIX 2 EXTERNAL PHOTOGRAPHS OF EUT ................................................................................... 17 APPENDIX 3 INTERNAL PHOTOGRAPHS OF EUT..................................................................................... 19 N/A means not applicable. Report No.: EESZE06140006 Page 3 of 20 1. GENERAL INFORMATION Applicant: The Maya Group, Inc. 19823 Hamilton Ave, Torrance, California, 90502, USA Manufacturer: The Maya Group, Inc. 19823 Hamilton Ave, Torrance, California, 90502, USA Equipment Authorization: FCC Part 15 Certification FCC ID: XLA48500TX27 Product: R/C Toys Trade mark: MaxTech Model/Type reference: MT24 Serial Number: Not Applicable Report Number: EESZE06140006 Date of Test: June 14, 2012 to July 04, 2012 The above equipment was tested by Centre Testing International for compliance with the requirements set forth in the FCC Rules and Regulations Part 15, Subpart C and the measurement procedure according to ANSI C63.4:2003. 2. TEST SUMMARY Clause Test Item Rule Result 1 Radiated Emission FCC 15.209 PASS 2 Out of Band Emission FCC 15.227(b) PASS 3 20 dB Bandwidth FCC 15.215(c) PASS 4 Antenna Requirements FCC 15.203 PASS* * Telescope-type antenna with unique antenna connector. 3. MEASUREMENT UNCERTAINTY This uncertainty represents an expanded uncertainty expressed at approximately the 95% confidence level using a coverage factor of k=2. Measurement items Uncertainty Radiated Emissions / Out of Band Emission 4.5 dB Report No.: EESZE06140006 Page 4 of 20 4. PRODUCT INFORMATION Items Description Rating DC 9V EUT type Intentional Transmitter Modulation FSK Operated Frequency 27.145MHz 5. FACILITIES AND ACCREDITATIONS 5.1 TEST FACILITY All test facilities used to collect the test data are located at Hongwei Industrial Zone, Bao’an 70 District, Shenzhen, Guangdong, China. The site and apparatus are constructed in conformance with the requirements of ANSI C63.4, CISPR 16-1-1 and other equivalent standards. 5.2 TEST EQUIPMENT …

Text truncated - open the document above for the full version.

PHOTOGRAPHS OF TEST SETUP TEST SETUP OF RADIATED EMISSION (9kHz-30MHz) TEST SETUP OF RADIATED EMISSION (30MHz-1GHz)
