XLAMAYAGROUP47180Orbeez RC Ladybug Scooper

FCC ID: XLAMAYAGROUP47180 Block Diagram Oscillation Frequency 27.145MHz+/-20ppm XTAL, Q1 TX2B IC oscillation Frequency 128kHz, U1 The front/rear/left/right/open the door five buttons SW1 to SW5 1kHz for empty output than different square wave Modulator Q2 Filter and matching, C7, C8, L3, C9, L4 27.145MHz

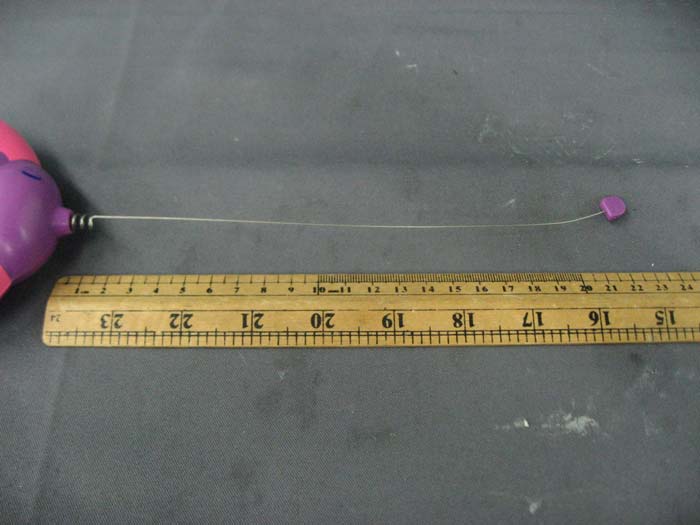

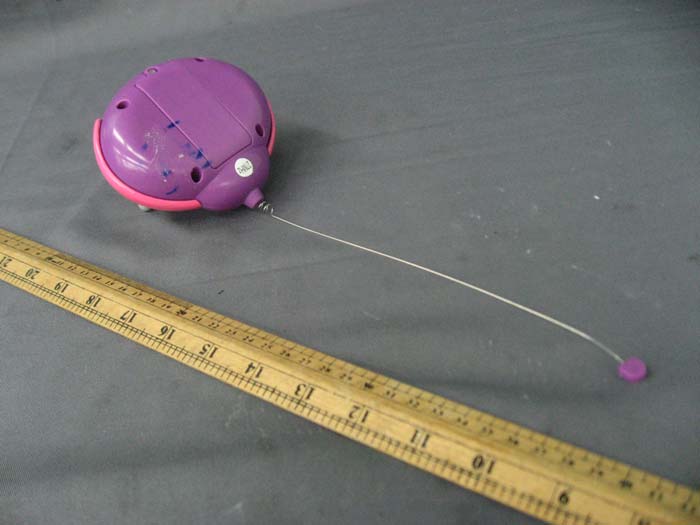

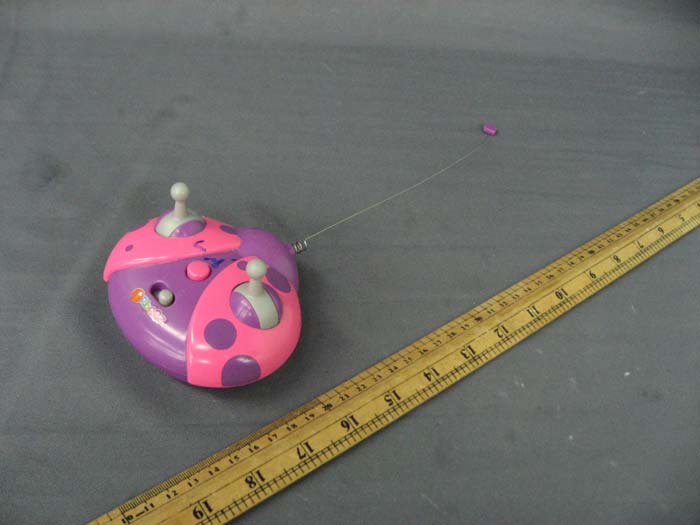

INTERTEK TESTING SERVICE Report No.: HK12051951-1 FCC ID: XLAMAYAGROUP47180 Equipment Photographs Model : 47180 (External) INTERTEK TESTING SERVICE Report No.: HK12051951-1 FCC ID: XLAMAYAGROUP47180 Equipment Photographs Model : 47180 (External)

FCC ID: XLAMAYAGROUP47180 FCC Label and Location Label Size: 41 mm x 12 mm

INTERTEK TESTING SERVICE Report No.: HK12051951-1 FCC ID: XLAMAYAGROUP47180 Equipment Photographs Model : 47180 (Internal) INTERTEK TESTING SERVICE Report No.: HK12051951-1 FCC ID: XLAMAYAGROUP47180 Equipment Photographs Model : 47180 (Internal) INTERTEK TESTING SERVICE Report No.: HK12051951-1 FCC ID: XLAMAYAGROUP47180 Equipment Photographs Model : 47180 (Internal) INTERTEK TESTING SERVICE Report No.: HK12051951-1 FCC ID: XLAMAYAGROUP47180 Equipment Photographs Model : 47180 (Internal)

FCC ID: XLAMAYAGROUP47180 Model: 47180 (Transmitter portion) Technical Description of Transmitter The transmitter operates at 27.145 MHz, and controls the corresponding receiver to move forward, backward, left and right. The circuit of the transmitter comprises of, 1. An Encoding circuit consisting: SW1 to SW5, U1 SCTX2BNEW 2. A RF Oscillator (27.145MHz) consisting: XTAL 3. A Filter Network consisting: C7,C8, L3, C9 4. A RF Modulator and Amplifier consisting: Q1, Q2 5. A Power Supply consisting: 1 x 9VDC Battery The transmitter uses an External, integral and non-detachable antenna.

11 22 33 44 D D C C B B A A Project name:Project No. Drawing No. Sheet Approved By: Drawn By: Of Checked By: REV. DESCRIPTION BY DATE QF-505-18; 08-01 ZHONGSHAN CORONET TOYS LTD. 1 1 VER 1.0 awy 2012/05/07 47180 TX awy SW1(back)SW2(forward) SW4(left) SW5(turbo) SW3(right) Rightb 1 TESTB 2 GND 3 BW 4 FW 5 Turbob 6 SC 7 SO 8 VDD 9 PC 10 OSCO 11 OSCI 12 FOSC 13 Leftb 14 SCTX2BNEW U1 27.145MXTAL C945Q1 2. 2uHL1 2.2uHL2 6. 8uHL4 68PC3 249KRosc 200OHMR3 47K R2 47PC4 56K R4 2SC5344Q2 68PC5 0ohmR5 203PC6 47PC7 1P2T 330KR6 270PC8 L3 47PC9 ANTENNA 390ohmR1 3. 9V 47uF C1 104 C2 203PC10 TO92 TAB 22KR4 5. 1KR115. 1KR135. 1KR125. 1kR10 4148 D1 4148 D3 4148 D4 4148 D2 VDD VDD FW Rightb Leftb BW 5. 1kR15 4148D6 4148D5 Q33 VDD Turbob 51kR16 FF BB PTC 250mA/72V BATTERY9V MD-MY47181-C1 MY47180 1KR171KR18 FF BB VER 2.0 awy 2012/05/23 From 100K change to 56K From 2. 2uH change to 6.8uH VER 3.0 awy 2012/05/29

INTERTEK TESTING SERVICES Report No.: HK12051951-1 Sample No.: 1/2 Code: FCC15C_f / Effective Date: 24 Jun 2011 ( of ) Bandedge Plot – Pursuant to FCC Part 15 Section 15. 227 Requirement

- The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. - This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com TEST REPORT Report No.: HK12051951-1 The Maya Group, Inc. Application For Certification (Original Grant) (FCC ID: XLAMAYAGROUP47180) Transmitter Prepared and Checked by: Approved by: Signed On File Wong Kwok Yeung, Kenneth Lead Engineer Chan Chi Hung, Terry Assistant Supervisor Date: 11 Jun 2012 INTERTEK TESTING SERVICES Report No.: HK12051951-1 FCC ID: XLAMAYAGROUP47180 i GENERAL INFORMATION The Maya Group, Inc. BRAND NAME: N/A, MODEL: 47180 FCC ID: XLAMAYAGROUP47180 Grantee: The Maya Group, Inc. Grantee Address: 19823 Hamilton Ave., Torrance California, 90502 US Contact Person: Kenneth Chan Tel: (852) 2176 6307 Fax: (852) 2176 6330 e-mail: [email protected], [email protected], [email protected] Manufacturer: N/A Manufacturer Address: N/A Brand Name: N/A Model: 47180 Type of EUT: Transmitter Description of EUT: Orbeez RC Ladybug Scooper Serial Number: N/A FCC ID: XLAMAYAGROUP47180 Date of Sample Submitted: 01 Jun 2012 Date of Test: 09 Jun 2012 Report No.: HK12051951-1 Report Date: 11 Jun 2012 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% INTERTEK TESTING SERVICES Report No.: HK12051951-1 FCC ID: XLAMAYAGROUP47180 ii SUMMARY OF TEST RESULT The Maya Group, Inc. BRAND NAME: N/A, MODEL: 47180 FCC ID: XLAMAYAGROUP47180 TEST SPECIFICATION REFERENCE RESULTS Maximum Peak Output Power 15.247(b), (c) / RSS-210 A8.4 N/A Hopping Channel Carrier Frequencies Separation (for 2.4GHz Digital) 15.247(e) / RSS-210 A8.1 N/A 20dB Bandwidth of the Hopping Channel 15.247(a) / RSS-210 A8.1 N/A Number of Hopping Frequencies 15.247(e) / RSS-210 A8.1 N/A Average Time of Occupancy of Hopping Frequency 15.247(e) / RSS-210 A8.1 N/A Anteann Conducted Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A Radiated Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A RF Exposure Compliance 15.247(i) / RSS-Gen 5.5 N/A Transmitter Power Line Conducted Emissions 15.207 / RSS-Gen 7.2.2 N/A Transmitter Field Strength (for 27MHz) 15.227 / RSS-310 3.8 Pass Transmitter Field Strength (for 40MHz) 15.229 / RSS-210 A2.7 N/A Transmitter Field Strength, Bandwidth and Timing Requirement (for Remote Control) 15.231(a) / RSS-210 A1.1.1 N/A Transmitter Field Strength, Bandwidth and Timing Requirement (for 433MHz) 15.231(e) / RSS-210 A1.1.5 N/A Transmitter Field Strength and Bandwidth Requirement(for 88-108MHz) 15.239 / RSS-210 A2.8 N/A Transmitter Field Strength and Bandwidth Requirement 15.249 / RSS-210 A2.9 N/A Transmitter Field Strength and Bandwidth Requirement (for 49MHz) 15.235 / RSS-310 3.9 N/A Receiver / Digital Device Radiated Eissions 15.109 / ICES-003 N/A Digital Device Conducted Emissions 15.107 / ICES-003 N/A Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. INTERTEK TESTING SERVICES Report No.: HK12051951-1 FCC ID: XLAMAYAGROUP47180 iii Table of Contents 1.0 General Description............................................................................................ 1 1.1 Product Description ............................................................................................... 1 1.2 Related Submittal(s) Grants................................................................................... 1 1.3 Test Methodology.................................................................................................. 1 1.4 Test Facility ........................................................................................................... 1 2.0 System Test Configuration ................................................................................. 2 2.1 Justification ........................................................................................................... 2 2.2 EUT Exercising Software....................................................................................... 2 2.3 Special Accessories .............................................................................................. 2 2.4 Equipment Modification ......................................................................................... 2 2.5 Measurement Uncertainty...................................................................................... 2 2.6 Support Equipment List and Description ................................................................ 3 3.0 Emission Results ......................…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICE Report No: HK12051951-1 FCC ID: XLAMAYAGROUP47180 Configuration Photographs Worst-Case Radiated Emissions (Front View) Model : 47180 INTERTEK TESTING SERVICE Report No: HK12051951-1 FCC ID: XLAMAYAGROUP47180 Configuration Photographs Worst-Case Radiated Emissions (Back View) Model : 47180
