XM5-MDLWMGMR09C1 Wireless b/g baseband

Communication Products BU Product Specification of WM-G-MR-09-Ref2 Wireless LAN Module SOURCE ORGANIZATION: USI WP/RD/WM/HW1 Document No. Rev. 1.4 Product Code WM-G-MR-09-Ref2 Product No. HW Prepared by︰ Ven Date: 2010/04/16 Checked by︰ Erico Yang Date: 2010/04/16 Approved by︰ Date: Concurrence (MD): Date: Concurrence (PM): Date: Universal Scientific Industrial Corp. Doc No. Rev 1.4 Date. 2011/12/09 Page 2 Description Product Specification – WM-G-MR-09-Ref2 1 REVISION HISTORY Version No. Revised Date Revised by Description Notes 1.0 2009-09-28 Camus Chen First released 1.1 2009-11-4 Ven Chen 10.1.3 orderable P/N 1.2 2010-01-07 Ven Chen Add 3.1 block diagram(page 4) Change 8 Mechanical Specification(page 19) Change 10.1.2 Laser mark(page 22) 1.3 2010-04-16 Ven Chen Change 8 Mechanical Specification(page 19) Change 10.1.2 Laser mark(page 22) 1.4 2011-12-09 Robert CHANG Model Name Correction Universal Scientific Industrial Corp. Doc No. Rev 1.4 Date. 2011/12/09 Page 3 Description Product Specification – WM-G-MR-09-Ref2 INDEX 1 REVISION HISTORY ................................................................................................................................... 2 2 PURPOSE ..................................................................................................................................................... 4 3 SCOPE .......................................................................................................................................................... 4 3.1 BLOCK DIAGRAM ......................................................................................................................................... 4 4 GENERAL FEATURES .............................................................................................................................. 5 5 ELECTRICAL SPECIFICATION................................................................................................................ 6 5.1 SUPPLY VOLTAGE ....................................................................................................................................... 6 5.2 RECOMMENDED OPERATION CONDITIONS ................................................................................................. 6 5.2.1 Temperature, humidity ................................................................................................................. 6 5.2.2 DC Electrical .................................................................................................................................. 6 5.3 POWER CONSUMPTION (SDIO MODE) ...................................................................................................... 7 5.4 WIRELESS SPECIFICATIONS ....................................................................................................................... 7 5.5 RADIO SPECIFICATION ................................................................................................................................. 8 6 INTERFACE .................................................................................................................................................. 9 6.1 PIN DEFINITION ........................................................................................................................................... 9 6.1.1 RECOMMENDED FOOTPRINT ............................................................................................................ 12 6.2 SPEIFICATIONS AND TIMING DIAGRAM ........................................................................................................13 6.2.1 External sleep clock specification ............................................................................................ 13 6.2.2 SDIO protocol timing .................................................................................................................. 13 6.2.3 G-SPI protocol timing ................................................................................................................. 15 6.2.4 Networking Coexistence ............................................................................................................ 16 6.2.5 Reset and configuration timing ................................................................................................. 16 6.2.6 LED Interface .............................................................................................................................. 18 6.2.7 Antenna Interface ....................................................................................................................... 18 7 REGULATORY ........................................................................................................................................... 18 8 MECHANICAL SPECIFICATION ............................................................................................................ 19 9 RECOMMENDED REFLOW PROFILE .................................................................................................. 20 10 PACKAGE AND STORAGE CONDITION ............................................................................................. 21 10.1.1 Package Dimension ................................................................................................................... 21 10.1.2 Laser Mark ................................................................................................................................... 22 10.1.3 Part Order Numbering................................................................................................................ 22 10.1.4 ESD Level .................................................................................................................................... 22 Universal Scientific Industrial Corp. Doc No. Rev 1.4 Date. 2011/12/09 Page 4 Description Product Specification – WM-G-MR-09-Ref2 2 PURPOSE The purpose of this document is to define the product specification for 802.11b/g WiFi module WM-G-MR…

Text truncated - open the document above for the full version.

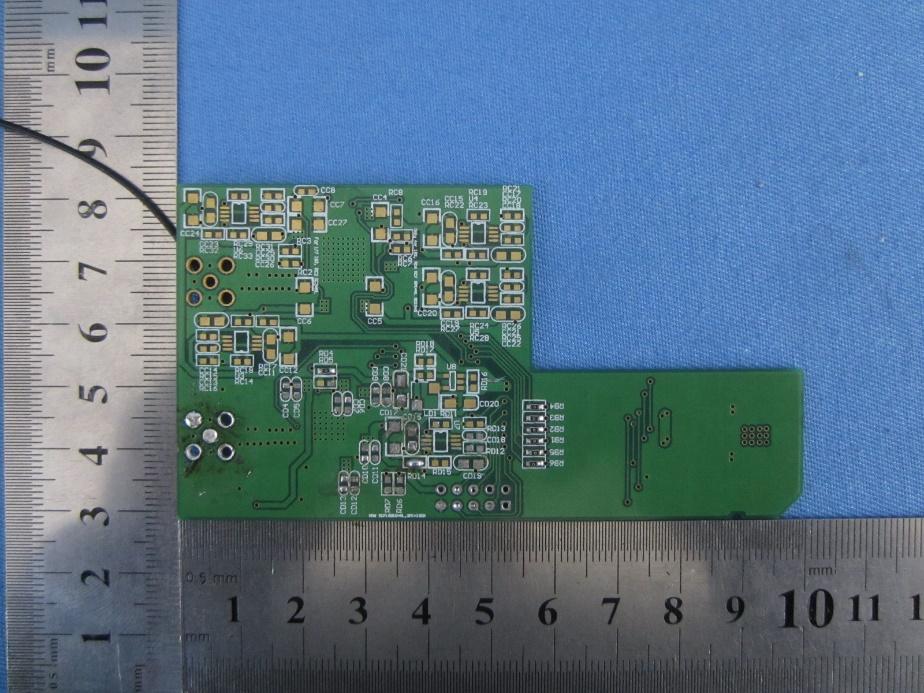

Connect One Ltd. FCCID:XM5MDLWMGMR09 ModuleCharacteristics  Item ModularapprovalrequirementEUTdescription Yes o r  No 1 ThemodulartransmittermusthaveitsownRF shielding. Themodulardoesn’tequipwith ownRFshielding. No 2 Themodulartransmittermusthavebuffered modulation/datainputs(ifsuchinputsare provided)toensurethatthemodulewill complywithPart15requirementsunder conditionsofexcessivedataratesor overmodulation. Datainputstothemoduleare bufferedthroughlogor microcontrollerconnections. Yes  3 Themodulartransmittermusthaveitsown powersupplyregulation. RFVoltageregulationishandled onthemodule.  Yes  4 Themodulartransmittermustcomplywiththe antennarequirementsofSection15.203and 15.204(c).Theantennamusteitherbe permanentlyattachedoremployaĀunique” antennacoupler(atallconnectionsbetween themoduleandtheantenna,includingthe cable). Theantennaisn’tuniqueness. NO 5 Themodulartransmittermustbetestedina standaloneconfiguration,i.e.,themodule mustnotbeinsideanotherdeviceduring testing. Thisisintendedtodemonstratethat themoduleiscapableofcomplyingwithPart15 emissionlimitsregardlessofthedeviceinto whichitiseventuallyinstalled. Themodulartransmitteris testedinastandalone configuration.Itisassembledon atestboard,whichdoesn’t includeanyactivecomponents exceptsome0ohmresistances. Duringthetest,thetestboard wasplaced20cmawayfromthe host. Yes  6 Themodulartransmittermustbelabeledwith itsownFCCIDnumber,and,iftheFCCIDisnot visiblewhenthemoduleisinstalledinside anotherdevice,thentheoutsideofthedevice intowhichthemoduleisinstalledmustalso displayalabelreferringtotheenclosedmodule. Thisexteriorlabelcanusewordingsuchasthe following:“ContainsTransmitterModuleFCC ID:XM5MDLWMGMR09”or“ContainsFCC ID:XM5MDLWMGMR09.”Anysimilarwording thatexpressesthesamemeaningmaybeused.  TheGranteemayeitherprovidesuchalabel,an exampleofwhichmustbeincludedinthe PleaserefertoFCCIDlabel formatandlocationanduser manualfile. Yes  Yes The antenna is uniqueness. It uses a RPSMA connector. 10cm away from the The EUT was placed at least 10cm away from the host. Connect One Ltd. applicationforequipmentauthorization,or, mustprovideadequateinstructionsalongwith themodulewhichexplainthisrequirement.In thelattercase,acopyoftheseinstructions mustbeincludedintheapplicationfor equipmentauthorization. 7 Themodulartransmittermustcomplywithany specificruleoroperatingrequirements applicabletothetransmitterandthe manufacturermustprovideadequate instructionsalongwiththemoduletoexplain anysuchrequirements.  Acopyofthese instructionsmustbeincludedintheapplication forequipmentauthorization.  Forexample, thereareverystrictoperationalandtiming requirementsthatmustbemetbeforea transmitterisauthorizedforoperationunder Section15.231.Forinstance,datatransmission isprohibited,exceptforoperationunder Section15.231(e),inwhichcasethereare separatefieldstrengthlevelandtiming requirements.Compliancewiththese requirementsmustbeassured. Refertomodularinstallation manual. Yes  8 Themodulartransmittermustcomplywithany applicableRFexposurerequirements.For example,FCCRulesinSections2.1091,2.1093 andspecificSectionsofPart15,including 15.319(i),15.407(f),15.253(f)and15.255(g), requirethatUnlicensedPCS,UNIIand millimeterwavedevicesperformroutine environmentalevaluationforRFExposureto demonstratecompliance.  Inaddition,spread spectrumtransmittersoperatingunderSection 15.247arerequiredtoaddressRFExposure complianceinaccordancewithSection 15.247(b)(4).  Modulartransmittersapproved underotherSectionsofPart15,when necessary,mayalsoneedtoaddresscertainRF Exposureconcerns,typicallybyproviding specificinstallationandoperatinginstructions for users,installersandotherinterestedparties toensurecompliance. TransmittermeetsMPE calculationof47CFR 1.107(b)(1).Pleaserefertothe testreport.Aminimum separationdistanceof20cmis alwaysmaintainedbetweenthe modularandanyhumanbeing nearby.  Yes

Size: 0.8*0.5mm FCC ID: XM5-MDLWMGMR09

Label location

RF Exposure Evaluation Limits The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) Limits for Maximum Permissible Exposure (MPE) Frequency range (MHz) Electric field strength (V/m) Magnetic field strength (A/m) Power density (mW/cm 2 ) Averaging time (minutes) (A) Limits for Occupational/Controlled Exposures 0.3–3.0 614 1.63 *(100) 6 3.0–30 1842/f 4.89/f *(900/f 2 ) 6 30–300 61.4 0.163 1.0 6 300–1500 f/300 6 1500–100,000 5 6 (B) Limits for General Population/Uncontrolled Exposure 0.3–1.34 614 1.63 *(100) 30 1.34–30 824/f 2.19/f *(180/f 2 ) 30 30–300 27.5 0.073 0.2 30 300–1500 f/1500 30 1500–100,000 1.0 30 f = frequency in MHz Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 ,Pout = output power to antenna in mW; G = gain of antenna in linear scale, Pi = 3.1416; R= distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. Test Result of RF Exposure Evaluation 802.11b mode Channel Output power to antenna (mW) Power Density at R=20cm (mW/cm 2 ) Limit (mW/cm 2 ) Result Lowest (2412MHz) 15.849 0.00500 1.0 PASS Middle (2437MHz) 15.849 0.00500 1.0 PASS Highest (2462MHz) 15.849 0.00500 1.0 PASS 802.11g mode Channel Output power to antenna (mW) Power Density at R=20cm (mW/cm 2 ) Limit (mW/cm 2 ) Result Lowest (2412MHz) 15.849 0.00500 1.0 PASS Middle (2437MHz) 15.849 0.00500 1.0 PASS Highest (2462MHz) 15.849 0.00500 1.0 PASS Remark: antenna gain=2.0 dBi Mode Rated Power (dBm) 802.11b 12 dBm +1.0 /2.0 802.11g 12 dBm +1.0 /2.0 The distance between user and EUT is at least 20cm 19.95 19.95 19.95 19.95 19.95 19.95 13dBm=19.95mW 19.95X1.585/4x3.14x400=0.0063 mW/cm2 0.0063<1 So SAR test is not required.

Global United Technology Services Co., Ltd. Report No.: GTSE13120202801 Authorized Signature: Robinson Lo Laboratory Manager This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product and does not permit the use of the GTS product certification mark. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. This report may only be reproduced and distributed in full. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of GTS International Electrical Approvals or testing done by GTS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by GTS International Electrical Approvals in writing. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” FCC REPORT Applicant: Connect One Ltd. Address of Applicant: 20 Atir Yeda Street, Kfar Saba 44643 Israel Equipment Under Test (EUT) Product Name: C1 Wireless b/g baseband Model No.: MDLWMGMR09 FCC ID: XM5-MDLWMGMR09 Applicable standards: FCC CFR Title 47 Part 15 Subpart C Section 15.247:2012 Date of sample receipt: January 06, 2014 Date of Test: January 06-13, 2014 Date of report issued: January 14, 2014 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above. Report No.: GTSE13120202801 Global United Technology Services Co., Ltd. Project No.: GTSE131202028RF 2nd Floor, Block No.2, Laodong Industrial Zone, Xixiang Road Baoan District, Shenzhen, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 2 of 42 2 Version Version No. Date Description 00 January 14, 2014 Original Prepared By: Date: January 14, 2014 Project Engineer Check By: Date: January 14, 2014 Reviewer Report No.: GTSE13120202801 Global United Technology Services Co., Ltd. Project No.: GTSE131202028RF 2nd Floor, Block No.2, Laodong Industrial Zone, Xixiang Road Baoan District, Shenzhen, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 3 of 42 3 Contents Page 1 COVER PAGE ........................................................................................................................................... 1 2 VERSION .................................................................................................................................................. 2 3 CONTENTS .............................................................................................................................................. 3 4 TEST SUMMARY ..................................................................................................................................... 4 5 GENERAL INFORMATION ...................................................................................................................... 5 5.1 CLIENT INFORMATION ......................................................................................................................... 5 5.2 GENERAL DESCRIPTION OF EUT ......................................................................................................... 5 5.3 TEST MODE ........................................................................................................................................ 6 5.4 DESCRIPTION OF SUPPORT UNITS ....................................................................................................... 6 5.5 TEST FACILITY .................................................................................................................................... 7 5.6 TEST LOCATION ................................................................................................................................. 7 6 TEST INSTRUMENTS LIST ..................................................................................................................... 8 7 TEST RESULTS AND MEASUREMENT DATA ...................................................................................... 9 7.1 ANTENNA REQUIREMENT: .................................................................................................................... 9 7.2 CONDUCTED EMISSIONS ................................................................................................................... 10 7.3 CONDUCTED PEAK OUTPUT POWER .................................................................................................. 13 7.4 CHANNEL BANDWIDTH ...................................................................................................................... 16 7.5 POWER SPECTRAL DENSITY ............................................................................................................. 19 7.6 BAND EDGES .................................................................................................................................... 22 7.6.1 Conducted Emission Method ..................................................................................................... 22 7.6.2 Radiated Emission Method ........................................................................................................ 24 7.7 SPURIOUS EMISSION ......................................................................................................................... 27 7.7.1 Conducted Emission Method ..................................................................................................... 27 7.7.2 …

Text truncated - open the document above for the full version.

Radiated Emission Conducted Emission
