XMK-MMXRUPRX003FIXED DIGITAL TRANSCEIVER

Radio Unit Installation & Operation Guide 2012 This document contains proprietary information that must not be provided or copied to third parties without express permission from MiMOMax Wireless Limited 2 © MiMOMax Radio Unit Installation & Operation Guide MiMOMax Wireless Ltd Radio Unit Installation & Operation Guide 2012 Disclaimer While precaution has been taken in the preparation of this literature and it is believed to be correct at the time of issue, MiMOMax Wireless Ltd assumes no liability for errors or omissions or for any damages resulting from the use of this information. Due to a policy of continuous technical improvement, the contents of this document and any specifications contained therein are subject to revision and may change without notice. 3 © MiMOMax 2012 Radio Unit Installation & Operation Guide TABLE OF CONTENTS TABLE OF CONTENTS ..................................................................................................................................... 3 1 INTRODUCTION..................................................................................................................... 5 2 OVERVIEW OF THE MIMOMAX RADIO UNIT ....................................................................... 6 2.1 MIMO DIGITAL LINK GENERAL SPECIFICATIONS................................................ 6 2.2 MECHANICAL DIMENSIONS ............................................................................... 7 2.2.1 Base Radio Unit ...........................................................................................7 2.2.2 Rack Mount Option ......................................................................................8 2.2.3 Pole Mount Option .......................................................................................8 2.2.4 Wall Mount Option ......................................................................................8 3 ON-SITE INSTALLATION ...................................................................................................... 9 3.1 SITE ENGINEERING AND RECOMMENDATIONS ................................................... 9 3.2 INSTALLING RADIO MOUNTS ............................................................................ 9 3.2.1 Radio Wall Mount Kit ..................................................................................9 3.3 UNIT POWER CONSIDERATIONS .................................................................... 11 3.3.1 Essential Power Requirements ................................................................... 11 3.3 INSTALLING ANTENNA .................................................................................... 15 3.3.1 Bi-Quad Diversity Directional-Loop Yagi Antenna .................................. 15 3.4 ENVIRONMENTAL AND SAFETY ....................................................................... 17 3.4.1 Grounding .................................................................................................. 17 3.5.2 Lightning protection ................................................................................... 17 3.5.3 Equipment ventilation ................................................................................ 19 3.6 CONNECTING UP THE RADIO .......................................................................... 19 4 RADIO CONFIGURATION.................................................................................................... 20 4.1 SETUP .......................................................................................................... 20 4.2 SYSTEM INFORMATION AND CONFIGURATION ................................................... 21 4.3 SYSTEM INFORMATION ................................................................................... 22 4.4 NETWORKING ................................................................................................ 23 4.5 RF SETTINGS ............................................................................................... 26 4.6 SERIAL INTERFACES ....................................................................................... 27 4.7 TERMINAL SERVER CONFIGURATION ............................................................... 27 4.8 CHANGING PASSWORDS ................................................................................ 29 5 MDL ...................................................................................................................................... 30 5.1 SYSTEM OVERVIEW ....................................................................................... 30 5.2 MDL IP NETWORK OVERVIEW ....................................................................... 30 5.3 CONFIGURATION ........................................................................................... 32 5.3.1 Configuring the BRU ................................................................................. 32 5.3.2 CONFIGURING THE RRUS .............................................................................. 34 5.4 SYSTEM INFORMATION ................................................................................... 35 5.4.1 BRU ........................................................................................................... 35 4 © MiMOMax Radio Unit Installation & Operation Guide 5.4.2 RRUS .......................................................................................................... 37 6. SOFTWARE FEATURE ENABLERS.................................................................................... 38 6.1 SOFTWARE FEATURE REQUEST ..................................................................... 40 7 ADVANCED TOPICS ........................................................................................................... 42 7.1 MONITORING AND DIAGNOSTICS ..................................................................... 42 7.2 LONG TERM MONITORING ............................................................................... 44 7.3 SOFTWARE UPGRADE ..............…

Text truncated - open the document above for the full version.

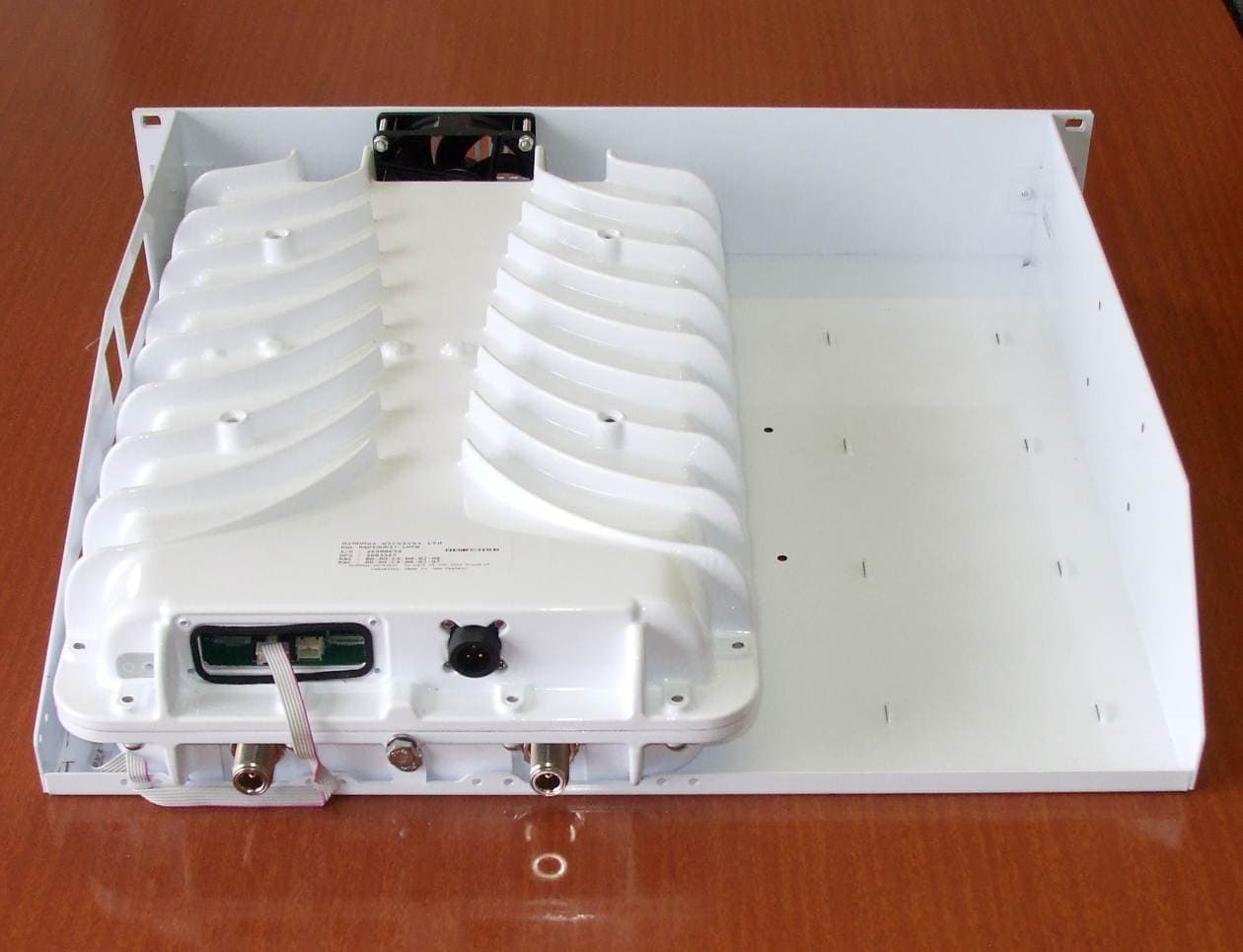

_________________________________________________________________________________________________________________________________________________________________________ Page 21 of 29 Test Report No 121002.1 12 th December 2012 This report may not be reproduced except in full. 10. PHOTOGRAPHS External views _________________________________________________________________________________________________________________________________________________________________________ Page 22 of 29 Test Report No 121002.1 12 th December 2012 This report may not be reproduced except in full. Ports Label

FCC Label: Label dimension: 24mm x 66mm Material: White Polyester Printing: Black thermal transfer ribbon

_________________________________________________________________________________________________________________________________________________________________________ Page 23 of 29 Test Report No 121002.1 12 th December 2012 This report may not be reproduced except in full. Internal Views Main PCB _________________________________________________________________________________________________________________________________________________________________________ Page 24 of 29 Test Report No 121002.1 12 th December 2012 This report may not be reproduced except in full. Main PCB _________________________________________________________________________________________________________________________________________________________________________ Page 25 of 29 Test Report No 121002.1 12 th December 2012 This report may not be reproduced except in full. TX PCB TX PCB _________________________________________________________________________________________________________________________________________________________________________ Page 26 of 29 Test Report No 121002.1 12 th December 2012 This report may not be reproduced except in full. Duplexer DPS PCB _________________________________________________________________________________________________________________________________________________________________________ Page 27 of 29 Test Report No 121002.1 12 th December 2012 This report may not be reproduced except in full. PWR Supply RX PCB Transmitter VCO section of the PCB assembly XMWL-TX-CAAA This photo shows that only resonators Y1001 and Y1002 are fitted for obtaining coverage over the operating frequency range for USA market

Page 1 © MiMOMax Wireless Ltd 900MHz RF Tunup Procedure TABLE OF CONTENTS MWL-RADIOUNIT 900MHz RF Tunup Procedure This document contains proprietary information and must not be provided or copied to third parties without express permission from MiMOMax Wireless Ltd Page 2 © MiMOMax Wireless Ltd 900MHz RF Tunup Procedure TABLE OF CONTENTS 1 CONFIGURATION, CONTROL AND MONITORING SYSTEM........................................................................................ 3 1.1 OVERVIEW OF THE CCMS ............................................................................................................................................. 3 1.2 TASKS THAT CAN BE PERFORMED VIA THE CCMS.............................................................................................................. 3 1.3 LOGGING INTO CCMS................................................................................................................................................... 3 1.4 RF SETTINGS................................................................................................................................................................ 4 2 SETTING OPERATING FREQUENCY & TRANSMITTER CALIBRATION .......................................................................... 5 2.1 INTRODUCTION............................................................................................................................................................ 5 2.2 EQUIPMENT REQUIRED: POWER METER & POWER ATTENUATORS......................................................................................... 5 2.3 PROCESS OVERVIEW...................................................................................................................................................... 5 2.4 CCMS PAGES.............................................................................................................................................................. 5 3 DUPLEXERS.............................................................................................................................................................13 3.1 DUPLEXER TUNING GUIDE............................................................................................................................................ 15 3.1.1 Tools/Equipment Required ............................................................................................................................ 15 3.1.2 Procedure....................................................................................................................................................... 15 Page 3 © MiMOMax Wireless Ltd 900MHz RF Tunup Procedure 1 CONFIGURATION, CONTROL AND MONITORING SYSTEM 1.1 OVERVIEW OF THE CCMS
CCMS stands for Configuration, Control and Monitoring System
It is a web based configuration, requiring only a web browser (Internet Explorer or Mozilla Firefox)
No “service kit” software is required
CCMS is used to configure radio, perform software updates etc.
CCMS has levels of access such as: user and tech
The radio has a database which contains all settings; these are manipulated with the CCMS web application. 1.2 TASKS THAT CAN BE PERFORMED VIA THE CCMS
Monitoring radio link performance
Radio link configuration
Changing passwords
Changing RF parameters (Power and Frequency)
Changing a radio’s IP address
Configuring Serial parameters (Synchronous, Asynchronous and Submux)
Configuring M-SEC
Configuring M-DNP3
Performing software upgrades
Backing up radio settings
Activating software feature enables
Configuring SNMP
Configuring M-RAP
Configuring M-DAP
Configuring M-PoD 1.3 LOGGING INTO CCMS MiMOMax radios use a built in web configuration package called CCMS. To access the CCMS, point a web browser to the radio’s IP address (see Figure 1). MiMOMax radios are often preconfigured with an IP address specified by the customer when the radio is ordered. If no IP address has been assigned, the default is 192.168.0.1/24 for Tx-High radios and 192.168.0.2/24 for Tx-Low radios. Additionally MiMOMax radios will broadcast 3 gratuitous ARPs to advertise the IP address when the radio boots up. Figure 1: MiMOMax logon Page 4 © MiMOMax Wireless Ltd 900MHz RF Tunup Procedure To logon to the radio, press the “log into System” button. MiMOMax radios have two levels of access (user and tech). The default login credentials are: Username Default password user user tech tech Figure 2: Default login credentials 1.4 RF SETTINGS MiMOMax radios include the ability to set frequency and output power level for the tech login. They also have a range of options for advanced configuration and debugging. The current transmit and receive frequencies can be viewed on the RF Tx and Rx page (see Figure 3). The procedure to change the operating frequencies of the unit is covered in section 2. Output power can be set on the RF Tx and Rx page, see Figure 3. Its range is between 0 and +30 dBm. The power can be specified in either dBm or mW, by selecting either dBm or mW as the transmitter power unit. A number of other options are available on this page such as three advanced parameters that are used to optimise the radio’s behaviour in challenging RF conditions. These parameters should only be changed under the direction of MiMOMax support. As with all options, to save changes press the “Save” button and then to activate the changes, click “Apply changes” in the control panel. Figure 3: RF Configuration Page Page 5 © MiMOMax Wireless Ltd 900MHz RF Tunup Procedure 2 SETTING OPERATING FREQUENCY & TRANSMITTER CALIBRATION 2.1 INTRODUCTION Setting operating frequencies of a MiMOMax radio is done via the CCMS. The radio’s internal duplexers also may need to be re-tuned. This is covered in section 3. The tech and factory use the same process with the factory being able to perform the additional step of saving the current settings as “factory default”. 2.2 EQUIPMENT REQUIRED: POWER METER & POWE…

Text truncated - open the document above for the full version.

_________________________________________________________________________________________________________________________________________________________________________ Page 18 of 29 Test Report No 121002.1 12 th December 2012 This report may not be reproduced except in full. Radio Frequency Hazard Information As per Section 1.1310 and Section 2.1091 certification of this transmitter is sought using the Controlled / Occupational exposure limits as detailed in OST/OET Bulletin Number 65. This transmitter is a fixed digital transmitter that uses two transmitters that transmit identical modulation with one transmitter transmitting using a horizontally polarised antenna and the other transmitter transmits using a vertically polarised antenna. Radio Frequency Hazard measurements and calculations were made using the antenna with the highest gain supplied by the client for this device. The Radio Frequency Hazard assessment has been carried out using a peak detector as this gave the worst case result. The transmitters have a rated average output power of 1 watt (+30.0 dBm) with the highest power measured being 1.02 watts (+30.1 dBm). The supplied antenna has a gain of 2 x 16 dBi (2 x 39.8) however no coax loss has been accounted for. The theoretical average radiated power, without any coax attenuation accounted for, would be of +46.1 dBm (40.7 watts peak). As this transmitter uses MIMO techniques with digital modulation measurements were made at the test site at a distance of 10 metres to determine the peak radiated power when transmitting on 928.9875 MHz. A peak detector was used as this would give the worst case levels as digital modulation has been used. Two identical 10 metre lengths of coax cable were used to attach the antenna to the transmitter The following results were recorded. Frequency (MHz) Level (dBuV/m) Level (dBm) Power (watts) Polarity Detector 928.9875 138.0 53.2 210.3 Vertical Peak 928.9875 138.3 53.5 225.4 Horizontal Peak The worst case EIRP power of the transmitter was measured in horizontal polarization to be +53.5 dBm or 225.4 watts peak. Calculations have also been made using the General Public/Uncontrolled Exposure limits. The minimum distance from the antenna at which the MPE is met is calculated from the equation relating field strength in V/m, measured maximum radiated transmit power in watts and the separation distance in metres. _________________________________________________________________________________________________________________________________________________________________________ Page 19 of 29 Test Report No 121002.1 12 th December 2012 This report may not be reproduced except in full. The maximum radiated transmitter measured was = 225.4 watts. Power density, mW/cm 2 = E2/3770 E, V/m = (√(30 * P * G * DC)) / d Transmitting on 928.9875 MHz Occupational limit: 3.10 mW/cm 2 (f/300 = 929 MHz/300) General Population: 0.62 mW/cm 2 (f/1500 = 929 MHz/1500) Occupational General Public E = 3.10 mW/cm 2 = E2/3770 E = 0.62 mW/cm 2 = E2/3770 E= √3.10 * 3770 E= √0.62 * 3770 E = 108.1 V/m E = 48.3 V/m Occupational General Public d = √ (30 * P * G*DC) / E d = √ (30 * P * G*DC) / E d = √ (30 * 225.4) / 108.1 d = √ (30 * 225.4) / 48.3 d = 0.76 metres d = 1.7 metres Result: Complies if the user is advised of the above safe distances in the appropriate

_________________________________________________________________________________________________________________________________________________________________________ Page 1 of 29 Test Report No 121002.1 12 th December 2012 This report may not be reproduced except in full. EMC Technologies (NZ) Ltd PO Box 68-307 Newton, Auckland Phone 09 360 0862 Fax 09 360 0861 E-Mail Address: [email protected] Web Site: www.emctech.com.au TEST REPORT MiMOMax MWL-RADIOUNIT-**P/Q* Fixed Digital Transceiver tested to the Code of Federal Regulations (CFR) 47 Part 101 –Fixed Microwave Services for MiMOMax Wireless Ltd This Test Report is issued with the authority of: ______________________________________ Andrew Cutler - General Manager _________________________________________________________________________________________________________________________________________________________________________ Page 2 of 29 Test Report No 121002.1 12 th December 2012 This report may not be reproduced except in full. Table of Contents 1. STATEMENT OF COMPLIANCE 3 2. RESULTS SUMMARY 3 3. INTRODUCTION 3 4. CLIENT INFORMATION 4 5. DESCRIPTION OF TEST SAMPLE 4 6. ATTESTATION 6 7. TEST RESULTS 7 8. TEST EQUIPMENT USED 20 9. ACCREDITATIONS 20 10. PHOTOGRAPHS 21 _________________________________________________________________________________________________________________________________________________________________________ Page 3 of 29 Test Report No 121002.1 12 th December 2012 This report may not be reproduced except in full. 1. STATEMENT OF COMPLIANCE The MiMOMax MWL-RADIOUNIT-**P/Q* Fixed Digital Transceiver complies with the Code of Federal Regulations (CFR) 47 Part 101 – Fixed Microwave Services. 2. RESULTS SUMMARY The results of testing carried out between the 20 th October and the 5 th December 2012 are summarised below. Clause Description Result 101.107 Frequency tolerance Complies 101.109 Bandwidth Complies 101.111 Emission limitations Spurious emission at antenna port Spurious emissions field strength Complies Complies Complies 101.113 Transmitter power limitations Complies 1.1310 Radio frequency exposure limits Complies 3. INTRODUCTION This report describes the tests and measurements performed for the purpose of determining compliance with the specification. The client selected the test sample. This report relates only to the sample tested. This report contains no corrections or erasures. Measurement uncertainties with statistical confidence intervals of 95% are shown below test results. Both Class A and Class B uncertainties have been accounted for, as well as influence uncertainties where appropriate. _________________________________________________________________________________________________________________________________________________________________________ Page 4 of 29 Test Report No 121002.1 12 th December 2012 This report may not be reproduced except in full. 4. CLIENT INFORMATION Company Name MiMOMax Wireless Ltd Address 540 Wairakei Road Christchurch Country New Zealand Contact Mr Kok Heng - Loh 5. DESCRIPTION OF TEST SAMPLE Brand Name MiMOMax Model Number MWL-RADIOUNIT-**P/Q* Product Fixed Digital Transceiver (928-960 MHz) Manufacturer MiMOMAX Wireless Ltd Manufactured in New Zealand Designed in New Zealand Serial Numbers 26900834 FCC ID XMK-MMXRUPRX003 The sample tested has the following specifications: Rated Transmitter Output Power Two transmitters each outputting +30 dBm (1 Watt) average Transmitter FCC Frequency Bands 928.0 – 929.0 MHz, 932.0 – 932.5 MHz, 932.5 – 935.0 MHz, 941.0 – 941.5 MHz 941.5 – 944.0 MHz, 952.0 – 958.0 MHz, 958.0 – 960.0 MHz _________________________________________________________________________________________________________________________________________________________________________ Page 5 of 29 Test Report No 121002.1 12 th December 2012 This report may not be reproduced except in full. Test frequencies Frequency MHz Mode Power Watts Bandwidth kHz 928.9875 Transmit 1.0 12.5 928.9875 Transmit 1.0 25.0 Testing was carried out on a single frequency that is representative of the performance of the radio over the frequency range of 928 – 960 MHz as a result of pre-testing that was carried out. Emission Designators / Modes of operation 10k0W1W – digital speech and data 20k0W1W – digital speech and data Modulation Modes: QPSK, 16QAM, 64QAM, 256QAM Standard Temperature and Humidity Temperature: +15C to + 30 maintained. Relative Humidity: 20% to 75% observed. Standard Test Power Source Standard Test Voltage: 13.8 Vdc Extreme Temperature High Temperature: + 50C maintained. Low Temperature: - 30 C maintained. Extreme Test Voltages High Voltage: 27.6 Vdc Low Voltage: 10.8 Vdc _________________________________________________________________________________________________________________________________________________________________________ Page 6 of 29 Test Report No 121002.1 12 th December 2012 This report may not be reproduced except in full. 6. AT T E S TAT I O N The MiMOMax MWL-RADIOUNIT-**P/Q* Fixed Digital Transceiver complies with the Code of Federal Regulations (CFR) 47 Part 101 – Fixed Microwave Services. This report describes the tests and measurements performed for the purpose of determining compliance with the specification with the following conditions: The client selected the test sample. The report relates only to the sample tested. This report does not contain corrections or erasures. Measurement uncertainties with statistical confidence intervals of 95% are shown below test results. Both Class A and Class B uncertainties have been accounted for, as well as influence uncertainties where appropriate. In addition this equipment has been tested in accordance with the requirements contained in the appropriate Commission regulations. To the best of my knowledge, these tests were performed using measurement procedures that are consistent with industry or Commission standards and demonstrate that the equipment complies with the appropriate st…

Text truncated - open the document above for the full version.

_________________________________________________________________________________________________________________________________________________________________________ Page 28 of 29 Test Report No 121002.1 12 th December 2012 This report may not be reproduced except in full. Open Air Test Site Setup _________________________________________________________________________________________________________________________________________________________________________ Page 29 of 29 Test Report No 121002.1 12 th December 2012 This report may not be reproduced except in full.
