XN6-MC100BLUEMC100Blue

Zylux Acoustic Corporation
MC100Blue - FCC ID XN6-MC100BLUE - Zylux Acoustic Corporation
Click to zoom

Application Details

Equipment Class
DTS - Digital Transmission System
Date of Grant
Jul 31, 2013
Application Purpose
Original Equipment
Date of Application
Jul 31, 2013
Equipment Note
MC100Blue
Frequency Range
2402.00000000 - 2480.00000000
Company
Zylux Acoustic Corporation
Country
Taiwan

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗

External Photos

↗

ID Label/Location Info

↗
↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

OWNER’S MANUAL / SAFETY INSTRUCTIONS / COMPLIANCE IN FORMATION MC100 Blue BluetoothÂź Wireless Speaker System Français SystĂšme de haut-parleurs sans fil Bluetooth MD MANUEL DE L’UTILISATEUR / INSTRUCTIONS DE SÉCURITÉ / INFORMATIONS SUR LA CONFORMITÉ Español Sistema de altavoces inalĂĄmbricos por Bluetooth Âź MANUAL DEL PROPIETARIO/INSTRUCCIONES DE SEGURIDAD /INFORMACIÓN DE CUMPLIMIENTO 2 E N G L I S H Designed in USA Made in China Boston Acoustics, Inc., USA FCC Information (For US customers) 1. COMPLIANCE INFORMATION This equipment complies with Part 15 of the FCC Rules. Operation is subject to the two following conditions: (1) this product may not cause harmful interference, and (2) this product must accept any interference received, including interference that may cause undesired operation. FCCID:XN6-MC100BLUE Boston Acoustics 7 Constitution Way, Woburn, MA 01801 USA Tel. 978-538-5000 2. IMPORTANT NOTICE: DO NOT MODIFY THIS PRODUCT This product, when installed as indicated in the instructions contained in this manual, meets FCC requirements. Modification not expressly approved by Boston Acoustics may void your authority, granted by the FCC, to use the product. 3. CAUTION ‱ To comply with FCC RF exposure compliance requirement, separation distance of at least 20 cm must be maintained between the antenna of this product and all persons. ‱ This product and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter. 4. NOTE This product has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the FCC Rules. The limits are designed to provide reasonable protection against harmful interference in a residential installation. This product generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment OFF and ON, the user is encouraged to try to correct the interference by one or more of the following measures: ‱ Reorient or relocate the receiving antenna. ‱ Increase the separation between the equipment and receiver. ‱ Connect the equipment to an outlet on a circuit different from that to which the receiver is connected. ‱ Consult the dealer or an experienced radio or television technician for help. IC Information (For Canadian customers) 1. PRODUCT This product contains IC 8819A-MC100BLUE. This Class B digital apparatus complies with Canadian ICES-003. 2. CAUTION To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that permitted for successful communication. This device complies with Industry Canada licence- exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication. ConformĂ©ment Ă  la rĂ©glementation d’Industrie Canada, le prĂ©sent Ă©metteur radio peut fonctionner avec une antenne d’un type et d’un gain maximal (ou infĂ©rieur) approuvĂ© pour l’émetteur par Industrie Canada. Dans le but de rĂ©duire les risques de brouillage radioĂ©lectrique Ă  l’intention des autres utilisateurs, il faut choisir le type d’antenne et son gain de sorte que la puissance isotrope rayonnĂ©e Ă©quivalente (p.i.r.e.) ne dĂ©passe pas l’intensitĂ© nĂ©cessaire Ă  l’établissement d’une communication satisfaisante. Le prĂ©sent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisĂ©e aux deux conditions suivantes : (1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioĂ©lectrique subi, mĂȘme si le brouillage est susceptible d’en compromettre le fonctionnement. Informations sur IC (pour les clients canadiens) 1. APPAREIL Cet appareil contiens IC 8819A-MC100BLUE. Cet appareil numĂ©rique de las classe B est conforme Ă  la norme NMB-003 du Canada. 2. ATTENTION Afin de rĂ©duire le risque d ́interfĂ©rence aux autres utilisateurs, il faut choisir le type d ́antenne et son gain de façon Ă  ce que la puissance isotrope rayonnĂ©e Ă©quivalente (p.i.r.e.) ne soit pas supĂ©rieure au niveau requis pour l ́obtention d ́une communication satisfaisante. 3 E N G L I S H 1.Read these instructions. 2.Keep these instructions. 3.Heed all warnings. 4.Follow all instructions. 5.Do not use this apparatus near water. 6.Clean only with dry cloth. 7.Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. 8.Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 9.Do not defeat the safety purpose of the polarized or grounding- type plug. A polarized plug has two blades with one wider than the other. A grounding-type plug has two blades and a third grounding prong. The wide blade or the third prong is provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. 10.Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the app


Text truncated - open the document above for the full version.

Cover Letter(s)

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (current) 2.0 3.0 Jan-31-2012 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 3.0 Zylux Acoustic Corporation 3F, 22, Lane 35, Jihu Road, Neihu Technology Park, Taipei 11492, Taiwan 2013/07/24 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, __ Zylux Acoustic Corporation hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Product description: MC100Blue Model name: MC100Blue FCC ID: XN6-MC100BLUE We affirm that between SIEMIC and __ Zylux Acoustic Corporation _ , any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Client’s signature : Client’s name / title : Percy.lee / Project Manager Contact information / address: 3F, 22, Lane 35, Jihu Road, Neihu Technology Park, Taipei 11492, Taiwan

Cover Letter(s)

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (current) 2.0 3.0 Jan-31-2012 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 3.0 Zylux Acoustic Corporation 3F, 22, Lane 35, Jihu Road, Neihu Technology Park, Taipei 11492, Taiwan 2013/07/24 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: XN6-MC100BLUE We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Schematics - Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature : Client’s name / title : Percy.lee / Project Manager Contact information / address: 3F, 22, Lane 35, Jihu Road, Neihu Technology Park, Taipei 11492, Taiwan

External Photos

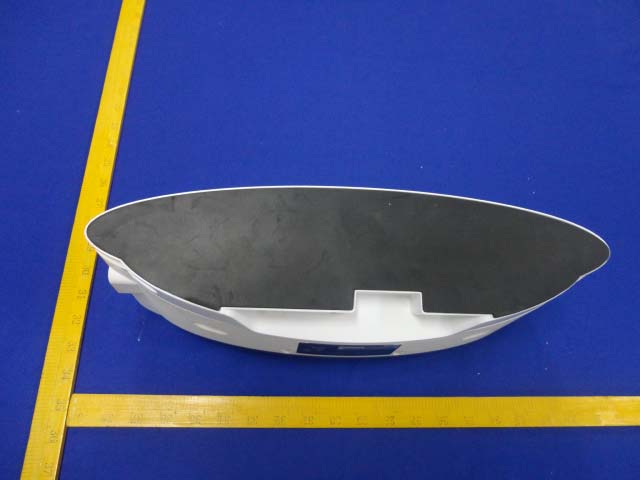

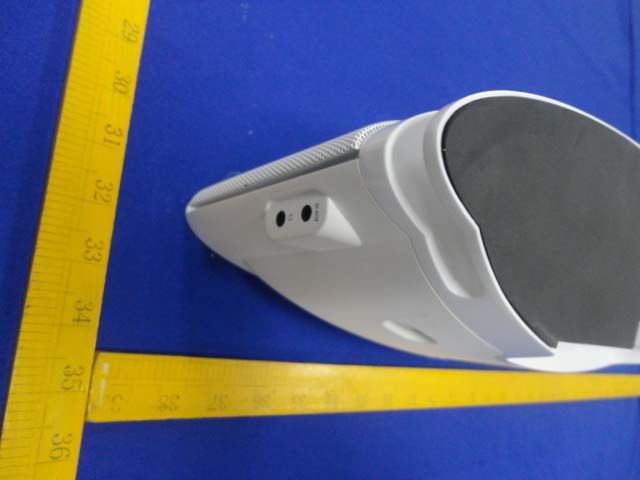

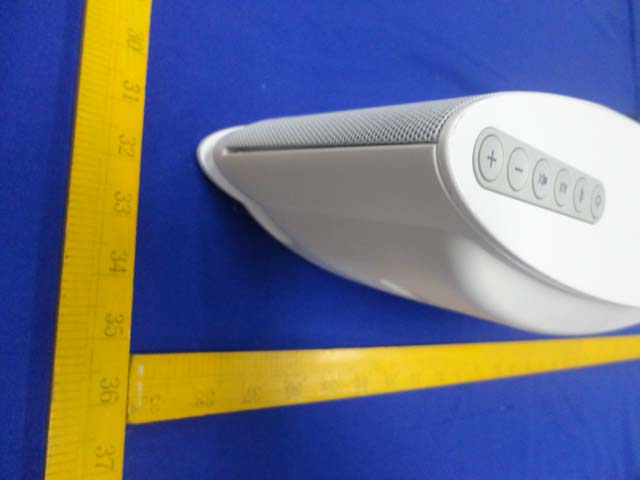

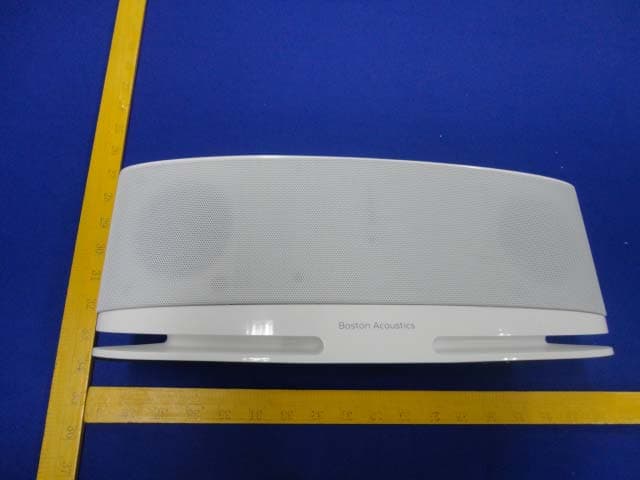

FCC ID: XN6-MC100BLUE (677HFKQRORJ\&R/WG5HSRUW1R(67(5 Page 97 of 107 13. PHOTOS OF EUT External Photos M/N: MC100Blue FCC ID: XN6-MC100BLUE (677HFKQRORJ\&R/WG5HSRUW1R(67(5 Page 98 of 107 External Photos M/N: MC100Blue FCC ID: XN6-MC100BLUE (677HFKQRORJ\&R/WG5HSRUW1R(67(5 Page 99 of 107 External Photos M/N: MC100Blue

ID Label/Location Info

Label Location

ID Label/Location Info

ZYLUX Acoustic Corporation DRAWER.:COLOR. DESIGN.CHECKED.APPROVAL. NO.MATERIAL. SCALE: UNIT: TITLE. DATE:MODEL.: SHEETREV CHANGE RECORDSDATEREVISER PROJECTION 3RD ANGLE PROJECTION 3RD ANGLE ABCDE 5 4 3 1 2 1 2 3 5 4 CABDE ISS B C A E D PROTOTYPE-A4 13’06.15 SHEN PRODUCT-LABEL K1203-0004360 Shen Jian A 1/1 mm Shijun DingYONGShen Jian 1 : 1 MC100Blue MODEL.: CS-0000014AA TOLERANCES ±0.3 ±0.6 ±0.25 ±0.1 ±0.2 16~63 150~250 250~500 63~150 ~16 ±0.05 ±0.4 ±0.2 ±0.1 ±0.15 A ±0.6 ±0.8 ±0.2 ±0.4 ±0.5 BC ±1 ±1.5 ±0.4 ±0.6 ±0.8 D ANGLE ± ` ± 1` ± 10` ± 15` ± 30` 2013’06.15 NOTE : 1. IF TOLERANCE FOR EACH DIMENSIONS NOT SHOWN, REFER TO TABLE <B> TABLE FOR TOLERANCE. 2. USE R=1.0MM FOR ALL RADII NOT SPECIFIED. 3. UNACCEPTABLE CONDITIONS: FLASH, SHRINKAGE, DEFORMATION, AND/OR SPOTS. 4. REPRESENTS REVISIONS OR NEW DIMENSIONS. 5. REPRESENTS CRITICAL AREAS TO BE MEASURED. ALL OTHER DIMENSIONS ARE FOR REFERANCE. 6. THE MOULD NUMBER: NO 7. TEXTURE NUMBER: NO 8. ALL SUBSTANCE NEED TO MEET THE ROHS / REACH REQUIREMENTS. DETAILS REFER TO ZYLUX'S PROCEDURE "QMI-P40-01". 9. WILL USE ±0.05MM INNER DIAMETER FOR THE SCREW WHICH NOT SPECIFIED THE DETAILED DIMENSION. LETTER: SILVER BACKGROUND: BLACK 85 4-R2 + 0 - 0.5 45 + 0 - 0.5 BHF000101 CODE 39 SCAN: MC100BLUEB-01201 CODE 39 SCAN: BHF000101 Serial No. from 000101~UP, used finish after from 000101~UP again. MP before used 000001 to 000100 FIXED BHF = (MC100BLUEB-01201) BFM = HT-0000006AA BFL = HT-0000006AB 000101 6000101

Internal Photos

FCC ID: XN6-MC100BLUE (677HFKQRORJ\&R/WG5HSRUW1R(67(5 Page 100 of 107 Internal Photos M/N: MC100Blue FCC ID: XN6-MC100BLUE (677HFKQRORJ\&R/WG5HSRUW1R(67(5 Page 101 of 107 Internal Photos M/N: MC100Blue FCC ID: XN6-MC100BLUE (677HFKQRORJ\&R/WG5HSRUW1R(67(5 Page 102 of 107 Internal Photos M/N: MC100Blue Bluetooth Antenna FCC ID: XN6-MC100BLUE (677HFKQRORJ\&R/WG5HSRUW1R(67(5 Page 103 of 107 Internal Photos M/N: MC100Blue FCC ID: XN6-MC100BLUE (677HFKQRORJ\&R/WG5HSRUW1R(67(5 Page 104 of 107 Internal Photos M/N: MC100Blue FCC ID: XN6-MC100BLUE (677HFKQRORJ\&R/WG5HSRUW1R(67(5 Page 105 of 107 Internal Photos M/N: MC100Blue

RF Exposure Info

FCC ID: XN6-MC100BLUE EST Technology Co.,Ltd Report No. ESTE-R1307028 Page 1 of 3 FCC 47 CFR MPE REPORT Zylux Acoustic Corporation MC100Blue Model Number: MC100Blue FCC ID: XN6-MC100BLUE Prepared for : Zylux Acoustic Corporation 3F, 22, Lane 35, Jihu Road, Neihu Technology Park, Taipei 11492, Taiwan Prepared By : EST Technology Co., Ltd. Santun Management Zone, Houjie District,DongGuan ,GuangDong, China. Tel: 86-769-83081888-808 Fax:86-769-83081878 Report Number: ESTE-R1307028 Date of Test : June 30 ~ July 22, 2013 Date of Report : July 23, 2013 FCC ID: XN6-MC100BLUE EST Technology Co.,Ltd Report No. ESTE-R1307028 Page 2 of 3 Maximum Permissible Exposure 1ǃApplicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2m normally can be maintained between the user and the device. (a) ǃLimits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm2) Averaging TimesΊEΊ 2 , ΊHΊ2 or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842/f 4.89/f (900/f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-10000 5 6 (b)ǃLimits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm2) Averaging TimesΊEΊ 2 , ΊHΊ2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-10000 1.o 30 Note: f=frequency in MHz; *Plane-wave equivalent power density 2 ǃMPE Calculation Method E (V/m) = (30*P*G) 0.5/d Power Density: Pd (W/m2) = E2/377 E = Electric Field (V/m) P = Peak RF output Power (W) G = EUT Antenna numeric gain (numeric) d = Separation distance between radiator and human body (m) The formula can be changed to Pd = (30*P*G) / (377*d2) From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained FCC ID: XN6-MC100BLUE EST Technology Co.,Ltd Report No. ESTE-R1307028 Page 3 of 3 3ǃCalculated Result and Limit Antenna gain Model Frequency (MHz) Peak output power (dBm) Peak output power (mW) (dBi) (Linear) Power Density (S) (mW/cm2) Limited of Power Density (S) (mW/cm2) Test Result 2402 -2.540.5570 1 0.00011 1 Compiles 2440 1.05 1.2740 1 0.00025 1 Compiles BT 4.0-BLE GFSK 2480 1.78 1.5070 1 0.00030 1 Compiles Note: dBm = 10log(mW)

Test Report

FCC ID: XN6-MC100BLUE (677HFKQRORJ\&R/WG5HSRUW1R(67(5 Page 1 of 69 FCC PART 15C TEST REPORT FOR CERTIFICATION On Behalf of Zylux Acoustic Corporation MC100Blue Model Number: MC100Blue FCC ID: XN6-MC100BLUE Prepared for : Zylux Acoustic Corporation 3F, 22, Lane 35, Jihu Road, Neihu Technology Park, Taipei 11492, Taiwan Prepared By : EST Technology Co., Ltd. Santun(guantai Road), Houjie Town, DongGuan City, GuangDong, China. Tel: 86-769-83081888-808 Report Number: ESTE-R1307027 Date of Test : June 30 ~ July 22, 2013 Date of Report : July 23, 2013 FCC ID: XN6-MC100BLUE (677HFKQRORJ\&R/WG5HSRUW1R(67(5 Page 2 of 69 TABLE OF CONTENTS Description Page TESTREPORT VERIFICATION.........................................................................................................................3 1.G ENERAL INFORMATION.................................................................................................................5 1.1.Description of Device (EUT) ........................................................................................................... 5 2.SUMMARY OF TEST.........................................................................................................................6 2.1.Summary of test result...................................................................................................................... 6 2.2.Test Facilities ................................................................................................................................... 7 2.3.Assistant equipment used for test ..................................................................................................... 8 2.4.Block Diagram ................................................................................................................................. 8 2.5.Test mode ......................................................................................................................................... 8 2.6.Channel List for Bluetooth ............................................................................................................... 8 2.7.Test Equipment................................................................................................................................. 9 3.POWER LINE CONDUCTED EMISSIONTEST...................................................................................10 3.1.Limit ............................................................................................................................................... 10 3.2.Block Diagram of Test Setup ......................................................................................................... 10 3.3.Test Procedure ................................................................................................................................ 10 3.4.Test Result ...................................................................................................................................... 10 3.5.Test data ......................................................................................................................................... 11 4.RADIATEDEMISSIONTEST............................................................................................................13 4.1.Limit ............................................................................................................................................... 13 4.2.Test Procedure ................................................................................................................................ 14 4.3.Block Diagram of Test setup .......................................................................................................... 14 4.4.Test Result ...................................................................................................................................... 14 4.5.Test Data ........................................................................................................................................ 15 5.CONDUCTED SPURIOUSEMISSION.................................................................................................33 5.1.Limit ............................................................................................................................................... 33 5.2.Test Procedure ................................................................................................................................ 33 5.3.Test Result ...................................................................................................................................... 33 5.4.Test Data ........................................................................................................................................ 34 6.BANDEDGE COMPLIANCE TEST...................................................................................................40 6.1.Limit ............................................................................................................................................... 40 6.2.Test Procedure ................................................................................................................................ 40 6.3.Test Result ...................................................................................................................................... 40 6.4.Test Data ........................................................................................................................................ 41 7.6dB Bandwidth Test.....................................................................................................................45 7.1.Limit ............................................................................................................................................... 45 7.2.Test Procedure ................................................................................................


Text truncated - open the document above for the full version.

Test Setup Photos

FCC ID: XN6-MC100BLUE (677HFKQRORJ\&R/WG5HSRUW1R(67(5 Page 95 of 107 12. TEST SETUP PHOTO Conducted Test FCC ID: XN6-MC100BLUE (677HFKQRORJ\&R/WG5HSRUW1R(67(5 Page 96 of 107 Radiated Test (30-1000 MHz) Radiated Test (1000-25000 MHz)

Contact Information

Applicant

Wayne Chen(Deputy General Manager)
[email protected]+886-2-26587878Fax: +886-2-27926068

Test Firm

EST Technology Co.,LtdIceman Hu
[email protected]86-769-83081888

Technical Specifications

#Rule PartsFrequency RangePower Output
115C2.40 GHz - 2.48 GHz1.51 mW
Confidentiality
Long Term
Grant Notes
Power listed is the maximum conducted output power. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons.
