XN6-S3820W38 sound bar 2.0 system

QUICK START GUIDE Model: S3820w-C0 VIZIO • The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of un-isolated, dangerous voltage within your Unit that may be of sufficient magnitude to constitute a risk of electric shock to persons. • The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and servicing instructions in the literature accompanying your Unit. • Do not overload power strips and extension cords. Overloading can result in fire or electric shock. • The wall socket should be located near your Unit and be easily accessible • Keep your Unit away from moisture. Do not expose your Unit to rain or moisture. If water penetrates into your Unit, unplug the power cord and contact your dealer. Continuous use in this case may result in fire or electric shock. • Do not use your Unit if any abnormality occurs. If any smoke or odor becomes apparent, unplug the power cord and contact your dealer immediately. Do not try to repair your Unit yourself. • Avoid using dropped or damaged appliances. If your Unit is dropped and the housing is damaged, the internal components may function abnormally. Unplug the power cord immediately and contact your dealer for repair. Continued use of your Unit may cause fire or electric shock. • Do not install your Unit in an area with heavy dust or high humidity. Operating your Unit in environments with heavy dust or high humidity may cause fire or electric shock. • Ensure that the power cord and any other cables are unplugged before moving your Unit. • When unplugging your Unit, hold the power plug, not the cord. Pulling on the power cord may damage the wires inside the cord and cause fire or electric shock. When your Unit will not be used for an extended period of time, unplug the power cord. • To reduce risk of electric shock, do not touch the connector with wet hands. • Insert the remote control battery in accordance with instructions. Incorrect polarity may cause the battery to leak which can damage the remote control or injure the operator. • See the important note and rating located on the bottom of the unit. • WARNING - This equipment is not waterproof. To prevent a fire or shock hazard, do not place any container filled with liquid near the equipment (such as a vase or flower pot) or expose it to dripping, splashing, rain, or moisture. • CAUTION - Danger of explosion or fire if battery is mistreated. Replace only with the same or specified type. • Do not leave the battery exposed to direct sunlight for a long period of time with doors and windows closed. Do not disassemble the battery or dispose of it in fire. • Disconnect the mains plug to shut off when you experience trouble or the device is not in use. The mains plug shall remain readily operable. Your Unit is designed and manufactured to operate within defined design limits, and misuse may result in electric shock or fire. To prevent your Unit from being damaged, the following rules should be observed for its installation, use, and maintenance. Please read the following safety instructions before operating your Unit. Keep these instructions in a safe place for future reference. • Read these instructions. • Keep these instructions. • Heed all warnings. • Follow all instructions. • Do not use this apparatus near water. • Clean only with a dry cloth. • Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. • Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. • Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. • Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. • Only use attachments/accessories specified by the manufacturer. • Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. • Unplug this apparatus during lightning storms or when unused for long periods of time. • Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as when the power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. • To reduce the risk of electric shock or component damage, switch off the power before connecting other components to your Unit. • Unplug the power cord before cleaning your Unit. A damp cloth is sufficient for cleaning. Do not use a liquid or a spray cleaner on your Unit. Do not use abrasive cleaners. • Always use the accessories recommended by the manufacturer to insure compatibility. • When moving your Unit from an area of low temperature to an area of high temperature, condensation may form in the housing. Wait before turning on your Unit to avoid causing fire, electric shock, or component damage. • Slots and openings in the back and bottom of the cabinet are provided for ventilation. To ensure reliable operation of your Unit and to protect it from overheating, be sure these openings are not blocked or covered. Do not place your Unit in a bookcase or cabinet unless proper ventilation is provided. • Never push any object into the slots and openings on your Unit enclosure. Do not place any objects on the top of your Unit. Doing so could short ci…

Text truncated - open the document above for the full version.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (current) 2.0 3.0 Jan-31-2012 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 3.0 Zylux Acoustic Corporation 2013-6-30 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, Zylux Acoustic Corporation hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): (38” sound bar 2.0 system,Model: S3820w-C0, S3820w-xxx, FCC ID: XN6-S3820W) We affirm that between SIEMIC and Zylux Acoustic Corporation, any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Client’s signature Client’s name / title : PercyLee / Project Manager Contact information / address : 3F, 22 Lane 35, Jihu Road, NeiHu Technolongy Park, Taipei, Taiwan

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (current) 2.0 3.0 Jan-31-2012 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 3.0 Zylux Acoustic Corporation 2013-6-30 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID:XN6-S3820W We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Schematics - Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature Client’s name / title : PercyLee / Project Manager Contact information / address : 3F, 22 Lane 35, Jihu Road, NeiHu Technolongy Park, Taipei, Taiwan

Zylux Acoustic Corporation Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 Date: 2013-5-2 SUBJECT: FCC Application for ( FCCID: XN6-S3820W) To Whom It May Concern: We, the undersigned, hereby attest to the fact that we will apply the Declaration of Conformity procedure to the class B computer peripheral portion of this composite device. We understand that devices subject to the DoC procedure are required to be tested to show compliance with the FCC technical regulations by a recognized accredited testing laboratory. The testing laboratory must be accredited by a Commission approved accreditation body or designated under the terms of a government-to-government Mutual Recognition Agreement (MRA). A listing of those accredited testing laboratories that have been recognized by the Commission is published on the FCC Webpage: https://apps.fcc.gov/oetcf/eas/reports/TestFirmSearch.cfm Select the "accredited" option to search for FCC recognized accredited test firms. Test facilities located in countries, where the U.S. does not have an operational Telcom MRA are not recognized by the FCC to test for the DoC procedure. Regards, Signatory Client’s name / title : PercyLee / Project Manager Contact information / address : 3F, 22 Lane 35, Jihu Road, NeiHu Technolongy Park, Taipei, Taiwan

Zylux Acoustic Corporation Model Difference FCC ID: XN6-S3820W Model : S3820w-C0 S3820w-xxx（“x”is "A-Z'' or "0-9" or "Blank"） All the model are the same circuit and RF module,except the packaging. Regards, Client’s signature Client’s name / title : PercyLee / Manager Contact information / address : 3F, 22 Lane 35, Jihu Road, NeiHu Technolongy Park, Taipei, Taiwan

Shenzhen NTEK Testing Technology Co., Ltd. Statement To Whom it may concern: Because the EUT photos is wrong,now need to be the correct photos.please upload again. Thank you. Regards, Yours sincerely, Signatory Signature Name: Bovey Yang Title: Manager Tel: (86)-0755-61156588 Company : Shenzhen NTEK Testing Technology Co., Ltd.

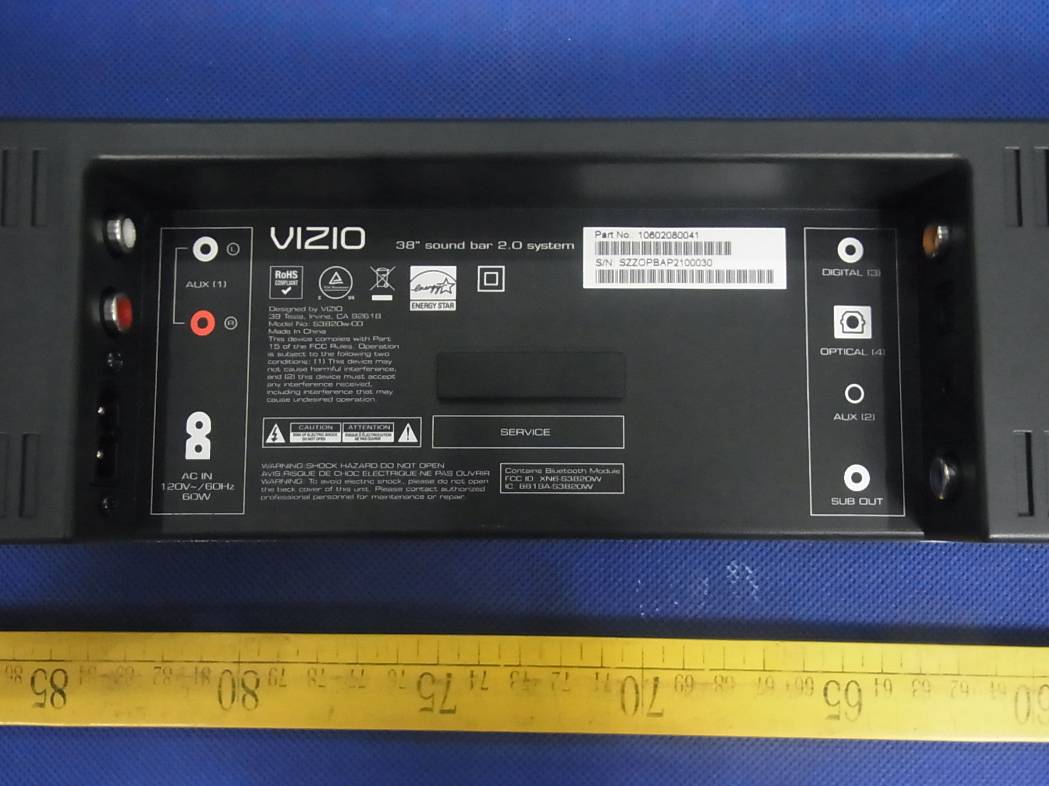

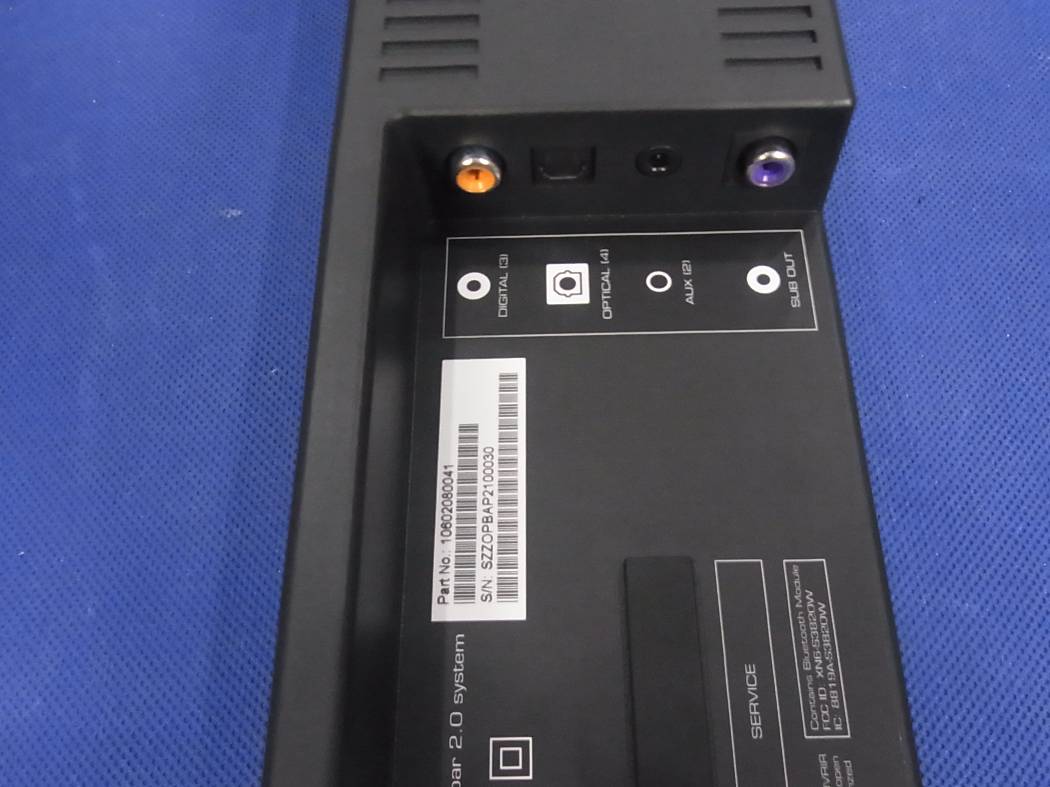

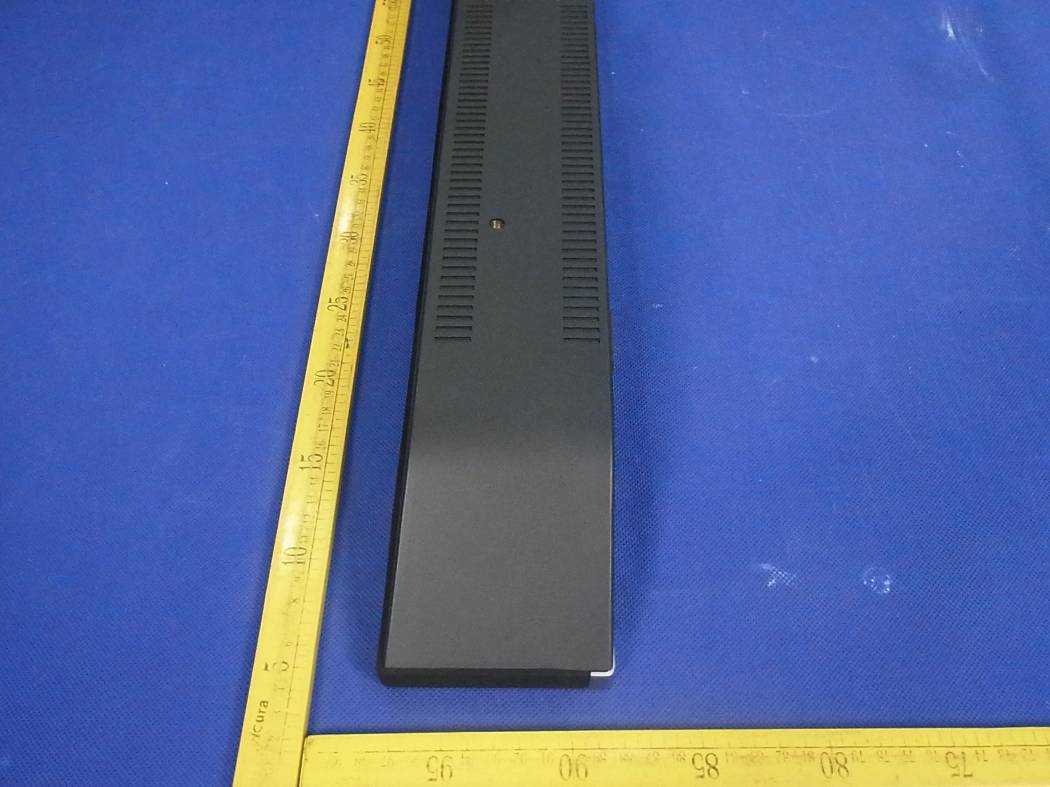

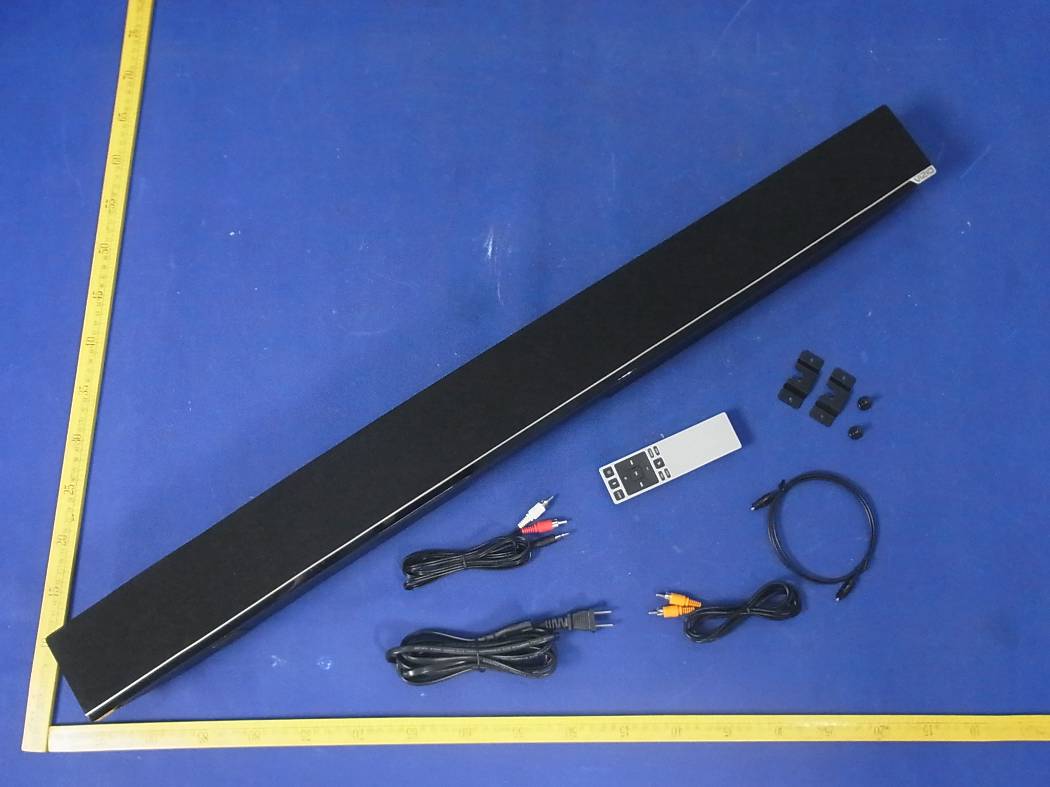

APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6 Photo 7 Photo 8 Photo 9

ZYLUX Acoustic Corporation DRAWER.:COLOR. DESIGN.CHECKED.APPROVAL. NO.MATERIAL. SCALE: UNIT: TITLE. DATE:MODEL.: SHEETREV CHANGE RECORDSDATEREVISER PROJECTION 3RD ANGLE PROJECTION 3RD ANGLE ABCDE 5 4 3 1 2 1 2 3 5 4 CABDE ISS B C A E D PROTOTYPE-A4 13’03.28 SHEN 13’05.02 SHEN PRODUCT-LABEL BLACK K1203-0005158 Shen Jian B 1/1 mm Shijun DingYONGShen Jian 1 : 1 TS-0000017AA MODEL.: VIZIO SB3820 TOLERANCES ±0.3 ±0.6 ±0.25 ±0.1 ±0.2 16~63 150~250 250~500 63~150 ~16 ±0.05 ±0.4 ±0.2 ±0.1 ±0.15 A ±0.6 ±0.8 ±0.2 ±0.4 ±0.5 BC ±1 ±1.5 ±0.4 ±0.6 ±0.8 D ANGLE ± ` ± 1` ± 10` ± 15` ± 30` 2013’03.28 NOTE : 1. IF TOLERANCE FOR EACH DIMENSIONS NOT SHOWN, REFER TO TABLE <B> TABLE FOR TOLERANCE. 2. USE R=1.0MM FOR ALL RADII NOT SPECIFIED. 3. UNACCEPTABLE CONDITIONS: FLASH, SHRINKAGE, DEFORMATION, AND/OR SPOTS. 4. REPRESENTS REVISIONS OR NEW DIMENSIONS. 5. REPRESENTS CRITICAL AREAS TO BE MEASURED. ALL OTHER DIMENSIONS ARE FOR REFERANCE. 6. THE MOULD NUMBER: NO 7. TEXTURE NUMBER: NO 8. ALL SUBSTANCE NEED TO MEET THE ROHS / REACH REQUIREMENTS. DETAILS REFER TO ZYLUX'S PROCEDURE "QMI-P40-01". 9. WILL USE ±0.05MM INNER DIAMETER FOR THE SCREW WHICH NOT SPECIFIED THE DETAILED DIMENSION. 164 -0.5 67 -0.5 2-R 2.5 VIZIO(PMC SUPPLY Week & PO. QTY.) Serial No.: 5 digit (Per week from 00001 ~UP). Type of product: S = Speaker Factory: ZZ= Zylux Shenzhen Model: PB = VIZIO S3820w-C0 Panel supplier: O = N/A, not a display product Version number: A Year: M = 2011; N=2012; P=2013; 以后年份待定 Week SZZOPBAP0500001 从00001开始流。 Part No.: 10602080041 Bar code: Code 39 Scan: 10602080041 S/N: SZZOPBAP0500001 Bar code: Code 39 Scan: SZZOPBAP0500001 +0 +0 Hole area B CHANGE “”w” TO “W” FOR FCC ID & IC AC IN 120V~/60Hz 60W S3820w-C0 Part No.: 10602080041 S/N: SZZOPBAP0500001 Rheinland 38" sound bar 2.0 system FCC ID: XN6-S3820W IC: 8819A-S3820W

Photo 10 Photo 11 Photo 12 Photo 13 Photo 14 Photo 15 Photo 16 Photo 17 Photo 18 Photo 19 Photo 20 Photo 21 Photo 22 Photo 23 Photo 24

FCC ID: XN6-S3820W RF EXPOSURE TEST Applied procedures / limit These devices are not exempted from compliance does not exceed the Commission’s RF exposure guidelines.Unless a device operates at substantially low power levels,with a low gain antenna(s),supporting information is generally needed to establish the various potential operating configurations and exposure conditions of a transmitter and its antenna(s) in order to determine compliance with the RF exposure guidelines. In order to demonstrate compliance with MPE requirement(see Section 2.1091),the following information is typically needed: Calculation that estimates the minimum separation distance(20 cm or more)between an antenna and persons required to satisfy power density limits defined for free space. Antenna installation and device operating instructions for installers(professional/unskilled users),and the parties responsible for ensuring compliance with the RF exposure requirement Any caution statements and/or warming labels that are necessary in order to comply with the exposure limits Any other RF exposure related issues that may affect MPE compliance. FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency(RF) radiation as specified in 1.1307(b). (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm 2 ) Averaging Time |E| 2 ,|H| 2 or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm 2 ) Averaging Time |E| 2 ,|H| 2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density FCC ID: XN6-S3820W MPE CALCULATION METHOD Calculation Method of RF Safety Distance: P :power input to the antenna in Mw EIRP :Equivalent(effective) isotropic radiated power. S :power density mW/ cm 2 G ;numeric gain of antenna relative to isotropic radiator R :distance to centre of radiation in cm FCC radio frequency exposure limits may be exceeded at distances closer than r cm from the antenna of this device EIRP=10 ( Antenna Gain+Peak Output Power/10) Note: 1. s=1.0 mW /cm 2 for limits for General Population/Uncontrolled Exposures. 2. The time averaged power over 30 minutes will be equaled Output Power. 3. The Power Density at a distance of 20cm calculated from the formula is far below the limit of 1MW/ cm 2 FCC ID: XN6-S3820W TEST RESULTS NOTE: (For mobile or fixed location transmitters, the maximum power density is 1.0mW/cm 2 even if the calculation indicates that the power density would be larger) PK output power (MAX) (dBm) Output power to antenna (mW) Antenna Gain (numeric) Power Density (S) (mW/ cm 2 ) Limit of Power Density (S) (mW/ cm 2 ) Result 1.064 1.277 1.0(0dbi) 0.00025 1 Pass

FCC RADIO TEST REPORT FCC ID: XN6-S3820W Product： 38” sound bar 2.0 system Trade Name： Model Name： S3820w-C0 Serial Model： S3820w-xxx（“x”is "A-Z'' or "0-9" or "Blank"） Report No.： NTEK-2013NT0411357F Prepared for Zylux Acoustic Corporation 3F, 22, Lane 35, Jihu Road, Neihu Technology Park, Taipei 11492, Taiwan Prepared by Shenzhen NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park, Sanwei Community,Xixiang Street Bao’an District, Shenzhen P.R. China Tel.: +86-0755-61156588 Fax.: +86-0755-61156599 Website:www.ntek.org.cn Page 2 of 87 Report No.:NTEK-2013NT0411357F TEST RESULT CERTIFICATION Applicant’s name ................. : Zylux Acoustic Corporation Address ................................. : 3F, 22, Lane 35, Jihu Road, Neihu Technology Park, Taipei 11492, Taiwan Manufacture's Name ............ : ZHAO YANG ELEC. (SHENZHEN) CO., LTD. Address ................................. : Section A, 4th Floor, Building 1 & Building 2, Deyongjia Industrial Park, Guangqiao Road, Yulv Community, Gongming Street, Guangming New District, Shenzhen, China Product description Product name ........................... : 38” sound bar 2.0 system Model and/or type reference : S3820w-C0 Serial Model： S3820w-xxx（“x”is "A-Z'' or "0-9" or "Blank"） Standards ............................. : FCC Part15.247 Test procedure .............................. ANSI C63.4-2003 This device described above has been tested by NTEK, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of NTEK, this document may be altered or revised by NTEK, personal only, and shall be noted in the revision of the document. Date of Test ............................................ : Date (s) of performance of tests ............. : 11 Apr. 2013 ~18 Apr. 2013 Date of Issue ........................................... : 18 Apr. 2013 Test Result ............................................... : Pass Testing Engineer : (Apple Huang) Technical Manager : (Tom Zhang) Authorized Signatory : (Bovey Yang) Page 3 of 87 Report No.:NTEK-2013NT0411357F Table of Contents Page 1 . SUMMARY OF TEST RESULTS 5 1.1 TEST FACILITY 6 1.2 MEASUREMENT UNCERTAINTY 6 2 . GENERAL INFORMATION 7 2.1 GENERAL DESCRIPTION OF EUT 7 2.2 DESCRIPTION OF TEST MODES 9 2.3 TABLE OF PARAMETERS OF TEXT SOFTWARE SETTING 9 2.4 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 10 2.5 DESCRIPTION OF SUPPORT UNITS(CONDUCTED MODE) 11 2.6 EQUIPMENTS LIST FOR ALL TEST ITEMS 12 3 . EMC EMISSION TEST 13 3.1 CONDUCTED EMISSION MEASUREMENT 13 3.1.1 POWER LINE CONDUCTED EMISSION LIMITS 13 3.1.2 TEST PROCEDURE 14 3.1.3 DEVIATION FROM TEST STANDARD 14 3.1.4 TEST SETUP 14 3.1.5 EUT OPERATING CONDITIONS 14 3.1.6 TEST RESULTS 15 3.2 RADIATED EMISSION MEASUREMENT 17 3.2.1 RADIATED EMISSION LIMITS 17 3.2.2 TEST PROCEDURE 18 3.2.3 DEVIATION FROM TEST STANDARD 18 3.2.4 TEST SETUP 19 3.2.5 EUT OPERATING CONDITIONS 20 3.2.6 TEST RESULTS (BELOW 30 MHZ) 21 3.2.7 TEST RESULTS (BETWEEN 30M – 1000 MHZ) 22 3.2.8 TEST RESULTS (ABOVE 1000 MHZ) 24 3.2.9 TEST RESULTS (RESTRICTED BANDS REQUIREMENTS) 42 4 . NUMBER OF HOPPING CHANNEL 54 4.1 APPLIED PROCEDURES / LIMIT 54 4.1.1 TEST PROCEDURE 54 4.1.2 DEVIATION FROM STANDARD 54 4.1.3 TEST SETUP 54 4.1.4 EUT OPERATION CONDITIONS 54 4.1.5 TEST RESULTS 55 5 . AVERAGE TIME OF OCCUPANCY 56 Page 4 of 87 Report No.:NTEK-2013NT0411357F Table of Contents Page 5.1 APPLIED PROCEDURES / LIMIT 56 5.1.1 TEST PROCEDURE 56 5.1.2 DEVIATION FROM STANDARD 56 5.1.3 TEST SETUP 57 5.1.4 EUT OPERATION CONDITIONS 57 5.1.5 TEST RESULTS 58 6 . HOPPING CHANNEL SEPARATION MEASUREMENT 64 6.1 APPLIED PROCEDURES / LIMIT 64 6.1.1 TEST PROCEDURE 64 6.1.2 DEVIATION FROM STANDARD 64 6.1.3 TEST SETUP 64 6.1.4 EUT OPERATION CONDITIONS 64 6.1.5 TEST RESULTS 65 7 . BANDWIDTH TEST 71 7.1 APPLIED PROCEDURES / LIMIT 71 7.1.1 TEST PROCEDURE 71 7.1.2 DEVIATION FROM STANDARD 71 7.1.3 TEST SETUP 71 7.1.4 EUT OPERATION CONDITIONS 71 7.1.5 TEST RESULTS 72 8 . PEAK OUTPUT POWER TEST 78 8.1 APPLIED PROCEDURES / LIMIT 78 8.1.1 TEST PROCEDURE 78 8.1.2 DEVIATION FROM STANDARD 78 8.1.3 TEST SETUP 78 8.1.4 EUT OPERATION CONDITIONS 78 8.1.5 TEST RESULTS 79 9 . ANTENNA REQUIREMENT 85 9.1 STANDARD REQUIREMENT 85 9.2 EUT ANTENNA 85 10 . EUT TEST PHOTO 86 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Page 5 of 87 Report No.:NTEK-2013NT0411357F 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15 (15.247) , Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission PASS 15.247(a)(1) Hopping Channel Separation PASS 15.247(b)(1) Peak Output Power PASS 15.247(c) Radiated Spurious Emission PASS 15.247(a)(iii) Number of Hopping Frequency PASS 15.247(a)(iii) Dwell Time PASS 15.247(a)(1) Bandwidth PASS 15.205 Band Edge Emission PASS 15.203 Antenna Requirement PASS NOTE: (1)” N/A” denotes test is not applicable in this Test Report Page 6 of 87 Report No.:NTEK-2013NT0411357F 1.1 TEST FACILITY NTEK Testing Technology Co., Ltd Add. : 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street, Bao’an District, Shenzhen P.R. China. FCC Registration No.:238937; IC Registration No.:9270A-1 CNAS Registration No.:L5516 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U，where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2，providing a level of confidence of approximately 95 %。 No. Item Uncertainty 1 Conducted Emission Test ±1.38dB 2 RF power,conducted ±0.16dB 3 Spurious emissions,conducted ±0.21dB 4 All emissions,radiated(<1G) ±4.68dB 5 All emissions,radiated(>1G) ±4.89dB 6 Temperature ±0.5°C 7 Humidity ±2% Page 7 of 87 Report No.:NTEK-2013NT0411357F 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT Equipment 38” sound bar 2.0 system Trade Name Model Name S3820w-C0 Serial Model S38…

Text truncated - open the document above for the full version.

Page 86 of 87 Report No.:NTEK-2013NT0411357F 10. EUT TEST PHOTO Radiated Measurement Photos Page 87 of 87 Report No.:NTEK-2013NT0411357F CONDUCTED EMISSION Photos
