XN6-SB2020NG620 Inch SoundBar 2.0 System

Model: SB2020n-G6 VIZIO 20 Inch 2.0 Channel Sound Bar with Bluetooth Please read this guide before using the product. USER MANUAL English - ii Your Unit is designed and manufactured to operate within defined design limits, and misuse may result in electric shock or fire. To prevent your Unit from being damaged, the following rules should be observed for its installation, use, and maintenance. Please read the following safety instructions before operating your Unit. Keep these instructions in a safe place for future reference. • Read these instructions. • Keep these instructions. • Heed all warnings. • Follow all instructions. • Do not use this apparatus near water. • Clean only with a dry cloth. • Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. • Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. • Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. • Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. • Only use attachments/accessories specified by the manufacturer. • Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. • Unplug this apparatus during lightning storms or when unused for long periods of time. • Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as when the power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. • To reduce the risk of electric shock or component damage, switch off the power before connecting other components to your Unit. • Unplug the power cord before cleaning your Unit. A damp cloth is sufficient for cleaning. Do not use a liquid or a spray cleaner on your Unit. Do not use abrasive cleaners. • Always use the accessories recommended by the manufacturer to insure compatibility. • When moving your Unit from an area of low temperature to an area of high temperature, condensation may form in the housing. Wait before turning on your Unit to avoid causing fire, electric shock, or component damage. • Slots and openings in the back and bottom of the cabinet are provided for ventilation. To ensure reliable operation of your Unit and to protect it from overheating, be sure these openings are not blocked or covered. Do not place your Unit in a bookcase or cabinet unless proper ventilation is provided. • Never push any object into the slots and openings on your Unit enclosure. Do not place any objects on the top of your Unit. Doing so could short circuit parts causing a fire or electric shock. Never spill liquids on your Unit. • WARNING: Exposure to loud sounds can damage your hearing causing hearing loss and tinnitus (ringing or buzzing in the ears). With continued exposure to loud noises, ears may become accustomed to the sound level, which may result in permanent damage to hearing without any noticeable discomfort. • When connected to a power outlet, power is always flowing into your Unit. To totally disconnect power, unplug the power cord. • Do not overload power strips and extension cords. Overloading can result in fire or electric shock. IMPORTANT SAFETY INSTRUCTIONS English - iii • The wall socket should be located near your Unit and be easily accessible • Keep your Unit away from moisture. Do not expose your Unit to rain or moisture. If water penetrates into your Unit, unplug the power cord and contact your dealer. Continuous use in this case may result in fire or electric shock. • Do not use your Unit if any abnormality occurs. If any smoke or odor becomes apparent, unplug the power cord and contact your dealer immediately. Do not try to repair your unit yourself. • Avoid using dropped or damaged appliances. If your Unit is dropped and the housing is damaged, the internal components may function abnormally. Unplug the power cord immediately and contact your dealer for repair. Continued use of your Unit may cause fire or electric shock. • Do not install your Unit in an area with heavy dust or high humidity. Operating your Unit in environments with heavy dust or high humidity may cause fire or electric shock. • Ensure that the power cord and any other cables are unplugged before moving your Unit. • When unplugging your Unit, hold the power plug, not the cord. Pulling on the power cord may damage the wires inside the cord and cause fire or electric shock. When your Unit will not be used for an extended period of time, unplug the power cord. • To reduce risk of electric shock, do not touch the connector with wet hands. • Insert the remote control batteries in accordance with instructions. Incorrect polarity may cause the battery to leak which can damage the remote control or injure the operator. • See the important note and rating located on the back of the unit. • WARNING - This equipment is not waterproof. To prevent a fire or shock hazard, do not place any container filled with liquid near the equipment (such as a vase or flower pot) or expose it to dripping, splashing, rain, or moisture. • CAUTION - Danger of explosion or fire if batteries are mistreated. Replace only with the same or specified type. • Do not leave the batteries exposed to direct sunlight for a long period of time with doors and windows clos…

Text truncated - open the document above for the full version.

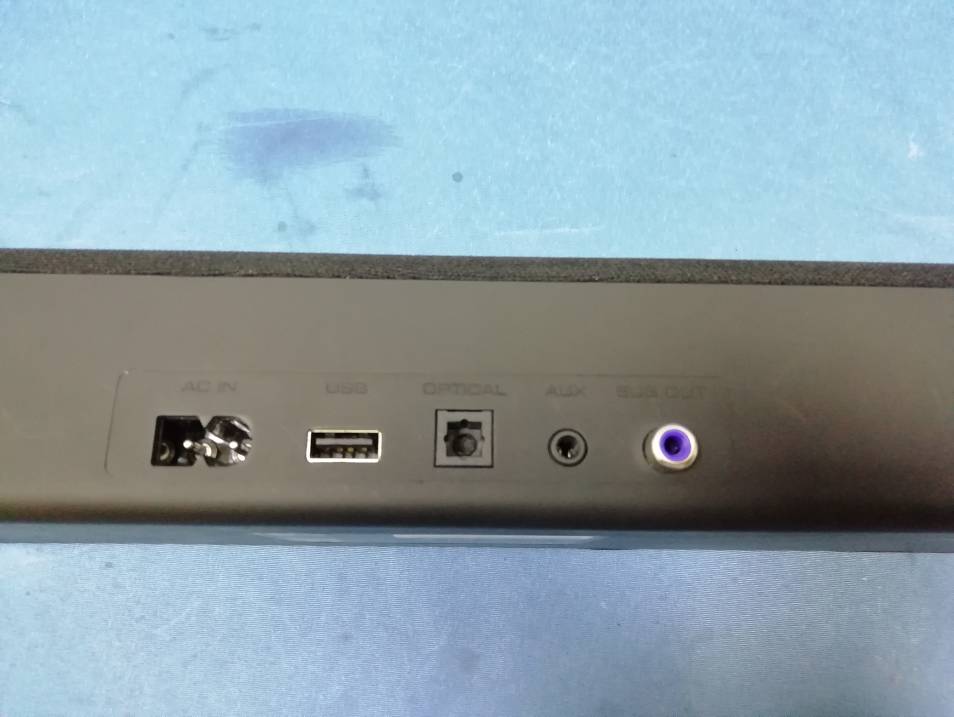

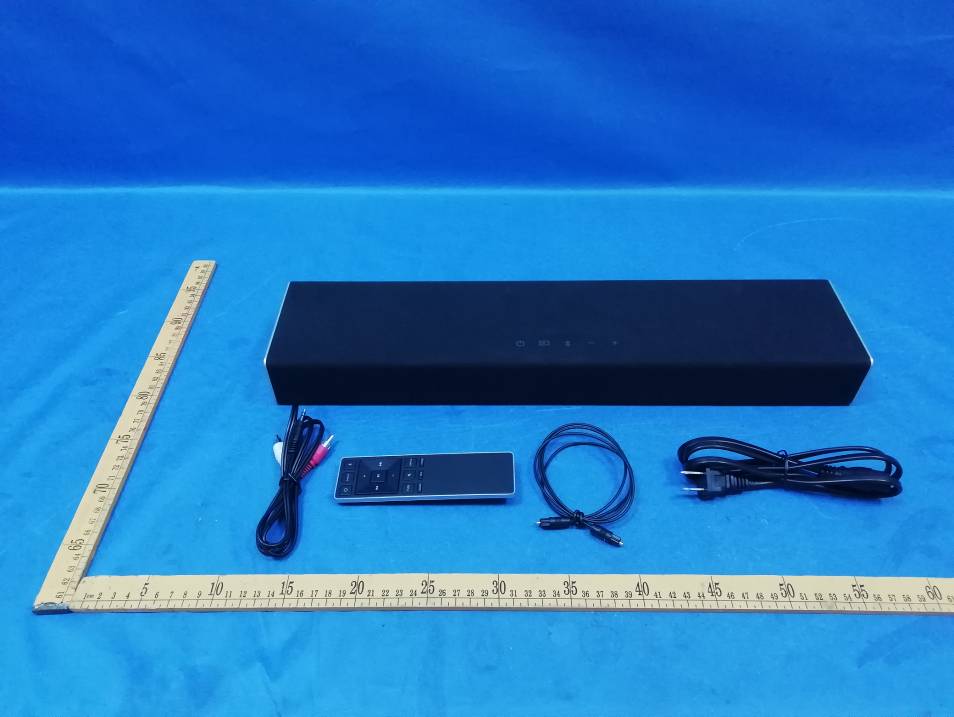

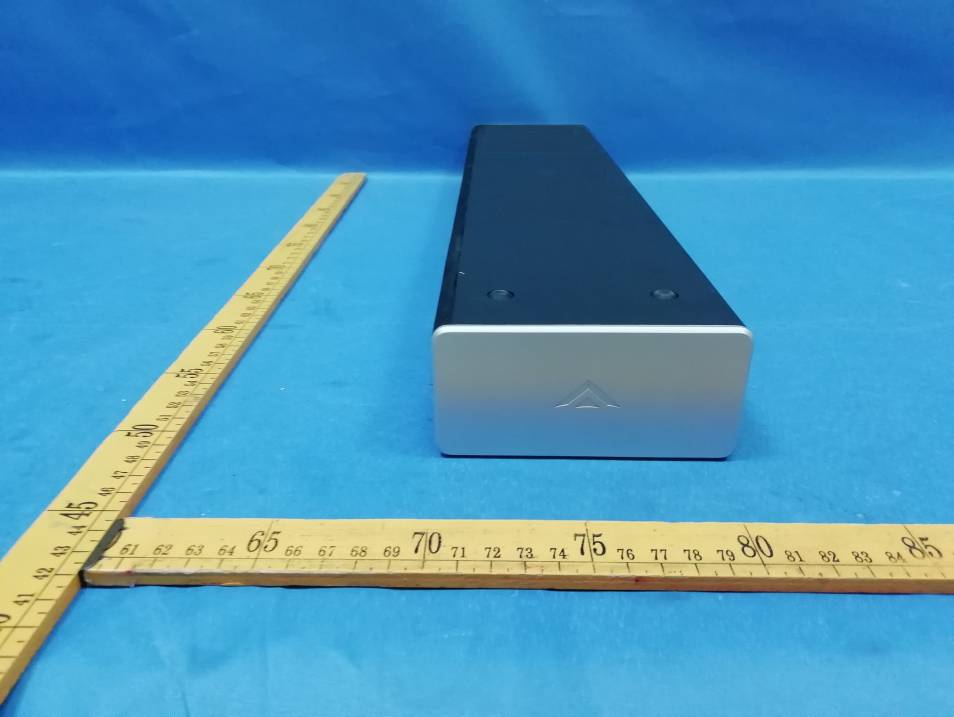

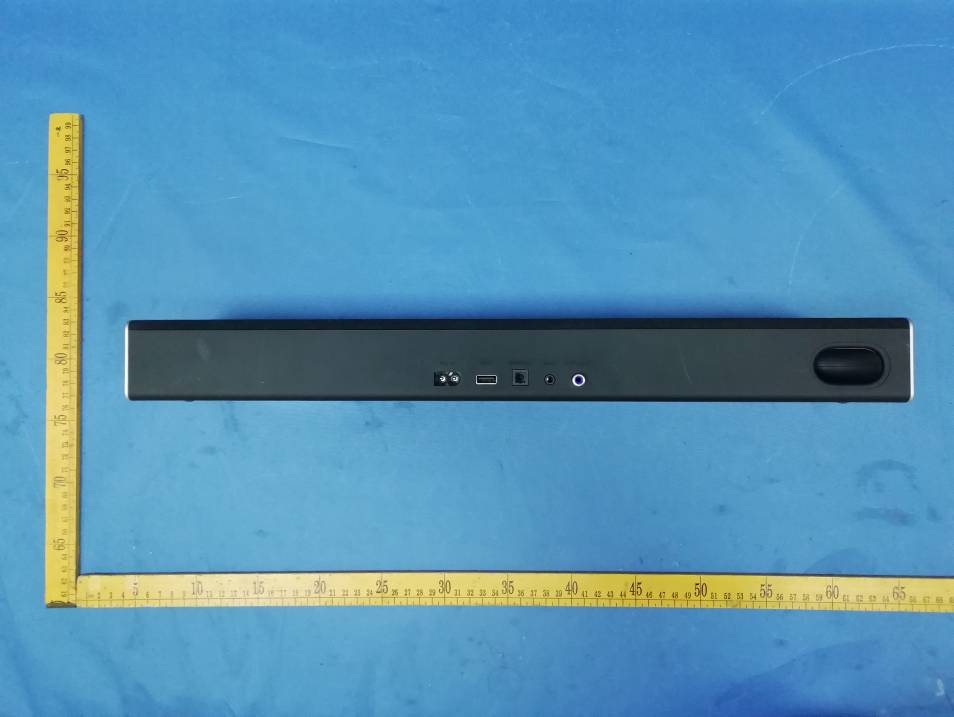

Appendix-External-Photos Model: SB2020n-G6 External Photos Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn Page 1 of 4 Appendix-External-Photos Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn Page 2 of 4 Appendix-External-Photos Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn Page 3 of 4 Appendix-External-Photos Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn Page 4 of 4

SB2020n-G6_FCC Label Sample and Label Location

Appendix-Internal-Photos Model: SB2020n-G6 EUT– Internal Photos Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn Page 1 of 8 Appendix-Internal-Photos Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn Page 2 of 8 Appendix-Internal-Photos Antenn Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn Page 3 of 8 Appendix-Internal-Photos Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn Page 4 of 8 Appendix-Internal-Photos Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn Page 5 of 8 Appendix-Internal-Photos Power Board 1(Model: DSP120-120100W) Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn Page 6 of 8 Appendix-Internal-Photos Power Board 2(Model: CS12J120100F0) Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn Page 7 of 8 Appendix-Internal-Photos Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn Page 8 of 8

Reference No.: WTS19S12087396W FCC ID: XN6-SB2020NG6 RF Exposure Report Test Requirement: FCC Part 1.1307 Evaluation Method: FCC Part 2.1091 Requirements Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2 m normally can be maintained between the user and the device. The procedures / limit (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm 2 ) Averaging Time |E| 2 ,|H| 2 or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 ( B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm 2 ) Averaging Time |E| 2 ,|H| 2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn Reference No.: WTS19S12087396W MPE Calculation Method P ＝ Peak RF output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m)=0.2m The formula can be changed to Pd ＝P out *G/(4*Pi*R 2 ) From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. Antenna Gain (dBi) Antenna Gain (numeric) Max. Peak Output Power (dBm) Peak Output Power (mW) Power Density (mW/cm2) Limit of Power Density (mW/cm2) 4.10 2.57 7.12 5.15 0.0026 1 Result: Compliance. No SAR measurement is required. Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn

TEST REPORT Reference No. .................... : WTS19S12087396W FCC ID........................... : XN6-SB2020NG6 Applicant ........................... : Zylux Acoustic Corporation Address ............................. : 7F, 70, Rui Guang Road, Neihu District, Taipei, Taiwan Manufacturer .................... : Vizio Inc. Address ............................. : 39 Tesla Irvine, CA 92618 USA Product .............................. : 20'' SoundBar 2.0 System Model(s). ............................ : SB2020n-G6, SB2020n-G6M, SB2020n-H6, SB2020n-H6M Standards .......................... : FCC CFR47 Part 15 Section 15.247:2019 Date of Receipt sample .... : 2019-12-16 Date of Test ....................... : 2019-12-17 to 2019-12-24 Date of Issue ..................... : 2019-12-25 Test Result ........................ : Pass Remarks: The results shown in this test report refer only to the sample(s) tested, this test report cannot be reproduced, except in full, without prior written permission of the company. The report would be invalid without specific stamp of test institute and the signatures of compiler and approver. Prepared By: Waltek Services (Shenzhen) Co., Ltd. Address: 1/F., Fukangtai Building, West Baima Road, Songgang Street, Baoan District, Shenzhen, Guangdong, China Test site/Test location: Waltek Services (Shenzhen) Co., Ltd. Address: 1/F., Fukangtai Building, West Baima Road, Songgang Street, Baoan District, Shenzhen, Guangdong, China Tel :+86-755-83551033 Fax:+86-755-83552400 Compiled by: Approved by: Frank Yin / Test Engineer Philo Zhong / Manager Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn Page 1 of 63 Reference No.: WTS19S12087396W Page 2 of 63 1 Contents Page 1 CONTENTS ............................................................................................................................................................ 2 2 REVISION HISTORY ............................................................................................................................................ 4 3 GENERAL INFORMATION .................................................................................................................................. 5 3.1 GENERAL DESCRIPTION OF E.U.T ................................................................................................................. 5 3.2 MODEL DIFFERENCE ........................................................................................................................................ 6 3.3 DETAILS OF E.U.T ........................................................................................................................................... 6 3.4 CHANNEL LIST ................................................................................................................................................. 6 3.5 TEST MODE ..................................................................................................................................................... 6 4 EQUIPMENT USED DURING TEST .................................................................................................................. 7 4.1 EQUIPMENTS LIST ........................................................................................................................................... 7 4.2 MEASUREMENT UNCERTAINTY ....................................................................................................................... 8 4.3 SUBCONTRACTED ............................................................................................................................................ 8 5 TEST FACILITY ..................................................................................................................................................... 8 6 TEST SUMMARY .................................................................................................................................................. 9 7 CONDUCTED EMISSION .................................................................................................................................. 10 7.1 E.U.T. OPERATION ....................................................................................................................................... 10 7.2 EUT SETUP ................................................................................................................................................... 10 7.3 MEASUREMENT DESCRIPTION ...................................................................................................................... 10 7.4 CONDUCTED EMISSION TEST RESULT ......................................................................................................... 11 8 RADIATED EMISSIONS..................................................................................................................................... 15 8.1 EUT OPERATION ........................................................................................................................................... 15 8.2 TEST SETUP .................................................................................................................................................. 16 8.3 SPECTRUM ANALYZER SETUP ...................................................................................................................... 17 8.4 TEST PROCEDURE ........................................................................................................................................ 18 8.5 CORRECTED AMPLITUDE & MARGIN CALCULATION ..................................................................................... 18 8.6 SUMMARY OF TEST RESULTS ....................................................................................................................... 19 9 BAND EDGE MEASUREMENT ........................................................................................................................ 25 9.1 TEST PROCEDURE ............................…

Text truncated - open the document above for the full version.

Appendix- Test set up-Photos Model: SB2020n-G6 Photograph-Conducted Emissions Test Setup Photos Radiation Emission Test Setup 9 kHz to 30 MHz Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn Page 1 of 2 Appendix- Test set up-Photos From 30 MHz to 1GHz Above 1GHz Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn Page 2 of 2
