XN6-SR7250HP Roar Wireless Speaker

RMN/型號/型号: HP SR7250 The Bluetooth trademark is owned by its proprietor and used by Hewlett-Packard Company under license. © Copyright 2014 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein. First Edition: May 2014 Using the speaker features FeatureDescription 1 Volume up button Press to increase the volume. When the maximum volume is reached, the speaker beeps twice. 2 Volume down button Press to decrease the volume. When the mimimum volume is reached, the speaker beeps twice. 3 Talk buttonPress to answer or end calls from a phone or phone app paired to the speaker through Bluetooth®. 4 Power button, Bluetooth light, and battery light Press to turn the speaker on and off. If the speaker is charging, the light blinks amber. If the battery is fully charged, the light is off when the speaker is turned off, solid white when the speaker is turned on and paired, and blinking white when the speaker is turned on and pairing. The speaker starts in pairing mode and automatically attempts to connect to previously paired Bluetooth devices. 5 Audio-in portConnect to a music device to play music. 6 Micro USB portConnect to a powered USB port to charge the speaker. الصوت مكبر ميزات استخدام الميزةالوصف 1 الصوت رفع زر عند صفيرين الصوت مكبر سيصدر .الصوت مستوى لرفع عليه اضغط .صوت مستوى أعلى إلى الوصول 2 خفض زر الصوت عند صفيرين الصوت مكبر سيصدر .الصوت مستوى لخفض عليه اضغط .صوت مستوى أدنى إلى الوصول 3 التحدث ر ِ ز الذي الهاتف تطبيق أو الهاتف من الاتصالات إنهاء أو على للرد عليه اضغط . Bluetooth® خلال من الصوت مكبر مع إقرانه تم 4 وضوء الطاقة زر وضوء Bluetooth البطارية اضغط على الزر لتشغيل مكبر الصوت أو إيقاف تشغيله. عندما يتم شحن مكبر الصوت، يومض الضوء بالكهرماني. إذا كانت البطارية عندما يكون مكبر الصوت موقف ً مشحونة بالكامل، يكون الضوء مطفأ التشغيل، ويضيء الضوء بالأبيض الثابت عندما يكون مكبر الصوت قيد التشغيل وتم إقرانه، ويومض الضوء بالأبيض عندما يكون مكبر الصوت قيد التشغيل ويجري الإقران. يتم تشغيل مكبر الصوت في وضع الإقران ا. ً التي تم إقرانها سابقBluetoothا الاتصال بأجهزة ً كما أنه يحاول تلقائي 5 صوت منفذ داخل .الموسيقى لتشغيل موسيقى بجهاز للتوصيل 6 Micro USB منفذ.الصوت مكبر لشحن بالطاقة مزود USB بمنفذ للتوصيل 1 4 2 5 3 6 Използване на функциите на високоговорителя ФункцияОписание 1 Бутон за увеличаване на звука Натиснете, за да увеличите звука. Когато е достигната максималната сила на звука, високоговорителят изписуква два пъти. 2 Бутон за намаляване на звука Натиснете, за да намалите звука. Когато е достигната минималната сила на звука, високоговорителят изписуква два пъти. 3 Бутон за разговор Натиснете, за да отговорите на повикване или приключите разговор от телефон или приложение на телефон, сдвоени с високоговорителя чрез Bluetooth®. 4 Бутон за захранване, Bluetooth индикатор и индикатор за батерията Натиснете, за да включите или изключите високоговорителя. Ако високоговорителят се зарежда, индикаторът мига в жълто. Ако батерията е напълно заредена, индикаторът е изключен, когато високоговорителят е изключен, в непрекъснато бяло, когато високоговорителят е включен или сдвоен, и мига в бяло, когато високоговорителят е включен и се сдвоява. Високоговорителят се стартира в режим на сдвояване и автоматично опитва да се свърже към преди това сдвоени Bluetooth устройства. 5 Порт за аудиовход Служи за свързване към музикални устройства за възпроизвеждане на музика. 6 Micro USB портСвържете към захранващ USB порт, за да заредите високоговорителя. Použití funkcí reproduktoru FunkcePopis 1 Tlačítko zvýšení hlasitosti Stisknutím zvýšíte hlasitost. Po dosažení maximální hlasitosti reproduktor dvakrát pípne. 2 Tlačítko snížení hlasitosti Stisknutím snížíte hlasitost. Po dosažení minimální hlasitosti reproduktor dvakrát pípne. 3 Tlačítko hovoruStiskněte pro přijetí nebo ukončení hovoru z telefonu nebo telefonní aplikace spárované s reproduktorem pomocí technologie Bluetooth®. 4 Tlačítko napájení, kontrolka Bluetooth a kontrolka baterie Stiskněte pro zapnutí a vypnutí reproduktoru. Pokud se reproduktor nabíjí, kontrolka bliká oranžově. Pokud je baterie zcela nabitá, po vypnutí reproduktoru kontrolka zhasne, po zapnutí, je-li reproduktor zapnut a spárován, svítí bíle, a bliká, pokud je reproduktor zapnut a probíhá párování. Reproduktor se spustí v režimu párování a automaticky se pokouší připojit ke dříve spárovaným zařízením Bluetooth. 5 Port vstupu zvuku Pokud chcete přehrávat hudbu, připojte zařízení s hudbou. 6 Port Micro USBPokud chcete reproduktor nabíjet, připojte jej k napájenému portu USB. Brug af højtalerfunktioner FunktionBeskrivelse 1 Knappen Lydstyrke op Tryk på knappen for at øge lydstyrken. Når lydstyrken er på maksimalt niveau, bipper højtaleren to gange. 2 Knappen Lydstyrke ned Tryk på knappen for at sænke lydstyrken. Når lydstyrken er på minimalt niveau, bipper højtaleren to gange. 3 Knappen Samtale Tryk på knappen for at besvare eller afslutte opkald fra en telefon eller smartphone-app, der er parret med højtaleren gennem Bluetooth®. 4 Tænd/sluk- knappen, Bluetooth®- lysdiode og lysdiode for batteri Tryk på knappen for at tænde og slukke højtaleren. Hvis højtaleren lader, blinker lysdioden gult. Hvis batteriet er fuldt ladet, er lysdioden slukket, når højtaleren er slukket; lyser hvidt, når højtaleren er tændt og parret, og den blinker hvidt, når højtaleren er tændt og i pardannelse. Højtaleren starter i parringstilstand og forsøger automatisk at forbinde til tidligere parrede Bluetooth®-enheder. 5 Indgående lydport Forbind til en strømdrevet USB-port for at oplade højtaleren. 6 Micro-USB-portForbind til en strømdrevet USB-port for at oplade højtaleren. Verwenden der Lautsprecher-Funktionen FunktionBeschreibung 1 Lauter-TasteDrücken Sie dies…

Text truncated - open the document above for the full version.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (current) 2.0 3.0 Jan-31-2012 Updated letter information (current) 3.0 4.0 May-23-2014 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 3.0 Zylux Acoustic Corporation 3F, 22, Lane 35, Jihu Road, Neihu Technology Park, Taipei 11492, Taiwan 2014/06/14 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, __ Zylux Acoustic Corporation hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Product description: HP Roar Wireless Speaker Model name: HP SR7250 FCC ID: XN6-SR7250 We affirm that between SIEMIC and __ Zylux Acoustic Corporation _ , any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Client’s signature : Client’s name / title : Percy.lee / Project Manager Contact information / address: 3F, 22, Lane 35, Jihu Road, Neihu Technology Park, Taipei 11492, Taiwan

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (current) 2.0 3.0 Jan-31-2012 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 3.0 Zylux Acoustic Corporation 3F, 22, Lane 35, Jihu Road, Neihu Technology Park, Taipei 11492, Taiwan 2014/06/14 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: XN6-SR7250 We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Schematics - Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature : Client’s name / title : Percy.lee / Project Manager Contact information / address: 3F, 22, Lane 35, Jihu Road, Neihu Technology Park, Taipei 11492, Taiwan

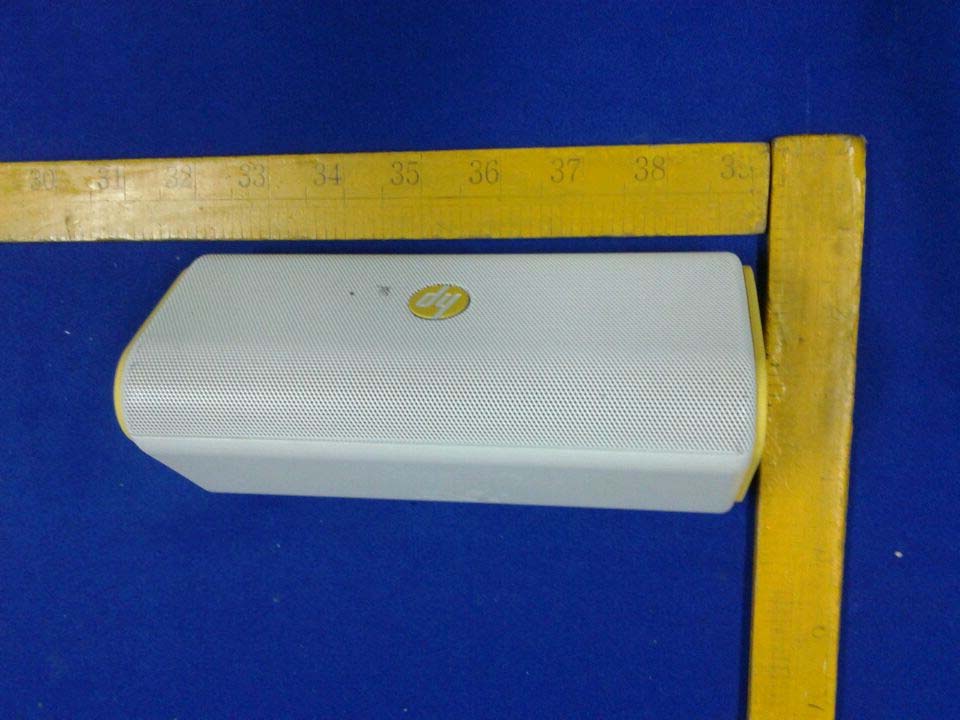

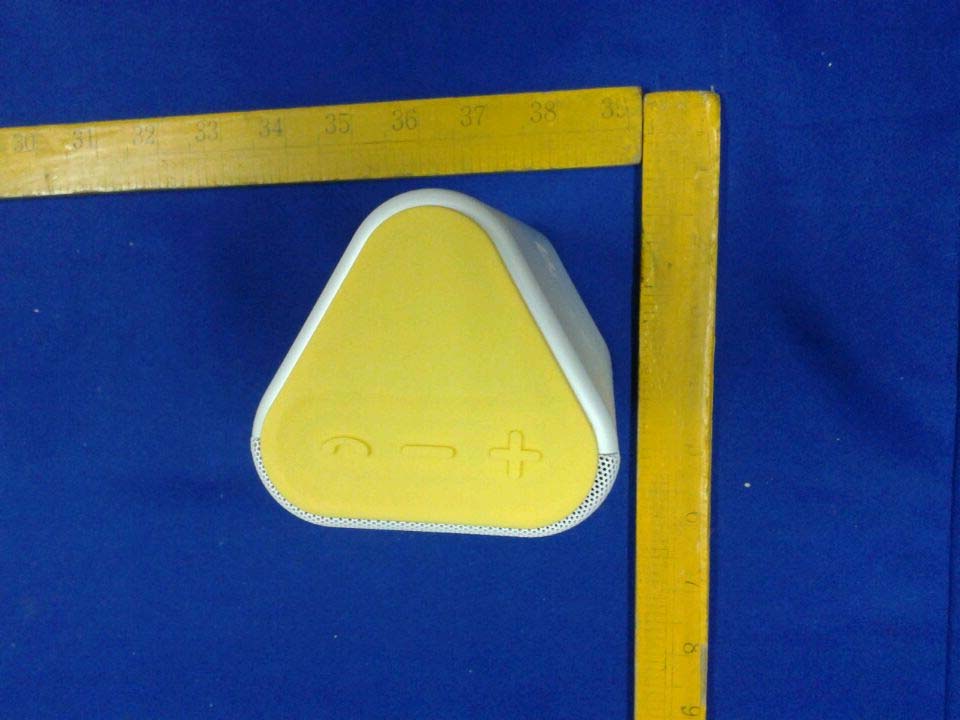

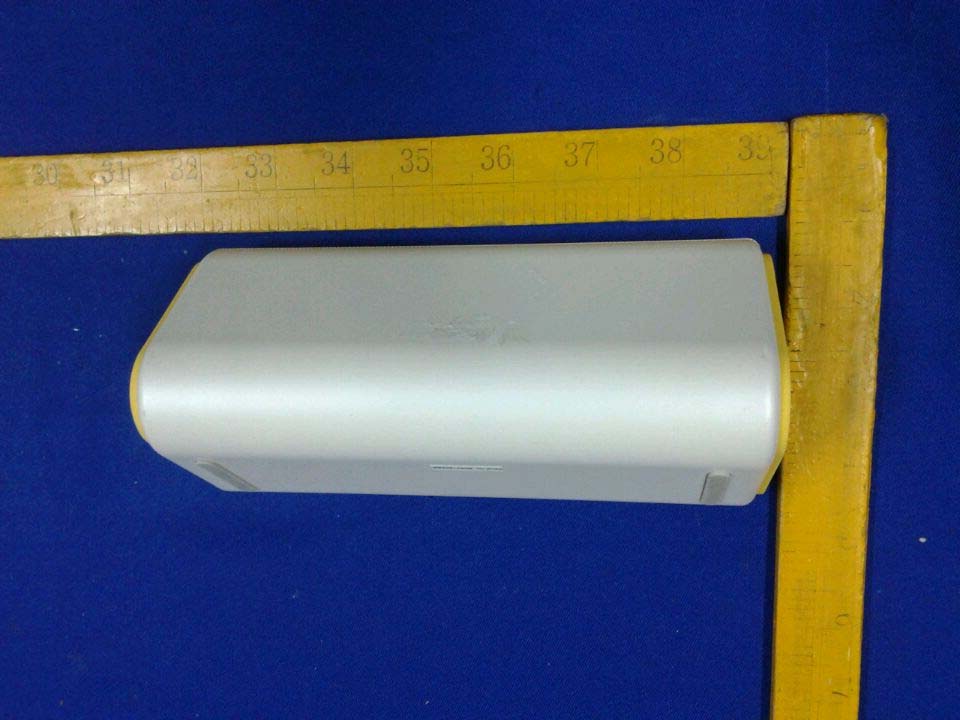

External Photos M/N: HP SR7250 External Photos M/N: HP SR7250 External Photos M/N: HP SR7250

22*34 mm

Label Location

Internal Photos M/N: HP SR7250 Internal Photos M/N: HP SR7250 Internal Photos M/N: HP SR7250 Internal Photos M/N: HP SR7250 Bluetooth Antenna Internal Photos M/N: HP SR7250

FCC ID: XN6-SR7250 FCC PART 15C TEST REPORT FOR CERTIFICATION On Behalf of Zylux Acoustic Corporation. HP Roar Wireless Speaker Model Number: HP SR7250 FCC ID: XN6-SR7250 Prepared for : Zylux Acoustic Corporation. 3F, 22Lane 35, Jihu Road, Neihu Technology Park, Taipei, 114 Taiwan Prepared By : EST Technology Co., Ltd. Santun(guantai Road), Houjie Town, DongGuan City, GuangDong, China. Tel: 86-769-83081888-808 Report Number: ESTE-R1406007 Date of Test : May 16 ~ June 02, 2014 Date of Report : June 14, 2014 FCC ID: XN6-SR7250 1. EXPOSURE EVALUATION OF PORTABLE OR MOBILE DEVICES Human exposure to RF emissions from portable devices (47 CFR §2.1093), as defined by the FCC, must be evaluated with respect to the FCC-adopted limits for SAR. Evaluation of mobile devices, as defined by the FCC, may also be performed with respect to SAR limits, but in such cases it is usually simpler and more cost-effective to evaluate compliance with respect to field strength or power density limits. For certain devices that are designed to be used in both mobile and portable configurations similar to those described in 47 CFR §2.1091(d)(4), such as certain desktop phones and wireless modem modules, compliance for mobile configurations is also satisfied when the same device is evaluated for SAR compliance in portable configurations. 2．SAR TEST EXCLUSION THRESHOLD FOR 100MHz to 6GHz and ≤50mm The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where •f(GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. FCC ID: XN6-SR7250 3. EVALUATION RESULTS Maximum measured transmitter power. Mode CH Peak output Power （dBm） Peak output Power （mW） Results 2402 -0.236 0.95 0.294 2441 1.826 1.52 0.475 GFSK 2480 2.160 1.64 0.517 2402 -2.088 0.62 0.192 2441 0.543 1.13 0.353 8-DPSK 2480 1.235 1.33 0.419 [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] * [√f(GHz)] < 3.0 SAR Test Exclusion Thresholds is 3.0 for separation distance 5mm. Therefore, SAR test is not required. ====END====

FCC ID: XN6-SR7250 EST Technology Co.,Ltd Report No.ESTE-R1406006 Page 1 of 104 FCC PART 15C TEST REPORT FOR CERTIFICATION On Behalf of Zylux Acoustic Corporation. HP Roar Wireless Speaker Model Number: HP SR7250 FCC ID: XN6-SR7250 Prepared for : Zylux Acoustic Corporation. 3F, 22Lane 35, Jihu Road, Neihu Technology Park, Taipei, 114 Taiwan Prepared By : EST Technology Co., Ltd. Santun(guantai Road), Houjie Town, DongGuan City, GuangDong, China. Tel: 86-769-83081888-808 Report Number: ESTE-R1406006 Date of Test : May 16 ~ June 02, 2014 Date of Report : June 14, 2014 FCC ID: XN6-SR7250 EST Technology Co.,Ltd Report No.ESTE-R1406006 Page 2 of 104 TABLE OF CONTENTS Description Page TEST REPORT VERIFICATION.........................................................................................................................3 1. GENERAL INFORMATION.................................................................................................................5 1.1. Description of Device (EUT) ........................................................................................................... 5 2. SUMMARY OF TEST.........................................................................................................................6 2.1. Summary of test result...................................................................................................................... 6 2.2. Test Facilities ................................................................................................................................... 7 2.3. Assistant equipment used for test ..................................................................................................... 8 2.4. Block Diagram ................................................................................................................................. 8 2.5. Test mode ......................................................................................................................................... 9 2.6. Channel List for Bluetooth ............................................................................................................... 9 2.7. Test Equipment............................................................................................................................... 10 3. MAXIMUM PEAK OUTPUT POWER.................................................................................................11 3.1. Limit ............................................................................................................................................... 11 3.2. Test Procedure ................................................................................................................................ 11 3.3. Test Result ...................................................................................................................................... 11 3.4. Test Data ........................................................................................................................................ 12 4. 20 DB BANDWIDTH.......................................................................................................................16 4.1. Limit ............................................................................................................................................... 16 4.2. Test Procedure ................................................................................................................................ 16 4.3. Test Result ...................................................................................................................................... 16 4.4. Test Data ........................................................................................................................................ 17 5. CARRIER FREQUENCY SEPARATION..............................................................................................21 5.1. Limit ............................................................................................................................................... 21 5.2. Test Procedure ................................................................................................................................ 21 5.3. Test Result ...................................................................................................................................... 21 5.4. Test Data ........................................................................................................................................ 22 6. NUMBER OF HOPPING CHANNEL..................................................................................................26 6.1. Limit ............................................................................................................................................... 26 6.2. Test Procedure ................................................................................................................................ 26 6.3. Test Result ...................................................................................................................................... 26 6.4. Test Data ........................................................................................................................................ 27 7. DWELL TIME.................................................................................................................................29 7.1. Limit ............................................................................................................................................... 29 7.2. Test Result ...................................................................................................................................... 29 7.3. Test Data ........................................................................................................................................ 30 8. RADIATED EMISSIONS.........................................................…

Text truncated - open the document above for the full version.

Conducted Test Radiated Test (30-1000 MHz) Radiated Test (1000-25000 MHz)
