XR3-BOOXPALMAMobile ePaper, Mobile E ink, Mobile Color ePaper, Mobile Color EInk, Mobile E-reader

Palma BOOX UserManual Contents 1.Copyright Declaration ........................................................ 3 2.Safety Guide ......................................................................... 4 3.Quick Start ............................................................................ 7 4.ONYX APPS ......................................................................... 15 5.System Settings ................................................................. 43 6.Thank you for your support ........................................... 56 1.Copyright Declaration Guangzhou Onyx International Inc. reserves the right to make changes to the product specifications and contents contained in the Quick Start Guide and User Manual without prior notice. 1. All book images in this manual are for display only, not pre-installed books; 2. Due to different software versions, some functions or interfaces may be inconsistent with the description in the manual. It is subject to the final product. 2.Safety Guide Please read the following safety instructions before use. If you encounter any technical difficulties, please contact your BOOX retailer, or call the official after-sales hotline at 4008-400-014 or 4008-860-830 for assistance. Fragile Screen Protection The E-ink screen is very fragile. Please do not directly hit, squeeze, oppress the screen, or drop it from a high place onto a hard surface. If the display screen is broken, please stop using it and contact our customer service or other qualified professionals for replacement. Do not disassemble and replace it by yourself. Qualified Accessories Only batteries, chargers and other accessories that meet the safety standards of this equipment are allowed to be used. For details, please refer to the product specifications. Use of incompatible accessories will result in damage to the device at your own risk. Keep away from strong magnets\static electricity Please keep away from strong magnetic and electrostatic environment to avoid abnormal writing on the electromagnetic screen or damage to other electronic parts. Keep away from liquids This device is not waterproof. Do not expose it to a humid environment or use it in the rain. Please keep it away from any corrosive liquids. Do not dismantle the device The battery of this device cannot be replaced. Please do not disassemble it by yourself to avoid damage to the structure or screen. Using environment The environment temperature range of using this device is 0° C-50°C. Please do not use it continuously in high temperature or low temperature environment. We are not responsible for the damage or loss of data in the equipment caused by human abnormal operation or unexpected circumstances, nor for other indirect losses caused thereby. If you need to return to the factory for repair, please back up important data by yourself. We are not responsible for data loss caused by repairing or replacing parts or updating the system. 3.Quick Start 4.1 Home Screen Navigation Bar Content Area System Bar Favorite Apps Control Center Pull it down from the right top edge or tap to expand. Tap the “Edit” icon on the top to edit the functions for the center. Notification Center Pull it down from the left top edge or tap to expand. Content Area Tap and hold an app to move it around on the screen, uninstall it, optimize it, add it to a group, or access some quick functions supported by the app. Tap and hold a widget to move it around, remove it, or resize it (The widget is required to support different sizes) Tap and hold a blank area for 2 seconds to enter desktop editing status. Tidy up apps on the screen, add widgets to desktop, and manage desktop settings. Add Desktops After the current desktop is full, a second desktop will be automatically added when a new app is installed. You can also long press and drag any icon to the next page manually. Navigation Bar (Default) Four combination options available. You can choose your preferred option. C1: Back / Home Screen / Multitask / E Ink Centre/ Full Refresh C2: Multitask / Home Screen / Back / E Ink Centre / Full Refresh 4.ONYX APPS 4.1 Library The Library only shows the supported formats. Cover Mode is used by default. All eBooks are sorted by Time Created. On the upper right corner of the Library, you can search books, create bookshelves, manage books in bulk, check Reading Statistics, filter and sort, switch between Cover and List modes, scan book covers, manage sync and Library settings. Library Settings You can choose to display title instead of file name, enable/disable reading statistics, or choose scan path. The default scan path is: Books and shop in Storage. You can customize the scan path and choose to auto-scan the specified path. Note: In the following case, some documents will be removed from the Library after the Library is refreshed. You can check the source files from the saving path. 1. Documents opened directly from other non-scanning path in Storage. 2. Documents that are not in the default scan path after the default scan path is modified. Sync settings You can sync reading progress and data across devices via Onyx Cloud. The feature is on by default. If you do not want to sync your reading data of all documents, you can turn this feature off. If you do not want to sync the reading data of some documents, long press their book covers to go to Sync Settings, and turn their sync off individually. Note: Currently, only reading data can be synced to the Cloud. The source document cannot be synced to the Cloud. You need to add documents to the same path on different devices for the sync. Book Property Long press a book cover to check book-related information, including title, author, format, size, reading progress, book details, Open with, Lock, Rename, Move, Custom Cover, Delete and Share. Saving path: tap the saving path to jump to the actual saving location. Clear settings You can clear password, reading data, cache, and book cover. Clear password default …

Text truncated - open the document above for the full version.

ONYX INTERNATIONAL INC. Room 101, Building 4, No. 202 Shiyu Road, Nansha District, Guangzhou City, Guangdong Province, China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2023/06/28 U.S. Agent Designation ONYX INTERNATIONAL INC. acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: XR3-BOOXPALMA): Name and company of U.S. agent: GSS SERVICE INC Physical U.S. address of agent: 6547 N Academy Blvd #226 Colorado USA FRN of U.S. agent: 0033402082 Email address of U.S. agent: [email protected] GSS SERVICE INC acknowledges their obligation to accept service of process on behalf of ONYX INTERNATIONAL INC. ONYX INTERNATIONAL INC. with the FRN [0019135441] accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. Sincerely, Signature Lifen Yu R&D Assistant ONYX INTERNATIONAL INC. Signature Michoux Logan PM GSS SERVICE INC 48_[mo del] US_Agent_2.911(d)(7) - U, V0 5

Sincerely, Name/Title： Lifen Yu /R&D Assistant Company: ONYX INTERNATIONAL INC. Address: Room 101, Building 4, No. 202 Shiyu Road, Nansha District, Guangzhou City, Guangdong Province, China Phone: (86)0755-86966884 Fax: (86)0755-86966884 E-Mail: [email protected]

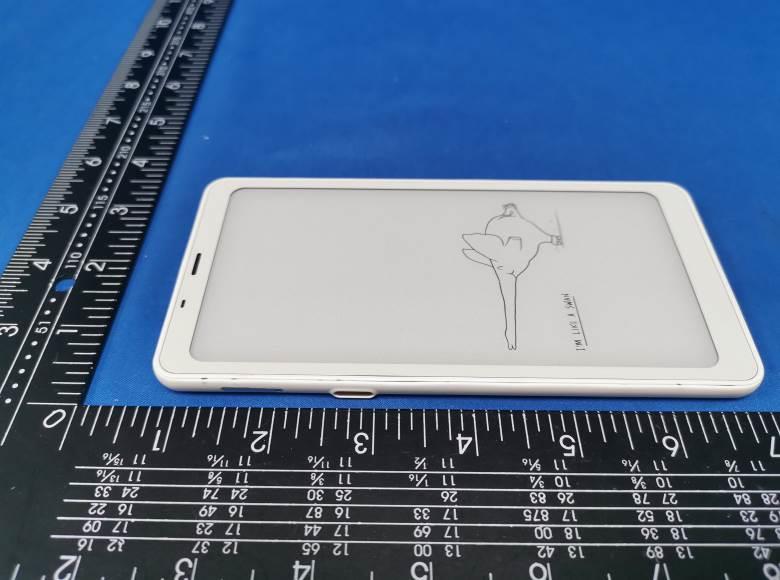

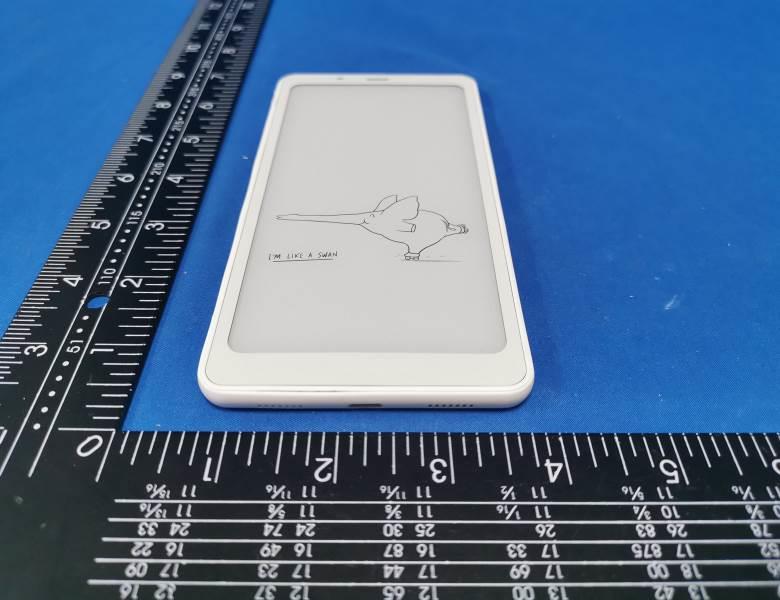

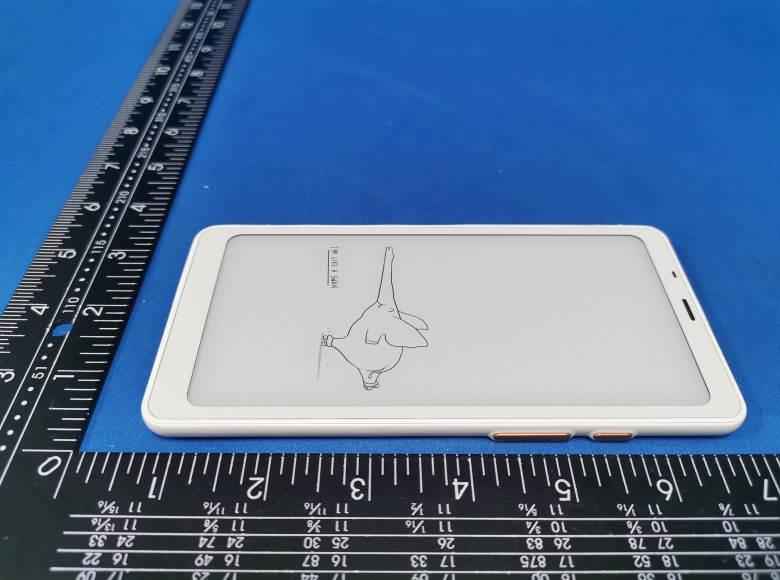

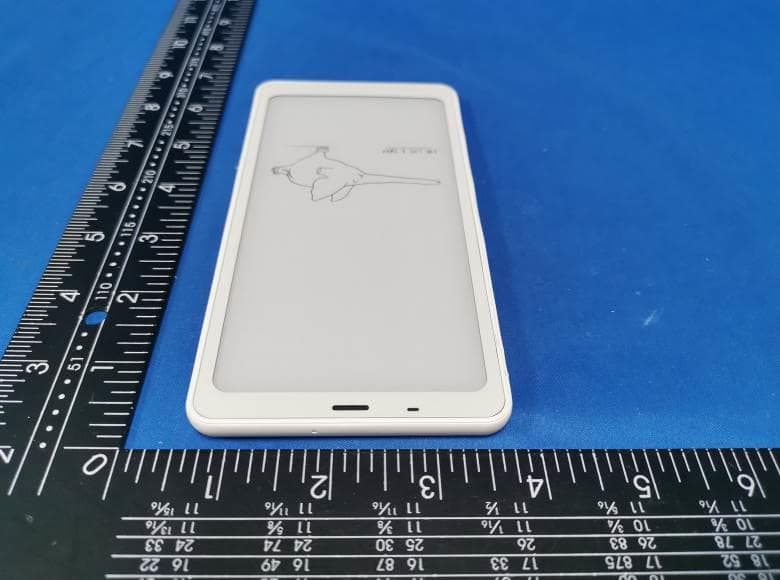

FCC ID: XR3-BOOXPALMA External Photos of the EUT Photo 1 Photo 2 Photo 3 FCC ID: XR3-BOOXPALMA Photo 4 Photo 5 Photo 6

Label and Location Size: L: 2.0cm*W: 1.0cm Label and Location Model No.: Palma FCC ID : XR3-BOOXPALMA

FCC ID: XR3-BOOXPALMA Internal Photos of the EUT Photo 1 Photo 2 Photo 3 BLE/BT/2.4G WIFI/5GWIFI PIFA Antenna FCC ID: XR3-BOOXPALMA Photo 4 Photo 5 Photo 6 FCC ID: XR3-BOOXPALMA Photo 7 Photo 8 Photo 9 FCC ID: XR3-BOOXPALMA Photo 10 Photo 11 Photo 12 FCC ID: XR3-BOOXPALMA Photo 13

FCC ID: XR3-BOOXPALMA 1) Standalone SAR test exclusion According to 447498 D01 General RF Exposure Guidance v06 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: 2) Manufacturing Tolerance Bluetooth GFSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) 1.0 1.0 1.0 Tolerance ±(dB) 1.0 1.0 1.0 π/4DQPSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) 1.0 1.0 1.0 Tolerance ±(dB) 1.0 1.0 1.0 8-DPSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) 1.0 1.0 1.0 Tolerance ±(dB) 1.0 1.0 1.0 BLE GFSK Channel Channel 0 Channel 19 Channel 39 Target (dBm) 1.0 1.0 1.0 Tolerance ±(dB) 1.0 1.0 1.0 2.4GHz WLAN IEEE 802.11b (Peak) Channel Channel 01 Channel 06 Channel 11 Target (dBm) 8.0 8.0 8.0 Tolerance ± (dB) 1.0 1.0 1.0 IEEE 802.11g (Peak) Channel Channel 01 Channel 06 Channel 11 Target (dBm) 7.0 7.0 7.0 Tolerance ± (dB) 1.0 1.0 1.0 IEEE 802.11n(HT20) (Peak) Channel Channel 01 Channel 06 Channel 11 Target (dBm) 7.0 7.0 7.0 Tolerance ± (dB) 1.0 1.0 1.0 IEEE 802.11n(HT40) (Peak) Channel Channel 03 Channel 06 Channel 09 Target (dBm) 8.0 8.0 8.0 Tolerance ± (dB) 1.0 1.0 1.0 5GHz WLAN 5GHz WLAN Band 1 5GHz WLAN Band 3 IEEE 802.11a (Average) Frequency (MHz) 5180 5220 5240 5745 5785 5825 Target (dBm) 6.0 5.0 5.0 6.0 5.0 6.0 Tolerance ± (dB) 1.0 1.0 1.0 1.0 1.0 1.0 IEEE 802.11n HT20 (Average) IEEE 802.11n HT20 (Average) Frequency (MHz) 5180 5220 5240 5745 5785 5825 Target (dBm) 5.0 4.0 4.0 4.0 4.0 5.0 Tolerance ± (dB) 1.0 1.0 1.0 1.0 1.0 1.0 IEEE 802.11ac VHT20 (Average) IEEE 802.11ac VHT20 (Average) Frequency (MHz) 5180 5220 5240 5745 5785 5825 Target (dBm) 5.0 4.0 4.0 4.0 4.0 5.0 Tolerance ± (dB) 1.0 1.0 1.0 1.0 1.0 1.0 IEEE 802.11n HT40 (Average) IEEE 802.11n HT40 (Average) Frequency (MHz) 5190 5230 5755 5795 Target (dBm) 6.0 6.0 4.0 4.0 Tolerance ± (dB) 1.0 1.0 1.0 1.0 IEEE 802.11ac VHT40 (Average) IEEE 802.11ac VHT40 (Average) Frequency (MHz) 5190 5230 5755 5795 Target (dBm) 6.0 6.0 4.0 4.0 Tolerance ± (dB) 1.0 1.0 1.0 1.0 IEEE 802.11ac VHT80 (Average) IEEE 802.11ac VHT80 (Average) Frequency (MHz) 5210 5775 Target (dBm) 6.0 4.0 Tolerance ± (dB) 1.0 1.0 According to the output power measurement, and the tune-up statement by manufacturer, the calculated value can obtained. Mode Test Frequenc y (MHz) Minimum Separati on Distance (mm) Output Power with tune up (dBm) Output Power (mW) calculated value exclusion thresholds BT 2402.00 5.0 2.0 1.5849 0.4962 3 BLE 2440.00 5.0 2.0 1.5849 0.4962 3 WIFI 2.4G 2437.00 5.0 9.0 7.9433 2.4866 3 WIFI 5.2G 5200.00 5.0 7.0 5.0119 2.2814 3 WIFI 5.8G 5825.00 5.0 5.0 3.1623 1.5159 3 3) Conclusion: The measurement results comply with the FCC Limit per 47 CFR 2.1093 for the uncontrolled RF Exposure and SAR Exclusion Threshold per KDB 447498 v06.

1. Antenna Description: Antenna type PIFA antenna Model Palma Frequency range 2400-2500MHz Manufacturer ShenZhen MyAntenna RF Technology Co., Ltd ANT Peak Gain 2.00 dBi 2. Antenna Photo: Length :19.78mm Width:12.91mm 3. Test Equipment & Conditions 3.1 Test instrument VSWR is tested using Agilent E5071B connected to a hand mechanism, and the status is free space. 3.2 Test environment and methods 4．Antenna Radiation Pattern 2400MHz 2450MHz 2500MHz

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao‘an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. ..................... : FCC ID. ........................................... : CTA23031401301 XR3-BOOXPALMA Compiled by ( position+printed name+signature) .. : File administrators Zoey Cao Supervised by ( position+printed name+signature) .. : Project Engineer Amy Wen Approved by ( position+printed name+signature) .. : RF Manager Eric Wang Date of issue ..................................... : Mar. 31, 2023 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address ............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao‘an District, Shenzhen, China Applicant’s name ............................ : ONYX INTERNATIONAL INC. Address ............................................ : Room 101, Building 4, No. 202 Shiyu Road, Nansha District, Guangzhou City, Guangdong Province, China Test specification ...........................: Standard ........................................... : FCC Part 15.247 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Equipment description ................... : Mobile ePaper, Mobile E ink, Mobile Color ePaper, Mobile Color E Ink, Mobile E-reader Trade Mark ....................................... : BOOX Manufacturer .................................... : ONYX INTERNATIONAL INC. Model/Type reference....................... : Palma Listed Models .................................. : Palma Plus, Palma Pro, Palma Lite, Palma C, Palma C Plus, Palma C Pro, Palma Color, Palma Color Plus, Palma Color Pro, Palma S, ONYX BOOX KANT Modulation ....................................... : GFSK Frequency .......................................... From 2402MHz to 2480MHz Ratings ............................................. : DC 3.87V From Battery and DC 5.0V From external circuit Result................................................ : PASS Report No.: CTA23031401301 Page 2 of 37 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Mobile ePaper, Mobile E ink, Mobile Color ePaper, Mobile Color E Ink, Mobile E-reader Model /Type : Palma Listed Models : Palma Plus, Palma Pro, Palma Lite, Palma C, Palma C Plus, Palma C Pro, Palma Color, Palma Color Plus, Palma Color Pro, Palma S, ONYX BOOX KANT Applicant : ONYX INTERNATIONAL INC. Address : Room 101, Building 4, No. 202 Shiyu Road, Nansha District, Guangzhou City, Guangdong Province, China Manufacturer : ONYX INTERNATIONAL INC. Address : Room 101, Building 4, No. 202 Shiyu Road, Nansha District, Guangzhou City, Guangdong Province, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA23031401301 Page 3 of 37 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 T E S T S T A N D A R D S .................................................................. 4 2 S U M M A R Y ............................................................................. 5 2.1 General Remarks 5 2.2 Product Description 5 2.3 Equipment Under Test 5 2.4 Short description of the Equipment under Test (EUT) 5 2.5 EUT operation mode 6 2.6 Block Diagram of Test Setup 6 2.7 Related Submittal(s) / Grant (s) 6 2.8 Modifications 6 3 T E S T E N V I R O N M E N T ............................................................... 7 3.1 Address of the test laboratory 7 3.2 Test Facility 7 3.3 Environmental conditions 7 3.4 Summary of measurement results 8 3.5 Statement of the measurement uncertainty 8 3.6 Equipments Used during the Test 9 4 T E S T C O N D I T I O N S A N D R E S U L T S ............................................ 10 4.1 AC Power Conducted Emission 10 4.2 Radiated Emissions and Band Edge 13 4.3 Maximum Peak Output Power 20 4.4 Power Spectral Density 21 4.5 6dB Bandwidth 23 4.6 Out-of-band Emissions 25 4.7 Antenna Requirement 29 5 T E S T S E T U P P H O T O S O F T H E E U T .......................................... 30 6 P H O T O S O F T H E E U T ............................................................. 31 Report No.: CTA23031401301 Page 4 of 37 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 1 T E S T S T A N D A R D S The tests were performed according to following standards: FCC Rules Part 15.247: Frequency Hopping, Direct Spread Spectrum and Hybrid Systems that are in operation within the bands of 902-928 MHz, 2400-2483.5 MHz, and 5725-5850 MHz. ANSI C63.10-2013: American National Standard for Testing Unlicensed Wireless Devices KDB558074 D01 V05r02: Guidance f…

Text truncated - open the document above for the full version.

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao‘an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. ..................... : FCC ID............................................. : CTA23031401303 XR3-BOOXPALMA Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Amy Wen Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Mar. 31, 2023 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao‘an District, Shenzhen, China Applicant’s name ............................ : ONYX INTERNATIONAL INC. Address ............................................ : Room 101, Building 4, No. 202 Shiyu Road, Nansha District, Guangzhou City, Guangdong Province, China Test specification ........................... : Standard ........................................... : FCC Part 15.247 TRF Originator .................................. : Shenzhen CTA Testing Technology Co., Ltd. Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : Mobile ePaper, Mobile E ink, Mobile Color ePaper, Mobile Color E Ink, Mobile E-reader Trade Mark ....................................... : BOOX Manufacturer .................................... : ONYX INTERNATIONAL INC. Model/Type reference ...................... : Palma Listed Models .................................. : Palma Plus, Palma Pro, Palma Lite, Palma C, Palma C Plus, Palma C Pro, Palma Color, Palma Color Plus, Palma Color Pro, Palma S, ONYX BOOX KANT Modulation Type ............................... : CCK/DSSS/ OFDM Operation Frequency ........................ : From 2412 - 2462MHz Rating ............................................... : DC 3.87V From Battery and DC 5.0V From external circuit Result ............................................... : PASS Report No.: CTA23031401303 Page 2 of 37 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Mobile ePaper, Mobile E ink, Mobile Color ePaper, Mobile Color E Ink, Mobile E-reader Model /Type : Palma Listed Models : Palma Plus, Palma Pro, Palma Lite, Palma C, Palma C Plus, Palma C Pro, Palma Color, Palma Color Plus, Palma Color Pro, Palma S, ONYX BOOX KANT Applicant : ONYX INTERNATIONAL INC. Address : Room 101, Building 4, No. 202 Shiyu Road, Nansha District, Guangzhou City, Guangdong Province, China Manufacturer : ONYX INTERNATIONAL INC. Address : Room 101, Building 4, No. 202 Shiyu Road, Nansha District, Guangzhou City, Guangdong Province, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA23031401303 Page 3 of 37 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 T E S T S T A N D A R D S .................................................................. 4 2 S U M M A R Y ............................................................................. 5 2.1 General Remarks 5 2.2 Product Description 5 2.3 Equipment Under Test 5 2.4 Short description of the Equipment under Test (EUT) 5 2.5 EUT operation mode 6 2.6 Block Diagram of Test Setup 6 2.7 Related Submittal(s) / Grant (s) 6 2.8 Modifications 6 3 T E S T E N V I R O N M E N T ............................................................... 7 3.1 Address of the test laboratory 7 3.2 Test Facility 7 3.3 Environmental conditions 7 3.4 Test Description 8 3.5 Statement of the measurement uncertainty 8 3.6 Equipments Used during the Test 9 4 T E S T C O N D I T I O N S A N D R E S U L T S ............................................ 10 4.1 AC Power Conducted Emission 10 4.2 Radiated Emission 13 4.3 Maximum Peak Conducted Output Power 19 4.4 Power Spectral Density 20 4.5 6dB Bandwidth 23 4.6 Out-of-band Emissions 26 4.7 Antenna Requirement 35 5 T E S T S E T U P P H O T O S O F T H E E U T .......................................... 36 6 P H O T O S O F T H E E U T ............................................................. 37 Report No.: CTA23031401303 Page 4 of 37 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 1 T E S T S T A N D A R D S The tests were performed according to following standards: FCC Rules Part 15.247: Frequency Hopping, Direct Spread Spectrum and Hybrid Systems that are in operation within the bands of 902-928 MHz, 2400-2483.5 MHz, and 5725-5850 MHz. ANSI C63.10-2013: American National Standard f…

Text truncated - open the document above for the full version.

Report No.: CTA23031401303 Page 29 of 37 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 802.11g Reference Reference CH06 CH11 30MHz-1GHz 30MHz-1GHz 1GHz -25GHz 1GHz -25GHz Report No.: CTA23031401303 Page 30 of 37 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 802.11n20 Reference Reference CH01 CH06 30MHz-1GHz 30MHz-1GHz 1GHz -25GHz 1GHz -25GHz Report No.: CTA23031401303 Page 31 of 37 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 802.11n20 802.11n40 Reference Reference CH11 CH03 30MHz-1GHz 30MHz-1GHz 1GHz -25GHz 1GHz -25GHz Report No.: CTA23031401303 Page 32 of 37 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 802.11n40 Reference Reference CH06 CH09 30MHz-1GHz 30MHz-1GHz 1GHz -25GHz 1GHz -25GHz Report No.: CTA23031401303 Page 33 of 37 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Band-edge Measurements for RF Conducted Emissions: 802.11b Left bandedge Right bandedge 802.11g Left bandedge Right bandedge Report No.: CTA23031401303 Page 34 of 37 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 802.11n(HT20) Left bandedge Right bandedge 802.11n(HT40) Left bandedge Right bandedge Report No.: CTA23031401303 Page 35 of 37 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 4.7 Antenna Requirement Standard Applicable For intentional device, according to FCC 47 CFR Section 15.203: An intentional radiator shall be designed to ensure that no antenna other than that furnished by the responsible party shall be used with the device. The use of a permanently attached antenna or of an antenna that uses a unique coupling to the intentional radiator, the manufacturer may design the unit so that a broken antenna can be replaced by the user, but the use of a standard antenna jack or electrical connector is prohibited FCC CFR Title 47 Part 15 Subpart C Section 15.247(c) (1) (I): (i) Systems operating in the 2400-2483.5 MHz band that is used exclusively for fixed. Point-to-point operations may employ transmitting antennas with directional gain greater than 6dBi provided the maximum conducted output power of the intentional radiator is reduced by 1 dB for every 3 dB that the directional gain of the antenna exceeds 6dBi. Test Result: The maximum gain of antenna was 2.00 dBi. Remark:The antenna gain is provided by the customer , if the data provided by the customer is not accurate, Shenzhen CTA Testing Technology Co., Ltd. does not assume any responsibility. Report No.: CTA23031401303 Page 36 of 37 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 5 T e s t S e t u p P h o t o s o f t h e E U T Report No.: CTA23031401303 Page 37 of 37 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 6 P h o t o s o f t h e E U T Reference to the test report No. CTA23031401301 ********************** End of Report **********************

FCC ID: XR3-BOOXPALMA Test Setup Photos of the EUT
