BOOX 60 User Manual Version 1.0 Copyright © 2009 Onyx International. All rights reserved. Table of Contents 1 Preface.............................................................................................................. 11 2 Guidelines ........................................................................................................ 13 3 Precautions ...................................................................................................... 14 4 Components..................................................................................................... 15 4.1 Boox 60 .................................................................................................. 15 4.2 Power Adaptor ....................................................................................... 15 4.3 USB Cable .............................................................................................. 15 4.4 Cover ...................................................................................................... 15 4.5 SD Card .................................................................................................. 15 5 Boox.................................................................................................................. 16 5.1 Power Key .............................................................................................. 18 5.2 MENU Key .............................................................................................. 18 5.3 BACK Key .............................................................................................. 18 5.4 NEXT Key ............................................................................................... 18 5.5 PREV Key ............................................................................................... 18 5.6 Direction Key ......................................................................................... 18 5.7 Volume Keys .......................................................................................... 19 5.8 Wifi Key .................................................................................................. 19 5.9 Headphone Jack .................................................................................... 19 5.10 Indicator Light ..................................................................................... 19 6 User Interface................................................................................................... 20 6.1 Main View ............................................................................................... 20 6.1.1 Internal Flash............................................................................... 21 Copyright © 2009 Onyx International. All rights reserved. 6.1.2 SD Card ........................................................................................ 22 6.1.3 Recent Document........................................................................ 23 6.1.4 Shortcuts ..................................................................................... 24 6.1.5 Notes ............................................................................................ 25 6.1.5.1 Create Note........................................................................ 26 6.1.5.2 Open Existing Notes......................................................... 27 6.1.6 Settings ........................................................................................ 27 6.1.6.1 Date .................................................................................... 28 6.1.6.2 Time Zone .......................................................................... 30 6.1.6.3 Locale................................................................................. 31 6.1.6.4 Power Management .......................................................... 32 6.1.6.5 Stylus Calibration ............................................................. 33 6.1.6.6 Format Flash ..................................................................... 38 6.1.6.7 About.................................................................................. 39 6.1.7 Web sites ..................................................................................... 40 6.2 Navigation Bar ....................................................................................... 41 6.3 Tool Bar .................................................................................................. 42 6.3.1 Menu Button ........................................................................... 42 6.3.2 Progress Bar................................................................................ 42 6.3.3 Stylus Indicator ........................................................................... 47 6.3.3.1 Sketch ......................................................................... 47 6.3.3.2 Erase Sketches ........................................................... 47 6.3.3.3 Hand Tool .................................................................... 47 6.3.3.4 Selection Zoom .......................................................... 47 6.3.3.5 Annotate ...................................................................... 47 Copyright © 2009 Onyx International. All rights reserved. 6.3.3.6 Erase Annotations ...................................................... 48 6.3.4 Power Indicator ..................................................................... 48 6.3.5 Clock ..................................................................................... 48 6.4 Menu ....................................................................................................... 49 6.4.1 Screen Rotation ............................................................... 49 6.4.2 Save Remove SD Card .................................................... 50 6.4.3 Music .................................................................................. 50 6.4.4 Standby ................................…

Text truncated - open the document above for the full version.

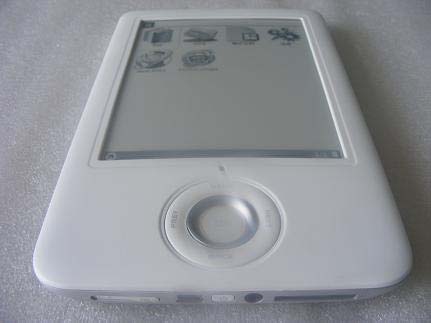

BOOX Exterior Photo

ONYX INTERNATIONAL INC. Model: BOOX 60 REPORT NO.: STUGZEFO090910700RF Page 52 of 64 FCC PART 15.247 EXHIBIT 3 - EUT INTERNAL PHOTOGRAPHS ONYX INTERNATIONAL INC. Model: BOOX 60 REPORT NO.: STUGZEFO090910700RF Page 53 of 64 FCC PART 15.247 (Touch Screen 1) ONYX INTERNATIONAL INC. Model: BOOX 60 REPORT NO.: STUGZEFO090910700RF Page 54 of 64 FCC PART 15.247 (Touch Screen 2) ONYX INTERNATIONAL INC. Model: BOOX 60 REPORT NO.: STUGZEFO090910700RF Page 55 of 64 FCC PART 15.247 ONYX INTERNATIONAL INC. Model: BOOX 60 REPORT NO.: STUGZEFO090910700RF Page 56 of 64 FCC PART 15.247 (Note:1. Nand Flash; 2. DDR; 3. CPU; 4.SDRAM; 5. Display Controller; 6.WiFi Module) (1. Nand Flash (Samsung K9F4G08U0B)) ONYX INTERNATIONAL INC. Model: BOOX 60 REPORT NO.: STUGZEFO090910700RF Page 57 of 64 FCC PART 15.247 ( 2. DDR) ( 3. CPU (Freescale i.MX31L Multimedia Applications Processor) ) ONYX INTERNATIONAL INC. Model: BOOX 60 REPORT NO.: STUGZEFO090910700RF Page 58 of 64 FCC PART 15.247 (4. SDRAM) (5. Epson/E-ink S1D13521 Display Controller) ONYX INTERNATIONAL INC. Model: BOOX 60 REPORT NO.: STUGZEFO090910700RF Page 59 of 64 FCC PART 15.247 (6. 802.11b/g WiFi Module (WM-G-MR-09)) (7. Antenna) ONYX INTERNATIONAL INC. Model: BOOX 60 REPORT NO.: STUGZEFO090910700RF Page 60 of 64 FCC PART 15.247 ( Keypad ) ( USB ) ONYX INTERNATIONAL INC. Model: BOOX 60 REPORT NO.: STUGZEFO090910700RF Page 61 of 64 FCC PART 15.247 ( SD / MMC )

ONYX INTERNATIONAL INC. Model: BOOX 60 REPORT NO.: STUGZEFO090910700RF Page 2 of 65 FCC PART 15.247 TABLE OF CONTENTS 1. GENERAL INFORMATION ...................................................................................................................................4 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT)...............................................................................4 1.2 TEST STANDARDS...................................................................................................................................................4 1.3 RELATED SUBMITTAL(S)/GRANT(S) .......................................................................................................................4 1.4 TEST METHODOLOGY.............................................................................................................................................5 1.5 TEST LOCATION.....................................................................................................................................................5 1.6 EUT EXERCISE SOFTWARE....................................................................................................................................5 1.7 ACCESSORIES EQUIPMENT LIST AND DETAILS.......................................................................................................5 1.8 EUT CABLE LIST AND DETAILS.............................................................................................................................5 2. SUMMARY OF TEST RESULTS ...........................................................................................................................6 3. CONDUCTED EMISSIONS ....................................................................................................................................7 3.1 MEASUREMENT UNCERTAINTY..............................................................................................................................7 3.2 TEST EQUIPMENT LIST AND DETAILS.....................................................................................................................7 3.3 TEST PROCEDURE...................................................................................................................................................7 3.4 BASIC TEST SETUP BLOCK DIAGRAM.....................................................................................................................7 3.5 ENVIRONMENTAL CONDITIONS..............................................................................................................................8 3.6 SUMMARY OF TEST RESULTS/PLOTS......................................................................................................................8 3.7 CONDUCTED EMISSIONS TEST DATA......................................................................................................................8 4. §15.203 - ANTENNA REQUIREMENT................................................................................................................12 4.1 STANDARD APPLICABLE.......................................................................................................................................12 4.2 TEST RESULT........................................................................................................................................................12 5. POWER SPECTRAL DENSITY ...........................................................................................................................13 5.1 STANDARD APPLICABLE.......................................................................................................................................13 5.2 TEST EQUIPMENT LIST AND DETAILS...................................................................................................................13 5.3 TEST PROCEDURE.................................................................................................................................................13 5.4 ENVIRONMENTAL CONDITIONS............................................................................................................................13 5.5 SUMMARY OF TEST RESULTS/PLOTS....................................................................................................................14 6. 6-DB BANDWIDTH ................................................................................................................................................18 6.1 STANDARD APPLICABLE.......................................................................................................................................18 6.2 TEST EQUIPMENT LIST AND DETAILS...................................................................................................................18 6.3 TEST PROCEDURE.................................................................................................................................................18 6.4 ENVIRONMENTAL CONDITIONS............................................................................................................................18 6.5 SUMMARY OF TEST RESULTS/PLOTS....................................................................................................................18 7. POWER OUTPUT...................................................................................................................................................22 7.1 STANDARD APPLICABLE.......................................................................................................................................22 7.2 TEST EQUIPMENT LIST AND DETAILS...................................................................................................................22 7.3 TEST PROCEDURE.................................................................................................................................................22 7.4 ENVIRONMENTAL CONDITIONS.................................…

Text truncated - open the document above for the full version.

ONYX INTERNATIONAL INC. Model: BOOX 60 REPORT NO.: STUGZEFO090910700RF Page 63 of 64 FCC PART 15.247 EXHIBIT 4 - TEST SETUP PHOTOGRAPHS Conducted Emission Test Setup (150kHz to 30MHz) Radiation Emission Test Setup (30MHz to 1GHz) ONYX INTERNATIONAL INC. Model: BOOX 60 REPORT NO.: STUGZEFO090910700RF Page 64 of 64 FCC PART 15.247 Radiation Emission Test Setup (Above 1GHz) ****** End of Report ******
