XRSMLEN201SRD device for operation in the 2.45GHz band

Document. type: Technical Note Revision: PA3 LumenRadio AB www.lumenradio.com Phone: +46 31 301 03 70 Svangatan 2B [email protected] Fax: +46 31 301 03 80 SE-416 68 Gothenburg Sweden VAT reg. no: SE556761749201 Guidelines for design in of module MLE-N2 Table of contents Guidelines for design in of module MLE-N2 .................................................................................... 1 1 General Guidelines ....................................................................................................................... 2 2 Guidelines for optimum antenna performance ............................................................................. 2 2.1 Carrier board design .............................................................................................................. 2 2.2 Guidelines for mounting in enclosure ................................................................................... 3 3 Compliance information ................................................................................................................ 4 3.1 FCC information .................................................................................................................... 4 3.1.1 Federal Communication Commission Interference Statement ..................................... 4 3.1.2 FCC Declaration of Conformity ...................................................................................... 4 3.1.3 FCC Radiation Exposure Statement ............................................................................. 4 3.1.4 End Product Labeling ..................................................................................................... 4 3.1.5 Manual Information to the End User .............................................................................. 4 3.2 Industry Canada statement ................................................................................................... 5 3.3 CE .......................................................................................................................................... 5 3.4 Compliance Marking, FCC & Industry Canada ..................................................................... 5 Document. type: Technical Note Revision: PA3 LumenRadio AB www.lumenradio.com Phone: +46 31 301 03 70 Svangatan 2B [email protected] Fax: +46 31 301 03 80 SE-416 68 Gothenburg Sweden VAT reg. no: SE556761749201 1 General Guidelines • MLE-N2 has been tested on 1.6mm carrier boards of the brands ITEQ IT180 and Isola 370HR. For optimal performance it is recommended to use those for the carrier board design or a PCB with similar specification. http://www.iteq.com.tw/wp-content/uploads/2016/09/IT-180-datasheet-201409.pdf https://www.isola-group.com/pcb-laminates-prepreg/370hr/ • Avoid routing any non-isolated conductors, ground layers or vias underneath MLE-N2 in the top layer as vias or conductors on MLE-N2 might get short circuited otherwise. 2 Guidelines for optimum antenna performance The MLE-N2 module has a built in highly effective inverted F antenna optimized for wall mount applications. 2.1 Carrier board design For optimum performance of the MLE-N2 antenna the carrier board PCB should be designed so that following dimensions are met: Board design example ITEQ IT180 carrier PCB Red diagonal striped area is a keep out area “air gap” from any solid objects or carrier board PCB material. min 5mm min 5mm MLE-N2 module min 5mm Black Area is a carrier board clearance area. No components or traces/GND planes are allowed in this area. This area should be min 5mm wide from the board edge of MLE-N2 to the opposite board edge. Please note the orientation of the antenna and MLE-N2. Document. type: Technical Note Revision: PA3 LumenRadio AB www.lumenradio.com Phone: +46 31 301 03 70 Svangatan 2B [email protected] Fax: +46 31 301 03 80 SE-416 68 Gothenburg Sweden VAT reg. no: SE556761749201 Board design without MLE 2.2 Guidelines for mounting in enclosure ITEQ IT180 carrier PCB Red diagonal striped area is a keep out area “air gap” from any solid objects or carrier board PCB material. min 5mm min 5mm Black Area is a carrier board clearance area. No components or traces/GND planes are allowed in this area. This area should be min 5mm wide from the board edge of MLE-N2 to the opposite board edge. Top layer of carrier board PCB should be free from non-isolated GND planes, traces or vias. ITEQ IT180 carrier PCB MLE-N2 Min 5mm to solid objects under and above MLE-N2 antenna area. Note that carrier board thickness can be included in the total distance to solid objects under the antenna. I.e. for a 1.6mm carrier board standoffs needs to be min 3.4mm Min 5mm Min 5mm Document. type: Technical Note Revision: PA3 LumenRadio AB www.lumenradio.com Phone: +46 31 301 03 70 Svangatan 2B [email protected] Fax: +46 31 301 03 80 SE-416 68 Gothenburg Sweden VAT reg. no: SE556761749201 3 Compliance information 3.1 FCC information 3.1.1 Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which th…

Text truncated - open the document above for the full version.

Report No.: 2102C088 Page 2 of 3

Additional Label Specifications For 200-2018 (Mira MLE-N2) Listed below are the requirements and specifications that need to be fulfilled for the Mira MLE-N2 product label in order to be approved from R&D for mass production: 1. Label contains “lumenradio” as text and QR code with serial number. 2. Label should be clearly visible, i.e. all letters are printed visibly and QR code should be big enough so that scanning is easy. 3. Entire label print (text & QR code) should be on the label, i.e. no letters cut off etc. 4. Label should be placed centric on RF shield (as depicted below), with equal distance to borders. Distance to RF shield edge to be 1 mm, +/- 0,5 mm 5. Label should be placed as depicted in picture below (i.e. with antenna on right side). label and label location PRODUCTSOFTWARE VERS. QUANTITY PACKED DATE xxx-xxxxsw: xxxx xxxx-xx-xx xx:xx:xx xxxxxx (serial number) xxx lumenradio FCC ID: XRSMLEN201 IC ID: 8879A-MLEN201

Report No.: 2102C088 Page 3 of 3 Antenna

Report No.: BTL-FCCP-2-2102C088 Page 1 of 3 FCC RF EXPOSURE REPORT FCC ID: XRSMLEN201 Project No. : 2102C088 Equipment : SRD device for operation in the 2.45GHz band Brand Name : LumenRadio Test Model : MLE-N2 Series Model : N/A Applicant : LumenRadio AB Address : Svangatan 2B, SE-41668 Gothenburg Manufacturer : LumenRadio AB Address : Svangatan 2B, SE-41668 Gothenburg Factory : Inission Borås AB Address : Gränsvägen 6 Date of Receipt : Feb. 25, 2021 Date of Test : Mar. 03, 2021 ~ Mar. 15, 2021 Issued Date : Mar. 23, 2021 Report Version : R00 Test Sample : Engineering Sample No.: DG20210225122 Standard(s) : FCC Guidelines for Human Exposure IEEE C95.1 & FCC Part 2.1091 FCC Title 47 Part 2.1091, OET Bulletin 65 Supplement C The above equipment has been tested and found compliance with the requirement of the relative standards by BTL Inc. Prepared by : Chella Zheng Approved by : Ethan Ma Add: No.3, Jinshagang 1st Road, Shixia, Dalang Town,Dongguan, Guangdong, China. Te l : +86-769-8318-3000 Web: www.newbtl.com Report No.: BTL-FCCP-2-2102C088 Page 2 of 3 REPORT ISSUED HISTORY Report Version Description Issued Date R00 Original Issue Mar. 23, 2021 Report No.: BTL-FCCP-2-2102C088 Page 3 of 3 1. TEST FACILITY The test facilities used to collect the test data in this report is at the location of No.3,Jinshagang 1st Road, Shixia, Dalang Town, Dongguan, Guangdong, China. BTL's Test Firm Registration Number for FCC: 357015 BTL's Designation Number for FCC: CN1240 2. MPE CALCULATION METHOD Calculation Method of RF Safety Distance: where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Table for Filed Antenna: Ant. Brand Model Name Antenna Type Connector Gain (dBi) 1 N/A N/A Internal N/A 2 Note: 1) The antenna gain is provided by the manufacturer. 3. TEST RESULTS Antenna Gain (dBi) Antenna Gain (numeric) Max. Output Power (dBm) Max. Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 2 1.5849 7.54 5.6754 0.00179 1 Complies Note: The calculated distance is 20 cm. End of Test Report

Report No.: BTL-FCCP-1-2102C088 Page 1 of 55 FCC Radio Test Report FCC ID: XRSMLEN201 This report concerns: Original Grant Project No. : 2102C088 Equipment : SRD device for operation in the 2.45GHz band Brand Name : LumenRadio Test Model : MLE-N2 Series Model : N/A Applicant : LumenRadio AB Address : Svangatan 2B, SE-41668 Gothenburg Manufacturer : LumenRadio AB Address : Svangatan 2B, SE-41668 Gothenburg Factory : Inission Borås AB Address : Gränsvägen 6 Date of Receipt : Feb. 25, 2021 Date of Test : Mar. 03, 2021 ~ Mar. 15, 2021 Issued Date : Mar. 23, 2021 Report Version : R00 Test Sample : Engineering Sample No.: DG20210225122 Standard(s) : FCC Part15, Subpart C (15.247) ANSI C63.10-2013 FCC KDB 558074 D01 15.247 Meas Guidance V05r02 The above equipment has been tested and found compliance with the requirement of the relative standards by BTL Inc. Prepared by : Chella Zheng Approved by : Ethan Ma Add: No.3, Jinshagang 1st Road, Shixia, Dalang Town,Dongguan, Guangdong, China. Te l : +86-769-8318-3000 Web: www.newbtl.com Report No.: BTL-FCCP-1-2102C088 Page 2 of 55 Declaration BTL represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with standards traceable to international standard(s) and/or national standard(s). BTL's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. BTL shall have no liability for any declarations, inferences or generalizations drawn by the client or others from BTL issued reports. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, A2LA, or any agency of the U.S. Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and ourselves, the test report shall not be reproduced, except in full, without our written approval. BTL’s laboratory quality assurance procedures are in compliance with the ISO/IEC 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. BTL is not responsible for the sampling stage, so the results only apply to the sample as received. The information, data and test plan are provided by manufacturer which may affect the validity of results, so it is manufacturer’s responsibility to ensure that the apparatus meets the essential requirements of applied standards and in all the possible configurations as representative of its intended use. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Please note that the measurement uncertainty is provided for informational purpose only and are not use in determining the Pass/Fail results. Report No.: BTL-FCCP-1-2102C088 Page 3 of 55 Table of Contents Page REPORT ISSUED HISTORY 5 1 . SUMMARY OF TEST RESULTS 6 1.1 TEST FACILITY 7 1.2 MEASUREMENT UNCERTAINTY 7 1.3 TEST ENVIRONMENT CONDITIONS 7 2 . GENERAL INFORMATION 8 2.1 GENERAL DESCRIPTION OF EUT 8 2.2 DESCRIPTION OF TEST MODES 10 2.3 PARAMETERS OF TEST SOFTWARE 10 2.4 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 11 2.5 SUPPORT UNITS 11 3 . AC POWER LINE CONDUCTED EMISSIONS 12 3.1 LIMIT 12 3.2 TEST PROCEDURE 12 3.3 DEVIATION FROM TEST STANDARD 12 3.4 TEST SETUP 13 3.5 EUT OPERATING CONDITIONS 13 3.6 TEST RESULTS 13 4 . RADIATED EMISSION 14 4.1 LIMIT 14 4.2 TEST PROCEDURE 15 4.3 DEVIATION FROM TEST STANDARD 15 4.4 TEST SETUP 16 4.5 EUT OPERATING CONDITIONS 17 4.6 TEST RESULT - 9 KHZ TO 30 MHZ 17 4.7 TEST RESULT - 30 MHZ TO 1000 MHZ 17 4.8 TEST RESULT - ABOVE 1000 MHZ 17 5 . BANDWIDTH 18 5.1 LIMIT 18 5.2 TEST PROCEDURE 18 5.3 DEVIATION FROM STANDARD 18 5.4 TEST SETUP 18 5.5 EUT OPERATION CONDITIONS 18 Report No.: BTL-FCCP-1-2102C088 Page 4 of 55 Table of Contents Page 5.6 TEST RESULTS 18 6 . MAXIMUM OUTPUT POWER 19 6.1 LIMIT 19 6.2 TEST PROCEDURE 19 6.3 DEVIATION FROM STANDARD 19 6.4 TEST SETUP 19 6.5 EUT OPERATION CONDITIONS 19 6.6 TEST RESULTS 19 7 . CONDUCTED SPURIOUS EMISSION 20 7.1 LIMIT 20 7.2 TEST PROCEDURE 20 7.3 DEVIATION FROM STANDARD 20 7.4 TEST SETUP 20 7.5 EUT OPERATION CONDITIONS 20 7.6 TEST RESULTS 20 8 . POWER SPECTRAL DENSITY 21 8.1 LIMIT 21 8.2 TEST PROCEDURE 21 8.3 DEVIATION FROM STANDARD 21 8.4 TEST SETUP 21 8.5 EUT OPERATION CONDITIONS 21 8.6 TEST RESULTS 21 9 . MEASUREMENT INSTRUMENTS LIST 22 10 . EUT TEST PHOTO 23 APPENDIX A - AC POWER LINE CONDUCTED EMISSIONS 26 APPENDIX B - RADIATED EMISSION - 9 KHZ TO 30 MHZ 27 APPENDIX C - RADIATED EMISSION - 30 MHZ TO 1000 MHZ 32 APPENDIX D - RADIATED EMISSION - ABOVE 1000 MHZ 35 APPENDIX E - BANDWIDTH 48 APPENDIX F - MAXIMUM OUTPUT POWER 50 APPENDIX G - CONDUCTED SPURIOUS EMISSION 52 APPENDIX H - POWER SPECTRAL DENSITY 54 Report No.: BTL-FCCP-1-2102C088 Page 5 of 55 REPORT ISSUED HISTORY Report Version Description Issued Date R00 Original Issue. Mar. 23, 2021 Report No.: BTL-FCCP-1-2102C088 Page 6 of 55 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standard(s): FCC Part15, Subpart C (15.247) Standard(s) Section Test Item Test Result Judgment Remark 15.207 AC Power Line Conducted Emissions APPENDIX A N/A ------ 15.247(d) 15.205(a) 15.209(a) Radiated Emissions APPENDIX B APPENDIX C APPENDIX D PASS ------ 15.247(a)(2) Bandwidth APPENDIX E PASS ------ 15.247(b)(3) Maximum Output Power APPENDIX F PASS ------ 15.247(d) Conducted Spurious Emission APPENDIX G PASS ------ 15.247(e) Power Spectral Density APPENDIX H PASS ------ 15.203 Antenna Requirement ------ PASS Note(2) Note: (1) “N/A” denotes test is not applicable to this device. (2) The device what use a permanently attached antenna were considered sufficient to comply with the provisions of 15.203. Report No.: BTL-…

Text truncated - open the document above for the full version.

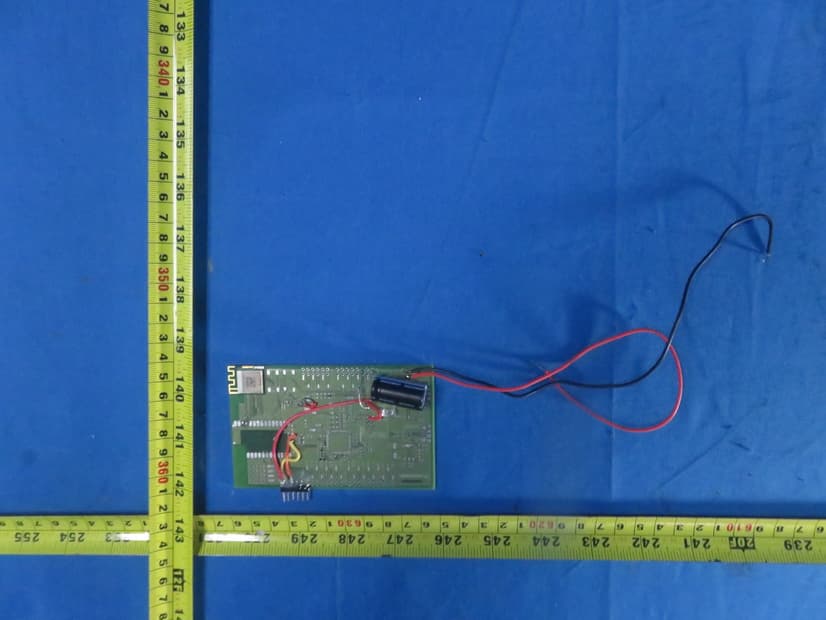

Report No.: BTL-FCCP-1-2102C088 Page 23 of 55 10. EUT TEST PHOTO Radiated Emissions Test Photos 9 kHz to 30 MHz Report No.: BTL-FCCP-1-2102C088 Page 24 of 55 Radiated Emissions Test Photos 30 MHz to 1000 MHz Report No.: BTL-FCCP-1-2102C088 Page 25 of 55 Radiated Emissions Test Photos Above 1 GHz
