XU8TEW827DRUAC2600 StreamBoost TM MU-MIMO WiFi Router

TRENDnet User’s Guide Cover Page © Copyright 2016 TRENDnet. All Rights Reserved. TRENDnet User’s Guide Table of Contents i Table of Contents Product Overview ........................................................................... 1 Package Contents .......................................................................................................... 1 Features ......................................................................................................................... 1 Product Hardware Features........................................................................................... 3 Application Diagram ...................................................................................................... 4 Router Setup ................................................................................... 5 Creating a Home Network ............................................................................................. 5 Router Installation ......................................................................................................... 6 Connect additional wired devices to your network ....................................................... 9 Basic Router Settings ..................................................................... 10 Access your router management page ........................................................................ 10 Network Status ............................................................................................................ 10 Committing your router configuration changes .......................................................... 11 Wireless Settings ......................................................................................................... 12 Guest Network ............................................................................................................. 13 Parental Control ........................................................................................................... 15 Access Rule (MAC/IP Filter) ............................................................................... 15 Website Filter..................................................................................................... 17 Qualcomm® StreamBoost™ ........................................................... 18 Enable StreamBoost .......................................................................................... 18 My Network ....................................................................................................... 19 Priorities ............................................................................................................. 21 Usage by Time .................................................................................................... 21 Usage by Data .................................................................................................... 22 Wireless Networking and Security ................................................. 23 How to choose the type of security for your wireless network .................................. 23 Secure your wireless network ..................................................................................... 24 Connect wireless devices to your router ..................................................................... 26 Connect wireless devices using WPS ........................................................................... 26 PBC (Software/Virtual Push Button) .................................................................. 27 PIN (Personal Identification Number)................................................................ 27 Advanced wireless settings ......................................................................................... 28 Multiple SSID ..................................................................................................... 28 Wireless bridging using WDS (Wireless Distribution System) ........................... 29 Wireless Client Bridge Mode ............................................................................. 31 Advanced Settings ............................................................................................. 32 Steps to improve wireless connectivity ....................................................................... 34 Advanced Router Settings ............................................................. 35 Change your router login password ............................................................................ 35 Manually configure your Internet connection ............................................................ 35 IPv6 Settings ................................................................................................................ 36 Clone a MAC address ................................................................................................... 37 Change your router IP address .................................................................................... 37 Set up the DHCP server on your router ....................................................................... 38 Set up DHCP reservation ............................................................................................. 39 Enable/disable UPnP on your router ........................................................................... 40 Enable/disable Application Layer Gateways (ALG) ...................................................... 40 Allow/deny multicast streaming.................................................................................. 41 Identify your network on the Internet ........................................................................ 41 Set your router date and time ..................................................................................... 42 Create schedules ......................................................................................................... 43 Access Control (IP Protocol Filter) ........................…

Text truncated - open the document above for the full version.

TRENDnet, Inc. 20675 Manhattan Place, Torrance, CA 90501 Date: 2015/9/3 Federal Communications Commission 7435 Oakland Mills Rd Columbia MD 21046-1609 Subject: Product Certification Representative Authorization Letter FCC ID: XU8TEW827DRU To whom it may concern: We the undersigned, hereby authorize following person to act as our agent in the preparation of an application for equipment authorization o the FCC Rules and Regulations. International Certification Corp. Address : No.3-1, Lane 6, Wen San 3rd St. Kwei Shan Hsiang, Tao Yuan Hsein 333, Taiwan (R.O.C.) Name : Gary Chang Job Title : Manager e-mail : [email protected] Webs We further certifies that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002(b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 835(a). This appointment also includes the authority to complete FCC Form 731 on our behalf and sign the application as an authorized agent. Applicant : TRENDnet, Inc. Address : 20675 Manhattan Place, Torrance, CA 90501 Signature : _________________________________ Name and Job Title. : Wen Tsai / Sr. Product Manager E-mail : [email protected] Tel. : 310-961-5500

TRENDnet, Inc. 20675 Manhattan Place, Torrance, CA 90501 Confidentiality Request Letter Date: 2015/9/3 Federal Communications Commission Authorization and Evaluation Division FCC ID： XU8TEW827DRU Permanent Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accompanying this Application As outlined below: 1. Block Diagram 2. Circuit Diagram 3. Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, Applicant : TRENDnet, Inc. Address : 20675 Manhattan Place, Torrance, CA 90501 Signature : _________________________________ Name and Job Title. : Wen Tsai / Sr. Product Manager E-mail : [email protected] Tel. : 310-961-5500

TRENDnet, Inc. 20675 Manhattan Place, Torrance, CA 90501 Date: September 3, 2015 Subject: Ad Hoc Mode Function Declaration To whom it may concern, We, TRENDnet, Inc. declare that the device does not support any non-US channels and country code selection in all the operational mode(s) for the following product. FCC ID: XU8TEW827DRU Regards, Applicant : TRENDnet, Inc. Address : 20675 Manhattan Place, Torrance, CA 90501 Signature : _________________________________ Name and Job Title. : Wen Tsai / Sr. Product Manager E-mail : [email protected] Tel. : 310-961-5500

TRENDnet, Inc. 20675 Manhattan Place, Torrance, CA 90501 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Rd Columbia MD 21046-1609 Date: September 3, 2015 Subject: FCC Application for FCC ID: XU8TEW827DRU To Whom it may concern, We, the undersigned, would like to declare that the composite portion catagorized as computer peripheral has been authorized under the Declaration of Conformity procedures, which the report issued from International Certification Corp. (report number: FD562901.) Applicant : TRENDnet, Inc. Address : 20675 Manhattan Place, Torrance, CA 90501 Signature : _________________________________ Name and Job Title. : Wen Tsai / Sr. Product Manager E-mail : [email protected] Tel. : 310-961-5500

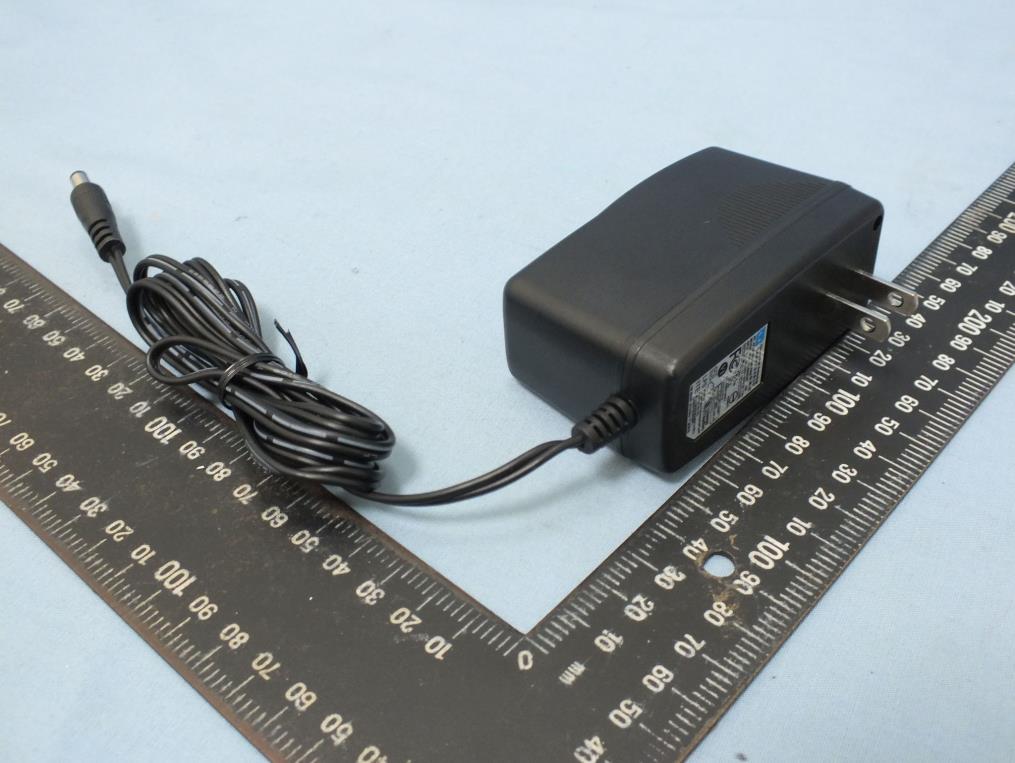

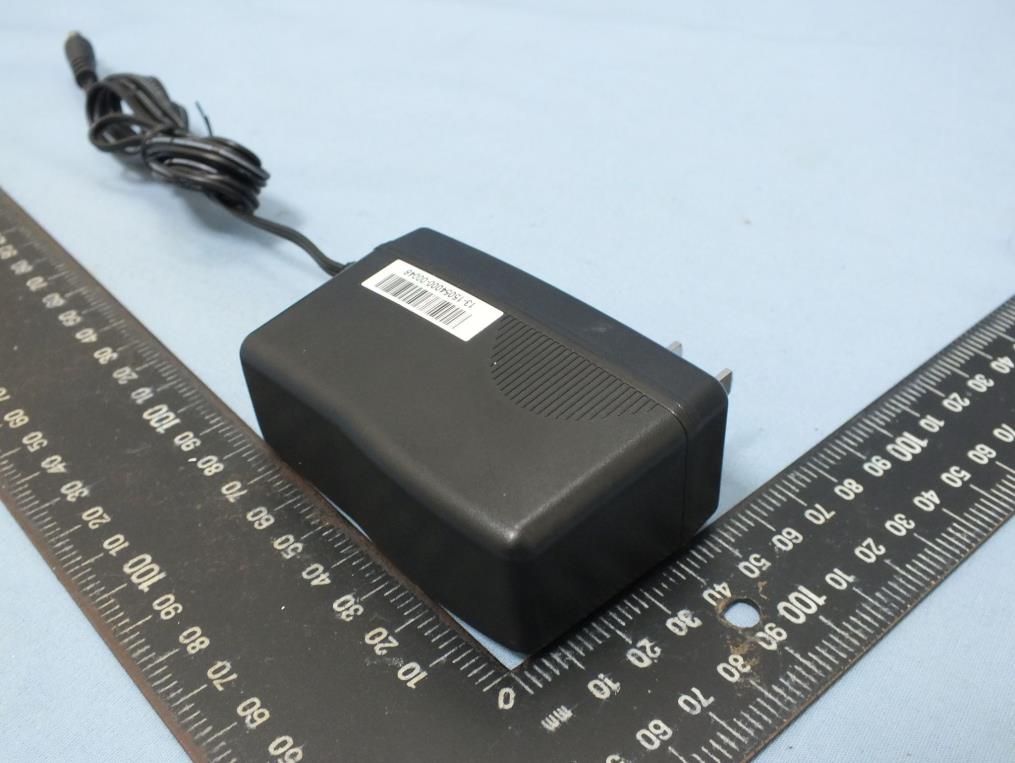

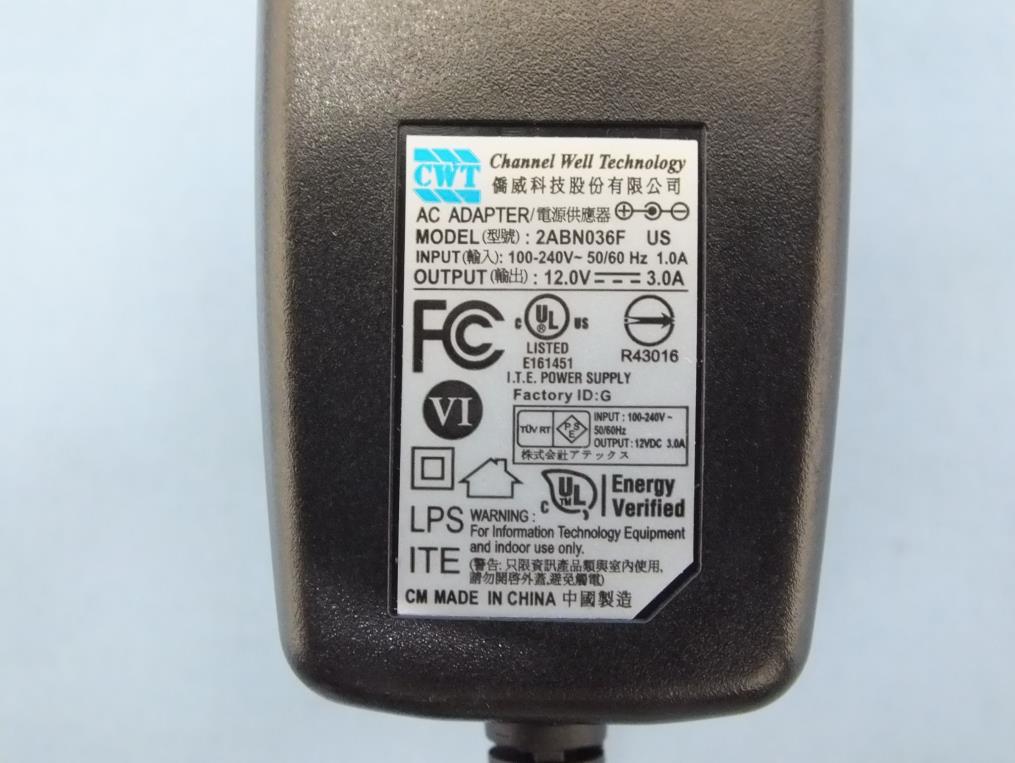

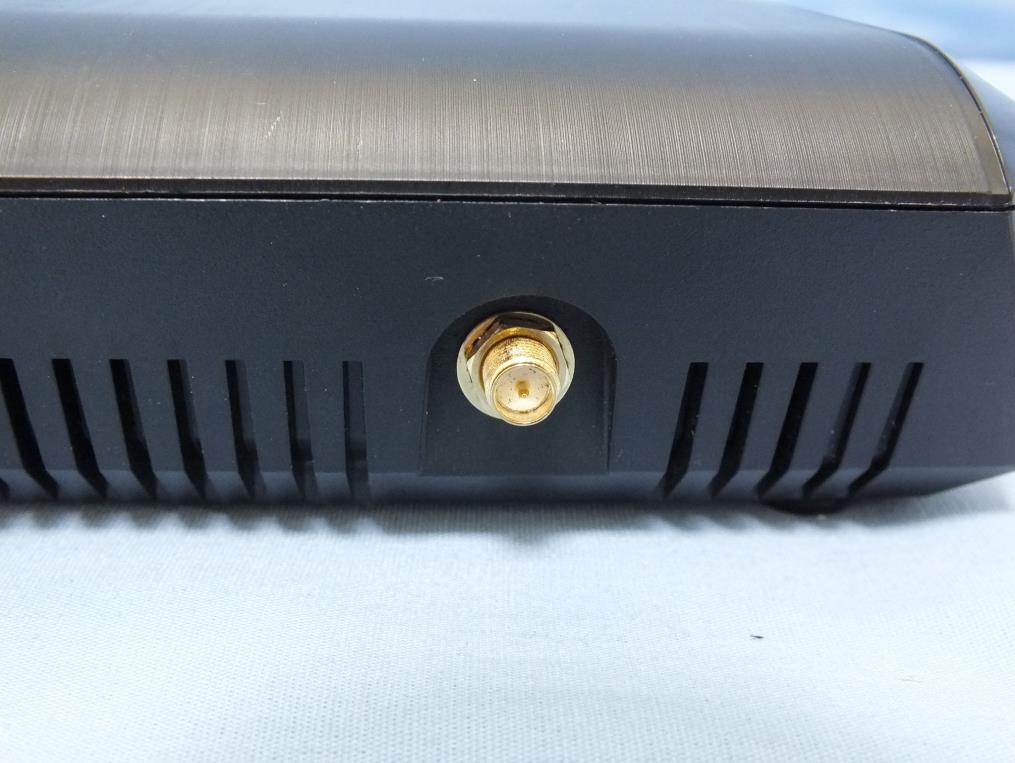

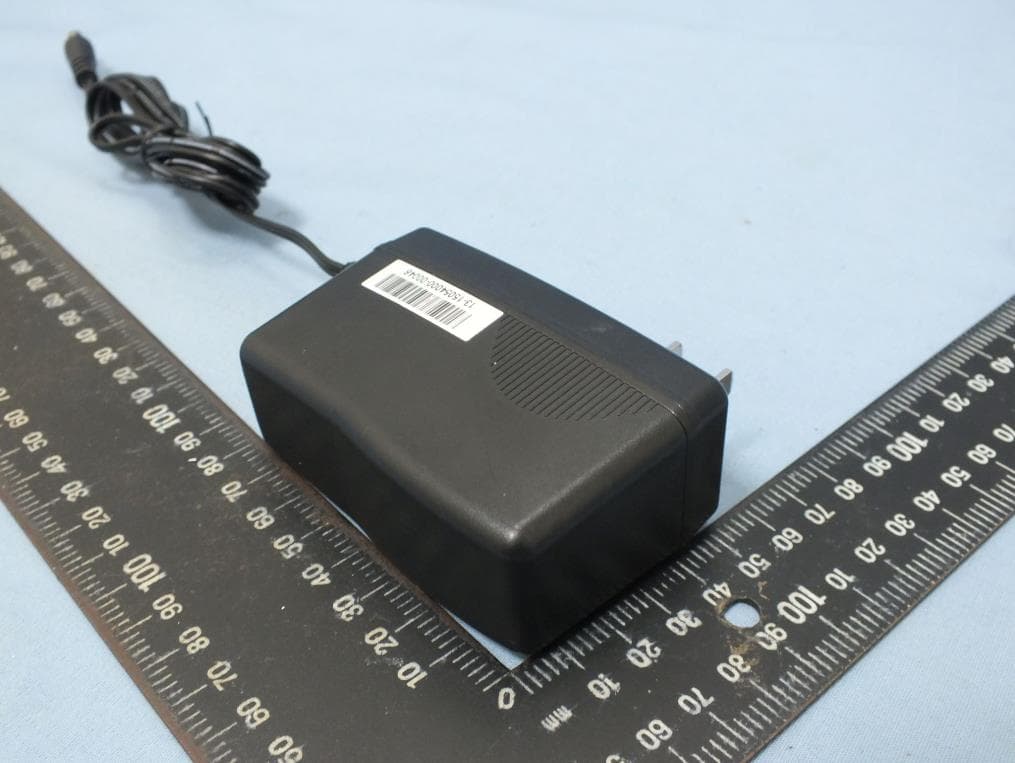

Project No.: EP562901 Page No. : 1 of 13 Photographs of EUT Project No.: EP562901 Page No. : 2 of 13 Project No.: EP562901 Page No. : 3 of 13 Project No.: EP562901 Page No. : 4 of 13 Project No.: EP562901 Page No. : 5 of 13 Project No.: EP562901 Page No. : 6 of 13

TEW-827DRU/EUNL H/W:V1.0R 確認簽名 日期 產品機種 產品料號 客戶名稱 申請者 設計者 備註 2015.09.08 TRENDnet Vicki Cherry FCC ID: XU8TEW827DRU IC: 6337A-TEW827DRU 7610T827DR11ES1 Giftbox Label FCC ID: "See Caution in Manual" XU8TEW827DRU IC ID: 6337A-TEW827DRU Model: TEW-827DRU/EUNL H/W:V1.0R F/W:ver1.00bxx S/N:C2YYWW27XXXXX Made in China 47.00 mm 2 1 . 0 0 m m 主體正面貼紙29054610000001T 字型:Arial/Monaco 字型: Monaco UPC Code: 710931160727 Master Carton UPC: 10710931160724 ( 成品料號 ) MODEL: TEW-827DRU/EUNL Q'ty: S/N: 10 PCS From C2YYWW27XXXXX C2YYWW27XXXXX To 152.00 mm 101.00 mm Made in China 1 07 10931 16072 4 H/W:V1.0R F/W: ver1.00bxx N.W.: KGS G.W.: KGS CARTON OF NO. XX/XX **注意事項** 客戶序號編碼原則 S/N:C2YYWW27XXXXX C2:友勁代碼(固定) YY : 西元年份, ex~15:2015年 WW: 週數, ex~06:第六週 27: 產品別 (由客戶指定) XXXXX: 流水號 FCC ID: 主體貼紙必須印上F/W Version XU8TEW827DRU IC ID: 6337A-TEW827DRU F/W: ver1.00bxx 1. Wi-Fi Name/TRENDnet827_2.4GHz_ XXXX (TRENDnet827_2.4GHz_為固定碼; XXXX為4 random number and characters, X可從0~9, A~Z, 字母"I"and"O"不要用， 字母要用大寫，不要小寫 例TRENDnet827_2.4GHz_1A3B) 2. Wi-Fi Key: 827W27XXXXX (827為固定碼;W27XXXXX為序號末八碼) 3. 4. Web password: AAAAAAAA~8 random digit (7 個隨機字元 + 1 個特殊字元) Alphanumeric range: 23456789ABCDEFGHJKLMNPQRSTUVWXYZ (數字0/1 與字母“I”and “O”不要用，字母用大寫，不要小寫) 特殊字元如: !@#$%&? 5. Management Login: http://tew-827dru SSID: Web username: admin 序號直接印上 半成品料號請對工單 TRENDnet指定MAC ID #為成品規格 A規,N規 /FCC E規,B規 /ETSI 主體貼紙290546100000020 S/N:C2YYWW27XXXXX Model: TEW-827DRU H/W:V1.0R LAN MAC WAN MAC: XXXXXXXXXXXX/# : XXXXXXXXXXXX FCC ID: XU8TEW827DRU IC: 6337A-TEW827DRU Wi-Fi Name/SSIDTRENDnet827_2.4GHz_XXXX Wi-Fi Password: 827W27XXXXX AAAAAAAA F/W: ver1.00bxx : Management Login:http://tew-827dru WPS PIN:XXXXXXXX Username: admin Password: Power Input: 12V 3A Operation within the 5.150-5.350GHz frequency range is restricted to indoor use only. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Preset Wireless Settings Wi-Fi Name/SSID Wi-Fi Password XXXXXXXXXXX Management Login http://tew-827dru username: admin password: XXXXXX Preset Wireless Settings (AC/N) TRENDnet827_5GHz_XXXX (N/B/G) TRENDnet827_2.4GHz_XXXX Label Location

Project No.: EP562901 Page No. : 7 of 13 Project No.: EP562901 Page No. : 8 of 13 Project No.: EP562901 Page No. : 9 of 13 Project No.: EP562901 Page No. : 10 of 13 Project No.: EP562901 Page No. : 11 of 13 Project No.: EP562901 Page No. : 12 of 13 Project No.: EP562901 Page No. : 13 of 13

Report No.: FA562901 Page : 1 of 6 Report Version: Rev. 01 FCC RF Exposure Report FCC ID : XU8TEW827DRU Equipment : AC2600 StreamBoost™ MU-MIMO WiFi Router Model No. : TEW-827DRU Brand Name : TRENDnet Applicant : TRENDnet, Inc. Address : 20675 Manhattan Place, Torrance, CA 90501, USA Standard : 47 CFR FCC Part 2.1091 Received Date : Jun. 08, 2015 Tested Date : Jun. 15 ~ Aug. 05, 2015 We, International Certification Corp., would like to declare that the tested sample has been evaluated and in compliance with the requirement of the above standards. The test results contained in this report refer exclusively to the product. It may be duplicated completely for legal use with the approval of the applicant. It shall not be reproduced except in full without the written approval of our laboratory. Approved & Reviewed by: Gary Chang / Manager Ty: XXX Report No.: FA562901 Page : 2 of 6 Report Version: Rev. 01 Table of Contents 1 MPE EVALUATION OF MOBILE DEVICES ......................................................................................... 4 1.1 LIMITS FOR GENERAL POPULATION/UNCONTROLLED EXPOSURE............................................. 4 1.2 MPE EVALUATION FORMULA ............................................................................................................. 4 1.3 MPE EVALUATION RESULTS .............................................................................................................. 5 2 TEST LABORATORY INFORMATION ................................................................................................. 6 Report No.: FA562901 Page : 3 of 6 Report Version: Rev. 01 Release Record Report No. Version Description Issued Date FA562901 Rev. 01 Initial issue Sep. 03, 2015 Report No.: FA562901 Page : 4 of 6 Report Version: Rev. 01 1 MPE EVALUATION OF MOBILE DEVICES Human exposure to RF emissions from mobile devices (47 CFR §2.1091) may be evaluated based on the MPE limits adopted by the FCC for electric and magnetic field strength and/or power density, as appropriate, since exposures are assumed to occur at distances of 24 cm or more from persons. 1.1 LIMITS FOR GENERAL POPULATION/UNCONTROLLED EXPOSURE Frequency Range (MHz) Power Density (mW /cm 2 ) Averaging Time (minutes) 300~1500 F/1500 30 1500~100000 1.0 30 1.2 MPE EVALUATION FORMULA Pd = 2 **4RPi Pt Where Pd= Power density in mW/cm 2 Pt= EIRP in Mw Pi= 3.1416 R= Measurement distance Report No.: FA562901 Page : 5 of 6 Report Version: Rev. 01 1.3 MPE EVALUATION RESULTS MPE Evaluation of Single Transmission Non-beamforming mode Frequency Range (MHz) Maximum Conducted Power (dBm) Antenna Gain (dBi) Distance (cm) Power Density (mW/cm 2 ) Limit (mW/cm 2 ) 2412~2462 27.37 3 24 0.150 1 5180~5240 26.12 5 24 0.179 1 5745~5825 25.23 5 24 0.146 1 Beamforming mode Frequency Range (MHz) Maximum Conducted Power (dBm) Antenna Gain (dBi) Distance (cm) Power Density (mW/cm 2 ) Limit (mW/cm 2 ) 2412~2462 26.10 9.02 24 0.449 1 5180~5240 24.52 11.02 24 0.495 1 5745~5825 24.70 11.02 24 0.516 1 Note: 1. For 2412~2462 MHz band Directional gain = 3+10* log(4/1) = 9.02 dBi For 5150~5250 MHz band Directional gain = 5+10* log(4/1) = 11.02 dBi For 5745~5850 MHz band Directional gain = 5+10* log(4/1) = 11.02 dBi MPE Evaluation of Simultaneous Transmission 2.4 and 5GHz can transmit at the same time, MPE evaluation is as below formula PD1 / Limit1 + PD2 / Limit 2 + ..... < 1, PD = Power density Non-beamforming mode MPE Evaluation = Maximum MPE of 2.4GHz + Maximum MPE of 5 GHz = 0.150 / 1 + 0.179 / 1 = 0.329 < 1 Beamforming mode MPE Evaluation = Maximum MPE of 2.4GHz + Maximum MPE of 5 GHz = 0.449 / 1 + 0.516 / 1 = 0.965 < 1 Conclusion MPE evaluations of single and simultaneous transmission meet the requirement of standard. Report No.: FA562901 Page : 6 of 6 Report Version: Rev. 01 2 Test laboratory information Established in 2012, ICC provides foremost EMC & RF Testing and advisory consultation services by our skilled engineers and technicians. Our services employ a wide variety of advanced edge test equipment and one of the widest certification extents in the business. International Certification Corp, it is our definitive objective is to institute long term, trust-based associations with our clients. The expectation we set up with our clients is based on outstanding service, practical expertise and devotion to a certified value structure. Our passion is to grant our clients with best EMC / RF services by oriented knowledgeable and accommodating staff. Our Test sites are located at Linkou District and Kwei Shan Hsiang. Location map can be found on our website http://www.icertifi.com.tw. Linkou Kwei Shan Kwei Shan Site II Tel: 886-2-2601-1640 Tel: 886-3-271-8666 Tel: 886-3-271-8640 No. 30-2, Ding Fwu Tsuen, Lin Kou District, New Taipei City, Taiwan, R.O.C. No. 3-1, Lane 6, Wen San 3rd St., Kwei Shan Hsiang, Tao Yuan Hsien 333, Taiwan, R.O.C. No. 14-1, Lane 19, Wen San 3rd St., Kwei Shan Hsiang, Tao Yuan Hsien 333, Taiwan, R.O.C. If you have any suggestion, please feel free to contact us as below information Tel: 886-3-271-8666 Fax: 886-3-318-0155 Email: [email protected] ══END══

Report No.: FR562901 Page : 1 of 17 Report Version: Rev. 01 FCC Co-Location Test Report FCC ID : XU8TEW827DRU Equipment : AC2600 StreamBoost™ MU-MIMO WiFi Router Model No. : TEW-827DRU Brand Name : TRENDnet Applicant : TRENDnet, Inc. Address : 20675 Manhattan Place, Torrance, CA 90501, USA Standard : 47 CFR FCC Part 15.247 47 CFR FCC Part 15.407 Received Date : Jun. 08, 2015 Tested Date : Jun. 15 ~ Aug. 05, 2015 We, International Certification Corp., would like to declare that the tested sample has been evaluated and in compliance with the requirement of the above standards. The test results contained in this report refer exclusively to the product. It may be duplicated completely for legal use with the approval of the applicant. It shall not be reproduced except in full without the written approval of our laboratory. Approved & Reviewed by: Gary Chang / Manager Ty: XXX Report No.: FR562901 Page : 2 of 17 Report Version: Rev. 01 Table of Contents 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information .............................................................................................................................................. 5 1.2 The Equipment List ................................................................................................................................ 6 1.3 Test Standards ....................................................................................................................................... 7 1.4 Measurement Uncertainty ...................................................................................................................... 7 2 TEST CONFIGURATION ....................................................................................................................... 8 2.1 Testing Condition ................................................................................................................................... 8 2.2 The Worst Test Modes and Channel Details ......................................................................................... 8 3 TRANSMITTER TEST RESULTS .......................................................................................................... 9 3.1 Unwanted Emissions into Restricted Frequency Bands ........................................................................ 9 4 TEST LABORATORY INFORMATION ............................................................................................... 17 Report No.: FR562901 Page : 3 of 17 Report Version: Rev. 01 Release Record Report No. Version Description Issued Date FR562901 Rev. 01 Initial issue Sep. 03, 2015 Report No.: FR562901 Page : 4 of 17 Report Version: Rev. 01 Summary of Test Results FCC Rules Test Items Measured Result 15.247(d) 15.407(b) 15.209 Radiated Emissions [dBuV/m at 3m]: 238.43MHz 43.57 (Margin -2.43dB) – QP Pass Report No.: FR562901 Page : 5 of 17 Report Version: Rev. 01 1 General Description 1.1 Information 1.1.1 Specification of the Equipment under Test (EUT) Operating Frequency 802.11b/g/n/ac: 2412 MHz ~ 2462 MHz 802.11a/n/ac: 5180 MHz ~ 5240 MHz; 5745 ~ 5825 MHz Modulation Type 802.11b: DSSS (DBPSK / DQPSK / CCK) 802.11a/g/n/ac: OFDM (BPSK / QPSK / 16QAM / 64QAM/256QAM) 1.1.2 Antenna Details Ant. No. Type Connector Operating Frequency (MHz) / Gain (dBi) 2400~2483.5 5150~5250 5725~5850 1 Dipole R-SMA 3 5 5 1.1.3 Power Supply Type of Equipment under Test (EUT) Power Supply Type 12Vdc from adapter 1.1.4 Accessories Accessories No. Equipment Description 1 AC adapter Brand Name: CWT Model Name: 2ABN036F US Power Rating: I/P: 100-240Vac, 50-60Hz, 1.0A O/P: 12Vdc, 3.0A DC 1.48m non-shielded cable w/o core Report No.: FR562901 Page : 6 of 17 Report Version: Rev. 01 1.2 The Equipment List Test Item Radiated Emission Test Site 966 chamber 2 / (03CH02-WS) Instrument Manufacturer Model No. Serial No. Calibration Date Calibration Until Spectrum Analyzer R&S FSV40 101499 Dec. 31, 2014 Dec. 30, 2015 Receiver R&S ESR3 101657 Jan. 15, 2015 Jan. 14, 2016 Bilog Antenna SCHWARZBECK VULB9168 VULB9168-524 Oct. 16, 2014 Oct. 15, 2015 Horn Antenna 1G-18G SCHWARZBECK BBHA 9120 D BBHA 9120 D 1095 Oct. 14, 2014 Oct. 13, 2015 Horn Antenna 18G-40G SCHWARZBECK BBHA 9170 BBHA 9170517 Nov. 10, 2014 Nov. 09, 2015 Loop Antenna R&S HFH2-Z2 11900 Nov. 10, 2014 Nov. 09, 2015 Preamplifier Burgeon BPA-530 100218 Nov. 10, 2014 Nov. 09, 2015 Preamplifier Agilent 83017A MY39501309 Sep. 29, 2014 Sep. 28, 2015 Preamplifier EMC EMC184045B 980192 Aug. 26, 2014 Aug. 25, 2015 RF Cable HUBER+SUHNER SUCOFLEX104 MY16140/4 Dec. 16, 2014 Dec. 15, 2015 RF Cable HUBER+SUHNER SUCOFLEX104 MY16018/4 Dec. 16, 2014 Dec. 15, 2015 RF Cable HUBER+SUHNER SUCOFLEX104 MY16015/4 Dec. 16, 2014 Dec. 15, 2015 LF cable 3M Woken CFD400NL-LW CFD400NL-003 Dec. 16, 2014 Dec. 15, 2015 LF cable 10M Woken CFD400NL-LW CFD400NL-004 Dec. 16, 2014 Dec. 15, 2015 Measurement Software AUDIX e3 6.120210g NA NA Note: Calibration Interval of instruments listed above is one year. Test Item RF Conducted Test Site (TH01-WS) Instrument Manufacturer Model No. Serial No. Calibration Date Calibration Until Spectrum Analyzer R&S FSV40 101063 Feb. 03, 2015 Feb. 02, 2016 Power Meter Anritsu ML2495A 1241002 Sep. 29, 2014 Sep. 28, 2015 Power Sensor Anritsu MA2411B 1207366 Sep. 29, 2014 Sep. 28, 2015 Measurement Software Sporton Sporton_1 1.3.30 NA NA Note: Calibration Interval of instruments listed above is one year. Report No.: FR562901 Page : 7 of 17 Report Version: Rev. 01 1.3 Test Standards According to the specification of EUT, the EUT must comply with following standards and KDB documents. 47 CFR FCC Part 15.247 47 CFR FCC Part 15.407 ANSI C63.10-2013 FCC KDB 558074 D01 DTS Meas Guidance v03r03 FCC KDB 662911 D01 Multiple Transmitter Output v02r01 FCC KDB 789033 D02 General UNII Test Procedures New Rules v01 FCC KDB 644545 D03 Guidance for IEEE 802 11ac New Rules v01 FCC KDB 412172 D01 Determining …

Text truncated - open the document above for the full version.

Report No.: FR562901AN Page : 1 of 111 Report Version: Rev. 01 FCC Test Report FCC ID : XU8TEW827DRU Equipment : AC2600 StreamBoost™ MU-MIMO WiFi Router Model No. : TEW-827DRU Brand Name : TRENDnet Applicant : TRENDnet, Inc. Address : 20675 Manhattan Place, Torrance, CA 90501, USA Standard : 47 CFR FCC Part 15.407 Received Date : Jun. 08, 2015 Tested Date : Jun. 15 ~ Aug. 05, 2015 We, International Certification Corp., would like to declare that the tested sample has been evaluated and in compliance with the requirement of the above standards. The test results contained in this report refer exclusively to the product. It may be duplicated completely for legal use with the approval of the applicant. It shall not be reproduced except in full without the written approval of our laboratory. Approved & Reviewed by: Gary Chang / Manager Ty: XXX Report No.: FR562901AN Page : 2 of 111 Report Version: Rev. 01 Table of Contents 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information .............................................................................................................................................. 5 1.2 Local Support Equipment List ................................................................................................................ 9 1.3 Test Setup Chart .................................................................................................................................... 9 1.4 The Equipment List .............................................................................................................................. 10 1.5 Testing Applied Standards ................................................................................................................... 11 1.6 Measurement Uncertainty .................................................................................................................... 11 2 TEST CONFIGURATION ..................................................................................................................... 12 2.1 Testing Condition ................................................................................................................................. 12 2.2 The Worst Test Modes and Channel Details ....................................................................................... 13 3 TRANSMITTER TEST RESULTS ........................................................................................................ 15 3.1 Conducted Emissions ........................................................................................................................... 15 3.2 Emission Bandwidth ............................................................................................................................. 24 3.3 RF Output Power .................................................................................................................................. 29 3.4 Peak Power Spectral Density ............................................................................................................... 32 3.5 Transmitter Radiated and Band Edge Emissions ................................................................................ 38 3.6 Frequency Stability ............................................................................................................................. 109 4 TEST LABORATORY INFORMATION ............................................................................................. 111 Report No.: FR562901AN Page : 3 of 111 Report Version: Rev. 01 Release Record Report No. Version Description Issued Date FR562901AN Rev. 01 Initial issue Sep. 03, 2015 Report No.: FR562901AN Page : 4 of 111 Report Version: Rev. 01 Summary of Test Results FCC Rules Test Items Measured Result 15.207 Conducted Emissions [dBuV]: 0.401MHz 42.74 (Margin -5.09dB) - AV Pass 15.407(b) 15.209 Radiated Emissions [dBuV/m at 3m]: 15720.00MHz 53.13 (Margin -0.87dB) - AV Pass 15.407(a) Emission Bandwidth Meet the requirement of limit Pass 15.407(e) 6dB bandwidth Meet the requirement of limit Pass 15.407(a) RF Output Power Max Power [dBm]: Non-beamforming mode 5150-5250MHz: 26.12 5725-5850MHz: 25.23 Beamforming mode 5150-5250MHz: 24.52 5725-5850MHz: 24.70 Pass 15.407(a) Peak Power Spectral Density Meet the requirement of limit Pass 15.407(g) Frequency Stability Meet the requirement of limit Pass 15.203 Antenna Requirement Meet the requirement of limit Pass Report No.: FR562901AN Page : 5 of 111 Report Version: Rev. 01 1 General Description 1.1 Information 1.1.1 Specification of the Equipment under Test (EUT) RF General Information Frequency Range (MHz) IEEE Std. 802.11 Ch. Freq. (MHz) Channel Number Transmit Chains (N TX ) Data Rate / MCS 5150-5250 a 5180-5240 36-48 [4] 4 6-54 Mbps 5150-5250 n (HT20) 5180-5240 36-48 [4] 4 MCS 0-31 5150-5250 n (HT40) 5190-5230 38-46 [2] 4 MCS 0-31 5150-5250 ac (VHT20) 5180-5240 36-48 [4] 4 MCS 0-9 5150-5250 ac (VHT40) 5190-5230 38-46 [2] 4 MCS 0-9 5150-5250 ac (VHT80) 5210 42 [1] 4 MCS 0-9 Note 1: RF output power specifies that Maximum Conducted Output Power. Note 2: 802.11a/n/ac uses a combination of OFDM-BPSK, QPSK, 16QAM, 64QAM, 256QAM modulation. Note 3: 802.11ac supports beamforming function. RF General Information Frequency Range (MHz) IEEE Std. 802.11 Ch. Freq. (MHz) Channel Number Transmit Chains (N TX ) Data Rate / MCS 5725-5850 a 5745-5825 149-165 [5] 4 6-54 Mbps 5725-5850 n (HT20) 5745-5825 149-165 [5] 4 MCS 0-31 5725-5850 n (HT40) 5755-5795 151-159 [2] 4 MCS 0-31 5725-5850 ac (VHT20) 5745-5825 149-165 [5] 4 MCS 0-9 5725-5850 ac (VHT40) 5755-5795 151-159 [2] 4 MCS 0-9 5725-5850 ac (VHT80) 5775 155 [1] 4 MCS 0-9 Note 1: RF output power specifies that Maximum Conducted Output Power. Note 2: 802.11a/n/ac uses a combination of OFDM-BPSK, QPSK, 16QAM, 64QAM, 256QAM modulation. Note 3: 802.11ac supports beamforming function. 1.1.2 Antenna Details Ant. No. Type …

Text truncated - open the document above for the full version.

Report No.: FR562901 Page: : 1 of 4 Report Version: Rev. 01 Photographs of the Test Configuration Conducted Emission Test Report No.: FR562901 Page: : 2 of 4 Report Version: Rev. 01 Radiated Emission Below 1GHz Test Report No.: FR562901 Page: : 3 of 4 Report Version: Rev…
