XU8TEW831DRAC1200 Wireless Dual band Gigabit Router

Declaration of Authorization We Name: TRENDNET, Inc. Address: 20675 Manhattan Place City: Torrance State: California Country: United States Declare that: Name Representative of agent: Ms. Mandy Wang Agent Company name: BTL Inc. Address: No.3 Jinshagang 1st Road, Shixia, Dalang Town City: Dong Guan Country: China is authorized to apply for Certification and signing related documents of the following product(s), including 731 form(s): Product description: AC1200 Wireless Dual band Gigabit Router Type designation: TEW-831DR Trademark: TRENDnet FCC ID: XU8TEW831DR on our behalf. Date: 2020-06-09 City: Torrance Name: Wen Tsai Function: Sr. Product Manager Signature: . Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 <2020-06-09> TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name XU8TEW831DR TEW-831DR For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, (Signed) Name: Wen Tsai Company: TRENDNET, Inc. Address: 20675 Manhattan Place Torrance California United States 90501 Phone: 310-961-5500 Ext 5474 Fax: 310-961-5511 E-Mail: [email protected]

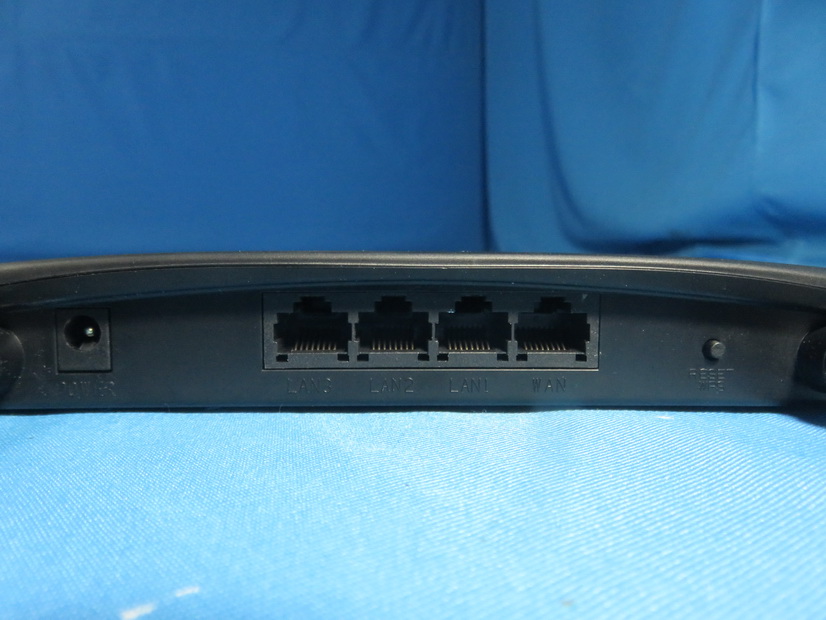

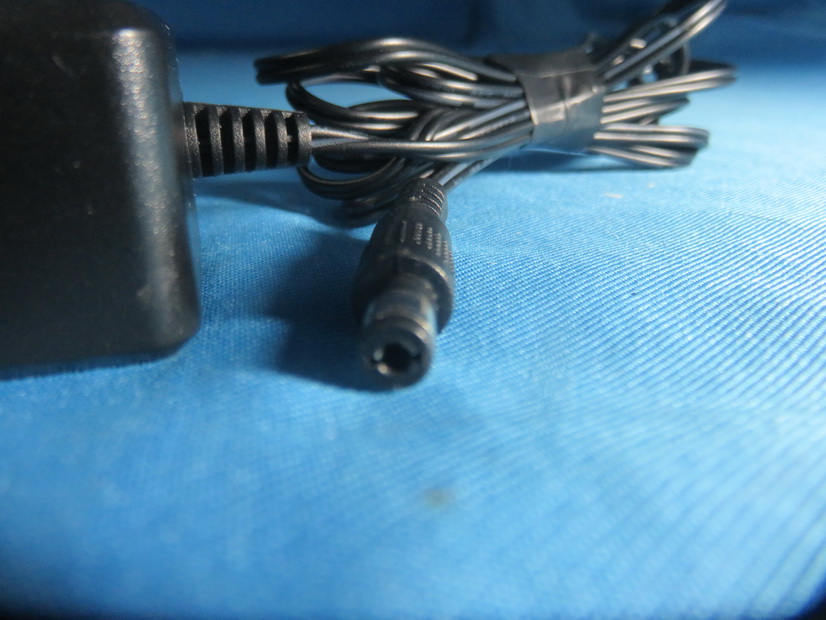

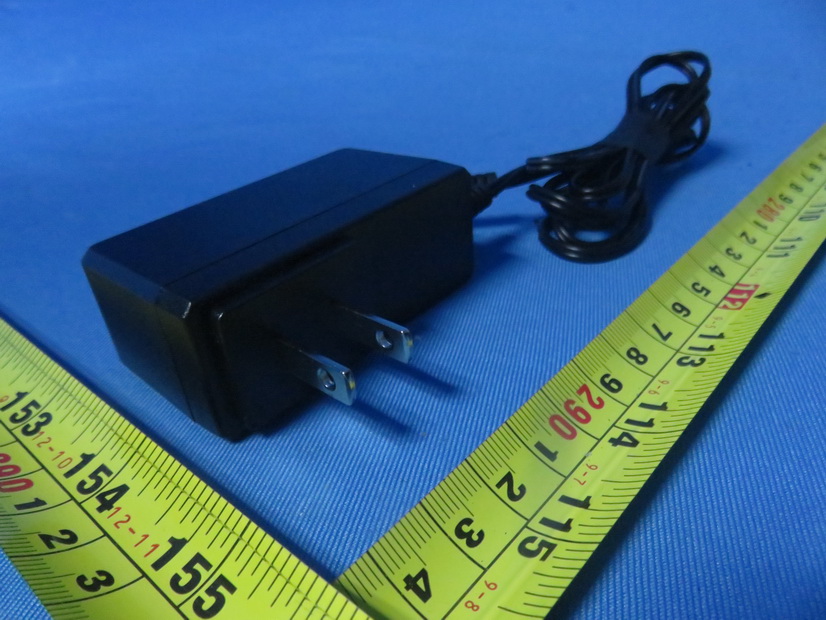

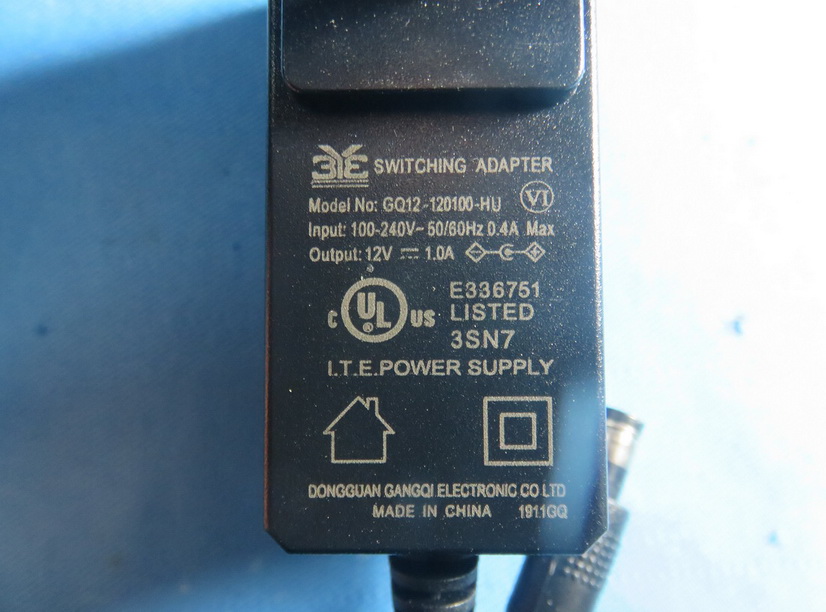

Report No.: 2001C070 Page 3 of 10 Report No.: 2001C070 Page 4 of 10 Report No.: 2001C070 Page 5 of 10

XU8TEW831DR 6337A-TEW831DR 5

Report No.: 2001C070 Page 2 of 10 Report No.: 2001C070 Page 6 of 10 2.4G Ant.1 2.4G Ant.2 5G Ant.2 5G Ant.1 Report No.: 2001C070 Page 7 of 10 Report No.: 2001C070 Page 8 of 10 Report No.: 2001C070 Page 9 of 10 Report No.: 2001C070 Page 10 of 10

Report No.: BTL-FCCP-3-2001C070 Page 1 of 5 FCC RF EXPOSURE REPORT FCC ID: XU8TEW831DR Project No. : 2001C070 Equipment : AC1200 Wireless Dual band Gigabit Router Brand Name : TRENDnet Test Model : TEW-831DR Series Model : N/A Applicant : TRENDnet,Inc. Address : 20675 Manhattan Place ,Torrance, CA 90501 USA Manufacturer : TRENDnet,Inc. Address : 20675 Manhattan Place ,Torrance, CA 90501 USA Factory : SHENZHEN GONGJIN ELECTRONICS CO.,LTD Address : No.2, Danzi North Road,Kengzi Street, Shenzhen, Guangdong, China Date of Receipt : Jan. 19, 2020 Date of Test : Jan. 19, 2020 ~ Jun. 03, 2020 Issued Date : Jul. 10, 2020 Report Version : R02 Test Sample : Engineering Sample No.: DG2020011969 for conducted, DG202005095 for radiated Standard(s) : FCC Guidelines for Human Exposure IEEE C95.1 & FCC Part 2.1091 FCC Title 47 Part 2.1091, OET Bulletin 65 Supplement C The above equipment has been tested and found compliance with the requirement of the relative standards by BTL Inc. Prepared by : Vincent Tan Approved by : Ethan Ma Add: No.3, Jinshagang 1st Road, Shixia, Dalang Town,Dongguan, Guangdong, China. Te l : +86-769-8318-3000 Web: www.newbtl.com Report No.: BTL-FCCP-3-2001C070 Page 2 of 5 REPORT ISSUED HISTORY Report Version Description Issued Date R00 Original Issue Jun. 17, 2020 R01 Revised report to address comments. Jul. 02, 2020 R02 Revised report to address comments. Jul. 10, 2020 Report No.: BTL-FCCP-3-2001C070 Page 3 of 5 1. MPE CALCULATION METHOD Calculation Method of RF Safety Distance: where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Table for Filed Antenna For 2.4G: Ant. Brand Model Name Antenna Type Connector Gain (dBi) 1 N/A External N/A 5.21 2 N/A External N/A 5.21 Note: This EUT supports MIMO 2X2, any transmit signals are correlated with each other, so Directional gain= G ANT +10log(N)dBi, that is Directional gain=5.21+10log(2)dBi=8.22. So, the output power limit is 30-(8.22-6)=27.78, the power spectral density limit is 8-(8.22-6)=5.78. For 5G: Ant. Brand Model Name Antenna Type Connector Gain (dBi) 1 N/A External N/A 5.15 2 N/A External N/A 5.15 Note: This EUT supports MIMO 2X2, any transmit signals are correlated with each other, so, (1) For Non Beamforming: Directional gain= G ANT +10log(N)dBi, that is Directional gain=5.15+10log(2)dBi=8.16. So, the UNII-1 output power limit is 24-(8.16-6)=21.84, the UNII-3 output power limit is 30-(8.16-6)=27.84. The UNII-1 power spectral density limit is 11-(8.16-6)=8.84, the UNII-3 power spectral density limit is 30-(8.16-6)=27.84. (2) For Beamforming: Beamforming Gain:3dBi, Directional gain=3+5.15=8.15 So, the UNII-1 output power limit is 24-(8.15-6)=21.85, the UNII-3 output power limit is 30-(8.15-6)=27.85. Report No.: BTL-FCCP-3-2001C070 Page 4 of 5 Table for Antenna Configuration: For 2.4G: Operating Mode TX Mode 1TX 2TX 802.11b V (Ant. 2) - 802.11g V (Ant. 2) - 802.11n(20 MHz) - V (Ant. 1 + Ant. 2) 802.11n(40 MHz) - V (Ant. 1 + Ant. 2) For 5G: Non Beamforming: Operating Mode TX Mode 1TX 2TX IEEE 802.11a V (Ant. 1) - IEEE 802.11n (HT20) - V (Ant. 1 + Ant. 2) IEEE 802.11n (HT40) - V (Ant. 1 + Ant. 2) IEEE 802.11ac (VHT20) - V (Ant. 1 + Ant. 2) IEEE 802.11ac (VHT40) - V (Ant. 1 + Ant. 2) IEEE 802.11ac (VHT80) - V (Ant. 1 + Ant. 2) Beamforming: Operating Mode TX Mode 2TX IEEE 802.11n (HT20) V (Ant. 1 + Ant. 2) IEEE 802.11n (HT40) V (Ant. 1 + Ant. 2) IEEE 802.11ac (VHT20) V (Ant. 1 + Ant. 2) IEEE 802.11ac (VHT40) V (Ant. 1 + Ant. 2) IEEE 802.11ac (VHT80) V (Ant. 1 + Ant. 2) Report No.: BTL-FCCP-3-2001C070 Page 5 of 5 2. TEST RESULTS For 2.4GHz: Directional Gain (dBi) Directional Gain (numeric) Max. Output Power (dBm) Max. Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 8.22 6.6374 14.12 25.8226 0.03412 1 Complies For 5GHz UNII-1_Non Beamforming: Directional Gain (dBi) Directional Gain (numeric) Max. Output Power (dBm) Max. Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 8.16 6.5464 15.3 33.8844 0.04415 1 Complies For 5GHz UNII-3_Non Beamforming: Directional Gain (dBi) Directional Gain (numeric) Max. Output Power (dBm) Max. Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 8.16 6.5464 15.06 32.0627 0.04178 1 Complies For 5GHz UNII-1_Beamforming: Directional Gain (dBi) Directional Gain (numeric) Max. Output Power (dBm) Max. Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 8.15 6.5313 15.24 33.4195 0.04345 1 Complies For 5GHz UNII-3_Beamforming: Directional Gain (dBi) Directional Gain (numeric) Max. Output Power (dBm) Max. Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 8.15 6.5313 14.99 31.5500 0.04102 1 Complies For the max simultaneous transmission MPE: Power Density (S) (mW/cm 2 ) Power Density (S) (mW/cm 2 ) Total Limit of Power Density (S) (mW/cm 2 ) Test Result 2.4GHz 5GHz 0.03412 0.04415 0.07827 1 Complies Note: The calculated distance is 20 cm. End of Test Report

Report No.: BTL-FCCP-2-2001C070 Page 1 of 165 FCC Radio Test Report FCC ID: XU8TEW831DR This report concerns: Original Grant Project No. : 2001C070 Equipment : AC1200 Wireless Dual band Gigabit Router Brand Name : TRENDnet Test Model : TEW-831DR Series Model : N/A Applicant : TRENDnet,Inc. Address : 20675 Manhattan Place ,Torrance, CA 90501 USA Manufacturer : TRENDnet,Inc. Address : 20675 Manhattan Place ,Torrance, CA 90501 USA Factory : SHENZHEN GONGJIN ELECTRONICS CO.,LTD Address : No.2, Danzi North Road,Kengzi Street, Shenzhen, Guangdong, China Date of Receipt : Jan. 19, 2020 Date of Test : Jan. 19, 2020 ~ Jun. 10, 2020 Issued Date : Jul. 16, 2020 Report Version : R02 Test Sample : Engineering Sample No.: DG2020011969 for conducted, DG202005095 for radiated Standard(s) : FCC Part15, Subpart E(15.407) ANSI C63.10-2013 FCC KDB 789033 D02 General UNII Test Procedures New Rules v02r01 FCC KDB 662911 D01 Multiple Transmitter Output v02r01 The above equipment has been tested and found compliance with the requirement of the relative standards by BTL Inc. Prepared by : Vincent Tan Approved by : Ethan Ma Add: No.3, Jinshagang 1 st Road, Shixia, Dalang Town,Dongguan, Guangdong, China. Te l : +86-769-8318-3000 Web: www.newbtl.com Report No.: BTL-FCCP-2-2001C070 Page 2 of 165 Declaration BTL represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with standards traceable to international standard(s) and/or national standard(s). BTL’s reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. BTL shall have no liability for any declarations, inferences or generalizations drawn by the client or others from BTL issued reports. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, A2LA, or any agency of the U.S. Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and ourselves, the test report shall not be reproduced, except in full, without our written approval. BTL’s laboratory quality assurance procedures are in compliance with the ISO/I EC 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. BTL is not responsible for the sampling stage, so the results only apply to the sample as received. The information, data and test plan are provided by manufacturer which may affect the validity of results, so it is manufacturer’s responsibility to ensure that the apparatus meets the essential requirements of applied standards and in all the possible configurations as representative of its intended use. Limitation For the use of the authority’s logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Please note that the measurement uncertainty is provided for informational purpose only and are not use in determining the Pass/Fail results. Report No.: BTL-FCCP-2-2001C070 Page 3 of 165 Table of Contents Page REPORT ISSUED HISTORY 6 1 . SUMMARY OF TEST RESULTS 7 1.1 TEST FACILITY 8 1.2 MEASUREMENT UNCERTAINTY 8 1.3 TEST ENVIRONMENT CONDITIONS 8 2 . GENERAL INFORMATION 9 2.1 GENERAL DESCRIPTION OF EUT 9 2.2 TEST MODES 12 2.3 PARAMETERS OF TEST SOFTWARE 15 2.4 DUTY CYCLE 17 2.5 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 19 2.6 SUPPORT UNITS 19 3 . AC POWER LINE CONDUCTED EMISSIONS TEST 20 3.1 LIMIT 20 3.2 TEST PROCEDURE 20 3.3 DEVIATION FROM TEST STANDARD 20 3.4 TEST SETUP 21 3.5 EUT OPERATION CONDITIONS 21 3.6 TEST RESULTS 21 4 . RADIATED EMISSIONS TEST 22 4.1 LIMIT 22 4.2 TEST PROCEDURE 23 4.3 DEVIATION FROM TEST STANDARD 23 4.4 TEST SETUP 24 4.5 EUT OPERATION CONDITIONS 25 4.6 TEST RESULTS - 9 KHZ to 30 MHZ 25 4.7 TEST RESULTS - 30 MHz TO 1000 MHz 25 4.8 TEST RESULTS - ABOVE 1000 MHz 25 5 . BANDWIDTH TEST 26 5.1 LIMIT 26 5.2 TEST PROCEDURE 26 Report No.: BTL-FCCP-2-2001C070 Page 4 of 165 Table of Contents Page 5.3 TEST PROCEDURE 26 5.4 TEST SETUP 26 5.5 EUT OPERATION CONDITIONS 26 5.6 TEST RESULTS 26 6 . MAXIMUM OUTPUT POWER TEST 27 6.1 LIMIT 27 6.2 TEST PROCEDURE 27 6.3 DEVIATION FROM STANDARD 27 6.4 TEST SETUP 27 6.5 EUT OPERATION CONDITIONS 27 6.6 TEST RESULTS 27 7 . POWER SPECTRAL DENSITY TEST 28 7.1 LIMIT 28 7.2 TEST PROCEDURE 28 7.3 DEVIATION FROM STANDARD 28 7.4 TEST SETUP 28 7.5 EUT OPERATION CONDITIONS 28 7.6 TEST RESULTS 28 8 . FREQUENCY STABILITY MEASUREMENT 29 8.1 LIMIT 29 8.2 TEST PROCEDURE 29 8.3 DEVIATION FROM STANDARD 29 8.4 TEST SETUP 29 8.5 EUT OPERATION CONDITIONS 29 8.6 TEST RESULTS 29 9 . MEASUREMENT INSTRUMENTS LIST 30 10 . EUT TEST PHOTOS 32 APPENDIX A - AC POWER LINE CONDUCTED EMISSIONS 36 APPENDIX B - RADIATED EMISSION - 9 KHZ TO 30 MHZ 39 APPENDIX C - RADIATED EMISSION - 30 MHZ TO 1 GHZ 44 APPENDIX D - RADIATED EMISSION - ABOVE 1000 MHZ 47 Report No.: BTL-FCCP-2-2001C070 Page 5 of 165 Table of Contents Page APPENDIX E - BANDWIDTH 122 APPENDIX F - MAXIMUM OUTPUT POWER 133 APPENDIX G - POWER SPECTRAL DENSITY 155 APPENDIX H - FREQUENCY STABILITY 163 Report No.: BTL-FCCP-2-2001C070 Page 6 of 165 REPORT ISSUED HISTORY Report Version Description Issued Date R00 Original Issue. Jun. 17, 2020 R01 Revised report to address comments. Jul. 10, 2020 R02 Revised report to address comments. Jul. 16, 2020 Report No.: BTL-FCCP-2-2001C070 Page 7 of 165 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standard(s): FCC Part15, Subpart E(15.407) Standard(s) Section Test Item Test Result Judgment Remark 15.207 15.407(b) AC Power Line Conducted Emissions APPENDIX A PASS ------ 15.407(b) 15.205(a) 15.209(a) Radiated Emissions APPENDIX B APPENDIX C APPENDIX D PASS ------ 15.407(a) 15.407(e) Spectrum Bandwidth APPENDIX E P…

Text truncated - open the document above for the full version.

Report No.: BTL-FCCP-2-2001C070 Page 130 of 165 Test Mode UNII-3_TX AC (VHT20) Mode Channel Frequency (MHz) 6 dB Bandwidth (MHz) 99 % Emission Bandwidth (MHz) 6 dB Bandwidth Min. Limit (kHz) Result 149 5745 16.89 17.90 500 Complies 157 5785 16.89 17.90 500 Complies 165 5825 16.89 17.90 500 Complies CH149 CH157 CH165 6 dB Bandwidth 99 % Emission Bandwidth Report No.: BTL-FCCP-2-2001C070 Page 131 of 165 Test Mode UNII-3_TX AC (VHT40) Mode Channel Frequency (MHz) 6 dB Bandwidth (MHz) 99 % Emission Bandwidth (MHz) 6 dB Bandwidth Min. Limit (kHz) Result 151 5755 35.60 37.00 500 Complies 159 5795 36.19 37.20 500 Complies CH151 CH159 6 dB Bandwidth 99 % Emission Bandwidth Report No.: BTL-FCCP-2-2001C070 Page 132 of 165 Test Mode UNII-3_TX AC (VHT80) Channel Frequency (MHz) 6 dB Bandwidth (MHz) 99 % Emission Bandwidth (MHz) 6 dB Bandwidth Min. Limit (kHz) Result 155 5775 75.40 75.60 500 Complies CH155 6 dB Bandwidth 99 % Emission Bandwidth Report No.: BTL-FCCP-2-2001C070 Page 133 of 165 APPENDIX F - MAXIMUM OUTPUT POWER Report No.: BTL-FCCP-2-2001C070 Page 134 of 165 Non Beamforming Test Mode UNII-1_TX A Mode Channel Frequency (MHz) Output Power (dBm) Duty Factor Output Power + Duty Factor (dBm) Max. Limit (dBm) Max. Limit (W) Result 36 5180 16.75 0.15 16.90 24.00 0.25 Complies 40 5200 16.81 0.15 16.96 24.00 0.25 Complies 48 5240 16.69 0.15 16.84 24.00 0.25 Complies Test Mode UNII-3_TX A Mode Channel Frequency (MHz) Output Power (dBm) Duty Factor Output Power + Duty Factor (dBm) Max. Limit (dBm) Max. Limit (W) Result 149 5745 16.74 0.15 16.89 30.00 1.00 Complies 157 5785 16.62 0.15 16.77 30.00 1.00 Complies 165 5825 16.82 0.15 16.97 30.00 1.00 Complies Report No.: BTL-FCCP-2-2001C070 Page 135 of 165 Test Mode UNII-1_TX N (HT20) Mode_Ant. 1 Channel Frequency (MHz) Output Power (dBm) Duty Factor Output Power + Duty Factor (dBm) Max. Limit (dBm) Max. Limit (W) Result 36 5180 11.95 0.39 12.34 24.00 0.25 Complies 40 5200 11.82 0.39 12.21 24.00 0.25 Complies 48 5240 11.86 0.39 12.25 24.00 0.25 Complies Test Mode UNII-1_TX N (HT20) Mode_Ant. 2 Channel Frequency (MHz) Output Power (dBm) Duty Factor Output Power + Duty Factor (dBm) Max. Limit (dBm) Max. Limit (W) Result 36 5180 11.83 0.39 12.22 24.00 0.25 Complies 40 5200 11.69 0.39 12.08 24.00 0.25 Complies 48 5240 11.78 0.39 12.17 24.00 0.25 Complies Test Mode UNII-1_TX N (HT20) Mode_Total Channel Frequency (MHz) Output Power (dBm) Max. Limit (dBm) Max. Limit (W) Result 36 5180 15.30 21.84 0.15 Complies 40 5200 15.16 21.84 0.15 Complies 48 5240 15.22 21.84 0.15 Complies Report No.: BTL-FCCP-2-2001C070 Page 136 of 165 Test Mode UNII-1_TX N (HT40) Mode_Ant. 1 Channel Frequency (MHz) Output Power (dBm) Duty Factor Output Power + Duty Factor (dBm) Max. Limit (dBm) Max. Limit (W) Result 38 5190 10.13 0.67 10.80 24.00 0.25 Complies 46 5230 11.29 0.67 11.96 24.00 0.25 Complies Test Mode UNII-1_TX N (HT40) Mode_Ant. 2 Channel Frequency (MHz) Output Power (dBm) Duty Factor Output Power + Duty Factor (dBm) Max. Limit (dBm) Max. Limit (W) Result 38 5190 10.21 0.67 10.88 24.00 0.25 Complies 46 5230 11.38 0.67 12.05 24.00 0.25 Complies Test Mode UNII-1_TX N (HT40) Mode_Total Channel Frequency (MHz) Output Power (dBm) Max. Limit (dBm) Max. Limit (W) Result 38 5190 13.85 21.84 0.15 Complies 46 5230 15.02 21.84 0.15 Complies Report No.: BTL-FCCP-2-2001C070 Page 137 of 165 Test Mode UNII-3_TX N (HT20) Mode_Ant. 1 Channel Frequency (MHz) Output Power (dBm) Duty Factor Output Power + Duty Factor (dBm) Max. Limit (dBm) Max. Limit (W) Result 149 5745 11.32 0.39 11.71 30.00 1.00 Complies 157 5785 11.27 0.39 11.66 30.00 1.00 Complies 165 5825 11.84 0.39 12.23 30.00 1.00 Complies Test Mode UNII-3_TX N (HT20) Mode_Ant. 2 Channel Frequency (MHz) Output Power (dBm) Duty Factor Output Power + Duty Factor (dBm) Max. Limit (dBm) Max. Limit (W) Result 149 5745 11.68 0.39 12.07 30.00 1.00 Complies 157 5785 11.84 0.39 12.23 30.00 1.00 Complies 165 5825 11.46 0.39 11.85 30.00 1.00 Complies Test Mode UNII-3_TX N (HT20) Mode_Total Channel Frequency (MHz) Output Power (dBm) Max. Limit (dBm) Max. Limit (W) Result 149 5745 14.91 27.84 0.61 Complies 157 5785 14.97 27.84 0.61 Complies 165 5825 15.06 27.84 0.61 Complies Report No.: BTL-FCCP-2-2001C070 Page 138 of 165 Test Mode UNII-3_TX N (HT40) Mode_Ant. 1 Channel Frequency (MHz) Output Power (dBm) Duty Factor Output Power + Duty Factor (dBm) Max. Limit (dBm) Max. Limit (W) Result 151 5755 11.05 0.67 11.72 30.00 1.00 Complies 159 5795 11.11 0.67 11.78 30.00 1.00 Complies Test Mode UNII-3_TX N (HT40) Mode_Ant. 2 Channel Frequency (MHz) Output Power (dBm) Duty Factor Output Power + Duty Factor (dBm) Max. Limit (dBm) Max. Limit (W) Result 151 5755 11.31 0.67 11.98 30.00 1.00 Complies 159 5795 11.22 0.67 11.89 30.00 1.00 Complies Test Mode UNII-3_TX N (HT40) Mode_Total Channel Frequency (MHz) Output Power (dBm) Max. Limit (dBm) Max. Limit (W) Result 151 5755 14.87 27.84 0.61 Complies 159 5795 14.85 27.84 0.61 Complies Report No.: BTL-FCCP-2-2001C070 Page 139 of 165 Test Mode UNII-1_TX AC (VHT20) Mode_Ant. 1 Channel Frequency (MHz) Output Power (dBm) Duty Factor Output Power + Duty Factor (dBm) Max. Limit (dBm) Max. Limit (W) Result 36 5180 9.58 0.45 10.03 24.00 0.25 Complies 40 5200 9.66 0.45 10.11 24.00 0.25 Complies 48 5240 9.74 0.45 10.19 24.00 0.25 Complies Test Mode UNII-1_TX AC (VHT20) Mode_Ant. 2 Channel Frequency (MHz) Output Power (dBm) Duty Factor Output Power + Duty Factor (dBm) Max. Limit (dBm) Max. Limit (W) Result 36 5180 9.11 0.45 9.56 24.00 0.25 Complies 40 5200 9.51 0.45 9.96 24.00 0.25 Complies 48 5240 9.39 0.45 9.84 24.00 0.25 Complies Test Mode UNII-1_TX AC (VHT20) Mode_Total Channel Frequency (MHz) Output Power (dBm) Max. Limit (dBm) Max. Limit (W) Result 36 5180 12.81 21.84 0.15 Complies 40 5200 13.04 21.84 0.15 Complies 48 5240 13.03 21.84 0.15 Complies Report No.: BTL-FCCP-2-2001C070 Page 140 of 165 Test Mode UNII-1_TX AC (VHT40) Mode_Ant. 1 Channel Frequency (MHz) Output Power (dBm) Duty Factor Output Power + Duty Factor …

Text truncated - open the document above for the full version.

Report No.: BTL-FCCP-1-2001C070 Page 27 of 112 10. EUT TEST PHOTO AC Power Line Conducted Emissions Test Photos Report No.: BTL-FCCP-1-2001C070 Page 28 of 112 Radiated Emissions Test Photos 9 kHz to 30 MHz Report No.: BTL-FCCP-1-2001C070 Page 29 of 112 Radiated Emissions Test Photos 30 MHz to 1 GHz Report No.: BTL-FCCP-1-2001C070 Page 30 of 112 Radiated Emissions Test Photos Above 1 GHz
