Page 1 of 11 TEW-921DAP Antenna Test Report Page 2 of 11 1 Antenna Introduction Ant_1 Ant2 Page 3 of 11 2 S-parameter test results 3.Gain & Patterns test results 3.1 Lab information  Lab name：Satimo  Address ：No.326 Sec.2, Kung Tao 5 Road, HsinChu City, Taiwan  Certification：none (Satimo system certification: CTIA, 3GPP, Wi-Fi alliance and WiMAX Forum)  Size (LxWxH)：5m x 5m x 5m  Isolation level：>100dB  Normal applications：Antenna radiation pattern measurement, OTA performance testing.  Frequency measurement range：0.4 to 6 GHz  EUT scanning method：conical cut method  Measurement distance：1.6m  Measurement Antenna specification (for θ and Φ polarization each)：dual polarization Antenna for 0.4 to 6.0 GHz frequency range  Equipment list： Page 4 of 11 4.Gain & Patterns test results 4.1 Measurement setting Up(+Z) Right (+X) Front Back(+Y) Left Down Page 5 of 11 XY YZ XZ 0° Right Up Up 90° Back Back Right 180° Left Down Down 270° Front Front Left . AUT X Y Z Page 6 of 11 θ φ Total angle 175 ̊ 360 ̊ How many angle scan one point 5 ̊ 5 ̊ Total scan point 36 73 4.2 2D patterns 4.2.1 Ant.1 Page 7 of 11 X-Z Plane (E-total) Y-Z Plane (E-total) X Z Y Z Page 8 of 11 X-Y Plane (E-total) Y X Page 9 of 11 4.2.2 Ant.2 X-Z Plane (E-total) Y-Z Plane (E-total) X Z Y Z Page 10 of 11 X-Y Plane (E-total) Y X Page 11 of 11 5.Summary 5. 1 D total Peak Gain & Efficiency Frequency Ant.1 (C056-511249-A) Ant.2(C056-511248-A) Peak Gain (dBi) Efficiency (%) Peak Gain (dBi) Efficiency (%) 2400 MHz 3.2 61 2.9 62 2450 MHz 3.0 64 3.1 61 2500 MHz 2.9 62 2.8 61 5150 MHz 3.8 63 4.0 62 5350 MHz 4.0 63 4.0 63 5470 MHz 3.9 61 4.1 61 5750 MHz 4.2 60 4.0 63 5850 MHz 4.0 62 3.9 64

RF_160, Issue 04 Declaration of Authorization We Name: TRENDnet, Inc. Address: 20675 Manhattan Place, City: Torrance, CA 90501 Country: U.S.A. Declare that: Name Representative of agent: Monica Shen (1) Agent Company name: Cerpass Technology Corporation Address: No.10, Lane 2, Lianfu Street, Luzhu District City: Taoyuan City 33848 Country: Taiwan, R.O.C. is authorized to apply for Certification of the following product(s): Product description: AX1800 Dual Band WiFi 6 PoE+ Access Point Type designation: TEW-921DAPxx (x presents 0-9, A-Z, "/" or blank) Trademark: TRENDnet on our behalf. Date: April 21, 2021 City: Torrance, CA 90501 Name: Wen Tsai (2) Function: Sr. Product Manager Signature: . Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

DECLARATION OF CONFORMITY (DoC) Equipment:AX1800 Dual Band WiFi 6 PoE+ Access Point Trademark(s):TRENDnet Model(s): TEW-921DAP Manufacturer:TRENDnet, Inc. FCC ID in case other parts of this equipment are subject to certification: XU8TEW921DAP This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The following test reports are subject to this declaration: Test report number:Issue date: TEFD2009275 Oct. 20, 2020 Company name: TRENDnet, Inc. Name/Title (legal representative): Wen Tsai /PM Address: 20675 Manhattan Place,Torrance, CA 90501 U.S.A. Phone: (310) 961-5500 5474 Fax: (310) 961-5511 E-mail: [email protected] Date: March 8, 2021 Signature:

FCC, Request for non-disclosure Date: 10-Aug-09 RF_501, Issue 5 Page 1 of 1 Company Name: TRENDnet, Inc. Address: 20675 Manhattan Place, City: Torrance, CA 90501 Country: U.S.A. To: Telefication B.V., Dept. FCC TCB Edisonstraat 12A 6902 PK ZEVENAAR The Netherlands Subject: Request for confidentiality FCC ID: XU8TEW921DAP Reference number: ###### Dear FCC TCB, 1. Long-Term Confidentiality Pursuant to 47 CFR Section 0.459(a) & (b), we hereby requests non-disclosure and confidential treatment of the following materials submitted in support of FCC certification application: Bill(s) of Material Block Diagrams Operational Description Schematic Diagrams Tune-up Procedure Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. 2. Short-Term Confidentiality (STC) Pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, applicant hereby requests Short-Term Confidential treatment of the following materials (note 1): Internal Photos User’s Manual Test Set-up Photos External Photos Justification: Planned Release Date STC: (notes 2, 3, 4, 5) Date: 2021/03/08 Name and signature of applicant: Wen Tsai Notes: 1) A document or type of document can only have ONE type of confidentiality! 2) Short-Term confidentiality is in principle for 45 days from date of grant; it can be extended max 3 times (total time 180 days max.)! 3) FCC must be informed when marketing begins earlier. 4) Release takes place automatically thus extension must be requested in time. Telefication does not remind you of this! 5) Request for extension or for release must be received by Telefication at least 7 days before date of actual marketing or before expiration of the STC period

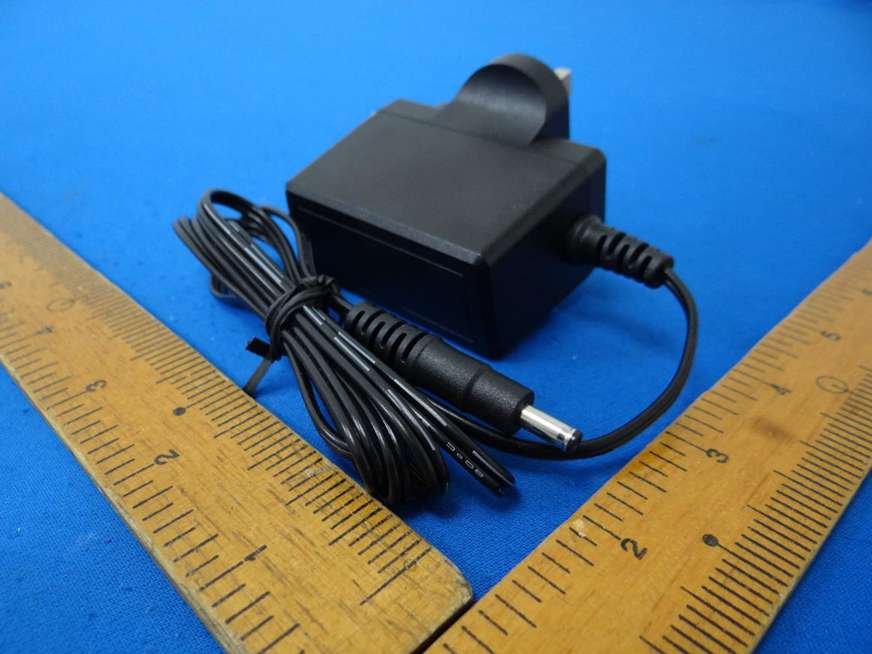

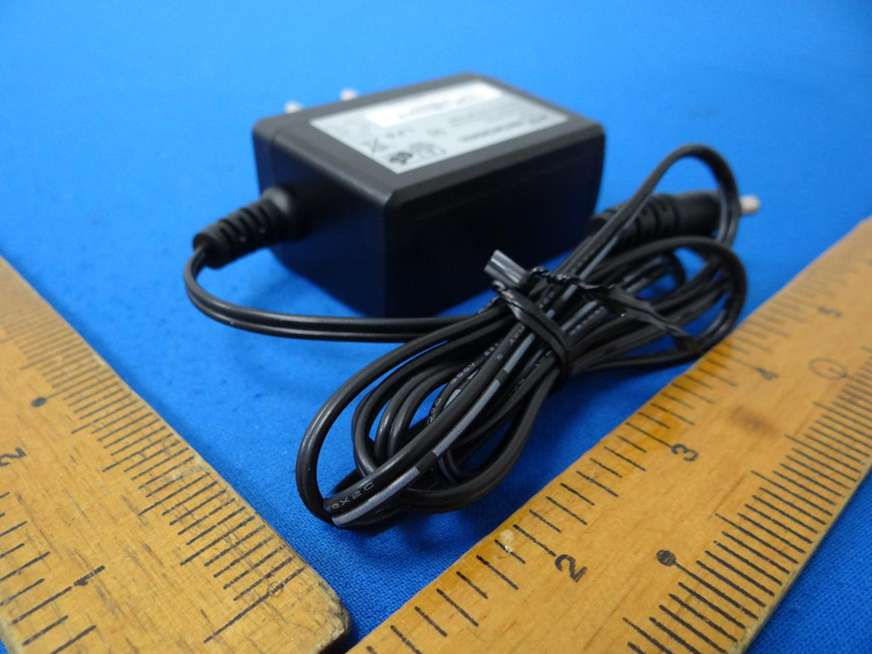

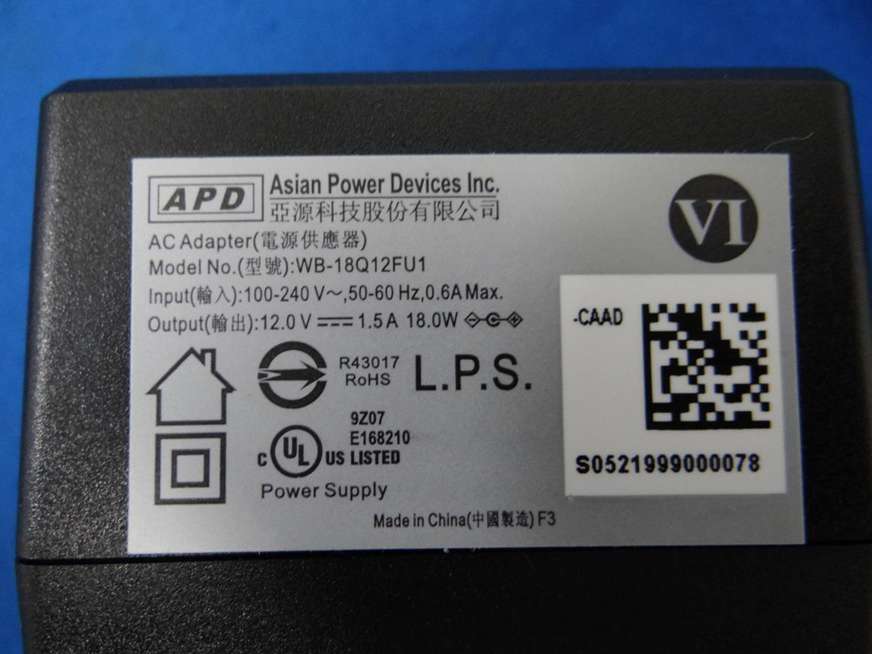

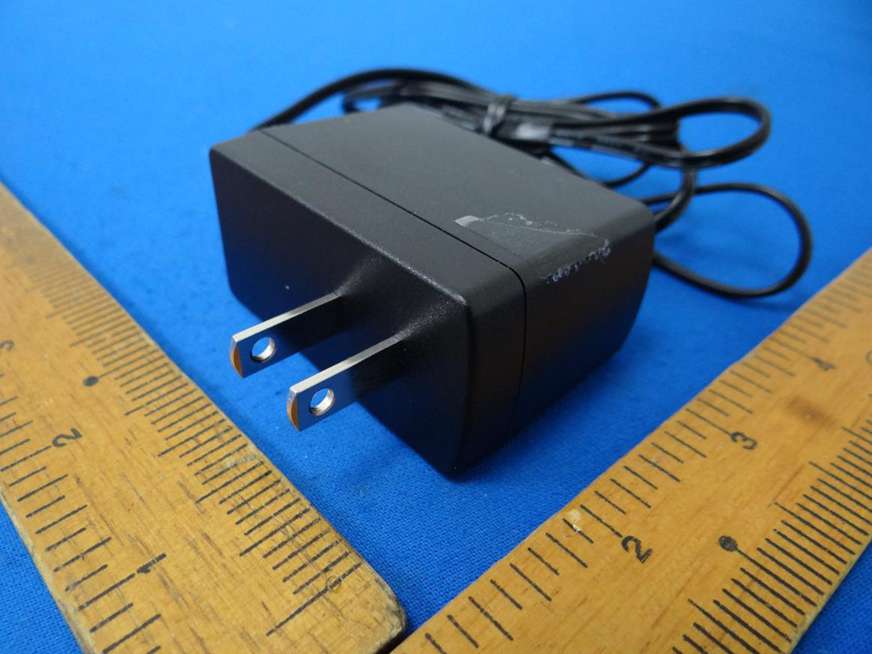

CERPASS TECHNOLOGY CORP. Report No.: 2009275 Cerpass Technology Corp. Issued Date : Nov. 17, 2020 Page No. : 1 of 24 Photographs of EUT CERPASS TECHNOLOGY CORP. Report No.: 2009275 Cerpass Technology Corp. Issued Date : Nov. 17, 2020 Page No. : 2 of 24 CERPASS TECHNOLOGY CORP. Report No.: 2009275 Cerpass Technology Corp. Issued Date : Nov. 17, 2020 Page No. : 3 of 24 CERPASS TECHNOLOGY CORP. Report No.: 2009275 Cerpass Technology Corp. Issued Date : Nov. 17, 2020 Page No. : 19 of 24 Adapter Brand:APD ,Model:WB-18Q12FK CERPASS TECHNOLOGY CORP. Report No.: 2009275 Cerpass Technology Corp. Issued Date : Nov. 17, 2020 Page No. : 20 of 24 CERPASS TECHNOLOGY CORP. Report No.: 2009275 Cerpass Technology Corp. Issued Date : Nov. 17, 2020 Page No. : 21 of 24 Adapter Brand:APD ,Model: WB-18Q12FG CERPASS TECHNOLOGY CORP. Report No.: 2009275 Cerpass Technology Corp. Issued Date : Nov. 17, 2020 Page No. : 22 of 24 CERPASS TECHNOLOGY CORP. Report No.: 2009275 Cerpass Technology Corp. Issued Date : Nov. 17, 2020 Page No. : 23 of 24 Adapter Brand:APD ,Model: WB-18Q12FU1 CERPASS TECHNOLOGY CORP. Report No.: 2009275 Cerpass Technology Corp. Issued Date : Nov. 17, 2020 Page No. : 24 of 24

Label & Location

CERPASS TECHNOLOGY CORP. Report No.: 2009275 Cerpass Technology Corp. Issued Date : Nov. 17, 2020 Page No. : 4 of 24 CERPASS TECHNOLOGY CORP. Report No.: 2009275 Cerpass Technology Corp. Issued Date : Nov. 17, 2020 Page No. : 5 of 24 CERPASS TECHNOLOGY CORP. Report No.: 2009275 Cerpass Technology Corp. Issued Date : Nov. 17, 2020 Page No. : 6 of 24 CERPASS TECHNOLOGY CORP. Report No.: 2009275 Cerpass Technology Corp. Issued Date : Nov. 17, 2020 Page No. : 7 of 24 CERPASS TECHNOLOGY CORP. Report No.: 2009275 Cerpass Technology Corp. Issued Date : Nov. 17, 2020 Page No. : 8 of 24 CERPASS TECHNOLOGY CORP. Report No.: 2009275 Cerpass Technology Corp. Issued Date : Nov. 17, 2020 Page No. : 9 of 24 Antenna position (ANT A) Antenna position (ANT B) CERPASS TECHNOLOGY CORP. Report No.: 2009275 Cerpass Technology Corp. Issued Date : Nov. 17, 2020 Page No. : 10 of 24 CERPASS TECHNOLOGY CORP. Report No.: 2009275 Cerpass Technology Corp. Issued Date : Nov. 17, 2020 Page No. : 11 of 24 RF Chip (Wifi 2.4G) CERPASS TECHNOLOGY CORP. Report No.: 2009275 Cerpass Technology Corp. Issued Date : Nov. 17, 2020 Page No. : 12 of 24 RF Chip (Wifi 5G) CERPASS TECHNOLOGY CORP. Report No.: 2009275 Cerpass Technology Corp. Issued Date : Nov. 17, 2020 Page No. : 13 of 24 CERPASS TECHNOLOGY CORP. Report No.: 2009275 Cerpass Technology Corp. Issued Date : Nov. 17, 2020 Page No. : 14 of 24 CERPASS TECHNOLOGY CORP. Report No.: 2009275 Cerpass Technology Corp. Issued Date : Nov. 17, 2020 Page No. : 15 of 24 CERPASS TECHNOLOGY CORP. Report No.: 2009275 Cerpass Technology Corp. Issued Date : Nov. 17, 2020 Page No. : 16 of 24 CERPASS TECHNOLOGY CORP. Report No.: 2009275 Cerpass Technology Corp. Issued Date : Nov. 17, 2020 Page No. : 17 of 24 CERPASS TECHNOLOGY CORP. Report No.: 2009275 Cerpass Technology Corp. Issued Date : Nov. 17, 2020 Page No. : 18 of 24

CERPASS TECHNOLOGY CORP. Report No.: TEFI2009275 Cerpass Technology Corp. Issued date : Nov. 17, 2020 T-FD-508-0 Ver 1.4 Page No. : 119 of 121 FCC ID : XU8TEW921DAP 12. Radio Frequency Exposure 12.1 Applicable Standards The measurements shown in this test report were made in accordance with the procedures given in FCC Part 2 (Section 2.1091) 12.2 EUT Specification Frequency band (Operating) WLAN: 2412MHz ~ 2462MHz WLAN: 5150MHz ~ 5250MHz WLAN: 5250MHz ~ 5350MHz WLAN: 5470MHz ~ 5725MHz WLAN: 5725MHz ~ 5850MHz Bluetooth: 2402MHz ~ 2480MHz Device category Portable (<20cm separation) Mobile (>20cm separation) Exposure classification Occupational/Controlled exposure (S = 5mW/cm 2 ) General Population/Uncontrolled exposure (S=1mW/cm 2 ) Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Evaluation applied MPE Evaluation* SAR Evaluation N/A Remark: 1. The maximum conducted output power is 29.79dBm (952.538mW) at 2437MHz (with 3.20dBi antenna gain.) 2. DTS device is not subject to routine RF evaluation; MPE estimate is used to justify the compliance. 3. For mobile or fixed location transmitters, no SAR consideration applied. The maximum power density is 1.0 mW/cm 2 even if the calculation indicates that the power density would be larger. CERPASS TECHNOLOGY CORP. Report No.: TEFI2009275 Cerpass Technology Corp. Issued date : Nov. 17, 2020 T-FD-508-0 Ver 1.4 Page No. : 120 of 121 FCC ID : XU8TEW921DAP 12.3 Test Results No non-compliance noted. 12.4 Calculation Given d GP E   30 & 3770 2 E S Where E = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 3770 30 d GP S   Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields   2 2 0796.0 100/3770 1000/30 d GP d GP S      Equation 1 Where d = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 CERPASS TECHNOLOGY CORP. Report No.: TEFI2009275 Cerpass Technology Corp. Issued date : Nov. 17, 2020 T-FD-508-0 Ver 1.4 Page No. : 121 of 121 FCC ID : XU8TEW921DAP 12.5 Maximum Permissible Exposure Channel Frequency (MHz) Max. Conducted output power(dBm) Max. Tune up power (dBm) Antenna Gain(dBi) Distance (cm) Power Density (mW/cm 2 ) Limit (mW/cm 2 ) 2412-2462 29.79 29.79 3.20 20 0.396 1 Maximum Permissible Exposure (Co-location) Non-Beamforming Modulation Type Channel Frequency (MHz) Max. Conducted output power (dBm) Max. Tune up power (dBm) Antenna Gain(dBi) Distance (cm) Power Density (mW/cm 2 ) Limit (mW/cm 2 ) MPE Ratio 11b 2412-2462 29.79 29.79 3.20 20 0.396 1.000 0.396 11a 5725-5850 29.94 29.94 4.20 20 0.516 1.000 0.516 Co-location Total 0.912 ∑MPE ratios Limit 1 Beamforming Modulation Type Channel Frequency (MHz) Max. Conducted output power (dBm) Max. Tune up power (dBm) Antenna Gain(dBi) Distance (cm) Power Density (mW/cm 2 ) Limit (mW/cm 2 ) MPE Ratio VHT20 2412-2462 25.49 25.49 6.16 20 0.291 1.000 0.291 11ac VHT20 5725-5850 26.86 26.86 7.11 20 0.496 1.000 0.496 Co-location Total 0.788 ∑MPE ratios Limit 1 ----------THE END OF REPORT----------

CERPASS TECHNOLOGY CORP. Report No.: TEFU2009275 Cerpass Technology Corp. Issued Date : Nov. 17, 2020 T-FD-503-0 Ver 1.4 Page No. : 1 of 26 FCC ID. : XU8TEW921DAP FCC RADIO TEST REPORT Applicant : TRENDNET INC Address : 20675 MANHATTAN PL, TORRANCE, CA 90501 USA Equipment : AX1800 Dual Band WiFi 6 PoE+ Access Point Model No. : TEW-921DAPxx (x=0-9,A-Z,”/”or blank for marketing purpose) Trade Name : TRENDnet FCC ID. : XU8TEW921DAP I HEREBY CERTIFY THAT : The sample was received on Oct. 06, 2020 and the testing was completed on Nov. 12, 2020 at Cerpass Technology Corp. The test result refers exclusively to the test presented test model / sample. Without written approval of Cerpass Technology Corp., the test report shall not be reproduced except in full. Approved by: Mark Liao / Supervisor Laboratory Accreditation: Cerpass Technology Corporation Test Laboratory CERPASS TECHNOLOGY CORP. Report No.: TEFU2009275 Cerpass Technology Corp. Issued Date : Nov. 17, 2020 T-FD-503-0 Ver 1.4 Page No. : 2 of 26 FCC ID. : XU8TEW921DAP Contents 1. Summary of Test Procedure and Test Results ................................................................................. 4 1.1 Applicable Standards ................................................................................................................. 4 2. Test Configuration of Equipment under Test ................................................................................... 5 2.1 Feature of Equipment under Test ............................................................................................... 5 2.2 Test Mode and Test Software ..................................................................................................... 6 2.3 Description of Test System ......................................................................................................... 7 2.4 General Information of Test ........................................................................................................ 8 2.5 Measurement Uncertainty .......................................................................................................... 8 3. Test Equipment and Ancillaries Used for Tests ............................................................................... 9 4. Test of AC Power Line Conducted Emission ................................................................................. 11 4.1 Test Result and Data ................................................................................................................ 11 4.2 Test Photographs (30MHz ~ 1GHz) ......................................................................................... 13 5. Test of Spurious Emission (Radiated) ............................................................................................ 14 5.1 Test Limit .................................................................................................................................. 14 5.2 Test Procedures ....................................................................................................................... 15 5.3 Typical Test Setup .................................................................................................................... 15 5.4 Test Result and Data (9kHz ~ 30MHz) ..................................................................................... 17 5.5 Test Result and Data (30MHz ~ 1GHz) .................................................................................... 17 5.6 Test Result and Data (1GHz ~ 25GHz) .................................................................................... 19 5.7 Restricted Bands of Operation ................................................................................................. 21 5.8 Test Photographs (30MHz ~ 1GHz) ......................................................................................... 22 5.9 Test Photographs (1GHz ~ 40GHz) ......................................................................................... 23 6. Test of Conducted Spurious Emission ........................................................................................... 25 6.1 Test Limit .................................................................................................................................. 25 6.2 Test Procedure ......................................................................................................................... 25 6.3 Test Setup Layout .................................................................................................................... 25 6.4 Test Result and Data ................................................................................................................ 25 CERPASS TECHNOLOGY CORP. Report No.: TEFU2009275 Cerpass Technology Corp. Issued Date : Nov. 17, 2020 T-FD-503-0 Ver 1.4 Page No. : 3 of 26 FCC ID. : XU8TEW921DAP History of this test report Report No. Issue Date Description TEFU2009275 Nov. 17, 2020 Original Report Type Description □ Original report NA ■ Derivative Report This sample provided has been confirmed to be identical to the original report sample. The only difference are as listed below. As it doesn’t affect the test result, the original report number: TEFU2009273 and content will be used. 1.Applicant information. 2.Equipment name. 3.Model number. 4.Trade name. CERPASS TECHNOLOGY CORP. Report No.: TEFU2009275 Cerpass Technology Corp. Issued Date : Nov. 17, 2020 T-FD-503-0 Ver 1.4 Page No. : 4 of 26 FCC ID. : XU8TEW921DAP 1. Summary of Test Procedure and Test Results 1.1 Applicable Standards ANSI C63.10:2013 . Description of Test Result . CO-LOCATION PASS *The lab has reduced the uncertainty risk factor from test equipment, environment and staff technicians which according to the standard on contract. Therefore, the test result will only be determined by standard requirement. *This EUT has been also tested and compiled with the requirement of FCC Part 15, Subpart B, recorded in a separate test report(…

Text truncated - open the document above for the full version.

CERPASS TECHNOLOGY CORP. Report No.: TEFI2009275 Cerpass Technology Corp. Issued date : Nov. 17, 2020 T-FD-508-0 Ver 1.4 Page No. : 1 of 121 FCC ID : XU8TEW921DAP FCC RADIO TEST REPORT Applicant : TRENDNET INC Address : 20675 MANHATTAN PL, TORRANCE, CA 90501 USA Equipment : AX1800 Dual Band WiFi 6 PoE+ Access Point Model No. : TEW-921DAPxx (x=0-9,A-Z,”/”or blank for marketing purpose) Trade Name : TRENDnet FCC ID. : XU8TEW921DAP I HEREBY CERTIFY THAT : The sample was received on Oct. 06, 2020 and the testing was completed on Nov. 12, 2020 at Cerpass Technology Corp. The test result refers exclusively to the test presented test model / sample. Without written approval of Cerpass Technology Corp., the test report shall not be reproduced except in full. Approved by: Mark Liao / Supervisor Laboratory Accreditation: Cerpass Technology Corporation Test Laboratory CERPASS TECHNOLOGY CORP. Report No.: TEFI2009275 Cerpass Technology Corp. Issued date : Nov. 17, 2020 T-FD-508-0 Ver 1.4 Page No. : 2 of 121 FCC ID : XU8TEW921DAP Contents 1. Summary of Test Procedure and Test Results ................................................................................. 5 1.1 Applicable Standards ................................................................................................................. 5 2. Test Configuration of Equipment under Test ................................................................................... 6 2.1 Feature of Equipment under Test ............................................................................................... 6 2.2 Carrier Frequency of Channels .................................................................................................. 7 2.3 Test Mode and Test Software ..................................................................................................... 8 2.4 Description of Test System ....................................................................................................... 11 2.5 General Information of Test ...................................................................................................... 12 2.6 Measurement Uncertainty ........................................................................................................ 12 3. Test Equipment and Ancillaries Used for Tests ............................................................................. 13 4. Antenna Requirements ..................................................................................................................... 15 4.1 Standard Applicable ................................................................................................................. 15 4.2 Antenna Construction and Directional Gain ............................................................................. 15 5. Test of AC Power Line Conducted Emission ................................................................................. 16 5.1 Test Limit .................................................................................................................................. 16 5.2 Test Procedures ....................................................................................................................... 16 5.3 Typical Test Setup .................................................................................................................... 17 5.4 Test Result and Data ................................................................................................................ 18 5.5 Test Photographs ..................................................................................................................... 20 6. Test of Radiated Spurious Emission ............................................................................................... 21 6.1 Test Limit .................................................................................................................................. 21 6.2 Test Procedures ....................................................................................................................... 22 6.3 Typical Test Setup .................................................................................................................... 23 6.4 Test Result and Data (9KHz ~ 30MHz) .................................................................................... 24 6.5 Test Result and Data (30MHz ~ 1GHz) .................................................................................... 24 6.6 Test Result and Data (1GHz ~ 25GHz) .................................................................................... 26 6.7 Restricted Bands of Operation ................................................................................................. 62 6.8 Test Photographs (30MHz ~ 1GHz) ......................................................................................... 63 6.9 Test Photographs (1GHz ~ 25GHz) ......................................................................................... 64 7. Test of Conducted Spurious Emission ........................................................................................... 66 7.1 Test Limit .................................................................................................................................. 66 7.2 Test Procedure ......................................................................................................................... 66 7.3 Test Setup Layout .................................................................................................................... 66 7.4 Test Result and Data ................................................................................................................ 66 8. On Time, Duty Cycle and Measurement methods ......................................................................... 91 8.1 Test Limit .................................................................................................................................. 91 8.2 Test Procedu…

Text truncated - open the document above for the full version.

CERPASS TECHNOLOGY CORP. Report No.: TEFI2009275 Cerpass Technology Corp. Issued date : Nov. 17, 2020 T-FD-508-0 Ver 1.4 Page No. : 59 of 121 FCC ID : XU8TEW921DAP Power : AC 120V / 60HZ Pol/Phase : HORIZONTAL Test Mode : Mode 8, CH06 : CERPASS TECHNOLOGY CORP. Report No.: TEFI2009275 Cerpass Technology Corp. Issued date : Nov. 17, 2020 T-FD-508-0 Ver 1.4 Page No. : 60 of 121 FCC ID : XU8TEW921DAP Power : AC 120V / 60HZ Pol/Phase : VERTICAL Test Mode : Mode 8, CH09 : CERPASS TECHNOLOGY CORP. Report No.: TEFI2009275 Cerpass Technology Corp. Issued date : Nov. 17, 2020 T-FD-508-0 Ver 1.4 Page No. : 61 of 121 FCC ID : XU8TEW921DAP Power : AC 120V / 60HZ Pol/Phase : HORIZONTAL Test Mode : Mode 8, CH09 : CERPASS TECHNOLOGY CORP. Report No.: TEFI2009275 Cerpass Technology Corp. Issued date : Nov. 17, 2020 T-FD-508-0 Ver 1.4 Page No. : 62 of 121 FCC ID : XU8TEW921DAP 6.7 Restricted Bands of Operation Only spurious emissions are permitted in any of the frequency bands listed below: MHz MHz MHz GHz 0.09000 – 0.11000 0.49500 – 0.505** 2.17350 – 2.19050 4.12500 – 4.12800 4.17725 – 4.17775 4.20725 – 4.20775 6.21500 – 6.21800 6.26775 – 6.26825 6.31175 – 6.31225 8.29100 – 8.29400 8.36200 – 8.36600 8.37625 – 8.38675 8.41425 – 8.41475 12.29000 – 12.29300 12.51975 – 12.52025 12.57675 – 12.57725 13.36000 – 13.41000 16.42000 – 16.42300 16.69475 – 16.69525 16.80425 – 16.80475 25.50000 – 25.67000 37.50000 – 38.25000 73.00000 – 74.60000 74.80000 – 75.20000 108.00000 – 121.94000 123.00000 – 138.00000 149.90000 – 150.05000 156.52475 – 156.52525 156.70000 – 156.90000 162.01250 – 167.17000 167.72000 – 173.20000 240.00000 – 285.00000 322.00000 – 335.40000 399.9 – 410.0 608.0 – 614.0 960.0 – 1240.0 1300.0 – 1427.0 1435.0 – 1626.5 1645.5 – 1646.5 1660.0 – 1710.0 1718.8 – 1722.2 2200.0 – 2300.0 2310.0 – 2390.0 2483.5 – 2500.0 2655.0 – 2900.0 3260.0 – 3267.0 3332.0 – 3339.0 3345.8 – 3358.0 3600.0 – 4400.0 4.500 – 5.250 5.350 – 5.460 7.250 – 7.750 8.025 – 8.500 9.000 – 9.200 9.300 – 9.500 10.600 – 12.700 13.250 – 13.400 14.470 – 14.500 15.350 – 16.200 17.700 – 21.400 22.010 – 23.120 23.600 – 24.000 31.200 – 31.800 36.430 – 36.500 Above 38.6 **: Until February 1, 1999, this restricted band shall be 0.490-0.510 MHz CERPASS TECHNOLOGY CORP. Report No.: TEFI2009275 Cerpass Technology Corp. Issued date : Nov. 17, 2020 T-FD-508-0 Ver 1.4 Page No. : 66 of 121 FCC ID : XU8TEW921DAP 7. Test of Conducted Spurious Emission 7.1 Test Limit Below –30dB of the highest emission level of operating band (In 100 kHz Resolution Bandwidth) 7.2 Test Procedure a. The transmitter output was connected to the spectrum analyzer via a low loss cable. b. Set RBW of spectrum analyzer to 100 KHz and VBW of spectrum analyzer to 300 KHz with convenient frequency span including 100 KHz bandwidth from band edge. c. Peak conducted output power measured within any 100 kHz outside the authorized frequency band shall be attenuated by at least 30dB relative to the maximum measured in-band peak PSD level. d. The band edges was measured and recorded. 7.3 Test Setup Layout 7.4 Test Result and Data Note: Test plots refers to the following pages. EUT Cable Spectrum Analyzer Attenuators CERPASS TECHNOLOGY CORP. Report No.: TEFI2009275 Cerpass Technology Corp. Issued date : Nov. 17, 2020 T-FD-508-0 Ver 1.4 Page No. : 67 of 121 FCC ID : XU8TEW921DAP ANT A: Modulation Type: 802.11b, CH 01 Modulation Type: 802.11b, CH 06 CERPASS TECHNOLOGY CORP. Report No.: TEFI2009275 Cerpass Technology Corp. Issued date : Nov. 17, 2020 T-FD-508-0 Ver 1.4 Page No. : 68 of 121 FCC ID : XU8TEW921DAP ANT A: Modulation Type: 802.11b, CH 11 CERPASS TECHNOLOGY CORP. Report No.: TEFI2009275 Cerpass Technology Corp. Issued date : Nov. 17, 2020 T-FD-508-0 Ver 1.4 Page No. : 69 of 121 FCC ID : XU8TEW921DAP ANT A: Modulation Type: 802.11g, CH 01 Modulation Type: 802.11g, CH 06 CERPASS TECHNOLOGY CORP. Report No.: TEFI2009275 Cerpass Technology Corp. Issued date : Nov. 17, 2020 T-FD-508-0 Ver 1.4 Page No. : 70 of 121 FCC ID : XU8TEW921DAP ANT A: Modulation Type: 802.11g, CH 11 CERPASS TECHNOLOGY CORP. Report No.: TEFI2009275 Cerpass Technology Corp. Issued date : Nov. 17, 2020 T-FD-508-0 Ver 1.4 Page No. : 71 of 121 FCC ID : XU8TEW921DAP ANT A: Modulation Type: VHT20, CH01 Modulation Type: VHT20, CH06 CERPASS TECHNOLOGY CORP. Report No.: TEFI2009275 Cerpass Technology Corp. Issued date : Nov. 17, 2020 T-FD-508-0 Ver 1.4 Page No. : 72 of 121 FCC ID : XU8TEW921DAP ANT A: Modulation Type: VHT20, CH11 CERPASS TECHNOLOGY CORP. Report No.: TEFI2009275 Cerpass Technology Corp. Issued date : Nov. 17, 2020 T-FD-508-0 Ver 1.4 Page No. : 73 of 121 FCC ID : XU8TEW921DAP ANT A: Modulation Type: VHT40, CH03 Modulation Type: VHT40, CH06 CERPASS TECHNOLOGY CORP. Report No.: TEFI2009275 Cerpass Technology Corp. Issued date : Nov. 17, 2020 T-FD-508-0 Ver 1.4 Page No. : 74 of 121 FCC ID : XU8TEW921DAP ANT A: Modulation Type: VHT40, CH09 CERPASS TECHNOLOGY CORP. Report No.: TEFI2009275 Cerpass Technology Corp. Issued date : Nov. 17, 2020 T-FD-508-0 Ver 1.4 Page No. : 75 of 121 FCC ID : XU8TEW921DAP ANT A: Modulation Type: 802.11ax HE20, CH01 Modulation Type: 802.11ax HE20, CH06 CERPASS TECHNOLOGY CORP. Report No.: TEFI2009275 Cerpass Technology Corp. Issued date : Nov. 17, 2020 T-FD-508-0 Ver 1.4 Page No. : 76 of 121 FCC ID : XU8TEW921DAP ANT A: Modulation Type: 802.11ax HE20, CH11 CERPASS TECHNOLOGY CORP. Report No.: TEFI2009275 Cerpass Technology Corp. Issued date : Nov. 17, 2020 T-FD-508-0 Ver 1.4 Page No. : 77 of 121 FCC ID : XU8TEW921DAP ANT A: Modulation Type: 802.11ax HE40, CH03 Modulation Type: 802.11ax HE40, CH06 CERPASS TECHNOLOGY CORP. Report No.: TEFI2009275 Cerpass Technology Corp. Issued date : Nov. 17, 2020 T-FD-508-0 Ver 1.4 Page No. : 78 of 121 FCC ID : XU8TEW921DAP ANT A: Modulation Type: 802.11ax HE40, CH09 CERPASS TECHNOLOGY CORP. Report No.: TEFI2009275 Cerpass Technology Corp. Issued date : Nov. 17, 2020 T-FD-508-0 Ver 1.4 Page No. : 79 of 121 FCC ID : XU8TEW921DAP ANT B: Modulation Type: 802.…

Text truncated - open the document above for the full version.

CERPASS TECHNOLOGY CORP. Report No.: TEFU2009275 Cerpass Technology Corp. Issued Date : Nov. 17, 2020 T-FD-503-0 Ver 1.4 Page No. : 13 of 26 FCC ID. : XU8TEW921DAP 4.2 Test Photographs (30MHz ~ 1GHz) Front View Rear V…
