XV3UD02BAir Dongle

Air Sender User manual 21 1. Installing Air Dongle (Needed Only in PC mode): 2. Installing Batteries 1-1. Using Air Keyboard Air Keyboard does not need any driver or setup. After connecting the Air Dongle to the USB port of the computer, the system will automatically search for Air Keyboard and establish connection. Note: 1. When the batteries have no more power or when they are not used for a long period of time, please replace batteries. 2. Do not mix new and old batteries or different types of batteries. 3. If you intend not to use the product for a long period of time, remove the batteries to avoid damage from leakage and corrosion. 4. Always consider the environmental issues and follow local regulations when disposing batteries. 5. Batteries running out of power should be removed as soon as possible to prevent damage from leakage or corrosion. Fig 3: Replace the lid and push it back until it locks into position. Fig 2: Place 2 batteries (AA/R6) into the compartment. Make sure the positive and negative ends of each battery match with the polarity indicators in the compartment. Fig 1: Open the lid of battery compartment 3. Turn on Power Click the mouse left click button to turn on the power of Air Keyboard. 1-2. Air Keyboard (Multimedia functions apply to Windows operating system) Air Sender User manual 43 Fig. 1 Upper Panel 2. Installing Components of Air Tune and Connecting Air Tune with PC/Notebook 2-1. Installing Components of Air Tune Installing the adapter set into the DC slot of Air Tune. Fig. 2 Installing Air Tune and adapter 1-4. Air Keyboard Troubleshooting If Air Keyboard does not work properly, please follow these trouble- shooting methods. 1. Make sure the batteries are properly installed and the batteries contain enough power. When the remaining power is lower than DC2.2V, the TV indica- tor is on under PC mode,and PC indicator is on under TV mode. Air Keyboard will power off automatically when the power is lower than DC2.0V. You need to replace new batteries. 2. If Air Keyboard does not work properly even with sufficient power, please remove Air Dongle and batteries. Then, replace batteries and reconnect Air Dongle and try gain. 3. The pairing between Air Dongle and Air Keyboard was completed before shipment. If the above steps does not solve your issue, it might be that the pairing was lost,perform the following pairing steps again: 1) Install batteries in Air Keyboard and connect Air Dongle to the computer. 2) Bring Air Keyboard next to Air Dongle. Press and hold the button on Air Dongle. Press the “POWER” and “mouse right click” buttons at the same time. Air Keyboard will search for Air Dongle and the green LED indicator will be blinking. Hold down the button on Air Dongle until the blue light on Air Dongle is no longer blinking and stays on and the green indicator on Air Keyboard stays on for 2 seconds. The pairing is now completed and you can start using Air Keyboard. If Air Keyboard does not work correctly after the above steps are performed 3 times,please consult your dealer.   LED indicator for pairing Pairing button 1-3. Air Dongle 1 2 1 2

R&D Print date 09/06/12 June, 2008 v6 Aug, 2008 v7 8010 Ceramic Chip Antenna for Bluetooth/Wimax Application CAN4311 881 XX 245 3K Sept, 2008 v8 Tommy Chen Page 1 sheet 190-1 A4 Justin Liu Oscar Lu Yageo Taiwan / High Frequency BU 8010 Ceramic Chip Antenna for Bluetooth/Wimax Application ANTENNA PRODUCTS Sept., 2008 – V8 R&D Print date 09/06/12 June, 2008 v6 Aug, 2008 v7 8010 Ceramic Chip Antenna for Bluetooth/Wimax Application CAN4311 881 XX 245 3K Sept, 2008 v8 Tommy Chen Page 2 sheet 190-2 A4 Justin Liu Oscar Lu Yageo Taiwan / High Frequency BU 8010 Ceramic Chip Antenna for Bluetooth/Wimax Application Quick Reference Data Centre Frequency 2.38 GHz Bandwidth 2.3 ~ 2.49 GHz VSWR 2.5 (Max.) Polarization Linear Azimuth Beamwidth Omni-directional Peak Gain 3.0 dBi Impedance 50Ω Operating Temperature -25~85 o C Termination Ni / Sn (Environmentally-Friendly Leadless) Resistance to soldering heats 260°C , 10sec. Maximum Power 1W R&D Print date 09/06/12 June, 2008 v6 Aug, 2008 v7 8010 Ceramic Chip Antenna for Bluetooth/Wimax Application CAN4311 881 XX 245 3K Sept, 2008 v8 Tommy Chen Page 3 sheet 190-3 A4 Justin Liu Oscar Lu Yageo Taiwan / High Frequency BU 1. Mechanical Data (8 x 1x 1 mm³) CAN4311881XX2453K Bottom-Side View Top-Side View 8.0 mm 1.0 mm 1.0 mm R&D Print date 09/06/12 June, 2008 v6 Aug, 2008 v7 8010 Ceramic Chip Antenna for Bluetooth/Wimax Application CAN4311 881 XX 245 3K Sept, 2008 v8 Tommy Chen Page 4 sheet 190-4 A4 Justin Liu Oscar Lu Yageo Taiwan / High Frequency BU 2. Dimension of Footprint - 9.0 mm 1.4 mm 1.4 mm 0.90+- 0.15mm 8.0+- 0.1mm 1.05+- 0.1 mm Bottom Side R&D Print date 09/06/12 June, 2008 v6 Aug, 2008 v7 8010 Ceramic Chip Antenna for Bluetooth/Wimax Application CAN4311 881 XX 245 3K Sept, 2008 v8 Tommy Chen Page 5 sheet 190-5 A4 Justin Liu Oscar Lu Yageo Taiwan / High Frequency BU 3. Evaluation Board Dimension and Outlook Unit: mm 50 ohm Line Gound plane in backside R&D Print date 09/06/12 June, 2008 v6 Aug, 2008 v7 8010 Ceramic Chip Antenna for Bluetooth/Wimax Application CAN4311 881 XX 245 3K Sept, 2008 v8 Tommy Chen Page 6 sheet 190-6 A4 Justin Liu Oscar Lu Yageo Taiwan / High Frequency BU 4. Measured S-parameter R&D Print date 09/06/12 June, 2008 v6 Aug, 2008 v7 8010 Ceramic Chip Antenna for Bluetooth/Wimax Application CAN4311 881 XX 245 3K Sept, 2008 v8 Tommy Chen Page 7 sheet 190-7 A4 Justin Liu Oscar Lu Yageo Taiwan / High Frequency BU 5.The Definition of X-Y-Z Plane X X Y Y Z Z R&D Print date 09/06/12 June, 2008 v6 Aug, 2008 v7 8010 Ceramic Chip Antenna for Bluetooth/Wimax Application CAN4311 881 XX 245 3K Sept, 2008 v8 Tommy Chen Page 8 sheet 190-8 A4 Justin Liu Oscar Lu Yageo Taiwan / High Frequency BU 6. The Environment of Antenna Radiation Pattern Anechoic Chamber Dimension=10(m) × 6(m) × 6(m) R&D Print date 09/06/12 June, 2008 v6 Aug, 2008 v7 8010 Ceramic Chip Antenna for Bluetooth/Wimax Application CAN4311 881 XX 245 3K Sept, 2008 v8 Tommy Chen Page 9 sheet 190-9 A4 Justin Liu Oscar Lu Yageo Taiwan / High Frequency BU 7. Radiation Pattern R&D Print date 09/06/12 June, 2008 v6 Aug, 2008 v7 8010 Ceramic Chip Antenna for Bluetooth/Wimax Application CAN4311 881 XX 245 3K Sept, 2008 v8 Tommy Chen Page 10 sheet 190- 10 A4 Justin Liu Oscar Lu Yageo Taiwan / High Frequency BU 8. Reliability Test IEC 384-10/ CECC 32 100 CLAUSE IEC 60068-2 TEST METHOD TEST PROCEDURE REQUIREMENTS 4.4 Mounting The antenna can be mounted on printed-circuit boards or ceramic substrates by applying wave soldering, reflow soldering (including vapour phase soldering) or conductive adhesive No visible damage 4.5 Visual inspection and dimension check Any applicable method using × 10 magnification In accordance with specification (chip off 4mm) 4.6.1 Antenna Central Frequency at 20 o C Standard test board in page 4 4.8 Adhesion A force of 3 N applied for 10 s to the line joining the terminations and in a plane parallel to the substrate No visible damage Bond strength of plating on end face Mounted in accordance with CECC 32 100, paragraph 4.4 No visible damage 4.9 Conditions: bending 0.5 mm at a rate of 1mm/s, radius jig. 340 mm, 2mm warp on FR4 board of 90 mm length No visible damage 4.10 20(Tb) Resistance to soldering heat 260 ± 5 °C for 10 ± 0.5 s in a static solder bath Satisfy the original electrical specification after soldering. Resistance to leaching 260 ± 5 °C for 30 ± 1 s in a static solder bath Using visual enlargement of × 10, dissolution of the termination shall not exceed 10% R&D Print date 09/06/12 June, 2008 v6 Aug, 2008 v7 8010 Ceramic Chip Antenna for Bluetooth/Wimax Application CAN4311 881 XX 245 3K Sept, 2008 v8 Tommy Chen Page 11 sheet 190- 11 A4 Justin Liu Oscar Lu Yageo Taiwan / High Frequency BU IEC 384-10/ CECC 32 100 CLAUSE IEC 60068-2 TEST METHOD TEST PROCEDURE REQUIREMENTS 4.11 20(Ta) Solderability Zero hour test, and test after storage (20 to 24 months) in original atmosphere; un-mounted chips completely immersed for 2 ± 0.5 s in 235 ± 5°C. The termination must be well tinned, at least 75% is well tinned at termination 4.12 4(Na) Rapid change of temperature -25 °C (30 minutes) to +85 °C (30 minutes); 100 cycles No visible damage Central Freq. Change ± 6% 4.14 3(Ca) Damp heat 500 ± 12 hours at 60 °C; 90 to 95 % RH No visible damage 2 hours recovery Central Freq. Change ± 6% 4.15 Endurance 500 ± 12 hours at 85 °C; No visible damage 2 hours recovery Central Freq. Change ± 6% ■ Notice (shipping and storage during transportation) In order to ensure some quality, it is suggested to follow the condition during shipping : • Temperature : -40~70°C • Humidity : 45~75% ■ Notice (storage condition) In order to ensure the solderability of the termination, it is suggested to follow the condition for storage : • Temperature : 15~30°C • Humidity : 45~75% • Prevent corrosive gas (SO 2 , NO X , NH 3 , Cl 2 , ..etc) • It is better to use products within 6 months. Solderability should be confirmed again if exceed 6 months. R&D Print date 09/06/12 June, 2008 v6 Aug, 2008 v7 8010…

Text truncated - open the document above for the full version.

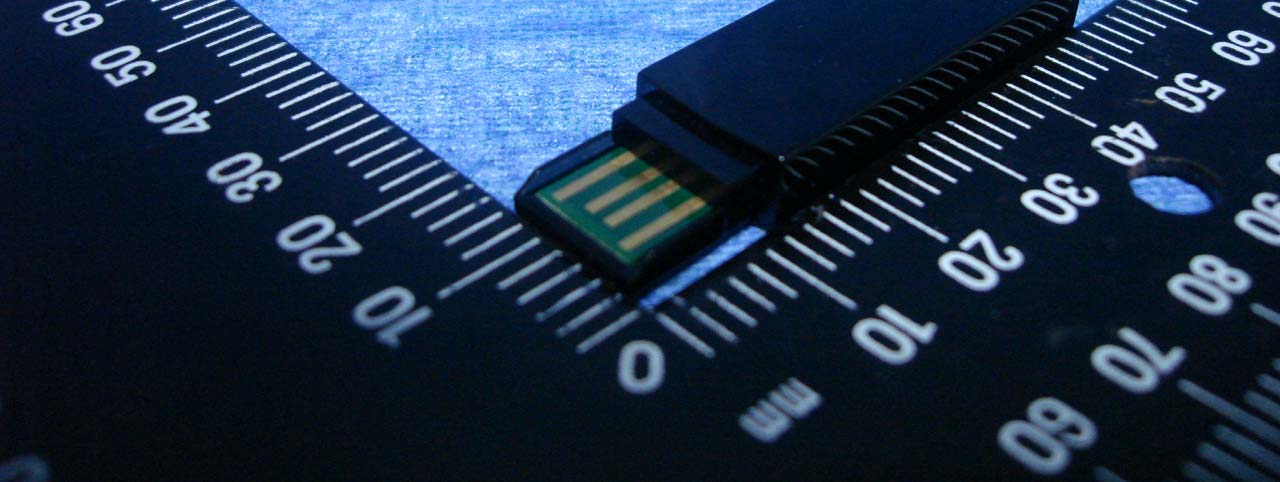

Compliance Certification Services Inc. Report No.：91109402 External Photo ( Model :UD-02b )

UD-02b Diagram Label Location

Compliance Certification Services Inc. Report No.：91109402 Compliance Certification Services Inc. Report No.：91109402

Compliance Certification Services Inc. Report No.：91109402-RP1 FCC ID：XV3UD02B Date of Issue: November 28, 2009 Page 1 FCC 47 CFR PART 15 SUBPART C AND ANSI C63.4: 2003 TEST REPORT For Air Dongle Model: UD-02b Brand: Issued for Holy Investment Co., Ltd. 1F., No.2, Lane 25, Yong-an 2nd St., Yongkang City, Tainan County 710, Taiwan Issued by Compliance Certification Services Inc. Tainan Lab. No. 8, Jiu Cheng Ling, Jiaokeng Village,Sinhua Township, Tainan Hsien 712, Taiwan R.O.C. TEL: 886-6-580-2201 FAX: 886-6-580-2202 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. Ltd. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document Total Page: 50 Compliance Certification Services Inc. Report No.：91109402-RP1 FCC ID：XV3UD02B Date of Issue: November 28, 2009 Page 2 REVISION HISTORY Rev. Issue Date Revisions Effect Page Revised By 00 November 28, 2009 Initial Issue ALL Leah Peng Compliance Certification Services Inc. Report No.：91109402-RP1 FCC ID：XV3UD02B Date of Issue: November 28, 2009 Page 3 TABLE OF CONTENTS 1. TEST REPORT CERTIFICATION ........................................................................................... 4 2. EUT DESCRIPTION .................................................................................................................... 5 2.1 DESCRIPTION OF EUT & POWER ......................................................................................................5 3. DESCRIPTION OF TEST MODES............................................................................................ 6 4. TEST METHODOLOGY.............................................................................................................7 5. FACILITIES AND ACCREDITATIONS................................................................................... 7 5.1 FACILITIES.............................................................................................................................................7 5.2 EQUIPMENT ...........................................................................................................................................7 5.3 LABORATORY ACCREDITATIONS LISTINGS.................................................................................7 5.4 TABLE OF ACCREDITATIONS AND LISTINGS ...............................................................................8 6. CALIBRATION AND UNCERTAINTY .................................................................................... 9 6.1 MEASURING INSTRUMENT CALIBRATION....................................................................................9 6.2 MEASUREMENT UNCERTAINTY ......................................................................................................9 7. SETUP OF EQUIPMENT UNDER TEST ................................................................................. 10 7.1 SETUP CONFIGURATION OF EUT .....................................................................................................10 7.2 SUPPORT EQUIPMENT ........................................................................................................................10 8. APPLICABLE LIMITS AND TEST RESULTS........................................................................ 11 8.1 6DB BANDWIDTH .................................................................................................................................11 8.2 MAXIMUM PEAK OUTPUT POWER ..................................................................................................15 8.3 MAXIMUM PERMISSIBLE EXPOSURE .............................................................................................19 8.4 POWER SPECTRAL DENSITY .............................................................................................................21 8.5 CONDUCTED SPURIOUS EMISSION .................................................................................................24 8.6 RADIATED EMISSIONS........................................................................................................................28 8.7 POWERLINE CONDUCTED EMISSIONS ...........................................................................................43 9. ANTENNA REQUIREMENT...................................................................................................... 47 9.1 STANDARD APPLICABLE ...................................................................................................................47 9.2 ANTENNA CONNECTED CONSTRUCTION ......................................................................................47 APPENDIX SETUP PHOTOS......................................................................................................... 48 Compliance Certification Services Inc. Report No.：91109402-RP1 FCC ID：XV3UD02B Date of Issue: November 28, 2009 Page 4 1. TEST REPORT CERTIFICATION Applicant ： Holy Investment Co., Ltd. Address ： 1F., No.2, Lane 25, Yong-an 2nd St., Yongkang City, Tainan County 710, Taiwan Manufacture ： Jow Tong Technology CO., LTD. Address ： 46, Lane 337, Chung Cheng Rd., Yung Kang City, Tainan County 710, Taiwan, R.O.C. Equipment Under Test ： Air Dongle Model Number ： UD-02b Brand Name ： Date of Test ： September 10, 2009~ November 17, 2009 APPLICABLE STANDARD STANDARD TEST RESULT FCC Part 15 Subpart C : 2004 AND ANSI C63.4 : 2003 No non-compliance noted Approved by: Reviewed by: Jeter Wu Eric Yang Section Manager Senior Engineer Compliance Certification Services Inc. Compliance Certification Services Inc. Compliance Certification Services Inc. Report No.：91109402-RP1 FCC ID：XV3UD02B Date of Issue: November 28, 2009 Page 5 2. EUT DESCRIPTION 2.1 DESCRIPTION OF EUT & POWER Product Name Air Dongle Model Number UD-02b Brand Name Frequency Range TX Mode : 2402MHz～2474MHz Transmit Power TX Mode : -9.23dBm (0.119399 mW) Ch…

Text truncated - open the document above for the full version.

!!Compliance Certification Services Inc.!! Report No.Κ91109402-RP1 FCC ID˖XV3UD02˕ Date of Issue: November 28, 2009! Qbhf!59! APPENDIX SETUP PHOTOS RADIATED EMISSION MEASUREMENT SETUP ! ! ! ! ! !!Compliance Certification Services Inc.!! Report No.Κ91109402-RP1 FCC ID˖XV3UD02˕ Date of Issue: November 28, 2009! Qbhf!5:! RADIATED RF MEASUREMENT SETUP ! !!Compliance Certification Services Inc.!! Report No.Κ91109402-RP1 FCC ID˖XV3UD02˕ Date of Issue: November 28, 2009! Qbhf!61! ! ! !! ! End of report
