XV6PST6550EcoAir

EcoWave Installation Guide PST6000 and PST6550 EcoWave Installation Guide Telkonet, Inc. Table of Contents 10200 W. Innovation Dr., Ste. 300 Revision 9 Milwaukee, WI 53226 Page 1 (800) 380-9640 www.telkonet.com Table of Contents Table of Contents ................................................................................................................... 1 Installation Requirements .......................................................................................................... 2 Required Equipment ............................................................................................................. 2 Hardware ........................................................................................................................ 2 Regulatory Compliance .......................................................................................................... 2 FCC Notice ...................................................................................................................... 2 Wiring the EcoInsight/EcoSource ................................................................................................. 3 Wireless Installation of the EcoAir ............................................................................................... 6 Configuration ......................................................................................................................... 7 Join the EcoInsight/EcoSource to the EcoConnect ......................................................................... 7 Required Equipment ........................................................................................................... 7 Join Process ..................................................................................................................... 7 EcoAir to EcoInsight/EcoSource Association ............................................................................... 10 Associating One EcoAir with One EcoInsight/EcoSource (Standard) ................................................ 10 Associating One EcoAir with Multiple EcoInsights/EcoSources (Multi-Bind) ....................................... 12 Troubleshooting.................................................................................................................... 14 EcoWave Installation Guide Telkonet, Inc. Installation Requirements 10200 W. Innovation Dr., Ste. 300 Revision 9 Milwaukee, WI 53226 Page 2 (800) 380-9640 www.telkonet.com Installation Requirements Required Equipment Hardware • EcoAir (P/N: PST6550) • EcoInsight/EcoSource (P/N: PST6000) • Voltmeter • Small Phillips screwdriver • Wire nut or electrical tape • Wire stripper • Wire cutter • Security screw wrench • Level • Two AA Batteries Regulatory Compliance This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Notice This equipment has been tested and found to comply with the limits for a class B digital device pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If the equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and the receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or experienced radio/TV technician for help. In order to maintain compliance with FCC regulations, shielded cables must be used with this equipment. Operation with non-approved equipment is likely to result in interference to radio and TV reception. The user is cautioned that changes and modifications made to the equipment without the approval of the manufacturer could void the user’s authority to operate the equipment. To satisfy RF exposure requirements, this device and its antennas must operate with a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. EcoWave Installation Guide Telkonet, Inc. Wiring the EcoInsight/EcoSource 10200 W. Innovation Dr., Ste. 300 Revision 9 Milwaukee, WI 53226 Page 3 (800) 380-9640 www.telkonet.com Wiring the EcoInsight/EcoSource 1. Locate the wiring in the HVAC Unit. 2. Review the table below and determine where the EcoInsight/EcoSource will be mounted. Mounting Consideration Best Practice RF Interference If the EcoInsight/EcoSource will be mounted inside a metal HVAC unit or in a room with a large amount of metallic equipment, an external antenna may be necessary. 3. Turn the power off at the circuit breaker. 4. Lockout and label all circuits in accordance with local code. 5. Disconnect the existing thermostat, if any. 6. Use the voltmeter to verify the power is off. It may not be possible to switch off transformer supply voltage on low-voltage units. Use caution when installing these systems. 7. Strip the LINE wire back 0.25 inches. 8. Cap the LINE wire with a wire nut or electrical tape. 9. Cut the GROUND wire so the copper is flush with the insulation. 10. Strip all wires except for GROUND back 0.25 inches. 11. Remove the security screw from the EcoInsight/EcoSource thermostat. 12. Separate the backplate from the EcoInsight/EcoSource thermostat. 13. Lev…

Text truncated - open the document above for the full version.

SAR Exclusion Justification This device FCC ID:is excluded from SAR testing by the following justification The maximum power that the transmitter is capable of is3.16mW Using the following formula from section 4.3.1 of KDB 447498at test separation distances ≤ 50 mm [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] * [√f(GHz)] Duty Cycle 100.00% Value1-g (mW)10-g (mW) 1.00(355)-212 "Value" is3, the SAR test exclusion threshold 1-g power limit10-g power limit 95238 “source-based” time-averaging based on an inherent property or duty-cycle of a device is allowed. An example of this is the determination of exposure from a device that uses digital technology such as a time-division multiple-access (TDMA) scheme for transmission < 50mm power limits for above caclulation using specified frequency XV6PST6550 Max Peak Power (dBm)Min Separation distance (mm)Frequency (Ghz) When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 5) in section 4.1 is applied to determine SAR test exclusion. 2.4855 SAREXJUST-B-0-43REV A01/21/2014

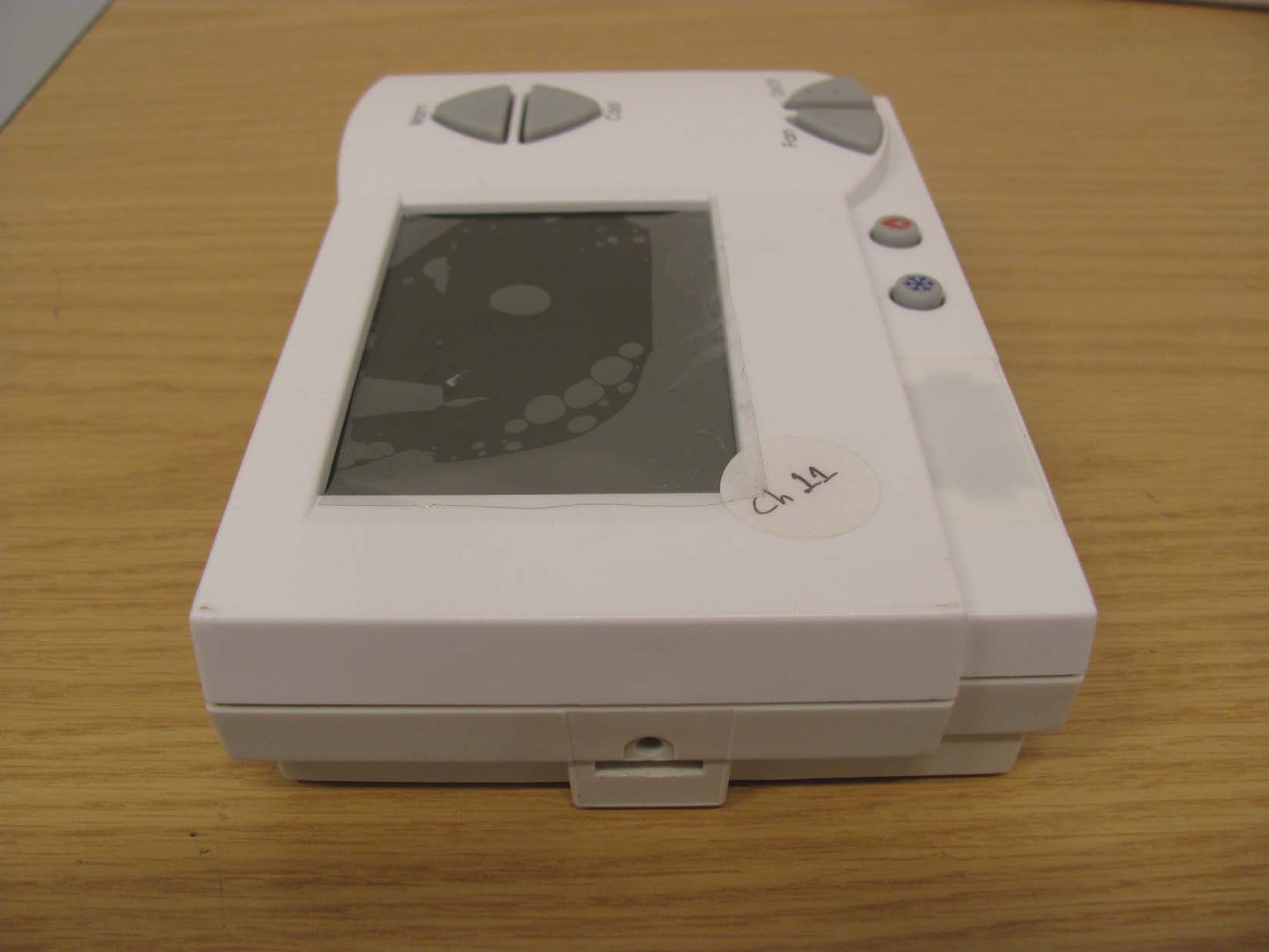

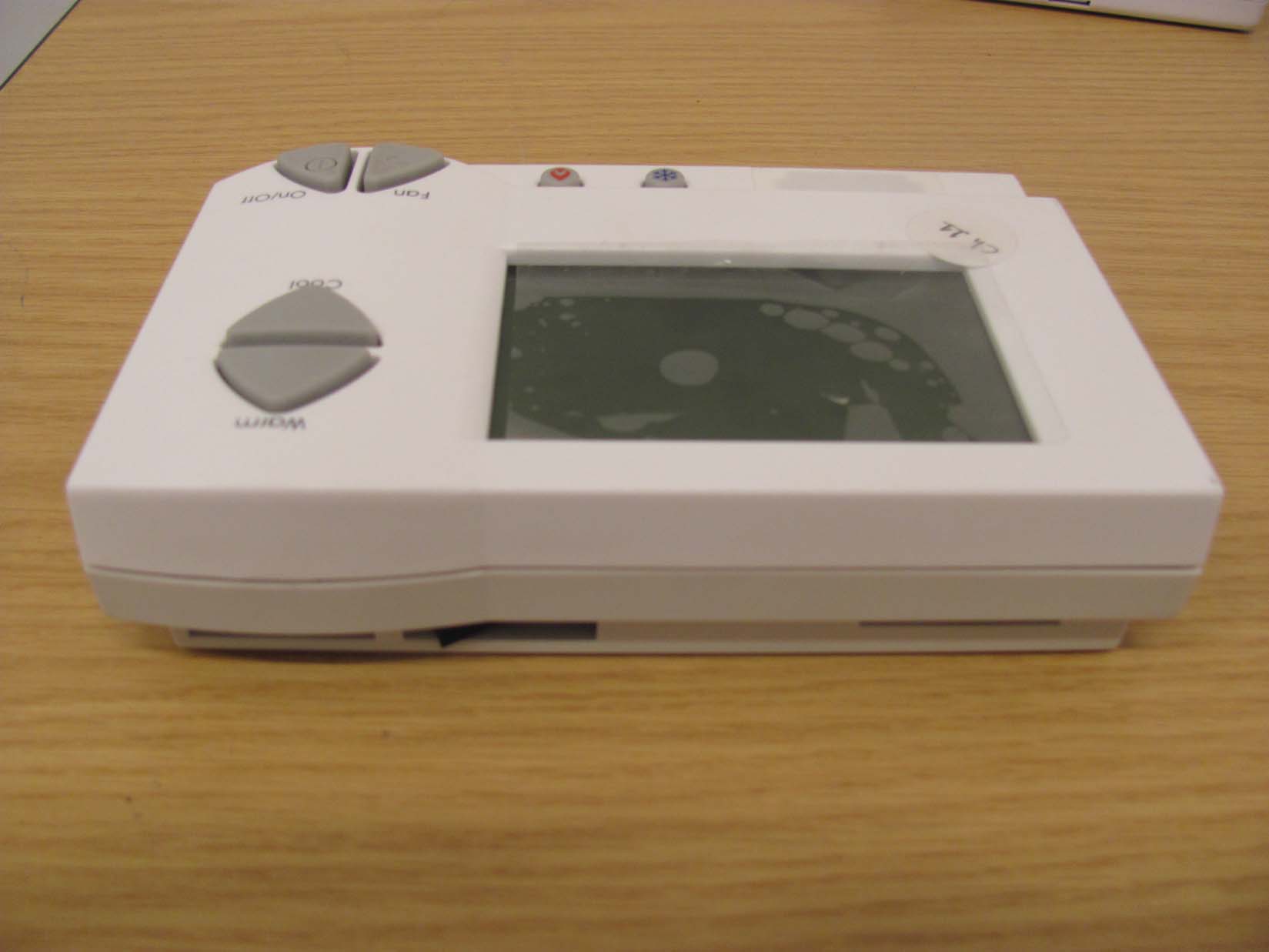

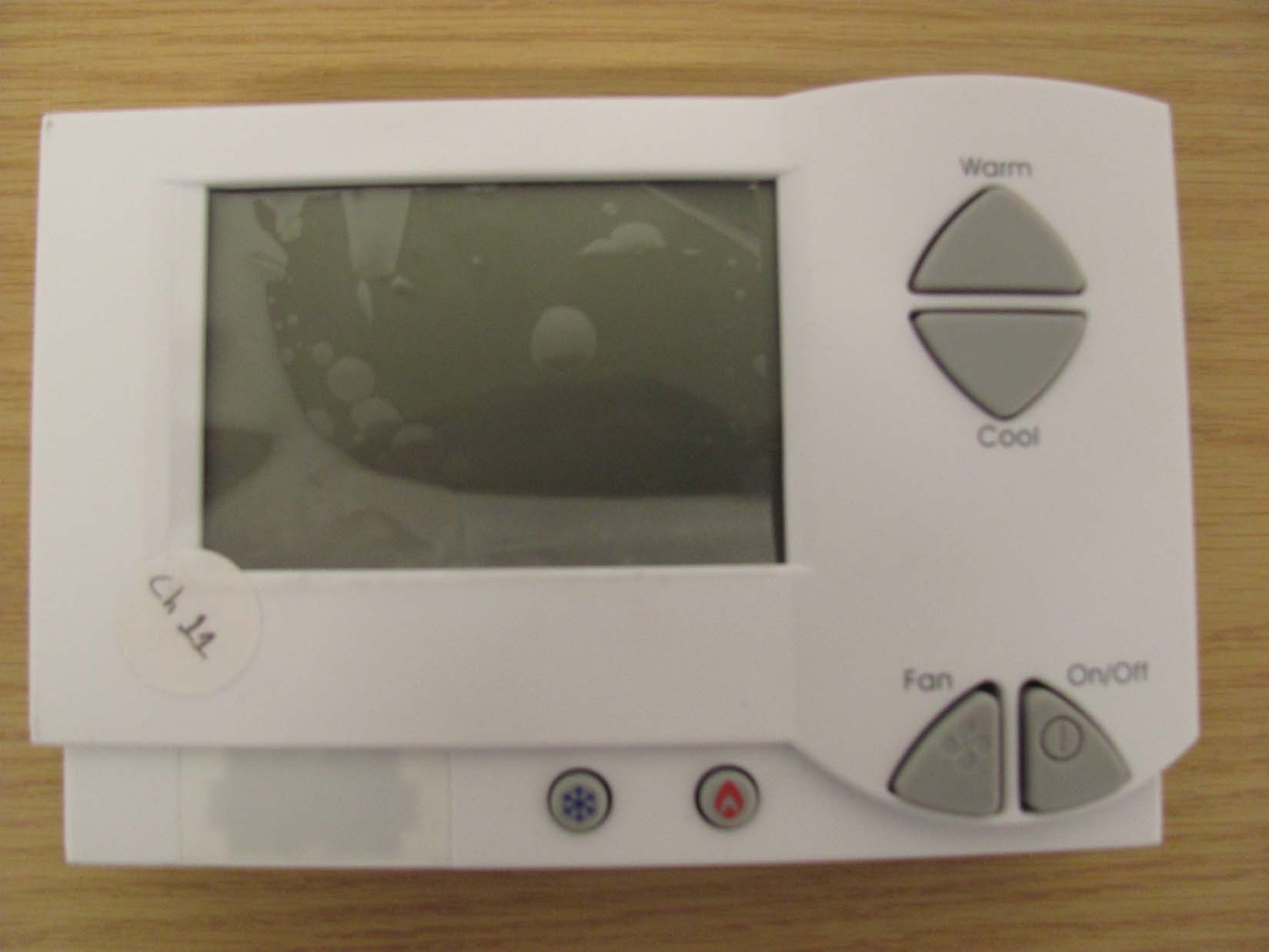

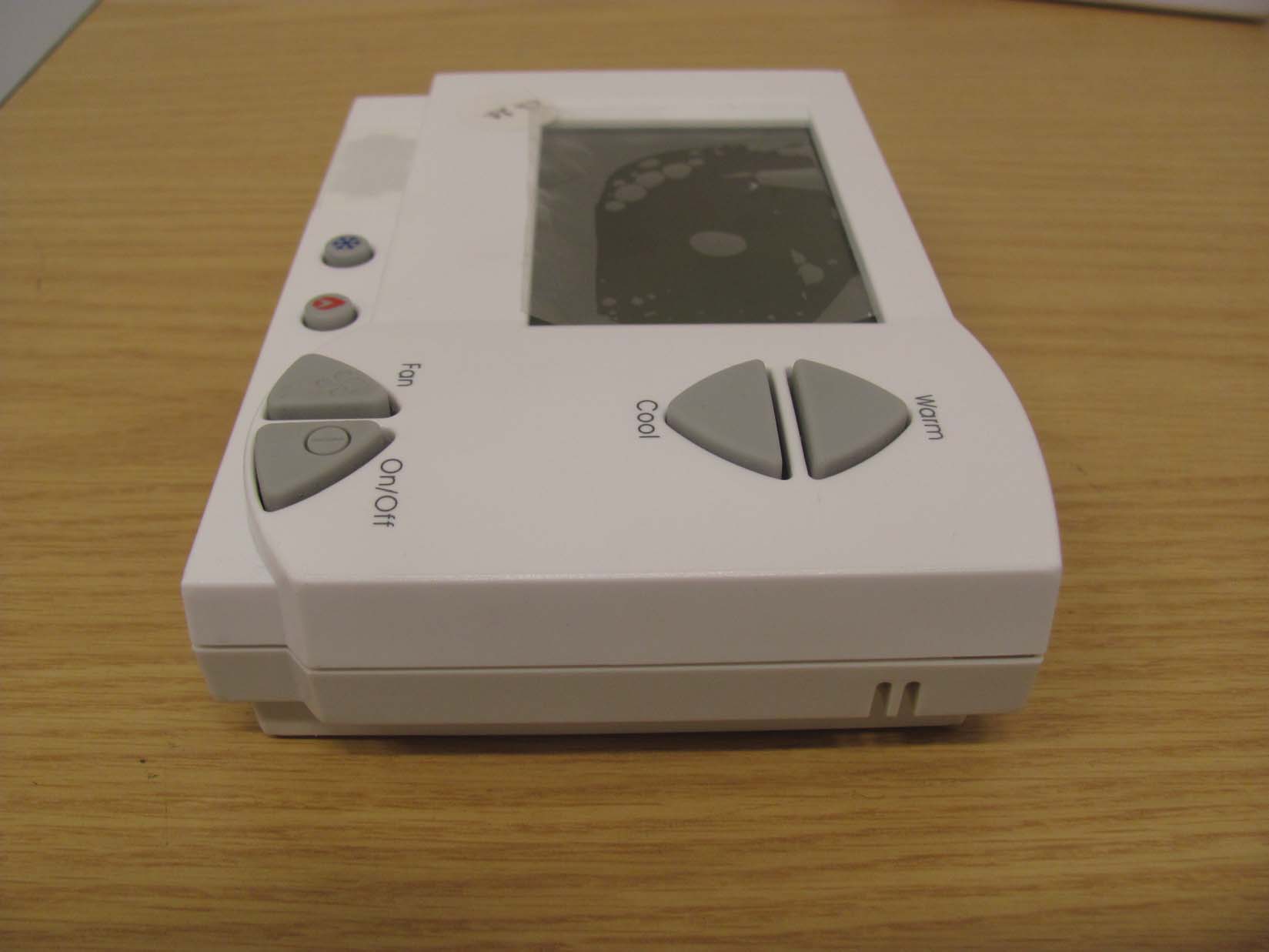

Report Number: B40429D1 FCC Part 15 Subpart B and FCC Section 15.249 Test Report EcoAir Model: PST6550 Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 1 of 18 FCC PART 15, SUBPART B and C TEST REPORT for ECOAIR MODEL: PST6550 Prepared for TELKONET, INC. 10200 WEST INNOVATION DRIVE, SUITE 300 MILWAUKEE, WISCONSIN 53226 Prepared by:_____________________ KYLE FUJIMOTO Approved by:____________________ JAMES ROSS COMPATIBLE ELECTRONICS INC. 114 OLINDA DRIVE BREA, CALIFORNIA 92823 (714) 579-0500 DATE: JULY 20, 2014 REPORTAPPENDICESTOTAL BODYA B C D E PAGES 18 2 2 2 20 40 84 This report shall not be reproduced except in full, without the written approval of Compatible Electronics. Report Number: B40429D1 FCC Part 15 Subpart B and FCC Section 15.249 Test Report EcoAir Model: PST6550 Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 2 of 18 TABLE OF CONTENTS Section / Title PAGE GENERAL REPORT SUMMARY 4 SUMMARY OF TEST RESULTS 5 1. PURPOSE 6 2. ADMINISTRATIVE DATA 7 2.1 Location of Testing 7 2.2 Traceability Statement 7 2.3 Cognizant Personnel 7 2.4 Date Test Sample was Received 7 2.5 Disposition of the Test Sample 7 2.6 Abbreviations and Acronyms 7 3. APPLICABLE DOCUMENTS 8 4. DESCRIPTION OF TEST CONFIGURATION 9 4.1 Description of Test Configuration - Emissions 9 4.1.1 Description of Test Configuration - Emissions 9 5. LISTS OF EUT, ACCESSORIES AND TEST EQUIPMENT 10 5.1 EUT and Accessory List 10 6. TEST SITE DESCRIPTION 11 6.1 Test Facility Description 11 6.2 EUT Mounting, Bonding and Grounding 11 7. TEST PROCEDURES 12 7.1 RF Emissions 12 7.1.1 Conducted Emissions Test 12 7.1.2 Radiated Emissions (Spurious and Harmonics) Test – Lab B 13 7.1.3 Radiated Emissions (Spurious and Harmonics) Test – Lab D 15 7.1.4 RF Emissions Test Results 16 8. CONCLUSIONS 18 Report Number: B40429D1 FCC Part 15 Subpart B and FCC Section 15.249 Test Report EcoAir Model: PST6550 Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 3 of 18 LIST OF APPENDICES APPENDIX TITLE A Laboratory Accreditations and Recognitions B Modifications to the EUT C Additional Models Covered Under This Report D Diagrams and Charts  Test Setup Diagrams  Antenna and Effective Gain Factors E Data Sheets LIST OF FIGURES FIGURE TITLE 1 Plot Map And Layout of Test Site 2 Layout of the Semi-Anechoic Test Chamber Report Number: B40429D1 FCC Part 15 Subpart B and FCC Section 15.249 Test Report EcoAir Model: PST6550 Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 4 of 18 GENERAL REPORT SUMMARY This electromagnetic emission test report is generated by Compatible Electronics Inc., which is an independent testing and consulting firm. The test report is based on testing performed by Compatible Electronics personnel according to the measurement procedures described in the test specifications given below and in the "Test Procedures" section of this report. The measurement data and conclusions appearing herein relate only to the sample tested and this report may not be reproduced without the written permission of Compatible Electronics, unless done so in full. This report must not be used to claim product certification, approval or endorsement by NVLAP, NIST or any agency of the federal government. Device Tested: EcoAir Model: PST6550 S/N: N/A Product Description: See Expository Statement. Modifications: The EUT was not modified during the testing. Customer: Telkonet, Inc. 10200 West Innovation Drive, Suite 300 Milwaukee, Wisconsin 53226 Test Dates: April 23, 28, and 29, 2014 Test Specifications : EMI requirements CFR Title 47, Part 15, Subpart B; and Subpart C, sections 15.205, 15.209, and 15.249 Test Procedure: ANSI C63.4 Test Deviations: The test procedure was not deviated from during the testing. Report Number: B40429D1 FCC Part 15 Subpart B and FCC Section 15.249 Test Report EcoAir Model: PST6550 Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 5 of 18 SUMMARY OF TEST RESULTS TEST DESCRIPTION RESULTS 1 Spurious Radiated RF Emissions, 10 kHz – 25000 MHz (Transmitter and Digital portion) Complies with the Class B limits of CFR Title 47, Part 15 Subpart B; and the limits of CFR Title 47, Part 15, Subpart C, sections 15.205, 15.209 and 15.249 2 Conducted RF Emissions, 150 kHz to 30 MHz Complies with the Class B limits of CFR Title 47, Part 15 Subpart B; and the limits of CFR Title 47, Part 15, Subpart C, section 15.207 Report Number: B40429D1 FCC Part 15 Subpart B and FCC Section 15.249 Test Report EcoAir Model: PST6550 Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 6 of 18 1. PURPOSE This document is a qualification test report based on the emissions tests performed on the EcoAi…

Text truncated - open the document above for the full version.

Ref Lvl 92 dB  V Ref Lvl 92 dB  V RBW 1 MHz VBW 3 MHz RF Att 0 dB A IN1 Unit dB  V P0 TDS SWT 100 ms Center 2.440 GHz10 ms/ 1VIEW1AP 0 10 20 30 40 50 60 70 80 -8 92 11 Delta 1 [T1] -0.03 dB 2.404810 ms 1 [T1] 30.57 dB  V 5.811623 ms 1 [T1] -0.03 dB 2.404810 ms D1 74 dB  V D2 54 dB  V Date: 28.APR.2014 09:46:29 Time of One Pulse – 2.404810 ms Ref Lvl 92 dB  V Ref Lvl 92 dB  V RBW 1 MHz VBW 3 MHz RF Att 0 dB A IN1 Unit dB  V P0 TDS SWT 300 ms Center 2.440 GHz 30 ms/ 1VIEW1AP 0 10 20 30 40 50 60 70 80 -8 92 1 1 Delta 1 [T1] -0.42 dB 100.400802 ms 1 [T1] 31.10 dB  V 32.464930 ms 1 [T1] -0.42 dB 100.400802 ms D1 74 dB  V D2 54 dB  V Date: 28.APR.2014 09:47:09 Number of Pulses – Worst case 100 ms The number of pulses in the worst case 100 ms is 3. Duty Cycle = (3*2.404810) ms / 100 ms = 7.21443% The 20 dB peak to average radio can be used
