XV9-SES35121Transmitter for RFID Electronic Store Labeling

Electronic Shelf Tagging Installation Manual Radio S ystem Installation RADIO INSTALLATION MANUAL Revision 2.0 dated 21 Jan. 2004 1 FOREWORD This manual is reserved for installation specialists who should use it for reference purposes. Installing an electronic tagging system requires complying with the recommendations set out by the technical department at SES-ESL. Any system that is installed without complying with the procedures, recommendations and tips provided in this document will be considered as being under the sole responsibility of the installer who cannot in any event seek to hold SES-ESL liable. SES-ESL reserves the right to make changes at any time and without prior notice to the products and the information described in this document. The latter cannot be considered as a contractually binding document. As the exclusive property of SES-ESL, this document and its content must not be made public, loaned out or copied without the prior written agreement of SES-ESL. This documentation cannot be used in any way, directly or indirectly, against SES-ESL. RADIO INSTALLATION MANUAL Revision 2.0 dated 21 Jan. 2004 2 CALIBRATION 1 - TRANSMITTER a) FRONT PANEL PRESENTATION: The transmitter front panel comprises: 1) A three-position switch in the "Control" section: "I", " φ" and "U" positions. 2) Two green LEDs marked "φ C" and "φ L" indicating the phase, in the "Phase" section. 3) Eleven yellow LEDs displaying the tuning level in the "Tuning" section. 4) Three green LEDs indicating: "Transmission", "OK", "+5v" in the "Status" section. 5) Two green LEDs indicating the group: "Group 1", "Group 2". 6) Four red LEDs indicating "High" and "Low" fault conditions in the "Loop current" section. 7) An "Acknowledgment" push button in the "Loop current" section. b) BACK PANEL PRESENTATION RS 232 Connector and switch Fans RADIO INSTALLATION MANUAL Revision 2.0 dated 21 Jan. 2004 3 CALIBRATION 2 - GENERAL Before going into the details of this operation, its role must be understood. Most electronic devices whose role is to amplify a signal, in most cases work with a fixed load or at least one that is relatively constant. A hi-fi amplifier produces its signal using an 8-Ohm load represented by the speaker. This load is an identical one regardless of the make and power level of the speakers. On the other hand, a CB transmitter works with antennas which may be different, and an adjustment will be required for the complete system to work correctly. In our transmission system, the same applies and this action is called calibration. Its importance is significant as our transmitters operate in stores with different sale areas and therefore unequal antennas settings. Furthermore, all of the metal masses are located close to our antennas which are very long and spread throughout the entire store, have a very significant inductive and capacitive influence on the antenna values. It is therefore necessary to adjust the amplifier to adapt to these differences. If the transmitter is powered up and a data transmission order sent, no output current will be obtained. This is the proof of the importance of this operation . Transmission quality is dependent on this step! Calibration is performed by adding capacitance into the tuning circuit. This operation is performed using a calibration unit, the purpose of which is to select and validate the capacitance values that correspond to correct operation. Transmitter and its calibration unit RADIO INSTALLATION MANUAL Revision 2.0 dated 21 Jan. 2004 4 CALIBRATION 3 - PRELIMINARIES Connect the calibration unit to the transmitter (foolproof connector). Advantage is taken of this operation to check whether the configuration switches are correctly set. GR1 and GR2 at minimum (position 13h) OFF OFF INT B1 COM RADIO INSTALLATION MANUAL Revision 2.0 dated 21 Jan. 2004 5 CALIBRATION 3 - PRELIMINARIES First of all, ensure that the additional capacitor switches are indeed in the up position. Warning: Some of the parts that are accessible within the transmitter are powered by potentially dangerous voltage level supplies. We recommend always taking the utmost care to avoid unfortunate accidents. Switch controlling the additional 47nF capacitor Switch controlling the additional 100nF capacitor Switch controlling the additional 220nF capacitor Switch controlling the additional 470nF capacitor RADIO INSTALLATION MANUAL Revision 2.0 dated 21 Jan. 2004 6 CALIBRATION 4 - CALIBRATION UNIT The eleven capacitor selection switches Current level adjustment potentiometer Function inverters On/Off switch Rotary mode switch Reset pushbuttons LEDs: + 5 Volts presence, Transmission, Unit On Manual current command Circuit breaker, no current Unit On 470 220 100 68 47 22 10 6,8 4,7 2,2 1 + 5 Volts 38.4 36.6 40.2 Fast modulation Slow modul Normal Min. Breaker I unit I ext Man cur. switch No current Trans. Fault reset Buffer reset On Off Ant 1 – Ant 2 RADIO INSTALLATION MANUAL Revision 2.0 dated 21 Jan. 2004 7 CALIBRATION 5 - PROCEDURE After becoming familiar with the calibration unit, now is the time to start work! a ) Powering up Use the measurement sheet (provided at the end of this chapter). Call up the start configuration. To do this, set: 1) The On/Off switch to Off, 2) The Antenna 1/Antenna 2 switch to Antenna 1, 3) The I unit/I ext switch to I unit, 4) The current level potentiometer to I minimum, 5) The Modes rotary switch to 38.4 kHz , 6) All of the capacitor switches to On (out), 7) The transmitter to power on (back panel), 8) The "Buffer reset" switch to reset. b ) Determining the additional capacitor values required From the transmitter front panel, in the Control section, set the switch to φ. Set the On/Off switch on the calibration unit to On . Now the transmission system is running. The calibration procedure will be run using the calibration unit based on the observations taken from the Vu-meter in the " Control " section and on whether or not the " Phase " section LEDs come on. Slowly incr…

Text truncated - open the document above for the full version.

PROPOSED FCC ID /IC LABEL AND LOCATION Note: DO NOT show EUT photo for label location if client has short term confidentiality requirement on EUT photos. Use a blank box instead of the bottom photo of EUT. . Store Electronic Systems FCC ID: XV9-SES35121 IC: 8714A-SES35121 ID LABEL Model Number : X3 - 35121 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FCC CFR47 PART 15 SUBPART C INDUSTRY CANADA RSS-210 ISSUE 7 CERTIFICATION TEST REPORT FOR Transmitter for RFID Electronic Store Labeling MODEL NUMBER: X3-35121 REPORT NUMBER: 09U12822-1, Revision A FCC ID: XV9-SES35121 IC: 8714A-SES35121 ISSUE DATE: DECEMBER 17, 2009 Prepared for STORE ELECTRONIC SYSTEMS (SES) 39, rue de Montigny 95100 ARGENTEUIL FRANCE Prepared by COMPLIANCE CERTIFICATION SERVICES 47173 BENICIA STREET FREMONT, CA 94538, U.S.A. TEL: (510) 771-1000 FAX: (510) 661-0888 REPORT NO: 09U12822-1A DATE: DECEMBER 17, 2009 FCC ID: XV9-SES35121 IC: 8714A-SES35121 Page 2 of 38 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4701C 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. Revision History Rev. Issue Date Revisions Revised By -- 12/10/09 Initial Issue M. Heckrotte A 12/17/09 Corrected Typo, clarified distance factor below 30 MHz M. Heckrotte REPORT NO: 09U12822-1A DATE: DECEMBER 17, 2009 FCC ID: XV9-SES35121 IC: 8714A-SES35121 Page 3 of 38 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4701C 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS.................................................................................... 5 2. TEST METHODOLOGY ........................................................................................................ 6 3. FACILITIES AND ACCREDITATION.................................................................................... 6 4. CALIBRATION AND UNCERTAINTY .................................................................................. 6 4.1. MEASURING INSTRUMENT CALIBRATION ............................................................... 6 4.2. SAMPLE CALCULATION.............................................................................................. 6 4.3. MEASUREMENT UNCERTAINTY................................................................................ 6 5. EQUIPMENT UNDER TEST ................................................................................................. 7 5.1. DESCRIPTION OF EUT................................................................................................ 7 5.2. DESCRIPTION OF AVAILABLE ANTENNAS............................................................... 7 5.3. OUTPUT CURRENT ..................................................................................................... 7 5.4. SOFTWARE AND FIRMWARE..................................................................................... 7 5.5. WORST-CASE CONFIGURATION AND MODE .......................................................... 7 6. DESCRIPTION OF TEST SETUP ......................................................................................... 8 6.1. CABLING....................................................................................................................... 8 6.2. TEST MODE ................................................................................................................. 8 6.3. TEST SETUP ................................................................................................................ 9 6.3.1. TEST DIAGRAM ................................................................................................... 9 7. IN-SITU TEST LOCATIONS ............................................................................................... 10 7.1. SITE 1: 47280 KATO................................................................................................... 10 7.1.1. SITE 1 DIAGRAM................................................................................................ 10 7.1.2. SITE 1 PHOTO.................................................................................................... 11 7.1.3. SITE 1 WORST-CASE RADIATED EMISSION BELOW 30 MHz ....................... 12 7.2. SITE 2: 47280 KATO................................................................................................... 13 7.2.1. SITE 2 DIAGRAM................................................................................................ 13 7.2.2. SITE 2 PHOTO.................................................................................................... 14 7.2.3. SITE 2 WORST-CASE RADIATED EMISSION BELOW 30 MHz ....................... 15 7.3. SITE 3: 47173 BENICIA STREET............................................................................... 16 7.3.1. SITE 3 DIAGRAM................................................................................................ 16 7.3.2. SITE 3 PHOTO.................................................................................................... 17 7.3.3. SITE 3 WORST-CASE RADIATED EMISSION BELOW 30 MHz ....................... 18 8. TEST AND MEASUREMENT EQUIPMENT ....................................................................... 19 9. APPLICABLE LIMITS AND TEST RESULTS .................................................................... 20 9.1. 99% OCCUPIED BANDWIDTH .................................................................................. 20 9.2. RADIATED EMISSIONS ............................................................................................. 21 REPORT NO: 09U12822-1A DATE: DECEMBER 17, 2009 FCC ID: XV9-SES35121 IC: 8714A-SES35121 Page 4 of 38 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4701C 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. 9.2.1. PROCEDURE AND LIMITS ................................................................................ 21 9.2.2. IN-SITU RADIATED EMISSIONS BELOW 30 MHz WITH ANTENNA................ 22 9.2.3. LABORATORY RADIATED EMISSIONS ABOVE 30 MHz WITH DUMMY LOAD 23 9.2.4. IN…

Text truncated - open the document above for the full version.

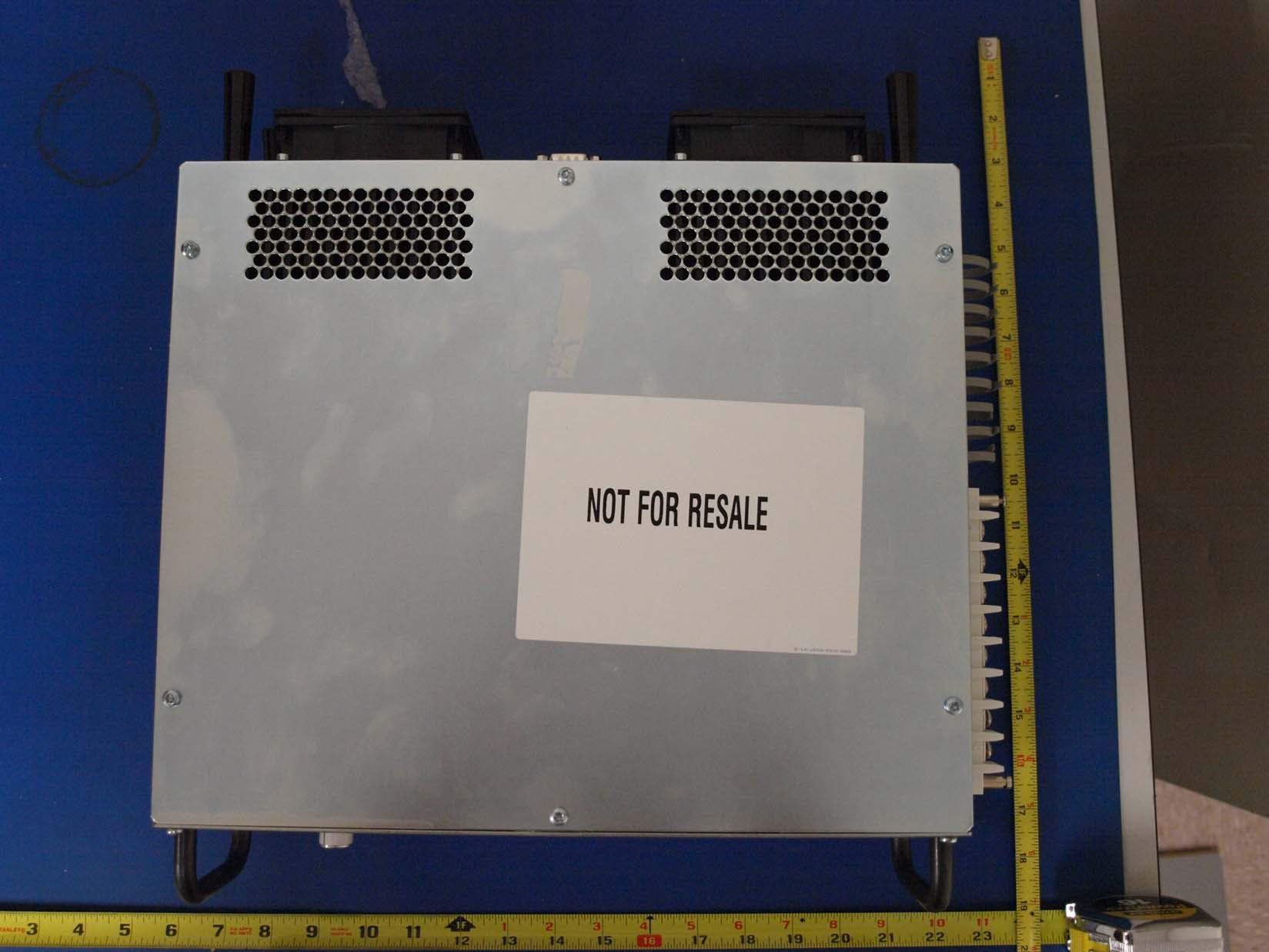

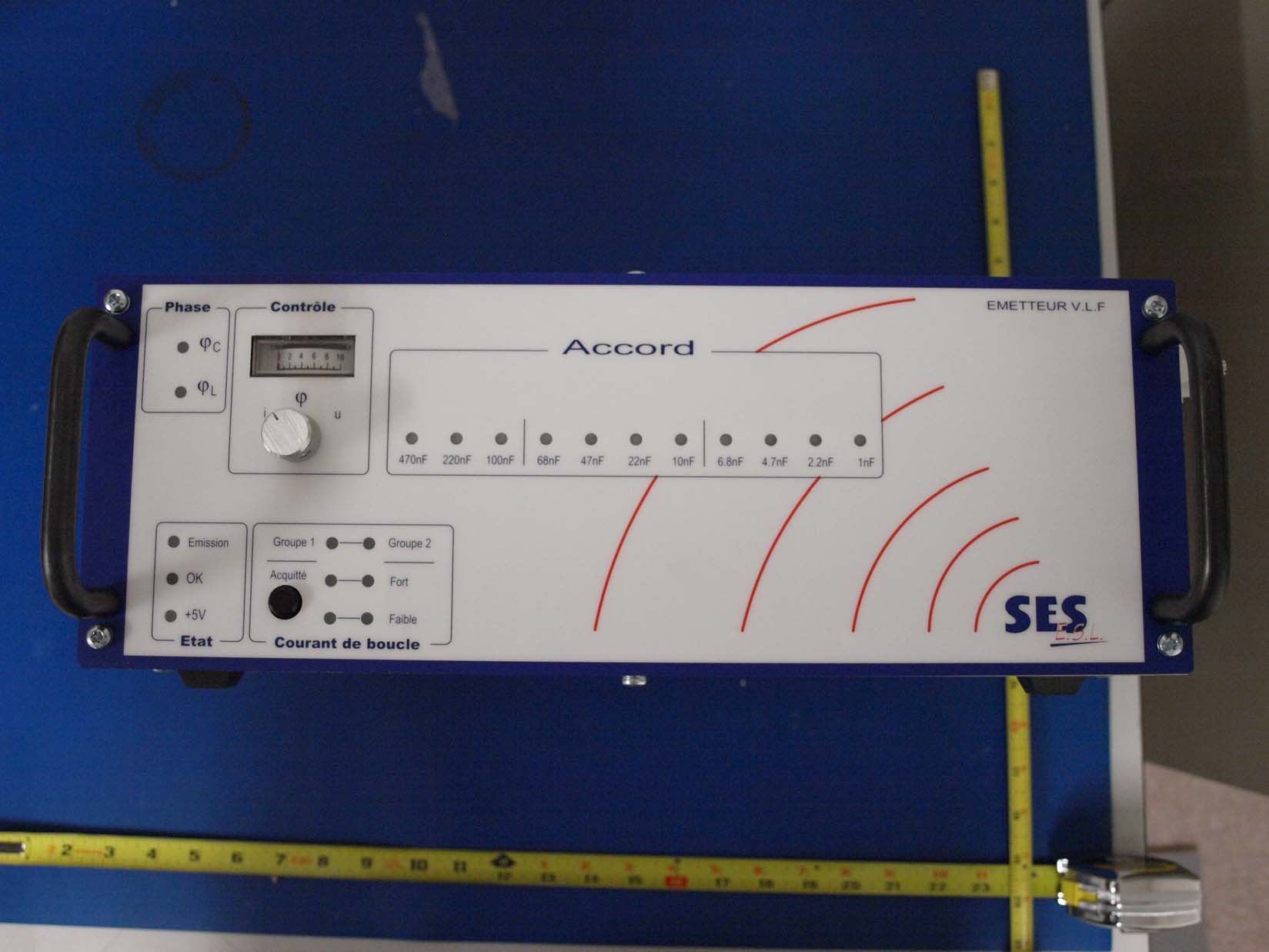

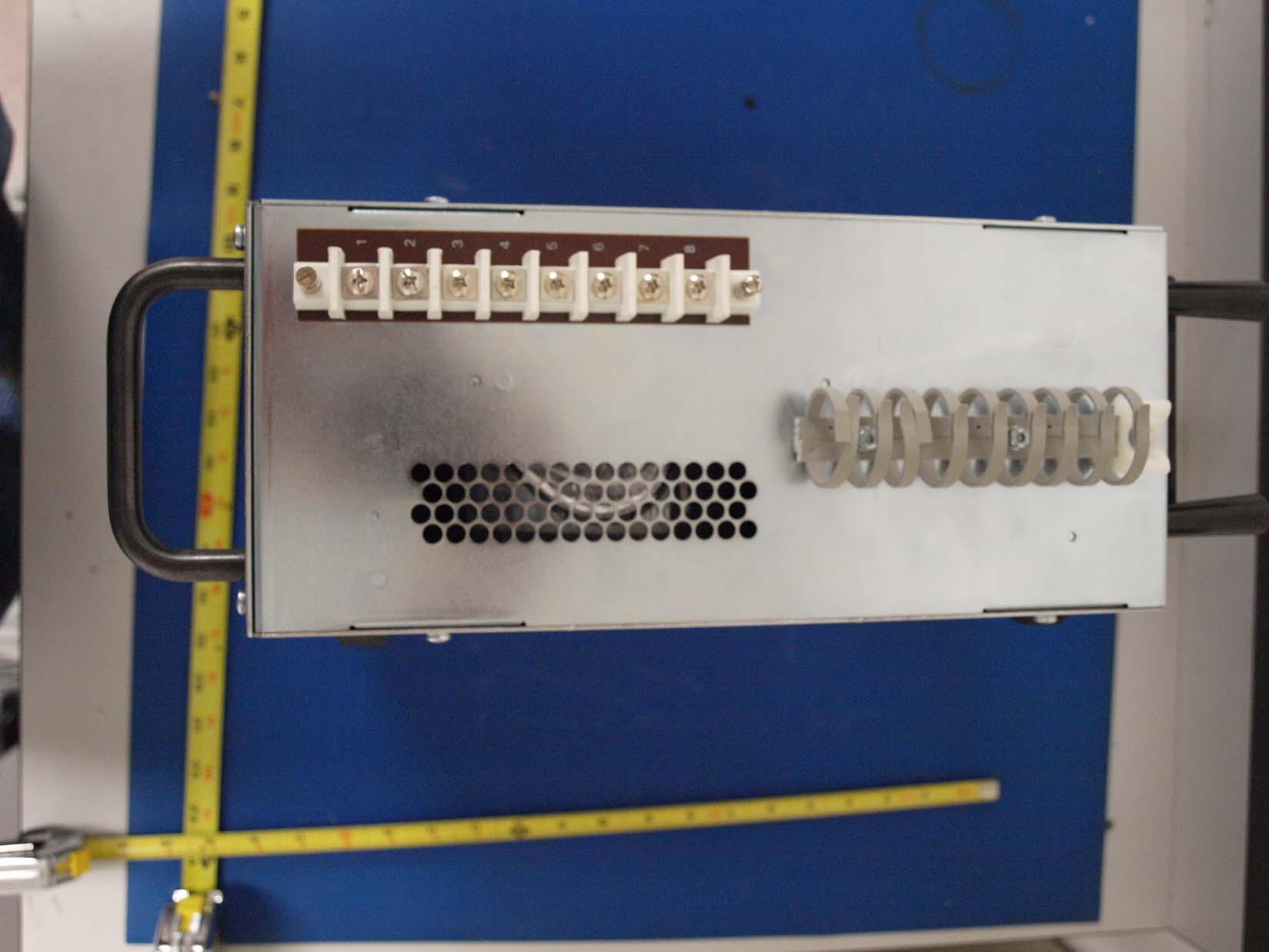

REPORT NO: 09U12822-1A DATE: DECEMBER 17, 2009 FCC ID: XV9-SES35121 IC: 8714A-SES35121 Page 31 of 38 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4701C 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. 11. SETUP PHOTOS 11.1. LABORATORY RADIATED EMISSIONS SETUP RADIATED EMISSIONS (FRONT) REPORT NO: 09U12822-1A DATE: DECEMBER 17, 2009 FCC ID: XV9-SES35121 IC: 8714A-SES35121 Page 32 of 38 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4701C 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. RADIATED EMISSIONS (BACK) REPORT NO: 09U12822-1A DATE: DECEMBER 17, 2009 FCC ID: XV9-SES35121 IC: 8714A-SES35121 Page 33 of 38 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4701C 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. 11.2. LABORATORY AC MAINS LINE CONDUCTED SETUP LINE CONDUCTED EMISSION (FRONT) REPORT NO: 09U12822-1A DATE: DECEMBER 17, 2009 FCC ID: XV9-SES35121 IC: 8714A-SES35121 Page 34 of 38 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4701C 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. LINE CONDUCTED EMISSION (BACK) REPORT NO: 09U12822-1A DATE: DECEMBER 17, 2009 FCC ID: XV9-SES35121 IC: 8714A-SES35121 Page 35 of 38 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4701C 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. 11.3. IN-SITU EUT SETUP REPORT NO: 09U12822-1A DATE: DECEMBER 17, 2009 FCC ID: XV9-SES35121 IC: 8714A-SES35121 Page 36 of 38 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4701C 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. 11.4. IN-SITU, SITE 1 TX LOOP ANTENNA SETUP REPORT NO: 09U12822-1A DATE: DECEMBER 17, 2009 FCC ID: XV9-SES35121 IC: 8714A-SES35121 Page 37 of 38 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4701C 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. 11.5. IN SITU, SITE 2 TX LOOP ANTENNA SETUP REPORT NO: 09U12822-1A DATE: DECEMBER 17, 2009 FCC ID: XV9-SES35121 IC: 8714A-SES35121 Page 38 of 38 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4701C 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. 11.6. IN SITU, SITE 3 TX LOOP ANTENNA SETUP END OF REPORT
