XV9-SES37120VLF RADIO TRANSMITTER

Installer Manual Radio installation 37120 Electronic Shelf Labels RADIO INSTALLATION MANUAL– 37120 Preliminary revision 03/05/2010 “This document and its contents are the exclusive property of SES. All reproduction, use or disclosure is strictly prohibited without the written authorization of SES.” 1 COMPLIANCE INFORMATION Product Description: this product, model 37120, is a transmitter operating in the 36kHz to 40kHz band to provide commercial data (e.g. pricing, serial number etc...) to RFID tags on store shelves. Changes or modification not expressly approved by Store Electronic Systems SA can void the user's authority to operate the equipment. This device complies with part 15 of the FCC rules. Operations is subject to the following two conditions : (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation Note: this equipment has been tested and found to comply with the limits for a class A digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. The 37120 system is installed by trained professionals. Antenna is subject to professional installation. RADIO INSTALLATION MANUAL– 37120 Preliminary revision 03/05/2010 “This document and its contents are the exclusive property of SES. All reproduction, use or disclosure is strictly prohibited without the written authorization of SES.” 2 TABLE OF CONTENTS CONNECTION TO THE TRANSMITTER .................................................... p 2 2  Required tools ........................................................................................... p 2 3  Preliminary checks ................................................................................... p 3 4  Identification ............................................................................................. p 4 5  Marking ..................................................................................................... p 5 6  Crimping ................................................................................................... p 6 CALIBRATION ................................................................................................. p 7 1  Transmitter ............................................................................................... p 7 2  General ...................................................................................................... p 8 3  Foreword ................................................................................................... p 9 4  Calibration unit ...................................................................................... p 11 5  Procedure ................................................................................................ p 12 a) Poweron .............................................................................................. p 12 b) Determination of additional capacitors ............................................ p 12 c) Definitive tuning adjustment..................................................................... d) Current adjustment ............................................................................ p 15 e) Final checks ......................................................................................... p 17 6  Measurement sheet ................................................................................. p 18 RECORD OF CHANGES ............................................................................... p 19 RADIO INSTALLATION MANUAL– 37120 Preliminary revision 03/05/2010 “This document and its contents are the exclusive property of SES. All reproduction, use or disclosure is strictly prohibited without the written authorization of SES.” 3 CONNECTION TO THE TRANSMITTER 2  REQUIRED TOOLS Make sure the correct tools are available before starting the installation process. List of required tools: - 1 Torx T20 screwdriver - 1 3 mm flat screwdriver (for slotted screw) - 1 Phillips-head screwdriver - 1 4mm wire stripper - 1 ratchet crimping tool - 10 yellow, crimp-type pin terminals - 1 good quality ohmmeter - 1 oscilloscope - 1 current probe - 1 calibration unit - a dozen or so cable ties These tools are essential! Example of multimeter and oscilloscope RADIO INSTALLATION MANUAL– 37120 Preliminary revision 03/05/2010 “This document and its contents are the exclusive property of SES. All reproduction, use or disclosure is strictly prohibited without the written authorization of SES.” 4 CONNECTION TO THE TRANSMITTER 3  PRELIMINARY CHECKS The checks to perform on the transmitter are very simple and quick, and this is why they are mandatory. Using the Torx screwdriver, unscrew and remove the 4 screws securing the upper cover. The first check consists of examining all of the transmitter's accessible connectors. Simply press them in to ensure that they are correctly connected. The second check consists of ensuring that the internal connection on the terminal strip is performed correctly. Using the ohmmeter, check the connections between the outputs. 1 & 3 2 & 4 5 & 7 and 6 & 8. = continuity Each output on the antenna connector is to be tested individually to ensure that there is no continuity with the unit's ground. Using the Phillips-head screwdriver, loosen all the terminal screws two complete turns. The transmitter can now be connected. Now the antenna cables must be prepared. RADIO INSTALLATION MANUAL– 37120 Preliminary revi…

Text truncated - open the document above for the full version.

PROPOSED FCC ID /IC LABEL AND LOCATION This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Store Electronic Systems FCC ID: XV9-SES37120 IC: 8714A-SES37120 ID LABEL LOCATION For FCC Part 15 only. NOTE: This is the Backside of thedevice DEVICE

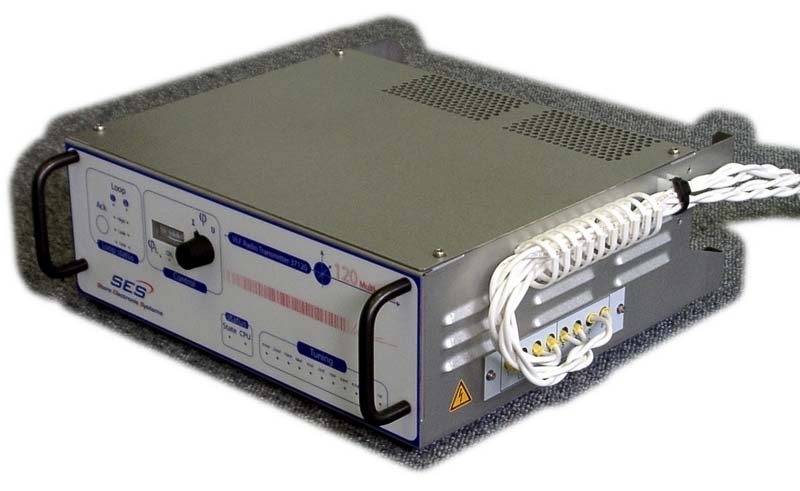

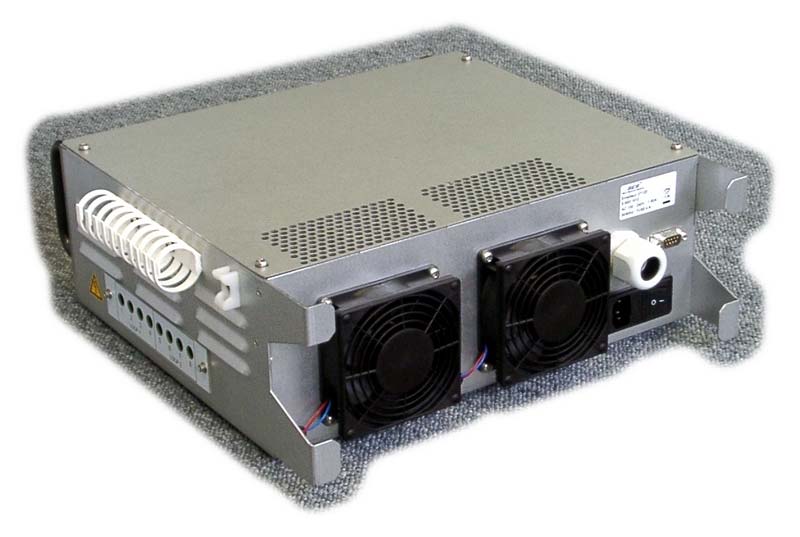

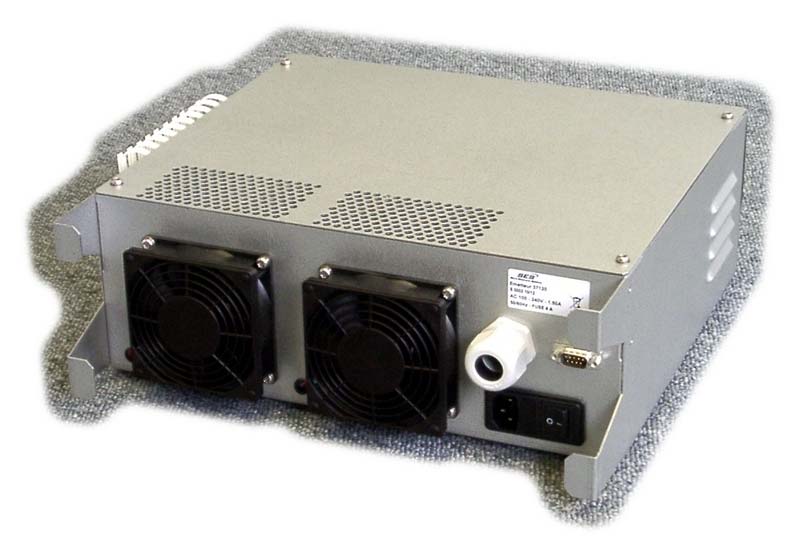

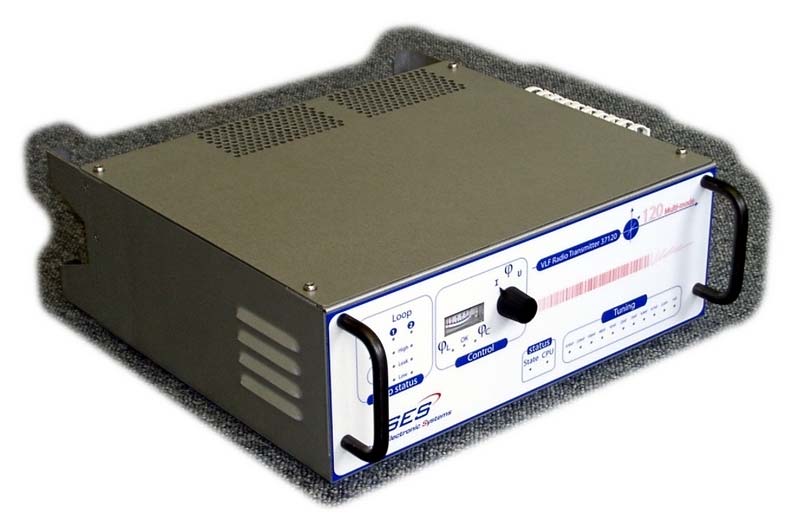

INTERNAL EUT PHOTOS

1 of 44 FCC CFR47 PART 15 SUBPART C INDUSTRY CANADA RSS-210 ISSUE 7 CERTIFICATION TEST REPORT FOR VLF RADIO TRANSMITTER FCC ID: XV9-SES37120 IC ID: 8714A-SES37120 MODEL NUMBER: 37120 and 37000* REPORT NUMBER: 10U13278-3, Revision D ISSUE DATE: JANUARY 6, 2011 Prepared for STORE ELECTRONIC SYSTEMS (SES) 39 RUE DE MONTIGNY ARGENTEUIL ARGENTEUIL 95100, FRANCE Prepared by COMPLIANCE CERTIFICATION SERVICES (UL CCS) 47173 BENICIA STREET FREMONT, CA 94538, U.S.A. TEL: (510) 771-1000 FAX: (510) 661-0888 *Model Difference shown in report REPORT NO: 10U13278-3D DATE: JANUARY 6, 2011 FCC ID: XV9-SES37120 IC ID: 8714A-SES37120 Page 2 of 44 COMPLIANCE CERTIFICATION SERVICES (UL CCS) FORM NO: CCSUP4701D 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL CCS. Revision History Rev. Issue Date Revisions Revised By -- 10/14/10 Initial Issue F. Ibrahim A 12/22/10 Added model difference to report and FCC/IC ID A. Zaffar B 12/28/10 Revised the formulas in radiated emissions data sheets for below 30 MHz. F. Ibrahim C 1/06/11 Show 10m to 300m extrapolation calculation p.21/44 T. Cokenias D 1/06/11 Edit extrapolation calculations p21 and p22 T. Cokenias REPORT NO: 10U13278-3D DATE: JANUARY 6, 2011 FCC ID: XV9-SES37120 IC ID: 8714A-SES37120 Page 3 of 44 COMPLIANCE CERTIFICATION SERVICES (UL CCS) FORM NO: CCSUP4701D 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL CCS. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS ....................................................................................... 4 1. TEST METHODOLOGY ........................................................................................................ 5 2. FACILITIES AND ACCREDITATION .................................................................................... 5 3. CALIBRATION AND UNCERTAINTY................................................................................... 5 3.1. MEASURING INSTRUMENT CALIBRATION ................................................................. 5 3.2. SAMPLE CALCULATION................................................................................................ 5 3.3. MEASUREMENT UNCERTAINTY .................................................................................. 5 4. EQUIPMENT UNDER TEST.................................................................................................. 6 4.1. DESCRIPTION OF EUT.................................................................................................. 6 4.2. MODEL DIFFERENCES ................................................................................................. 6 4.3. DESCRIPTION OF AVAILABLE ANTENNAS ................................................................. 6 4.4. SOFTWARE AND FIRMWARE ....................................................................................... 6 4.5. WORST-CASE CONFIGURATION AND MODE............................................................. 6 5. DESCRIPTION OF TEST SETUP ......................................................................................... 8 5.1. SUPPORT EQUIPMENT AND CABLING ....................................................................... 8 5.2. TEST MODE.................................................................................................................... 8 5.3. TEST SETUP .................................................................................................................. 9 5.3.1. TEST DIAGRAM ....................................................................................................... 9 5.3.2. KATO STREET SOUTH TX LOOP ANTENNA....................................................... 10 5.3.3. KATO STREET NORTH TX LOOP ANTENNA ...................................................... 11 5.3.4. 47173 Benicia Street Loop ANTENNA ................................................................... 12 5.4. TEST LOCATIONS........................................................................................................ 13 5.4.1. SOUTH KATO LOOP DIAGRAM............................................................................ 13 5.4.2. NORTH KATO LOOP DIAGRAM............................................................................ 14 5.4.3. 47173 BENICIA STREET LOOP DIAGRAM.......................................................... 16 6. TEST AND MEASUREMENT EQUIPMENT........................................................................ 17 7. APPLICABLE LIMITS AND TEST RESULTS..................................................................... 19 7.1. 99% OCCUPIED BANDWIDTH..................................................................................... 19 7.2. RADIATED EMISSIONS ............................................................................................... 20 7.3 AC MAINS LINE CONDUCTED EMISSIONS ................................................................ 29 8. SETUP PHOTOS ................................................................................................................. 35 REPORT NO: 10U13278-3D DATE: JANUARY 6, 2011 FCC ID: XV9-SES37120 IC ID: 8714A-SES37120 Page 4 of 44 COMPLIANCE CERTIFICATION SERVICES (UL CCS) FORM NO: CCSUP4701D 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL CCS. 1. ATTESTATION OF TEST RESULTS COMPANY NAME: STORE ELECTRONIC SYSTEMS (SES) 39 RUE DE MONTIGNY ARGENTEUIL ARGENTEUIL 95100, FRANCE EUT DESCRIPTION: VLF RADIO TRANSMITTER AND BUFFER MODULATOR MODEL: 37120 and 37000 SERIAL NUMBER: Transmitter 0012 10/25, Buffer S0009 10/22 DATE TESTED: September 21-28, 2010 APPLICABLE STANDARDS STANDARD TEST RESULTS FCC PART 15 SUBPART C Pass INDUSTRY CANADA RSS-210 Issue 7 Pass INDUSTRY CANADA R…
