XV9-SES37020VLF RADIO TRANSMITTER

Installer Manual Radio installation 37020 - Multi-mode - Electronic Shelf Labels RADIO INSTALLATION MANUAL - 37020 Revised version 1.36 dated May 2, 2012


“This
document
and
its
contents
are
the
exclusive
property
of
SES.
All
reproduction,
use
or
disclosure
is
strictly
prohibited
without
the
written
authorization
of
SES.”
2 TABLEOFCONTENTS  CONNECTIONTOTHETRANSMITTER.............................................. p 3 1Listoftoolsrequired.............................................................. p 3 2Preliminarychecks................................................................ p 4 3Identification&Marking........................................................ p 5 4Crimping................................................................................. p 6 CALIBRATION................................................................................. p 7 1Transmitter........................................................................... p 7 2Generalinformation.............................................................. p 8 3Foreword............................................................................... p 9 4Calibrationunit.................................................................... p 11 5Procedure............................................................................ p 12 1)Powering.......................................................................... p 12 2)Coarsetuning................................................................... p 12 3)Finetuning....................................................................... p 13 4)Currentadjustment.......................................................... p 15 1.Antennacurrentmeasurementforthetwogroups........ p 16 2.W ithJEEGYmanagementsystem.................................. p 17  3.W ithSCOmanagementsystem...................................... p 18 6Measurementsheet............................................................. p 19 “DEMO”MODE.............................................................................. p 20 STARTUPUSERGUIDE(GB).......................................................... p 21 NOTICEDEDEMARRAGE(F)......................................................... p 22 STARTANLEITUNG(D).................................................................. p 23 ISTRUZIONIDIAVVIAMENTO(I)................................................. p 24 INSTRUCCIONESDEARRANQUE(E)............................................. p 25 TROUBLESHOOTING..................................................................... p 26 INFORMATIONTOUSER.............................................................. p 27 REVISIONLEVEL........................................................................... p 28 RADIO INSTALLATION MANUAL - 37020 Revised version 1.36 dated May 2, 2012


“This
document
and
its
contents
are
the
exclusive
property
of
SES.
All
reproduction,
use
or
disclosure
is
strictly
prohibited
without
the
written
authorization
of
SES.”
3 CONNECTIONTOTHETRANSMITTER 1LISTOFTOOLSREQUIRED Make sure the correct tools are available before starting the installation. List of required tools: - 1 Torx T20 bit screwdriver - 1 3mm flat screwdriver (for slotted screw) - 1 cross-head screwdriver - 1 4mm wire strippers tool - 1 ratchet crimping tool - 5 yellow insulated crim-type pin terminals (10AWG) - 1 good quality ohmmeter or multi-meter - 1 oscilloscope - 1 current probe (TEKTRONIX P6021) - 1 calibration unit - a dozen cable ties  Thesetoolsareessential! Example: Multi-meter, Scope and Current probe RADIO INSTALLATION MANUAL - 37020 Revised version 1.36 dated May 2, 2012


“This
document
and
its
contents
are
the
exclusive
property
of
SES.
All
reproduction,
use
or
disclosure
is
strictly
prohibited
without
the
written
authorization
of
SES.”
4 CONNECTIONTOTHETRANSMITTER  2PRELIMINARYCHECKS  Thecheckstoperformonthetransmitterareverysimpleandquick,andthisis whytheyaremandatory. Using the Torx screwdriver, unscrew and remove the 4 screws closing the upper cover. The maincheckwill consist of examining if some foreigner component are inside of the internal part of the transmitter and more if nothing is moving inside. Each antenna connector output will be individually tested to check that there is no continuity with the earth of the equipment. Using the cross-head screwdriver, unscrew all the terminals of the terminal block with two complete turns. Connect the power cord in the power inlet; turn on the main power switch. At this stage you can observe that a lot of LEDs are blinking and at the end the blue CPU LED have to be lit. That mean the transmitter is ok. If the CPULED not lit, that means the transmitter needs to be sent to SES maintenance dept. The transmitter is ready for connection. It is now necessary to prepare the antenna cables. RADIO INSTALLATION MANUAL - 37020 Revised version 1.36 dated May 2, 2012


“This
document
and
its
contents
are
the
exclusive
property
of
SES.
All
reproduction,
use
or
disclosure
is
strictly
prohibited
without
the
written
authorization
of
SES.”
5 CONNECTIONTOTHETRANSMITTER  3IDENTIFICATION&MARKING The togglingprinciplerequires the use of two groups of antennae, G1 and G2. This principle is based on the fact that data will be sent successively ononegroup, thenonthesecondone. In fact, accepting that a metallic obstacle located on the path between the antenna wire and the labels can disturb the data transmission, it is easy to understand that using a second antenna network, offset from the first, the problem caused by this obstacle can be resolved. This hypothesis has been shown to be true and isusedtodayforoptimaloperation. By referring to the diagram below, connection of the antennae in switching mode appears most simple.  GROUP1      GROUP2 The antenna cables routed to the trans…

Text truncated - open the document above for the full version.

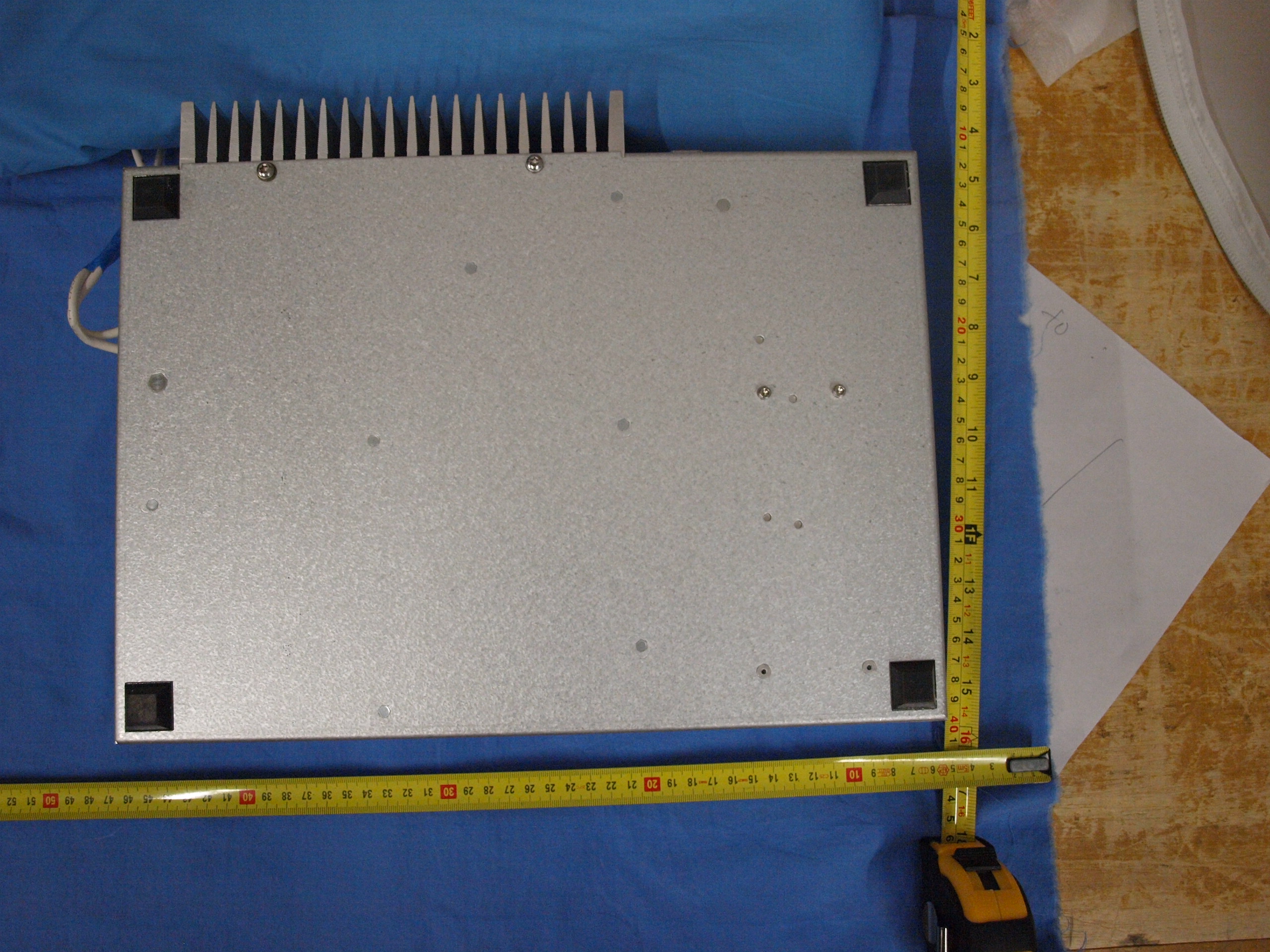

NOTE: The drawing below shows the BACKSIDE of the device (Transmitter 37020); and the label location. FCC ID and IC Number Label Location This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Store Electronic Systems FCC ID: XV9-SES37020 IC: 8714A-SES37020 NOTE: The Drawing below shows the LABEL CONTENT

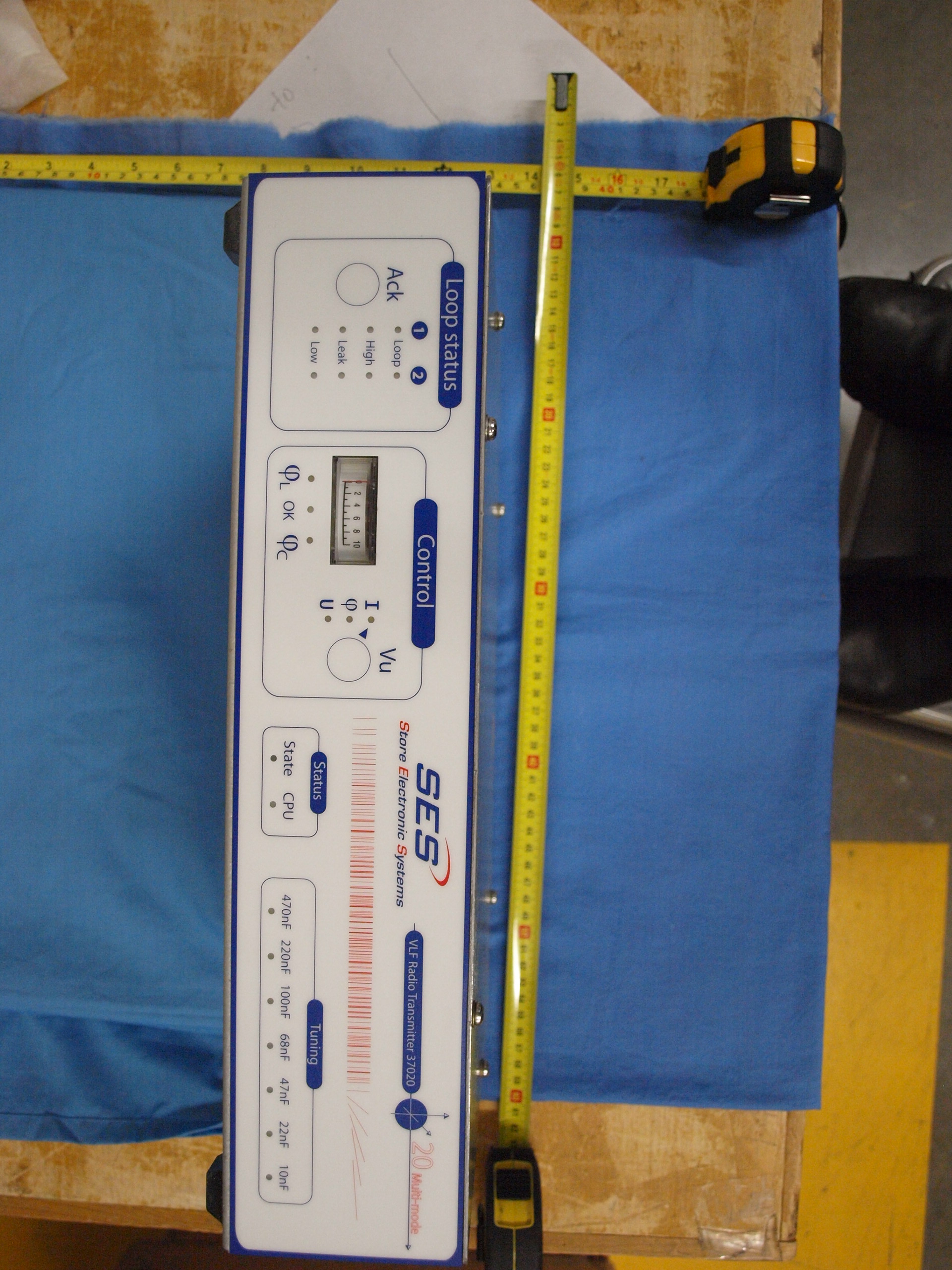

Transmitter 37020 Multi-mode SES Store Electronic Systems Transmitter 37020 Multi-mode SES Store Electronic Systems Transmitter 37020 Multi-mode SES Store Electronic Systems Transmitter 37020 Multi-mode

1 of 38 FCC CFR47 PART 15 SUBPART C INDUSTRY CANADA RSS-210 ISSUE 8 CERTIFICATION TEST REPORT FOR VLF RADIO TRANSMITTER FCC ID: XV9-SES37020 IC ID: 8714A-SES37020 MODEL NUMBER: 37020 REPORT NUMBER: 12U14323-3 ISSUE DATE: APRIL 02, 2012 Prepared for STORE ELECTRONIC SYSTEMS (SES) 39 RUE DE MONTIGNY ARGENTEUIL ARGENTEUIL 95100, FRANCE Prepared by COMPLIANCE CERTIFICATION SERVICES (UL CCS) 47173 BENICIA STREET FREMONT, CA 94538, U.S.A. TEL: (510) 771-1000 FAX: (510) 661-0888 REPORT NO: 12U14323-3 DATE: APRIL 02, 2012 FCC ID: XV9-SES37020 IC ID: 8714A-SES37020 2 of 38 Revision History Rev. Issue Date Revisions Revised By -- 04/02/12 Initial Issue Tom Cokenias REPORT NO: 12U14323-3 DATE: APRIL 02, 2012 FCC ID: XV9-SES37020 IC ID: 8714A-SES37020 3 of 38 TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS .................................................................................... 4 2. TEST METHODOLOGY ........................................................................................................ 5 3. FACILITIES AND ACCREDITATION .................................................................................... 5 4. CALIBRATION AND UNCERTAINTY ................................................................................... 5 4.1. MEASURING INSTRUMENT CALIBRATION ................................................................. 5 4.2. SAMPLE CALCULATION ................................................................................................ 5 4.3. MEASUREMENT UNCERTAINTY .................................................................................. 5 5. EQUIPMENT UNDER TEST .................................................................................................. 6 5.1. DESCRIPTION OF EUT .................................................................................................. 6 5.2. DESCRIPTION OF AVAILABLE ANTENNAS ................................................................. 6 5.3. SOFTWARE AND FIRMWARE ....................................................................................... 6 5.4. WORST-CASE CONFIGURATION AND MODE ............................................................. 6 6. DESCRIPTION OF TEST SETUP ......................................................................................... 7 6.1. SUPPORT EQUIPMENT AND CABLING ....................................................................... 7 6.2. TEST MODE.................................................................................................................... 7 6.3. TEST SETUP .................................................................................................................. 8 6.3.1. TEST DIAGRAM ....................................................................................................... 8 KATO STREET SOUTH TX LOOP ANTENNA ..................................................................... 9 6.3.2. KATO STREET NORTH TX LOOP ANTENNA ...................................................... 10 6.3.3. 47173 Benicia Street Loop ANTENNA ................................................................... 11 6.4. TEST LOCATIONS........................................................................................................ 12 6.4.1. SOUTH KATO LOOP DIAGRAM ............................................................................ 12 6.4.2. NORTH KATO LOOP DIAGRAM ............................................................................ 13 North .................................................................................................................................... 13 Windows, Kato Road ........................................................................................................... 13 6.4.3. 47173 BENICIA STREET LOOP DIAGRAM .......................................................... 15 7. TEST AND MEASUREMENT EQUIPMENT ........................................................................ 17 8. APPLICABLE LIMITS AND TEST RESULTS ..................................................................... 18 8.1 99% OCCUPIED BANDWIDTH ........................................................................................ 18 8.2 RADIATED EMISSIONS ................................................................................................ 19 4.2 AC MAINS LINE CONDUCTED EMISSIONS ................................................................ 26 9. SETUP PHOTOS .................................................................................................................. 30 REPORT NO: 12U14323-3 DATE: APRIL 02, 2012 FCC ID: XV9-SES37020 IC ID: 8714A-SES37020 4 of 38 1. ATTESTATION OF TEST RESULTS COMPANY NAME: STORE ELECTRONIC SYSTEMS (SES) 39 RUE DE MONTIGNY ARGENTEUIL ARGENTEUIL 95100, FRANCE EUT DESCRIPTION: VLF RADIO TRANSMITTER MODEL: 37020 SERIAL NUMBER: S37020000068 DATE TESTED: 19-20 March 2012 APPLICABLE STANDARDS STANDARD TEST RESULTS CFR 47 Part 15 Subpart E Pass INDUSTRY CANADA RSS-210 Issue 8 Annex 9 Pass INDUSTRY CANADA RSS-GEN Issue 3 Pass Compliance Certification Services (UL CCS) tested the above equipment in accordance with the requirements set forth in the above standards. All indications of Pass/Fail in this report are opinions expressed by UL CCS based on interpretations and/or observations of test results. Measurement Uncertainties were not taken into account and are published for informational purposes only. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. Note: The results documented in this report apply only to the tested sample, under the conditions and modes of operation as described herein. This document may not be altered or revised in any way unless done so by UL CCS and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by UL CCS will constitute fraud and shall nullify the document. This report must not be used by the client to claim…

Text truncated - open the document above for the full version.

REPORT NO: 12U14323-3 DATE: APRIL 02, 2012 FCC ID: XV9-SES37020 IC ID: 8714A-SES37020 30 of 38 9. SETUP PHOTOS RADIATED EMISSION BELOW 30 MHz 47280 Kato South Loc11 REPORT NO: 12U14323-3 DATE: APRIL 02, 2012 FCC ID: XV9-SES37020 IC ID: 8714A-SES37020 31 of 38 RADIATED EMISSION BELOW 30 MHz 47280 Kato North Loc5 REPORT NO: 12U14323-3 DATE: APRIL 02, 2012 FCC ID: XV9-SES37020 IC ID: 8714A-SES37020 32 of 38 RADIATED EMISSION BELOW 30MHz 47173 Benicia Loc3 REPORT NO: 12U14323-3 DATE: APRIL 02, 2012 FCC ID: XV9-SES37020 IC ID: 8714A-SES37020 33 of 38 IN SITU EUT SETUP 47280 Kato South 47280 Kato North REPORT NO: 12U14323-3 DATE: APRIL 02, 2012 FCC ID: XV9-SES37020 IC ID: 8714A-SES37020 34 of 38 IN SITU EUT SETUP 47173 Benicia REPORT NO: 12U14323-3 DATE: APRIL 02, 2012 FCC ID: XV9-SES37020 IC ID: 8714A-SES37020 35 of 38 RADIATED EMISSIONS, 30-1000 MHZ RADIATED ABOVE 30 MHZ FRONT REPORT NO: 12U14323-3 DATE: APRIL 02, 2012 FCC ID: XV9-SES37020 IC ID: 8714A-SES37020 36 of 38 RADIATED EMISSIONS 30-1000 MHZ RADIATED ABOVE 30 MHZ REAR REPORT NO: 12U14323-3 DATE: APRIL 02, 2012 FCC ID: XV9-SES37020 IC ID: 8714A-SES37020 37 of 38 AC MAINS LINE CONDUCTED EMISSION LINE CONDUCTED EMISSION (FRONT) REPORT NO: 12U14323-3 DATE: APRIL 02, 2012 FCC ID: XV9-SES37020 IC ID: 8714A-SES37020 38 of 38 END OF REPORT LINE CONDUCTED EMISSION (BACK)
