XVE-SA09225TRAXXAS LINK

Traxxas LP

Click to zoom

Application Details

Equipment Class: DTS - Digital Transmission System
Date of Grant: Dec 21, 2009
Application Purpose: Original Equipment
Date of Application: Dec 17, 2009
Equipment Note: TRAXXAS LINK
Frequency Range: 2407.00000000 - 2454.00000000
Company: Traxxas LP
Country: United States

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Cover Letter(s)

LMA Request Attention Director of Certification for FCC: Low Cost 2.4 GHz Transmitter Version: 1.0 LMA Request Date: 11/24/2009 12:45:49 PM Confidential © Traxxas 2009 Page 2 of 14 Revision History Date Version Description Author 10/20/2009 1.0 Original. Chris S. Russell Low Cost 2.4 GHz Transmitter Version: 1.0 LMA Request Date: 11/24/2009 12:45:49 PM Confidential © Traxxas 2009 Page 3 of 14 Table of Contents 1. RF SHIELDING.............................................................................ERROR! BOOKMARK NOT DEFINED. 2. BUFFERED DATA INPUTS........................................................................................................................6 3. POWER SUPPLY.........................................................................................................................................7 4. ANTENNA......................................................................................ERROR! BOOKMARK NOT DEFINED. 5. CERTIFICATION TESTING....................................................................................................................10 6. FCC ID........................................................................................................................................................11 7. INSTRUCTIONS........................................................................................................................................12 8. MODULAR APPROVAL...........................................................................................................................13 9. RF EXPOSURE WARNING......................................................................................................................14 Low Cost 2.4 GHz Transmitter Version: 1.0 LMA Request Date: 11/24/2009 12:45:49 PM Confidential © Traxxas 2009 Page 4 of 14 Traxxas hereby requests Limited Modular Approval for the product identified by FCC ID: XVE-SA09225, based on the following. Low Cost 2.4 GHz Transmitter Version: 1.0 LMA Request Date: 11/24/2009 12:45:49 PM Confidential © Traxxas 2009 Page 5 of 14 1. Limitation Criteria This module is to only be used in conjunction with Traxxas main processor boards. This module will not be sold as a stand alone product to third parties. Low Cost 2.4 GHz Transmitter Version: 1.0 LMA Request Date: 11/24/2009 12:45:49 PM Confidential © Traxxas 2009 Page 6 of 14 2. Buffered Data Inputs In compliance with FCC part 15, the Cypress CYRF6936/7936 provides buffering on the data inputs. . Low Cost 2.4 GHz Transmitter Version: 1.0 LMA Request Date: 11/24/2009 12:45:49 PM Confidential © Traxxas 2009 Page 7 of 14 3. Power Supply It is required that Traxxas LLP place the text below in the product user guide along with all other pertinent regulatory information. Note: This is a battery operated device. We are only using the module on our own motherboard, and there is sufficient filtering on the module for the supplied voltage supply. The requirements for FCC Limited Modular Approval were released in March 2009 in the FCC’s Public Notice: FCC Public Notice DA-08-672, Part 15 Unlicensed Modular Transmitter Approvals. Design Criteria for Modular Approval General Conditions: The following conditions must be strictly adhered to for modular approval: 1. No modification to the module including the circuitry is permitted. 2. Design criteria to include antenna, interconnects, and local oscillator. 3. Testing of the final device configuration for Digital Emissions Compliance The Spectrum 2.4Ghz, TX RF Daughter Board Module may not be altered or modified in any manner by the OEM or other entity. Additionally, no component may be added which could change the radio frequency (RF) characteristics. These include, but are not limited to unintentional or spurious emissions, immunity, ESD characteristics, or other items commonly associated with RF devices. This includes all components; passive and active. Additionally, no RF components may be placed between the RF output of the module and the antenna. Low Cost 2.4 GHz Transmitter Version: 1.0 LMA Request Date: 11/24/2009 12:45:49 PM Confidential © Traxxas 2009 Page 8 of 14 4. Stand-Alone Testing This module was tested by a third party FCC certification lab (Nemko), in a stand –alone configuration, to the extent that it is not dependant upon any RF filtering, data line filtering, or DC line conditioning. However, this module does rely on the power source of the main board it is plugged in to. Low Cost 2.4 GHz Transmitter Version: 1.0 LMA Request Date: 11/24/2009 12:45:49 PM Confidential © Traxxas 2009 Page 9 of 14 5. Antenna The antenna is connected via a micro SMA connector, and has been approved through third party certification. Low Cost 2.4 GHz Transmitter Version: 1.0 LMA Request Date: 11/24/2009 12:45:49 PM Confidential © Traxxas 2009 Page 10 of 14 6. Certification Testing The modular RF unit was tested in a stand-alone configuration by a third party certification company. Low Cost 2.4 GHz Transmitter Version: 1.0 LMA Request Date: 11/24/2009 12:45:49 PM Confidential © Traxxas 2009 Page 11 of 14 7. FCC ID The FCC ID label is located on the top of the module next to the 10 pin header . Low Cost 2.4 GHz Transmitter Version: 1.0 LMA Request Date: 11/24/2009 12:45:49 PM Confidential © Traxxas 2009 Page 12 of 14 8. Instructions The instructions for the installation of the RF module are published in the Users Manual. Low Cost 2.4 GHz Transmitter Version: 1.0 LMA Request Date: 11/24/2009 12:45:49 PM Confidential © Traxxas 2009 Page 13 of 14 9. Modular Approval Traxxas is responsible for testing the end product for all emissions. Low Cost 2.4 GHz Transmitter Version: 1.0 LMA Request Date: 11/24/2009 12:45:49 PM Confidential © Traxxas 2009 Page 14 of 14 10. RF Exposure Warning There is an RF exposure warning published in the Users Manual. This document is provided “as is” with no warranties whatsoever including any warranty of merchantability, non-infringement, fitness for any particular purpo…

Text truncated - open the document above for the full version.

Cover Letter(s)

DATE Dec. 3, 2009 Timco Engineering, lnc. 849 NW State Road 45 Newberry, FL 32669 888-472-2424 FCC ID: XVE.SAO9225 Product Name: Traxxas LinkrM Request for Gonfidential itv Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: o Schematics o Block diagram . Users Manual . Radio Module Operation Description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. The user manual should be held confidential because it is very technical and is not provided to the consumer because the consumer cannot service the device. Dated Srd Day of December this 20 09 *o h-*- Garv M. Dewitt Printed Title: Director Engineering EE Dept. On behalf of :Traxxas LP Telephone: 972-265-8000 Ext. 174

External Photos

Spectrum 2.4Ghz, TX RF Module Pictures Version 1.0 RF Module Pictures Version: 1.0 User Interface Specification Date: 11/24/2009 12:26:00 PM Confidential © Traxxas 2009 Page 2 of 5 Revision History Date Version Description Author 10/20/2009 1.0 Original. Chris S. Russell RF Module Pictures Version: 1.0 User Interface Specification Date: 11/24/2009 12:26:00 PM Confidential © Traxxas 2009 Page 3 of 5 Table of Contents 1. FEATURES.....................................................................................ERROR! BOOKMARK NOT DEFINED. 2. FUNCTIONAL DESCRIPTION....................................................ERROR! BOOKMARK NOT DEFINED. 3. APPLICATION..............................................................................ERROR! BOOKMARK NOT DEFINED. 4. FUNCTIONAL OVERVIEW.........................................................ERROR! BOOKMARK NOT DEFINED. 4.1 LINK LAYER MODES...........................................................................ERROR! BOOKMARK NOT DEFINED. 4.2 PACKET BUFFERS...............................................................................ERROR! BOOKMARK NOT DEFINED. 4.3 DATA RATES......................................................................................ERROR! BOOKMARK NOT DEFINED. 5. SPI COMMUNICATION...............................................................ERROR! BOOKMARK NOT DEFINED. 6. POWER MANAGEMENT.............................................................ERROR! BOOKMARK NOT DEFINED. 7. LOW NOISE AMPLIFIER (LNA) AND RECEIVED SIGNAL STRENGTH INDICATION (RSSI) ERROR! BOOKMARK NOT DEFINED. 8. RF POWER AMPLIFIER..............................................................ERROR! BOOKMARK NOT DEFINED. RF Module Pictures Version: 1.0 User Interface Specification Date: 11/24/2009 12:26:00 PM Confidential © Traxxas 2009 Page 4 of 5 1. Pictures Figure 1 2.4GHz RF Module Top RF Module Pictures Version: 1.0 User Interface Specification Date: 11/24/2009 12:26:00 PM Confidential © Traxxas 2009 Page 5 of 5 Figure 2 2.4GHz RF Module Bottom

ID Label/Location Info

FCC ID: XVE-SA09225 KA1392-R00 This device contains radio module FCC ID: XVE-SA09225 This device complies with FCC Part 15 rules, subject to the following conditions; 1) This device may not cause harmful interference and, 2) This device must accept all interference received, including interference that may cause undesired operation. KA1394-R00 RF Module Pictures Version: 1.0 User Interface Specification Date: 11/24/2009 12:26:00 PM Confidential © Traxxas 2009 Page 4 of 5 1. Pictures Figure 1 2.4GHz RF Module Top

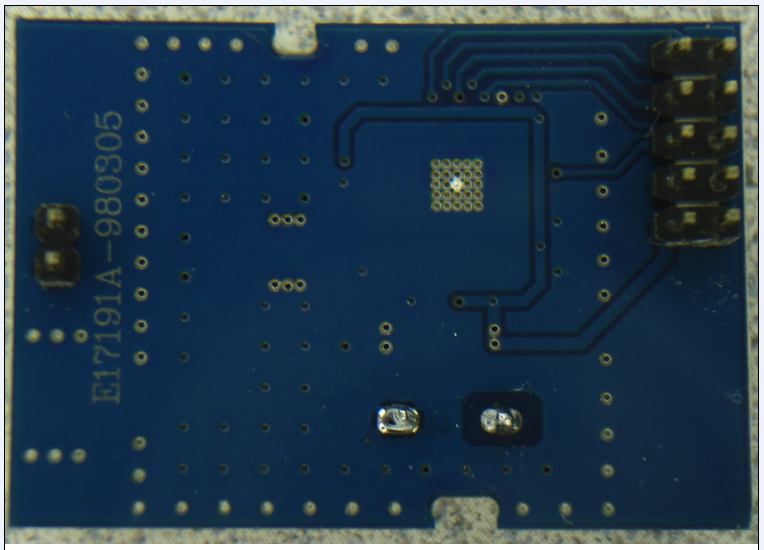

Internal Photos

Operational Description

2.4GHz Antenna

Operational Description

承認書 SPECIFICATION FOR APPROVAL 公司名稱：設新企業有限公司客戶名稱：智晟股份有限公司客戶料號： E44054 概述： 2.4GHz TX antenna 日期： 97 年 11 月 10 日簽核及意見欄全部承認 FULLY APPROVED 部份承認 PARTILLY APPROVED 修訂承認 REVISE APPROVED 承辦人員：劉杰璋 TEL：（02）8512-3409 FAX：（02）8512-3509 台北縣三重市光復路二段80號10F-7 確認後請回傳，謝謝。 Table of Contents Item 1. Antenna Specifications -Drawing -Electrical Properties -Mechanical Properties 2. Test Report -Electrical test 3. Material Certifications -Connector -Cable 4. Packing -PE Bag -Carton Modification History: REV.Content 01 Date 2008/7/31 設新企業股份有限公司 NEW PREMIER ENTERPRISE CO., LTD. TYPE TX Antenna Frequency Range 2.4 ~ 2.5 GHz Impedance 50 Ohm VSWR ≦ 2.0 Gain 0 dbi Connector Mini PCI Conn 設新企業股份有限公司 NEW PREMIER ENTERPRISE CO., LTD. CABLE SPECIFICATION 線材規格設新企業股份有限公司 NEW PREMIER ENTERPRISE CO., LTD. Electrical Test 設新企業股份有限公司 NEW PREMIER ENTERPRISE CO., LTD. Pattern Test 設新企業股份有限公司 NEW PREMIER ENTERPRISE CO., LTD. Pattern Test 設新企業股份有限公司 NEW PREMIER ENTERPRISE CO., LTD. Pattern Test 設新企業股份有限公司 NEW PREMIER ENTERPRISE CO., LTD.

RF Exposure Info

Source-based rf power output Plots were taken of the transmitted rf with the TX key held in the on position. The following duty cycle is source-based because it is set in the firmware that resides on the rf board. The width of one pulse is 733 microseconds There are 10 rf pulses in 100 msec. Duty Cycle correction = 10 log (T on /100 msec.) T on = 10 pulses x 733 usec. T on = 7330 usec. T on = 7.33 msec. 10 log (7.33/100) = -11.3 dB Peak power(measured) = +3.57 dBm Source-based average power = +3.57 dBm – 11.30 dB Source-based average power = -7.73 dBm Source-based average power = 0.169 mW Antenna gain is 2 dBi so the source-based average eirp is 0.267 mW The MPE prediction that follows shows that the predicted rf exposure level is well below the FCC requirements. Pr ediction o f MPE limit at a given distan ce Equation from page 18 of OET Bulletin 65, Edition 97-01 where:S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Maximum peak eirp:3.57(dBm) Maximum peak eirp:2.275097431(mW) Antenna gain(maximum):2(dBi) Maximum antenna gain:1.584893192(numeric) Time Averaging:7.33(%) Prediction distance:5(cm) Prediction frequency:2450(MHz) MPE limit for uncontrolled exposure at prediction frequency:1.000(mW/cm^2) Power density at prediction frequency:0.000841(mW/cm^2) Margin of compliance:-30.8(dB) This equates to:0.008413062W/m^2 2 4R PG S π =

Test Report

Nemko Test Report: 40143RUS1 Applicant: Traxxas 1100 Klein Road Plano, Texas 75074 USA Equipment Under Test: SA-09225 (E.U.T.) FCC Identifier: XVE-SA09225 In Accordance With: FCC Part 15, Subpart C, 15.247 and Industry Canada, RSS-210, Issue 7 Digital Transmission System Transmitter Tested By: Nemko USA, Inc. 802 N. Kealy Lewisville, Texas 75057-3136 TESTED BY: DATE: 29 November 2009 David Light, Senior Wireless Engineer APPROVED BY: DATE: 1 December 2009 Tom Tidwell, Verification Engineer Number of Pages: 36 Nemko USA, Inc. FCC PART 15, SUBPART C and RSS-210 Digital Transmission Systems EQUIPMENT: 40143RUS1 Test Report No.: SA-09225 Page 2 of 36 Table of Contents SECTION 1. SUMMARY OF TEST RESULTS 3 SECTION 2. EQUIPMENT UNDER TEST (E.U.T.) 5 SECTION 3. OCCUPIED BANDWIDTH 7 SECTION 4. MAXIMUM PEAK OUTPUT POWER 10 SECTION 5 SPURIOUS EMISSIONS (CONDUCTED) 13 SECTION 6. RADIATED EMISSIONS 16 SECTION 7. PEAK POWER SPECTRAL DENSITY 19 SECTION 8. RECEIVER SPURIOUS EMISSIONS 23 SECTION 9. TEST EQUIPMENT LIST 25 ANNEX A - TEST DETAILS 26 ANNEX B - TEST DIAGRAMS 34 Nemko USA, Inc. FCC PART 15, SUBPART C and RSS-210 Digital Transmission Systems EQUIPMENT: 40143RUS1 Test Report No.: SA-09225 Page 3 of 36 Section 1. Summary of Test Results Manufacturer: Traxxas Model No.: SA-09225 Serial No.: None General: All measurements are traceable to national standards. These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with Part 15, Subpart C, Paragraph 15.247 and Industry Canada RSS-210, Issue 7 for Digital Transmission Systems. Radiated tests were conducted is accordance with ANSI C63.4-2003. Radiated emissions are made on an open area test site. A description of the test facility is on file with the FCC and Industry Canada. New Submission Production Unit Class II Permissive Change Pre-Production Unit THIS TEST REPORT RELATES ONLY TO THE ITEM(S) TESTED. THE FOLLOWING DEVIATIONS FROM, ADDITIONS TO, OR EXCLUSIONS FROM THE TEST SPECIFICATIONS HAVE BEEN MADE. See “ Summary of Test Data”. Nemko USA Inc. authorizes the above named company to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko USA Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. This report applies only to the items tested. Nemko USA, Inc. FCC PART 15, SUBPART C and RSS-210 Digital Transmission Systems EQUIPMENT: 40143RUS1 Test Report No.: SA-09225 Page 4 of 36 Summary Of Test Data NAME OF TEST PARA. NO. RESULT Powerline Conducted Emissions 15.207(a) / RSS-Gen 7.2.2 NA Minimum 6 dB Bandwidth 15.247(a)(2) / RSS-210 A8.2(a) Complies Maximum Peak Power Output 15.247(b)(3) / Rss-210 A8.4(4) Complies Spurious Emissions (Antenna Conducted) 15.247(d) / RSS-210 A8.5 Complies Spurious Emissions (Radiated) 15.247(d)/15.209(a) / RSS-210 A8.5 Complies Peak Power Spectral Density 15.247(e) / RSS-210 A8.2(b) Complies Receiver Spurious Emissions RSS-Gen 7.2.3 Complies Footnotes: The device is powered by 4 AA batteries. Nemko USA, Inc. FCC PART 15, SUBPART C and RSS-210 Digital Transmission Systems EQUIPMENT: 40143RUS1 Test Report No.: SA-09225 Page 5 of 36 Section 2. Equipment Under Test (E.U.T.) General Equipment Information Frequency Band (MHz): 902-928 2400-2483.5 5725-5850 Operating Frequency of Test Sample: 2407 to 2454 MHz Measured Peak RF Output Power: 0.00228 watts Antenna Gain: 2 dBi User Frequency Adjustment: Software controlled Nemko USA, Inc. FCC PART 15, SUBPART C and RSS-210 Digital Transmission Systems EQUIPMENT: 40143RUS1 Test Report No.: SA-09225 Page 6 of 36 Description of EUT The SA-09225 transceiver is used in Traxxas remote controls for radio controlled toys. System Diagram Nemko USA, Inc. FCC PART 15, SUBPART C and RSS-210 Digital Transmission Systems EQUIPMENT: 40143RUS1 Test Report No.: SA-09225 Page 7 of 36 Section 3. Occupied Bandwidth NAME OF TEST: Occupied Bandwidth PARA. NO.: 15.247(a)(2) / A8.2(a) TESTED BY: David Light DATE: 29 November 2009 Test Results: Complies. Measurement Data: See 6 dB BW plot Measured 6 dB bandwidth: 933 kHz Test Conditions: 35 %RH 22 °C Measurement Uncertainty: +/-1x10 -7 ppm Test Equipment Used: 1464-1082-1472 Nemko USA, Inc. FCC PART 15, SUBPART C and RSS-210 Digital Transmission Systems EQUIPMENT: 40143RUS1 Test Report No.: SA-09225 Page 8 of 36 Test Data – Occupied Bandwidth Nemko USA, Inc. FCC PART 15, SUBPART C and RSS-210 Digital Transmission Systems EQUIPMENT: 40143RUS1 Test Report No.: SA-09225 Page 9 of 36 Test Data – Occupied Bandwidth 20 dB Occupied Bandwidth for IC Nemko USA, Inc. FCC PART 15, SUBPART C and RSS-210 Digital Transmission Systems EQUIPMENT: 40143RUS1 Test Report No.: SA-09225 Page 10 of 36 Section 4. Maximum Peak Output Power NAME OF TEST: Maximum Peak Output power PARA. NO.: 15.247(b)(3) / A8.4(4) TESTED BY: David Light DATE: 29 November 2009 Test Results: Complies. The measured peak rf output power is +3.57 dBm or 2.28 mW. The gain of the antenna used is 2 dBi. Measurement Data: Refer to attached data Test Conditions: 35 %RH 22 °C Measurement Uncertainty: +/-1.7 dB Test Equipment Used: 1464-1082-1472 This device was tested at +/- 15% input power per 15.31(e), with no variation in output power. For battery powered equipment, the device was tested with a fresh battery per 15.31(e). The device was tested on three channels per 15.31(l). This test was performed radiated. Nemko USA, Inc. FCC PART 15, SUBPART C and RSS-210 Digital Transmission Systems EQUIPMENT: 40143RUS1 Test Report No.: SA-09225 Page 11 of 36 Test Data – Peak Power Nemko USA, Inc. FCC PART 15, SUBPART C and RSS-210 Digital Transmission Systems EQUIPMENT: 40143RUS1 Test Report No.: SA-09225 Page 12 of 36 Test Data – Peak Power Nemko USA, Inc. FCC PART 15, SUBPART C a…

Text truncated - open the document above for the full version.

Contact Information

Applicant

Scott Schmitz(Sr. Manager Electrical Engineering)

[email protected]469-969-1942Fax: 972-265-8019

Test Firm

Nemko Dallas, Inc.Mike Cantwell

[email protected]972-436-9600Fax: 972-436-2667

Technical Specifications

#	Rule Parts	Frequency Range	Power Output
1	15C	2.41 GHz - 2.45 GHz	2.28 mW

Modular Type

Limited Single Modular Approval

Confidentiality

Long Term

Grant Notes

This is a Limited Modular Approval Grant of Certification. This device cannot be sold to the General Public and may only be installed as original equipment by the OEM. Power listed is conducted. The antenna installation and operating configurations of this transmitter, including any applicable antenna gain and cable loss must satisfy MPE categorical Exclusion Requirements of �2.1091. This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter. End-users must be provided with specific operating instructions for satisfying RF exposure compliance. Users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance.
