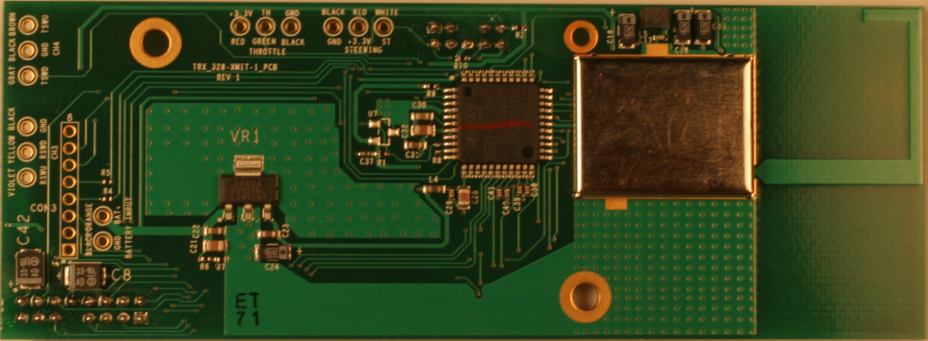

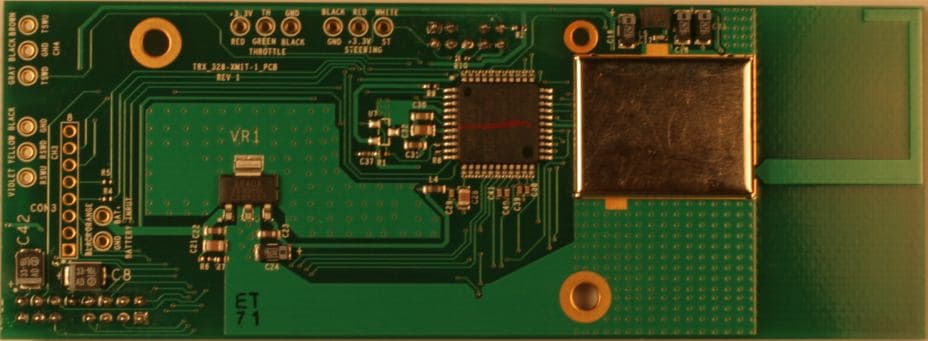

XVE-SA10044Spectrum 2.4Ghz TX RF Board

Traxxas LP
Spectrum 2.4Ghz TX RF Board - FCC ID XVE-SA10044 - Traxxas LP
Click to zoom

Application Details

Equipment Class
DTS - Digital Transmission System
Date of Grant
Dec 11, 2011
Application Purpose
Original Equipment
Date of Application
Dec 11, 2011
Equipment Note
Spectrum 2.4Ghz TX RF Board
Frequency Range
2406.00000000 - 2453.00000000
Company
Traxxas LP
Country
United States

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Spectrum 2.4Ghz, TX Board User Manual Version 1.0 2.4GHz Transmitter Version: 1.0 User Interface Specification Date: 12/12/2011 10:41:00 AM Confidential © Traxxas 2009 Page 2 of 8 Revision History Date Version Description Author 8/1/2011 1.0 Original. Chris S. Russell 2.4GHz Transmitter Version: 1.0 User Interface Specification Date: 12/12/2011 10:41:00 AM Confidential © Traxxas 2009 Page 3 of 8 Table of Contents 1. INTRODUCTION ............................................................................................................................................... 5 2. USERS GUIDE INFORMATION ...................................................................................................................... 6 2.1 ANTENNA REGULATION ................................................................................................................................. 6 2.2 EMISSIONS COMPLIANCE TESTING ................................................................................................................. 6 2.3 WORKING WITH ADDITIONAL TRANSMITTERS................................................................................................ 7 2.4 PRODUCT LABELING REQUIREMENTS ............................................................................................................. 7 3. FCC RF EXPOSURE STATEMENT ................................................................................................................ 8 2.4GHz Transmitter Version: 1.0 User Interface Specification Date: 12/12/2011 10:41:00 AM Confidential © Traxxas 2009 Page 4 of 8 2.4GHz Transmitter Version: 1.0 User Interface Specification Date: 12/12/2011 10:41:00 AM Confidential © Traxxas 2009 Page 5 of 8 1. Introduction The user manual contains information pertaining to output power, operating frequency, operating channels, data rates, tuning range, intended use, general installation instructions, and antenna connector and gain information. . 2.4GHz Transmitter Version: 1.0 User Interface Specification Date: 12/12/2011 10:41:00 AM Confidential © Traxxas 2009 Page 6 of 8 2. Users Guide Information It is required that Traxxas LLP place the text below in the product user guide along with all other pertinent regulatory information. We are only using the module on our own motherboard, and there is sufficient filtering on the module for the supplied voltage supply. The requirements for FCC Limited Modular Approval were released in March 2009 in the FCC’s Public Notice: FCC Public Notice DA-08-672, Part 15 Unlicensed Modular Transmitter Approvals. Design Criteria for Modular Approval General Conditions: The following conditions must be strictly adhered to for modular approval: 1. No modification to the module including the circuitry is permitted. 2. Design criteria to include antenna, interconnects, and local oscillator. 3. Testing of the final device configuration for Digital Emissions Compliance The Spectrum 2.4Ghz, TX Board may not be altered or modified in any manner by the OEM or other entity. Additionally, no component may be added which could change the radio frequency (RF) characteristics. These include, but are not limited to unintentional or spurious emissions, immunity, ESD characteristics, or other items commonly associated with RF devices. This includes all components; passive and active. Additionally, no RF components may be placed between the RF output of the module and the antenna. 2.1 Antenna Regulation The antenna has been selected and specifically tested with the Spectrum 2.4GHz, TX Board, and has been certified through the regulatory agencies in the US and European Union authorized use. Use of any other antenna type used with this unit voids the LMA grant for the said module. 2.2 Emissions Compliance Testing Notwithstanding the Modular Approval for the device with associated antenna, the end product configuration must meet digital emissions compliance and must be tested in accordance with FCC Part 15 requirements confirming radiated emissions are within specified limits. Applicable FCC guidelines: • Part 15 Section 15.109 Sub-paragraph A, Class B Radiated Emission Limits. 2.4GHz Transmitter Version: 1.0 User Interface Specification Date: 12/12/2011 10:41:00 AM Confidential © Traxxas 2009 Page 7 of 8 These emission tests can be conducted by the manufacturer or by contacting an approved test facility equipped and certified accordingly. The results of these emissions tests are not required to be submitted to the FCC or Traxxas, but should be kept on file by the OEM. 2.3 Working with Additional Transmitters The Spectrum 2.4GHz, TX Board should not be operated with any other transmitter in the end product. However, if such an application comes about, further regulatory compliance from the FCC must be obtained. 2.4 Product Labeling Requirements FCC product labeling requirements stipulate an FCC label, including specific text, be placed on the device containing the module. The product label must include the following text and must be affixed to the exterior of the final product. The text should be located beneath the FCC compliance logo. This product contains the Spectrum 2.4GHz, TX Board FCC ID: XVE-SA10044 In addition to the above text FCC Part 15.21 stipulates that the Digital Electronic Devices manufacturers must also have the following statements printed in their user/operations manual and/or indicate this exact text on the side of the final device. “This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Caution: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Note: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this…

Text truncated - open the document above for the full version.

Cover Letter(s)

Authority to Act as Aeent Date: July 19, 2011 American Certification Body, Inc. 6731 Whittier Avenue Suite C110 Mclean, V A 22101 To Whom It May Concern: PTI is authorized to act on our behalf, until otherwise notified, for applications to American Certification Body, Inc. (ACB). We certify that we are not subject to denial of federal benehts, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988,21U.S.C. 862. Further, no par:ty, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you, Agency Agreement Expiration Date: Jullu 19" 2012 By: Title: On behalf of: Telephone: Cz^ 0<-"--t (Print name) Traxxas (Company Name) t-888-872-9927

Cover Letter(s)

Request for Confidentialitv Date: July 19.201 I Subject: Confidentiality Request for: FCC ID: XVE-SA10044 Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 10, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit E Short Term ffi Permanent Block Diagrams X Short term [] Short Term I Short Term n Short Term I Short Term I Short Term fi Short Term fi Short Term I Permanent* I Permanent I Permanent I Permanent I Permanent ! Permanent* External Photos lnternal Photos Operation Description/Theory of Operation Parts List & Placement/BoM Tune-Up Procedure Schematics Test Setup Photos User's Manual € f- G f+rLr4 lq )z , -1, rr 1#int name; *Note: (Insert Explanation as Necessary) Traxxas has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confi dentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of 180 days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify ACB in the event information regarding the product or the product is made available to the public. ACB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. NOTE for Industry Canada Applications: The applicant understands that until such time that IC distinguishes between Short Term and Permanent Confidentiality, either type of marked exhibit above will simply be marked Confidential when submitted to IC. Sincerely, By: ure/Title)

Cover Letter(s)

Professional Testing (EMI), Inc. 1601 FM 1460, Suite B Round Rock, Texas 78665 November 30, 2011 On behalf of Traxxas, LLP Professional Testing (EMI), Inc. is seeking a limited modular approval for the Remote Transceiver Module. Requirements listed in FCC part 15.212 are addressed below. 1) In compliance with FCC part 15, the Cypress CYRF6936/7936 provides buffering on the data inputs. 2) These modules do not have shielding. These modules are used only in Traxxas equipment, and Traxxas has control over the installation. These modules are not for resale, and are not made available to any customers . 3) It is required that Traxxas LLP place the following text in the product user guide along with all other pertinent regulatory information: Note: This is a battery operated device. Traxxas is only using the module on their own motherboard, and there is sufficient filtering on the module for the supplied voltage supply. 4) The antenna is a standard di-pole type . 5) The module was tested in both a stand-alone configuration, free of an enclosure, as well as one of the intended host forms. The worst case emissions were reported. 6) A sticker is affixed to the back side of the Vehicle Transceiver Module. The manual contains the explicit directions to label the exterior of the device into which the Vehicle Transceiver Module is integrated with “Contains FCC ID: XVE-SA10044”. 7) The Users Manual explains that any modifications may strictly void the certification and a separate approval must be obtained. 8) Emissions are far below the RF Exposure limits. Layne Lueckemeyer Product Development Engineer

External Photos

Spectrum 2.4GHz, Module Pictures Version 1.0 2.4GHz Transmitter Version: 1.0 Module Pictures Date: 8/1/2011 10:10am Confidential © Traxxas 2009 Page 2 of 5 Revision History Date Version Description Author 8/1/2011 1.0 Original. Chris S. Russell 2.4GHz Transmitter Version: 1.0 Module Pictures Date: 8/1/2011 10:10am Confidential © Traxxas 2009 Page 3 of 5 Table of Contents 1. PICTURES....................................................................................................................................................5 2.4GHz Transmitter Version: 1.0 Module Pictures Date: 8/1/2011 10:10am Confidential © Traxxas 2009 Page 4 of 5 List of Figures Figure 1 2.4GHz Transceiver Top...........................................................................................................................5 Figure 2 2.4GHz Transceiver Bottom......................................................................................................................5 Figure 3 2.4GHz Transceiver Top with RF can.......................................................................................................5 2.4GHz Transmitter Version: 1.0 Module Pictures Date: 8/1/2011 10:10am Confidential © Traxxas 2009 Page 5 of 5 1. Pictures Figure 1 2.4GHz Transceiver Top Figure 2 2.4GHz Transceiver Bottom Figure 3 2.4GHz Transceiver Top with RF can

Internal Photos

Internal Photos Spectrum 2.4GHz, Module Pictures Version 1.0 2.4GHz Transmitter Version: 1.0 Module Pictures Date: 8/1/2011 10:10am Confidential © Traxxas 2009 Page 2 of 5 Revision History Date Version Description Author 8/1/2011 1.0 Original. Chris S. Russell 2.4GHz Transmitter Version: 1.0 Module Pictures Date: 8/1/2011 10:10am Confidential © Traxxas 2009 Page 3 of 5 Table of Contents 1. PICTURES....................................................................................................................................................5 2.4GHz Transmitter Version: 1.0 Module Pictures Date: 8/1/2011 10:10am Confidential © Traxxas 2009 Page 4 of 5 List of Figures Figure 1 2.4GHz Transceiver Top...........................................................................................................................5 Figure 2 2.4GHz Transceiver Bottom......................................................................................................................5 Figure 3 2.4GHz Transceiver Top with RF can.......................................................................................................5 2.4GHz Transmitter Version: 1.0 Module Pictures Date: 8/1/2011 10:10am Confidential © Traxxas 2009 Page 5 of 5 1. Pictures Figure 1 2.4GHz Transceiver Top Figure 2 2.4GHz Transceiver Bottom Figure 3 2.4GHz Transceiver Top with RF can

RF Exposure Info

SAR Waiver Calculation FCC ID: XVE-SA10044 PROJECT # DATE RULE 12770-10 October 24, 2011 FCC 2.1093 / 1.1310 COMMENT Center frequency of band utilized to calculate SAR waiver limit. SAR Waiver equation P=60/f (GHz) P=60/2.426=24.5 mW Results Table Frequency (MHz) Power (dBm) Power (mW) Limit (mW) 2406 -4.02 0.39 24.7 2426 -3.93 0.40 24.7 2453 -4.08 0.39 24.7 Note: According to KDB447498 Mobile and Portable Device RF Exposure Procedures and Equipment Authorization Policies SAR Evaluation not required because output power is ≤ 60/f (GHz) mW Result: Pass

Test Report

1601 North A.W. Grimes Blvd., Suite B Round Rock, TX 78665 e-mail: [email protected] (512) 244-3371 Fax: (512) 244-1846 October 20, 2011 Gary DeWitt Traxxas, LLP 1100 Klein Road Plano, TX 75074 Dear Gary: Enclosed is the Wireless Test Report for the Traxxas, LLP Remote Transceiver. This report can be used to demonstrate compliance with FCC requirements for wireless devices in the United States. If you have any questions, please contact me. Sincerely, Jeffrey A. Lenk President Enclosure Traxxas, LLP – Remote Transceiver, Wireless Certification Report 12770-10 October 20, 2011 Page 2 of 43 Project 12770-10 Traxxas, LLP Remote Transceiver Wireless Certification Report Prepared for: Traxxas, LLP 1100 Klein Road Plano, TX 75074 By Professional Testing (EMI), Inc. 1601 N. A.W. Grimes Blvd., Suite B Round Rock, Texas 78665 October 20, 2011 Reviewed by Written by Jeffrey A. Lenk President Layne Lueckemeyer Product Development Engineer Traxxas, LLP – Remote Transceiver, Wireless Certification Report 12770-10 October 20, 2011 Page 3 of 43 Table of Contents Title Page .........................................................................................................................................1 Table of Contents .............................................................................................................................3 1.0 Introduction ..........................................................................................................................5 1.2 Scope ................................................................................................................................5 1.3 EUT Description ..............................................................................................................5 1.4 Modifications ...................................................................................................................5 1.5 Test Site ...........................................................................................................................5 1.6 Applicable Documents .....................................................................................................6 2.0 Output Power .....................................................................................................................13 2.2 Test Procedure ...............................................................................................................13 2.3 Test Criteria ...................................................................................................................13 2.4 Test Results ....................................................................................................................14 3.0 Occupied Bandwidth ..........................................................................................................16 3.2 Test Procedure ...............................................................................................................16 3.3 Test Criteria ...................................................................................................................16 3.4 Test Results ....................................................................................................................16 4.0 Power Spectral Density ......................................................................................................23 4.2 Test Procedure ...............................................................................................................23 4.3 Test Criteria and Methodology ......................................................................................23 4.4 Test Results ....................................................................................................................23 5.0 Band Edge Spurious Emissions .........................................................................................27 5.2 Test Procedure ...............................................................................................................27 5.3 Test Criteria ...................................................................................................................27 5.4 Test Results ....................................................................................................................27 6.0 Out of Band Spurious Emissions .......................................................................................29 6.2 Test Procedure ...............................................................................................................29 6.3 Test Criteria ...................................................................................................................30 6.4 Test Results ....................................................................................................................30 7.0 Antenna Requirements .......................................................................................................42 7.2 Evaluation Procedure .....................................................................................................42 7.3 Evaluation Criteria .........................................................................................................42 7.4 Evaluation Results .........................................................................................................42 End of Report .............................................................................................................................43 THIS REPORT SHALL NOT BE REPRODUCED EXCEPT IN FULL, WITHOUT THE WRITTEN APPROVAL OF PROFESSIONAL TESTING (EMI), INC. NOTICE: (1) This Report must not be used to claim product endorsement, by NVLAP, NIST, the FCC or any other Agency. This report also does not warrant certification by NVLAP or NIST. (2) This report shall not be reproduced except in full, without the written approval of Professional Testing (EMI), Inc. (3) The significance of this report is dependent on the representative character…

Text truncated - open the document above for the full version.

Test Setup Photos

Test Setup Photos 12770-10 Radiated Emissions Conducted Emissions

Contact Information

Applicant

Scott Schmitz(Sr. Manager Electrical Engineering)
[email protected]469-969-1942Fax: 972-265-8019

Technical Contact

Professional TestingLayne Lueckemeyer
[email protected]512-244-3371

1601 North A.W. Grimes · Round Rock · United States

Test Firm

Professional TestingRobert McCollough Lenk
[email protected]512-244-3371Fax: 512-244-1846

Technical Specifications

#Rule PartsFrequency RangePower Output
115C2.41 GHz - 2.45 GHz234.00 µW
Modular Type
Limited Single Modular Approval
Confidentiality
Long Term
Grant Notes
Power out is conducted at the antenna terminal. Limited Modular Approval. The antenna(s) used for this transmitter must not be co-located with any other transmitters except in accordance with FCC multi-transmitter product procedures. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance.
