XXANAVIIMOUSE2.4GHz RF Wireless Laser Mouse (3D)

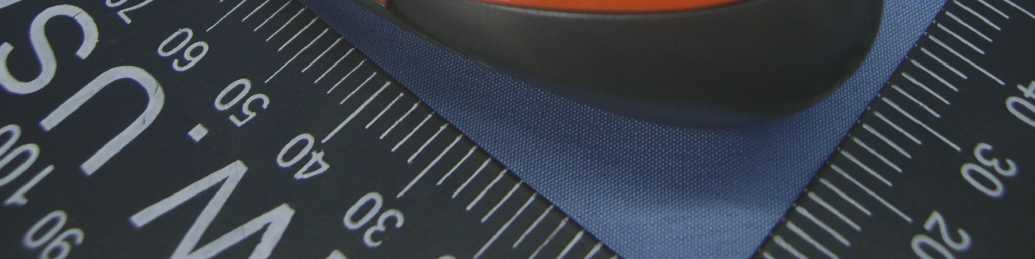

Page 1 CONSTRUCTION PHOTOS OF EUT

FCC ID：XXANAVIIMOUSE LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device.

Page 2 Page 3

FCC ID: XXANAVIIMOUSE Report No.: RF981104H03 Reference No.: Operational Description The transmitter of the EUT (2.4GHz RF Wireless Laser Mouse (3D)) is powered by DC 3V from batteries, and the PCB antenna is used. The output power of this device is very low. The device can be operated with the channel frequency 2402MHz ~ 2479MHz. Under normal use condition, the transmitter and the receiver are quite close, so high EIRP power is neither necessary nor allowed because of interference. The other instruction, please have a look at the users manual.

Report No.: RF981104H03 1 Report Format Version 3.0.0 FCC TEST REPORT REPORT NO.: RF981104H03 MODEL NO.: Navii Mouse RECEIVED: Nov. 04, 2009 TESTED: Nov. 11 to 18, 2009 ISSUED: Jan. 06, 2010 APPLICANT: J-MEX INC ADDRESS: B2, 3F, No. 1, Li-Hsin 1st Road, SBIP ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch TEST LOCATION: No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan This test report consists of 24 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced, except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by TAF or any government agencies. Report No.: RF981104H03 2 Report Format Version 3.0.0 Table of Contents 1 CERTIFICATION.............................................................................................3 2 SUMMARY OF TEST RESULTS.....................................................................4 2.1 MEASUREMENT UNCERTAINTY......................................................................4 3 GENERAL INFORMATION.............................................................................5 3.1 GENERAL DESCRIPTION OF EUT................................................................5 3.2 DESCRIPTION OF TEST MODES..................................................................6 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS.................................7 3.4 DESCRIPTION OF SUPPORT UNITS............................................................8 3.5 CONFIGURATION OF SYSTEM UNDER TEST.............................................8 4 TEST PROCEDURES AND RESULTS...........................................................9 4.1 RADIATED EMISSION MEASUREMENT.......................................................9 4.1.1 LIMITS OF RADIATED EMISSION MEASUREMENT.....................................9 4.1.2 TEST INSTRUMENTS..................................................................................10 4.1.3 TEST PROCEDURES....................................................................................11 4.1.4 DEVIATION FROM TEST STANDARD..........................................................11 4.1.5 TEST SETUP................................................................................................12 4.1.6 EUT OPERATING CONDITIONS..................................................................12 4.1.7 TEST RESULTS............................................................................................13 4.2 CONDUCTED - OUT BAND MEASUREMENT.............................................20 4.2.1 LIMITS OF CONDUCTED - OUT BAND MEASUREMENT..........................20 4.2.2 TEST INSTRUMENTS..................................................................................20 4.2.3 TEST PROCEDURE.....................................................................................20 4.2.4 DEVIATION FROM TEST STANDARD.........................................................20 4.2.5 EUT OPERATING CONDITION....................................................................20 4.2.6 TEST RESULTS............................................................................................21 5 INFORMATION ON THE TESTING LABORATORIES..................................23 6 APPENDIX A - MODIFICATIONS RECORDERS FOR ENGINEERING CHANGES TO THE EUT BY THE LAB........................................................24 Report No.: RF981104H03 3 Report Format Version 3.0.0 1 CERTIFICATION PRODUCT : 2.4GHz RF Wireless Laser Mouse (3D) BRAND NAME : J-MEX MODEL NO. : Navii Mouse TESTED : Nov. 11 to 18, 2009 TEST SAMPLE : R&D SAMPLE APPLICANT : J-MEX INC STANDARDS : 47 CFR Part 15, Subpart C (Section 15.249), ANSI C63.4-2003 The above equipment (Model: Navii Mouse) has been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY : , DATE: Jan. 06, 2010 ( Sunny Wen, Specialist ) TECHNICAL ACCEPTANCE : , DATE: Jan. 06, 2010 ( Hank Chung, Deputy Manager ) APPROVED BY : , DATE: Jan. 06, 2010 ( May Chen, Deputy Manager ) Report No.: RF981104H03 4 Report Format Version 3.0.0 2 SUMMARY OF TEST RESULTS The EUT has been tested according to the following specifications: APPLIED STANDARD: 47 CFR Part 15, Subpart C Standard Paragraph Test Type Result Remark 15.207 Conducted Emission Test NA Power supply is DC 3V from batteries 15.249 Radiated Emission Test PASS Minimum passing margin is -4.2dB at 2400.00MHz 15.249 Conducted - Out Band Measurement PASS Meet the requirement of limit 2.1 MEASUREMENT UNCERTAINTY Where relevant, the following measurement uncertainty levels have been estimated for tests performed on the EUT as specified in CISPR 16-4-2: This uncertainty represents an expanded uncertainty expressed at approximately the 95% confidence level using a coverage factor of k=2. Measurement Value Radiated emissions (30MHz-1GHz) 3.94 dB Radiated emissions (1GHz -18GHz) 2.49 dB Radiated emissions (18GHz -40GHz) 2.70 dB Report No.: RF981104H03 5 Report Format Version 3.0.0 3 GENERAL INFORMATION 3.1 GENERAL DESCRIPTION OF EUT PRODUCT 2.4GHz RF Wireless Laser Mouse (3D) MODEL NO. Navii Mouse FCC ID XXANAVIIMOUSE POWER SUPPLY DC 3V from batteries MODULATION TYPE GFSK CARRIER FREQUENCY OF EACH CHANNEL 2402MHz ~ 2479MHz NUMBER OF CHANNEL 78 ANTENNA TYPE PCB antenna with 0.06dBi antenna gain DATA CABLE NA I/O PORTS NA ASSOCIATED DEVICES NA NOTE: 1. The EUT was pre-tested under the following modes: Test Mode Description Mode A X-Y plane Mode B Z-X plane Mode C Z-Y plane From the above modes, the worst emission level was found in Mode A. Therefore only the test data of th…

Text truncated - open the document above for the full version.

1 PHOTOGRAPHS OF THE TEST CONFIGURATION RADIATED EMISSION TEST
