XXANKS-1003Navii RF Remote Control - 17

- 1 - 1.1 遙控器功能鍵說明 (中文) A 鍵：無作用 首頁鍵 ESC 返回鍵 Enter 選擇鍵 字幕鍵 方向鍵 OK 確認鍵 音量鍵：調整音量大聲 音量鍵：調整音量小聲 目錄鍵 播放/暫停鍵 上一首 下一首 開關鍵 - 2 - 1.2遙控器使用說明 ● 按鍵功能如圖案所標示: ● 遙控器出廠已配對好。配對方式如下 同時按ESC及字幕鍵即可進入配對模式 1.3 產品規格 ● 內容物： 遙控器 * 1支、RF 無線接收器 * 1個 ● 電源供電： 4號鹼性電池 x 2顆 (可用充電電池，但使用時間會比鹼性電池短) ● 通訊傳輸介面及距離： - RF 2.4G 傳輸、360度無指向性， 無線(RF)通訊可達10米範圍內。 ● 遙控器尺寸 & 重量 ： 尺寸：109.4(L) X 43.4 (W) X 19.4 (H) mm 重量：47g 1.4 電池更換 遙控器使用兩枚四號鹼性電池(AAA * 2)驅動。電池槽位於遙控器背面，用手指由 三角箭頭符號處、往箭頭方向推開電池蓋，更換電池後將電池蓋對準卡榫往頂部 推回即可。 - 3 -  插入新電池時，請確定方向正負極性 (+ / -) 正確。  如長時間不使用遙控器，請移除電池，並將電池放置乾燥陰涼處。  電池沒電時、請立即移除，並更換電池，以延長遙控器使用壽命。  更換電池時、請同時更換兩顆電池，不能混用新舊電池及不同類型的電池。 1.5 FCC 警語 1.§ 15.21 Information to user. Notice: Any changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment. 2.§ 15.105 Information to the user. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that - 4 - interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. 3.§ 15.19 FCC Labelling requirements Notice: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. - 5 - Product name: Navii RF Remote Control - 17 Model no: NKS1003 Number of channels: 65 channels Carrier frequencies: 2404 MHZ~2480MHz Channel bandwidth: 1 MHz Modulation: GFSK Transmitter or Transceiver: Transceiver Transmitter modulation (Amplitude, frequency, phase, pulse, other): GFSK Transmission range: 8M in free space Antenna type: PCB printed antenna Power source: 2 x AAA Alkaline batteries in series connection - 6 - Rated voltage: 3.4V Operating voltage: 2.3 ~ 3.3V Operating temperature range: 0°C ~ 50°C - 7 - 2.1 Remote Function keys (English) A button: N/A Home ESC Enter Subtitle Direction OK Volume up Volume down Menu Play/Pause Previous Next Power - 8 - 2.2 Remote control instructions ● Button function shown as icons show: ● Pairing: Press ESC and Subtitle at the same time to enter pairing mode 2.3 Product Specifications ● Contents： Remote * 1、RF receiver * 1 ● Power： AAA Alkaline batteries x 2EA (rechargeable battery is ok，however，the battery life / using time will be shorter than alkaline battery) ● Communication interface and distance： - RF 2.4G transmission、wireless communication coverage up to 10 meters、No direction limit。 ● Remote size & weight ： Size：109.4(L) X 43.4 (W) X 19.4 (H) mm Weight：47g 2.4 Battery Replacement The remote control requires two AAA alkaline batteries。The battery - 9 - compartment is located in the back of the remote control。Simply to pull up the lid and put in 2 new AAA batteries the push the lid back。  Insert new battery，make sure electrodes (+ / -) are in right places。  Please remove batteries away from compartment and store in dry and cool place if the remote control will not be used for a long time  If battery power is used up、please replace with new batteries immediately，used up battery may damage the remote control。  Please use 2 whole new / same type batteries at the same time，please do not use old and new batteries or different types of batteries at the same time。 2.5 FCC Statement 1.§ 15.21 Information to user. Notice: Any changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment. 2.§ 15.105 Information to the user. - 10 - Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. 3.§ 15.19 FCC Labelling requirements - 11 - Notice: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. Product name: Navii RF Remote Control - 17 Model no: NKS1003 Number of channels: 65 channels Carrier frequencies: 2404 MHZ~2480MHz Channel bandwidth: 1 MHz Modulation…

Text truncated - open the document above for the full version.

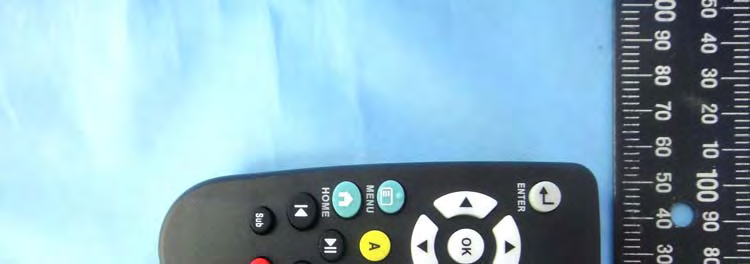

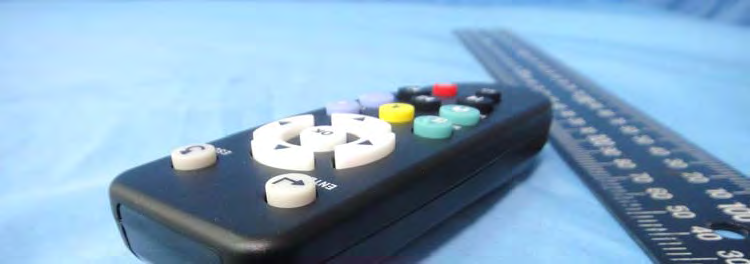

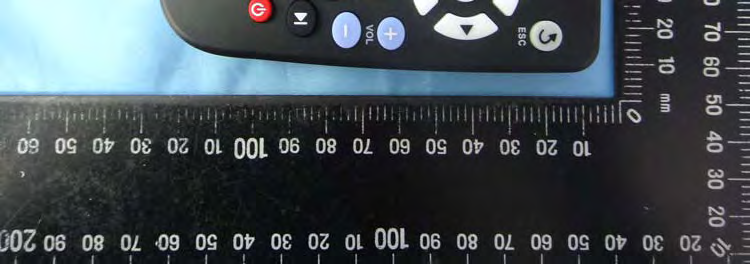

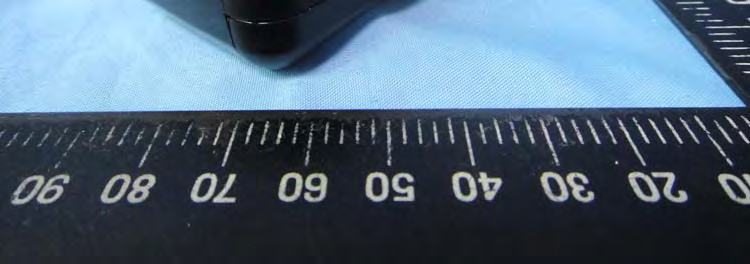

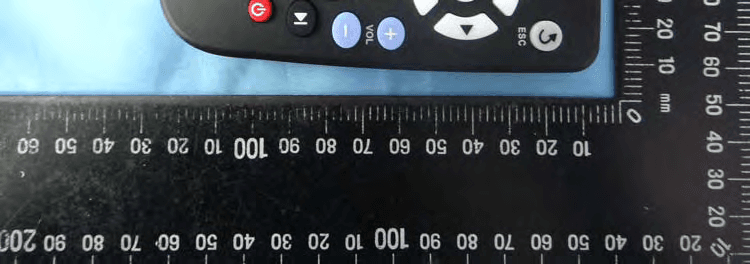

1 of 3 External Photos Model Number: NKS-1003 FCC ID: XXANKS-1003 2 of 3 EUT Photo 1 ) EUT Photo 2 ) 3 of 3 EUT Photo 3 ) EUT Photo 4 )

ID Label info & Label Location FCC ID : XXANKS-1003

1 of 6 Internal Photos Model Number: NKS-1003 FCC ID: XXANKS-1003 2 of 6 EUT Photo 1 ) EUT Photo 2 ) 3 of 6 EUT Photo 3 ) EUT Photo 4 ) 4 of 6 EUT Photo 5 ) EUT Photo 6 ) 5 of 6 EUT Photo 7 ) EUT Photo 8 ) 6 of 6 EUT Photo 9 )

FCC 47 CFR PART 15 SUBPART C Product Type ： Navii RF Remote Control - 17 Applicant ： J-MEX, Inc. Address ： B2, 3F, No. 1, Li-Hsin 1st Road, SBIP, HsinChu, Taiwan, R.O.C. Trade Name ： Navii Model Number ： NKS-1003 Test Specification ： FCC 47 CFR PART 15 SUBPART C: Oct., 2013 ANSI C63.4:2009 Receive Date ： Jun. 05, 2014 Test Period ： Jun. 12, 2014 Issue Date ： Jun. 30, 2014 Issue by A Test Lab Techno Corp. No. 140-1, Changan Street, Bade City, Taoyuan County 334, Taiwan R.O.C. Te l：+886-3-2710188 / Fax：+886-3-2710190 T aiwan Accreditation Foundation accreditation number: 1330 Note: This report shall not be reproduced except in full, without the written approval of A Test Lab Techno Corp. This document may be altered or revised by A Test Lab Techno Corp. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF, or any government agencies. The test results in the report only apply to the tested sample. Report Number: 1406FR26 1 of 31 A Test Lab Techno Corp. Revision History Rev. Issue Date Revisions Revised By 00 Jun. 30, 2014 Initial Issue Report Number: 1406FR26 2 of 31 A Test Lab Techno Corp. Verification of Compliance Issued Date: 06/30/2014 Product Type : Navii RF Remote Control - 17 Applicant : J-MEX, Inc. Address : B2, 3F, No. 1, Li-Hsin 1st Road, SBIP, HsinChu, Taiwan, R.O.C. Trade Name : Navii Model Number : NKS-1003 FCC ID : XXANKS-1003 EUT Rated Voltage : DC 3.0V Test Voltage : DC 3.0V Applicable Standard : FCC 47 CFR PART 15 SUBPART C: Oct., 2013 ANSI C63.4:2009 Test Result : Complied Application Purpose : Original Performing Lab. : A Test Lab Techno Corp. No. 140-1, Changan Street, Bade City, Taoyuan County 334, Taiwan R.O.C. Te l：+886-3-2710188 / Fax：+886-3-2710190 T aiwan Accreditation Foundation accreditation number: 1330 http://www.atl-lab.com.tw/e-index.htm The above equipment was tested by A Test Lab Techno Corp. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4: 2009 and the energy emitted by the sample tested as described in this report is in compliance with the requirements of FCC Rules Part 15.207, 15.209, 15.247 . The test results of this report relate only to the tested sample identified in this report. Approved By ： Reviewed By ： (Manager) (Fly Lu) (Testing Engineer) (Eric Ou Yang) Report Number: 1406FR26 3 of 31 A Test Lab Techno Corp. TABLE OF CONTENTS 1 General Information ....................................................................................................................................... 5 1.1. Summary of Test Result ...................................................................................................................... 5 1.2. Measurement Uncertainty ................................................................................................................... 5 2 EUT Description ............................................................................................................................................. 6 3 Test Methodology .......................................................................................................................................... 7 3.1. Mode of Operation .............................................................................................................................. 7 3.2. EUT Exercise Software....................................................................................................................... 7 3.3. Configuration of Test System Details .................................................................................................. 7 3.4. Test Site Environment ......................................................................................................................... 7 4 Conducted Emission Measurement ............................................................................................................. 8 4.1. Limit..................................................................................................................................................... 8 4.2. Test Instruments .................................................................................................................................. 8 4.3. Test Setup ........................................................................................................................................... 8 4.4. Test Procedure .................................................................................................................................... 9 4.5. Test Result .......................................................................................................................................... 9 5 Radiated Interference Measurement .......................................................................................................... 10 5.1. Limit................................................................................................................................................... 10 5.2. Test Instruments .................................................................................................................................11 5.3. Setup ................................................................................................................................................. 12 5.4. Test Procedure .................................................................................................................................. 13 5.5. Test Result ........................................................................................................................................ 15 6 Band Edges Measurement .......................................................................................................................... 25 6.1. Limit........................................................................................…

Text truncated - open the document above for the full version.

Part 15C Test Setup Photographs Radiated Emissions Test Configuration: Below 1GHz _ Front View Below 1GHz _ Rear View A Test Lab Techno Corp. Report Number: 1406FR26 1 of 2 Above 1GHz _ Front View Above 1GHz _ Rear View A Test Lab Techno Corp. Report Number: 1406FR26 2 of 2
