XYFW2409T2.4G Radio System

1 www.frsky‐rc.com 05/09/13 Instruction Manual for FrSky 2.4G RADIO SYSTEM XJT Module Introduction Thank you for purchasing FrSky 2.4G RADIO SYSTEM XJT module. In order to fully enjoy the benefits of this system, please read the instruction manual carefully and set up the device as described below. Overview Specifications Operating Voltage Range: 6~15 V Operating Current: 140mA@6V Output Power: ≤ 100mW Module Slot: JR/Graupner Type Modulations: PXX or CPPM (auto‐detected) Modes: D8, D16 or LR12 (selectable) Telemetry Interface: Smart Port, RS232 Serial Port Upgrade Interface: Smart Port, RS232 Serial Port What’s New!  Two auto‐detected modulations of PXX (mode selection, bind, model match, range check, failsafe, etc. on radio side) or CPPM.  Three selectable modes of D8 (existing 8ch two‐way), D16 (new 16ch two‐way full duplex transmission) and LR12 (new 12ch one‐way long range).  Smart Port enabled, realizing two‐way full duplex transmission.  Detect the module antenna’s working status and give sound warnings if the module antenna is broken or does not have intact contact, etc.  Super lower latency (approx. 1/3 of current systems) and higher precision (transmitter’s hardware and software support required, such as FrSky transmitters). 2 www.frsky‐rc.com 05/09/13 Binding Procedure Binding is the process of uniquely associating a particular receiver to a transmitter module. A transmitter module can be bound to multiple receivers (not to be used simultaneously). A receiver can only be bound to one transmitter module. Follow the steps below to finish the binding procedure. 1. Turn on the transmitter while holding the F/S button on the 2.4G RADIO SYSTEM XJT module (see Mode and Compatibility table above). Release the button. The RED LED on the 2.4G RADIO SYSTEM XJT module will flash, indicating the transmitter is ready to bind to the receiver. 2. Connect the battery to the receiver while holding the F/S button on the receiver. The RED LED on the receiver will flash, indicating the binding process is completed (please refer to the corresponding receiver’s instruction manual for details) 3. Turn off both the transmitter and the receiver. 4. Turn on the transmitter and connect the battery. The RED LED on the receiver indicates the receiver is receiving commands from the transmitter. The receiver/transmitter module binding will not have to be repeated, unless one of the two is replaced. Note: After binding procedure is completed, recycle the power and check if the receiver is really under control by linked transmitter. Range Check A pre‐flight range check should be done before each flying session. Reflections from nearby metal fences, concrete buildings or trees can cause loss of signal both during range check and during the flight. Follow the steps below to perform the range check. 1. Place the model at least 60cm (two feet) above non‐metal contaminated ground (e.g. on a wooden bench). 2. The receiver antennas should be separated in the model, and do not touch the ground. 3. The module antenna should be in a vertical position. 4. Turn on the transmitter and the receiver, press the F/S button on the 2.4G RADIO SYSTEM XJT module for 4 seconds to enter range check mode, the RED LED will be off, GREEN LED will flash rapidly. The effective distance will be decreased to 1/30 of full range. 5. Walk away from the model while simultaneously operating the controls on the transmitter to confirm all controls’ normal operation (please refer to the corresponding receiver’s instruction manual for details). 6. Press the F/S button on the 2.4G RADIO SYSTEM XJT module for 1~4 seconds to exit range check mode, RED LED will be back on, indicating normal operation is back. Safe Flying Distance FrSky telemetry system has a feature to return the Received Signal Strength Indication (RSSI) of the receiver to the transmitter. The transmitter develops an internal voltage representing the receiver signal strength. Alarms are programmed in the transmitter to warn the pilot when the model is nearing maximum control range. See the table below for reference. Number Beep Alarming Meaning 0 No Beep The signal strength is strong 1 Single Beep The signal strength is adequate 2 Constant double Beeps The model is far, but safe range 3 Constant triple Beeps The model in near maximum range Constant Beeps Themoduleantenna is broken,or does not have intact contact, etc. FrSky Electronic Co., Ltd. Tel: (86) 510‐85187718 Fax: (86) 510‐85187728 E‐mail: frsky@frsky‐rc.com Technical Support: [email protected] Smart Port (S. Port) is a signal wire full duplex digital transmission interface developed by FrSky Electronic Co., Ltd. All products enabled with Smart Port (including XJT module, X8R receiver, new hub‐less sensors, new Smart Dashboard, etc), serial port user data and other user input/output devices can be connected without limitations for numbers or sequences at a high transmission speed. FCC STATEMENT 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. 2. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television …

Text truncated - open the document above for the full version.

FrSky Electronic Co., Ltd. To：SIEMIC INC. Declaration letter Dear Sir， Equipment Name：2.4G Radio System Model：XJT Hopping description: Divide the bandwidth from 2404MHz to 2479MHz to 250 frequency points, each bandwidth with 300KHz.The system selects 47 frequency points from 250 frequency points. The transmitting point is selected randomly, and shared the same priority. Frequency hopping time is 9ms. Hopping Sequence: Example of a 47 hopping sequence in data mode: 2, 177, 67, 217, 132, 47, 192, 112, 27, 152, 92, 32,157, 72, 222, 137, 52, 202, 117, 7, 182, 122, 12, 162, 77, 227, 142, 57, 207, 97, 37, 212, 102, 17, 167, 82, 232, 147, 62, 187, 127, 42, 172, 107, 22, 192, 87 Thank you! Signature: Printed name/title: Technical Director Address: No. 1, Software Zone B, Huize Road, Shanshuicheng Science & Education Industrial Park, Wuxi, 214081, Jiangsu, China

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (current) 2.0 3.0 Jan-31-2012 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 3.0 FrSky Electronic Co., Ltd. May 8, 2013 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, FrSky Electronic Co., Ltd. hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Product description： 2.4G Radio System model name： XJT/ XFT/XHT/FSD(T)/SXT FCC ID： XYFW2409T We affirm that between SIEMIC and FrSky Electronic Co., Ltd. , any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Client’s signature : Client’s name / title : Bryan Shao / Manager Contact information / address : FrSky Electronic Co., Ltd./ No.100 Jinxi Road ,Wuxi,Jiangsu,China

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (current) 2.0 3.0 Jan-31-2012 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 3.0 FrSky Electronic Co., Ltd. May 8, 2013 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: XYFW2409T We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Operational Description - Schematic The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature : Client’s name / title : Bryan Shao / Manager Contact information / address: FrSky Electronic Co., Ltd./ No.100 Jinxi Road ,Wuxi,Jiangsu,China

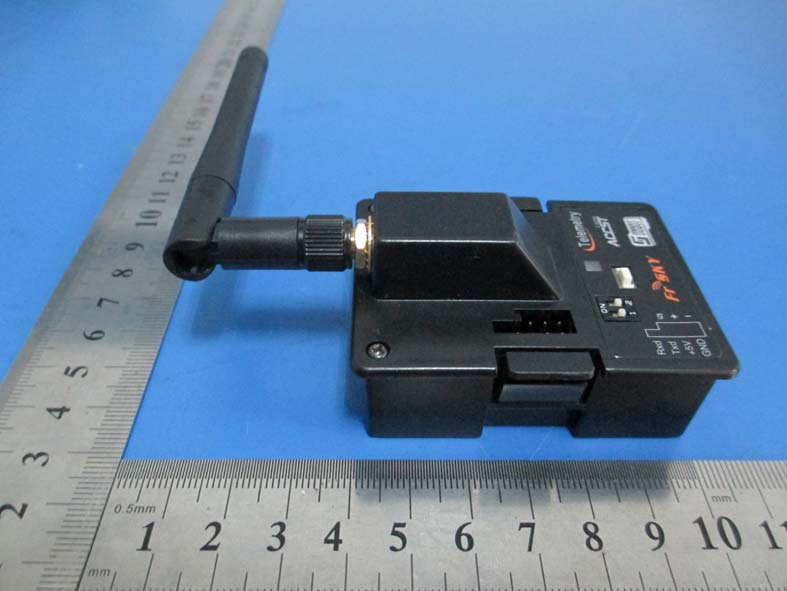

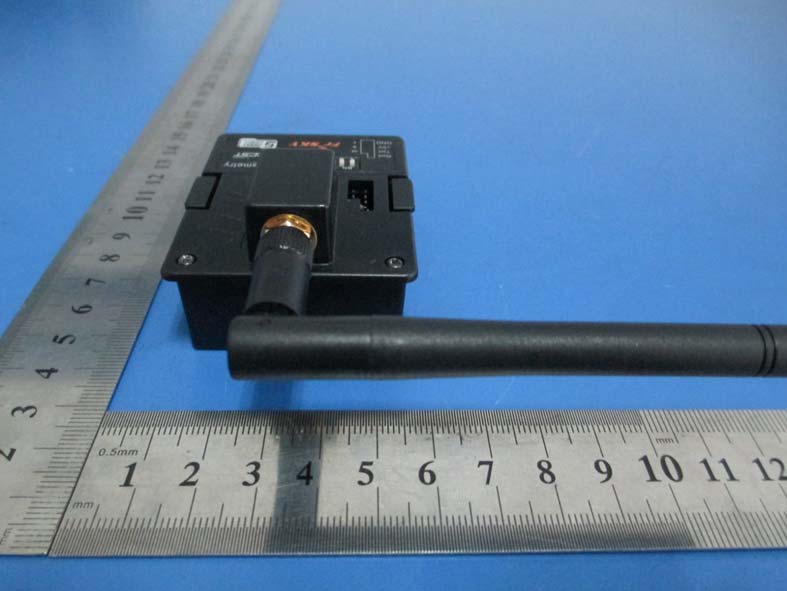

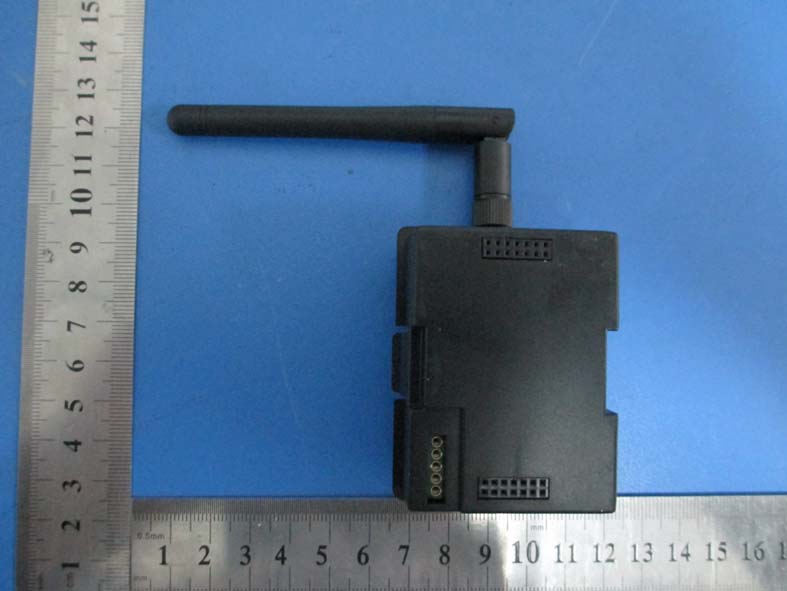

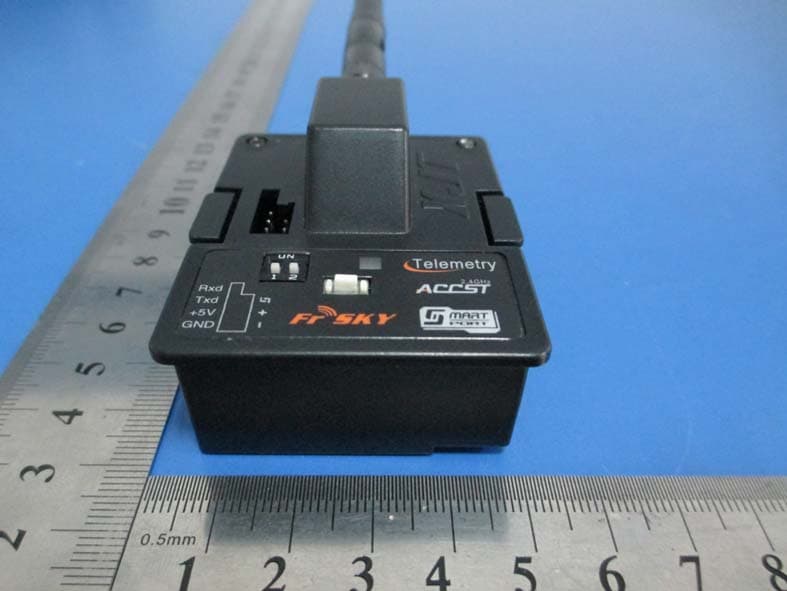

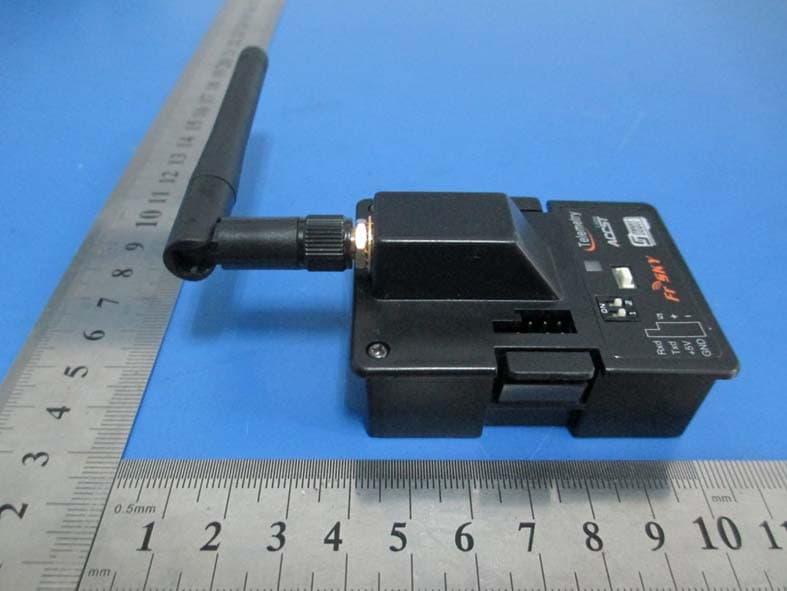

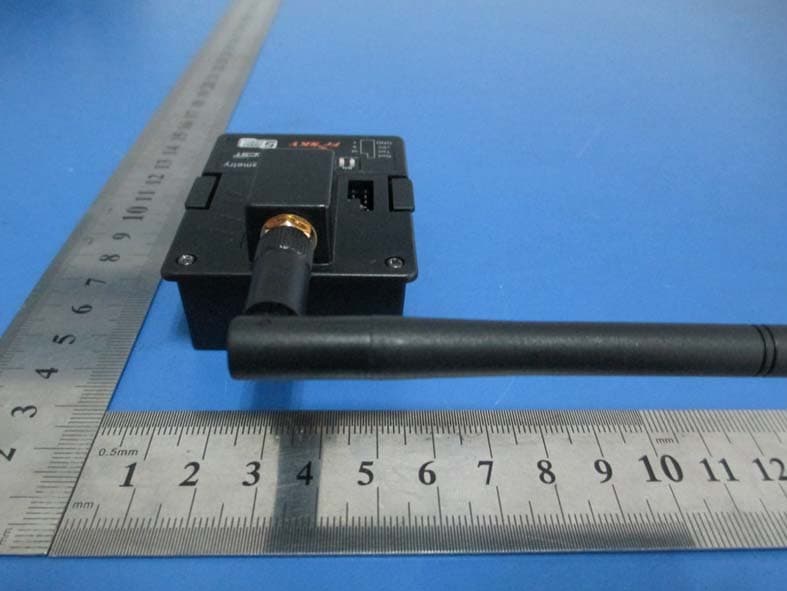

Title: RF Test Report for 2.4G Radio System Main Model: XJT Serial Model: XFT, XHT, FSD(T), SXT To: FCC Part 15.247: 2012, ANSI C63.4: 2009 Report No: 13020097-FCC-R1 Issue Date: May 15, 2013 Page: 39 of 51 www.siemic.com.cn Annex B. EUT AND TEST SETUP PHOTOGRAPHS Annex B.i. Photograph 1: EUT External Photo EUT - Front View EUT - Rear View Title: RF Test Report for 2.4G Radio System Main Model: XJT Serial Model: XFT, XHT, FSD(T), SXT To: FCC Part 15.247: 2012, ANSI C63.4: 2009 Report No: 13020097-FCC-R1 Issue Date: May 15, 2013 Page: 40 of 51 www.siemic.com.cn EUT - Top View EUT - Bottom View Title: RF Test Report for 2.4G Radio System Main Model: XJT Serial Model: XFT, XHT, FSD(T), SXT To: FCC Part 15.247: 2012, ANSI C63.4: 2009 Report No: 13020097-FCC-R1 Issue Date: May 15, 2013 Page: 41 of 51 www.siemic.com.cn EUT - Left View EUT - Right View

Label

FCC ID: XYFW2409T This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and(2) this device must accept any interference received, including interference that may cause undesired operation. Model:XJT Product Name: 2.4G Radio System Rating: DC 6~15V (6V@140mA) Manufacturer: FrSky Electronic Co.,LTD Made in China

Title: RF Test Report for 2.4G Radio System Main Model: XJT Serial Model: XFT, XHT, FSD(T), SXT To: FCC Part 15.247: 2012, ANSI C63.4: 2009 Report No: 13020097-FCC-R1 Issue Date: May 15, 2013 Page: 42 of 51 www.siemic.com.cn Annex B.ii. Photograph 2: EUT Internal Photo EUT Uncover - Front View EUT Main PCB Board – Front View Antenna Title: RF Test Report for 2.4G Radio System Main Model: XJT Serial Model: XFT, XHT, FSD(T), SXT To: FCC Part 15.247: 2012, ANSI C63.4: 2009 Report No: 13020097-FCC-R1 Issue Date: May 15, 2013 Page: 43 of 51 www.siemic.com.cn EUT Main PCB Board – Rear View

FrSky Electronic Co., Ltd. 2.4G Radio System Main Model: XJT Serial Model: XFT, XHT, FSD(T), SXT May 13, 2013 Report No.: 13020097-FCC-H1 (This report supersedes NONE) Modifications made to the product : None This Test Report is Issued Under the Authority of: Deon Dai Compliance Engineer Alex Liu Technical Manager This test report may be reproduced in full only. Test result presented in this test report is applicable to the representative sample only. Title: RF Exposure Evaluation Report for 2.4G Radio System Main Model: XJT Serial Model: XFT, XHT, FSD(T), SXT To: FCC 2.1091: 2012 Report No: 13020097-FCC-H1 Issue Date: May 13, 2013 Page: 2 of 8 www.siemic.com.cn Laboratory Introduction SIEMIC, headquartered in the heart of Silicon Valley, with superior facilities in US and Asia, is one of the leading independent testing and certification facilities providing customers with one-stop shop services for Compliance Testing and Global Certifications. In addition to testing and certification, SIEMIC provides initial design reviews and compliance management through out a project. Our extensive experience with China, Asia Pacific, North America, European, and international compliance requirements, assures the fastest, most cost effective way to attain regulatory compliance for the global markets. Accreditations for Conformity Assessment Country/Region Accreditation Body Scope USA FCC, A2LA EMC , RF/Wireless , Telecom Canada IC, A2LA, NIST EMC, RF/Wireless , Telecom Taiwan BSMI , NCC , NIST EMC, RF, Telecom , Safety Hong Kong OFTA , NIST RF/Wireless ,Telecom Australia NATA, NIST EMC, RF, Telecom , Safety Korea KCC/RRA, NIST EMI, EMS, RF , Telecom, Safety Japan VCCI, JATE, TELEC, RFTEMI, RF/Wireless, Telecom Mexico NOM, COFETEL, Caniety Safety, EMC , RF/Wireless, Telecom Europe A2LA, NIST EMC, RF, Telecom , Safety Accreditations for Product Certifications Country/Region Accreditation Body Scope USA FCC TCB, NIST EMC , RF , Telecom Canada IC FCB , NIST EMC , RF , Telecom Singapore iDA, NIST EMC , RF , Telecom EU NB EMC & R&TTE Directive Japan MIC, (RCB 208) RF , Telecom Hong Kong OFTA (US002) RF , Telecom Title: RF Exposure Evaluation Report for 2.4G Radio System Main Model: XJT Serial Model: XFT, XHT, FSD(T), SXT To: FCC 2.1091: 2012 Report No: 13020097-FCC-H1 Issue Date: May 13, 2013 Page: 3 of 8 www.siemic.com.cn This page has been left blank intentionally. Title: RF Exposure Evaluation Report for 2.4G Radio System Main Model: XJT Serial Model: XFT, XHT, FSD(T), SXT To: FCC 2.1091: 2012 Report No: 13020097-FCC-H1 Issue Date: May 13, 2013 Page: 4 of 8 www.siemic.com.cn CONTENTS 1. EXECUTIVE SUMMARY & EUT INFORMATION ........................................................................................... 5 2. TECHNICAL DETAILS .......................................................................................................................................... 6 3. MAXIMUM PERMISSIBLE EXPOSURE (MPE) .................................................................................................. 7 FCC §2.1091 - MAXIMUM PERMISSIBLE EXPOSURE (MPE) ................................................................................... 7 Title: RF Exposure Evaluation Report for 2.4G Radio System Main Model: XJT Serial Model: XFT, XHT, FSD(T), SXT To: FCC 2.1091: 2012 Report No: 13020097-FCC-H1 Issue Date: May 13, 2013 Page: 5 of 8 www.siemic.com.cn 1. EXECUTIVE SUMMARY & EUT INFORMATION The purpose of this test programme was to demonstrate compliance of the FrSky Electronic Co., Ltd., 2.4G Radio System and model: XJT against the current Stipulated Standards. The 2.4G Radio System has demonstrated compliance with the FCC 2.1091: 2012. EUT Information EUT Description : 2.4G Radio System Main Model : XJT Serial Model XFT, XHT, FSD(T), SXT Antenna Gain : 2 dBi Input Power : DC: 6~15V Maximum Conducted Peak Power to Antenna : 18.58 dBm Temperature -10ºC to 45ºC Classification Per Stipulated Test Standard : FCC 2.1091: 2012 NOTE：in this report, we choice the model XJT to test, and the differences of them are only different mode name and shape, like all the other. Title: RF Exposure Evaluation Report for 2.4G Radio System Main Model: XJT Serial Model: XFT, XHT, FSD(T), SXT To: FCC 2.1091: 2012 Report No: 13020097-FCC-H1 Issue Date: May 13, 2013 Page: 6 of 8 www.siemic.com.cn 2. TECHNICAL DETAILS Purpose Compliance testing of 2.4G Radio System with stipulated standard Applicant / Client FrSky Electronic Co., Ltd. No.100 Jinxi Road ,Wuxi,Jiangsu,China Manufacturer FrSky Electronic Co., Ltd. No.100 Jinxi Road ,Wuxi,Jiangsu,China Laboratory performing the tests SIEMIC Nanjing (China) Laboratories NO.2-1,Longcang Dadao, Yuhua Economic Development Zone, Nanjing, China Tel:+86(25)86730128/86730129 Fax:+86(25)86730127 Email:[email protected] Test report reference number 13020097-FCC-H1 Date EUT received April 23, 2013 Standard applied FCC 2.1091: 2012 Dates of test April 27 to May 08, 2013 No of Units #1 Equipment Category DSS Trade Name Frsky RF Operating Frequency (ies) 2404-2479 MHz(Tx) Number of Channels 47CH Modulation 2-FSK FCC ID XYFW2409T Title: RF Exposure Evaluation Report for 2.4G Radio System Main Model: XJT Serial Model: XFT, XHT, FSD(T), SXT To: FCC 2.1091: 2012 Report No: 13020097-FCC-H1 Issue Date: May 13, 2013 Page: 7 of 8 www.siemic.com.cn 3. MAXIMUM PERMISSIBLE EXPOSURE (MPE) FCC §2.1091 - MAXIMUM PERMISSIBLE EXPOSURE (MPE) Applicable Standard According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1091 RF exposure is calculated. Limits for General Population/Uncontrolled Exposure Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm2) Averaging Time (minutes) 0.3-1.34 614 1.63 *(100) 30 1.34-30 824…

Text truncated - open the document above for the full version.

FrSky Electronic Co., Ltd. 2.4G Radio System Main Model: XJT Serial Model: XFT, XHT, FSD(T), SXT May 15, 2013 Report No.: 13020097-FCC-R1 (This report supersedes NONE) Modifications made to the product : None This Test Report is Issued Under the Authority of: Deon Dai Compliance Engineer Alex Liu Technical Manager This test report may be reproduced in full only. Test result presented in this test report is applicable to the representative sample only. Title: RF Test Report for 2.4G Radio System Main Model: XJT Serial Model: XFT, XHT, FSD(T), SXT To: FCC Part 15.247: 2012, ANSI C63.4: 2009 Report No: 13020097-FCC-R1 Issue Date: May 15, 2013 Page: 2 of 51 www.siemic.com.cn Laboratory Introduction SIEMIC, headquartered in the heart of Silicon Valley, with superior facilities in US and Asia, is one of the leading independent testing and certification facilities providing customers with one-stop shop services for Compliance Testing and Global Certifications. In addition to testing and certification, SIEMIC provides initial design reviews and compliance management through out a project. Our extensive experience with China, Asia Pacific, North America, European, and international compliance requirements, assures the fastest, most cost effective way to attain regulatory compliance for the global markets. Accreditations for Conformity Assessment Country/Region Accreditation Body Scope USA FCC, A2LA EMC , RF/Wireless , Telecom Canada IC, A2LA, NIST EMC, RF/Wireless , Telecom Taiwan BSMI , NCC , NIST EMC, RF, Telecom , Safety Hong Kong OFTA , NIST RF/Wireless ,Telecom Australia NATA, NIST EMC, RF, Telecom , Safety Korea KCC/RRA, NIST EMI, EMS, RF , Telecom, Safety Japan VCCI, JATE, TELEC, RFTEMI, RF/Wireless, Telecom Mexico NOM, COFETEL, Caniety Safety, EMC , RF/Wireless, Telecom Europe A2LA, NIST EMC, RF, Telecom , Safety Accreditations for Product Certifications Country/Region Accreditation Body Scope USA FCC TCB, NIST EMC , RF , Telecom Canada IC FCB , NIST EMC , RF , Telecom Singapore iDA, NIST EMC , RF , Telecom EU NB EMC & R&TTE Directive Japan MIC, (RCB 208) RF , Telecom Hong Kong OFTA (US002) RF , Telecom Title: RF Test Report for 2.4G Radio System Main Model: XJT Serial Model: XFT, XHT, FSD(T), SXT To: FCC Part 15.247: 2012, ANSI C63.4: 2009 Report No: 13020097-FCC-R1 Issue Date: May 15, 2013 Page: 3 of 51 www.siemic.com.cn This page has been left blank intentionally. Title: RF Test Report for 2.4G Radio System Main Model: XJT Serial Model: XFT, XHT, FSD(T), SXT To: FCC Part 15.247: 2012, ANSI C63.4: 2009 Report No: 13020097-FCC-R1 Issue Date: May 15, 2013 Page: 4 of 51 www.siemic.com.cn CONTENTS 1 EXECUTIVE SUMMARY & EUT INFORMATION .......................................................................................... 5 2 TECHNICAL DETAILS ......................................................................................................................................... 6 3 MODIFICATION ..................................................................................................................................................... 7 4 TEST SUMMARY .................................................................................................................................................... 8 5 MEASUREMENTS, EXAMINATION AND DERIVED RESULTS .................................................................. 9 ANNEX A. TEST INSTRUMENT & METHOD ........................................................................................................ 33 ANNEX B. EUT AND TEST SETUP PHOTOGRAPHS ........................................................................................... 39 ANNEX C. TEST SETUP AND SUPPORTING EQUIPMENT ................................................................................ 46 ANNEX D. USER MANUAL / BLOCK DIAGRAM / SCHEMATICS / PART LIST ............................................ 50 ANNEX E. DECLARATION OF SIMILARITY ........................................................................................................ 51 Title: RF Test Report for 2.4G Radio System Main Model: XJT Serial Model: XFT, XHT, FSD(T), SXT To: FCC Part 15.247: 2012, ANSI C63.4: 2009 Report No: 13020097-FCC-R1 Issue Date: May 15, 2013 Page: 5 of 51 www.siemic.com.cn 1 EXECUTIVE SUMMARY & EUT INFORMATION The purpose of this test programme was to demonstrate compliance of the FrSky Electronic Co., Ltd., 2.4G Radio System and model: XJT against the current Stipulated Standards. The 2.4G Radio System has demonstrated compliance with the FCC Part 15.247: 2012, ANSI C63.4: 2009. EUT Information EUT Description : 2.4G Radio System Main Model : XJT Serial Model : XFT, XHT, FSD(T), SXT Antenna Gain : 2 dBi Input Power : DC: 6~15V Temperature -10ºC to 45ºC Classification Per Stipulated Test Standard : FCC Part 15.247: 2012, ANSI C63.4: 2009 NOTE: in this report, we choice the model XJT to test, and the differences of them are only different mode name and shape, like all the other. Title: RF Test Report for 2.4G Radio System Main Model: XJT Serial Model: XFT, XHT, FSD(T), SXT To: FCC Part 15.247: 2012, ANSI C63.4: 2009 Report No: 13020097-FCC-R1 Issue Date: May 15, 2013 Page: 6 of 51 www.siemic.com.cn 2 TECHNICAL DETAILS Purpose Compliance testing of 2.4G Radio System with stipulated standard Applicant / Client FrSky Electronic Co., Ltd. No.100 Jinxi Road ,Wuxi,Jiangsu,China Manufacturer FrSky Electronic Co., Ltd. No.100 Jinxi Road ,Wuxi,Jiangsu,China Laboratory performing the tests SIEMIC Nanjing (China) Laboratories NO.2-1,Longcang Dadao, Yuhua Economic Development Zone, Nanjing, China Tel:+86(25)86730128/86730129 Fax:+86(25)86730127 Email:[email protected] Test report reference number 13020097-FCC-R1 Date EUT received April 23, 2013 Standard applied FCC Part 15.247: 2012, ANSI C63.4: 2009 Dates of test (from – to) April 27 to May 13, 2013 No of Units #1 Equipment Category DSS Trade Name Frsky RF Operating Frequency (ies) 2404 - 2479 MHz(Tx) Number of Channels 47 CH Modulation …

Text truncated - open the document above for the full version.

Title: RF Test Report for 2.4G Radio System Main Model: XJT Serial Model: XFT, XHT, FSD(T), SXT To: FCC Part 15.247: 2012, ANSI C63.4: 2009 Report No: 13020097-FCC-R1 Issue Date: May 15, 2013 Page: 44 of 51 www.siemic.com.cn Annex B.iii. Photograph 3: Test Setup Photo Conducted Emissions Test Setup Front View Conducted Emissions Test Setup Side View Title: RF Test Report for 2.4G Radio System Main Model: XJT Serial Model: XFT, XHT, FSD(T), SXT To: FCC Part 15.247: 2012, ANSI C63.4: 2009 Report No: 13020097-FCC-R1 Issue Date: May 15, 2013 Page: 45 of 51 www.siemic.com.cn Radiated Emissions Test Setup Below 1GHz - Rear View Radiated Emissions Test Setup Above 1GHz - Front View
