Antenna distance from front control surface about 25mm Antenna distance from Back surface about 33mm Antenna distance from left edge about 90mm Antenna distance from right edge about 90mm About 45mm Antenna distance from bottom edge about 180mm

FrSky Electronic Co., Ltd. To：SIEMIC INC. Declaration letter Dear Sir， Equipment Name：Digital Telemetry Radio System Model：TARANIS X9D Hopping description: Divide the bandwidth from 2404MHz to 2479MHz to 250 frequency points, each bandwidth with 300KHz.The system selects 47 frequency points from 250 frequency points. The transmitting point is selected randomly, and shared the same priority. Frequency hopping time is 9ms. Hopping Sequence: Example of a 47 hopping sequence in data mode: 2, 177, 67, 217, 132, 47, 192, 112, 27, 152, 92, 32,157, 72, 222, 137, 52, 202, 117, 7, 182, 122, 12, 162, 77, 227, 142, 57, 207, 97, 37, 212, 102, 17, 167, 82, 232, 147, 62, 187, 127, 42, 172, 107, 22, 192, 87 Thank you! Signature: Printed name/title: Technical Director Address: No. 1, Software Zone B, Huize Road, Shanshuicheng Science & Education Industrial Park, Wuxi, 214081, Jiangsu, China

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (current) 2.0 3.0 Jan-31-2012 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 3.0 FrSky Electronic Co., Ltd. May 8, 2013 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, FrSky Electronic Co., Ltd. hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Product description: Digital Telemetry Radio System model name： TARANIS X9D/ HORUS X12D /X16D/S4D/S6D FCC ID：XYFX91216DK We affirm that between SIEMIC and _ FrSky Electronic Co., Ltd.,any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Client’s signature : Client’s name / title : Bryan Shao / Manager Contact information / address: FrSky Electronic Co., Ltd./ No.100 Jinxi Road ,Wuxi,Jiangsu,China

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (current) 2.0 3.0 Jan-31-2012 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 3.0 FrSky Electronic Co., Ltd. May 8, 2013 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: XYFX91216DK We hereby request confidential treatment of information accompanying this application as outlined below: - e.g. Block Diagram - e.g. Schematics - e.g. Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature : Client’s name / title : Bryan Shao / Manager Contact information / address: FrSky Electronic Co., Ltd./ No.100 Jinxi Road ,Wuxi,Jiangsu,China

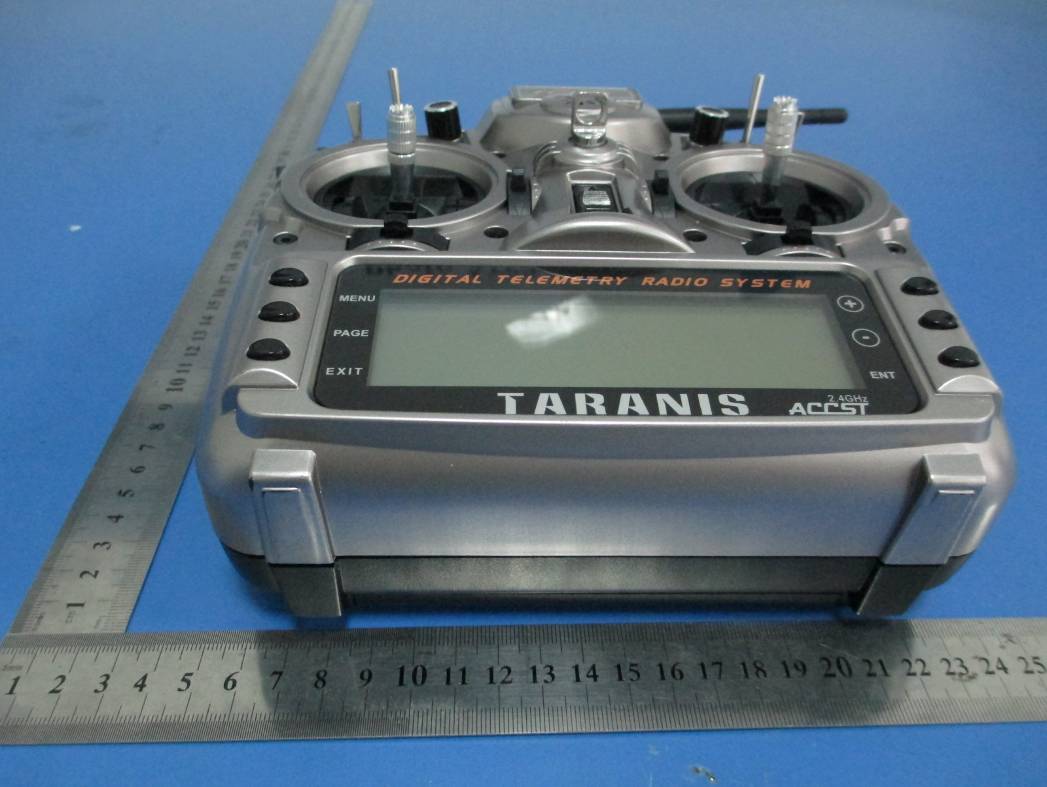

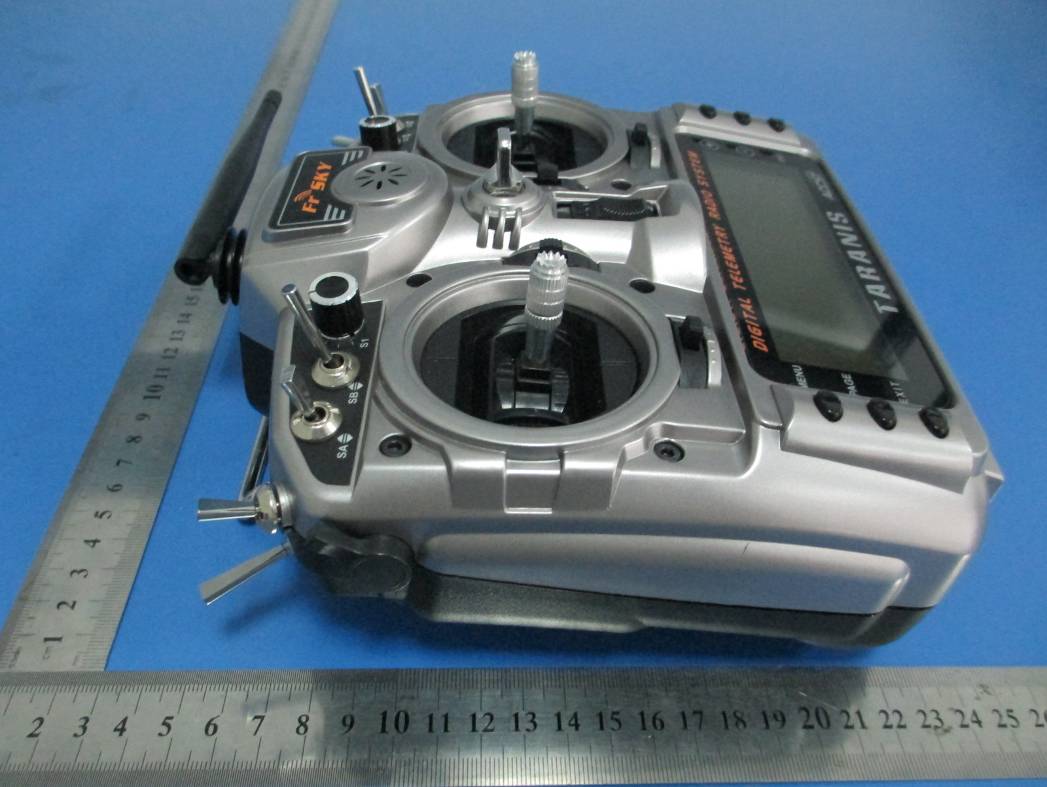

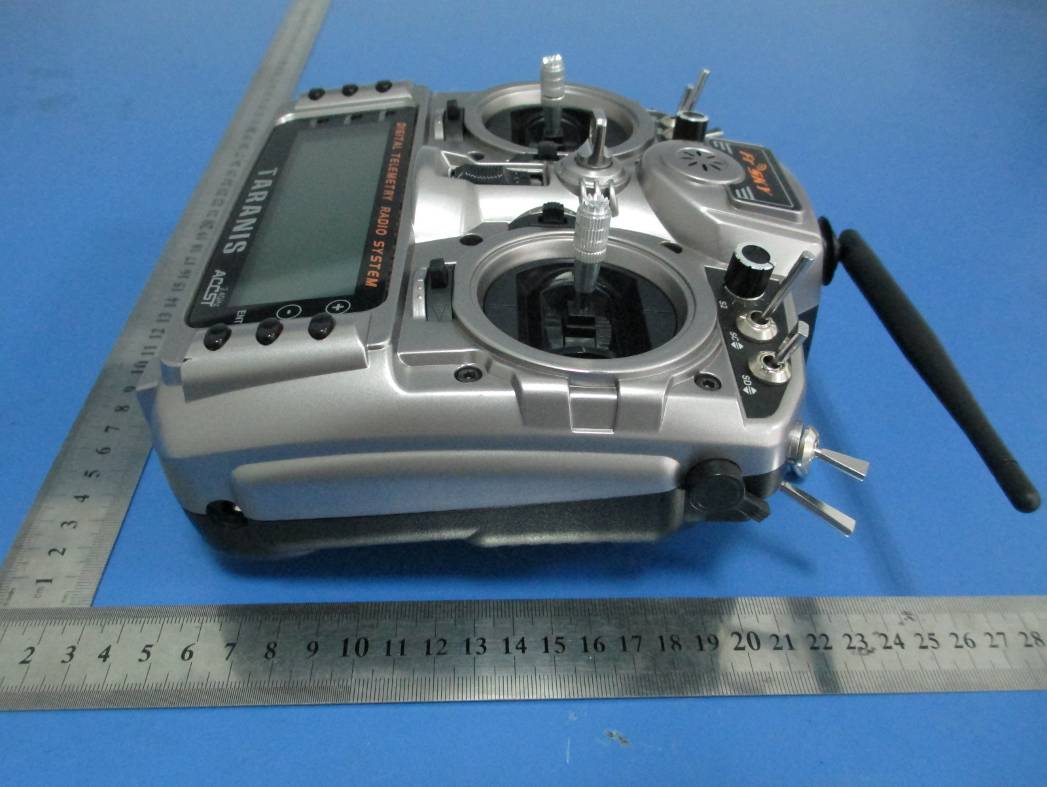

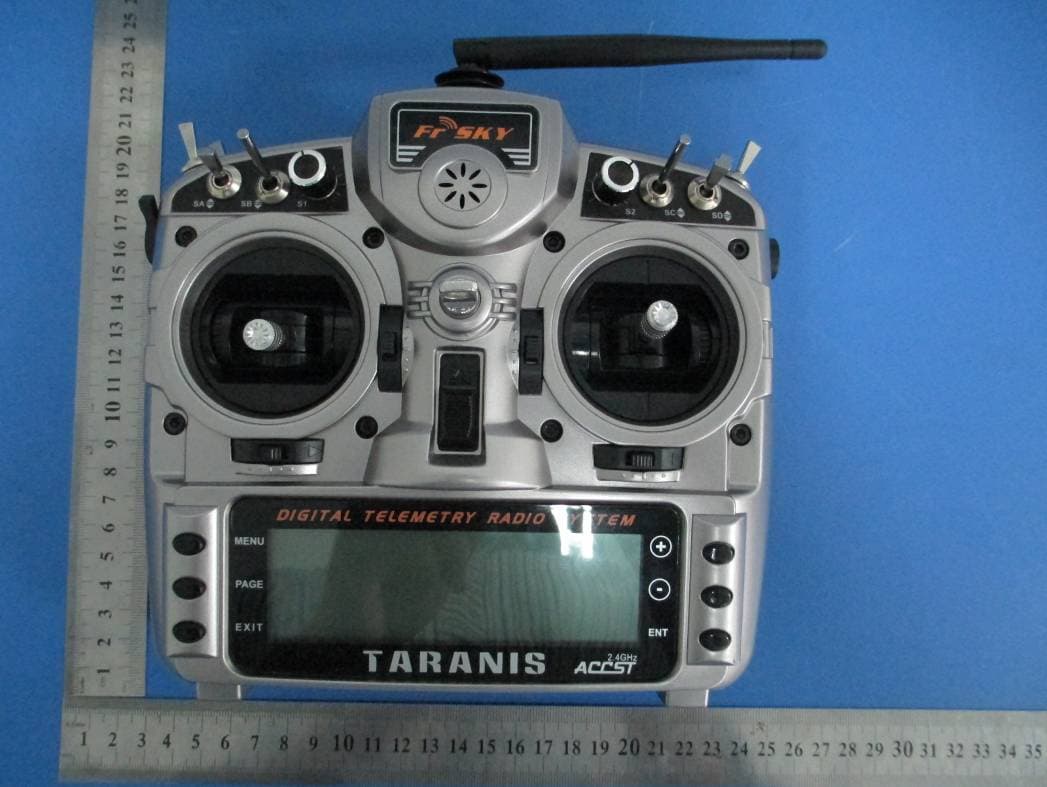

Title: RF Test Report for Digital Telemetry Radio System Main Model: TARANIS X9D Serial Model: HORUS X12D, X16D, S4D, S6D To: FCC Part 15.247: 2012, ANSI C63.4: 2009 Report No: 13020317-FCC-R1 Issue Date: May 14, 2013 Page: 36 of 54 www.siemic.com.cn Annex B. EUT AND TEST SETUP PHOTOGRAPHS Annex B.i. Photograph 1: EUT External Photo Whole Package - Top View Adapter Front View Title: RF Test Report for Digital Telemetry Radio System Main Model: TARANIS X9D Serial Model: HORUS X12D, X16D, S4D, S6D To: FCC Part 15.247: 2012, ANSI C63.4: 2009 Report No: 13020317-FCC-R1 Issue Date: May 14, 2013 Page: 37 of 54 www.siemic.com.cn EUT - Front View EUT - Rear View Title: RF Test Report for Digital Telemetry Radio System Main Model: TARANIS X9D Serial Model: HORUS X12D, X16D, S4D, S6D To: FCC Part 15.247: 2012, ANSI C63.4: 2009 Report No: 13020317-FCC-R1 Issue Date: May 14, 2013 Page: 38 of 54 www.siemic.com.cn EUT - Top View EUT - Bottom View Title: RF Test Report for Digital Telemetry Radio System Main Model: TARANIS X9D Serial Model: HORUS X12D, X16D, S4D, S6D To: FCC Part 15.247: 2012, ANSI C63.4: 2009 Report No: 13020317-FCC-R1 Issue Date: May 14, 2013 Page: 39 of 54 www.siemic.com.cn EUT - Left View EUT - Right View

FCC ID: XYFX91216DK Digital Telemetry Radio System DC 7.2V 260mA Made in China Manufacturer: FrSky Electronic Co.,LTD Model:

Title: RF Test Report for Digital Telemetry Radio System Main Model: TARANIS X9D Serial Model: HORUS X12D, X16D, S4D, S6D To: FCC Part 15.247: 2012, ANSI C63.4: 2009 Report No: 13020317-FCC-R1 Issue Date: May 14, 2013 Page: 40 of 54 www.siemic.com.cn Annex B.ii. Photograph 2: EUT Internal Photo Cover Off - Top View1 Battery - Front View Title: RF Test Report for Digital Telemetry Radio System Main Model: TARANIS X9D Serial Model: HORUS X12D, X16D, S4D, S6D To: FCC Part 15.247: 2012, ANSI C63.4: 2009 Report No: 13020317-FCC-R1 Issue Date: May 14, 2013 Page: 41 of 54 www.siemic.com.cn Uncover view 1 Uncover view 2 Title: RF Test Report for Digital Telemetry Radio System Main Model: TARANIS X9D Serial Model: HORUS X12D, X16D, S4D, S6D To: FCC Part 15.247: 2012, ANSI C63.4: 2009 Report No: 13020317-FCC-R1 Issue Date: May 14, 2013 Page: 42 of 54 www.siemic.com.cn Uncover view 3 Module – Front View Antenna Title: RF Test Report for Digital Telemetry Radio System Main Model: TARANIS X9D Serial Model: HORUS X12D, X16D, S4D, S6D To: FCC Part 15.247: 2012, ANSI C63.4: 2009 Report No: 13020317-FCC-R1 Issue Date: May 14, 2013 Page: 43 of 54 www.siemic.com.cn PCB 1 - Front View PCB 1 - Rear View Title: RF Test Report for Digital Telemetry Radio System Main Model: TARANIS X9D Serial Model: HORUS X12D, X16D, S4D, S6D To: FCC Part 15.247: 2012, ANSI C63.4: 2009 Report No: 13020317-FCC-R1 Issue Date: May 14, 2013 Page: 44 of 54 www.siemic.com.cn PCB 2 - Front View PCB 2 - Rear View Title: RF Test Report for Digital Telemetry Radio System Main Model: TARANIS X9D Serial Model: HORUS X12D, X16D, S4D, S6D To: FCC Part 15.247: 2012, ANSI C63.4: 2009 Report No: 13020317-FCC-R1 Issue Date: May 14, 2013 Page: 45 of 54 www.siemic.com.cn PCB 3 - Front View PCB 3 - Rear View Title: RF Test Report for Digital Telemetry Radio System Main Model: TARANIS X9D Serial Model: HORUS X12D, X16D, S4D, S6D To: FCC Part 15.247: 2012, ANSI C63.4: 2009 Report No: 13020317-FCC-R1 Issue Date: May 14, 2013 Page: 46 of 54 www.siemic.com.cn PCB 4 - Front View PCB 4 - Rear View

FrSky Electronic Co., Ltd. Digital Telemetry Radio System Main Model: TARANIS X9D Serial Model: HORUS X12D, X16D, S4D, S6D May 15, 2013 Report No.: 13020317-FCC-H1 (This report supersedes NONE) Modifications made to the product : None This Test Report is Issued Under the Authority of: Deon Dai Compliance Engineer Alex Liu Technical Manager This test report may be reproduced in full only. Test result presented in this test report is applicable to the representative sample only. Title: RF Exposure Evaluation Report for Digital Telemetry Radio System Main Model: TARANIS X9D Serial Model: HORUS X12D, X16D, S4D, S6D To: KDB447498-D01-V05 Report No: 13020317-FCC-H1 Issue Date: May 15, 2013 Page: 2 of 7 www.siemic.com Laboratory Introduction SIEMIC, headquartered in the heart of Silicon Valley, with superior facilities in US and Asia, is one of the leading independent testing and certification facilities providing customers with one-stop shop services for Compliance Testing and Global Certifications. In addition to testing and certification, SIEMIC provides initial design reviews and compliance management through out a project. Our extensive experience with China, Asia Pacific, North America, European, and international compliance requirements, assures the fastest, most cost effective way to attain regulatory compliance for the global markets. Accreditations for Conformity Assessment Country/Region Accreditation Body Scope USA FCC, A2LA EMC , RF/Wireless , Telecom Canada IC, A2LA, NIST EMC, RF/Wireless , Telecom Taiwan BSMI , NCC , NIST EMC, RF, Telecom , Safety Hong Kong OFTA , NIST RF/Wireless ,Telecom Australia NATA, NIST EMC, RF, Telecom , Safety Korea KCC/RRA, NIST EMI, EMS, RF , Telecom, Safety Japan VCCI, JATE, TELEC, RFTEMI, RF/Wireless, Telecom Mexico NOM, COFETEL, Caniety Safety, EMC , RF/Wireless, Telecom Europe A2LA, NIST EMC, RF, Telecom , Safety Accreditations for Product Certifications Country/Region Accreditation Body Scope USA FCC TCB, NIST EMC , RF , Telecom Canada IC FCB , NIST EMC , RF , Telecom Singapore iDA, NIST EMC , RF , Telecom EU NB EMC & R&TTE Directive Japan MIC, (RCB 208) RF , Telecom Hong Kong OFTA (US002) RF , Telecom Title: RF Exposure Evaluation Report for Digital Telemetry Radio System Main Model: TARANIS X9D Serial Model: HORUS X12D, X16D, S4D, S6D To: KDB447498-D01-V05 Report No: 13020317-FCC-H1 Issue Date: May 15, 2013 Page: 3 of 7 www.siemic.com This page has been left blank intentionally. Title: RF Exposure Evaluation Report for Digital Telemetry Radio System Main Model: TARANIS X9D Serial Model: HORUS X12D, X16D, S4D, S6D To: KDB447498-D01-V05 Report No: 13020317-FCC-H1 Issue Date: May 15, 2013 Page: 4 of 7 www.siemic.com CONTENTS 1. EXECUTIVE SUMMARY & EUT INFORMATION ........................................................................................... 5 2. TECHNICAL DETAILS .......................................................................................................................................... 6 3. MAXIMUM PERMISSIBLE MEASUREMENT ..................................................................................................... 7 FCC §2.1091 - RF EXPOSURE MEASUREMENT ......................................................................................................... 7 Title: RF Exposure Evaluation Report for Digital Telemetry Radio System Main Model: TARANIS X9D Serial Model: HORUS X12D, X16D, S4D, S6D To: KDB447498-D01-V05 Report No: 13020317-FCC-H1 Issue Date: May 15, 2013 Page: 5 of 7 www.siemic.com 1. EXECUTIVE SUMMARY & EUT INFORMATION The purpose of this test programme was to demonstrate compliance of the FrSky Electronic Co., Ltd., Digital Telemetry Radio System and model: TARANIS X9D against the current Stipulated Standards. The Digital Telemetry Radio System has demonstrated compliance with the KDB447498-D01-V05. EUT Information EUT Description : Digital Telemetry Radio System Main Model : TARANIS X9D Serial Model HORUS X12D, X16D, S4D, S6D Antenna Gain : 2 dBi Input Power : Switching Adapter Model: YN6W-1200050VZ Input: 100-240V 50/60Hz 0.2A Output: 12.0V 0.5A Maximum Conducted Peak Power to Antenna : 18.58 dBm Classification Per Stipulated Test Standard : KDB447498-D01-V05 Title: RF Exposure Evaluation Report for Digital Telemetry Radio System Main Model: TARANIS X9D Serial Model: HORUS X12D, X16D, S4D, S6D To: KDB447498-D01-V05 Report No: 13020317-FCC-H1 Issue Date: May 15, 2013 Page: 6 of 7 www.siemic.com 2. TECHNICAL DETAILS Purpose Compliance testing of Digital Telemetry Radio System with stipulated standard Applicant / Client FrSky Electronic Co., Ltd. No.100 Jinxi Road ,Wuxi,Jiangsu,China Manufacturer FrSky Electronic Co., Ltd. No.100 Jinxi Road ,Wuxi,Jiangsu,China Laboratory performing the tests SIEMIC Nanjing (China) Laboratories NO.2-1,Longcang Dadao, Yuhua Economic Development Zone, Nanjing, China Tel:+86(25)86730128/86730129 Fax:+86(25)86730127 Email:[email protected] Test report reference number 13020317-FCC-H1 Date EUT received April 23, 2013 Standard applied KDB447498-D01-V05 Dates of test April 27, 2013 to May 08, 2013 No of Units #1 Equipment Category DSS Trade Name Frsky RF Operating Frequency (ies) 2404-2479 MHz(Tx) Number of Channels 47CH Modulation 2-FSK FCC ID XYFX91216DK Title: RF Exposure Evaluation Report for Digital Telemetry Radio System Main Model: TARANIS X9D Serial Model: HORUS X12D, X16D, S4D, S6D To: KDB447498-D01-V05 Report No: 13020317-FCC-H1 Issue Date: May 15, 2013 Page: 7 of 7 www.siemic.com 3. MAXIMUM PERMISSIBLE MEASUREMENT FCC §2.1093 - RF EXPOSURE MEASUREMENT Applicable Standard Device use in hand, this is extremity exposure condition, please refer to follow: According to KDB447498-D01-V05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: Test Result: Pass The min test separation distance is 25mm (antenna to user) The exclusion thresholds power is 120.009 (mW) Maximum peak output power at antenna input…

Text truncated - open the document above for the full version.

FrSky Electronic Co., Ltd. Digital Telemetry Radio System Main Model: TARANIS X9D Serial Model: HORUS X12D, X16D, S4D, S6D May 14, 2013 Report No.: 13020317-FCC-R1 (This report supersedes NONE) Modifications made to the product : None This Test Report is Issued Under the Authority of: Deon Dai Compliance Engineer Alex Liu Technical Manager This test report may be reproduced in full only. Test result presented in this test report is applicable to the representative sample only. Title: RF Test Report for Digital Telemetry Radio System Main Model: TARANIS X9D Serial Model: HORUS X12D, X16D, S4D, S6D To: FCC Part 15.247: 2012, ANSI C63.4: 2009 Report No: 13020317-FCC-R1 Issue Date: May 14, 2013 Page: 2 of 54 www.siemic.com.cn Laboratory Introduction SIEMIC, headquartered in the heart of Silicon Valley, with superior facilities in US and Asia, is one of the leading independent testing and certification facilities providing customers with one-stop shop services for Compliance Testing and Global Certifications. In addition to testing and certification, SIEMIC provides initial design reviews and compliance management through out a project. Our extensive experience with China, Asia Pacific, North America, European, and international compliance requirements, assures the fastest, most cost effective way to attain regulatory compliance for the global markets. Accreditations for Conformity Assessment Country/Region Accreditation Body Scope USA FCC, A2LA EMC , RF/Wireless , Telecom Canada IC, A2LA, NIST EMC, RF/Wireless , Telecom Taiwan BSMI , NCC , NIST EMC, RF, Telecom , Safety Hong Kong OFTA , NIST RF/Wireless ,Telecom Australia NATA, NIST EMC, RF, Telecom , Safety Korea KCC/RRA, NIST EMI, EMS, RF , Telecom, Safety Japan VCCI, JATE, TELEC, RFTEMI, RF/Wireless, Telecom Mexico NOM, COFETEL, Caniety Safety, EMC , RF/Wireless, Telecom Europe A2LA, NIST EMC, RF, Telecom , Safety Accreditations for Product Certifications Country/Region Accreditation Body Scope USA FCC TCB, NIST EMC , RF , Telecom Canada IC FCB , NIST EMC , RF , Telecom Singapore iDA, NIST EMC , RF , Telecom EU NB EMC & R&TTE Directive Japan MIC, (RCB 208) RF , Telecom Hong Kong OFTA (US002) RF , Telecom Title: RF Test Report for Digital Telemetry Radio System Main Model: TARANIS X9D Serial Model: HORUS X12D, X16D, S4D, S6D To: FCC Part 15.247: 2012, ANSI C63.4: 2009 Report No: 13020317-FCC-R1 Issue Date: May 14, 2013 Page: 3 of 54 www.siemic.com.cn This page has been left blank intentionally. Title: RF Test Report for Digital Telemetry Radio System Main Model: TARANIS X9D Serial Model: HORUS X12D, X16D, S4D, S6D To: FCC Part 15.247: 2012, ANSI C63.4: 2009 Report No: 13020317-FCC-R1 Issue Date: May 14, 2013 Page: 4 of 54 www.siemic.com.cn CONTENTS 1 EXECUTIVE SUMMARY & EUT INFORMATION .......................................................................................... 5 2 TECHNICAL DETAILS ......................................................................................................................................... 6 3 MODIFICATION ..................................................................................................................................................... 7 4 TEST SUMMARY .................................................................................................................................................... 8 5 MEASUREMENTS, EXAMINATION AND DERIVED RESULTS .................................................................. 9 ANNEX A. TEST INSTRUMENT & METHOD ........................................................................................................ 30 ANNEX B. EUT AND TEST SETUP PHOTOGRAPHS ........................................................................................... 36 ANNEX C. TEST SETUP AND SUPPORTING EQUIPMENT ................................................................................ 48 ANNEX D. USER MANUAL / BLOCK DIAGRAM / SCHEMATICS / PART LIST ............................................ 52 ANNEX E. DECLARATION OF SIMILARITY ........................................................................................................ 53 Title: RF Test Report for Digital Telemetry Radio System Main Model: TARANIS X9D Serial Model: HORUS X12D, X16D, S4D, S6D To: FCC Part 15.247: 2012, ANSI C63.4: 2009 Report No: 13020317-FCC-R1 Issue Date: May 14, 2013 Page: 5 of 54 www.siemic.com.cn 1 EXECUTIVE SUMMARY & EUT INFORMATION The purpose of this test programme was to demonstrate compliance of the FrSky Electronic Co., Ltd., Digital Telemetry Radio System and model: TARANIS X9D against the current Stipulated Standards. The Digital Telemetry Radio System has demonstrated compliance with the FCC Part 15.247: 2012, ANSI C63.4: 2009. EUT Information EUT Description : Digital Telemetry Radio System Main Model : TARANIS X9D Serial Model : HORUS X12D, X16D, S4D, S6D Antenna Gain : 2 dBi Input Power : Switching Adapter Model: YN6W-1200050VZ Input: 100-240V 50/60Hz 0.2A Output: 12.0V 0.5A Temperature -10ºC to 45ºC Classification Per Stipulated Test Standard : FCC Part 15.247: 2012, ANSI C63.4: 2009 NOTE ：in this report, we choice the model TARANIS X9D to test, and the differences of them please refer to the Annex E. DECLARATION OF SIMILARITY. Title: RF Test Report for Digital Telemetry Radio System Main Model: TARANIS X9D Serial Model: HORUS X12D, X16D, S4D, S6D To: FCC Part 15.247: 2012, ANSI C63.4: 2009 Report No: 13020317-FCC-R1 Issue Date: May 14, 2013 Page: 6 of 54 www.siemic.com.cn 2 TECHNICAL DETAILS Purpose Compliance testing of Digital Telemetry Radio System with stipulated standard Applicant / Client FrSky Electronic Co., Ltd. No.100 Jinxi Road ,Wuxi,Jiangsu,China Manufacturer FrSky Electronic Co., Ltd. No.100 Jinxi Road ,Wuxi,Jiangsu,China Laboratory performing the tests SIEMIC Nanjing (China) Laboratories NO.2-1,Longcang Dadao, Yuhua Economic Development Zone, Nanjing, China Tel:+86(25)86730128/86730129 Fax:+86(25)86730127 Email:[email protected] Test report ref…

Text truncated - open the document above for the full version.

Title: RF Test Report for Digital Telemetry Radio System Main Model: TARANIS X9D Serial Model: HORUS X12D, X16D, S4D, S6D To: FCC Part 15.247: 2012, ANSI C63.4: 2009 Report No: 13020317-FCC-R1 Issue Date: May 14, 2013 Page: 47 of 54 www.siemic.com.cn Annex B.iii. Photograph 3: Test Setup Photo Radiated Emissions Test Setup Below 1GHz - Rear View Radiated Emissions Test Setup Above 1GHz - Front View
