XYH-BR250U1FM Handheld Transceiver

Copyright © 2009 Discount Two-Way Radio - North American Distributor 1 BR250 TM Professional Two-Way Radio Instruction Manual THANK YOU! Thank you for purchasing the BR250 TM Professional Two-Way Radio by RCA Communications Systems. With its exquisite, ergonomic design, the BR250 TM is customized for logistics, warehousing, construction, property management and service industries. It meets Class IP54 requirements for dust and water and is equipped with a large speaker. This easy-to-use, push-to-talk radio will deliver you secure, instant and reliable communications at peak efficiency. Please carefully read this manual before use in order to achieve maximum performance from your radio. MODELS COVERED IN THIS MANUAL: • BR250 VHF Two-Way Radio • BR250 UHF Two-Way Radio Copyright © 2009 Discount Two-Way Radio - North American Distributor BR250 TM Professional Two-Way Radio Instruction Manual 2 Safety and General Information.....................4 Product Inspection.........................................5 RCA BR250 TM Overview.................................7 Battery Information.....................................10 Initial Use.............................................10 Applicable Battery Packs.......................10 Battery Tips..........................................10 Tips to Prolong Battery Life...................11 Battery Storage.....................................11 Charging the Battery.............................11 Steps for Setting Up Your Charger...............13 Troubleshooting...................................14 No LED Indication............................14 Red LED Flashes Rapidly...................14 Antenna Information...................................15 Assembly and Disassembly...........................15 Attaching the Battery...........................15 Removing the Battery...........................16 Attaching the Antenna........................17 Removing the Antenna........................17 Attaching / Removing the Belt Clip......18 Attaching the Earpiece / Microphone...19 Removing the Earpiece / Microphone...19 General Radio Operations and Functions.....20 Radio Operations.................................20 Turn the Radio On/Off......................20 Adjust the Volume............................20 Select a Channel...............................21 Transmitting......................................21 Receiving..........................................21 Radio Functions....................................21 Time-out Timer (TOT).......................21 Battery Save Mode...........................21 Battery Strength Indicator.................22 Low Battery Alert.............................23 Busy Channel Lockout (BCL).............23 Voice Operated Transmit (VOX)........23 Troubleshooting..........................................25 CONTENTS: Copyright © 2009 Discount Two-Way Radio - North American Distributor 3 BR250 TM Professional Two-Way Radio Instruction Manual Care and Cleaning......................................26 Optional Accessories...................................27 Glossary......................................................32 Warranty Statement....................................33 CONTENTS continued -worn: 5.60W/Kg duty factor are- Face Held:5.60W/Kg, Body The highest reported SAR value at 50% Copyright © 2009 Discount Two-Way Radio - North American Distributor BR250 TM Professional Two-Way Radio Instruction Manual 4 SAFETY AND GENERAL INFORMATION Please observe the following general safety precautions during all phases of operation, service and repair of this equipment. »Turn radio off prior entering any area with a potentially explosive atmosphere, such as gas, petroleum, chemicals, blasting caps, etc. »Do not charge the battery in a potentially explosive atmosphere. »Do not use any portable radio that has a damaged antenna, as it can burn skin. »This equipment is to be serviced only by authorized RCA Communications Systems technicians. Any service performed by unauthorized technicians will void the warranty. »Turn radio off when near electrical blasting caps to avoid possible interference with blasting operations. Obey posted signs such as those in hospitals or blasting areas advising people to turn off all two-way radios. Obey pilots and flight attendants instructions to turn off radios on airplanes. »Do not place a radio over an air bag or in an air bag’s deployment area, as the force with which an air bag is inflated could propel the radio and may cause serious injury. » Do not place the radio close to a heat source or expose the radio to direct sunlight for a prolonged time. »Hold the radio while in use in a vertical position with the microphone one to two inches away from your lips. »While wearing a transmitting radio, keep the radio and its antenna at least one inch away from your body. » Copyright © 2009 Discount Two-Way Radio - North American Distributor 5 BR250 TM Professional Two-Way Radio Instruction Manual PRODUCT INSPECTION Prior to unpacking the BR250 TM portable radio, please inspect the packaging for signs of damage and report any damage or missing components immediately to your RCA Communications Systems Sales and Service Outlet. Every BR250 TM portable radio comes with the following items: ItemQty.(PCS) CH250R - Desktop Rapid Charger1 B250LI - Li-Ion Battery (1700mAh)1 PS250R - Power Supply1 BC250 - Belt Clip1 STR250 - Handy Carry Strap (prevents dropping the BR250) 1 AN250U - Antenna for UHF Models AN250V - Antenna for VHF Models 1 Instruction Manual1 B250LI Li-Ion Battery (2000mAh) CH250R Desktop Rapid Charger PS250R Power Supply BC250 Belt Clip STR250 Handy Carry Strap Antenna AN250U - UHF models AN250V - VHF models Copyright © 2009 Discount Two-Way Radio - North American Distributor BR250 TM Professional Two-Way Radio Instruction Manual 6 Notes: The frequency band of the BR250 TM is marked on the radio label. If it is not visible, identify the frequency band according to the color circle on the antenna: red indi…

Text truncated - open the document above for the full version.

RF Energy Exposure Awareness and Control Information and Operational Instructions for Occupational Use NOTICE: This radio is intended for use in occupational/controlled conditions where users have full knowledge of their exposure and can exercise control over their exposure to meet the occupational limits in FCC and International standards. This radio device is NOT authorized for general population consumer use. This two-way radio uses electromagnetic energy in the radio frequency (RF) spectrum to provide communications between two or more users over a distance. It uses radio frequency (RF) energy or radio waves to send and receive calls. RF energy is one form of electromagnetic energy. Other forms include, but are not limited to, sunlight and x-rays. RF energy, however, should not be confused with these other forms of electromagnetic energy, which when used improperly, can cause biological damage. Very high levels of x-rays, for example, can damage tissues and genetic material. Experts in science, engineering, medicine, health, and industry work with organizations to develop standards for safe exposure to RF energy. These standards provide recommended levels of RF exposure for both workers and the general public. These recommended RF exposure levels include substantial margins of protection. All RCA Communications Systems’ two-way radios are designed, manufactured, and tested to ensure they meet government-established RF exposure levels. In addition, manufacturers also recommend specific operating instructions to users of two-way radios. These instructions are important because they inform users about RF energy exposure and provide simple procedures on how to control it. Please refer to the following websites for more information on what RF energy exposure is and how to control your exposure to assure compliance with established RF exposure limits:http://www.fcc.gov/oet/rfsafety/rf-faqs.html http://www.osha.gov/SLTC/radiofrequencyradiation/index.html Federal Communication Commission (FCC) Regulations The FCC rules require manufacturers to comply with the FCC RF energy exposure limits for portable two-way radios before they can be marketed in the U.S. When two-way radios are used as a consequence of employment, the FCC requires users to be fully aware of and able to control their exposure to meet occupational requirements. Exposure awareness can be facilitated by the use of a product label directing users to specific user awareness information. RCA Communications Systems’ two-way radio has a RF Exposure Product Label. Also, RCA Communications Systems’ user manual or separate safety booklet includes information and operating instructions required to control your RF exposure and to satisfy compliance requirements. Compliance with RF Exposure Standards RCA Communications Systems’ two-way radio is designed and tested to comply with a number of national and International standards and guidelines (listed below) for human exposure to radio frequency electromagnetic energy. This radio complies with the IEEE (FCC) and ICNIRP exposure limits for occupational/controlled RF exposure environments at operating duty factors of up to 50% talk-50% listen and is authorized by the FCC for occupational use only. In terms of measuring RF energy for compliance with these exposure guidelines, your radio generates measurable RF energy only while it is transmitting (during talking), not when it is receiving (listening) or in standby mode. RCA Communications Systems’ two-way radio complies with the following RF energy exposure standards and guidelines: ● United States Federal Communications Commission, Code of Federal Regulations; 47CFR part 2 sub-part J ● Ministry of Health (Canada) Safety Code 6. Limits of Human Exposure to Radio frequency Electromagnetic Fields in the Frequency Range from 3 kHz to 300 GHz, 1999 ● Australian Communications Authority Radiocommunications (Electromagnetic Radiation - Human Exposure) Standard, 2003 ● American National Standards Institute (ANSI) I Institute of Electrical and Electronic Engineers (IEEE) C95.1-1992 ● Institute of Electrical and Electronic Engineers (IEEE) C95.1-2005 Edition ● International Commission on Non-Ionizing Radiation Protection (lCNIRP) 1998 ● ANATEL ANNEX to Resolution No. 303 of July 2, 2002 “Regulation of limitation of exposure to electrical, magnetic and electromagnetic field in the radio frequency range between 9 KHz and 300GHz “and “Attachment to resolution # 303 from July 2, 2002." RF Exposure Compliance and Control Guidelines and Operating Instructions To control your exposure and ensure compliance with the occupational/controlled environment exposure limits, always adhere to the following procedures. Guidelines: ● Do not remove the RF Exposure label from the device. ● User awareness instructions should accompany device when transferred to other users. ● Do not use this device if the operational requirements described herein are not met. Operating Instructions ● Transmit no more than the rated duty factor of 50% of the time. To transmit (talk), push the Push-To-Talk (PTT) button. To receive calls, release the PTT button. Transmitting 50% of the time, or less, is important because this radio generates measurable RF energy exposure only when transmitting (in terms of measuring for standards compliance). Two-Way Radio Operation ● Hold the radio in a vertical position in front of the face with the microphone (and other parts of the radio including the antenna) at least one inch (2.5 centimeters) away from the nose or lips. Antenna should be kept away from the eye. Keeping the radio at a proper distance is important since RF exposures decrease with increasing distance from the antenna. Body Worn Operation ● When worn on the body, always place the radio in a RCA Communications Systems -approved clip, holder, holster, case, or body harness for this product. Using approved body worn accessories is important because the use of non- RCA Communications Systems -…

Text truncated - open the document above for the full version.

Justification Letter DATE: April 19, 2010 Federal Communications Commission Authorization & Evaluation Division 7435 Oakland Mills Road Colombia, Maryland 21046 FCC ID: XYH-BR250U1 Model: BR250U (1) Dear Sir/Madam, We , RCA Communications Systems acknowledge that this device will not be marketed to USA users with the frequency band which is not allowed by rule part 90.and it is a violation of FCC rules if this device is operated on unauthorised frequencies inside the U.S.A. We , RCA Communications Systems acknowledge this equipment meets the requirements of FCC Rules, Parts 90.203 (e) and (g) as applicable. Programming of this product's transmit frequencies can be performed ONLY by the manufacturer or by service or maintenance personnel. The operator cannot program transmit frequencies using the equipment's external operation. RCA Communications Systems Veronica Garcia/Manager Fax: +1 877 822 2915 Tel: +1 877 822 2915 E-mail:[email protected]

RCA Communications Systems Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: This letter is to comply with Sections 0.457 and 0.459 pertaining to confidential material. RCA Communications Systems would like the following documents regarding this submission for FCC ID: XYH- BR250U1 to be kept confidential. 1. Block Diagram 2. Schematic 3. Theory of Operation The above material contains trade secrets or technical data, which would customarily be guarded from competitors. We do not want these documents to be accessible to the general public. Sincerely yours, RCA Communications Systems Veronica Garcia/Manager Fax: +1 877 822 2915 Tel: +1 877 822 2915 E-mail:[email protected]

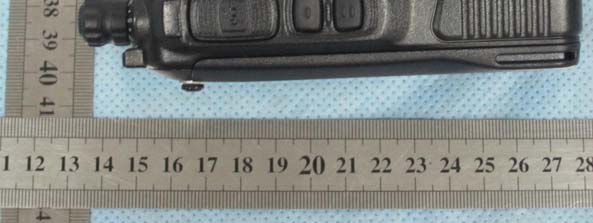

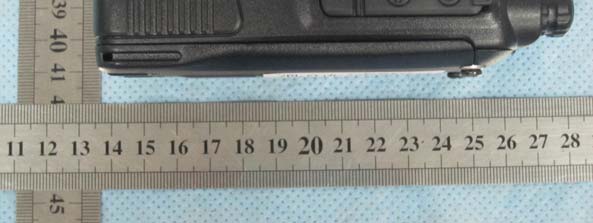

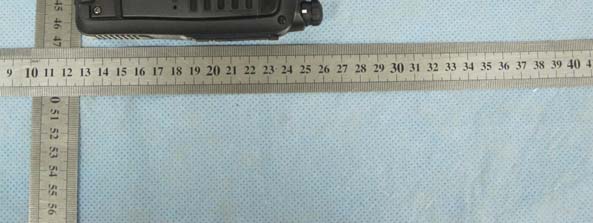

External photos of the EUT

Internal photos of the EUT

BR250U(1) UHF Parts List 1 No.Material No.DescriptionQty. Ref. No. Address 13001050000000Chip resistor 0402 0Ω J 1/161C222T2K 23001050000000Chip resistor 0402 0Ω J 1/161R244B1E 33001050000000Chip resistor 0402 0Ω J 1/161R308T4J 43001050000000Chip resistor 0402 0Ω J 1/161R317T3I 53001051000020Chip resistor 0402 10Ω F 1/161R116T3G 63001051000020Chip resistor 0402 10Ω F 1/161R241B3K 73001051000020Chip resistor 0402 10Ω F 1/161R243B2A 83001051000020Chip resistor 0402 10Ω F 1/161R247B2C 93001051000020Chip resistor 0402 10Ω F 1/161R406T5F 103001051000020Chip resistor 0402 10Ω F 1/161R408*T5F 113001051000020Chip resistor 0402 10Ω F 1/161R653T4G 123001051000020Chip resistor 0402 10Ω F 1/161R654T4G 133001051010040Chip resistor 0402 100Ω F 1/11R108*T4G 143001051010040Chip resistor 0402 100Ω F 1/11R202B1D 153001051010040Chip resistor 0402 100Ω F 1/11R540T2G 163001051010040Chip resistor 0402 100Ω F 1/11R660B5J 173001051010040Chip resistor 0402 100Ω F 1/11R697B4J 183001051010040Chip resistor 0402 100Ω F 1/11R698B4J 193001051020000Chip resistor 0402 1KΩ F 1/161R102T4I 203001051020000Chip resistor 0402 1KΩ F 1/161R110T3G 213001051020000Chip resistor 0402 1KΩ F 1/161R206B1F 223001051020000Chip resistor 0402 1KΩ F 1/161R246B2D 233001051020000Chip resistor 0402 1KΩ F 1/161R250B1C 243001051020000Chip resistor 0402 1KΩ F 1/161R309*T3I 253001051020000Chip resistor 0402 1KΩ F 1/161R310T4J 263001051020000Chip resistor 0402 1KΩ F 1/161R643T2E 273001051020000Chip resistor 0402 1KΩ F 1/161R644B3I 283001051020000Chip resistor 0402 1KΩ F 1/161R649T2D 293001051020000Chip resistor 0402 1KΩ F 1/161R650T4G 303001051020000Chip resistor 0402 1KΩ F 1/161R657B3I 313001051020000Chip resistor 0402 1KΩ F 1/161R658B3J 323001051020000Chip resistor 0402 1KΩ F 1/161R670B5K 333001051020000Chip resistor 0402 1KΩ F 1/161R694B3J 343001051030000Chip resistor 0402 10K Ω J 1/11R104T5I 353001051030000Chip resistor 0402 10KΩ J 1/11R112*T3G 363001051030000Chip resistor 0402 10KΩ J 1/11R212*T2J 373001051030000Chip resistor 0402 10KΩ J 1/11R213T1K 383001051030000Chip resistor 0402 10KΩ J 1/11R256B1E 393001051030000Chip resistor 0402 10KΩ J 1/11R261B4I 403001051030000Chip resistor 0402 10KΩ J 1/11R300T3J 413001051030000Chip resistor 0402 10KΩ J 1/11R301T3J 423001051030000Chip resistor 0402 10KΩ J 1/11R302T3J 433001051030000Chip resistor 0402 10KΩ J 1/11R400T3F No.Material No.DescriptionQty. Ref. No.AddressRemarks 44 3001051020000Chip resistor 0402 1KΩ F 1/161 R670B5K 45 3001051020000Chip resistor 0402 1KΩ F 1/161 R694B3J 46 3001051030000Chip resistor 0402 10KΩ J 1/11 R104T5I 47 3001051030000Chip resistor 0402 10KΩ J 1/11 R112*T3GU1:400-420MHz 48 3001051030000Chip resistor 0402 10KΩ J 1/11U2:450-470MHz 49 3001055620000Chip resistor 0402 5.6KΩ J 1/1U3:440-470MHz 50 3001055620000Chip resistor 0402 5.6KΩ J 1/1U4:470-490MHz 51 3001051030000Chip resistor 0402 10KΩ J 1/11U7:420-450MHz 52 3001051030000Chip resistor 0402 10KΩ J 1/11 R212*T2JU1:400-420MHz 53 3001051030000Chip resistor 0402 10KΩ J 1/11U2:450-470MHz 54 3001053330000Chip resistor 0402 33KΩ F 1/11U3:440-470MHz 55 3001053330000Chip resistor 0402 33KΩ F 1/11U4:470-490MHz 56 3001051030000Chip resistor 0402 10KΩ J 1/11U7:420-450MHz 57 3001051030000Chip resistor 0402 10KΩ J 1/11 R213T1K 58 3001051030000Chip resistor 0402 10KΩ J 1/11 R256B1E 59 3001051030000Chip resistor 0402 10KΩ J 1/11 R261B4I 60 3001051030000Chip resistor 0402 10KΩ J 1/11 R300T3J 61 3001051030000Chip resistor 0402 10KΩ J 1/11 R301T3J 62 3001051030000Chip resistor 0402 10KΩ J 1/11 R302T3J 63 3001051030000Chip resistor 0402 10KΩ J 1/11 R400T3F 64 3001051030000Chip resistor 0402 10KΩ J 1/11 R436B4C 65 3001051030000Chip resistor 0402 10KΩ J 1/11 R439B4D 66 3001051030000Chip resistor 0402 10KΩ J 1/11 R530T3F 67 3001051030000Chip resistor 0402 10KΩ J 1/11 R695B3J 68 3001051030000Chip resistor 0402 10KΩ J 1/11 R696B3J 69 3001051040000Chip resistor 0402 100KΩ F 1/1 R208B1F 70 3001051040000Chip resistor 0402 100KΩ F 1/1 R260B4I 71 3001051040000Chip resistor 0402 100KΩ F 1/1 R262B4H 72 3001051040000Chip resistor 0402 100KΩ F 1/1 R266T4H 73 3001051040000Chip resistor 0402 100KΩ F 1/1 R311T2I 74 3001051040000Chip resistor 0402 100KΩ F 1/1 R501T3D 75 3001051040000Chip resistor 0402 100KΩ F 1/1 R502T3D 76 3001051040000Chip resistor 0402 100KΩ F 1/1 R507*T2FU1:400-420MHz 77NCNC1U2:450-470MHz 78 3001051040000Chip resistor 0402 100KΩ F 1/1U3:440-470MHz 79 3001051040000Chip resistor 0402 100KΩ F 1/1U4:470-490MHz 80NCNC1U7:420-450MHz 81 3001051040000Chip resistor 0402 100KΩ F 1/1 R509T2F 82 3001051040000Chip resistor 0402 100KΩ F 1/1 R512T2G 83 3001051040000Chip resistor 0402 100KΩ F 1/1 R514T2G 84 3001051040000Chip resistor 0402 100KΩ F 1/1 R645B4I 85 3001051040000Chip resistor 0402 100KΩ F 1/1 R646B4I 86 3001051040000Chip resistor 0402 100KΩ F 1/1 R647B3I 87 3001051040000Chip resistor 0402 100KΩ F 1/1 R652T4G 88 3001051040000Chip resistor 0402 100KΩ F 1/1 R655B3J No.Material No.DescriptionQty. Ref. No.AddressRemarks 89 3001051050000Chip resistor 0402 1MΩ F 1/161 R251B1F 90 3001051050000Chip resistor 0402 1MΩ F 1/161 R437B4D 91 3001051050000Chip resistor 0402 1MΩ F 1/161 R500*T2EU1:400-420MHz 92 3001051050000Chip resistor 0402 1MΩ F 1/161U2:450-470MHz 93 3001051040000Chip resistor 0402 100KΩ F 1/1U3:440-470MHz 94 3001051040000Chip resistor 0402 100KΩ F 1/1U4:470-490MHz 95 3001051050000Chip resistor 0402 1MΩ F 1/161U7:420-450MHz 96 3001051050000Chip resistor 0402 1MΩ F 1/161 R667B4I 97 3001051230000Chip resistor 0402 12KΩ J 1/11 R222T2K 98 3001051230000Chip resistor 0402 12KΩ J 1/11 R313T3I 99 3001051230000Chip resistor 0402 12KΩ J 1/11 R314T3J 100 3001051230000Chip resistor 0402 12KΩ J 1/11 R315T3J 101 3001051230000Chip resistor 0402 12KΩ J 1/11 R504T3F 102 3001051240000Chip resistor 0402 120KΩ J 1/1 R109T3G 103 3001051240000Chip resistor 0402 120KΩ J 1/1 R229T3K 104 3001051510010Chip resistor 0402 150Ω F 1/11 R105*T5GU1:400-420MHz 105 3001051010040Chip resistor 0402 100Ω F 1/11U2:450-470MHz 106 3001051510010Chip resistor 0402 150Ω F 1/11U3:44…

Text truncated - open the document above for the full version.

Report No.: RZA2010-0678 TESTING No. L2264 TEST REPORT Product Name Two-Way Radio Model BR250U(1) FCC ID XYH-BR250U1 Client RCA Communications Systems TA Technology (Shanghai) Co., Ltd. GENERAL SUMMARY Product Name Two-Way Radio Model BR250U(1) FCC ID XYH-BR250U1 Report No. RZA2010-0678 Client RCA Communications Systems Manufacturer RCA Communications Systems Reference Standard(s) IEEE Std C95.1, 1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 KHz to 300 GHz. SUPPLEMENT C Edition 01-01 to OET BULLETIN 65 Edition 97-01 June 2001 including DA 02-1438 June 19, 2002: Evaluating Compliance with FCC Guidelines for Human Exposure to Radiofrequency Electromagnetic Fields Additional Information for Evaluation Compliance of Mobile and Portable Devices with FCC Limits for Human Exposure to Radiofrequency Emissions. IEEE Std 1528™-2003: IEEE Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techniques. Conclusion This portable wireless equipment has been measured in all cases requested by the relevant standards. Test results in Chapter 7 of this test report are below limits specified in the relevant standards. General Judgment: Pass (Stamp) Date of issue: May 10 th , 2010 Comment The test result only responds to the measured sample. Approved by Yang Weizhong Revised by Ling Minbao Performed by Wang Lu TA Technology (Shanghai) Co., Ltd. Test Report Report No. RZA2010-0678 Page 3of 59 TABLE OF CONTENT 1. General Information ..................................................................................................................... 4 1.1. Notes of the test report.........................................................................................................4 1.2. Testing laboratory .................................................................................................................4 1.3. Applicant Information ............................................................................................................5 1.4. Manufacturer Information ......................................................................................................5 1.5. Information of EUT................................................................................................................6 1.6. Test Date ..............................................................................................................................6 2. Operational Conditions during Test ..............................................................................................7 3. SAR Measurements System Configuration .................................................................................. 8 3.1. SAR Measurement Set-up ....................................................................................................8 3.2. DASY5 E-field Probe System ...............................................................................................9 3.2.1. ET3DV6 Probe Specification .........................................................................................9 3.2.2. E-field Probe Calibration ..............................................................................................10 3.3. Other Test Equipment .........................................................................................................10 3.3.1. Device Holder for Transmitters ....................................................................................10 3.3.2. Phantom...................................................................................................................... 11 3.4. Scanning procedure............................................................................................................ 11 3.5. Data Storage and Evaluation ..............................................................................................13 3.5.1. Data Storage................................................................................................................13 3.5.2. Data Evaluation by SEMCAD ......................................................................................13 3.6. System check......................................................................................................................16 3.7. Equivalent Tissues ..............................................................................................................17 4. Laboratory Environment............................................................................................................. 17 5. Charcteristics of the Test ............................................................................................................ 18 5.1. Applicable Limit Regulations ...............................................................................................18 5.2. Applicable Measurement Standards...................................................................................18 6. Conducted Output Power Measurement.................................................................................... 19 6.1. Conducted Power Results ..................................................................................................19 7. Test Results ............................................................................................................................... 20 7.1. Dielectric Performance........................................................................................................20 7.2. System Check Results ........................................................................................................20 7.3. Summary of Measurement Results.....................................................................................21 7.4. Conclusion ..........................................................................................................................22 8. Measure…

Text truncated - open the document above for the full version.

FCC PART 90 and RSS-119 TEST REPORT FCC Part 90 and RSS-119 Report Reference No......................: FCC ID..............................................: IC. .....................................................: WE10040009 XYH-BR250U1 8759A-BR250U1 Compiled by ( position+printed name+signature) .: File administrators Xiankun Ding Supervised by ( position+printed name+signature) .: Test Engineer Wenliang Li Approved by ( position+printed name+signature) .: Manager Jimmy Li Date of issue.....................................: Apr 20, 2010 Testing Laboratory Name..............: Shenzhen Huatongwei International Inspection Co., Ltd Address ............................................: Keji Nan No.12 Road, Hi-tech Park, Shenzhen, China Applicant’s name............................: RCA Communications Systems Address ............................................: PO Box 80222 Indianapolis,IN 46280 Test specification: Standard ...........................................: FCC Part 90: PRIVATE LAND TWO-WAY RADIO SERVICES RSS-119 Issue 10: Land Mobile and Fixed Radio Transmitters and Receivers Operating in the Frequency Range 27.41-960 MHz TRF Originator..................................: Shenzhen Huatongwei International Inspection CO., Ltd Master TRF.......................................: Dated 2006-06 Shenzhen Huatongwei International Inspection Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Huatongwei International Inspection Co., Ltd is acknowledged as copyright owner and source of the material. Shenzhen Huatongwei International Inspection Co., Ltd takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .....................: Two-Way Radio Trade Mark ....................................... : / Model/Type reference ......................: BR250U(1) Listed Models .................................. : / Ratings ............................................. : DC 7.40V Modulation ....................................... : FM Result ............................................... : Positive T E S T R E P O R T Test Report No. : WE10040009 Apr 20, 2010 ______________________________________________________________________________________________ Date of issue Equipment under Test : Two-Way Radio Model /Type : BR250U(1) Listed Models : / Applicant : RCA Communications Systems Address : PO Box 80222 Indianapolis,IN 46280 Manufacturer : RCA Communications Systems Address : PO Box 80222 Indianapolis,IN 46280 Test Result according to the standards on page 4: Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Contents 1. TEST STANDARDS 4 2. SUMMARY 5 2.1. General Remarks 5 2.2. Product Description 5 2.3. Equipment Under Test 5 2.4. Short description of the Equipment under Test (EUT) 5 2.5. EUT Configuration 5 2.6. EUT operation mode 6 2.7. EUT configuration 6 2.8. Related Submittal(s) / Grant (s) 6 2.9. Modifications 6 3. TEST ENVIRONMENT 7 3.1. Address of the test laboratory 7 3.2. Test Facility 7 3.3. Environmental conditions 8 3.4. Configuration of Tested System 8 3.5. Discription of Tested Modes 8 3.6. Statement of the measurement uncertainty 8 3.7. Test Description 9 3.8. Equipments Used during the Test 9 4. TEST CONDITIONS AND RESULTS 11 4.1. Conducted Emissions Test 11 4.2. Occupied Bandwidth Test 15 4.3. Transmitter Radiated Spurious Emssion 24 4.4. Spurious Emssion On Antenna Port 30 4.5. Modulation Charcateristics 37 4.6. Frequency Stability Test 40 4.7. Maximum Transmitter Power 45 4.8. Transmitter Frequency Behavior 49 4.9. Receiver Radiated Spurious Emssion 52 5. TEST SETUP PHOTOS OF THE EUT 58 6. EXTERNAL AND INTERNAL PHOTOS OF THE EUT 61 1. TEST STANDARDS The tests were performed according to following standards: FCC Rules Part 90: PRIVATE LAND TWO-WAY RADIO SERVICES. RSS-119 Issue 10 April 2010: Spectrum Management and Telecommunications Radio Standards Specification Land Mobile and Fixed Radio …
