XYH-RDR3500VTwo Way Radio

Model: RDR3500V FCC Caution: Any Changes or m odifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. digital device, pursuant to part 15 of the FCC Rules. These limits are designed to IC statement The device has been tested and compliance with SAR limits, users can obtain Canadian information on RF exposure and compliance Après examen de ce matériel aux conformité aux limites DAS et/ou aux limites d’intensité de champ RF, les utilisateurs peuvent sur l’exposition aux radiofréquences et la conformité and compliance d’acquérir les informations correspondantes RF Exposure Compliance and Control Guid elines and Operating Instructions To control your exposure and ensure compliance with the occupational/controlled environment exposure limits always adhere to the following procedures. Guidelines: Do not remove the RF Exposure Label from the device. User awareness instructions should accompany device when transferred to other users. Do not use this device if the operational requirements described herein are not met. Operating Instructions: Transmit no more than the rated duty factor of 50% of the time. To transmit (talk), push the Push-To-Talk (PTT) button. To receive calls, release the PTT button. Transmitting 50% of the time, orless, is important because this radio generates measurable RF energy exposure only when transmitting (in terms of measuring for standards compliance). Hold the radio in a vertical position in front of face with the microphone (and the other parts of the radio, including the antenna) at least one inch (2.5 cm) away from the nose. Keeping the radio at the proper distance is important because RF exposures decrease with distance from the antenna. Antenna should be kept away from eyes. When worn on the body, always place the radio in a approved clip, holder, holster, case, or body harness for this product. Using approved body-worn accessories is important because the use of or other manufacturer’s non-approved accessories may xposure levels, which exceed the FCC’s RF exposure limits. If you are not using a body-worn accessory and are not using the radio in the intended use position in front of the face, then ensure the antenna and the radio are kept at least 2.5 cm (one inch) from the body when transmitting. Keeping the radio at the proper distance is important because RF exposures decrease with increasing distance from the antenna. Use only approved batteries, and accessories. Use of non-manufacturer-nameapproved antennas, batteries, and accessories may exceed the FCC RF exposure guidelines. RCA Communications Systems RCA Communications Systems supplied or replancement antennas, Communications Systems RCA result in e occupational/controlled environment

Model:RDR3600V  FCC Caution: Any Changes or m odifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. digital device, pursuant to part 15 of the FCC Rules. These limits are designed to IC statement The device has been tested and compliance with SAR limits, users can obtain Canadian information on RF exposure and compliance Après examen de ce matériel aux conformité aux limites DAS et/ou aux limites d’intensité de champ RF, les utilisateurs peuvent sur l’exposition aux radiofréquences et la conformité and compliance d’acquérir les informations correspondantes RF Exposure Compliance and Control Guid elines and Operating Instructions To control your exposure and ensure compliance with the occupational/controlled environment exposure limits always adhere to the following procedures. Guidelines: Do not remove the RF Exposure Label from the device. User awareness instructions should accompany device when transferred to other users. Do not use this device if the operational requirements described herein are not met. Operating Instructions: Transmit no more than the rated duty factor of 50% of the time. To transmit (talk), push the Push-To-Talk (PTT) button. To receive calls, release the PTT button. Transmitting 50% of the time, orless, is important because this radio generates measurable RF energy exposure only when transmitting (in terms of measuring for standards compliance). Hold the radio in a vertical position in front of face with the microphone (and the other parts of the radio, including the antenna) at least one inch (2.5 cm) away from the nose. Keeping the radio at the proper distance is important because RF exposures decrease with distance from the antenna. Antenna should be kept away from eyes. When worn on the body, always place the radio in a approved clip, holder, holster, case, or body harness for this product. Using approved body-worn accessories is important because the use of or other manufacturer’s non-approved accessories may xposure levels, which exceed the FCC’s RF exposure limits. If you are not using a body-worn accessory and are not using the radio in the intended use position in front of the face, then ensure the antenna and the radio are kept at least 2.5 cm (one inch) from the body when transmitting. Keeping the radio at the proper distance is important because RF exposures decrease with increasing distance from the antenna. Use only approved batteries, and accessories. Use of non-manufacturer-nameapproved antennas, batteries, and accessories may exceed the FCC RF exposure guidelines. RCA Communications Systems RCA Communications Systems supplied or replancement antennas, Communications Systems RCA result in e occupational/controlled environment

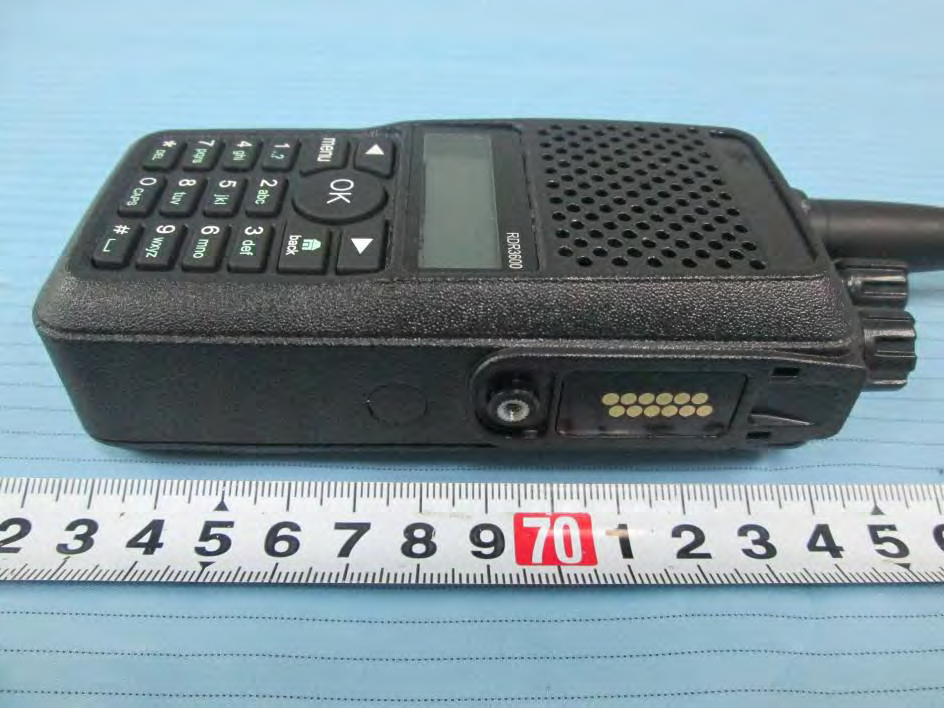

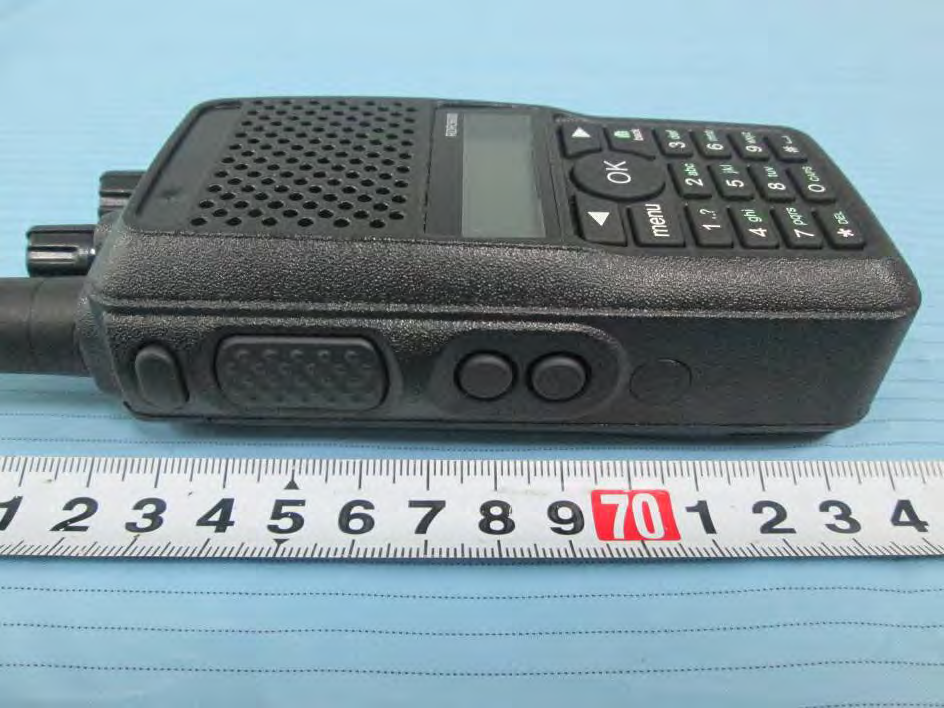

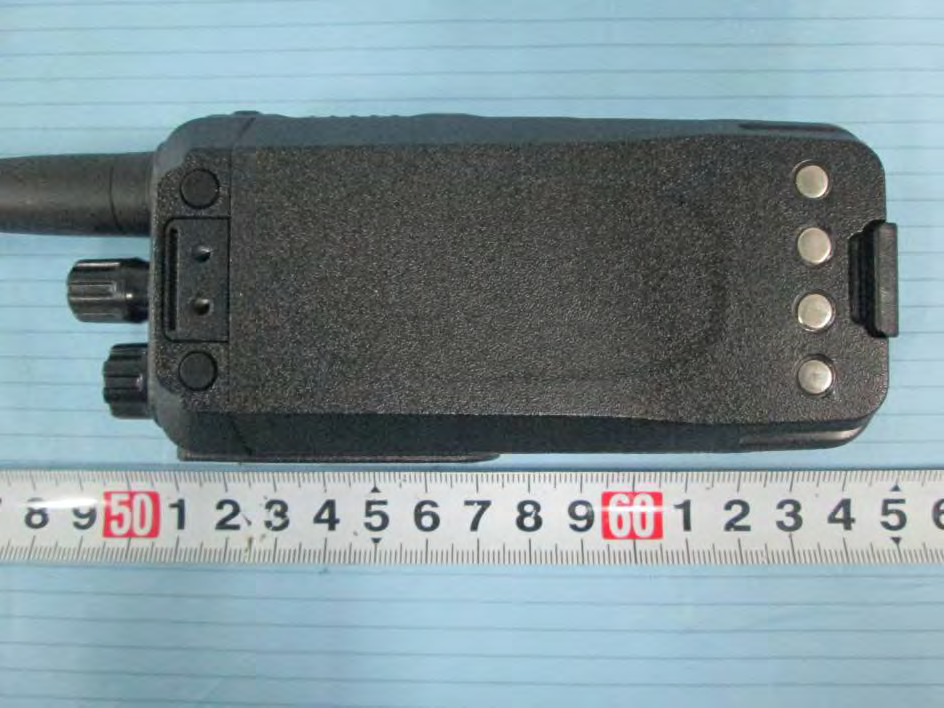

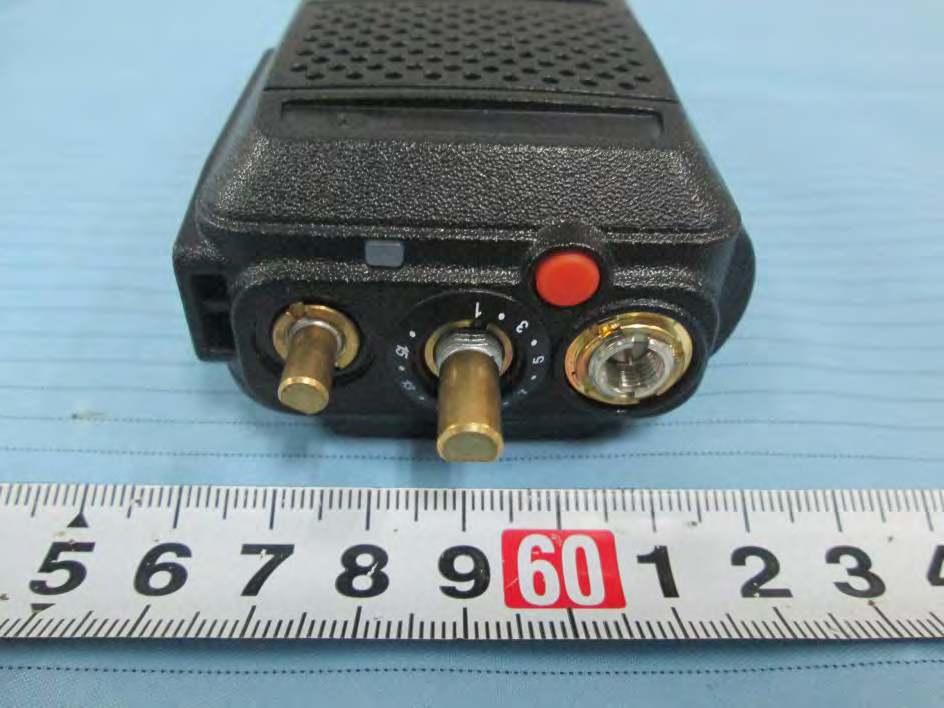

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS Model: RDR3500V EUT – Front View EUT – Rear View EUT – Top View EUT – Bottom View EUT – Left View EUT – Right View EUT – Antenna View Model: RDR3600V EUT – Front View EUT – Rear View EUT – Top View EUT – Bottom View EUT – Left View EUT – Right View EUT – Antenna Port View

EXHIBIT A - FCC ID LABELING AND LOCATION FCC ID Label Proposed FCC ID Label Location RDR3500V RDR3600V The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925) Label here

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS Model: RDR3500V EUT – Battery off View EUT – Cover off View 1 EUT – Cover off View 2 EUT – Main Board Top View EUT – Main Board Bottom View Model: RDR3600V EUT – Battery off View EUT – Cover off View 1 EUT – Cover off View 2 EUT – Cover off View 3 EUT – Main Board Top View EUT – Main Board Bottom View EUT – LCD&Key Board Top View 1 EUT – LCD&Key Board Top View 2 EUT – LCD&Key Board Bottom View EUT – Battery Label View

Adjustment instruciton PUBLIC PARTS（commissioning equipment：VOLTAGE METER）： 1、BATTERY VO LTAGE：7.4V±0.1V。 FREQUENCY RANGE：136-174MHz. 2、check RX VCO lock voltage： high end：3.5V±0.2V. Low end：0.6V。 3、check TX VCO lock voltage：high end：3.8V±0.2V. Low end：0.6V。 Transmitting part （ commissioning equipment ： AEROFLEX3920,3A standard power supply.tesing software：PX-800 programming software） 1、 Frequency adjust：nominal frequency ±50Hz. 2、 Adjust high power：4.68W.check the average current≤1. 0A。 3、 Low power adjust：1.50W.check th e current ≤0.8A。 4、 Bit error rate adjustment： adjust the MOD1,MOD2 amplitude separately，make 4FSK level＋3、－3 deviation value is ±1.944±0.1 Hz, ＋1、－1 deviation±0.648± 0.1Hz，bit error≤3%。 Receiver part（commissioning equipment：AEROFLEX3920,3A standard power supply.tesing software：PX-800 programming software） RX audio power：check the maximum audio power：1.±0.W。current≤0.4A。 1、 RX sensitivity adjustment： Signal source output the standard digital signal, the amplitude is -116dBm, adjust the sensitivity items in the 00V，0 V software for the RX PCTV voltage of high,middl e,low 9 frequency points in total,and make all the RX bit error rate are less than 3%.

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. SAR EVALUATION REPORT For RCA Communications Systems 133 West Market Street Suite 227 Indianapolis IN USA FCC ID: XYH-RDR3500V Report Type: Original report Product Type: Two way radio Test Engineer: Wilson Chen Report Number: RSZ140227002-20 Report Date: 2014-08-13 Reviewed By: Bell Hu SAR En gineer Prepared By: Bay Area Compliance Laboratories Corp. (Shenzhen) 6/F, the 3rd Phase of WanLi Industrial Building, ShiHua Road, FuTian Free Trade Zone Shenzhen, Guangdong, China Tel: +86-755-33320018 Fax: +86-755-33320008 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Shenzhen) Report No: RSZ140227002-20 SAR Evaluation Report 2 of 73 Attestation of Test Results EUT Information Company Name RCA Communications Systems EUT Description Two way radio FCC ID XYH-RDR3500V Model Number RDR3500V, RDR3600V Test Date 2014-07-26 Model Modulatio n Frequency (MHz) Max. SAR Level(s) Reported (1g) Limit (W/Kg) RDR350 0V Digital 136-174 12.5kHz Face up: 0.196 W/kg Body-Back: 0.443 W/kg 8 Analog 12.5kHz Face up: 0.204 W/kg (50% duty cycle) Body-Back: 0.467 W/kg (50% duty cycle) RDR360 0V Digital 136-174 12.5kHz Face up: 0.207 W/kg Body-Back: 0.583 W/kg Analog 12.5kHz Face up: 0.201 W/kg (50% duty cycle) Body-Back: 0.574 W/kg (50% duty cycle) Applicable Standards ANSI / IEEE C95.1: 2005 IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fileds,3 kHz to 300 GHz. ANSI / IEEE C95.3: 2002 IEEE Recommended Practice for Measurements and Computations of Radio Frequency Electromagnetic Fields With Respect to Human Exposure to SuchFields,100 kHz—300 GHz. IEEE1528:2013 IEEE Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techniques KDB procedures KDB 447498 D01 v05r02: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies. KDB 865664 D01v01r03: SAR measurement 100 MHz to 6 GHz v01. KDB 643646D01 v01r01: SAR test Reduction Considerations for Occupational PTT Radios. KDB Inquiry: Tracking Number 316436 for SAR VHF system validation. Note: This wireless device has been shown to be capable of compliance for localized specific absorption rate SAR for Occupational /Controlled Exposure Environment limits specified in ANSI/IEEE Standards and has been tested in accordance with the measurement procedures specified in IEEE 1528:2013 and RF exposure KDB procedures. The results and statements contained in this report pertain only to the device(s) evaluated. Bay Area Compliance Laboratories Corp. (Shenzhen) Report No: RSZ140227002-20 SAR Evaluation Report 3 of 73 TABLE OF CONTENTS DOCUMENT REVISION HISTORY ......................................................................................................................... 5 EUT DESCRIPTION .................................................................................................................................................... 6 TECHNICAL SPECIFICATION ......................................................................................................................................... 6 REFERENCE, STANDARDS, AND GUILDELINES ............................................................................................... 7 SAR LIMITS ................................................................................................................................................................. 8 FACILITIES .................................................................................................................................................................. 9 DESCRIPTION OF TEST SYSTEM ........................................................................................................................ 10 EQUIPMENT LIST AND CALIBRATION ............................................................................................................. 17 EQUIPMENTS LIST & CALIBRATION INFORMATION .................................................................................................... 17 SAR MEASUREMENT SYSTEM VERIFICATION .............................................................................................. 18 LIQUID VERIFICATION ............................................................................................................................................... 18 SYSTEM ACCURACY VERIFICATION ........................................................................................................................... 20 SAR SYSTEM VALIDATION DATA ..................................................................................................................... 21 EUT TEST STRATEGY AND METHODOLOGY ................................................................................................. 25 TEST POSITIONS FOR DEVICE OPERATING NEXT TO A PERSON’S EAR........................................................................ 25 CHEEK/TOUCH POSITION ........................................................................................................................................... 26 EAR/TILT POSITION ................................................................................................................................................... 26 TEST POSITIONS FOR BODY-WORN AND OTHER CONFIGURATIONS .............................................................................. 27 SAR EVALUATION PROCEDURE ................................................................................................................................. 28 TEST METHODOLOGY ................................................................................................................................................. 28 CONDUCTED OUTPUT POWER MEA…

Text truncated - open the document above for the full version.

Note: This test report is prepared for the customer shown above and for the equipment described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. FCC PART 90 TEST REPORT For RCA Communications Systems 133 West Market Street, Suite 227, Indianapolis, IN USA FCC ID: XYH-RDR3500V Report Type: Original Report Product Type: Two way radio Test En gineer: Candy Li Re port Number: RSZ140227002-00 Re port Date: 2014-07-08 Reviewed B y: Jimmy Xiao RF Engineer Prepared By: Bay Area Compliance Laboratories Corp. (Shenzhen) 6/F, the 3rd Phase of WanLi Industrial Building, ShiHua Road, FuTian Free Trade Zone Shenzhen, Guangdong, China Tel: +86-755-33320018 Fax: +86-755-33320008 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ140227002-00 FCC PART 90 Page 2 of 32 TABLE OF CONTENTS GENERAL INFORMATION ....................................................................................................................................... 4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 4 OBJECTIVE ................................................................................................................................................................... 4 RELATED SUBMITTAL(S)/GRANT(S) ............................................................................................................................. 4 TEST METHODOLOGY .................................................................................................................................................. 4 TEST FACILITY ............................................................................................................................................................. 5 SYSTEM TEST CONFIGURATION .......................................................................................................................... 6 DESCRIPTION OF TEST CONFIGURATION ...................................................................................................................... 6 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 6 SUPPORT EQUIPMENT LIST AND DETAILS .................................................................................................................... 6 BLOCK DIAGRAM OF TEST SETUP ................................................................................................................................ 6 SUMMARY OF TEST RESULTS ............................................................................................................................... 7 FCC §1.1307(b) & §2.1093 - RF EXPOSURE ............................................................................................................. 8 APPLICABLE STANDARD .............................................................................................................................................. 8 FCC §2.1046 & §90.205 - RF OUTPUT POWER ....................................................................................................... 9 APPLICABLE STANDARD .............................................................................................................................................. 9 TEST PROCEDURE ........................................................................................................................................................ 9 TEST EQUIPMENT LIST AND DETAILS ........................................................................................................................... 9 TEST DATA .................................................................................................................................................................. 9 FCC §2.1047 §90.207 - MODULATION CHARACTERISTIC .............................................................................. 11 APPLICABLE STANDARD ............................................................................................................................................ 11 TEST EQUIPMENT LIST AND DETAILS ......................................................................................................................... 11 TEST PROCEDURE ...................................................................................................................................................... 11 TEST DATA ................................................................................................................................................................ 11 FCC §2.1049 & §90.209 & §90.210 – OCCUPIED BANDWIDTH & EMISSION MASK ................................... 15 APPLICABLE STANDARD ............................................................................................................................................ 15 TEST EQUIPMENT LIST AND DETAILS ......................................................................................................................... 15 TEST PROCEDURE ...................................................................................................................................................... 15 TEST DATA ................................................................................................................................................................ 16 FCC §2.1051 & §90.210 - SPURIOUS EMISSIONS AT ANTENNA TERMINALS ............................................ 21 APPLICABLE STANDARD ............................................................................................................................................ 21 TEST EQUIPMENT LIST AND DETAILS ......................................................................................................................... 21 TEST PROCEDURE ...............................................................…
