XYO-W01LTE WiFi Router

W01 LTE WIFI Router by ATEL User Manual Contents Overview ...................................................................................................................................................... 3 System Requirements .................................................................................................................................. 3 Components ................................................................................................................................................. 3 Key ............................................................................................................................................................ 4 LED Indicator ............................................................................................................................................ 4 Power supply and Installation ..................................................................................................................... 4 Accessing the Network ................................................................................................................................ 5 Using Your W01 for the First Time .............................................................................................................. 5 System Requirements .............................................................................................................................. 5 Installing the LTE Nano SIM Card ............................................................................................................ 5 Using Your W01 after Setup is Complete .................................................................................................... 5 WIFI Router to share connections .......................................................................................................... 5 Wi-Fi and WIFI Router (http://192.168.0.1) Security and Password ....................................................... 5 Updating Your W01 software ...................................................................................................................... 6 Managing Your WIFI Router ........................................................................................................................ 6 Device status and Configurate this device ................................................................................................. 6 Question and Answer .................................................................................................................................. 7 Before you start ........................................................................................................................................... 7 Common Problems and Solutions ............................................................................................................... 7 Trademark .................................................................................................................................................. 10 Overview Thank you for choosing the W01 Arch, LTE WIFI Router by ATEL! Having the Arch W01 at your fingertips will allow you to access LTE network for fast uploads and downloads on your own Wi-Fi hotspot. You can also connect up to 15 Wi-Fi capable devices to the Internet at once - laptops, tablets, Smartphones and more. System Requirements ⚫ Compatible with all IEEE802.11b/g/n/ac Wi-Fi enabled devices. ⚫ Works with the latest versions of most browsers*. * It is recommended to use the latest versions of Internet browsers. Outdated versions may not be compatible with the W01 Web Admin User Interface, http://192.168.0.1or https://192.168.0.1. Components Key Power Button Power on/off for the W01. Quick press power key two times, start WPS Type C Charging Port The USB charger connects here. Battery Optional, there is not battery in original giftbox, if you need battery as back up power supply, please contact your sales channel or buy it from ATEL website. Reset To perform reset of your device, gently press and hold the button for 3 seconds, then release. SIM Card Lift the stopper to insert or replace the Nano SIM card. LED Indicator LED Color Action Function Description Power Green On Power supply existing OFF OFF Power off or Power supply not existing WiFi Green On WiFi connected with a WiFi Client Off WiFi not connected Green Blinking On 1S, off 1S, during WPS is enabled SMS Green Always on Unread SMS Off No unread SMS LTE/3G Green On If has LCD 5 bar Blue On If has LCD 4 bar Cyan(B+G) On If has LCD 3 bar Purple(R+B) On If has LCD 2 bar Yellow On If has LCD 1 bar Red Blinking Error, no SIM or internet does not connect Off No Signal Upgrading All above LED On Power and LTE LED light white, WiFi and SMS LED light green during F/W upgrading Power supply and Installation Type C USB connector is the main power supply from 5 V AD-DC adaptor. You can find and buy a back up battery from ATEL website if needed Note: W01 should be installed on the wall where have good LTE signal, you can find double-sided tape in giftbox for easy installation Accessing the Network Work effectively at home or office with the reliable broadband speed that the LTE service provides. You can connect to the internet at speeds fast enough to keep up-to-date on all your email correspondence, download attachments, and access your corporate internet. Using Your W01 for the First Time System Requirements Your computer, tablet, or other wireless devices need Wi-Fi capability and Internet browser software only. Your W01 is compatible with most major operating systems and the latest versions of browsers. Installing the LTE Nano SIM Card If not already inserted, follow the instructions below to install your LTE Nano SIM card. ⚫ Remove the back cover of your device. ⚫ Lift the “LIFT” tab and slide your Nano SIM card in the SIM card slot with Wireless Carrier logo facing up. After installation, secure the “LIFT” tab back into place. IMPORTANT! …

Text truncated - open the document above for the full version.

FCC Software Configuration Control Declaration Rev1.1 Asiatelco Technologies Co. FCC Software Configuration Control Declaration Date: July 10, 2020 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Attn: OET Dept. Product/ Model Number: Regarding FCC Country Code Selection guidelines identified in KDB 594280. “All applications for equipment authorization for transmitters that can have radio parameters, or other technical parameters, reported to the Commission set by software must have an attestation indicating that no third party will have software, or configuration control, to program the device out of compliance of the technical rules under which it has been certified.” We declare that no third party will have software, or configuration control, to program the device out of compliance of the technical rules under which it has been certified. Name: Ranran zhou Date: Jul. 10, 2020 Title: Project Manager Signature of applicant

Asiatelco Technologies Co. Agent Authorization Company: Asiatelco Technologies Co. Address: 289 Bisheng Road, Building 8, 3F, Zhangjiang Hi-Tech Park, Pudong, Shanghai 201204, China Product Name: LTE WiFi Router Model Number(s): W01 Product Description: LTE WiFi Router We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: Jul. 10, 2020 Name: Ranran zhou Title: Project Manager Company: Asiatelco Technologies Co.

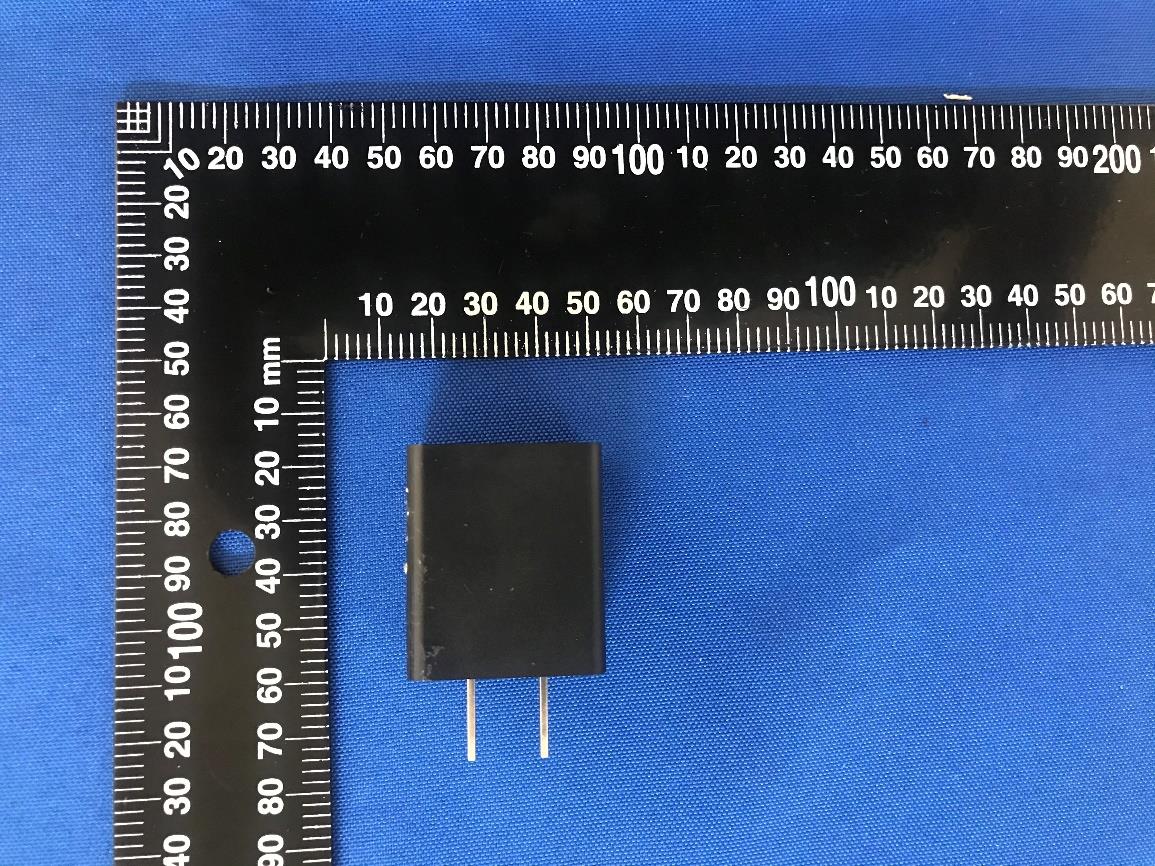

Annex No.: BL-EC2060316-AW 1 / 5 ANNEX C EUT EXTERNAL PHOTOS FRONT VIEW OF EUT REAR VIEW OF EUT Annex No.: BL-EC2060316-AW 2 / 5 LEFT VIEW OF EUT vvv RIGHT VIEW OF EUT Annex No.: BL-EC2060316-AW 3 / 5 TOP VIEW OF EUT BOTTOM VIEW OF EUT Annex No.: BL-EC2060316-AW 4 / 5 USB Cable Adapter Annex No.: BL-EC2060316-AW 5 / 5

Label Label Location Label

Annex No.: BL-EC2060316-AI 1 / 5 ANNEX D EUT INTERNAL PHOTOS EUT UNCOVER VIEW 1 EUT UNCOVER VIEW 2 SS 3G/4G DIV ANTENNA 3G/4G MAIN ANTENNA Annex No.: BL-EC2060316-AI 2 / 5 EUT UNCOVER VIEW 3 EUT UNCOVER VIEW 4 Annex No.: BL-EC2060316-AI 3 / 5 MAIN BOARD TOP VIEW WIFI ANTENNA Annex No.: BL-EC2060316-AI 4 / 5 MAIN BOARD REAR VIEW Annex No.: BL-EC2060316-AI 5 / 5 BATTERY

RF Exposure Evaluation For FCC ID: XYO-W01 Refer user manual this device is a LTE WIFI Router, and this device was designed in a fixed location devices that the minimum distance between human’s body is 20cm. Based on the 47CFR 2.1091, this device belongs to Mobile device. The definition of the category as following: Mobile Derives: CFR Title 47 §2.1091(b) (b) For purposes of this section, a mobile device is defined as a transmitting device designed to be used in other than fixed locations and to generally be used in such a way that a separation distance of at least 20 centimeters is normally maintained between the transmitter’s radiating structure(s) and the body of the user or nearby persons. FCC KDB 447498 D01 General RF Exposure Guidance v06 Limit Devices operating in standalone mobile exposure conditions may contain a single transmitter or multiple transmitters that do not transmit simultaneously. A minimum test separation distance ≥ 20 cm is required between the antenna and radiating structures of the device and nearby persons to apply mobile device exposure limits. The distance must be fully supported by the operating and installation configurations of the transmitter and its antenna(s), according to the source-based time-averaged maximum power requirements of § 2.1091(d)(2). In cases where cable losses or other attenuations are applied to determine compliance, the most conservative operating configurations and exposure conditions must be evaluated. The minimum test separation distance required for a device to comply with mobile exposure conditions must be clearly identified in the installation and operating instructions, for all installation and exposure conditions, to enable users and installers to comply with RF exposure requirements. For mobile devices that have the potential to operate in portable device exposure conditions, similar to the configurations described in § 2.1091(d)(4), a KDB inquiry is required to determine the SAR test requirements for demonstrating compliance. When the categorical exclusion provision of § 2.1091(c) applies, the minimum test separation distance may be estimated, when applicable, by simple calculations according to plane-wave equivalent conditions, to ensure the transmitter and its antenna(s) can operate in manners that meet or exceed the estimated distance. The source-based time-averaged maximum radiated power, according to the maximum antenna gain, must be applied to calculate the field strength and power density required to establish the minimum test separation distance. When the estimated test separation distance becomes overly conservative and does not support compliance, MPE measurement or computational modeling may be used to determine the required minimum separation distance. According to FCC Part 1.1307, systems operating under the provisions of this section shall be operated in a manner the ensures that the public is not exposed to radio frequency energy level in excess of the commission’s guidelines. Limits for General Population/ Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength(E)(V/m) Magnetic Field Strength (H)(A/m) Power Density (S)(mW/cm 2 ) 0.3-1.34 614 1.63 (100)* 1.34-30 824/f 2.19/f (180/f2)* 30-300 27.5 0.073 0.2 300-1500 f/1500 1500-100,000 1.0 MPE calculation formula Where: S = power density P = output power (mW) G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = Separation distance between radiator and human body (cm) Test Data WCDMA Band2 Mode Low Channel Middle Channel High Channel EIRP (dBm) 23.574 23.780 23.725 WCDMA Band4 Mode Low Channel Middle Channel High Channel EIRP (dBm) 24.391 24.085 24.676 WCDMA Band5 Mode Low Channel Middle Channel High Channel ERP (dBm) 22.708 22.432 22.428 Note: This report listed the worst case ERP/EIRP power value, please refer to RF report BL-EC2010026-501. LTE Band2 Bandwidth (MHz) 10 UL Channel Middle Channel UL Modulation QPSK EIRP (dBm) 24.942 LTE Band4 Bandwidth (MHz) 15 UL Channel High Channel UL Modulation QPSK EIRP (dBm) 24.784 LTE Band5 Bandwidth (MHz) 10 UL Channel High Channel UL Modulation QPSK ERP (dBm) 23.257 LTE Band12 Bandwidth (MHz) 5 UL Channel Middle Channel UL Modulation QPSK ERP (dBm) 19.246 LTE Band13 Bandwidth (MHz) 5 UL Channel Low Channel UL Modulation QPSK ERP (dBm) 22.763 LTE Band14 Bandwidth (MHz) 5 UL Channel High Channel UL Modulation QPSK ERP (dBm) 23.101 LTE Band66 Bandwidth (MHz) 10 UL Channel Middle Channel UL Modulation QPSK EIRP (dBm) 25.948 LTE Band71 Bandwidth (MHz) 5 UL Channel High Channel UL Modulation QPSK ERP (dBm) 21.346 Note: This report listed the worst case ERP/EIRP power value, please refer to RF report BL-EC2010026-501. 2.4G WIFI Mode 802.11 b 802.11 g 802.11 VHT20 Average Power (dBm) 10.41 10.74 10.30 Note: This report listed the worst case AV power value, please refer to module FCC report: BL-EC2010026-601. 5G WIFI Band 1(5180-5240 MHz) Mode 802.11 a 802.11 n (HT20) 802.11 n (HT40) 802.11 ac (VHT20) 802.11 ac (VHT40) 802.11 ac (VHT80) Average Power (dBm) 12.37 11.92 11.93 11.94 11.92 11.02 Band 4 (5745-5825) Mode 802.11 a 802.11 n (HT20) 802.11 n (HT40) 802.11 ac (VHT20) 802.11 ac (VHT40) 802.11 ac (VHT80) Average Power (dBm) 11.36 10.82 9.97 10.84 9.88 9.76 Note: This report listed the worst case AV power value, please refer to module FCC report: BL-EC2010026-602. Turn-up power Mode ERP/EIRP Tune up Limit (dBm) WWAN WCDMA Band2 25.00 WCDMA Band4 26.00 WCDMA Band5 24.00 LTE Band2 26.00 LTE Band4 26.00 LTE Band5 25.00 LTE Band12 21.00 LTE Band13 24.00 LTE Band14 25.00 LTE Band66 27.00 LTE Band71 23.00 Mode Average Power Tune up Limit (dBm) WLAN 2.4G 802.11 b 12.00 802.11 g 12.00 802.11 VHT20 12.00 WLAN 5G Band 1 (5180-5240) 802.11a 14.00 802.11 n (HT20) 13.00 802.11 n (HT40) 13.00 802.11 ac (VHT20) 13.00 802.11 ac (VHT40) 13.00 802.11 ac (VHT80) 12.00 Band 4 (5745-5825) 802.11a 13.00 802.11 n (HT20) 12.00 802.11 n (HT40) 12.00 802.11 ac (VHT20) 12.00 802.11 ac (VHT40) 12.00 …

Text truncated - open the document above for the full version.

Report No.: BL-EC2060316-602 2 / 87 Revision History Version Issue Date Revisions Content Rev. 01 Jul. 07, 2020 Initial Issue Rev. 02 Aug. 05, 2020 Updated the EUT Name TABLE OF CONTENTS 1 ADMINISTRATIVE DATA (GENERAL INFORMATION) .......................................................................... 4 1.1 Identification of the Testing Laboratory .............................................................................................. 4 1.2 Identification of the Responsible Testing Location ............................................................................. 4 1.3 Laboratory Condition .......................................................................................................................... 4 1.4 Announce ........................................................................................................................................... 5 2 PRODUCT INFORMATION ...................................................................................................................... 6 2.1 Applicant ............................................................................................................................................ 6 2.2 Manufacturer ...................................................................................................................................... 6 2.3 Factory ............................................................................................................................................... 6 2.4 General Description for Equipment under Test (EUT) ....................................................................... 6 2.5 Technical Information ......................................................................................................................... 7 2.6 Additional Instructions ........................................................................................................................ 8 2.7 Channel List ..................................................................................................................................... 10 3 SUMMARY OF TEST RESULTS ............................................................................................................ 12 3.1 Test Standards ................................................................................................................................. 12 3.2 Verdict .............................................................................................................................................. 12 4 GENERAL TEST CONFIGURATIONS ................................................................................................... 13 4.1 Test Environments ........................................................................................................................... 13 4.2 Test Equipment List ......................................................................................................................... 13 4.3 Measurement Uncertainty ................................................................................................................ 14 4.4 Description of Test Setup ................................................................................................................. 15 5 TEST ITEMS ........................................................................................................................................... 18 5.1 RF Output Power ............................................................................................................................. 18 5.2 Emission Bandwidth and 6 dB Bandwidth ........................................................................................ 19 5.3 Power Spectral density (PSD) .......................................................................................................... 20 5.4 Conducted Emission ........................................................................................................................ 21 5.5 Radiated Spurious Emissions and Band Edge (Restricted-band) .................................................... 22 Report No.: BL-EC2060316-602 3 / 87 ANNEX A TEST RESULT .......................................................................................................................... 27 A.1 RF Output Power ............................................................................................................................. 27 A.2 Emission Bandwidth & 99% Bandwidth ........................................................................................... 28 A.3 6 dB Bandwidth ................................................................................................................................ 39 A.4 Power Spectral Density .................................................................................................................... 43 A.5 Conducted Emissions ...................................................................................................................... 49 A.6 Radiated Spurious Emissions and Band Edge (Restricted-band) .................................................... 51 ANNEX B TEST SETUP PHOTOS ............................................................................................................ 87 ANNEX C EUT EXTERNAL PHOTOS ....................................................................................................... 87 ANNEX D EUT INTERNAL PHOTOS ........................................................................................................ 87 Report No.: BL-EC2060316-602 4 / 87 1 ADMINISTRATIVE DATA (GENERAL INFORMATION) 1.1 Identification of the Testing Laboratory Company Name Shenzhen BALUN Technology Co., Ltd. Address Block B, 1st FL, Baisha Science and Technology Park, Shahe Xi Road, Nanshan District, Shenzhen, Guangdong Province, P. R. China Phone Number +86 755 6685 0100 1.2 Identification of the Responsible Testing Location Test Location Shenzhen BALUN Technology Co., Ltd. Address Blo…

Text truncated - open the document above for the full version.

Annex No.: BL-EC2060316-AR TEST SETUP PHOTOS 1 Radiated Test Photo 30 MHz-1 GHz-WIFI Close-Up-WIFI Annex No.: BL-EC2060316-AR Above 1GHz-WIFI Close-Up-WIFI Annex No.: BL-EC2060316-AR 30 MHz-1 GHz-RF Above 1GHz-RF Annex No.: BL-EC2060316-AR Close-Up-RF 2 Conducted Emissions Test Photo 1 Annex No.: BL-EC2060316-AR Test Photo 2 3 Conducted Test Photo Conducted
