XYOAGP-V800RGSM Fixed Wireless Phone

Asiatelco Technologies Co. AGP-V800R GSM Fixed Wireless Phone User Manual #289 Bisheng Road, Building-8, 3F, Zhangjiang Hi-Tech Park, Pudong, Shanghai – 201 204. China TEL: +86 21-51688806 FAX: +86 21-33932400 #289 Bisheng Road, Building-8, 3F, Zhangjiang Hi-Tech Park, Pudong, Shanghai – 201 204. China TEL: +86 21-51688806 FAX: +86 21-33932400 Index 1 GENERAL INTRODUCTION ................................................................................................................... 1 2 IMPORTANT INFORMATION ................................................................................................................ 2 3 PRODUCT OVERVIEW ............................................................................................................................ 3 3.1 PACKING LIST ........................................................................................................................................ 3 3.2 PRODUCT INTRODUCTION ...................................................................................................................... 3 3.2.1 Appearance ....................................................................................................................................... 3 3.2.2 Key Definition ................................................................................................................................... 4 3.2.3 Display Icon ...................................................................................................................................... 5 4 BASIC OPERATIONS ................................................................................................................................ 5 4.1 POWER ON/OFF ..................................................................................................................................... 5 4.2 MAKE A CALL ........................................................................................................................................ 5 4.3 ANSWER A CALL .................................................................................................................................... 5 4.4 END A CALL ........................................................................................................................................... 5 5 MAIN MENU ............................................................................................................................................... 6 6 CONTACTS ................................................................................................................................................. 6 6.1 SEARCH FOR A CONTACT ....................................................................................................................... 6 6.2 ADD A NEW CONTACT ........................................................................................................................... 7 6.2.1 Add a New Contact from the Menu ................................................................................................... 7 6.2.2 Add a New Contact in Standby Mode ............................................................................................... 7 6.3 VIEW A CONTACT .................................................................................................................................. 7 6.4 DELETE A CONTACT............................................................................................................................... 7 6.5 EDIT A CONTACT ................................................................................................................................... 7 6.6 GROUP ................................................................................................................................................... 7 6.6.1 Add a Contact to the Group .............................................................................................................. 7 6.6.2 Delete a Contact from the Group ...................................................................................................... 7 6.6.3 Rename a Group ............................................................................................................................... 8 6.6.4 Set a Ring tone to a Group ................................................................................................................ 8 7 MESSAGES .................................................................................................................................................. 8 7.1 SEND A MESSAGE .................................................................................................................................. 8 7.2 RECEIVE A MESSAGE ............................................................................................................................. 8 7.3 VIEW SENT MESSAGES .......................................................................................................................... 8 7.4 SEND A MESSAGE BY USING TEMPLATES ............................................................................................... 9 7.5 MESSAGE SETTINGS ............................................................................................................................... 9 7.6 VOICE MESSAGE AND BROADCAST MESSAGE ....................................................................................... 9 8 RECENT CALLS ........................................................................................................................................ 9 8.1 MISSED CALLS ....................................................................................................................................... 9 8.2 DIALED CALLS ....................................................................................................................................... 9 8.3 RECEIVED CALLS ...................................................................................…

Text truncated - open the document above for the full version.

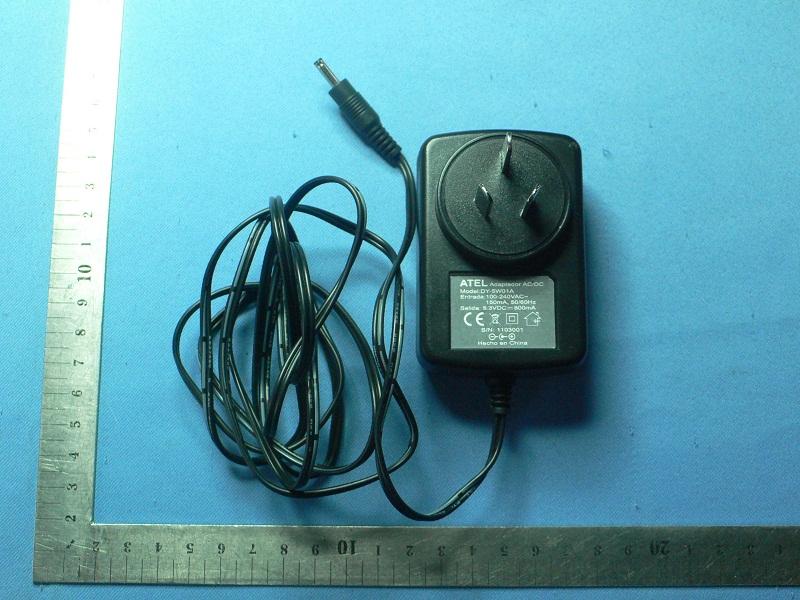

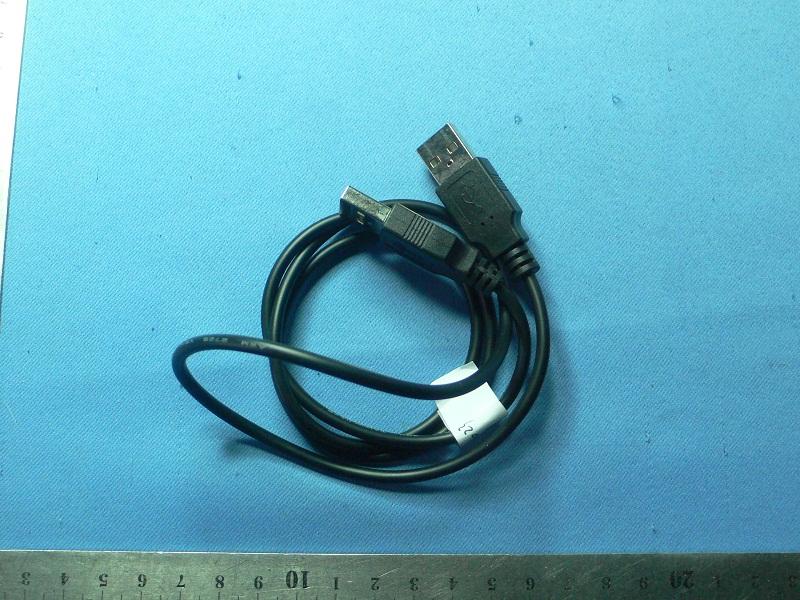

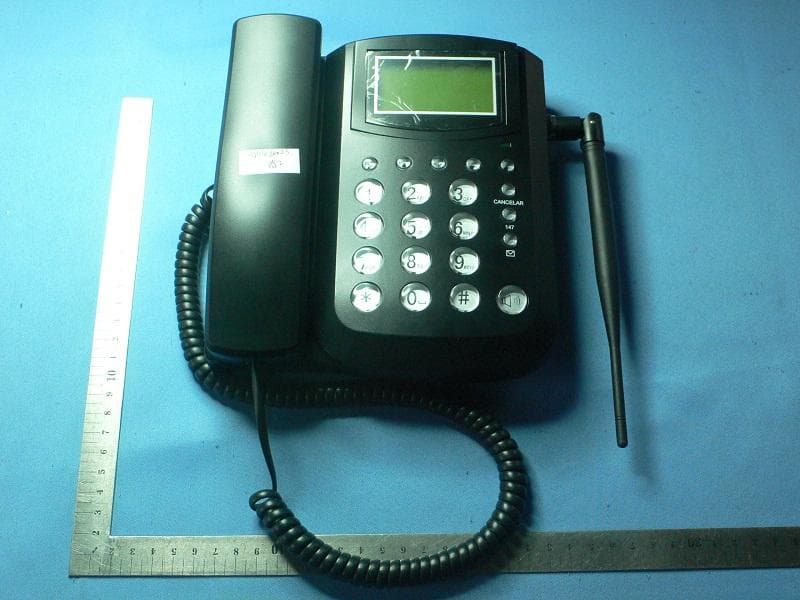

External Photos Battery USB DATA LINE Charger

Internal Photos

Page 1 of 87 FCC SAR TEST REPORT of Wireless Fixed Phone Model Name: AGP-V800R Brand Name: ATEL Trade Name.: ATEL Report No.: SH11020023S01 FCC ID: XYOAGP-V800R prepared for AsiaTelco Technologies Co. #289 Bisheng Road,Building-8,3F.Zhangjiang Hi-Tech Park,Pudong,Shanghai China 201204 pidrepared by Shenzhen Electronic Product Quality Testing Center Morlab Laboratory 3/F, Electronic Testing Building, Shahe Road, Xili, Nanshan District, Shenzhen, 518055 P. R. China Tel: +86 755 86130398 Fax: +86 755 86130218 NOTE: This test report can be duplicated completely for the legal use with the approval of the applicant, it shall not be reproduced except in full, without the written approval of Shenzhen Electronic Product Quality Testing Center Morlab Laboratory. Any objections should be raised to us within thirty workdays since the date of issue. Report No: SH11020023S01 Page 3 of 87 TABLE OF CONTENT 1 GENERAL CONDITIONS ........................................................................................................................................ 4 2 ADMINISTRATIVE DATE ....................................................................................................................................... 5 2.1 IDENTIFICATION OF THE RESPONSIBLE TESTING LABORATORY ............................................................................. 5 2.2 IDENTIFICATION OF THE RESPONSIBLE TESTING LOCATION(S) .............................................................................. 5 2.3 ORGANIZATION ITEM ............................................................................................................................................ 5 2.4 IDENTIFICATION OF APPLICANT ............................................................................................................................. 5 3 EQUIPMENT UNDER TEST (EUT)........................................................................................................................ 6 4 OPERATIONAL CONDITIONS DURING TEST .................................................................................................. 7 4.1 SCHEMATIC TEST CONFIGURATION ....................................................................................................................... 7 4.2 SAR MEASUREMENT SYSTEM .............................................................................................................................. 7 4.2.1 Robot system specification ............................................................................................................................... 8 4.2.2 Probe Specification .......................................................................................................................................... 8 ISOTROPIC E-FIELD PROBE SPECIFICATION...................................................................................................................... 10 BOUNDARY DETECTION UNIT AND PROBE MOUNTING DEVICE ....................................................................................... 10 DAQ-PAQ (ANALOG TO DIGITAL ELECTRONICS) .............................................................................................................. 11 4.2.3 Phantoms, Device Holder and Simulant Liquid ............................................................................................. 12 ALSAS UNIVERSAL WORKSTATION ................................................................................................................................ 13 UNIVERSAL DEVICE POSITIONER ..................................................................................................................................... 13 4.2.4 SAR measurement procedure ......................................................................................................................... 15 4.2.5 Validation Test Using Flat Phantom .............................................................................................................. 16 VALIDATION DIPOLES ...................................................................................................................................................... 17 Validation Result ........................................................................................................................................................ 18 4.2.6 Measurement Procedure ................................................................................................................................ 18 4.2.7 Description of Interpolation/Extrapolation Scheme ...................................................................................... 18 5 CHARACTERISTICS OF THE TEST .................................................................................................................. 19 5.1 APPLICABLE LIMIT REGULATIONS ...................................................................................................................... 19 5.2 APPLICABLE MEASUREMENT STANDARDS .......................................................................................................... 19 6 LABORATORY ENVIRONMENT ........................................................................................................................ 20 7 TEST RESULTS ....................................................................................................................................................... 21 7.1 EXPLAIN ............................................................................................................................................................. 21 7.2 DIELECTRIC PERFORMANCE ................................................................................................................................ 21 7.3 CONDUCTED POWER ........................................................................................................................................... 21 7.4 SUMMARY OF MEASUREMENT RESULTS .......................................................…

Text truncated - open the document above for the full version.

NCL CALIBRATION LABORATORIES Calibration File No: DC-1198 Project Number: SPTB-ALSAS-5566 C E R T I F I C A T E OF C A L I B R A T I O N It is certified that the equipment identified below has been calibrated in the NCL CALIBRATION LABORATORIES by qualified personnel following recognized procedures and using transfer standards traceable to NRC/NIST. Validation Dipole 835MHz Head & Body Manufacturer: APREL Laboratories Part number: ALS-D-835-S-2 Frequency: 835MHz Serial No: 180-00565 Customer: SPORTON Calibrated: 18 th February 2011 Released on: 25 h February 2011 NCL CALIBRATION LABORATORIES 303 Terry Fox Drive, Suite 102 Division of APREL Kanata, Ontario TEL: (613) 435-8300 CANADA K2K 3J1 FAX: (613) 435-8306 NCL Calibration Laboratories Division of APREL Inc. This page has been reviewed for content and attested to by signature within this document. Conditions Dipole 180-00565 was a new dipole taken from stock. Ambient Temperature of the Laboratory: 22 °C +/- 0.5°C Temperature of the Tissue: 21 °C +/- 0.5°C Primary Measurement Standards Instrument Serial Number Cal due date Power meter Anritsu MA2408A 90025437 Nov.4, 2010 Power Sensor Anritsu MA2481D 103555 Nov 4, 2010 Attenuator HP 8495A (70dB) 1944A10711 Sept. 14, 2010 Network Analyzer Anritsu MT8801C MB11855 Feb. 8, 2011 Secondary Measurement Standards Signal Generator Agilent E4438C -506 MY55182336 June 7, 2011 NCL Calibration Laboratories Division of APREL Inc. This page has been reviewed for content and attested to by signature within this document. 3 Calibration Results Summary The following results relate the Calibrated Dipole and should be used as a quick reference for the user. Mechanical Dimensions Length: 161.0 mm Height: 89.8 mm Electrical Specification 835MHz Tissue Type Return Loss: Impedance: SWR: Head -28.527 50.316 1.087U Body -23.340 56.867 1.157U System Validation Results Tissue Frequency 1 Gram10 Gram Peak Head 835 MHz 9.590 6.003 15.013 Body 835 MHz 9.981 6.006 15.013 835MHz NCL Calibration Laboratories Division of APREL Inc. This page has been reviewed for content and attested to by signature within this document. 4 Introduction This Calibration Report has been produced in line with the SSI Dipole Calibration Procedure SSI-TP-018-ALSAS. The results contained within this report are for Validation Dipole 180-00565. The calibration routine consisted of a three-step process. Step 1 was a mechanical verification of the dipole to ensure that it meets the mechanical specifications. Step 2 was an Electrical Calibration for the Validation Dipole, where the SWR, Impedance, and the Return loss were assessed. Step 3 involved a System Validation using the ALSAS-10U, along with APREL E-030 130 MHz to 26 GHz E-Field Probe Serial Number 215. References o IEEE Standard 1528 (2003) including Amendment 1 IEEE Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techniques o EN 62209-1 (2006) Human Exposure to RF Fields from hand-held and body-mounted wireless communication devices - Human models. instrumentation, and procedures-Part 1: Procedure to measure the Specific Absorption Rate (SAR) for hand-held mobile wireless devices o IEC 62209-2 Ed. 1.0 (2010-03) Human exposure to RF fields from hand-held and body-mounted wireless devices - Human models, instrumentation, and procedures - Part 2: specific absorption rate (SAR) for wireless communication devices (30 MHz - 6 GHz) o TP-D01-032-E020-V2 E-Field probe calibration procedure o D22-012-Tissue dielectric tissue calibration procedure o D28-002-Dipole procedure for validation of SAR system using a dipole o IEEE 1309 Draft Standard for Calibration of Electromagnetic Field Sensors and Probes, Excluding Antennas, from 9kHz to 40GHz Conditions Dipole 180-00565 was a new dipole taken from stock. Ambient Temperature of the Laboratory: 22 °C +/- 0.5°C Temperature of the Tissue: 20 °C +/- 0.5°C NCL Calibration Laboratories Division of APREL Inc. This page has been reviewed for content and attested to by signature within this document. 5 Electrical Calibration Electrical Specification 835MHz Tissue Type Measured Epsilon Measured Sigma Head 41.09 0.89 Body 53.15 0.95 Head Tissue Body Tissue NCL Calibration Laboratories Division of APREL Inc. This page has been reviewed for content and attested to by signature within this document. 6 Electrical Specification 835MHz Impedance Tissue Type Measured Epsilon Measured Sigma Head 41.09 0.89 Body 53.15 0.95 Head Tissue Body Tissue NCL Calibration Laboratories Division of APREL Inc. This page has been reviewed for content and attested to by signature within this document. 7 Electrical Specification 835MHz Standing Wave Ratio Tissue Type Measured Epsilon Measured Sigma Head 41.09 0.89 Body 53.15 0.95 Head Tissue Body Tissue NCL Calibration Laboratories Division of APREL Inc. This page has been reviewed for content and attested to by signature within this document. 8 Test Equipment The test equipment used during Probe Calibration, manufacturer, model number and, current calibration status are listed and located on the main APREL server R:\NCL\Calibration Equipment\Instrument List May 2010.

NCL CALIBRATION LABORATORIES Calibration File No: DC-1201 Project Number: SPTB-ALSAS-5566 C E R T I F I C A T E OF C A L I B R A T I O N It is certified that the equipment identified below has been calibrated in the NCL CALIBRATION LABORATORIES by qualified personnel following recognized procedures and using transfer standards traceable to NRC/NIST. Validation Dipole 1900MHz Head & Body Manufacturer: APREL Laboratories Part number: ALS-D-1900-S-2 Frequency: 1900MHz Serial No: 210-00716 Customer: SPORTON Calibrated: 19 th February 2011 Released on: 25 h February 2011 NCL CALIBRATION LABORATORIES 303 Terry Fox Drive, Suite 102 Division of APREL Kanata, Ontario TEL: (613) 435-8300 CANADA K2K 3J1 FAX: (613) 435-8306 NCL Calibration Laboratories Division of APREL Inc. This page has been reviewed for content and attested to by signature within this document. Conditions Dipole 210-00716 was a new dipole taken from stock. Ambient Temperature of the Laboratory: 22 °C +/- 0.5°C Temperature of the Tissue: 21 °C +/- 0.5°C Primary Measurement Standards Instrument Serial Number Cal due date Power meter Anritsu MA2408A 190025437 Nov.4, 2010 Power Sensor Anritsu MA2481D 103555 Nov 4, 2010 Attenuator HP 8495A (70dB) 1944A10711 Sept. 14, 2010 Network Analyzer Anritsu MT8801C MB11855 Feb. 8, 2011 Secondary Measurement Standards Signal Generator Agilent E4438C -506 MY55182336 June 7, 2011 NCL Calibration Laboratories Division of APREL Inc. This page has been reviewed for content and attested to by signature within this document. 3 Calibration Results Summary The following results relate the Calibrated Dipole and should be used as a quick reference for the user. Mechanical Dimensions Length: 67.1 mm Height: 38.9 mm Electrical Specification 1900MHz Tissue Type Return Loss: Impedance: SWR: Head -30.471 50.426 1.064U Body -24.274 53.459 1.130U System Validation Results Tissue Frequency 1 Gram10 Gram Peak Head 1900 MHz 39.378 19.668 77.268 Body 1900 MHz 39.654 19.668 77.268 1900MHz NCL Calibration Laboratories Division of APREL Inc. This page has been reviewed for content and attested to by signature within this document. 4 Introduction This Calibration Report has been produced in line with the SSI Dipole Calibration Procedure SSI-TP-018-ALSAS. The results contained within this report are for Validation Dipole 210-00716. The calibration routine consisted of a three-step process. Step 1 was a mechanical verification of the dipole to ensure that it meets the mechanical specifications. Step 2 was an Electrical Calibration for the Validation Dipole, where the SWR, Impedance, and the Return loss were assessed. Step 3 involved a System Validation using the ALSAS-10U, along with APREL E-030 130 MHz to 26 GHz E-Field Probe Serial Number 215. References o IEEE Standard 1528 (2003) including Amendment 1 IEEE Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techniques o EN 62209-1 (2006) Human Exposure to RF Fields from hand-held and body-mounted wireless communication devices - Human models. instrumentation, and procedures-Part 1: Procedure to measure the Specific Absorption Rate (SAR) for hand-held mobile wireless devices o IEC 62209-2 Ed. 1.0 (2010-03) Human exposure to RF fields from hand-held and body-mounted wireless devices - Human models, instrumentation, and procedures - Part 2: specific absorption rate (SAR) for wireless communication devices (30 MHz - 6 GHz) o TP-D01-032-E020-V2 E-Field probe calibration procedure o D22-012-Tissue dielectric tissue calibration procedure o D28-002-Dipole procedure for validation of SAR system using a dipole o IEEE 1309 Draft Standard for Calibration of Electromagnetic Field Sensors and Probes, Excluding Antennas, from 9kHz to 40GHz Conditions Dipole 210-00716 was a new dipole taken from stock. Ambient Temperature of the Laboratory: 22 °C +/- 0.5°C Temperature of the Tissue: 20 °C +/- 0.5°C NCL Calibration Laboratories Division of APREL Inc. This page has been reviewed for content and attested to by signature within this document. 5 Electrical Calibration Electrical Specification 1900MHz Tissue Type Measured Epsilon Measured Sigma Head 38.12 1.41 Body 51.52 1.57 Head Tissue Body Tissue NCL Calibration Laboratories Division of APREL Inc. This page has been reviewed for content and attested to by signature within this document. 6 Electrical Specification 1900MHz Impedance Tissue Type Measured Epsilon Measured Sigma Head 38.12 1.41 Body 51.52 1.57 Head Tissue Body Tissue NCL Calibration Laboratories Division of APREL Inc. This page has been reviewed for content and attested to by signature within this document. 7 Electrical Specification 1900MHz Standing Wave Ratio Tissue Type Measured Epsilon Measured Sigma Head 38.12 1.41 Body 51.52 1.57 Head Tissue Body Tissue NCL Calibration Laboratories Division of APREL Inc. This page has been reviewed for content and attested to by signature within this document. 8 Test Equipment The test equipment used during Probe Calibration, manufacturer, model number and, current calibration status are listed and located on the main APREL server R:\NCL\Calibration Equipment\Instrument List May 2010.

NCL CALIBRATION LABORATORIES Calibration File No.: CP-1145 Client.: IAC C E R T I F I C A T E OF C A L I B R A T I O N It is certified that the equipment identified below has been calibrated in the NCL CALIBRATION LABORATORIES by qualified personnel following recognized procedures and using transfer standards traceable to NRC/NIST. Equipment: Miniature Isotropic RF Probe 835 MHz Manufacturer: APREL Laboratories Model No.: E-020 Serial No.: 273-B Body calibration Calibration Procedure: SSI/DRB-TP-D01-032-E020-V2 Project No: SGLB-IAC rep-E020-5538 Calibrated: 13 September 2010 Released on: 17 September 2010 NCL CALIBRATION LABORATORIES 17 Bentley Avenue Division of APREL Lab. NEPEAN, ONTARIO TEL: (613) 820-4988 CANADA K2E 6T7 FAX: (613) 820-4161 NCL Calibration Laboratories Division of APREL Laboratories. Page 2 of 10 This page has been reviewed for content and attested to on Page 2 of this document. Introduction This Calibration Report reproduces the results of the calibration performed in line with the SSI/DRB-TP-D01-032-E020-V2 E-Field Probe Calibration Procedure. The results contained within this report are for APREL E-Field Probe E-020 273-B. References SSI/DRB-TP-D01-032-E020-V2 E-Field Probe Calibration Procedure IEEE 1528 “Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Body Due to Wireless Communications Devices: Experimental Techniques” SSI-TP-011 Tissue Calibration Procedure IEC 62209 “Human exposure to radio frequency fields from hand-held and body- mounted wireless communication devices – Human models, instrumentation, and procedures –Part 1 & 2: Procedure to determine the Specific Absorption Rate (SAR) for hand-held devices used in close proximity of the ear (frequency range of 300 MHz to 3 GHz)” IEEE 1309 Draft Standard for Calibration of Electromagnetic Field Sensors and Probes, Excluding Antennas, from 9kHz to 40GHz Conditions Probe 273-B was a new-calibration. Ambient Temperature of the Laboratory: 22 °C +/- 0.5°C Temperature of the Tissue: 21 °C +/- 0.5°C NCL Calibration Laboratories Division of APREL Laboratories. Page 3 of 10 This page has been reviewed for content and attested to on Page 2 of this document. Calibration Results Summary Probe Type: E-Field Probe E-020 Serial Number: 273-B Frequency: 835 MHz Sensor Offset: 1.56 mm Sensor Length: 2.5 mm Tip Enclosure: Ertalyte* Tip Diameter: <5 mm Tip Length: 60 mm Total Length: 290 mm *Resistive to recommended tissue recipes per IEEE-1528 Sensitivity in Air Channel X: 1.2 μV/(V/m) 2 Channel Y: 1.2 μV/(V/m) 2 Channel Z: 1.2 μV/(V/m) 2 Diode Compression Point: 95 mV NCL Calibration Laboratories Division of APREL Laboratories. Page 4 of 10 This page has been reviewed for content and attested to on Page 2 of this document. Sensitivity in Body Tissue Measured Frequency: 835 MHz Epsilon: 57.19 (+/-5%) Sigma: 0.94 S/m (+/-5%) ConvF Channel X: 6. Channel Y: 6. Channel Z: 6. Tissue sensitivity values were calculated using the load impedance of the APREL Laboratories Daq-Paq. Boundary Effect: Uncertainty resulting from the boundary effect is less than 2% for the distance between the tip of the probe and the tissue boundary, when less than 2.44mm. Spatial Resolution: The measured probe tip diameter is 5 mm (+/- 0.01 mm) and therefore meets the requirements of SSI/DRB-TP-D01-032 for spatial resolution. NCL Calibration Laboratories Division of APREL Laboratories. Page 5 of 10 This page has been reviewed for content and attested to on Page 2 of this document. Receiving Pattern 835 MHz (Air) 0 0.2 0.4 0.6 0.8 1 1.2 0 10 20 30 40 50 60 70 80 90 10 0 110 120 13 0 140 150 160 17 0 180 190 200 21 0 220 230 24 0 25 0 260 270 280 29 0 30 0 310 320 33 0 340 350 Receiving Pattern Probe s/n 273-B 835MHz Ch1Ch2Ch3Tot NCL Calibration Laboratories Division of APREL Laboratories. Page 6 of 10 This page has been reviewed for content and attested to on Page 2 of this document. Isotropy Error 835 MHz (Air) -10 -9 -8 -7 -6 -5 -4 -3 -2 -1 0 1 2 3 4 5 6 7 8 9 10 01 0020 03 00 E r r o r [ d B ] I sotropy Error Probe s/n 273-B 835MHz 0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 01002003 00 V o l t a g e ( m V ) D e gree s ( x 10 ) Isotropy Plot Pr obe s/n 273-B 835MHz Ch1Ch2Ch3 Isotropicity in Tissue: 0.10 dB NCL Calibration Laboratories Division of APREL Laboratories. Page 7 of 10 This page has been reviewed for content and attested to on Page 2 of this document. Dynamic Range 0. 01 0. 1 1 10 100 1 000 10 000 1 .0 0 10. 00 1 00. 00 1, 000 .00 1 0, 000. 00 100 ,00 0. 00 1 ,00 0, 000 .00 10, 00 0,0 00. 00 V o l t a g e [ m i c r o V ] Elec tric Fie ld [(V/m)^2 ] Probe 273-B Dynam ic Range Un co mp en sa te d Co m p en sa te d NCL Calibration Laboratories Division of APREL Laboratories. Page 8 of 10 This page has been reviewed for content and attested to on Page 2 of this document. Video Bandwidth -6 -5 -4 -3 -2 -1 0 1 110100100010000 P r o b e o u t p u t l e v e l ( d B ) Frequency (Hz) Probe Frequency Characteristics Video Bandwidth at 500 Hz 1 dB Video Bandwidth at 1.02 KHz: 3 dB NCL Calibration Laboratories Division of APREL Laboratories. Page 9 of 10 This page has been reviewed for content and attested to on Page 2 of this document. Conversion Factor Uncertainty Assessment Frequency: 835MHz Epsilon: 57.19 (+/-5%) Sigma: 0.94 S/m (+/-5%) ConvF Channel X: 6. 7%(K=2) Channel Y: 6. 7%(K=2) Channel Z: 6. 7%(K=2) To minimize the uncertainty calculation all tissue sensitivity values were calculated using a load impedance of 5 MΩ. Boundary Effect: For a distance of 2.4mm the evaluated uncertainty (increase in the probe sensitivity) is less than 2%. NCL Calibration Laboratories Division of APREL Laboratories. Page 10 of 10 This page has been reviewed for content and attested to on Page 2 of this document. Test Equipment The test equipment used during Probe Calibration, manufacturer, model number and, current calibration status are listed and located on the main APREL server R:\NCL\Calibration Equipment\Instrument L…

Text truncated - open the document above for the full version.

NCL CALIBRATION LABORATORIES Calibration File No.: CP-1151 Client.: IAC C E R T I F I C A T E OF C A L I B R A T I O N It is certified that the equipment identified below has been calibrated in the NCL CALIBRATION LABORATORIES by qualified personnel following recognized procedures and using transfer standards traceable to NRC/NIST. Equipment: Miniature Isotropic RF Probe 1900 MHz Manufacturer: APREL Laboratories Model No.: E-020 Serial No.: 273-B Body Calibration Calibration Procedure: SSI/DRB-TP-D01-032-E020-V2 Project No: SGLB-IAC rep-E020-5538 Calibrated: 13 September 2010 Released on: 17 September 2010 NCL CALIBRATION LABORATORIES 17 Bentley Avenue Division of APREL Lab. NEPEAN, ONTARIO TEL: (613) 820-4988 CANADA K2E 6T7 FAX: (613) 820-4161 NCL Calibration Laboratories Division of APREL Laboratories. Page 2 of 10 This page has been reviewed for content and attested to on Page 2 of this document. Introduction This Calibration Report reproduces the results of the calibration performed in line with the SSI/DRB-TP-D01-032-E020-V2 E-Field Probe Calibration Procedure. The results contained within this report are for APREL E-Field Probe E-020 278. References SSI/DRB-TP-D01-032-E020-V2 E-Field Probe Calibration Procedure IEEE 1528 “Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Body Due to Wireless Communications Devices: Experimental Techniques” SSI-TP-011 Tissue Calibration Procedure IEC 62209 “H…
