XZJ-CUSBBMW CUSB

USB Flash Drive User’s Manual V1.3.6 Introduction Thank you for your purchasing the USB Drive. This manual will guide you through the usages of the USB Drive and of all management tools coming with it. USB drive is a storage device with features such as light-weighted, shack-tolerable, and plug-and-play. By plugging it into the USB port of you PC or MAC computer, you can easily copy or move your data or files around without any external power supply. The USB drive also supports security protection and can be formatted as a USB ZIP Drive, or as a boot- disk with Hard Disk Drive (HDD) format. With the help of the tools, you are able to partition a general purpose, or secure, or a boot USB disk. You can also readjust the capacities of each partition. Features of the USB Drive: • Support USB 2.0 specification • Provide Hardware + Software dual level data protection • 3 bytes (24 bit) real time hardware ECC to correct data errors • Provide secure functionality • Only Support administrator level security • Provide both USB HDD boot and USB ZIP boot functionality (need PC motherboard’s support) • Support partition of general purpose, secure, or USB boot disk • Support capacity readjustment of partitioned USB disk • Provide Read/Write protection switch • Work on both PC and MAC computers • No driver needed (except windows 98) • Plug and play, hot-removable • No external power supply required • Small size, light-weighted, shock-tolerable, portable • Working environment: 0 °C ~45 °C • Working power supply: 5V DC (supplied by computer through USB port) • Operating Current: ≤80mA Capacity 8GB • Precautions of Use Please read this manual carefully before using this USB drive and all its accompany application tools in order for you to safely use this USB drive. The following items will tell you how to operate this product correctly and safely. Please read carefully and make sure you understand the items before reading any other portion of this manual. WARNING! • Do not attempt to disassemble or change any part of this product. This manual does not include any information on disassembling or changing any part of the product. • Do not immerse this product into water or any other fluid. In case water or any other fluid is purred onto this product, please pull it out immediately from the computer. Otherwise, the liquid may cause short of electrical connections and may further cause fire. • Do not plug or unplug this product with wet hand since that may cause short of electrical connections and may further cause fire. • Do not put this product close to fire or at locations with high temperatures. • Do not put this product close to electromagnetical interference sources. Putting the product under electromagnetical interference may cause malfunction or data error or even lose of data of this product. System Requirements: The followings are required for properly using this product or installing the software coming with it: • Computer: IBM PC/AT or compatible, Power Macintosh, PowerBook, iMAC or iBook • Operation System: Windows 98, Windows ME, Windows 2000, Windows XP, Windows Vista ， Linux 2.4 and up, MAC OS 9.2 or up. • Connection port: USB • Minimum Hard Disk Drive space: 3 MB Important Notice: • Since there is no built-in Mass Storage Driver coming with Windows 98, you must install the driver which comes with this product in order to properly use the product under Windows 98. • You can directly use this product on most of the platforms currently available. But, to properly use the application tools coming together with the product, you have to run the setup program which comes with this product. The setup program will automatically install the drivers required by the applications. • All software programs coming together with this product can be run under Microsoft Windows OS, MAC OS, and Linux OS. • The basic functions of the USB drive can be used under Microsoft Windows OS. Descriptions of the Parts of the USB Drive: • USB Interface: This is the connector to be plugged into the computer USB Interface Installation 1. MS Windows 98 OS i. Start up your computer ii. Insert the accompanied CD-ROM disc into your CD-ROM drive of the computer iii. Plug the USB drive into a USB port of the computer iv. Windows will display the message “Find new hardware”. Please follow the windows steps to install the expected software from the CBUMSS directory of the CD-ROM drive until the process finishes. 2. MS Windows ME/2000/XP Vista OS i. Start up your computer ii. Plug the USB drive into a USB port of the computer iii. Windows will display the “find New Hardware” dialogue box and will indicate that the system will automatically install related drivers. You only need to click the OK button and let the computer find and install the proper driver for you. 3. MAC OS 9.2 or up i. Start up your computer ii. Plug the USB drive into a USB port of the computer iii. MAC OS will automatically detect the USB drive and install it 4. Linux Kernel 2.4 or up i. Start up your computer ii. Get into the root directory of your computer OS system iii. Plug the USB drive into a USB port of the computer iv. For installing the USB drive, please enter “mount/dev/sda1/mnt” v. For uninstalling the USB drive, please enter “umount/mnt” Basic Operations 1. Plug In After plugging the drive into the USB port of your computer, you can see the icon of the removable disk drive from the file system manager Windows Explorer, as shown in the following figure. 2. Read Data or Files You can do any kind of operations on this USB drive just as you work on any Hard Disk Drive, such as file read, write, copy, or delete. 3. Unplug After finishing your operations, you can unplug the device when the LED on the device is not quick flashing. But for Windows WE and Windows 2000, you’d better follow the steps here to safely unplug your USB drive from your computer: When you plug the device into the USB port of your computer, you can see the icon as shown in the following f…

Text truncated - open the document above for the full version.

Bron International Ltd Model Name:CUSB Technology Information: 1. USB version2.0/1.1 supported 2. Supports full-speed (12MB/S) 3. 12MHz CRYSTAL 4. VCC=5V

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 2.0 2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (current) 1.0 1.0 Nov-14-2006 Revised wording (current) 1.0 2.0 Sept–25-2007 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 2.0 Bron International Ltd. __________________________ January 10, 2011 To: SIEMIC, INC. 2206 Ringwood Avenue, San Jose, CA 95131 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, Bron International Ltd. hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Product description: BMW CUSB model name: CUSB We affirm that between SIEMIC and Bron International Ltd., any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, signature Name : Qing Yu Title: Production Manager Company Name: Bron International Ltd. Address: Flat J. 6/f. Block 3, Camelpaint Building 60 Hoi Yuen Road, Kwun Tong Kowloon –Hong Kong Email: [email protected] Telephone: 020- 27979739

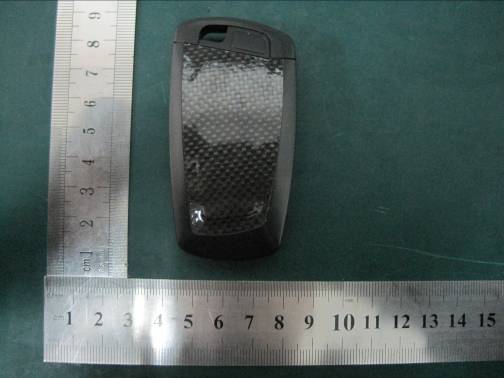

Title: RF Test Report for BMW CUSB Model: CUSB To: FCC Part 15 Subpart B Class B: 2010 Serial#: 10021275 Issue Date: 27 January, 2011 Page: 17 of 36 www.siemic.com.cn Annex B. EUT AND TEST SETUP PHOTOGRAPHS Annex B.i. Photograph 1: EUT External Photo Front View of EUT Rear View of EUT

FCC ID: XZJ-CUSB

Label Location

Title: RF Test Report for BMW CUSB Model: CUSB To: FCC Part 15 Subpart B Class B: 2010 Serial#: 10021275 Issue Date: 27 January, 2011 Page: 18 of 36 www.siemic.com.cn Annex B.ii. Photograph 2: EUT Internal Photo Front View of PCB Board Rear View of PCB Board

Operation Description The USB Drive a SOC(system on chip) chip CBM2093P,most of function can be finished by one chip , such as file read, write, copy, or delete, and it is the part of USB Drive operating circuit. The communications is made of U2(CBM2093P), MEMORY U1, it make the computer USB port power to support the USB Drive working. clock ocsillator is made of U2 intemal circuit and Y1. and it can supply the power for clock pulse. U2 will be process, U1 is memory chip, computer can react the datat toU2,U1 will finish all the data read, write, copy, or delete. Press bottom pop-up USB Interface USB Interface: This is the connector to be plugged into the computer Press bottom draw back Interface

BMW USB STICkKS 20091109 TITLE: NO: DARWN DATE REV CHK SIZEAPP. ABCD 6543 21 DCBA LIFANG 09-07-08 1.0 1OF1 A4 123456 P1 USB_PLUGA 1 2 R7 5.1R 1 2 R11 1 2 Y1 12MHz 1 2 R8 1M C11 22PF C1222PF C5 100NF C7 2.2UF/10V C2 4.7UF C3 4.7UF 1 2 R2 330R C1 100NF C8 4.7NF 1 VDDD50 2 VDD33 3 VD18 4 VPP 5 REXT 6 VD33 7 DP 8 DM 9 VSS 10 XI 11 XO 12 VSSU 13 VDDU 14 TEST_MODE 15 FDATA15 16 FDATA14 17 VSS 18 FDATA13 19 FDATA12 20 FDATA11 21 FDATA10 22 FDATA9 23 FDATA8 24 LED 25 FWRN 26 FALE 27 WP 28 FCLE 29 VDD33 30 CLKOFF 31 FCEN0 32 FRND 33 INTR 34 TXD 35 RXD 36 CLK_OUT 37 FRB0 38 FDATA0 39 FDATA1 40 FDATA2 41 FDATA3 42 FDATA4 43 FDATA5 44 FDATA6 45 FDATA7 46 FST_OUT 47 RESET 48 VSS U2 CBM2093A 1 NC/RST 2 NC 3 NC 4 R/B4 5 R/B3 6 R/B2 7 R/B1 8 RE 9 CE1 10 CE2 11 NC 12 VCC 13 VSS 14 CE3 15 CE4 16 CLE 17 ALE 18 WE 19 WP 20 NC 21 NC 22 NC 23 NC 24 NC 25 NC 26 NC 27 NC 28 NC 29 I/O0 30 I/O1 31 I/O2 32 I/O3 33 NC 34 NC 35 NC 36 VSS 37 VCC 38 PRE 39 NC 40 NC 41 I/O4 42 I/O5 43 I/O6 44 I/O7 45 NC 46 NC 47 NC 48 NC U1 AG-AND&NAND_FLASH 1 2 R1 2.2K C4 1UF 1 2 R12 0R 1 2 R24 0R 1 2 R9 0R DMDP VDD50 XI XO VDD50 VDD50 VDD33 VDD18 VDD33 DPDMXIXO VDD18 FCEN2 FCEN3 LED FWRNFALEFCLE VDD33 FCEN0FRDNFRB0FCEN1 FRB0 FDATA0_0 FDATA0_1 FDATA0_2 FDATA0_3 FDATA0_4 FDATAO_5 FDATA0_6 FDATA0_7 FRST FRDN FCEN0FCEN1 VDD33 FCLEFALEFWRN VDD33 FDATA0_0FDATA0_1FDATA0_2FDATA0_3 FDATA0_4FDATAO_5FDATA0_6FDATA0_7 VDD33 FRB0 VDD33 FCEN2FCEN3 VDD33DQS DQS VDD33 VDD33

Bron International Ltd. BMW CUSB Model: CUSB 27 January, 2011 Report No.: 10021275 (This report supersedes NONE) Modifications made to the product : None This Test Report is Issued Under the Authority of: Peter Cai Test Engineer Will yang Technical Manager This test report may be reproduced in full only. Test result presented in this test report is applicable to the representative sample only. Title: RF Test Report for BMW CUSB Model: CUSB To: FCC Part 15 Subpart B Class B: 2010 Serial#: 10021275 Issue Date: 27 January, 2011 Page: 2 of 36 www.siemic.com.cn Laboratory Introduction ATION SIEMIC, headquartered in the heart of Silicon Valley, with superior facilities in US and Asia, is one of the leading independent testing and certification facilities providing customers with one-stop shop services for Compliance Testing and Global Certifications. In addition to testing and certification, SIEMIC provides initial design reviews and compliance management through out a project. Our extensive experience with China, Asia Pacific, North America, European, and international compliance requirements, assures the fastest, most cost effective way to attain regulatory compliance for the global markets . Accreditations for Conformity Assessment Country/RegionAccreditation Body Scope USA FCC, A2LA EMC , RF/Wireless , Telecom Canada IC, A2LA, NIST EMC, RF/Wireless , Telecom Taiwan BSMI , NCC , NIST EMC, RF, Telecom , Safety Hong Kong OFTA , NIST RF/Wireless ,Telecom Australia NATA, NIST EMC, RF, Telecom , Safety Korea KCC/RRA, NIST EMI, EMS, RF , Telecom, Safety Japan VCCI, JATE, TELEC, RFT EMI, RF/Wireless, Telecom Mexico NOM, COFETEL, Caniety Safety, EMC , RF/Wireless, Telecom Europe A2LA, NIST EMC, RF, Telecom , Safety Accreditations for Product Certifications Country Accreditation Body Scope USA FCC TCB, NIST EMC , RF , Telecom Canada IC FCB , NIST EMC , RF , Telecom Singapore iDA, NIST EMC , RF , Telecom EU NB EMC & R&TTE Directive Title: RF Test Report for BMW CUSB Model: CUSB To: FCC Part 15 Subpart B Class B: 2010 Serial#: 10021275 Issue Date: 27 January, 2011 Page: 3 of 36 www.siemic.com.cn This page has been left blank intentionally. Title: RF Test Report for BMW CUSB Model: CUSB To: FCC Part 15 Subpart B Class B: 2010 Serial#: 10021275 Issue Date: 27 January, 2011 Page: 4 of 36 www.siemic.com.cn CONTENTS 1 EXECUTIVE SUMMARY & EUT INFORMATION.............................................................................................................5 2 TECHNICAL DETAILS..................................................................................................................................................6 3 MODIFICATION............................................................................................................................................................7 4 TEST SUMMARY..........................................................................................................................................................8 5 MEASUREMENTS, EXAMINATION AND DERIVED RESULTS........................................................................................9 ANNEX A. TEST INSTRUMENT & METHOD........................................................................................................................14 ANNEX B. EUT AND TEST SETUP PHOTOGRAPHS...........................................................................................................17 ANNEX C. TEST SETUP AND SUPPORTING EQUIPMENT...................................................................................................21 ANNEX D. USER MANUAL / BLOCK DIAGRAM / SCHEMATICS / PART LIST.......................................................................25 ANNEX E. SIEMIC ACCREDITATION CERTIFICATES..........................................................................................................26 Title: RF Test Report for BMW CUSB Model: CUSB To: FCC Part 15 Subpart B Class B: 2010 Serial#: 10021275 Issue Date: 27 January, 2011 Page: 5 of 36 www.siemic.com.cn 1 Executive Summary & EUT information The purpose of this test programme was to demonstrate compliance of the Bron International Ltd. BMW CUSB, and model CUSB against the current Stipulated Standards. The BMW CUSB has demonstrated compliance with the FCC Part 15 Subpart B Class B: 2010. EUT Information EUT Description : BMW CUSB Model No : CUSB Serial No : N/A Input Power : 5V/150MA/0.75W Classification Per Stipulated Test Standard : Class B Emission Product Title: RF Test Report for BMW CUSB Model: CUSB To: FCC Part 15 Subpart B Class B: 2010 Serial#: 10021275 Issue Date: 27 January, 2011 Page: 6 of 36 www.siemic.com.cn 2 TECHNICAL DETAILS Purpose Compliance testing of BMW CUSB with stipulated standard Applicant / Client Bron International Ltd. Flat J.6/f. Block 3, Camelpaint Building 60 Hoi Yuen Road, Kwun Tong Kowloon Hong Kong Manufacturer Bron International Ltd. Flat J.6/f. Block 3, Camelpaint Building 60 Hoi Yuen Road, Kwun Tong Kowloon Hong Kong Laboratory performing the tests SIEMIC Nanjing (China) Laboratories NO.2-1,Longcang Dadao, Yuhua Economic Development Zone, Nanjing, China Tel:+86(25)86730128/86730129 Fax:+86(25)86730127 Email:[email protected] Test report reference number 10021275 Date EUT received 16 December, 2010 Standard applied FCC Part 15 Subpart B Class B: 2010 Dates of test (from – to) 20 December, 2010 ~27 January, 2011 No of Units: #1 Equipment Category: Class B Emission Product Trade Name: N/A Model : CUSB RF Operating Frequency (ies) N/A Number of Channels : N/A Modulation : N/A FCC ID： XZJ-CUSB Title: RF Test Report for BMW CUSB Model: CUSB To: FCC Part 15 Subpart B Class B: 2010 Serial#: 10021275 Issue Date: 27 January, 2011 Page: 7 of 36 www.siemic.com.cn 3 MODIFICATION NONE Title: RF Test Report for BMW CUSB Model: CUSB To: FCC Part 15 Subpart B Class B: 2010 Serial#: 10021275 Issue Date: 27 January, 2011 Page: 8 of 36 www.siemic.com.cn 4 TEST SUMMARY The product was tested in accordance with the fol…

Text truncated - open the document above for the full version.

Title: RF Test Report for BMW CUSB Model: CUSB To: FCC Part 15 Subpart B Class B: 2010 Serial#: 10021275 Issue Date: 27 January, 2011 Page: 19 of 36 www.siemic.com.cn Annex B.ii. Photograph 2: Test Setup Photo Conducted Emissions Test Setup Front View Conducted Emissions Test Setup Side View Title: RF Test Report for BMW CUSB Model: CUSB To: FCC Part 15 Subpart B Class B: 2010 Serial#: 10021275 Issue Date: 27 January, 2011 Page: 20 of 36 www.siemic.com.cn Radiated Emissions Test Setup Front View Radiated Emissions Test Setup Rear View
