XZJMCMMINI Wireless Computer Mouse

Wireless Touch Mouse Operation Manual Product Instruction Power Supply: 2x AAA batteries (alkaline battery is recommended) USB Interface Type: 1.1—2.0 standard, free drivers System Required: Windows98, Windows ME, WindowsNT, WindowsXP, VISTA, WIN7 Applicable Type: Desktop, Laptop (plug and play) Installation: Plug the USB receiver into an available USB interface of the computer. Your computer will detect the new USB device automatically and install the default USB mouse drivers if necessary. Turn the switch on the bottom side of the mouse to “ON”, the mouse will search the signal within 10 seconds. When the lamps light up the mouse is connected to your computer. (During first usage it might take longer before the computer recognizes the mouse.) Mouse setup: Setup for right-handed or left-handed users: Open control panel from start menu, and double click mouse icon to execute mouse control center. According to your habits, select right-hand or left-hand mode. Click OK to finish setup. Cursor appearance and speed: if cursor movement is too quick or slow, you can enter mouse control center to adjust cursor appearance and speed. Standby/sleep Mode: When the mouse cannot search the signal within 10 seconds, the mouse will be transformed to power-saving mode automatically. If the mouse is in standby mode within 15 minutes, it will be transformed to the sleep mode automatically. Press the left/right button or touch the rolling sensor part to activate the mouse again. Power OFF: There’s a power switch on the bottom of the mouse. If you won’t use the mouse for a long time, make sure the button is in the “OFF” position in order to save the battery power. Tips: You cannot see any buttons from the mouse surface as they were built-in. There is an area of touch sensitive scroll. In this range, slide up for upper page and slide down for lower page. If you want to press the left/right button, please remove your finger tip away from touch sensitive scroll area. Important: Using mouse for long period may give rise to physical discomfort and injury to hands, wrists, arms, neck, and back. To prevent injury and reduce discomfort, medical experts suggest that you occasionally rest and relax your hands, wrists, arms, neck, and back when using the mouse. Environment restrictions: Operation Temperature: -40°C~~+85°C Storage Temperature: 0°C - 45°C Working Humidity: 5% RH – 80% RH Storage Humidity: 5% RH – 85% RH 38mm 12mm 12mm32mm 13mm 24mm USB FCC STATEMENT 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. 2. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (current) 2.0 3.0 Jan-31-2012 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 3.0 Bron International Ltd. June 05, 2012 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, Bron International Ltd. hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Product description: MINI Wireless Computer Mouse Model name: MCM We affirm that between SIEMIC and Bron International Ltd. , any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Signature: Name : Qing Yu Title: Production Manager Company Name: Bron International Ltd. Address: Flat J. 6/f. Block 3, Camelpaint Building 60 Hoi Yuen Road, Kwun Tong Kowloon –Hong Kong Email: [email protected] Telephone: 020- 27979739

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (current) 2.0 3.0 Jan-31-2012 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 3.0 Bron International Ltd. June 05, 2012 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: XZJMCM We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Schematics - Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Signature Name : Qing Yu Title: Production Manager Company Name: Bron International Ltd. Address: Flat J. 6/f. Block 3, Camelpaint Building 60 Hoi Yuen Road, Kwun Tong Kowloon –Hong Kong Email: [email protected] Telephone: 020- 27979739

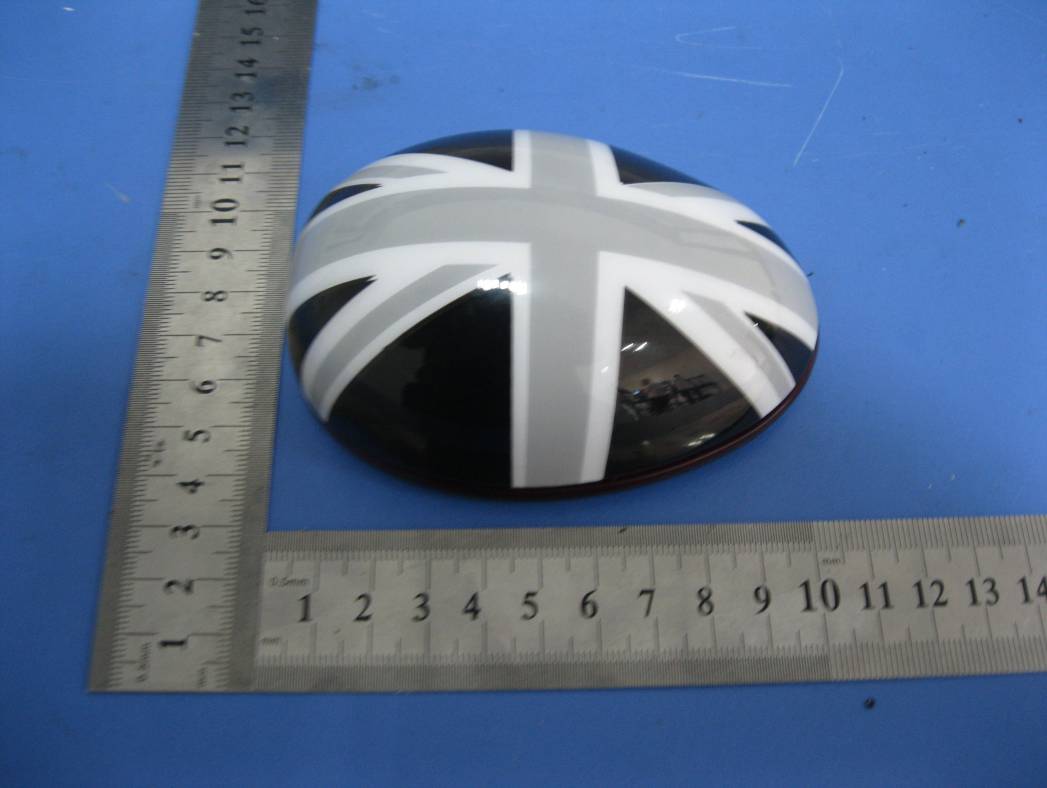

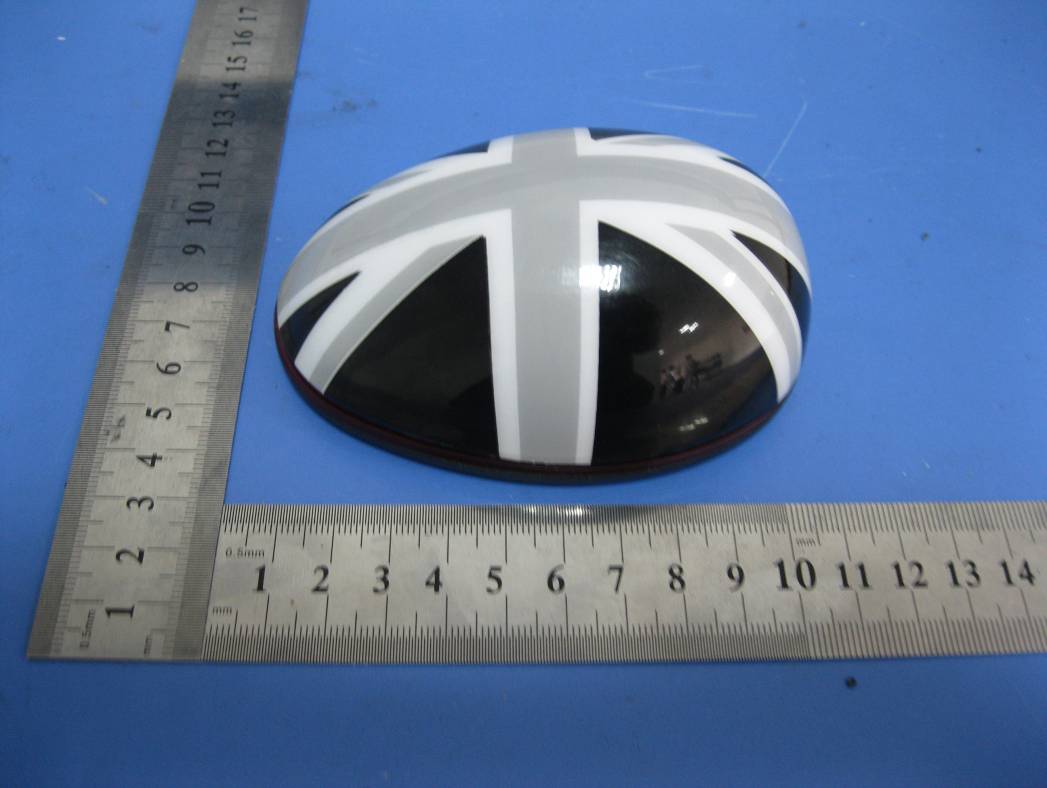

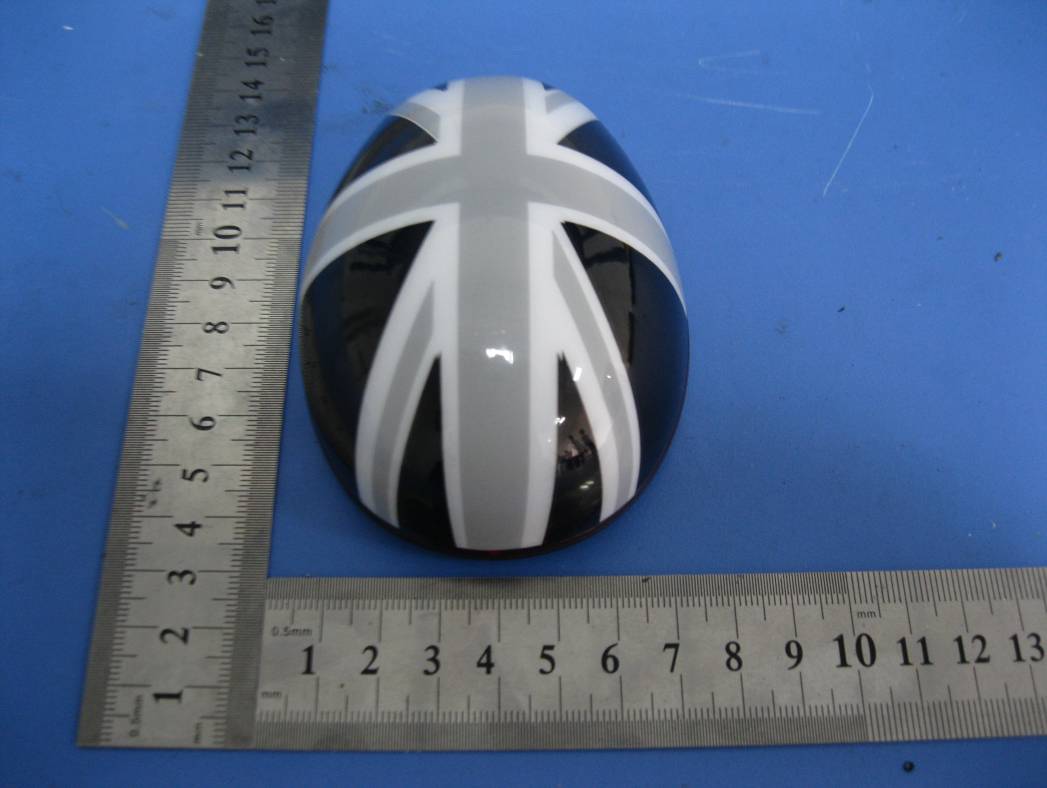

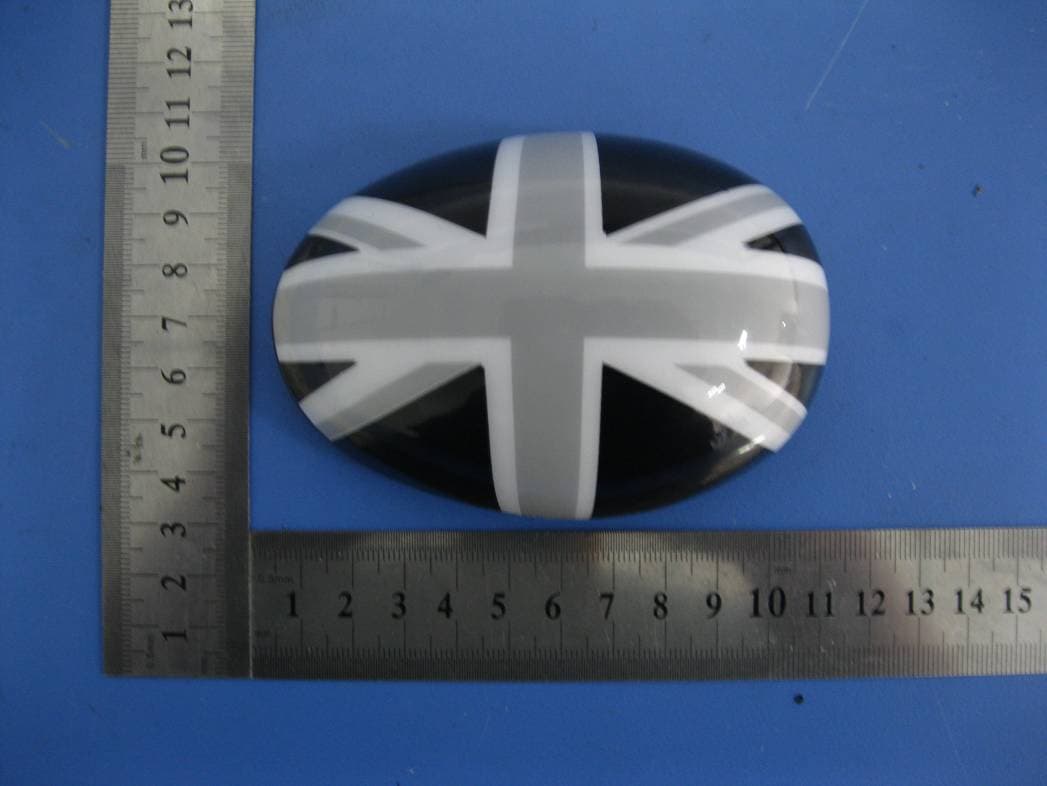

Annex B.i. Photograph 1: EUT External Photo EUT - Front View EUT - Rear View EUT - Top View EUT - Bottom View EUT - Left View EUT - Right View

FCC ID: XZJMCM This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Label Location

Annex B.ii. Photograph 2: EUT Internal Photo Cover Off - Top View Cover Off - Bottom View Main Board - Top View Main Board - Bottom View Sensor Module - Top View Sensor Module - Bottom View Antenna - Top View Antenna

Bron International Ltd. MINI Wireless Computer Mouse Main Model: MCM Serial Model: N/A May 29, 2012 Report No.: 12020426-FCC-R1 (This report supersedes NONE) Modifications made to the product : None This Test Report is Issued Under the Authority of: Chris Bi Compliance Engineer Alex Liu Technical Manager This test report may be reproduced in full only. Test result presented in this test report is applicable to the representative sample only. Title: RF Test Report for MINI Wireless Computer Mouse Main Model: MCM Main Model: N/A To: FCC 15.249: 2012 Report No: 12020426-FCC-R1 Issue Date: May 29, 2012 Page: 2 of 32 www.siemic.com.cn Laboratory Introduction SIEMIC, headquartered in the heart of Silicon Valley, with superior facilities in US and Asia, is one of the leading independent testing and certification facilities providing customers with one-stop shop services for Compliance Testing and Global Certifications. In addition to testing and certification, SIEMIC provides initial design reviews and compliance management through out a project. Our extensive experience with China, Asia Pacific, North America, European, and international compliance requirements, assures the fastest, most cost effective way to attain regulatory compliance for the global markets . Accreditations for Conformity Assessment Country/Region Accreditation Body Scope USA FCC, A2LA EMC , RF/Wireless , Telecom Canada IC, A2LA, NIST EMC, RF/Wireless , Telecom Taiwan BSMI , NCC , NIST EMC, RF, Telecom , Safety Hong Kong OFTA , NIST RF/Wireless ,Telecom Australia NATA, NIST EMC, RF, Telecom , Safety Korea KCC/RRA, NIST EMI, EMS, RF , Telecom, Safety Japan VCCI, JATE, TELEC, RFTEMI, RF/Wireless, Telecom Mexico NOM, COFETEL, Caniety Safety, EMC , RF/Wireless, Telecom Europe A2LA, NIST EMC, RF, Telecom , Safety Accreditations for Product Certifications Country/Region Accreditation Body Scope USA FCC TCB, NIST EMC , RF , Telecom Canada IC FCB , NIST EMC , RF , Telecom Singapore iDA, NIST EMC , RF , Telecom EU NB EMC & R&TTE Directive Japan MIC, (RCB 208) RF , Telecom Hong Kong OFTA (US002) RF , Telecom Title: RF Test Report for MINI Wireless Computer Mouse Main Model: MCM Main Model: N/A To: FCC 15.249: 2012 Report No: 12020426-FCC-R1 Issue Date: May 29, 2012 Page: 3 of 32 www.siemic.com.cn This page has been left blank intentionally. Title: RF Test Report for MINI Wireless Computer Mouse Main Model: MCM Main Model: N/A To: FCC 15.249: 2012 Report No: 12020426-FCC-R1 Issue Date: May 29, 2012 Page: 4 of 32 www.siemic.com.cn CONTENTS 1 EXECUTIVE SUMMARY & EUT INFORMATION ..........................................................................................5 2 TECHNICAL DETAILS .........................................................................................................................................6 3 MODIFICATION.....................................................................................................................................................7 4 TEST SUMMARY....................................................................................................................................................8 5 MEASUREMENTS, EXAMINATION AND DERIVED RESULTS ..................................................................9 ANNEX A. TEST INSTRUMENT & METHOD ........................................................................................................21 ANNEX B. EUT AND TEST SETUP PHOTOGRAPHS ...........................................................................................27 ANNEX C. TEST SETUP AND SUPPORTING EQUIPMENT................................................................................28 ANNEX D. USER MANUAL / BLOCK DIAGRAM / SCHEMATICS / PART LIST ............................................31 ANNEX E. DECLARATION OF SIMILARITY ........................................................................................................32 Title: RF Test Report for MINI Wireless Computer Mouse Main Model: MCM Main Model: N/A To: FCC 15.249: 2012 Report No: 12020426-FCC-R1 Issue Date: May 29, 2012 Page: 5 of 32 www.siemic.com.cn 1 EXECUTIVE SUMMARY & EUT INFORMATION The purpose of this test programme was to demonstrate compliance of the Bron International Ltd., MINI Wireless Computer Mouse and model: MCM against the current Stipulated Standards. The MINI Wireless Computer Mouse has demonstrated compliance with the FCC 15.249: 2012. EUT Information EUT Description : MINI Wireless Computer Mouse Main Model : MCM Serial Model : N/A Antenna Gain : 2 dBi Input Power : 2*1.5 V AAA Batteries/50 mA Classification Per Stipulated Test Standard : FCC 15.249: 2012 Title: RF Test Report for MINI Wireless Computer Mouse Main Model: MCM Main Model: N/A To: FCC 15.249: 2012 Report No: 12020426-FCC-R1 Issue Date: May 29, 2012 Page: 6 of 32 www.siemic.com.cn 2 TECHNICAL DETAILS Purpose Compliance testing of MINI Wireless Computer Mouse with stipulated standard Applicant / Client Bron International Ltd. Flat J. 6/f. Block 3, Camelpaint Building 60 Hoi Yuen Road, Kwun Tong Kowloon – Hong Kong Manufacturer Bron International Ltd. Flat J. 6/f. Block 3, Camelpaint Building 60 Hoi Yuen Road, Kwun Tong Kowloon – Hong Kong Laboratory performing the tests SIEMIC Nanjing (China) Laboratories NO.2-1,Longcang Dadao, Yuhua Economic Development Zone, Nanjing, China Tel:+86(25)86730128/86730129 Fax:+86(25)86730127 Email:[email protected] Test report reference number 12020426-FCC-R1 Date EUT received May 15, 2012 Standard applied FCC 15.249: 2012 Dates of test (from – to) May 16, 2012 to May 28, 2012 No of Units #1 Equipment Category DXX Trade Name N/A RF Operating Frequency (ies) 2410-2450 MHz FCC ID XZJMCM Title: RF Test Report for MINI Wireless Computer Mouse Main Model: MCM Main Model: N/A To: FCC 15.249: 2012 Report No: 12020426-FCC-R1 Issue Date: May 29, 2012 Page: 7 of 32 www.siemic.com.cn 3 MODIFICATION NONE Title: RF Test Report for MINI Wireless Computer Mouse Main Model: MCM Main Model: N/A To: FCC 15…
