XZO-RFIDRFID Module

i-Mobile Technology Corporation
RFID Module - FCC ID XZO-RFID - i-Mobile Technology Corporation
Click to zoom

Application Details

Equipment Class
DSS - Part 15 Spread Spectrum Transmitter
Date of Grant
Mar 16, 2015
Application Purpose
Original Equipment
Date of Application
Mar 16, 2015
Equipment Note
RFID Module
Frequency Range
903.24000000 - 926.76000000
Company
i-Mobile Technology Corporation
Country
Taiwan

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗

External Photos

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

User Manual Brand Name:@MOBILE Model:UHF-006 Project Name: RFID Module 1. USB Cable plug in the Port1 to support 5V Voltage 2. Push Key1 read Tag and green LED will light 3. If it read the right data form Tag, the red LED will light. FCC Statement Red LED Green LED 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. 2. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help.

ID Label/Location Info

Size:35mmX32mm Label location

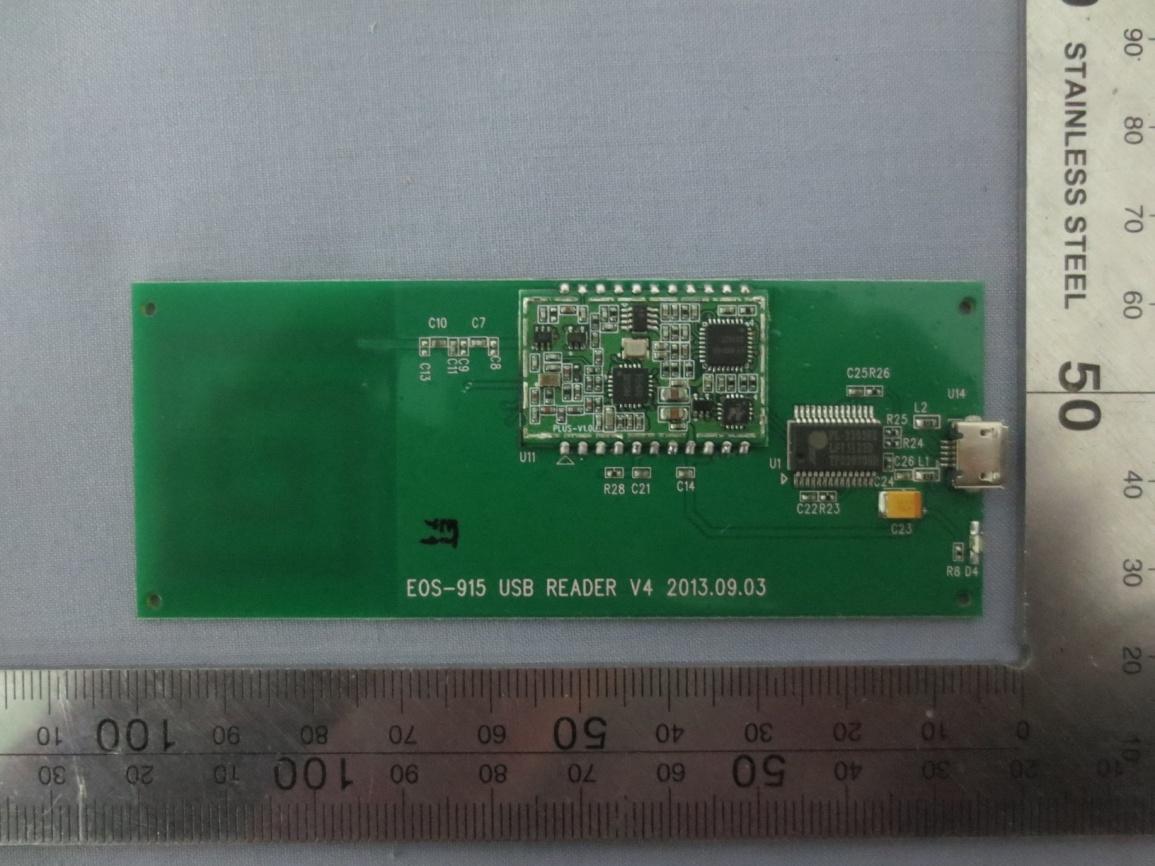

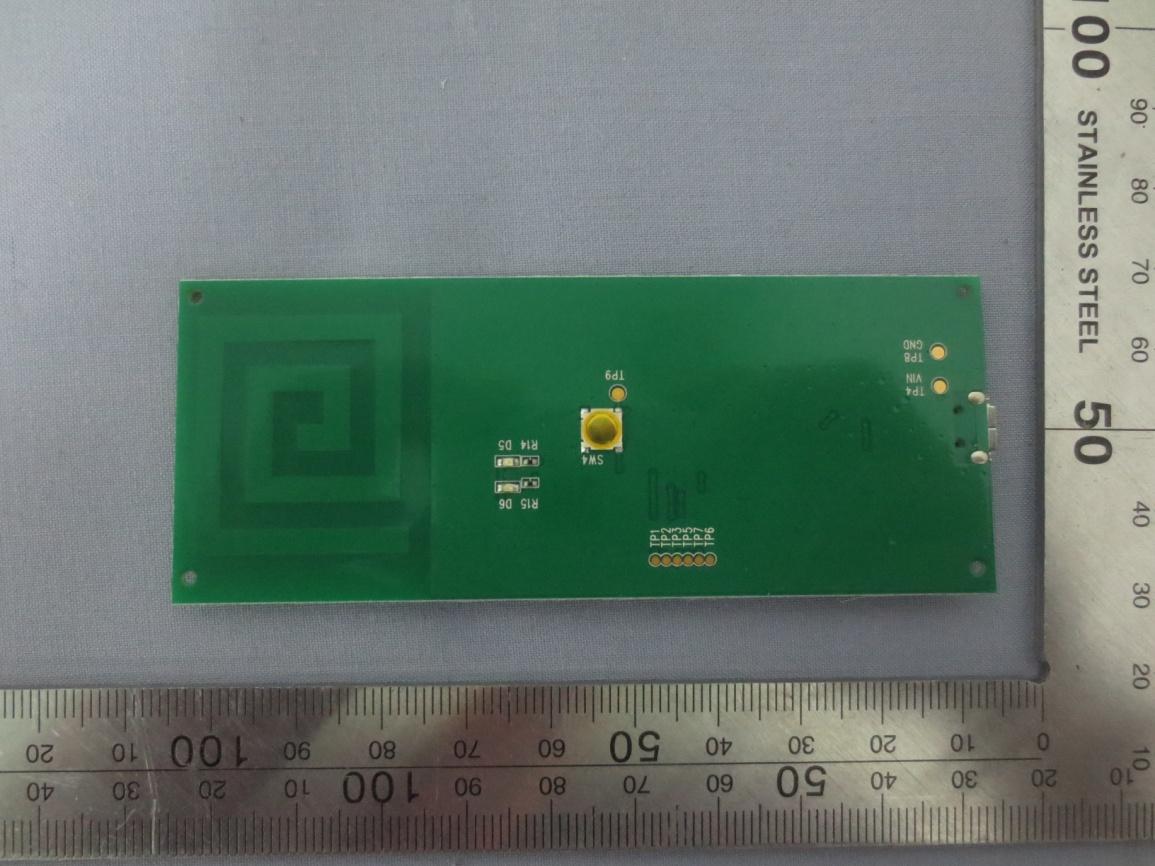

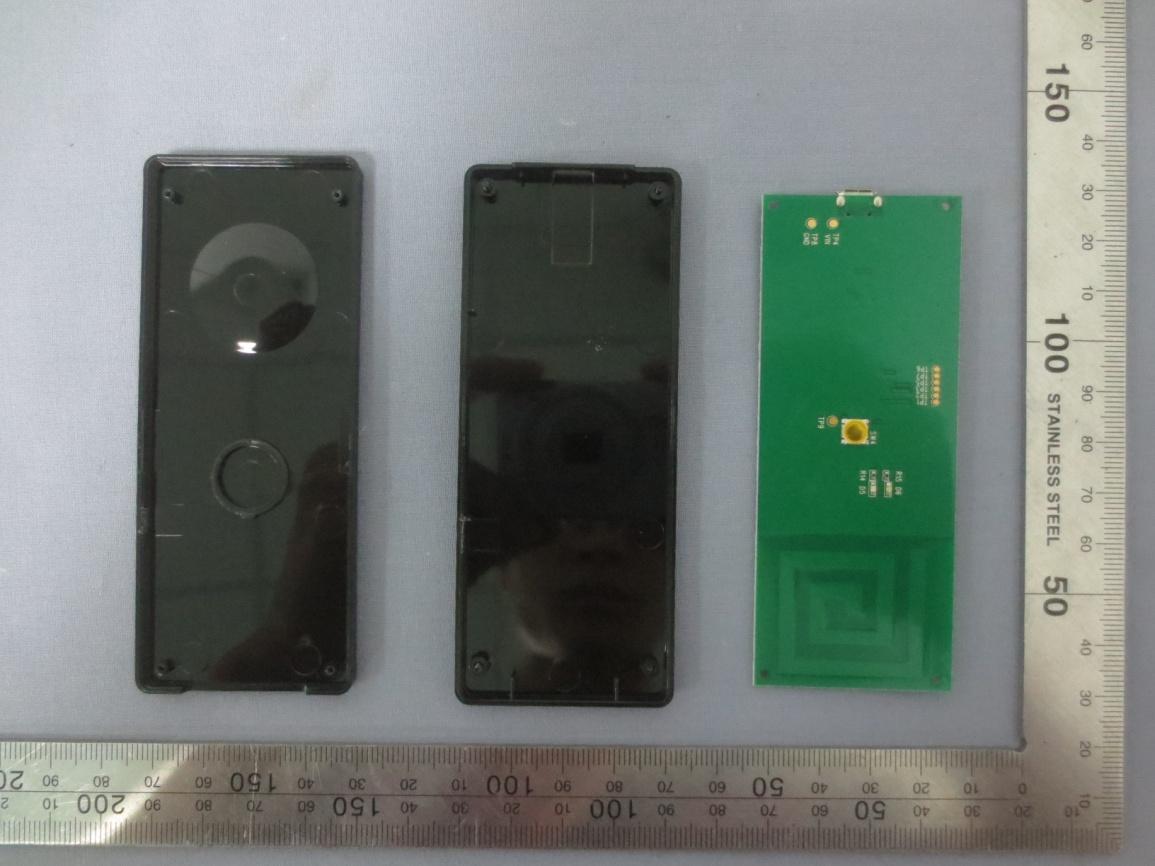

Internal Photos

Report No: CCIS15020010801 Shenzhen Zhongjian Nanfang Testing Co., Ltd. Project No.: CCIS150200108RF No. B-C, 1/F., Building 2, Laodong No.2 Industrial Park, Xixiang Road, Bao’an District, Shenzhen, Guangdong, China Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 43 of 44 Report No: CCIS15020010801 Shenzhen Zhongjian Nanfang Testing Co., Ltd. Project No.: CCIS150200108RF No. B-C, 1/F., Building 2, Laodong No.2 Industrial Park, Xixiang Road, Bao’an District, Shenzhen, Guangdong, China Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 44 of 44 ------End of report------

RF Exposure Info

RF Exposure evaluation According to 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10- g extremity SAR, where  f(GHz) is the RF channel transmit frequency in GHz  Power and distance are rounded to the nearest mW and mm before calculation  The result is rounded to one decimal place for comparison Worse case is as below: [ 903.24 MHz 12.92dBm(19.59mW) output power] (19.59mW /5mm) ·[√0.90324 (GHz)]= 3.7 <7.5 for 10-g SAR Then SAR evaluation is not required

Test Report

Shenzhen Zhongjian Nanfang Testing Co., Ltd. Report No: CCIS15020010801 Authorized Signature: Bruce Zhang Laboratory Manager This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product and does not permit the use of the CCIS product certification mark. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. This report may only be reproduced and distributed in full. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 1 Cover Page FCC REPORT Applicant: i-Mobile Technology corporation Address of Applicant: 3F #8 Alley 15 Lane 120 Sec. 1 Neihu Road, Neihu District, Taipei City 114, Taiwan Equipment Under Test (EUT) Product Name: RFID Module Model No.: UHF-006 Trade mark: @mobile FCC ID: XZO-RFID Applicable standards: FCC CFR Title 47 Part 15 Subpart C Section 15.247 Date of sample receipt: 11 Feb., 2015 Date of Test: 11 Feb., to 11 Mar., 2015 Date of report issued: 12 Mar., 2015 Test Result: PASS * * In the configuration tested, the EUT complied with the standards specified above. Report No: CCIS15020010801 Shenzhen Zhongjian Nanfang Testing Co., Ltd. Project No.: CCIS150200108RF No. B-C, 1/F., Building 2, Laodong No.2 Industrial Park, Xixiang Road, Bao’an District, Shenzhen, Guangdong, China Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 2 of 44 2 Version Version No. Date Description 00 12 Mar., 2015 Original Prepared by: Date: 12 Mar., 2015 Report Clerk Reviewed by: Date: 12 Mar., 2015 Project Engineer ReportCCClllllllllllllllek Report No: CCIS15020010801 Shenzhen Zhongjian Nanfang Testing Co., Ltd. Project No.: CCIS150200108RF No. B-C, 1/F., Building 2, Laodong No.2 Industrial Park, Xixiang Road, Bao’an District, Shenzhen, Guangdong, China Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 3 of 44 3 Contents Page 1 COVER PAGE ....................................................................................................................................................... 1 2 VERSION ............................................................................................................................................................... 2 3 CONTENTS ........................................................................................................................................................... 3 4 TEST SUMMARY .................................................................................................................................................. 4 5 GENERAL INFORMATION .................................................................................................................................. 5 5.1 CLIENT INFORMATION ...................................................................................................................................................... 5 5.2 GENERAL DESCRIPTION OF E.U.T. ...................................................................................................................................... 5 5.3 TEST MODE .................................................................................................................................................................... 7 5.4 LABORATORY FACILITY ...................................................................................................................................................... 7 5.5 LABORATORY LOCATION ................................................................................................................................................... 7 5.6 DESCRIPTION OF SUPPORT UNITS ....................................................................................................................................... 7 5.7 TEST INSTRUMENTS LIST .................................................................................................................................................... 8 6 TEST RESULTS AND MEASUREMENT DATA ................................................................................................ 9 6.1 ANTENNA REQUIREMENT .................................................................................................................................................. 9 6.2 CONDUCTED EMISSIONS ................................................................................................................................................. 10 6.3 CONDUCTED OUTPUT POWER .......................................................................................................................................... 13 6.4 20DB OCCUPY BANDWIDTH ............................................................................................................................................ 15 6.5 CARRIER FREQUENCIES SEPARATION .................................................................................................................................. 17 6.6 HOPPING CHANNEL NUMBER .......................................................................................................................................... 19 6.7 DWELL TIME ................................................................................................................................................................. 21 6.8 PSEUDORANDOM FREQUENCY HOPPING SEQUENCE .....................................................…

Text truncated - open the document above for the full version.

Test Setup Photos

Report No: CCIS15020010801 Shenzhen Zhongjian Nanfang Testing Co., Ltd. Project No.: CCIS150200108RF No. B-C, 1/F., Building 2, Laodong No.2 Industrial Park, Xixiang Road, Bao’an District, Shenzhen, Guangdong, China Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 37 of 44 7 Test Setup Photo Radiated Spurious Emission Report No: CCIS15020010801 Shenzhen Zhongjian Nanfang Testing Co., Ltd. Project No.: CCIS150200108RF No. B-C, 1/F., Building 2, Laodong No.2 Industrial Park, Xixiang Road, Bao’an District, Shenzhen, Guangdong, China Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 38 of 44 Conducted Emission

Contact Information

Applicant

Arven Peng(Manager, Engineering Center)
[email protected]886-2-2656-2015Fax: 886-2-2656-2013

Test Firm

Shenzhen Zhongjian Nanfang Testing Co.,LtdBruce Zhang
[email protected]86-755-23118282Fax: 86-755-23116366

Technical Specifications

#Rule PartsFrequency RangePower Output
115C903.24 MHz - 926.76 MHz19.59 mW
Confidentiality
Long Term
Grant Notes
Power listed is conducted
