XZOIO-10CTablet PC

User’s Manual IO-10C (2012/12/22) Copyright This publication, including all photographs, illustrations and software, is protected under international copyright laws, with all rights reserved. Neither this manual, nor any of the material contained herein, may be reproduced without the express written consent of the manufacturer. Disclaimer: The manufacturer makes no representations or warranties with respect to the contents hereof and specifically disclaim any implied warranties of merchantability or fitness for any particular purpose. The manufacturer is not liable for technical and editorial error for this guide. The manufacturer reserves the right to revise or make changes to this publication without notice or obligation of the manufacturer to notify any person of such revision or changes. Software Licenses The software included with the product and referenced in this document is furnished under a License Agreement. This Agreement specifies permitted and prohibited uses of this product. General Guidelines i Read all of the instructions carefully. i Save the instructions for future use. i To ensure follow all warnings and instructions marked in the product documentation and within the computer. i Except as explained elsewhere in this manual, do not attempt to service the computer yourself. Opening or removing covers might expose you to dangerous voltage points or other risks. Refer all servicing of marked components to qualified personnel. Power Cord Requirements The power cord you received with this computer conforms to local specifications for use in the country where you purchased it. Power cord use in other countries may require an additional adapter and/or separate power cord. For additional information on local power requirements, contact an authorized dealer, reseller, or service provider. About the AC Adapter The AC adapter will automatically recognize any compatible power supply connected to the computer. The AC adapter can also be used to recharge the battery, which begins immediately after the AC Adapter cord is connected. A green LED will light to confirm charging is in progress. The ideal range for safe operation of the computer is from 100 ~ 240V AC. 1. AC Power Cord / 2. AC Adapter / 3. DC (Direct Current) Cord Warning : x Using the AC adapter to power other devices can damage the adapter or the device. This AC adapter is only designed for use with the product. x Be sure to only use the AC adapter that comes provided with this product or a compatible option from the manufacturer. Other adapters may cause damage to the computer and will not be covered under the warranty. x Grasp the adapter plug and not the cord, when unplugging the adapter from an electrical outlet. x If the power cord becomes damaged (exposed or frayed, etc.), replace with a new AC adapter. Using a damaged cord may cause an electrical shock and may result in fire. x Power off and unplug the AC adapter from the computer before unplugging it from the electrical outlet. Battery (Lithium-Ion) NOTE: Refer to following hazard statement within the service and operating documentation or on the adjacent label to the battery. 1. English CAUTION: DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY INSTALLED. REPLACE ONLY W ITH SAME OR EQUIVALENT TYPE RECOMMENDED BY THE MANUFACTURER. DISCARD OF USED BATTERIES IN ACCORDANCE WITH THE MANUFACTURER'S INSTRUCTIONS. 2. French IL Y A DANGER D'EXPLOSION S'IL Y A REMPLACEMENT INCORRECT DE LA BATTERIE. REMPLACER UNIQUEMENT AVEC UNE BATTERIE DU MÊME TYPE OU D'UN TYPE RECOMMANDÉ PAR LE CONSTRUCTEUR. METTER AU RÉBUT LES BATTERIES USAGÉES CONFORMÉMENT AUX INSTRUCTIONS DU FABRICANT. 3. German VORSICHT ! Explisionsgefahr bei unsachgemäßen Austausch der Batterie. Ersatz nur durch denselben oder einem vom Hersteller empfohlenem ähnlichen Typ. Entsorgung gebrauchter Batterien nach Angaben des Herstellers. 4. Swedish Explosionsfara vid felaktigt batteribyte. Använd samma batterityp eller en ekvivalent typ som rekommenderas av apparattillverkaren. Kassera använt batteri enligt fabrikantens instruktion. 5. Danish Lithiumbatteri- Eksplosionsfare ved fejlagtig håndtering. Udskiftning må kum ske med batteri af samme fabrikat og type. Lever det brugte batteri tilbage til leverandoren. 6. Norwegian Ekspolsjonsafe ved feilaktig skifte av batteri. Benytt samme batteritype eller en tilsvarende type anbefalt av apparatfabriknten. Brukte batterier kasseres I henhold til fabrikantens instruksjoner. 7. Finnish Paristo voi räjähtää, jos se on virheellisesti asennettu. Vaihda paristo ainostaan laitevalmistajan suosittelemaan tyyppiin. Hävitä käyteet paristo valmistajan ohjeiden mukaisesti. FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may case harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: i Reorient or relocate the receiving antenna. i Increase the separation between the equipment and receiver. i Connect the equipment into an outlet on a circuit different from that to which to receiver is connected. i Consult the dealer or an experienced radio/TV technician for help. Use of shielded cord is required to comply with Class B limits in Subpart B of Part 15 of the FCC rules. Do not make any changes or modifications to th e equipment unless otherwise specified in the manual. If such changes or modifications should be made, you…

Text truncated - open the document above for the full version.

FCC Regulatory Notes (in addition to User Manual) RF Exposure information: The maximum measured (1g) body SAR value for this device is 1.106 W/kg.

i-Mobile Technology Corporation FCC Confidentiality Request Number: CF303 Version: V05 Date: 21-05-2012 (Permanent or also called long term confidentiality is the normal method to keep certain docuements confidential, and may apply to schematics, block diagrams, operational description and bill of materials.) To: Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Pursuant to 47 CFR Section 0.459(a) & (b), we, (the applicant / grantee) Company namei-Mobile Technology Corporation Address3F #8 Alley 15 Lane 120 Sec.1 Neihu Road Neihu District CityTaipei City 114 CountryTaiwan request for this certification filing under: Grantee CodeProduct Number FCC ID:XZOIO-10C to maintain permanent confidentiality for the following documents submitted within this application: (please cross what is applicable, or add other documents) ExhibitDescription VOperational Descriptionexplaining the functioning of the block diagram VBlock Diagramsshowing the systematic building blocks of the EUT VSchematics Diagramsshowing components, their values and interconnection VTune Up procedureshowing the power values to wich the device is pre-set Above materials crossed contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. We understand that pursuant to 47 CFR section 0.457(d)(1)(ii) disclosure of the applicant and all accompanying documentation will not be made before the date of the grant. The documents indicated as confidential above, are not publicly available elsewhere. Attestation: City and Country:Date:Name: (this must be a person) Function:Signature: (or official company stamp) Enschede, The Netherlands 2013-12-27M.Koop (authorized) Manager

i-Mobile Technology Corporation

EUT EXTERNAL PHOTOGRAPHS EUT – Whole View EUT – Front View EUT – Rear View EUT – Side View EUT – Adapter View

FCC ID Label Location

XZOOIO‐10 FCC ID This devic the follow interferen including 0C FCC D: XZOIO‐1 ce complies wit wing two con nce, and 2. Thi interference th C ID Lab 10C th Part 15 of th ditions: 1. Thi is device must at may cause u bel sam e FCC Rules. O is device may t accept any in undesired opera mple peration is sub y not cause h nterference rec ation. bject to armful ceived,

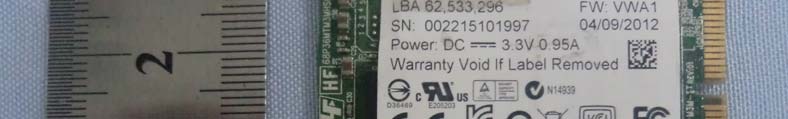

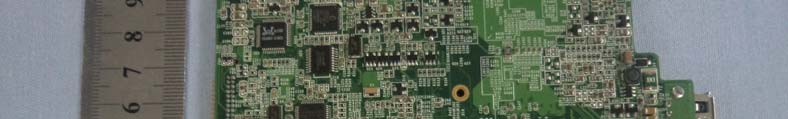

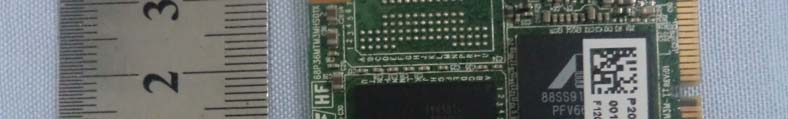

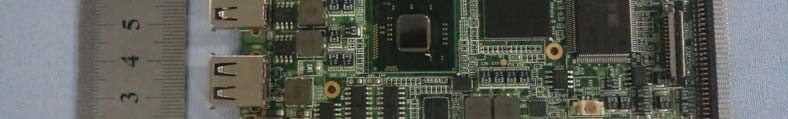

EUT INTERNAL PHOTOGRAPHS EUT – Open View EUT –PCB View 3G Antenna location WIFI Antenna location BT Antenna location EUT –PCB View EUT –BT Module View EUT –WiFi Module View EUT –3G Module View EUT –NFC Module View EUT –RAM View EUT –ROM View EUT –LCD View EUT –Battery View EUT –Battery View

Test Report of FCC CFR 47 Part 15 Subpart B On Behalf of i-Mobile Technology Corporation FCC ID: XZOIO-10C Product Description: Tablet PC Test Model No.: IO-10C Supplementary Model: IC-10 Brand Name: @MOBILE Prepared for: i-Mobile Technology Corporation 3F #8 Alley 15 Lane 120 Sec.1 Neihu Road Neihu District, Taipei City 114, Taiwan Prepared by: Bontek Compliance Testing Laboratory Co., Ltd 1/F, Block East H-3, OCT Eastern Ind. Zone, Qiaocheng East Road, Nanshan, Shenzhen, China Tel: 86-755-86337020 Fax: 86-755-86337028 Report No.: BCT13FR189E Issue Date: April 5, 2014 Test Date: June 6,2013~April 5, 2014 Tested by: Reviewed by: Lion Cai Owen Yang Approved by: Kendy Wang Report No.: BCT13FR189E Page 2 of 16 FCC ID: XZOIO-10C TABLE OF CONTENTS 1. GENERAL INFORMATION........................................................................................................................ 3 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) .................................................................. 3 1.2 TEST STANDARDS ................................................................................................................................... 4 1.3 TEST FACILITY ........................................................................................................................................ 4 2. SYSTEM TEST CONFIGURATION ........................................................................................................... 5 2.1 EUT CONFIGURATION ............................................................................................................................. 5 2.2 SUPPORT EQUIPMENTS ........................................................................................................................... 5 2.3 GENERAL TEST PROCEDURES ................................................................................................................. 5 2.4 MEASUREMENT UNCERTAINTY ................................................................................................................. 5 2.5 LIST OF MEASURING EQUIPMENTS USED .................................................................................................. 6 3. SUMMARY OF TEST RESULTS ............................................................................................................... 7 4. TEST OF AC POWER LINE CONDUCTED EMISSION ........................................................................... 8 4.1 LIMIT OF AC POWER LINE CONDUCTED EMISSION .................................................................................... 8 4.2 EUT SETUP ............................................................................................................................................ 8 4.3 INSTRUMENT SETUP ................................................................................................................................ 9 4.4 TEST PROCEDURE .................................................................................................................................. 9 4.5 TEST RESULT ......................................................................................................................................... 9 5 - RADIATED DISTURBANCES ................................................................................................................ 12 5.1 LIMIT OF RADIATED DISTURBANCES ....................................................................................................... 12 5.2 EUT SETUP .......................................................................................................................................... 12 5.3 TEST RECEIVER SETUP ......................................................................................................................... 13 5.4 TEST PROCEDURE ................................................................................................................................ 13 5.5 CORRECTED AMPLITUDE & MARGIN CALCULATION ................................................................................. 13 5.6 RADIATED EMISSIONS TEST RESULT ...................................................................................................... 13 Report No.: BCT13FR189E Page 3 of 16 FCC ID: XZOIO-10C 1. GENERAL INFORMATION 1.1 Product Description for Equipment Under Test (EUT) Client Information Applicant: i-Mobile Technology Corporation Address of Applicant: 3F #8 Alley 15 Lane 120 Sec.1 Neihu Road Neihu District, Taipei City 114, Taiwan Manufacturer: i-Mobile Technology Corporation Address of Manufacturer: 3F #8 Alley 15 Lane 120 Sec.1 Neihu Road Neihu District, Taipei City 114, Taiwan General Description of E.U.T Items Description EUT Description: Tablet PC Trade Name: @MOBILE Test Model No.: IO-10C Supplementary Model: IC-10 2G Module: Support Band: GSM850/PCS1900 GPRS Type: Class B GPRS Class: Class 12 Frequency Band: Uplink: GSM 850: 824~849MHz, PCS 1900: 1850~1910MHz Downlink: GSM 850: 869~894MHz, PCS 1900: 1930~1990MHz Type of Modulation: GMSK for GSM/GPRS, 8PSK for EDGE 3G Module: Support Band: WCDMA Band II Frequency Band: Uplink: WCDMA Band II: 1850~1910MHz WCDMA Band V: 824~849MHz Downlink: WCDMA Band II: 1930~1990MHz WCDMA Band V: 869~894MHz Type of Modulation: QPSK WIFI Module: Frequency Band: 2412M~2462M Type of Modulation: IEEE 802.11b：DSSS (CCK, DQPSK, DBPSK) IEEE 802.11g：OFDM (64QAM, 16QAM, QPSK, BPSK) IEEE 802.11n HT20/40：OFDM (64QAM, 16QAM, QPSK, BPSK) Report No.: BCT13FR189E Page 4 of 16 FCC ID: XZOIO-10C Bluetooth Module: Frequency Band: 2402 MHz ~ 2480 MHz Type of Modulation: GFSK, Pi/4 DAPSK, 8-DPSK NFC Module: Frequency Band: 13.56MHz Rated Voltage: Input: 16VDC 4.0A from AC/DC adapter Adapter Description: Model:STD-16040 Input: AC 100-240V 47-63Hz 1.4A MAX Output: 16VDC 4.0A NOTE:* The test data gathered are from the production sample provided by the manufacturer. * Supplementary models have the same circuit, but with different appearance 1.2 Test Standards The repo…

Text truncated - open the document above for the full version.

TEST SETUP PHOTOGRAPHS Conducted Emission Radiated Emission Radiated Emission Below 30MHz Radiated Emission Below Above 1GHz
