Y2L00002MOBILE SCOUTING CAMERA

Infrared Mobile Digital Scouting Camera User’s Manual Mobile Scouting Camera MG582 Content 1 Instruction ............................................................................................................................... 1 1.1 General Description ........................................................................................................ 1 1.2 Camera Body Interfaces ................................................................................................. 1 1.3 Remote Control ............................................................................................................... 2 1.3.1 Navigating ................................................................................................................ 2 1.3.2 Characters ............................................................................................................... 2 1.4 Shooting Information Display ........................................................................................ 3 1.5 MMS function ................................................................................................................. 3 1.6 Supported Format ........................................................................................................... 4 2 Cautions ................................................................................................................................... 5 3 Easy Operations ...................................................................................................................... 6 3.1 Power Supply ................................................................................................................... 6 3.2 Insert the SD-card and the SIM-card ........................................................................... 6 3.3 Power on and Enter into the ON Mode ......................................................................... 6 3.4 Enter into the TEST Mode ............................................................................................. 7 3.4.1 Custom Settings ....................................................................................................... 7 3.4.2 Manual Capturing .................................................................................................. 7 3.4.3 View Images or Videos ............................................................................................ 7 3.4.4 Send MMS ............................................................................................................... 7 3.5 Power Off ......................................................................................................................... 7 4 Advanced Operations ............................................................................................................. 8 4.1 Settings Menu .................................................................................................................. 8 4.1.1 Default Setting ....................................................................................................... 10 4.1.2 Set Camera Mode .................................................................................................. 10 4.1.3 Format SD-Card ................................................................................................... 10 4.1.4 Set Photo Size ........................................................................................................ 11 4.1.5 Set Video Size ........................................................................................................ 11 4.1.6 Set Date and Time ................................................................................................. 11 4.1.7 Set Photo Burst ...................................................................................................... 11 4.1.8 Set Video Length ................................................................................................... 12 4.1.9 Set Video Sound .................................................................................................... 12 4.1.10 Set PIR Triggering Interval Time ....................................................................... 12 4.1.11 Set PIR Sensitivity ................................................................................................ 13 4.1.12 Set Timer ............................................................................................................... 13 4.1.13 Set Flash Range ..................................................................................................... 13 4.1.14 MMS Settings ........................................................................................................ 14 4.1.15 Set MMS Mode ...................................................................................................... 14 4.1.16 Set Send to ............................................................................................................. 15 4.1.17 Enter Password ..................................................................................................... 15 4.1.18 Reset to Default Settings ....................................................................................... 15 4.2 Playback ......................................................................................................................... 15 4.2.1 Viewing Photo or Video ........................................................................................ 16 4.2.2 Delete Photo or Video ........................................................................................... 16 4.2.3 Send MMS Manually ............................................................................................ 16 4.3 Laser Pointer ................................................................................................................. 16 4.4 File Numbering ...................................................................................................…

Text truncated - open the document above for the full version.

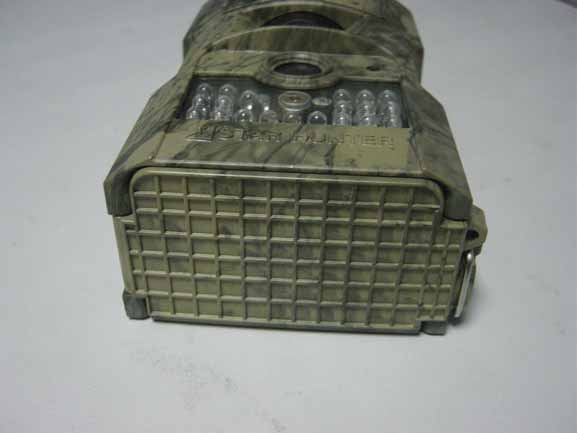

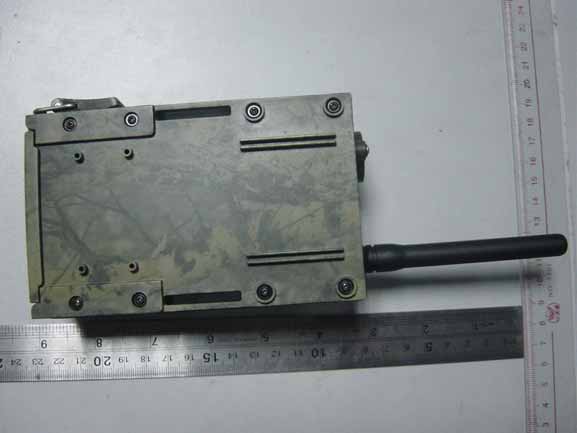

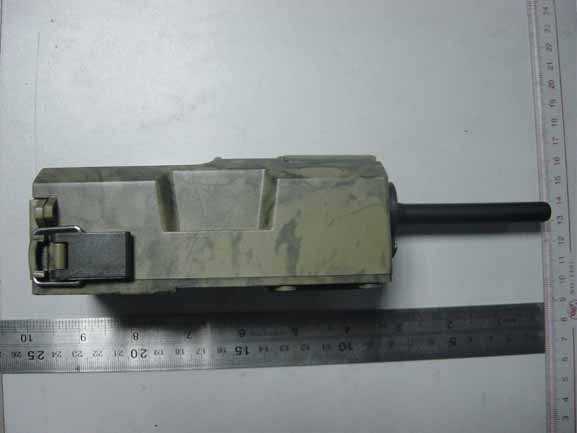

External Photos 1. Front View of EUT 2. Back View of EUT 3. Side View of EUT

FCC ID: Y2L0002 Label Label Location

Date: August 29, 2011 Equipment Authorization Division Office of Engineering and Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Ref: FCC ID: Y2L0002 Dear Sirs: Boly Media Communications (Asia) Co., Ltd. requests acceptance of the labeling proposal described below for mobile scouting camera bearing FCC identifier Y2L0002. The subject mobile scouting camera are compact handheld model as shown in figure 1, authorized under 47CFR Part 22H&24E for GSM mobile services. Figure 1. Because the majority of the mobile scouting camera housing is composed of display, operating controls and indicators, there is limited space available to attach the required label carrying the FCC identifier. Attaching the label to the battery is not acceptable because the battery is a removable item. Boly Media Communications (Asia) Co., Ltd. proposes placing the label carrying the FCC identifier on the inside enclosure of the bottom cover as shown in figure 2. Figure 2. The consumer packaging for these models includes the battery as a separate item, NOT installed on the radio. As such, the FCC identifier will be readily visible to the user before the battery is installed and whenever the battery is removed or replaced. In this location, the label will also be protected from physical abuse and remain readable for the anticipated life of the device. The consumer packaging for these models is a "gift box" which does not allow the transceiver to be seen at time of purchase. In order to meet the requirements of 47CFR Part 2.925 (d), Boly Media Communications (Asia) Co., Ltd. will add the FCC identifier "Y2L00002" to the outside of the consumer "gift box" packaging. Thank you for your attention to this matter. Yours Sincerely, CEO Xiaoping Hu Boly Media Communications (Asia) Co., Ltd

Internal Photos

Report No.: SZ11070115E01 Page 2 of 12 TABLE OF CONTENTS 1. GENERAL INFORMATION .................................................................................................... 3 1.1 EUT Description ......................................................................................................................... 3 1.2 Test Standards and Results ........................................................................................................ 4 1.3 Facilities and Accreditations ...................................................................................................... 5 1.3.1 Facilities .................................................................................................................................... 5 1.3.2 Test Environment Conditions .................................................................................................... 5 1.3.3 Measurement Uncertainty ......................................................................................................... 5 2. TEST CONDITIONS SETTING............................................................................................... 6 2.1 Test Mode .................................................................................................................................... 6 2.2 Test Setup and Equipments List ................................................................................................ 7 2.2.1 Conducted Emission.................................................................................................................. 7 2.2.2 Radiated Emission ..................................................................................................................... 7 3. 47 CFR PART 15B REQUIREMENTS .................................................................................... 9 3.1 Conducted Emission ................................................................................................................... 9 3.1.1 Requirement .............................................................................................................................. 9 3.1.2 Test Description ........................................................................................................................ 9 3.1.3 Test Result ................................................................................................................................. 9 3.2 Radiated Emission .................................................................................................................... 11 3.2.1 Requirement ............................................................................................................................ 11 3.2.2 Test Description ...................................................................................................................... 11 3.2.3 Test Result ............................................................................................................................... 11 Change History Issue Date Reason for change 1.0 August 26, 2011 First edition Report No.: SZ11070115E01 Page 3 of 12 1. GENERAL INFORMATION 1.1 EUT Description EUT Type ......................... MOBILE SCOUTING CAMERA Serial No........................... (n.a, marked #1 by test site) Hardware Version ............. V14 Software Version .............. V3.0 Applicant .......................... Manufacturer .................... Boly Media Communications (Asia) Co., Ltd. WORKSHOP B9, 6/F, BLOCK B，CAMBRIDGE PLAZA NO.188 SAN WAN ROAD, SHEUNG SHUI, N.T., HONG KONG Boly Media Communications (ShenZhen) Co., Ltd. 9/F, Jia Li Tai Building, No.6 Yanshan Road, Shekou, Nanshan District, Shenzhen. Power Supply ................... Alkalescence Battery Note 1: The EUT supports GSM850/1900MHz band. And it’s powered by alkalescence battery. Note 2: For a more detailed description, please refer to Specification or User’s Manual supplied by the applicant and/or manufacturer. Report No.: SZ11070115E01 Page 4 of 12 1.2 Test Standards and Results The objective of the report is to perform testing according to 47 CFR Part 15 Subpart B: No. Identity Document Title 1 47 CFR Part 15 (10-1-09 Edition) Radio Frequency Devices Test detailed items/section required by FCC rules and results are as below: No. Section Description Result 1 15.107 Conducted Emission PASS 2 15.109 Radiated Emission PASS NOTE: The tests were performed according to the method of measurements prescribed in ANSI C63.4 2003. Report No.: SZ11070115E01 Page 5 of 12 1.3 Facilities and Accreditations 1.3.1 Facilities Shenzhen Morlab Communications Technology Co., Ltd. Morlab Laboratory is a testing organization accredited by China National Accreditation Service for Conformity Assessment (CNAS) according to ISO/IEC 17025. The accreditation certificate number is L3572. All measurement facilities used to collect the measurement data are located at 3/F, Electronic Testing Building, Shahe Road, Xili, Nanshan District, Shenzhen, 518055 P. R. China. The test site is constructed in conformance with the requirements of ANSI C63.7, ANSI C63.4 and CISPR Publication 22; the FCC registration number is 741109. 1.3.2 Test Environment Conditions During the measurement, the environmental conditions were within the listed ranges: Temperature (°C): 15 - 35 Relative Humidity (%): 30 -60 Atmospheric Pressure (kPa): 86-106 1.3.3 Measurement Uncertainty The uncertainty is calculated using the methods suggested in the "Guide to the Expression of Uncertainty in Measurement" (GUM) published by ISO. Uncertainty of Conducted Emission: ±1.8dB Uncertainty of Radiated Emission: ±3.1dB Report No.: SZ11070115E01 Page 6 of 12 2. TEST CONDITIONS SETTING 2.1 Te s t M o d e During the measurement, the GPRS radio is working. The test modes of the EUT are showed as below: (1) EUT + PC test mode The EUT configuration of the emission tests is EUT + PC. The EUT was connected with the PC via the USB cable, and the dates was kept transmitting betw…

Text truncated - open the document above for the full version.

Test Setup Photos 1. CE 2RE
