Y2L00004MMS/GPRS Security Camera

MMS/GPRS Security Camera User’s Manual BG500series Formodel：BG500L/BG500K -1- Content 1 Product Feature ................................................................ 2 1.1 General Description ................................................ 2 1.2 Camera Overview ..................................................... 2 1.3 Shootin gInformation Display ............................. 3 1.4 Product Feature ........................................................ 5 2Cautions ............................................................................. 6 3 Quick Start ........................................................................ 7 3.1 TF card and SIM card .............................................. 7 3.2 Batteryandpower adapter ................................... 7 3.3Quick start ................................................................... 8 4 Advanced Operations ................................................. 12 4.1 Mount the camera ................................................... 12 4.2 Three camera statuses .......................................... 12 4.3 Chan ge camera settings via controlpanel .... 13 4.4UsetheRemotecontrol ........................................ 16 4.5 Load or remove a wireless sensor .................... 1 7 4.6Change the settings via SMS ............................... 18 4.6.1 User level ................................................................ 18 4.6.2 Set administrator number .............................. 19 4.6.3 Set normal users ................................................. 19 4.6.4 Set MMS parameters ........................................ 20 4.6.5 Set email parameters ........................................ 20 4.6.6 Set receivephone number .............................. 21 4.6. 7Get on spotphoto ............................................... 22 4.6.8 Arm .......................................................................... 22 4.6.9 Disarm .................................................................... 22 4.6.10 Check camera settings ................................... 23 4.6.11Set camera parameters ................................... 23 4.6.12 Format TF card .................................................. 25 4.6.13 Get administrator’spasswords ................... 25 4.6.14 Get hel p ................................................................ 25 4.6.15SMS command list ............................................ 26 5 Declaration of Conformit y ......................................... 28 AppendixI:TechnicalSpecifications ...................... 29 AppendixII: Parts List .................................................... 30 BG500 series1 Product Feature 2 1 Product Feature 1.1General Description The BG500 series security camera is a mini MMS/GPRS alarm system, based on MMS (Multimedia Messaging Service), GSM SMS (Short Message Service) and GSM voice technologies. When it is activated, it will send MMS (pictures) alerts to your mobile phone or e-mail address immediately once the monitored region is abnormal. Also, it has two way communication functions. You can let the MMS/GPRS alarm system send pictures to you any time. The BG500 series can monitor your home, office, shop, store, warehouse or factory by your mobile phone from everywhere and any time. The MMS/GPRS alarm system BG500 series security camera can be programmed by PC programmer tool through TF card, USB cables or SMS command. This is a worldwide new solution. 1.2 Camera Overview The camera has a LCD display for easy setup and has the following I/O interfaces: Power/USB connector, Micro SD card slot, and SIM card slot. Take a few moments to familiarize with the camera controls and displays. It is helpful to bookmark this section and refer to it when you read through the rest of the manual. BG500 series1 Product Feature 3 1.3 Shooting Information Display When the camera is turned on (the power switch is slid toONposition), the camera setting information will be displayed in the monitor. BG500 series1 Product Feature 4 *The function in ( ) can work only in Setup status; *The function in [ ] can work only in Arm status. BG500 series1 Product Feature 5 1.4 Product Feature 1. This camera can take 5megapixel photos and VGA videos. 2. It uses TF card (Micro-SD card) to store images and videos. 3. It can send MMS images to the mobile phone or to an e-mail address. It also can give a call to you when the camera is triggered. 4. It uses integrated PIR detector to provide precise and timely alarm. 5. It is equipped with infrared LED. So even in dark environment, this camera can get clear B&W images. 6. It supports SMS remote control. Users can control the camera by SMS command or calling. 7. Listen in the monitoring area: call the device number to listen in the monitoring area. (Only pre-set number to dial the camera) 8. Schedule monitor: user can set the camera’s working time as the preset schedule. 9. Built-in lithium battery: Rechargeable battery ensures operation in case of external power failure. 10. Easy installation: wireless connection, suitable for home use. BG500 series2 Cautions 6 2Cautions — Please use this product according to the law. Respect one another’s privacy. Do not monitor other people’s home or privacy. We hold no responsibility for the illegal use of this product. — We don’t guarantee for the document veracity, reliability or any content except regulated in proper laws. — We hold no responsibility for any loss of data or income; or any special, incidental, consequential or indirect damages howsoever caused. — The contents of this document are provided “as is”. Except as required by applicable law, no warranties of any kind, either clear or implied, including, but not limited to the accuracy, reliability or contents of this document. We reserve the right to revise this document or withdraw it at any time without prior notice. BG500 series3 Quick Introductions 7 3QuickStart 3.1 TF card and SIM card Open the battery cover. Insert TF …

Text truncated - open the document above for the full version.

Boly Media Comminicationas ( Asia) Co., Ltd. Boly Media Comminicationas ( Asia) Co., Ltd. Boly Media Communications (Asia) Co., Ltd. Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: This letter is to comply with Sections 0.457 and 0.459 pertaining to confidential material. Boly Media Communications (Asia) Co., Ltd. would like the following documents regarding this submission for FCC ID: Y2L00004 to be kept confidential. 1. Block Diagram 2. Schematic 3. Theory of Operation 4. Part List 5. Turn-up procedure The above material contains trade secrets or technical data, which would customarily be guarded from competitors. We do not want these documents to be accessible to the general public. Sincerely yours, Xiao Ping HU/ CEO Company Name: Boly Media Communications (Asia) Co., Ltd. Fax: +852-27745336 Tel: +852-27745236 E-mail: [email protected]

Boly Media Comminicationas ( Asia) Co., Ltd. Product Similarity Declaration To Whom It May Concern, We , Boly Media Communications (Asia) Co., Ltd., hereby declare that our (MMS/GPRS Security Camera ) Model Number: BG500K, BG500L-HD and BG500K-HD are electrically identical with the Model BG500L. BG500L,BG500K,BG500L-HD and BG500K-HD are named differently due to marketing purposes Please contact me if you have any question. Sincerely yours, Xiao Ping HU/ CEO Company Name: Boly Media Communications (Asia) Co., Ltd. Fax: +852-27745336 Tel: +852-27745236 E-mail: [email protected]

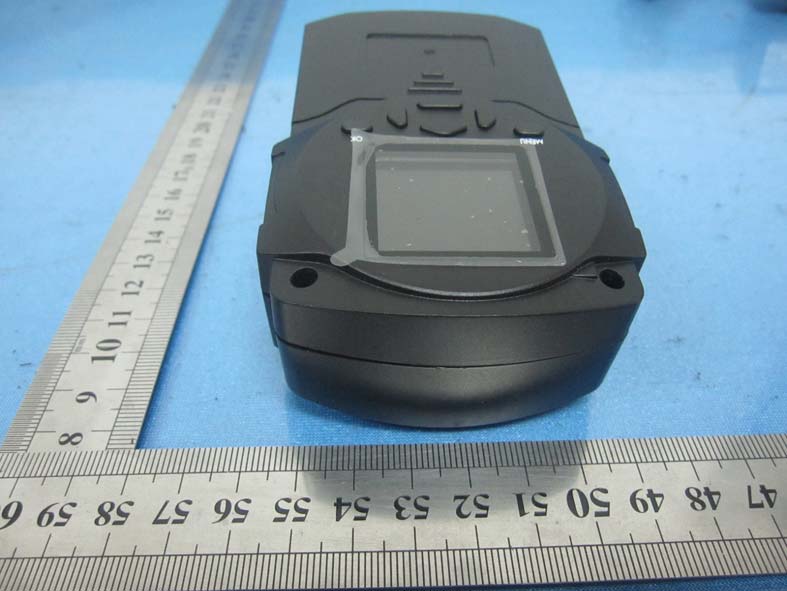

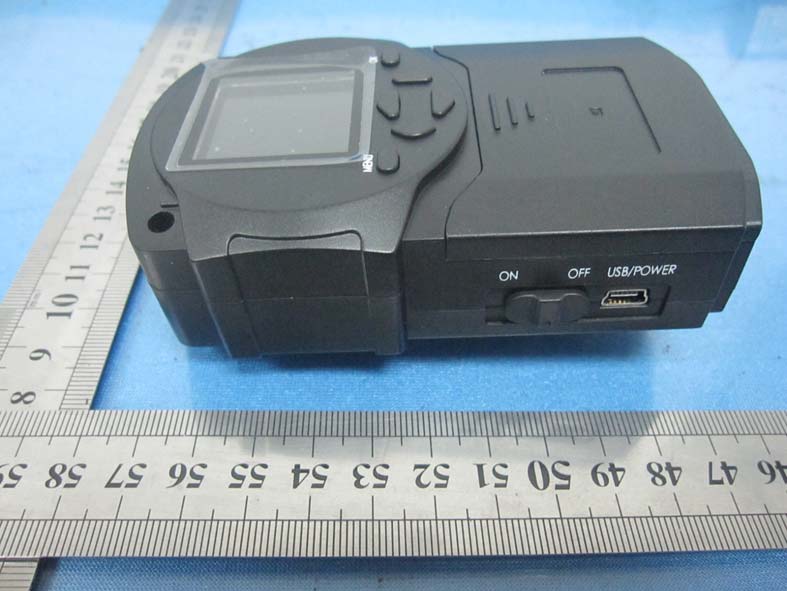

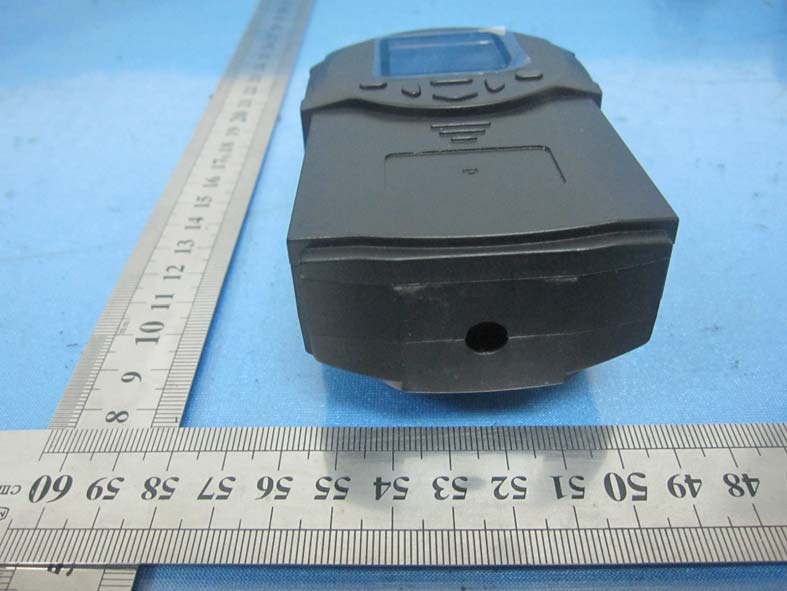

External photos of the EUT

Label

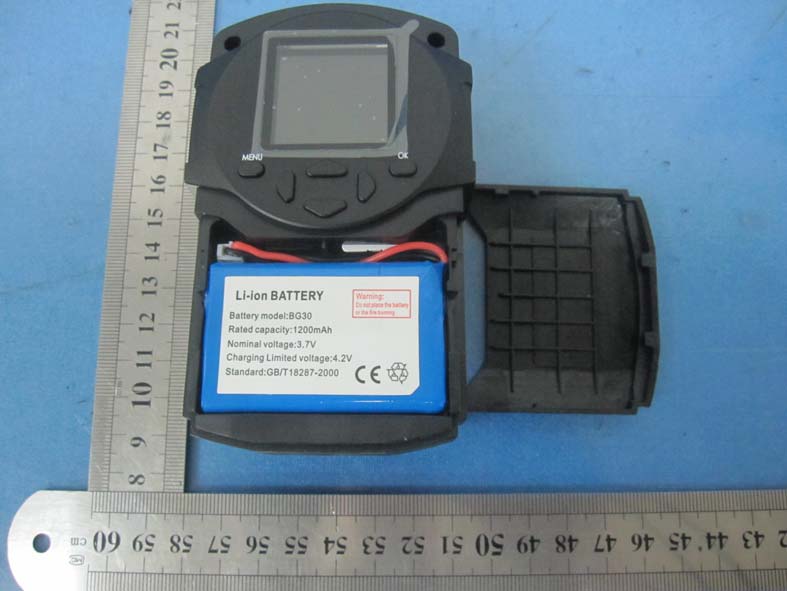

Internal photos of the EUT 433.92MHz Antenna GPRS Antenna

FCC PART 15 SUBPART B TEST REPORT FCC PART 15 B Report Reference No. ..................... : TRE1309000502 R/C:18013 FCC ID. ............................................. : Y2L00004 Compiled by ( position+printed name+signature) . : File administrators Jerome Luo Supervised by ( position+printed name+signature) . : Test Engineer Yuchao Wang Approved by ( position+printed name+signature) . : Manager Wenliang Li Date of issue ..................................... : Oct 14, 2013 Testing Laboratory Name .............. : Shenzhen Huatongwei International Inspection Co., Ltd Address ............................................ : Keji Nan No.12 Road, Hi-tech Park, Shenzhen, China Applicant’s name ............................ : Boly Media Communications (Asia) Co., Ltd. Address ............................................ : WORKSHOP B9,6/F,BLOCK B,CAMBRIDGE PLAZA NO.188 SAN WAN ROAD, SHEUNG SHUI,N.T.,HONG KONG Manufacturer’s name ..................... : Boly Media Communications (shenzhen) Co., Ltd. Address ............................................ : 2F,Shanshui Building B,Yungu Innovation Industrial park,NO.1183,Liuxian Blvd, Nanshan District,Shenzhen..Guangdong,China Test specification ........................... : Standard ........................................... : FCC Part 15 B- Unintentional Radiators TRF Originator .................................. : Shenzhen Huatongwei International Inspection CO., Ltd Master TRF ....................................... : Dated 2006-06 Shenzhen Huatongwei International Inspection Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Huatongwei International Inspection Co., Ltd is acknowledged as copyright owner and source of the material. Shenzhen Huatongwei International Inspection Co., Ltd takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : MMS/GPRS Security Camera Trade Mark ....................................... : BOLYGUARD/SCOUTGUARD Manufacturer ................................... : Boly Media Communications (shenzhen) Co., Ltd. Model/Type reference ...................... : BG500L Listed Models .................................. : BG500K/BG500L-HD/BG500K-HD Ratings ............................................. : DC 5.00V Adapter from AC120V/60Hz Result ............................................... : Positive Report No.: TRE1309000502 Page 2 of 16 Issued:2013-10-14 T E S T R E P O R T Test Report No. : TRE1309000502 Oct 14, 2013 ______________________________________________________________________________________________ Date of issue Equipment under Test : MMS/GPRS Security Camera Model /Type : BG500L Listed Models : BG500K/BG500L-HD/BG500K-HD Applicant : Boly Media Communications (Asia) Co., Ltd. Address : WORKSHOP B9,6/F,BLOCK B,CAMBRIDGE PLAZA NO.188 SAN WAN ROAD, SHEUNG SHUI,N.T.,HONG KONG Manufacturer Boly Media Communications (shenzhen) Co., Ltd. Address 2F,Shanshui Building B,Yungu Innovation Industrial park,NO.1183,Liuxian Blvd, Nanshan District,Shenzhen..Guangdong,China Test Result according to the standards on page 4: Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: TRE1309000502 Page 3 of 16 Issued:2013-10-14 Contents 1. TEST STANDARDS .................................................................. 4 2. SUMMARY ............................................................................. 5 2.1. General Remarks 5 2.2. Product Description 5 2.3. Equipment Under Test 5 2.4. Short description of the Equipment under Test (EUT) 5 2.5. Configuration of Tested System 5 2.6. EUT configuration 6 2.7. EUT operation mode 6 2.8. Related Submittal(s) / Grant (s) 6 2.9. Modifications 6 2.10. Note 6 3. TEST ENVIRONMENT ............................................................... 7 3.1. Address of the test laboratory 7 3.2. Test Facility 7 3.3. Environmental conditions 8 3.4. Statement of the measurement uncertainty 8 3.5. Test Description 8 3.6. Equipments Used during the Test 8 4. TEST CONDITIONS AND RESULTS ............................................ 10 4.1. Conducted Emissions Test 10 4.2. Radiated Emission Test 12 5. TEST SETUP PHOTOS OF THE EUT .......................................... 16 Report No.: TRE1309000502 Page 4 of 16 Issued:2013-10-14 1. TEST STANDARDS The tests were performed according to following standards: FCC Rules Part 15 Subpart B - Unintentional Radiators ANSI C63.4-2009: American National Standard for Methods of Measurement of Radio-Noise Emissions From Low Voltage Electrical and Electronic Equipment in the Range of 9kHz to 40GHz. Report No.: TRE1309000502 Page 5 of 16 Issued:2013-10-14 2. SUMMARY 2.1. General Remarks Date of receipt of test sample : Sep 01, 2013 Testing commenced on : Sep 01, 2013 Testing concluded on : Sep 19,2013 2.2. Product Description The Boly Media Communications (Shenzhen) Co., Ltd.’s Model: BG500L or the “EUT” as referred to in this report; more general information as follows, for more details, refer to the user’s manual of the EUT. Name of EUT MMS/GPRS Security Camera Model Number BG500L/ BG500K/BG500L-HD/BG500K-HD FCC ID Y2L00004 Modilation Type GFSK for GPRS/EDGE Antenna Type External GSM/EDGE/GPRS Supported GPRS and EGPRS Extreme temp. Tolerance -30°C to +60°C Extreme vol. Limits 4.25VDC to 5.75VDC (nominal: 5.00VDC) GSM/GPRS Operation Frequency Band GSM 850MHz/ PCS 1900MHz GSM Release Version R99 GPRS operation mode Class B GPRS Multislot Class 12 EGPRS Multislot Class 12 2.3. Equipment Under Test Power supply system utilised Power supply voltage : ○ 120V / 60 Hz ○ 115V / 60Hz ○ 12 V DC ○ 24 V DC ● Other (specified in blank below) DC 5.00V Adapter from AC 120V/60Hz 2.4. Short description of the Equ…

Text truncated - open the document above for the full version.

Test Setup Photos of the EUT
