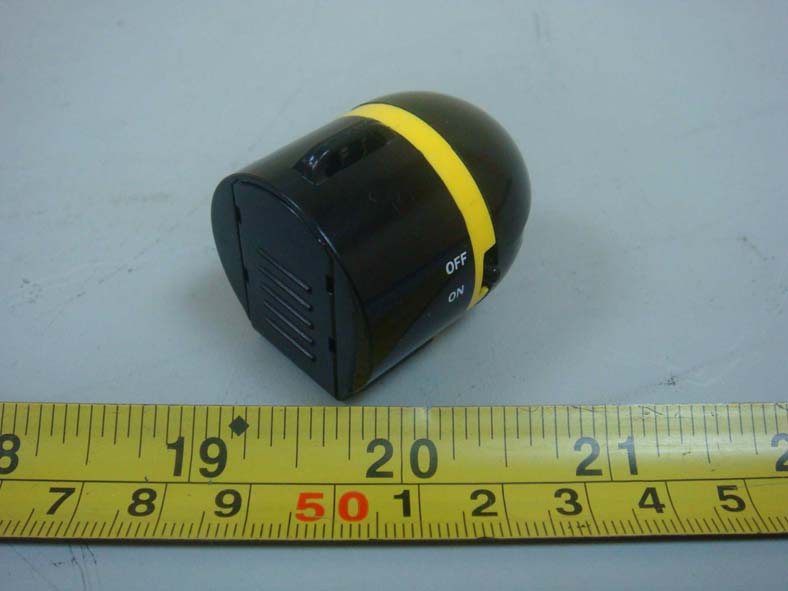

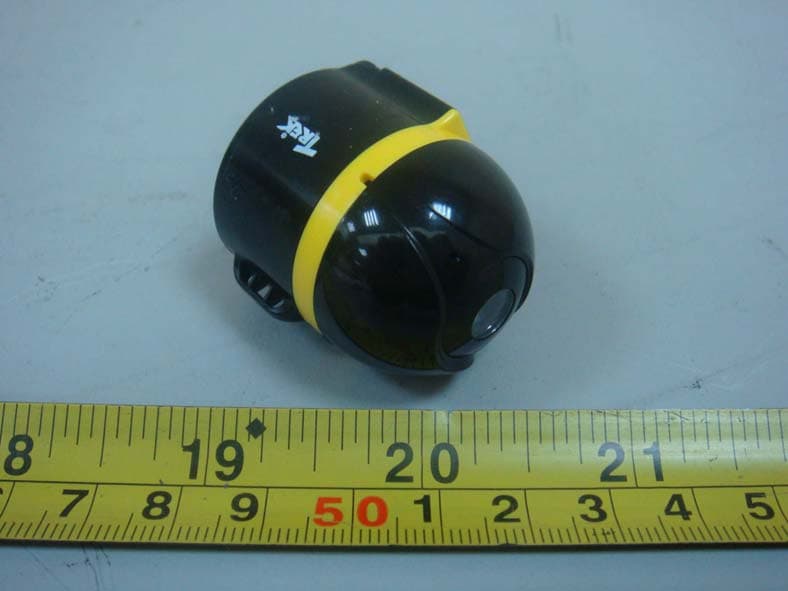

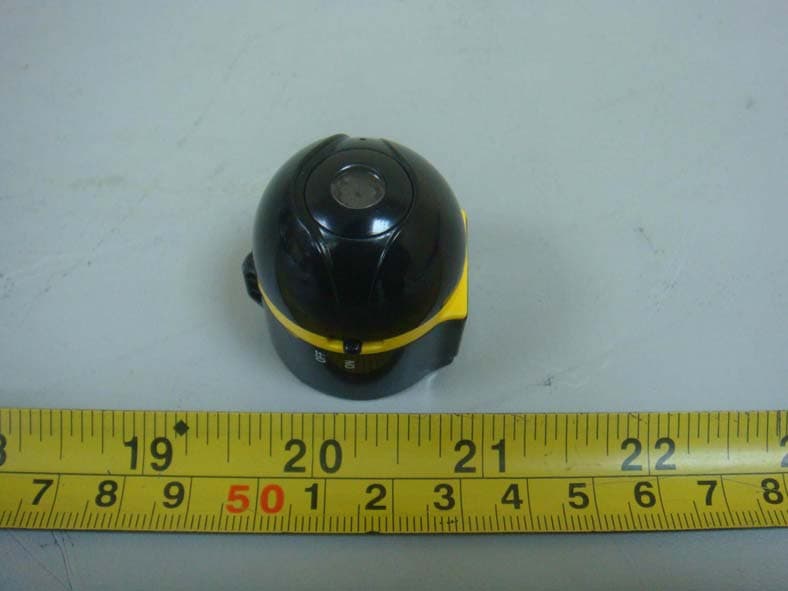

Y2RAIBALLWireless Camera

Operating the i-Ball Switch on the i-BallYou will find the power switch lever at the side of the i-Ball. Move it to the middle position to switch on the device.Connect your PC or mobile phone(with Wi-Fi) to i-BallConnect your PC or mobile phone(with Wi-Fi) to the Trek i-Ball using your web browser, browse and key in http://iball.comView and PlayDepends on your PC or mobile phone configuration, choose between “Stream”, “Java”, or “Javascript” to view the video transmitte d from i-Ball.You could click on the control buttons (on your web browser) to adjust the contrast and brightness level of the i-Ball. SSID & Password setting1. Move the power switch lever to the SSID position.2. Similarly, connect your PC or mobile phone (with Wi-Fi) to the i-Ball (Trek iBall), in your web browser, key in http://iball .com or http://192.168.2.1/ (a) Right click on the network icon on the system tray. (b) Click refresh button to discover i-Ball, if your computer is not connected to i-Ball yet (c) Select “Trek i-Ball” and click “Connect”. (d) PC connecting to the i-Ball. (e) Once connected, PC is ready to view and play. (f) Enter http://iball.com to your web-browser. TREK 2000 International LTD - 30 Loyang Way #07-13/14/15 Singapore 508769 Tel : (65)-6546 6088 Fax : (65)-6546 6066 Sales enquiries : [email protected] | Technical support : [email protected] www.flu-card.com | www.trek2000.com.sg | www.thumbdrive.com Upper position switch “Off” - Power off the i-Ball.Middle position switch “On” - Power on the i-Ball.Lower postion switch - “Config” - Configuration of SSID and password. *Specifications and appearance are subject to change without notice (a) General Setup menu allows you to the SSID and Security Key (for PC or mobile phone to access the i-Ball). In factory default, the SSID is “Trek iBall” and there is no Security Key. (b) As an example, below shows the setting of SSID to “HomeWatch” and Security Key to “1234567890”. Click “Save” to activate the new setting. Video recording and Snapshot1. As before, use your web browser to view the video stream from i-Ball. Select the Java (Video + Audio) method to play the vid eo from i-Ball.2. Below describes how to record a video and how to take a snap shot with i-Ball.(a) Move the mouse cursor to the “ ” icons at the top left hand corner of the video window.(c) Click the green Record button to start recording the video (and audio). Note that the Record button will turn red in colour.3. If you like to take a snap shot, click on the Snap Shot button, as described below(a) Click the “ ” icons at the top left hand corner of the video window.4. In the Windows OS, you could find the video and picture files in your Documents folderIf you double click the video file and your Windows Explorer could not play the format (in particular, Motion JPEG format), you would need to install a third party video codec, e.g., the Media Player Codec Pack from http://www.mediaplayercodecpack.com /. (b) You would get following window, telling you the file name of the captured picture. (b) You would see a pull-down menu of the Record button and the Snap Shot button. When you are not recording, the Record button is green in colour.(d) Click on the red colour button to end the video recording. Note that the Record button will turn green again. TREK 2000 International LTD - 30 Loyang Way #07-13/14/15 Singapore 508769 Tel : (65)-6546 6088 Fax : (65)-6546 6066 Sales enquiries : [email protected] | Technical support : [email protected] www.flu-card.com | www.trek2000.com.sg | www.thumbdrive.com *Specifications and appearance are subject to change without notice

RF_160, Issue 02 Declaration of Authorization We Name: Trek Technology (S) Pte Ltd Address: 30, Loyang Way #07-13/14/15 Loyang Industrial Estate Singapore 508769 City: Country: Singapore Declare that: Company name: Neutron Engineering, Inc. Address: B1, No. 37, Lane 365, YangGuang St., NeiHu District 114, Taipei, Taiwan City: Taipei Country Taiwan is authorized to apply for Certification of the following product(s): Product description: Wireless Camera Type designation: Ai Ball Trademark: Trek on our behalf. Date: ......Dec. 01, 2010.......................... City: ......Singapore.......................... Name: ......Hansi Limin......... ................. (2) Function: ......Senior Engineer......................... Signature: ...... ......................... Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

FCC, Request for non-disclosure Date: 12-Mar-09 RF_501, Issue 4 Page 1 of 1 Company Name: Trek Technology (S) Pte Ltd Address: 30, Loyang Way #07-13/14/15 Loyang Industrial Estate Singapore 508769 Country: Singapore To: Telefication B.V., Dept. FCC TCB Edisonstraat 12A 6902 PK ZEVENAAR The Netherlands Subject: Request for confidentiality FCC ID: Y2RAIBALL Reference number: Ai Ball Dear FCC TCB, 1. Long-Term Confidentiality Pursuant to 47 CFR Section 0.459(a) & (b), we hereby requests non-disclosure and confidential treatment of the following materials submitted in support of FCC certification application: Bill(s) of Material Block Diagrams Operational Description Schematic Diagrams Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. 2. Short-Term Confidentiality (STC) Pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, a pplicant hereby requests Short-Term Confidential treatment of the following materials (note 1): Tune-up Procedure Internal Photos User’s Manual Test Set-up Photos External Photos Justification: Planned Release Date STC: (notes 2, 3, 4, 5) Date: Dec. 01, 2010 Name and signature of applicant: Hansi Limin Notes: 1) A document or type of document can only have ONE type of confidentiality! 2) Short-Term confidentiality is in principle for 45 days from date of grant; it can be extended max 3 times (total time 180 days max.)! 3) FCC must be informed when marketing begins earlier. 4) Release takes place automatically thus extension must be requested in time. Telefication does not remind you of this! 5) Request for extension or for release must be received by Telefication at least 7 days before date of actual marketing or before expiration of the STC period

RV-0000000 Project No.: R1011010 Page 2 of 1 0 Neutron Engineering Inc. R1011010 RV-0000000 Project No.: R1011010 Page 3 of 1 0 Neutron Engineering Inc. R1011010 R1011010

RV-0000000 Project No.: R1011010 Page 4 of 1 0 Neutron Engineering Inc. R1011010 RV-0000000 Project No.: R1011010 Page 5 of 1 0 Neutron Engineering Inc. R1011010 R1011010 RV-0000000 Project No.: R1011010 Page 6 of 1 0 Neutron Engineering Inc. R1011010 R1011010 RV-0000000 Project No.: R1011010 Page 7 of 1 0 Neutron Engineering Inc. R1011010 RV-0000000 Project No.: R1011010 Page 8 of 1 0 Neutron Engineering Inc. R1011010 R1011010 RV-0000000 Project No.: R1011010 Page 9 of 1 0 Neutron Engineering Inc. R1011010 R1011010 RV-0000000 Project No.: R1011010 Page 10 of 1 0 Neutron Engineering Inc. R1011010 R1011010

Report No.: NEI-FCCP-1-R1011010 Page 78 of 85 Neutron Engineering Inc. RV-1012020 9. RF EXPOSURE TEST 9.1 APPLIED PROCEDURES / LIMIT Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2 m normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm 2 ) Averaging Time |E| 2 ,|H| 2 or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm 2 ) Averaging Time |E| 2 ,|H| 2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 9.1.1 MEASUREMENT INSTRUMENTS LIST Item Kind of Equipment Manufacturer Type No. Serial No. Calibrated until 1 Power Meter Anritsu ML2487A 6K00004714 Feb. 10, 2011 2 Power Meter Sensor Anritsu MA2491A 34138 Feb. 10, 2011 Remark: ” N/A” denotes No Model Name , Serial No. or No Calibration specified. 9.1.2 MPE CALCULATION METHOD E (V/m) ＝ d GP××30 Power Density: Pd (W/m²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ Peak RF output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to Pd ＝ 2 377 30 d GP × ×× From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained Report No.: NEI-FCCP-1-R1011010 Page 79 of 85 Neutron Engineering Inc. RV-1012020 9.1.3 DEVIATION FROM STANDARD No deviation. 9.1.4 TEST SETUP 9.1.5 EUT OPERATION CONDITIONS The EUT tested system was configured as the statements of 4.1.6 Unless otherwise a special operating condition is specified in the follows during the testing. Report No.: NEI-FCCP-1-R1011010 Page 80 of 85 Neutron Engineering Inc. RV-1012020 9.1.6 TEST RESULTS EUT： Wireless Camera Model Name ： Ai Ball Temperature： 13°C Relative Humidity： 64% Test Voltage： AC 120V/60Hz (System) Test Mode ： 802.11b Frequency (MHz) Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) 2412 -10.84 0.0824 15.7100 37.2392 0.000611 1 2437 -10.84 0.0824 15.5000 35.4813 0.000582 1 2462 -10.84 0.0824 15.2000 33.1131 0.000543 1 Report No.: NEI-FCCP-1-R1011010 Page 81 of 85 Neutron Engineering Inc. RV-1012020 EUT： Wireless Camera Model Name ： Ai Ball Temperature： 13°C Relative Humidity： 64% Test Voltage： AC 120V/60Hz (System) Test Mode ： 802.11g Frequency (MHz) Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) 2412 -10.84 0.0824 21.4000 138.0384 0.002264 1 2437 -10.84 0.0824 21.4000 138.0384 0.002264 1 2462 -10.84 0.0824 20.8100 120.5036 0.001977 1

Report No.: NEI-FCCP-1-R1011010 Page 1 of 85 Neutron Engineering Inc. RV-1012020 FCC Radio Test Report FCC ID: Y2RAIBALL This report concerns (check one) : Original Grant Class I Change Issued Date : Dec. 23, 2010 Project No. : R1011010 Equipment : Wireless Camera Model Name : Ai Ball Applicant : Trek Technology (S) Pte Ltd Address : 30, Loyang Way #07-13/14/15 Loyang Industrial Estate Singapore 508769 Tested by: Neutron Engineering Inc. EMC Laboratory Date of Receipt: Nov. 16, 2010 Date of Test: Nov. 16, 2010 ~ Dec. 01, 2010 Testing Engineer : (Rush Kao) Technical Manager : (Jeff Yang) Authorized Signatory : (Andy Chiu) Neutron Engineering Inc. B1, No. 37, Lane 365, YangGuang St., NeiHu District 114, Taipei, Taiwan. TEL: +886-2-2657-3299 FAX: +886-2-2657-3331 Report No.: NEI-FCCP-1-R1011010 Page 2 of 85 Neutron Engineering Inc. RV-1012020 Declaration Neutron represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with the standards traceable to National Measurement Laboratory (NML) of R.O.C., or National Institute of Standards and Technology (NIST) of U.S.A. Neutron's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. Neutronshall have no liability for any declarations, inferences o r generalizations drawn by the client or others from Neutron issued reports. Neutron’s reports must not be used by the client to claim product endorsement by the authorities or any agency of the Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and Neutron-self, extracts from the test report shall not be reproduced except in full with Neutron’s authorized written approval. Neutron’s laboratory quality assurance procedures are in compliance with the ISO Guide 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Report No.: NEI-FCCP-1-R1011010 Page 3 of 85 Neutron Engineering Inc. RV-1012020 Table of Contents Page 1 . CERTIFICATION 5 2 . SUMMARY OF TEST RESULTS 6 2.1 TEST FACILITY 7 2.2 MEASUREMENT UNCERTAINTY 7 3 . GENERAL INFORMATION 8 3.1 GENERAL DESCRIPTION OF EUT 8 3.2 DESCRIPTION OF TEST MODES 10 3.3 TABLE OF PARAMETERS OF TEXT SOFTWARE SETTING 11 3.4 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF RADIATED EMISSION TESTED 12 3.5 DESCRIPTION OF SUPPORT UNITS 13 4 . EMC EMISSION TEST 14 4.1 CONDUCTED EMISSION MEASUREMENT 14 4.1.1 POWER LINE CONDUCTED EMISSION 14 4.1.2 MEASUREMENT INSTRUMENTS LIST 14 4.1.3 TEST PROCEDURE 15 4.1.4 DEVIATION FROM TEST STANDARD 15 4.1.5 TEST SETUP 15 4.1.6 EUT OPERATING CONDITIONS 16 4.1.7 TEST RESULTS 17 4.2 RADIATED EMISSION MEASUREMENT 19 4.2.1 RADIATED EMISSION LIMITS 19 4.2.2 MEASUREMENT INSTRUMENTS LIST 20 4.2.3 TEST PROCEDURE 20 4.2.4 DEVIATION FROM TEST STANDARD 20 4.2.5 TEST SETUP 21 4.2.6 EUT OPERATING CONDITIONS 21 4.2.7 TEST RESULTS-BETWEEN 30MHZ - 1000MHZ 22 4.2.8 TEST RESULTS - ABOVE 1000MHZ 24 4.2.9 TEST RESULTS-RESTRICTED BANDS REQUIREMENTS 48 5 . BANDWITH TEST 56 5.1 APPLIED PROCEDURES / LIMIT 56 5.1.1 MEASUREMENT INSTRUMENTS LIST 56 5.1.2 TEST PROCEDURE 56 5.1.3 DEVIATION FROM STANDARD 56 5.1.4 TEST SETUP 56 5.1.5 EUT OPERATION CONDITIONS 56 Report No.: NEI-FCCP-1-R1011010 Page 4 of 85 Neutron Engineering Inc. RV-1012020 Table of Contents Page 5.1.6 TEST RESULTS 57 6 . PEAK OUTPUT POWER TEST 61 6.1 APPLIED PROCEDURES / LIMIT 61 6.1.1 MEASUREMENT INSTRUMENTS LIST 61 6.1.2 TEST PROCEDURE 61 6.1.3 DEVIATION FROM STANDARD 61 6.1.4 TEST SETUP 61 6.1.5 EUT OPERATION CONDITIONS 61 6.1.6 TEST RESULTS 62 7 . ANTENNA CONDUCTED SPURIOUS EMISSION 64 7.1 APPLIED PROCEDURES / LIMIT 64 7.1.1 MEASUREMENT INSTRUMENTS LIST 64 7.1.2 TEST PROCEDURE 64 7.1.3 DEVIATION FROM STANDARD 64 7.1.4 TEST SETUP 64 7.1.5 EUT OPERATION CONDITIONS 64 7.1.6 TEST RESULTS 65 8 . POWER SPECTRAL DENSITY TEST 73 8.1 APPLIED PROCEDURES / LIMIT 73 8.1.1 MEASUREMENT INSTRUMENTS LIST 73 8.1.2 TEST PROCEDURE 73 8.1.3 DEVIATION FROM STANDARD 73 8.1.4 TEST SETUP 73 8.1.5 EUT OPERATION CONDITIONS 73 8.1.6 TEST RESULTS 74 9 . RF EXPOSURE TEST 78 9.1 APPLIED PROCEDURES / LIMIT 78 9.1.1 MEASUREMENT INSTRUMENTS LIST 78 9.1.2 MPE CALCULATION METHOD 78 9.1.3 DEVIATION FROM STANDARD 79 9.1.4 TEST SETUP 79 9.1.5 EUT OPERATION CONDITIONS 79 9.1.6 TEST RESULTS 80 10 . EUT TEST PHOTO 82 11 . HISTORY 85 Report No.: NEI-FCCP-1-R1011010 Page 5 of 85 Neutron Engineering Inc. RV-1012020 1. CERTIFICATION Equipment : Wireless Camera Brand Name : Trek Model Name : Ai Ball A p p l i c a n t : Trek Technology (S) Pte Ltd Date of Test : Nov. 16, 2010 ~ Dec. 01, 2010 Standards : FCC Part15, Subpart C / ANCI C63.4 : 2003 The above equipment has been tested and found compliance with the requirement of the relative standards by Neutron Engineering Inc. EMC Laboratory. The test data, data evaluation, and equipment configuration contained in our test report (Ref No. NEI-FCCP-1-R1011010) were obtained utilizing the test procedures, test instruments, test sites that has been accredited by the Authority of NVLAP and TAF according to the ISO-17025 quality assessment standard and technical standard(s). Report No.: NEI-FCCP-1-R1011010 Page 6 of 85 Neutron Engineering Inc. RV-1012020 2. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15, Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission PASS 15.247 (c) Antenna conducted Spurious Emission PASS 15.247 (a)(2) 6dB Bandwidth PASS 15.247 (b) Peak Output Power PASS 15.247 (c) Radiated Spurious Emission PASS 15.247 (d) Power Spectral Den…

Text truncated - open the document above for the full version.

Report No.: NEI-FCCP-1-R1011010 Page 82 of 85 Neutron Engineering Inc. RV-1012020 10. EUT TEST PHOTO Conducted Measurement Photos Report No.: NEI-FCCP-1-R1011010 Page 83 of 85 Neutron Engineering Inc. RV-1012020 Radiated Measurement Photos Report No.: NEI-FCCP-1-R1011010 Page 84 of 85 Neutron Engineering Inc. RV-1012020 Radiated Measurement Photos
