Y2RFCPROFLUCARD pro

CERTIFICATE OF COMPLIANCE Report No.: NEI-FCCE-1-R1007008 Issued Date: May 13, 2011 Authorized under Declaration of Conformity according to 47 CFR, Part 2 and Part 15 of the FCC Rules. The product listed in follows was (were) tested in the Neutron EMC Laboratory to comply with the criteria limits Class B of conducted and radiated emissions of the Technical Standards FCC Part 15, Subpart B, established by the FCC, USA. Equipment FLUCARD pro Model Name FLUCARD pro 8GB; FLUCARD pro 4GB Brand Name Trek Applicant Trek Technology (S) Pte Ltd Address 30, Loyang Way #07-13/14/15 Loyang Industrial Estate Singapore 508769 Measurement ANSI C 63.4 (2003) Method CISPR 22: 2005 +A1: 2005 ICES-003: 2004 The test data, data evaluation, and equipment configuration contained in our test report (Report No. NEI-FCCE-1-R1007008) were obtained utilizing the test procedures, test instruments, test sites that has been accredited by the Authority of NVLAP and TAF according to the ISO-17025 quality assessment standard and technical standard(s). The test data contained in the referenced test report relate only to the EUT sample and item(s) tested. Andy Chiu Authorized Signatory Neutron Engineering Inc. B1, No. 37, Lane 365, YangGuang St., NeiHu District 114, Taipei, Taiwan. TEL: +886-2-2657-3299 FAX: +886-2-2657-3331

RV-0000000 Project No.: R1007008 Page 2 of 7 Neutron Engineering Inc. R1007008 R1007008

RV-0000000 Project No.: R1007008 Page 3 of 7 Neutron Engineering Inc. R1007008 RV-0000000 Project No.: R1007008 Page 4 of 7 Neutron Engineering Inc. R1007008 R1007008 RV-0000000 Project No.: R1007008 Page 5 of 7 Neutron Engineering Inc. R1007008 R1007008 RV-0000000 Project No.: R1007008 Page 6 of 7 Neutron Engineering Inc. R1007008 R1007008 RV-0000000 Project No.: R1007008 Page 7 of 7 Neutron Engineering Inc. R1007008

Report No.: NEI-FCCP-1-R1007008 Page 128 of 132 Neutron Engineering Inc. 9. RF EXPOSURE TEST 9.1 APPLIED PROCEDURES / LIMIT Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm 2 ) Averaging Time |E| 2 ,|H| 2 or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm 2 ) Averaging Time |E| 2 ,|H| 2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 9.1.1 MEASUREMENT INSTRUMENTS LIST Item Kind of Equipment Manufacturer Type No. Serial No. Calibrated until 1 Power Meter Anritsu ML2487A 6K00004714 Feb. 17, 2012 2 Power Meter Sensor Anritsu MA2491A 34138 Feb. 17, 2012 Remark: ” N/A” denotes No Model Name , Serial No. or No Calibration specified. 9.1.2 MPE CALCULATION METHOD The power is too low, so no RF calculations are needed.

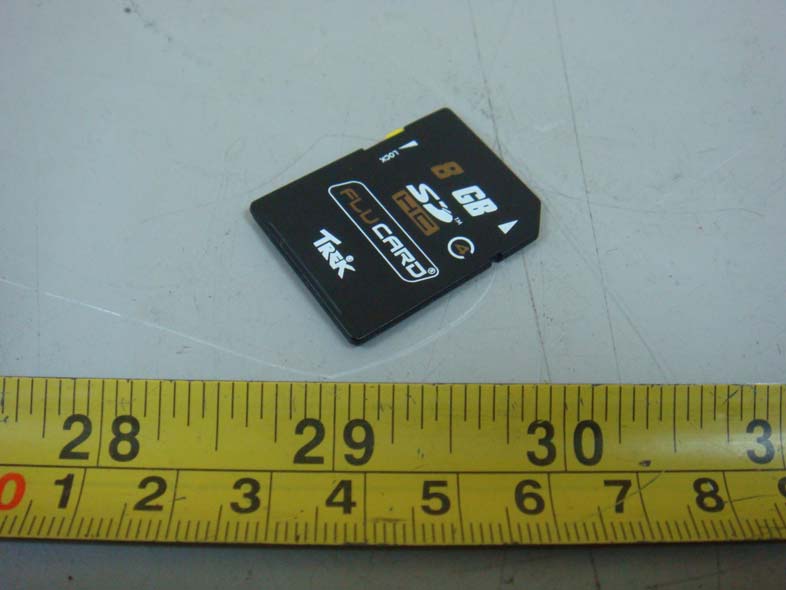

Report No.: NEI-FCCP-1-R1007008 Page 1 of 132 Neutron Engineering Inc. FCC Radio Test Report FCC ID: Y2RFCPRO This report concerns (check one) : Original Grant Class I Change Issued Date : May 13, 2011 Project No. : R1007008 Equipment : FLUCARD pro Model Name : FLUCARD pro 8GB; FLUCARD pro 4GB Applicant : Trek Technology (S) Pte Ltd Address : 30, Loyang Way #07-13/14/15 Loyang Industrial Estate Singapore 508769 Tested by: Neutron Engineering Inc. EMC Laboratory Date of Receipt: Jul. 21, 2010 Date of Test: Jul. 21, 2010 ~ May 06, 2011 Testing Engineer : (Rush Kao) Technical Manager : (Jeff Yang) Authorized Signatory : (Andy Chiu) Neutron Engineering Inc. B1, No. 37, Lane 365, YangGuang St., NeiHu District 114, Taipei, Taiwan. TEL: +886-2-2657-3299 FAX: +886-2-2657-3331 Report No.: NEI-FCCP-1-R1007008 Page 2 of 132 Neutron Engineering Inc. Declaration Neutron represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with the standards traceable to National Measurement Laboratory (NML) of R.O.C., or National Institute of Standards and Technology (NIST) of U.S.A. Neutron's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. Neutron shall have no liability for any declarations, inferences o r generalizations drawn by the client or others from Neutron issued reports. Neutron’s reports must not be used by the client to claim product endorsement by the authorities or any agency of the Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and Neutron-self, extracts from the test report shall not be reproduced except in full with Neutron’s authorized written approval. Neutron’s laboratory quality assurance procedures are in compliance with the ISO Guide 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Report No.: NEI-FCCP-1-R1007008 Page 3 of 132 Neutron Engineering Inc. Table of Contents Page 1 . CERTIFICATION 5 2 . SUMMARY OF TEST RESULTS 6 2.1 TEST FACILITY 7 2.2 MEASUREMENT UNCERTAINTY 7 3 . GENERAL INFORMATION 8 3.1 GENERAL DESCRIPTION OF EUT 8 3.2 DESCRIPTION OF TEST MODES 10 3.3 TABLE OF PARAMETERS OF TEXT SOFTWARE SETTING 11 3.4 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF RADIATED EMISSION TESTED 12 3.5 DESCRIPTION OF SUPPORT UNITS 13 4 . EMC EMISSION TEST 14 4.1 CONDUCTED EMISSION MEASUREMENT 14 4.1.1 POWER LINE CONDUCTED EMISSION 14 4.1.2 MEASUREMENT INSTRUMENTS LIST 14 4.1.3 TEST PROCEDURE 15 4.1.4 DEVIATION FROM TEST STANDARD 15 4.1.5 TEST SETUP 15 4.1.6 EUT OPERATING CONDITIONS 16 4.1.7 TEST RESULTS 17 4.2 RADIATED EMISSION MEASUREMENT 19 4.2.1 RADIATED EMISSION LIMITS 19 4.2.2 MEASUREMENT INSTRUMENTS LIST 20 4.2.3 TEST PROCEDURE 20 4.2.4 DEVIATION FROM TEST STANDARD 20 4.2.5 TEST SETUP 21 4.2.6 EUT OPERATING CONDITIONS 21 4.2.7 TEST RESULTS-BETWEEN 30MHZ - 1000MHZ 22 4.2.8 TEST RESULTS - ABOVE 1000MHZ 24 4.2.9 TEST RESULTS-RESTRICTED BANDS REQUIREMENTS 72 5 . BANDWITH TEST 88 5.1 APPLIED PROCEDURES / LIMIT 88 5.1.1 MEASUREMENT INSTRUMENTS LIST 88 5.1.2 TEST PROCEDURE 88 5.1.3 DEVIATION FROM STANDARD 88 5.1.4 TEST SETUP 88 5.1.5 EUT OPERATION CONDITIONS 88 Report No.: NEI-FCCP-1-R1007008 Page 4 of 132 Neutron Engineering Inc. Table of Contents Page 5.1.6 TEST RESULTS 89 6 . PEAK OUTPUT POWER TEST 97 6.1 APPLIED PROCEDURES / LIMIT 97 6.1.1 MEASUREMENT INSTRUMENTS LIST 97 6.1.2 TEST PROCEDURE 97 6.1.3 DEVIATION FROM STANDARD 97 6.1.4 TEST SETUP 97 6.1.5 EUT OPERATION CONDITIONS 97 6.1.6 TEST RESULTS 98 7 . ANTENNA CONDUCTED SPURIOUS EMISSION 102 7.1 APPLIED PROCEDURES / LIMIT 102 7.1.1 MEASUREMENT INSTRUMENTS LIST 102 7.1.2 TEST PROCEDURE 102 7.1.3 DEVIATION FROM STANDARD 102 7.1.4 TEST SETUP 102 7.1.5 EUT OPERATION CONDITIONS 102 7.1.6 TEST RESULTS 103 8 . POWER SPECTRAL DENSITY TEST 119 8.1 APPLIED PROCEDURES / LIMIT 119 8.1.1 MEASUREMENT INSTRUMENTS LIST 119 8.1.2 TEST PROCEDURE 119 8.1.3 DEVIATION FROM STANDARD 119 8.1.4 TEST SETUP 119 8.1.5 EUT OPERATION CONDITIONS 119 8.1.6 TEST RESULTS 120 9 . RF EXPOSURE TEST 128 9.1 APPLIED PROCEDURES / LIMIT 128 9.1.1 MEASUREMENT INSTRUMENTS LIST 128 9.1.2 MPE CALCULATION METHOD 128 10 . EUT TEST PHOTO 129 11 . HISTORY 132 Report No.: NEI-FCCP-1-R1007008 Page 5 of 132 Neutron Engineering Inc. 1. CERTIFICATION E q u i p m e n t : FLUCARD pro Brand Name : Trek Model Name : FLUCARD pro 8GB; FLUCARD pro 4GB A p p l i c a n t : Trek Technology (S) Pte Ltd Date of Test : Jul. 21, 2010 ~ May 06, 2011 Standards : FCC Part15, Subpart C / ANCI C63.4 : 2003 The above equipment has been tested and found compliance with the requirement of the relative standards by Neutron Engineering Inc. EMC Laboratory. The test data, data evaluation, and equipment configuration contained in our test report (Ref No. NEI-FCCP-1-R1007008) were obtained utilizing the test procedures, test instruments, test sites that has been accredited by the Authority of NVLAP and TAF according to the ISO-17025 quality assessment standard and technical standard(s). Report No.: NEI-FCCP-1-R1007008 Page 6 of 132 Neutron Engineering Inc. 2. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15, Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission PASS 15.247 (c) Antenna conducted Spurious Emission PASS 15.247 (a)(2) 6dB Bandwidth PASS 15.247 (b) Peak Output Power PASS 15.247 (c) Radiated Spurious Emission PASS 15.247 (d) Power Spectral Density PASS 15.203 Antenna Requirement PASS 1.1307 1.1310 2.1091 2.1093 RF Exposure Compliance PASS NO…

Text truncated - open the document above for the full version.

Report No.: NEI-FCCP-1-R1007008 Page 129 of 132 Neutron Engineering Inc. 10. EUT TEST PHOTO Conducted Measurement Photos Report No.: NEI-FCCP-1-R1007008 Page 130 of 132 Neutron Engineering Inc. Radiated Measurement Photos Report No.: NEI-FCCP-1-R1007008 Page 131 of 132 Neutron Engineering Inc. Radiated Measurement Photos
