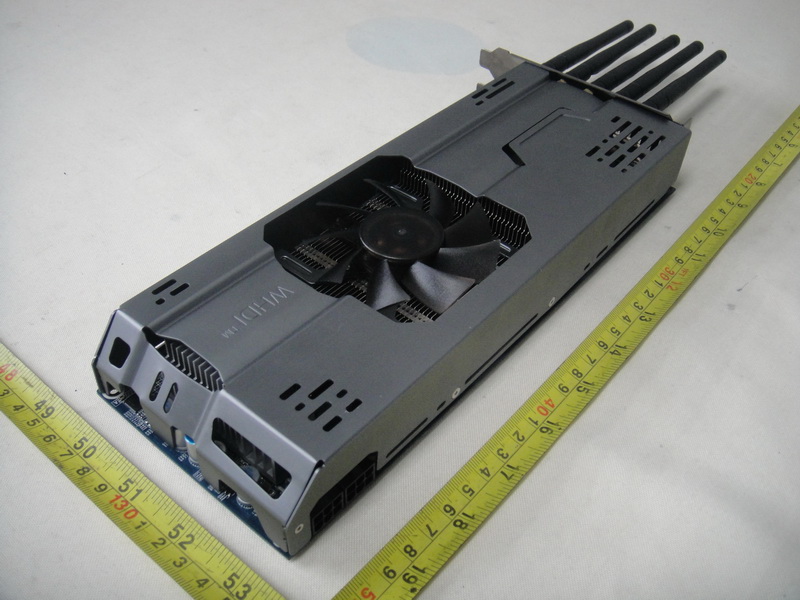

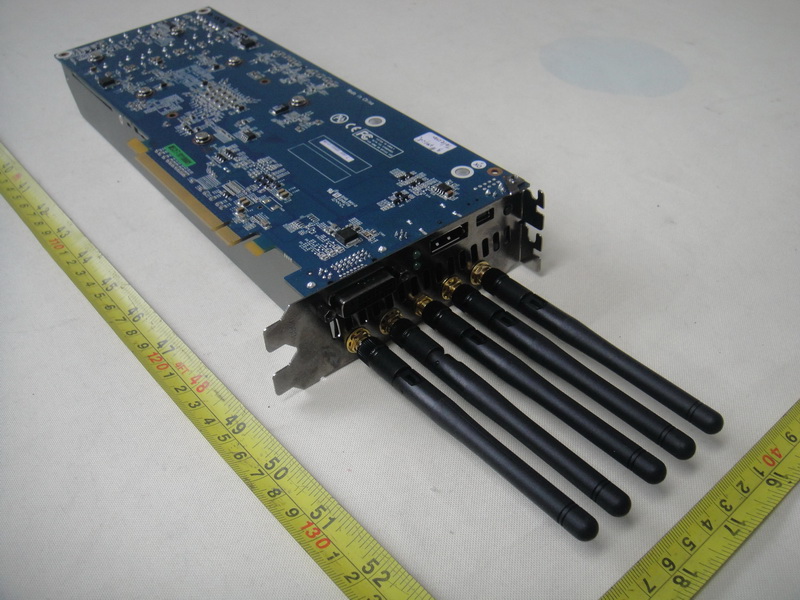

Y3G-G45W-WHDI-R10WHDI GRAPHIC CARD

Neutron Engineering Inc. Project No.: 1012C006 Page 2 of 21 1012C006 1012C006 Neutron Engineering Inc. Project No.: 1012C006 Page 2 of 21 1012C006 1012C006

Neutron Engineering Inc. Project No.: 1012C006 Page 3 of 22 1012C006 1012C006 Neutron Engineering Inc. Project No.: 1012C006 Page 3 of 22 1012C006 1012C006 Neutron Engineering Inc. Project No.: 1012C006 Page 4 of 22 1012C006 1012C006 Neutron Engineering Inc. Project No.: 1012C006 Page 4 of 22 1012C006 1012C006 Neutron Engineering Inc. Project No.: 1012C006 Page 5 of 22 1012C006 1012C006 Neutron Engineering Inc. Project No.: 1012C006 Page 5 of 22 1012C006 1012C006 Neutron Engineering Inc. Project No.: 1012C006 Page 6 of 22 1012C006 1012C006 Neutron Engineering Inc. Project No.: 1012C006 Page 6 of 22 1012C006 1012C006 Neutron Engineering Inc. Project No.: 1012C006 Page 7 of 22 1012C006 1012C006 Neutron Engineering Inc. Project No.: 1012C006 Page 7 of 22 1012C006 1012C006 Neutron Engineering Inc. Project No.: 1012C006 Page 8 of 22 1012C006 1012C006 Neutron Engineering Inc. Project No.: 1012C006 Page 8 of 22 1012C006 1012C006 Neutron Engineering Inc. Project No.: 1012C006 Page 9 of 22 1012C006 1012C006 Neutron Engineering Inc. Project No.: 1012C006 Page 9 of 22 1012C006 1012C006 Neutron Engineering Inc. Project No.: 1012C006 Page 10 of 22 1012C006 1012C006 Neutron Engineering Inc. Project No.: 1012C006 Page 10 of 22 1012C006 1012C006 Neutron Engineering Inc. Project No.: 1012C006 Page 11 of 22 1012C006 Neutron Engineering Inc. Project No.: 1012C006 Page 12 of 22 1012C006 1012C006 Neutron Engineering Inc. Project No.: 1012C006 Page 12 of 22 1012C006 1012C006 Neutron Engineering Inc. Project No.: 1012C006 Page 13 of 22 1012C006 1012C006 Neutron Engineering Inc. Project No.: 1012C006 Page 13 of 22 1012C006 1012C006 Neutron Engineering Inc. Project No.: 1012C006 Page 14 of 22 1012C006 1012C006 Neutron Engineering Inc. Project No.: 1012C006 Page 14 of 22 1012C006 1012C006 Neutron Engineering Inc. Project No.: 1012C006 Page 15 of 22 1012C006 1012C006 Neutron Engineering Inc. Project No.: 1012C006 Page 15 of 22 1012C006 1012C006 Neutron Engineering Inc. Project No.: 1012C006 Page 16 of 22 1012C006 1012C006 Neutron Engineering Inc. Project No.: 1012C006 Page 16 of 22 1012C006 1012C006 Neutron Engineering Inc. Project No.: 1012C006 Page 17 of 22 1012C006 1012C006 Neutron Engineering Inc. Project No.: 1012C006 Page 17 of 22 1012C006 1012C006 Neutron Engineering Inc. Project No.: 1012C006 Page 18 of 22 1012C006 1012C006 Neutron Engineering Inc. Project No.: 1012C006 Page 18 of 22 1012C006 1012C006 Neutron Engineering Inc. Project No.: 1012C006 Page 19 of 22 1012C006 1012C006 Neutron Engineering Inc. Project No.: 1012C006 Page 19 of 22 1012C006 1012C006 Neutron Engineering Inc. Project No.: 1012C006 Page 20 of 22 1012C006 1012C006 Neutron Engineering Inc. Project No.: 1012C006 Page 20 of 22 1012C006 1012C006 Neutron Engineering Inc. Project No.: 1012C006 Page 21 of 22 1012C006 1012C006 Neutron Engineering Inc. Project No.: 1012C006 Page 21 of 22 1012C006 1012C006 Neutron Engineering Inc. Project No.: 1012C006 Page 22 of 22 1012C006

MPE 1 PREDICTION OF MPE LIMIT AT A GIVEN DISTANCE EQUATION FROM PAGE 18 OF OET BULLETIN 65, EDITION 97-01 2 MPE CALCULATION METHOD Calculation Method of RF Safety Distance: where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna 3 TEST RESULTS EUT： WHDI GRAPHIC CARD Model Name ： G45W Temperature： 23 °C Relative Humidity： 51 % Pressure： 1010 hPa Test Voltage ： AC 120V/60Hz Test Mode ： TX MODE / CH01,CH02,CH03 ANT 1 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 1.99 1.5812 12.65 18.4077 0.00579362 1 Complies 1.99 1.5812 12.87 19.3642 0.00609467 1 Complies 1.99 1.5812 13.52 22.4905 0.00707865 1 Complies EUT： WHDI GRAPHIC CARD Model Name ： G45W Temperature： 23 °C Relative Humidity： 51 % Pressure： 1010 hPa Test Voltage ： AC 120V/60Hz Test Mode ： TX MODE / CH01,CH02,CH03 ANT 2 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 1.99 1.5812 12.52 17.8649 0.00562277 1 Complies 1.99 1.5812 12.98 19.8609 0.00625101 1 Complies 1.99 1.5812 13.66 23.2274 0.00731056 1 Complies EUT： WHDI GRAPHIC CARD Model Name ： G45W Temperature： 23 °C Relative Humidity： 51 % Pressure： 1010 hPa Test Voltage ： AC 120V/60Hz Test Mode ： TX MODE / CH01,CH02,CH03 ANT 3 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 1.99 1.5812 12.52 17.8649 0.00562277 1 Complies 1.99 1.5812 12.87 19.3642 0.00609467 1 Complies 1.99 1.5812 13.59 22.8560 0.00719367 1 Complies EUT： WHDI GRAPHIC CARD Model Name ： G45W Temperature： 23 °C Relative Humidity： 51 % Pressure： 1010 hPa Test Voltage ： AC 120V/60Hz Test Mode ： TX MODE / CH01,CH02,CH03 ANT 4 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 1.99 1.5812 12.47 17.6604 0.00555841 1 Complies 1.99 1.5812 12.62 18.2810 0.00575374 1 Complies 1.99 1.5812 13.33 21.5278 0.00677564 1 Complies EUT： WHDI GRAPHIC CARD Model Name ： G45W Temperature： 23 °C Relative Humidity： 51 % Pressure： 1010 hPa Test Voltage ： AC 120V/60Hz Test Mode ： TX MODE /CH01, CH02, CH03 -Total (ANT 1+ANT 2+ANT 3+ ANT 4) Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 1.99 1.5812 18.56 71.7794 0.02259178 1 Complies 1.99 1.5812 18.86 76.9130 0.02420752 1 Complies 1.99 1.5812 19.55 90.1571 0.02837595 1 Complies Note: The product has four antennas, it is the MIMO.

Neutron Engineering Inc. Report No.: NEI-FCCP-1-1012C006 Page 2 of 58 Declaration Neutron represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with the standards traceable to National Measurement Laboratory (NML) of CHINA, or National Institute of Standards and Technology (NIST) of U.S.A. Neutron's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. Neutron shall have no liability for any declarations, inferences o r generalizations drawn by the client or others from Neutron issued reports. Neutron’s reports must not be used by the client to claim product endorsement by the authorities or any agency of the Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and Neutron-self, extracts from the test report shall not be reproduced except in full with Neutron’s authorized written approval. Neutron’s laboratory quality assurance procedures are in compliance with the ISO Guide 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Neutron Engineering Inc. Report No.: NEI-FCCP-1-1012C006 Page 3 of 58 Table of Contents Page 1 . CERTIFICATION 5 2 . SUMMARY OF TEST RESULTS 6 2.1 TEST FACILITY 7 2.2 MEASUREMENT UNCERTAINTY 7 3 . GENERAL INFORMATION 8 3.1 GENERAL DESCRIPTION OF EUT 8 3.2 DESCRIPTION OF TEST MODES 9 3.3 TABLE OF PARAMETERS OF TEXT SOFTWARE SETTING 9 3.4 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 10 3.5 DESCRIPTION OF SUPPORT UNITS 11 4 . EMC EMISSION TEST 12 4.1 CONDUCTED EMISSION MEASUREMENT 12 4.1.1 POWER LINE CONDUCTED EMISSION LIMITS 12 4.1.2 MEASUREMENT INSTRUMENTS LIST AND SETTING 12 4.1.3 TEST PROCEDURE 13 4.1.4 DEVIATION FROM TEST STANDARD 13 4.1.5 TEST SETUP 13 4.1.6 EUT OPERATING CONDITIONS 13 4.1.7 TEST RESULTS 14 4.2 RADIATED EMISSION MEASUREMENT 16 4.2.1 RADIATED EMISSION LIMITS 16 4.2.2 MEASUREMENT INSTRUMENTS LIST ANS SETTING 17 4.2.3 TEST PROCEDURE 18 4.2.4 DEVIATION FROM TEST STANDARD 18 4.2.5 TEST SETUP 19 4.2.6 EUT OPERATING CONDITIONS 19 4.2.7 TEST RESULTS (BETWEEN 30 – 1000 MHZ) 20 4.2.8 TEST RESULTS (ABOVE 1000 MHZ) 22 5 . BANDWIDTH TEST 34 5.1 APPLIED PROCEDURES / LIMIT 34 5.1.1 MEASUREMENT INSTRUMENTS LIST 34 5.1.2 TEST PROCEDURE 34 5.1.3 DEVIATION FROM STANDARD 34 5.1.4 TEST SETUP 35 5.1.5 EUT OPERATION CONDITIONS 35 5.1.6 TEST RESULTS 36 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1012C006 Page 4 of 58 Table of Contents Page 6 . PEAK OUTPUT POWER TEST 38 6.1 APPLIED PROCEDURES / LIMIT 38 6.1.1 MEASUREMENT INSTRUMENTS LIST 38 6.1.2 TEST PROCEDURE 38 6.1.3 DEVIATION FROM STANDARD 38 6.1.4 TEST SETUP 38 6.1.5 EUT OPERATION CONDITIONS 38 6.1.6 TEST RESULTS 39 7 . ANTENNA CONDUCTED SPURIOUS EMISSION 40 7.1 APPLIED PROCEDURES / LIMIT 40 7.1.1 MEASUREMENT INSTRUMENTS LIST 40 7.1.2 TEST PROCEDURE 40 7.1.3 DEVIATION FROM STANDARD 40 7.1.4 TEST SETUP 40 7.1.5 EUT OPERATION CONDITIONS 40 7.1.6 TEST RESULTS 41 8 . POWER SPECTRAL DENSITY TEST 46 8.1 APPLIED PROCEDURES / LIMIT 46 8.1.1 MEASUREMENT INSTRUMENTS LIST 46 8.1.2 TEST PROCEDURE 46 8.1.3 DEVIATION FROM STANDARD 46 8.1.4 TEST SETUP 46 8.1.5 EUT OPERATION CONDITIONS 46 8.1.6 TEST RESULTS 47 9 . RF EXPOSURE TEST 54 9.1 APPLIED PROCEDURES / LIMIT 54 9.1.1 MPE CALCULATION METHOD 54 9.1.2 DEVIATION FROM STANDARD 54 9.1.3 EUT OPERATION CONDITIONS 54 9.1.4 TEST RESULTS 55 10 . EUT TEST PHOTO 57 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1012C006 Page 5 of 58 1. CERTIFICATION E q u i p m e n t : WHDI GRAPHIC CARD Brand Name : N/A Model Name : G45W;GTS450-WHDI;GTX460-WHDI;GTS550-WHDI;GTX560-WHDI; GTX570-WHDI; GTX580-WHDI;GT500-WHDI A p p l i c a n t : Galaxy Microsystems Ltd. Factory : Shenzhen Musheng Technology Co., Ltd. Address : No.1,3,5 Floor, Building B, Hequn Unit, Phoenix The 4th Industrial Zone, Fuyong Street, Baoan District, Shenzhen, Guangdong, China. Date of Test : Dec. 06, 2010 ~ Jan. 06, 2011 T e s t I t e m : ENGINEERING SAMPLE Standards : FCC Part15, Subpart C(15.247) / ANSI C63.4 : 2003 The above equipment has been tested and found compliance with the requirement of the relative standards by Neutron Engineering Inc. EMC Laboratory. The test data, data evaluation, and equipment configuration contained in our test report (Ref No. NEI-FCCP-1-1012C006) were obtained utilizing the test procedures, test instruments, test sites that has been accredited by the Authority of NVLAP and TAF according to the ISO-17025 quality assessment standard and technical standard(s). Neutron Engineering Inc. Report No.: NEI-FCCP-1-1012C006 Page 6 of 58 2. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15 (15.247) , Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission PASS 15.247(d) Antenna conducted Spurious EmissionPASS 15.247(a)(2) 6dB Bandwidth PASS 15.247(b)(3) Peak Output Power PASS 15.209/15.205 Radiated Spurious Emission PASS 15.247(e) Power Spectral Density PASS 15.203 Antenna Requirement PASS NOTE: (1)” N/A” denotes test is not applicable in this Test Report Neutron Engineering Inc. Report No.: NEI-FCCP-1-1012C006 Page 7 of 58 2.1 TEST FACILITY The test facilities used to collect the test data in this report is CB03/DG-C02 at the location of No.3,Jinshagang 1st Road, ShiXia, Dalang Town, Dong Guan, China.523792 Neutron's test firm number is 319330 2.2 MEASUREMENT UNCERTAINTY Where relevant, the following measurement uncertainty levels have been estimated for tests performed on the EUT as specified in CISPR 16-4-2: The reported uncertainty …

Text truncated - open the document above for the full version.

Model :SMA5G_FM Brand:CHUANGCHENG Page 1 Version: 1.0 Issue Date: 2009-10-26 Index: 1. Specification / Page 2 2. Characteristics and Reliability Test / Page 3 3. Antenna - S Parameter Test Data / Page 4 4. Antenna - Radiation Pattern Test Data / Page 5 ~ 9 5. Mechanical and Packing Drawing / Page 10 ~ 11 6. Material Description and RoHS Test Report / Page 12 ~ end Page 2 Version: 1.0 Issue Date: 2009-10-26 1. Specification Sample Photo A. Electrical Characteristics Frequency 2400 ~ 2500 MHz 4900 ~ 5900 MHz S.W.R. <= 2.0 @ 2400 ~ 2500 MHz <= 2.5 @ 4900 ~ 5900 MHz Antenna Gain 2.0 ± 0.7dBi @ 2450 MHz 1.0 ± 0.7dBi @ 5500 MHz Polarization Linear Impedance 50 Ohm B. Material & Mechanical Characteristics Material of Radiator PCB Material of Plastic Body: TPE Hinge: PA+ABS Holder: PA+ABS Cable Type RG-178 Connector Type SMA Male Reverse Connector Pull Test >= 3 Kg Connector Torque Test 100 ~ 300g.cm C. Environmental Operation Temperature - 40 ̊C ~ + 65 ̊C Storage Temperature - 40 ̊C ~ + 80 ̊C Page 3 Version: 1.0 Issue Date: 2009-10-26 2. Characteristics and Reliability Test Test Items Test Condition and Procedure Requirements C1 S.W.R. Set DUT on Network Analyzer; make individual calibration to test Directive DUT specification C2 Antenna Gain Set DUT on Antenna Chamber; make individual calibration to test Directive DUT specification M1 Vibration MIL-STD-202G, 201A Amplitude: 0.03 inch (0.76mm); Freq: 10 to 55 Hz 3 directions; 2 hours for each direction 1. No Visual Damage 2. Frequency Tol.<= 5% M2 Random Drop Height: 1.5 Meter; 3 directions; 1 time for each direction 1. No parts separated 2. Frequency Tol.<= 5% M3 Solderability MIL-STD-202G, 210F, cond. A Solder iron: 350±10°C; Duration: 5 seconds 1. Mounted on PCB 2. No Visual Damage M4 Terminal- Pull Test MIL-STD-202G, 211A, cond. A Holding with individual specification; force applied to axis of terminal 1. Directive DUT specification 2. Frequency Tol.<= 5% M5 Terminal- Torque Test MIL-STD-202G, 211A, cond. E Holding with individual specification; applied clockwise and counterclockwise to the axis of terminal 1. Directive DUT specification 2. Frequency Tol.<= 5% M6 Dimension Inspection of dimension, color, material, package, surface process Directive DUT specification E1 Salt Spray MIL-STD-202G, 101E, cond. B Temp: 35°C; RH: >= 95%; NaCl solution: >= 5%; Time: 48 hours After 2 Hours Recovery 1. No Visual Damage 2. Frequency Tol.<= 5% E2 Humidity MIL-STD-202G, 103B, cond. B Temp: 40°C; RH: >= 95%; Time: 48 hours After 2 Hours Recovery 1. No Visual Damage 2. Frequency Tol.<= 5% E3 Thermal Shock 1 Cycle: - 40°C (30 minutes) to + 80°C (30 minutes) Cycles: 24 After 2 Hours Recovery 1. No Visual Damage 2. Frequency Tol.<= 5% E4 Life (High Temp.) MIL-STD-202G, 108A, cond. A Temp: 85°C; Time: 96 hours After 2 Hours Recovery 1. No Visual Damage 2. Frequency Tol.<= 5% R1 RoHS With Reference to IEC 62321:2008 with flow chart Directive RoHS 2002/95/EC R2 PFOS With Reference to USA EPA 3540C:1996 by LC/MS Directive RoHS 2006/122/EC R3 PFOA With Reference to USA EPA 3540C:1996 by LC/MS Directive RoHS 2006/122/EC Page 4 Version: 1.0 Issue Date: 2009-10-26 3. Antenna - S Parameter Test Data Page 5 Version: 1.0 Issue Date: 2009-10-26 4. Antenna - Radiation Pattern Test Data Testing Equipment Specification: Antenna Anechoic Chamber Dimension: 8 x 4 x 4 m Quite Zone: 600mm @1 GHz Isolation: >100dB @ 1 MHz ~ 10 GHz Testing Equipment: Agilent 5071B Received Antenna: 0.7 ~ 6.0 GHz for Gain Calibration Double Ridged Horn Antenna 5. Mechanical Drawing See attached files 6. Material Description and RoHS Test Report See attached files

Neutron Engineering Inc. Report No.: NEI-FCCP-1-1012C006 Page 55 of 56 9. EUT TEST PHOTO Conducted Measurement Photos Neutron Engineering Inc. Report No.: NEI-FCCP-1-1012C006 Page 55 of 56 9. EUT TEST PHOTO Conducted Measurement Photos Neutron Engineering Inc. Report No.: NEI-FCCP-1-1012C006 Page 56 of 56 Radiated Measurement Photos Neutron Engineering Inc. Report No.: NEI-FCCP-1-1012C006 Page 56 of 56 Radiated Measurement Photos
