Y3G-HOF-M2HOF ACE WIRELESS GAMING MOUSE

Instruction manual Specification: 1. Dual Mode: Wired + 2.4G 2. 3370 Sensor 3. Main switch Kailh 80M (left and right) 4. Middle switch: shunyang 3M 5. DPI side switch HUANO 3M 6. Encoder: HUANO 7. PCB waterproof 8. with PTFE mouse feet 9. 1.8 m cable 10. 700mA battery 12. DPI 800-1200 (Default)-2400-3200-6400-19000-38000 Parts and Functions 1. left button 7. turns on power and light 2. Right button 8. Turns power on and light off 3. center key 9. power off 4. Forward key 10 . Return Rate 5. Back Button 11. Rate of Return Indicator 6. DPI button 12. Wired and Charging Type-C 13. USB Receiver Quick Start Guide Mouse Instructions: 1. Remove the USB receiver 2. Insert the receiver into your computer's USB port. 3. Turn on the power switch on the bottom of the mouse to power on the mouse. 4. Wait for your computer to finish installing the mouse. DPI settings and indicators: 1. Default DPI level: 800-1200 (default) - 2400-3200-6400-19000-38000 DPI Levels 2. Press the DPl button on the top of the mouse to cycle through the DPl levels. Note 1. The DPI level can be adjusted by the software. The maximum DPI is 38000 DPI. 2. The DPI LED effect can be adjusted or turned off by the software to save power. 3. The software supports Windows systems only. Return rate: 125-250-500-1000Hz, can be set by software. Return rate LED color: 125 Red, 250 Blue, 500 Green, 1000 Purple Wired and Wireless Functions: 1. Wired and wireless modes switch automatically. Simply plug the USB receiver into your computer without a cable and the mouse will work in wireless mode. 2. If you connect the USB-C cable from your computer to the mouse, the mouse will automatically switch to wired gaming mode. Low Battery and Charging Indicators 1. Low Battery Indicator: The mouse wheel will flash red to indicate that the battery is low (10%) and you should charge the mouse by connecting it to your computer via the charging cable. 2. 2. When charging, the scroll wheel LED will flash orange. When the battery is fully charged, the LED will turn solid green. Pairing 1. If the mouse loses its wireless connection, you can re-pair the mouse with the receiver by following the steps below: Press and hold the Left + Center + Right buttons for 3 seconds until the scroll wheel flashes yellow. 2. Release all buttons and turn the mouse off. 2. Release all buttons, move the mouse closer to the receiver, then unplug the receiver and plug it back into the USB port. When pairing is complete, the LED will stop blinking. Warnings and Safety Measures 1. Use the device only for its intended purpose. 2. 2. Do not use the device if it is wet. 3. 3. Do not bend, twist, stretch, or heat the power cord. 4. 4. Do not use harsh chemicals (alcohol, benzene, thinner, etc.) or cleaning agents to clean the device. Use a damp, soft cloth for cleaning. 5. Do not disassemble or modify the device as this may void the warranty and damage the device. 6. This device contains electrical and electronic components and rechargeable batteries. Do not dispose of them with household waste. At the end of its useful life and use, the device should be disposed of at an appropriate disposal point. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. This device complies with FCC radiation exposure requirement set forth for an uncontrolled environment.

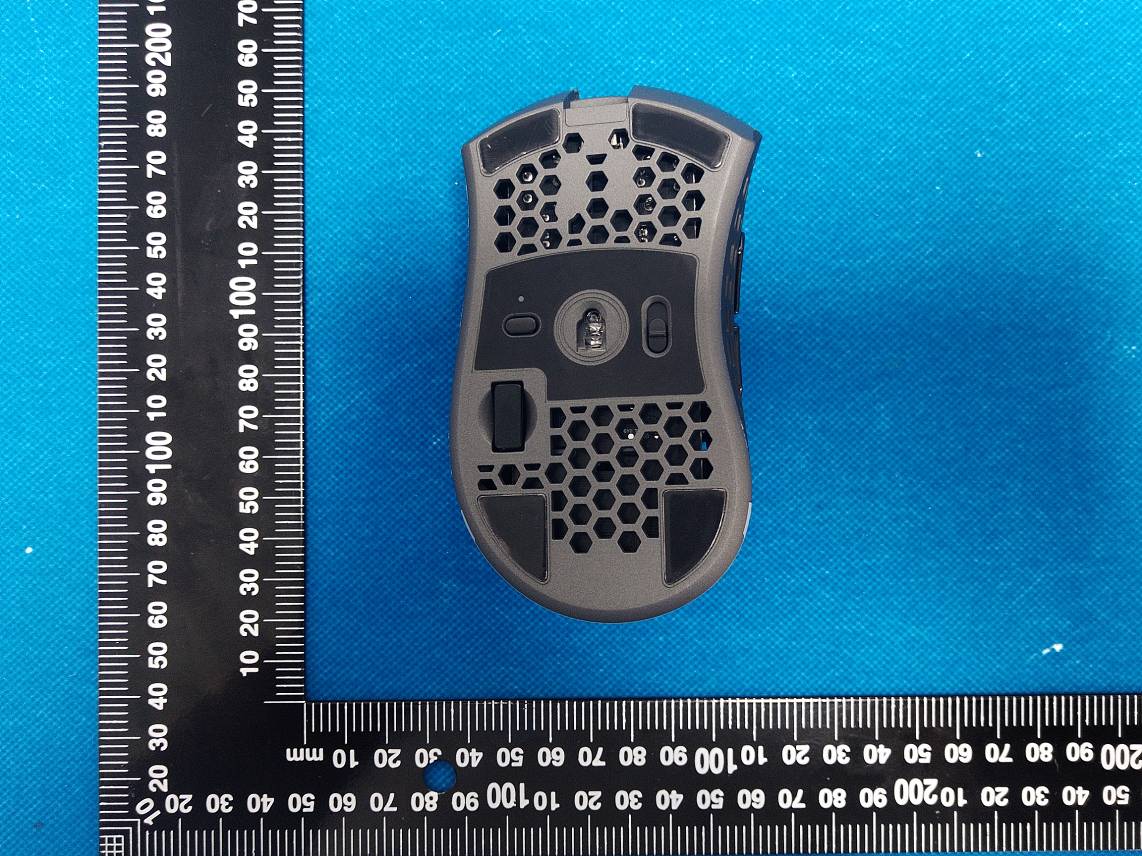

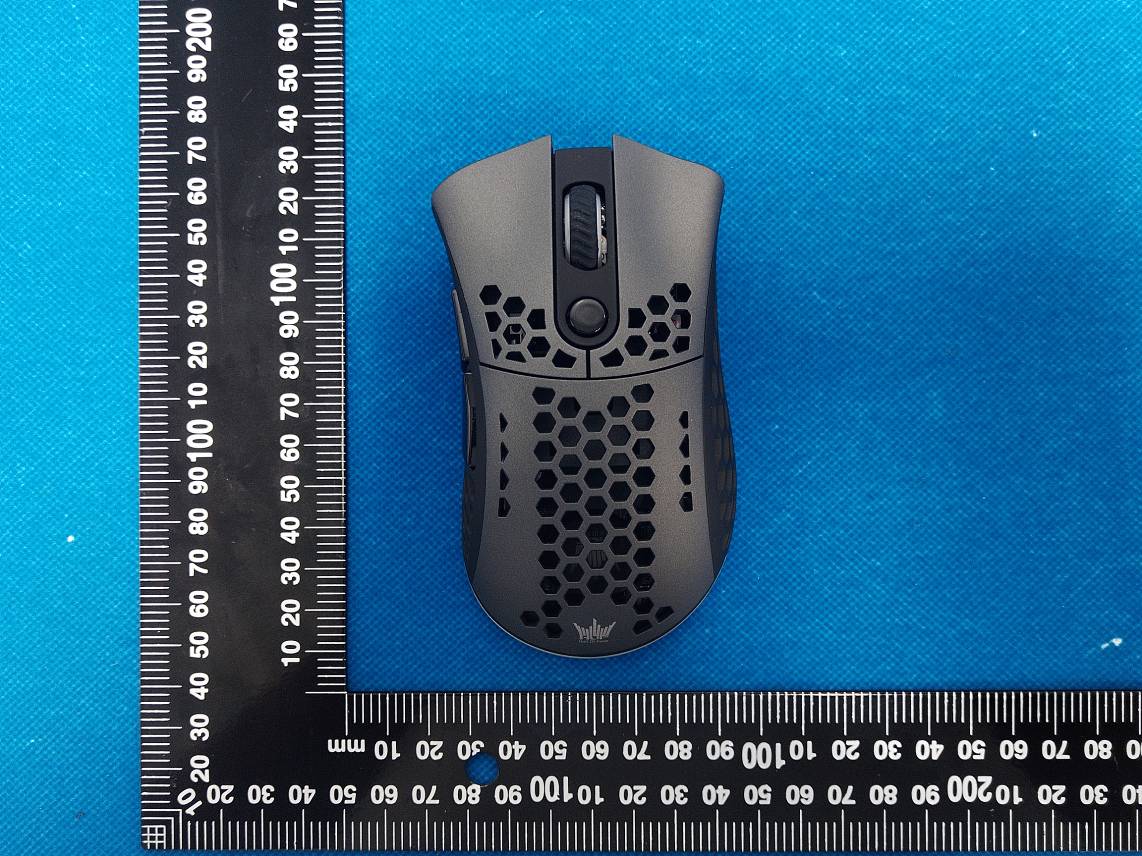

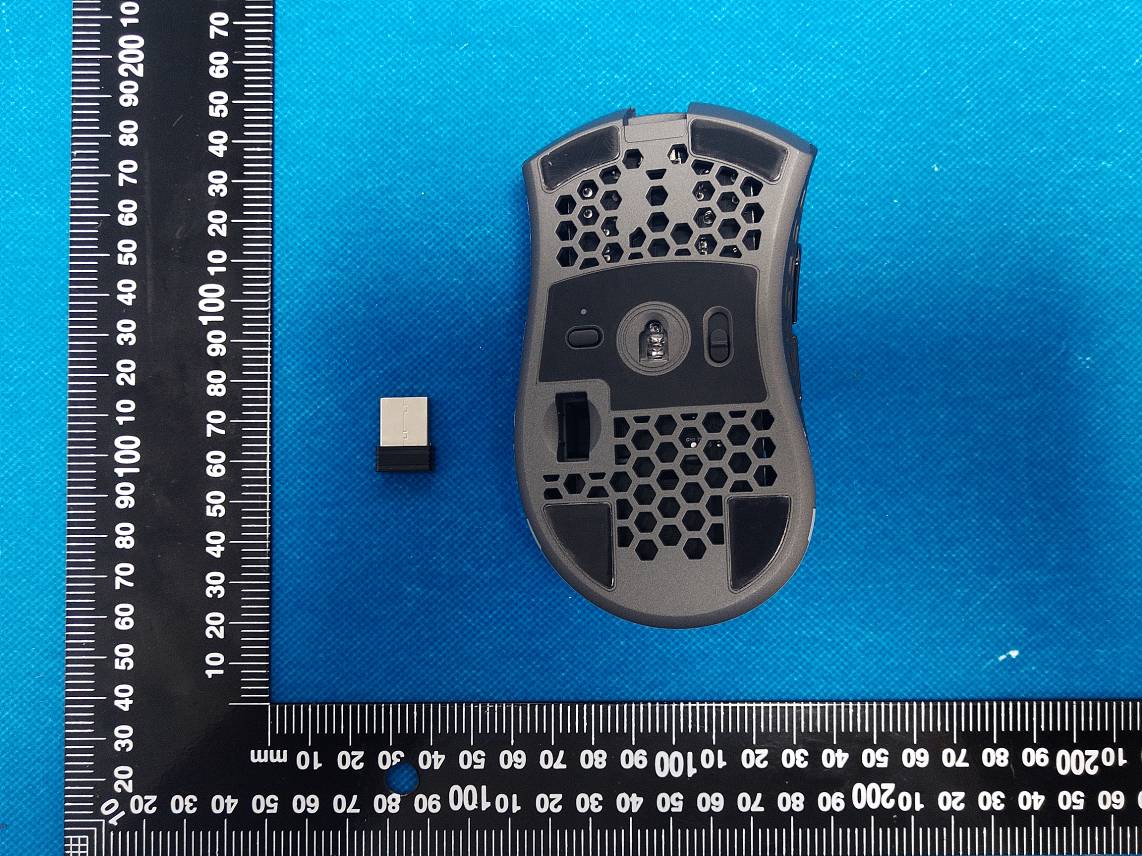

China Certification ICT Co., Ltd (Dongguan) Report No.: CR230951431-EXP EUT EXTERNAL PHOTOGRAPHS HOF ACE M2 Black China Certification ICT Co., Ltd (Dongguan) Report No.: CR230951431-EXP China Certification ICT Co., Ltd (Dongguan) Report No.: CR230951431-EXP China Certification ICT Co., Ltd (Dongguan) Report No.: CR230951431-EXP China Certification ICT Co., Ltd (Dongguan) Report No.: CR230951431-EXP China Certification ICT Co., Ltd (Dongguan) Report No.: CR230951431-EXP HOF ACE M2 White China Certification ICT Co., Ltd (Dongguan) Report No.: CR230951431-EXP China Certification ICT Co., Ltd (Dongguan) Report No.: CR230951431-EXP China Certification ICT Co., Ltd (Dongguan) Report No.: CR230951431-EXP China Certification ICT Co., Ltd (Dongguan) Report No.: CR230951431-EXP

Label Label Location Information

China Certification ICT Co., Ltd (Dongguan) Report No.: CR230951431-INP EUT INTERNAL PHOTOGRAPHS China Certification ICT Co., Ltd (Dongguan) Report No.: CR230951431-INP China Certification ICT Co., Ltd (Dongguan) Report No.: CR230951431-INP China Certification ICT Co., Ltd (Dongguan) Report No.: CR230951431-INP ANT China Certification ICT Co., Ltd (Dongguan) Report No.: CR230951431-INP

China Certification ICT Co., Ltd (Dongguan) Report No.: CR230951431-00 Page 48 of 50 5. RF EXPOSURE EVALUATION 5.1 Applicable Standard According to§15.247(i) and §1.1310, systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. According to KDB447498 D01 General RF Exposure Guidance v06: The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where • f(GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 5) in section 4.1 is applied to determine SAR test exclusion. 5.2 Measurement Result The max conducted power including tune-up tolerance is 4.0 dBm (2.51 mW). [(max. power of channel, mW)/(min. test separation distance, mm)][√f(GHz)] =2.51/5*(√2.480) = 0.8< 3.0 Result: Compliant. The stand-alone SAR evaluation is not necessary.

2.4 GHz PCB Antenna Specifications 1. Summary Item Units Value Outline Dimension mm L=15.5, H=4.5 Model MHz F-ANT Frequency Band MHz 2400~2480 Antenna Type PCB Max Gain dBi 1.2 Input Impedance Ohm 50 Manufacture Shenzhen Jialichuang Technology Group Co., Ltd Address 27/F, Olympic Mansion, Shangpao Road, Futian District, Shenzhen, Guangdong, China Trademark 2. S11 3. Radiation Pattern

TEST REPORT Applicant: Galaxy Microsystems Ltd. Address: Unit 1601, 16/F, Exchange Tower, 33 Wang Chiu Road, Kowloon Bay, Kowloon, Hong Kong FCC ID: Y3G-HOF-M2 Product Name: HOF ACE WIRELESS GAMING MOUSE Standard(s): 47 CFR Part 15, Subpart C(15.247) ANSI C63.10-2013 KDB 558074 D01 15.247 Meas Guidance v05r02 The above equipment has been tested and found compliant with the requirement of the relative standards by China Certification ICT Co., Ltd (Dongguan) Report Number: CR230951431-00 Date Of Issue: 2023/9/19 Reviewed By: Calvin Chen Title: RF Engineer Approved By: Sun Zhong Title: Manager Test Laboratory: China Certification ICT Co., Ltd (Dongguan) No. 113, Pingkang Road, Dalang Town, Dongguan, Guangdong, China Tel: +86-769-82016888 China Certification ICT Co., Ltd (Dongguan) Report No.: CR230951431-00 Page 2 of 50 Test Facility The Test site used by China Certification ICT Co., Ltd (Dongguan) to collect test data is located on the No. 113, Pingkang Road, Dalang Town, Dongguan, Guangdong, China. The lab has been recognized as the FCC accredited lab under the KDB 974614 D01 and is listed in the FCC Public Access Link (PAL) database, FCC Registration No. : 442868, the FCC Designation No. : CN1314. The lab has been recognized by Innovation, Science and Economic Development Canada to test to Canadian radio equipment requirements, the CAB identifier: CN0123. Declarations China Certification ICT Co., Ltd (Dongguan) is not responsible for the authenticity of any test data provided by the applicant. Data included from the applicant that may affect test results are marked with a triangle symbol “▲”. Customer model name, addresses, names, trademarks etc. are not considered data. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report cannot be reproduced except in full, without prior written approval of the Company. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. This report may contain data that are not covered by the accreditation scope and shall be marked with an asterisk “★”. China Certification ICT Co., Ltd (Dongguan) Report No.: CR230951431-00 Page 3 of 50 CONTENTS T EST FACILITY .......................................................................................................................................... 2 DECLARATIONS .......................................................................................................................................... 2 DOCUMENT REVISION HISTORY .......................................................................................... 5 1. GENERAL INFORMATION .................................................................................................... 6 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ....................................................... 6 1.2 DESCRIPTION OF TEST CONFIGURATION ........................................................................................... 7 1.2.1 EUT Operation Condition: ............................................................................................................................. 7 1.2.2 Support Equipment List and Details .............................................................................................................. 7 1.2.3 Support Cable List and Details ...................................................................................................................... 7 1.2.4 Block Diagram of Test Setup ......................................................................................................................... 8 1.3 MEASUREMENT UNCERTAINTY .......................................................................................................... 9 2. SUMMARY OF TEST RESULTS .......................................................................................... 10 3. REQUIREMENTS AND TEST PROCEDURES .................................................................. 11 3.1 AC LINE CONDUCTED EMISSIONS .................................................................................................... 11 3.1.1 Applicable Standard ..................................................................................................................................... 11 3.1.2 EUT Setup.................................................................................................................................................... 12 3.1.3 EMI Test Receiver Setup ............................................................................................................................. 12 3.1.4 Test Procedure ............................................................................................................................................. 13 3.1.5 Corrected Amplitude & Margin Calculation ................................................................................................ 13 3.2 RADIATED SPURIOUS EMISSIONS ...................................................................................................... 14 3.2.1 Applicable Standard ..................................................................................................................................... 14 3.2.2 EUT Setup.................................................................................................................................................... 14 3.2.3 EMI Test Receiver & Spectrum Analyzer Setup ......................................................................................... 15 3.2.4 Test Procedure ............................................................................................................................................. 15 3.2.5 Corrected Amplitude & Margin Calculation ................................................................................................ 15 3.3 20 DB EMISSION BANDWIDTH ................................................................…

Text truncated - open the document above for the full version.

China Certification ICT Co., Ltd (Dongguan) Report No.: CR230951431-00-TSP TEST SETUP PHOTOGRAPHS Conducted Emissions Front View Conducted Emissions Side View China Certification ICT Co., Ltd (Dongguan) Report No.: CR230951431-00-TSP Radiated Emission Below 1GHz View Radiated Emission Above 1GHz View
