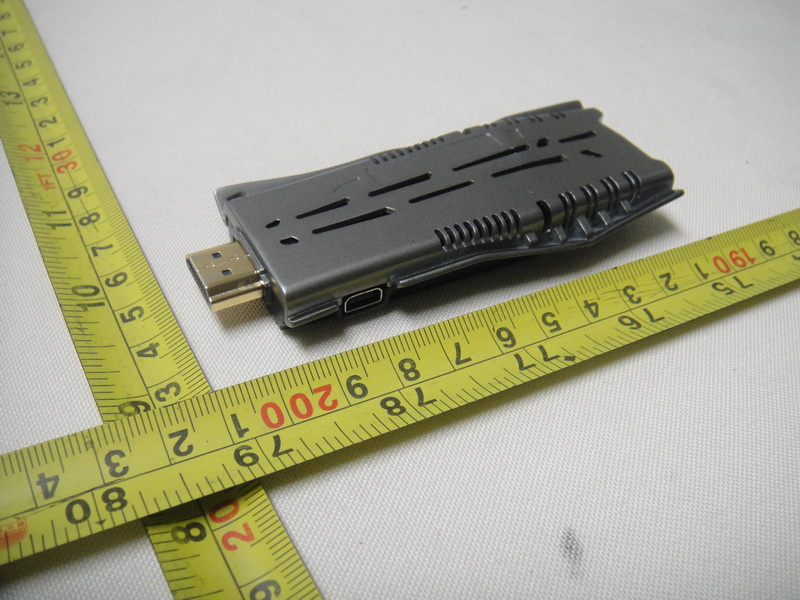

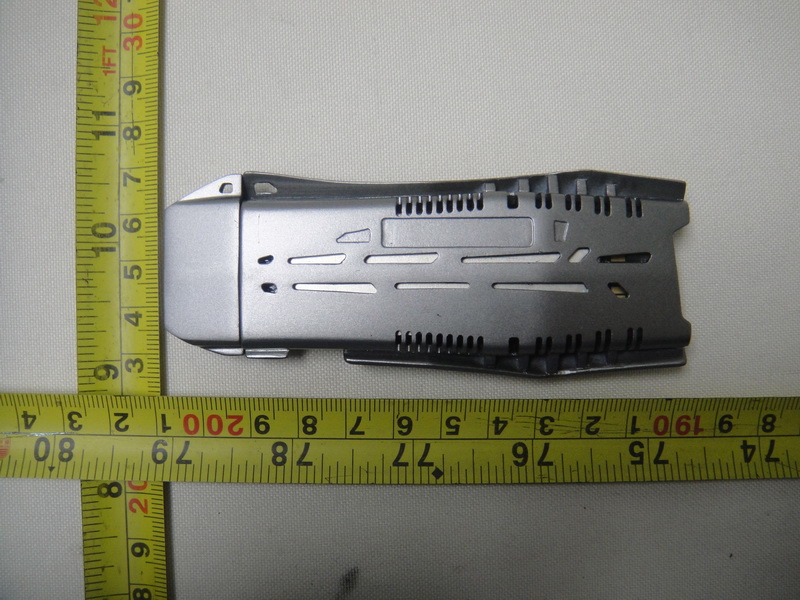

Y3G-GSKU-WHDI-T10WHDI Stick

User Manual Model: GSKU www.galaxytech.com WIRELESS HOME DIGITAL INTERFACE TM WHDI Stick HD Video Wireless Kit WIRELESSLY STREAM CONTENT FROM YOUR NOTEBOOK AND HDMI DEVICE TO FULL HD TV Galaxy Microsystems Ltd. Room 1101-1103, 11/F, Enterprise Square Two, 3 Sheung Yuet Road, Kowloon Bay, Kowloon, Hong Kong 555100-0283-000 尺寸：11.5cm*15cm 材料: 内页用普通书纸80克， 封面封底 用157g铜版纸（打起码钉装订） 555100-0283-000 封面封底彩色四色印刷，内页黑白单色印刷（封二封三直接印内页内容） Congratulations on your purchase of Galaxy WHDI Stick HD Video Wireless Kit - The ultimate solution to connect your HD devices WIRELESSLY to your TV. This device enables wireless connectivity of any uncompressed HD video and Audio. It can be wireless connected from an HD source device, such as Desktop PCs, Laptops, Blu-Ray players, STBs, and game consoles etc, to an HD display device such as LCD/Plasma TVs and Projectors etc. Share High Definition content among all devices in full coverage, no line of sight required. Introduction Product Specification Main Features: Supports HDMI 1.3 standard in 720p and Full HD 1080p resolution Less than 1ms latency - No video delays and no lip-sync problems Support all popular audio formats including PCM stereo, DTS & Dolby Digital Uses the 5Ghz unlicensed band Range: Non-line-of-Sight, in-room communication, up to 10 meters Co-exists with Wi-Fi 802.11a/n in the 5GHz band Encrypted wireless link, no eavesdropping by neighbors Easy device switching: pair multiple WHDI sticks to multiple WHDI receiver for easy device switching Comply with WHDI 1.0 standard works with any WHDI Complied TV or Receiver Adaptor Comply with HDCP 2.0 allows sending Blue Ray movies and other protected content. 0102 content Introduction Product Specification WHDI Stick What is included WHDI Receiver Installation Installing the WHDI Stick Installing the WHDI Receiver Paring Extra Devices Troubleshooting FCC Statement 02 02 04 04 05 07 07 08 09 10 11 Galaxy WHDI Transmitter Stick Dimensions: 107mm x44mm x16mm Maximum 12dBm transmission power Power consumption: up to 2.5Watt for Full HD resolution USB Powered [5V 0.5A] Interface: HDMI in x1, Mini USB x1 Galaxy WHDI Receiver Bundled with IR receiver for deviceairing/switching Dimensions: 148mm x96mm x20mm Receiver Sensitivity ≤ - 65 dBm Input Voltage: 5V/2A DC (AC adaptor included) Interface: HDMI out x1, DC in x1, IR in x1, Mini USB x1 (Reserved) WHDI Stick USB port The stick uses standard USB port as input power. When you are using devices without USB port, you can use the bundled USB power adaptor. What is included 0403 HDMI Video Input Status Indicator -LED on: connection established -LED flashing: pairing mode -LED off: connection failed Pairing key Use this key to put the stick into “pairing” mode. Please check the steps provided in this manual for more details 1 1 2 2 3 3 Power input The receiver requires 5V/2A DC power. Use the power adaptor included in this package. HDMI Video output Network status indicator -LED on: network connection established -LED flashing: pairing mode -LED off: connection failed or power failure Video status indicator -LED on: receiver has connected to display device successfully -LED off: video connection failed IR receiver USB port (reserved) 0506 Installation for the WHDI stick and receiver is easy. For best signal reception, it is recommended to place BOTH the WHDI Stick and receiver vertically. You can use the bundled stand for the receiver, and the bundled angled HDMI converter for the WHDI stick respectively. Installation 1) It is recommended to turn off your device before installing the WHDI stick. 2) Connect the HDMI video input of the stick to the HDMI output port of your HD video device. Use the angled HDMI converter or the extension cable if necessary. Installing the WHDI Stick Galaxy WHDI Stick USB cable 1 2 6 3 5 4 1 2 3 4 5 6 WHDI Receiver 3) Connect the USB port of the stick to the USB port of your HD video device. Use the bundled USB power adaptor if your HD video device does not equip with a USB port. 3) Connect the bundled power adaptor to the power input of the WHDI Receiver. Installing the WHDI Receiver 0807 4) The LED status indicator will turn on when the WHDI Stick has successfully connected with the WHDI Receiver. Galaxy WHDI Stick USB cable USB power adaptor 1) It is recommended to turn off your device before installing the WHDI Stick. 2) Connect the HDMI video output of the receiver to the HDMI input port of your HD display device. An HDMI cable is included in the package for your convenience. It is recommended to use the bundled stand to hold the receiver vertically. Notice the direction of the receiver to make sure the antenna is facing upwards 4) The Video status indicator will turn on when the Receiver has connected successfully with the HD display device. However the Network status indicator will only be turned on when the WHDI Receiver has connected with the WHDI Stick successfully. WHDI Receiver HDMI Cable Power Supply Pairing Extra Devices 0910 Galaxy WHDI Stick HD Video Wireless Kit allows multiple pairing – you can pair multiple WHDI Sticks to a single receiver for easy switching between devices. The WHDI Stick and WHDI Receiver included with this kit is already factory paired by default, and does not require manual pairing for operation. Use the below procedure only when you wish to pair extra devices, or the receiver has trouble in pairing with the WHDI Stick. Step 1 Connect the WHDI Stick and WHDI Receiver to your input device and HDTV using the procedure described in this manual. Step 2 Power on both WHDI Stick and WHDI Receiver Step 3 The WHDI Stick and WHDI Receiver is already factory paired by default. Even if you have not turned on your input device, they will automatically connect with each other. The following will be shown on the screen: Connected to StickXXXX. Please Check Video Source. Step 4 To pair extra WHDI Stick to the WHDI Receiver, press the MENU button located at the top left hand corner of the remote control Step 5 The follo…

Text truncated - open the document above for the full version.

Neutron Engineering Inc. Project No.: 1102C069A Page 2 of 13 1102C069A 1102C069A Neutron Engineering Inc. Project No.: 1102C069A Page 2 of 13 1102C069A 1102C069A Neutron Engineering Inc. Project No.: 1102C069A Page 3 of 13 1102C069A 1102C069A Neutron Engineering Inc. Project No.: 1102C069A Page 3 of 13 1102C069A 1102C069A Neutron Engineering Inc. Project No.: 1102C069A Page 4 of 13 1102C069A Neutron Engineering Inc. Project No.: 1102C069A Page 5 of 13 1102C069A 1102C069A Neutron Engineering Inc. Project No.: 1102C069A Page 5 of 13 1102C069A 1102C069A

Neutron Engineering Inc. Project No.: 1102C069A Page 6 of 13 1102C069A 1102C069A Neutron Engineering Inc. Project No.: 1102C069A Page 6 of 13 1102C069A 1102C069A Neutron Engineering Inc. Project No.: 1102C069A Page 7 of 13 1102C069A 1102C0 69A Neutron Engineering Inc. Project No.: 1102C069A Page 7 of 13 1102C069A 1102C0 69A Neutron Engineering Inc. Project No.: 1102C069A Page 8 of 13 1102C069A 1102C069A Neutron Engineering Inc. Project No.: 1102C069A Page 8 of 13 1102C069A 1102C069A Neutron Engineering Inc. Project No.: 1102C069A Page 9 of 13 1102C069A 1102C069A Neutron Engineering Inc. Project No.: 1102C069A Page 9 of 13 1102C069A 1102C069A Neutron Engineering Inc. Project No.: 1102C069A Page 10 of 13 1102C069A 1102C069A Neutron Engineering Inc. Project No.: 1102C069A Page 10 of 13 1102C069A 1102C069A Neutron Engineering Inc. Project No.: 1102C069A Page 11 of 13 1102C069A 1102C069A Neutron Engineering Inc. Project No.: 1102C069A Page 11 of 13 1102C069A 1102C069A Neutron Engineering Inc. Project No.: 1102C069A Page 12 of 13 1102C069A 1102C069A Neutron Engineering Inc. Project No.: 1102C069A Page 12 of 13 1102C069A 1102C069A Neutron Engineering Inc. Project No.: 1102C069A Page 13 of 13 1102C069A

Neutron Engineering Inc. Report No.: NEI-FCCP-1-1102C069A Page 2 of 54 Declaration Neutron represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with the standards traceable to National Measurement Laboratory (NML) of CHINA, or National Institute of Standards and Technology (NIST) of U.S.A. Neutron's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. Neutron shall have no liability for any declarations, inferences o r generalizations drawn by the client or others from Neutron issued reports. Neutron’s reports must not be used by the client to claim product endorsement by the authorities or any agency of the Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and Neutron-self, extracts from the test report shall not be reproduced except in full with Neutron’s authorized written approval. Neutron’s laboratory quality assurance procedures are in compliance with the ISO Guide 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Neutron Engineering Inc. Report No.: NEI-FCCP-1-1102C069A Page 3 of 54 Table of Contents Page 1 . CERTIFICATION 5 2 . SUMMARY OF TEST RESULTS 6 2.1 TEST FACILITY 7 2.2 MEASUREMENT UNCERTAINTY 7 3 . GENERAL INFORMATION 8 3.1 GENERAL DESCRIPTION OF EUT 8 3.2 DESCRIPTION OF TEST MODES 10 3.3 TABLE OF PARAMETERS OF TEXT SOFTWARE SETTING 10 3.4 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 11 3.5 DESCRIPTION OF SUPPORT UNITS 12 4 . EMC EMISSION TEST 13 4.1 CONDUCTED EMISSION MEASUREMENT 13 4.1.1 POWER LINE CONDUCTED EMISSION LIMITS 13 4.1.2 MEASUREMENT INSTRUMENTS LIST AND SETTING 13 4.1.3 TEST PROCEDURE 14 4.1.4 DEVIATION FROM TEST STANDARD 14 4.1.5 TEST SETUP 14 4.1.6 EUT OPERATING CONDITIONS 14 4.1.7 TEST RESULTS 15 4.2 RADIATED EMISSION MEASUREMENT 17 4.2.1 RADIATED EMISSION LIMITS 17 4.2.2 MEASUREMENT INSTRUMENTS LIST ANS SETTING 18 4.2.3 TEST PROCEDURE 19 4.2.4 DEVIATION FROM TEST STANDARD 19 4.2.5 TEST SETUP 20 4.2.6 EUT OPERATING CONDITIONS 20 4.2.7 TEST RESULTS (BETWEEN 30 – 1000 MHZ) 21 4.2.8 TEST RESULTS (ABOVE 1000 MHZ) 23 5 . BANDWIDTH TEST 35 5.1 APPLIED PROCEDURES / LIMIT 35 5.1.1 MEASUREMENT INSTRUMENTS LIST 35 5.1.2 TEST PROCEDURE 35 5.1.3 DEVIATION FROM STANDARD 35 5.1.4 TEST SETUP 35 5.1.5 EUT OPERATION CONDITIONS 35 5.1.6 TEST RESULTS 36 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1102C069A Page 4 of 54 Table of Contents Page 6 . PEAK OUTPUT POWER TEST 38 6.1 APPLIED PROCEDURES / LIMIT 38 6.1.1 MEASUREMENT INSTRUMENTS LIST 38 6.1.2 TEST PROCEDURE 38 6.1.3 DEVIATION FROM STANDARD 38 6.1.4 TEST SETUP 38 6.1.5 EUT OPERATION CONDITIONS 38 6.1.6 TEST RESULTS 39 7 . ANTENNA CONDUCTED SPURIOUS EMISSION 41 7.1 APPLIED PROCEDURES / LIMIT 41 7.1.1 MEASUREMENT INSTRUMENTS LIST 41 7.1.2 TEST PROCEDURE 41 7.1.3 DEVIATION FROM STANDARD 41 7.1.4 TEST SETUP 41 7.1.5 EUT OPERATION CONDITIONS 41 7.1.6 TEST RESULTS 42 8 . POWER SPECTRAL DENSITY TEST 47 8.1 APPLIED PROCEDURES / LIMIT 47 8.1.1 MEASUREMENT INSTRUMENTS LIST 47 8.1.2 TEST PROCEDURE 47 8.1.3 DEVIATION FROM STANDARD 47 8.1.4 TEST SETUP 47 8.1.5 EUT OPERATION CONDITIONS 47 8.1.6 TEST RESULTS 48 9 . RF EXPOSURE TEST 52 10 . EUT TEST PHOTO 53 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1102C069A Page 5 of 54 1. CERTIFICATION Equipment : WHDI Stick Brand Name : Galaxy Model Name. : GSKU;GSKU-STD;GSKU-UPK;GSKU-SPX A p p l i c a n t : Galaxy Microsystems Ltd. F a c t o r y : Shenzhen Musheng Technology Co., Ltd Address : No. 1,3,5 Floor, Building B, Hequn Unit, Phoenix The 4th Industrial Zone, Fuyong Street, Baoan District, Shenzhen, Guangdong, China. Date of Test : Feb. 22, 2011 ~ Mar. 06, 2011 T e s t I t e m : ENGINEERING SAMPLE Standards : FCC Part15, Subpart C(15.247) / ANSI C63.4 : 2003 The above equipment has been tested and found compliance with the requirement of the relative standards by Neutron Engineering Inc. EMC Laboratory. The test data, data evaluation, and equipment configuration contained in our test report (Ref No. NEI-FCCP-1-1102C069A) were obtained utilizing the test procedures, test instruments, test sites that has been accredited by the Authority of NVLAP and TAF according to the ISO-17025 quality assessment standard and technical standard(s). Neutron Engineering Inc. Report No.: NEI-FCCP-1-1102C069A Page 6 of 54 2. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15 (15.247) , Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission PASS 15.247(d) Antenna conducted Spurious EmissionPASS 15.247(a)(2) 6dB Bandwidth PASS 15.247(b)(3) Peak Output Power PASS 15.209/15.205 Radiated Spurious Emission PASS 15.247(e) Power Spectral Density PASS 15.203 Antenna Requirement PASS NOTE: (1)” N/A” denotes test is not applicable in this Test Report Neutron Engineering Inc. Report No.: NEI-FCCP-1-1102C069A Page 7 of 54 2.1 TEST FACILITY The test facilities used to collect the test data in this report is DG-CB03/DG-C02 at the location of No.3,Jinshagang 1st Road, ShiXia, Dalang Town, Dong Guan, China.523792 Neutron's test firm number is 319330 2.2 MEASUREMENT UNCERTAINTY Where relevant, the following measurement uncertainty levels have been estimated for tests performed on the EUT as specified in CISPR 16-4-2: The reported uncertainty of measurement y ± U，where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2，providing a level of confidence of approximately 95 %。 A. Conducted Measurement : …

Text truncated - open the document above for the full version.

Neutron Engineering Inc. Report No.: NEI-FCCP-1-1102C069A Page 53 of 54 10. EUT TEST PHOTO Conducted Measurement Photos Neutron Engineering Inc. Report No.: NEI-FCCP-1-1102C069A Page 53 of 54 10. EUT TEST PHOTO Conducted Measurement Photos Neutron Engineering Inc. Report No.: NEI-FCCP-1-1102C069A Page 54 of 54 Radiated Measurement Photos Neutron Engineering Inc. Report No.: NEI-FCCP-1-1102C069A Page 54 of 54 Radiated Measurement Photos
