Y3K-ROCM908 MHz Transceiver

Room Operations Center ROC[m] Operational Description + User Manual Over view The ROC module, known as ROC[m], bridges the in-room device network with our ROC cloud infrastructure. One ROC[m] resides in each guest room where Evolve devices are present. It is powered with a standard wall-wart power supply and is hidden/mounted behind your selected piece of furniture within the guest room using 4 self-tapping screws. We r ecommend mounting the ROC[m] either behind a desk, TV credenza, or any other piece of stationary yet movable furniture. Keep in mind ROC[m] needs to be located near an outlet or power source. ROC SpecificationsDimensions • Network: 10/100 Ethernet or 802.11 b/g/n WiFi • Automation hardware: Z-Wave • HW Architecture: ARM • Operating System: Embedded GNU/Linux • Power: 120v adapater / or POE • LED diagnostic indicator panel • Width: 8.5 inches • Height: 4.75 inches • Depth: 1.5 inches • Monopole antenna 908.42 Mhz transmitting narrow band FSK signal - Avg. gain 1.5 dBi Room Operations Center Operational Description The ROC[m] is Evolve’s room control gateway device. The device connects to a Wi-Fi network for communication via our cloud infrastructure, and bridges IP commands to Z-Wave commands for communication with other Evolve devices. An example of this would be allowing a user on Evolve’s cloud infrastructure to turn on an Evolve light switch via a remote location. The request would be placed on Evolve’s managed webpage, the message would be delivered to the ROC[m] via a Wi-Fi connection and the command would be converted to a Z-Wave message to turn on a physical light switch. The device shall always operate at a distance greater than 20 cm from the human body. ROC User Manual Following simple mechanical installation using the provided self-tapping screws and plugging in the wall-wart into an outlet, it’s important to ensure the Wi-Fi signal strength is sufficient to connect to the Wi-Fi network. There is a Wi-Fi LED that will illuminate if this connection is made successfully. The installer must then use Evolve’s proprietary programming software to configure the room. Control over the room by the customer is provided by Evolve’s managed website which requires an active subscription. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC Statement Statement 15.19(a)(3): This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not casuse harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. IC Statement The term IC before the Certification/Registration number only signifies that the Industry Canada technical specifications were met. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.

4/8/15 Federal Communications Commission 7435 Oakland Mills Rd. Columbia, MD 21046 Request for Confidentiality To whom it may concern, Request is hereby submitted by Evolve Guest Controls, LLC to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules. In particular, the following sections of the application are to be kept permanently confidential: Exhibit Filename Schematic Y3K-ROCmSchem Block Diagram Y3K-ROCmBlock Appendix to Operational Description Y3K-Appendix_OperationalDescription Evolve Guest Controls, LLC has invested considerable time and materials in research and development to produce the referenced product. Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us. FCC Identifier: Y3K-ROCM Model Number: ROC[m] V2.0 Company Name: Evolve Guest Controls, LLC Company Address: 16 S. Maryland Ave. Port Washington NY 11050 Name & Title of Person Signing: Jesse Nercessian – Director, Products & Operations Contact info: [email protected] 855-750-9090 x 180 Signature: Jesse Nercessian

4/8/15 To: Coleen Reitz Retlif Testing Laboratories 3131 Detwiler Rd. Harleysville, PA 19438 215-256-4133 x 350 Authority to Act as Agent On our behalf, I appoint Richard Reitz of Retlif Testing Laboratories to act as our agent in preparation for equipment certification. I certify that submitted documents properly describe the device or system for which the equipment certification is sought. I also certify that each unit manufactured, imported or marketed, will have affixed to it a label conforming to FCC’s regulations. In signing this document I also agree that our equipment below shall not be distributed, sold, offered for sale or leased in the United States before the details of its certification have been added to the FCC List by Retlif Testing Laboratories. I understand that details of the filing may be published on the FCC website. FCC Identifier: Y3K-ROCM Model Number: ROC[m] V2.0 Company Name: Evolve Guest Controls, LLC Company Address: 16 S. Maryland Ave. Port Washington NY 11050 Name & Title of Person Signing: Jesse Nercessian – Director, Products & Operations Contact info: [email protected] 855-750-9090 x 180 Signature: Jesse Nercessian

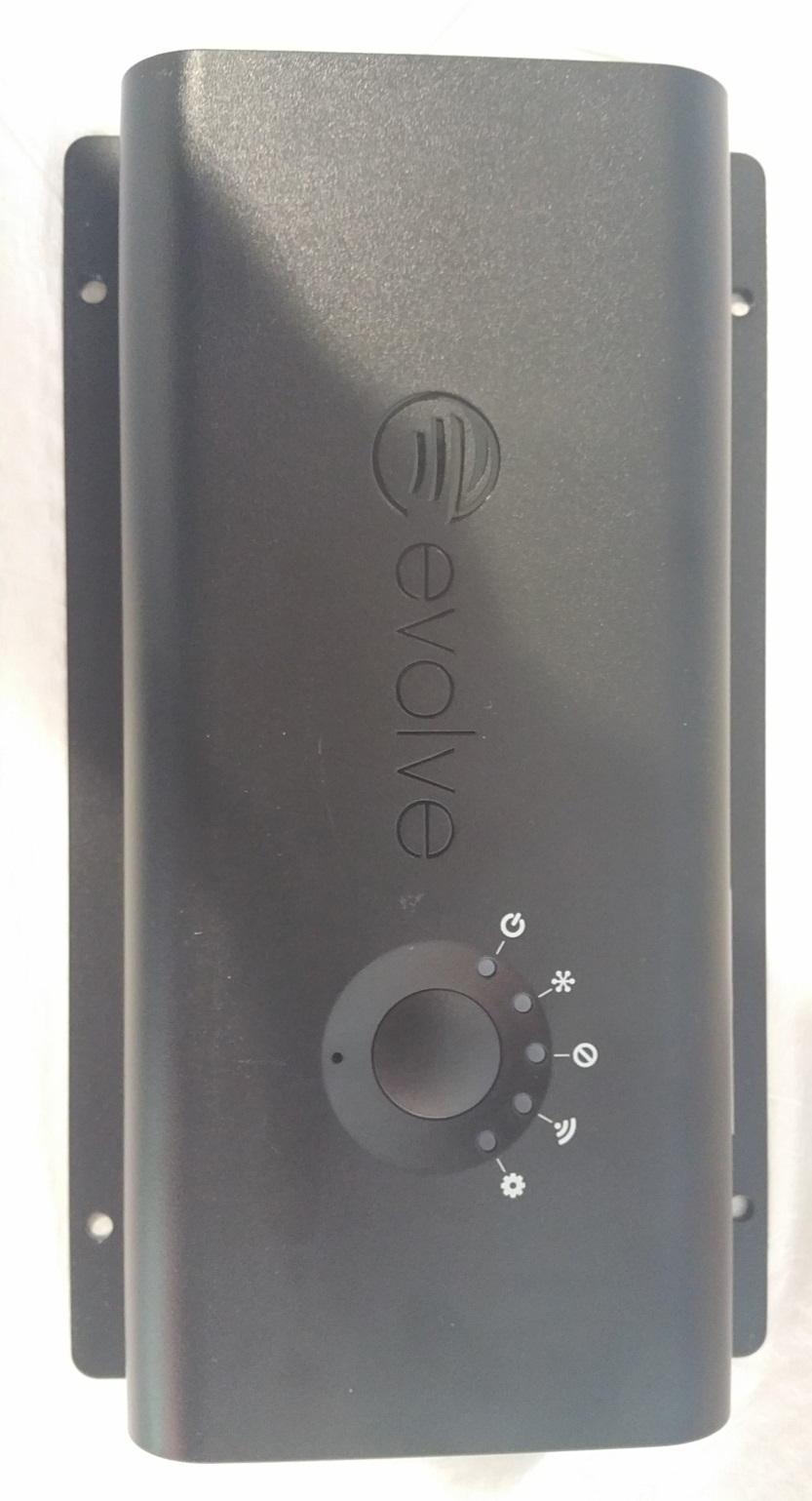

External Photographs Evolve Guest Controls, LLC FCC ID: Y3K-ROCM / IC: 8622A-ROCM Side of Enclosure with Input Power Port External Photographs Evolve Guest Controls, LLC FCC ID: Y3K-ROCM / IC: 8622A-ROCM Bottom of Enclosure with Label External Photographs Evolve Guest Controls, LLC FCC ID: Y3K-ROCM / IC: 8622A-ROCM Side of Enclosure Side of Enclosure Side of Enclosure with barcode label External Photographs Evolve Guest Controls, LLC FCC ID: Y3K-ROCM / IC: 8622A-ROCM Top of Enclosure

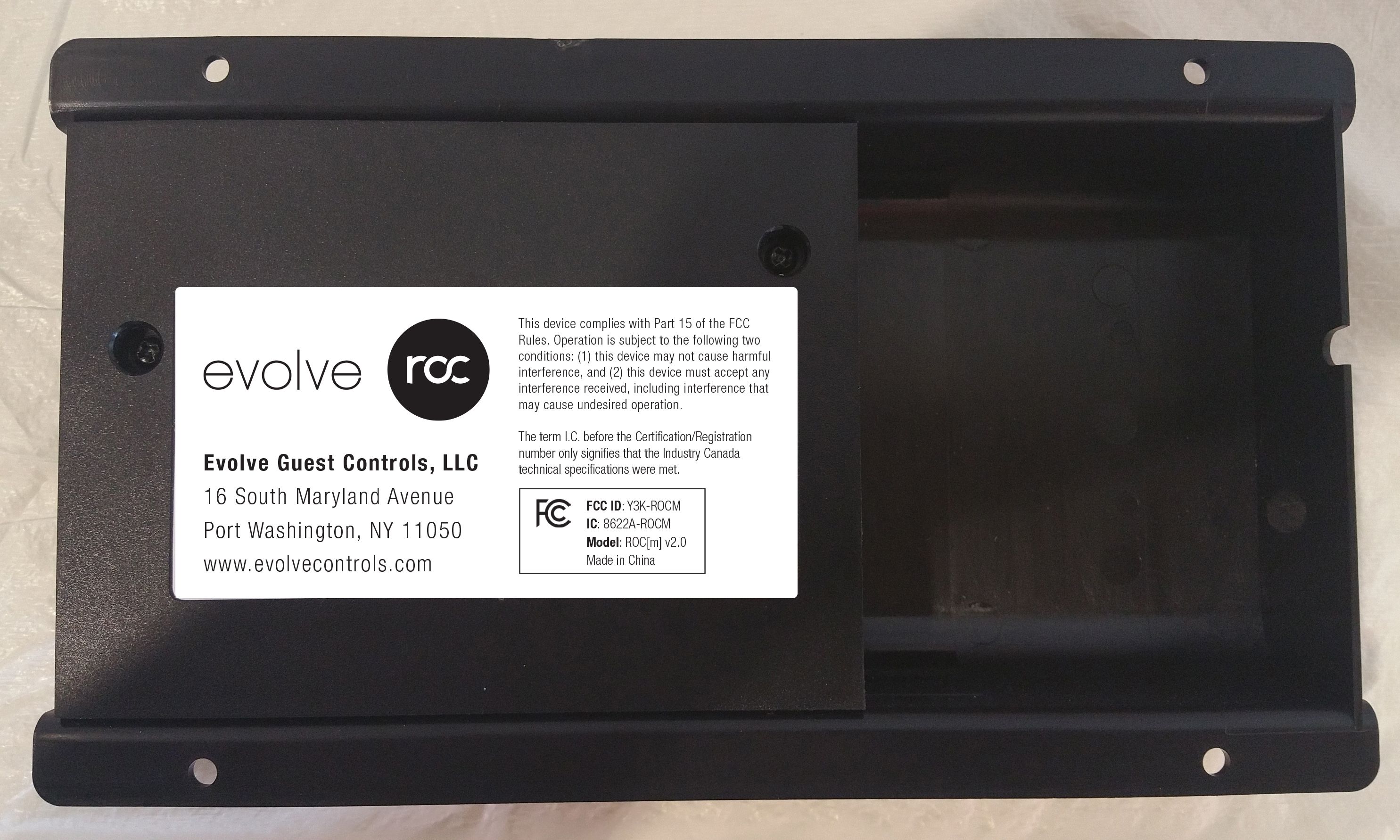

Evolve Guest Controls, LLC 16 South Mar yland Avenue Port Washington, NY 11050 www.evolvecontrols.com This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful int erference, and (2) this device must accept any int erference received, including interference that may cause undesired operation. The term I.C. before the Certification/Registration number only signifies that the Industry Canada technical specifications were met. FCC ID: Y3K-ROCM IC : 8622A-ROCM Model: ROC[m] v2.0 Made in China

Internal Photographs Evolve Guest Controls, LLC FCC ID: Y3K-ROCM / IC: 8622A-ROCM Host Controller PCB, Top Internal Photographs Evolve Guest Controls, LLC FCC ID: Y3K-ROCM / IC: 8622A-ROCM Expander Board, Top Internal Photographs Evolve Guest Controls, LLC FCC ID: Y3K-ROCM / IC: 8622A-ROCM Expander Board, Side Internal Photographs Evolve Guest Controls, LLC FCC ID: Y3K-ROCM / IC: 8622A-ROCM Expander Board, Side with Power Input Internal Photographs Evolve Guest Controls, LLC FCC ID: Y3K-ROCM / IC: 8622A-ROCM Expander Board and Host Controller shown with ribbon cable Internal Photographs Evolve Guest Controls, LLC FCC ID: Y3K-ROCM / IC: 8622A-ROCM Expander Board, Bottom Internal Photographs Evolve Guest Controls, LLC FCC ID: Y3K-ROCM / IC: 8622A-ROCM Host Controller PCB, Bottom Internal Photographs Evolve Guest Controls, LLC FCC ID: Y3K-ROCM / IC: 8622A-ROCM Host Controller PCB, Connectors Shown (No Shield)

Mega World Holdings Ltd. Bill of Materials of ROCm Date1/27/2015 ItemDescriptionSpecificationLocation/Tool No.UsagBrandVendor P/N 1Plastics: 1.1Top Cover, BlackABS 124gEMIT011Mega World Mega World EMIT01A 1.1bSilkscreen 1Mega World Mega World/ 1.2Bottom Cover (13x10cm)ABS 84gEMIT011Mega World Mega WorldEMIT01B 1.3SD AccessABS 2.4gEMIT021Mega World Mega WorldEMIT02A 1.4Switch Cap ABS 2gEMIT021Mega World Mega WorldEMIT02B 1.5Light Pipe ABS 1gEMIT031Mega World Mega WorldEMIT03 2Metal Parts 2.1Screw PT 3x10mm/D=5mm Mild Steel, Black Zinc2AnyAnyTBC 2.2Screw PT 2.6x6mm/D=4.2mmMild Steel, Ni-Plated6AnyAnyTBC 2.3Screw 4x13mm/D=8mmMild Steel, Black Zinc4AnyAnyTBC 2.4Washers2AnyAnyTBC 3Electronics: Expansion Board 3.1LED , White, 5ma, 0603LED1,2,3,4,55Wah WangWah WangWW-WIS190TS-G 3.2Cap Cer, 0.1uF 25V 10% X7R 0603C1,C4,C40,C42,C65DistributorWalsin0603B104K250CT 3.3Cap 10uF 25V +/-10% 0805 Thickness C2,C5,C413DistributorWalsin0805X106K250CT 3.4Cap Cer 10000pF (0.01uF) 50V X7R 10% 0603C31DistributorWalsin0603B103K500CT 3.5 Fuse, Resettable 1.5A, 0603 F11KarwinLittlefuse0603L150SLYR 3.6Header 26-Pin, Dual row (13X2)H11JindaJindaTJC8 2.54-2xNAW 3.7Power Jack 2mm PTHP11See PlusSee PlusDC-470H-01-2 3.8Res 2K2 Ohm 1/10W 5% 0603R11DistributorHKR/Walsin WR06X102JTL 3.9Res 220 Ohm 1/10W 1% 0603R2.R3,R4,R54DistributorHKR/Walsin WR06X1000JTL 3.10Res 10K Ohm 1/10W 1% 0603R6,R7,R40,R43,R85DistributorHKR/Walsin WR06X1002FTL 3.11Res 0 Ohm 1/10W 5% 0603R461HKR/WalsinHKR/WalsinTBA 3.12Switch, Tactile, 6mmx6mm, SMTS1, S22SelectronSelectronBTS-1102NEA-3-B-Y-90 3.13 Fixed Low Drop Positive Voltage Regulator, 3.3V, 5-Pin TSOT-23, Tape and ReelU101MouserONCAT6219-330TDGT3 3.14IC, Zwave, Module, (12.5x13.6x2.4)U401ConsignZM3102AUConsign 3.15128Kbit (16,384x8), SPI EEPROMU411DistributorATMELAT25128B-SSHL-T 3.16PCB DS HAL 1oZ Copper Blue1Wing JiuWing JiuCAM for EMP PCB_RevF 3.16aHeader 4-Pin, Right angle,Pitch2.54H21JindaJinda2510-4AWG 3.17Antenna, 73mm long +/- 3mmANT11Alpha WireAlpha Wire3050/1 RD005 Other Purchased Parts 3.19WiFi RT18192cu Chipset0ConsignConsignAdafruit 814 3.20SD Card1TranscendTranscend4G SD Card, class10 AltMicro SD Card with AdaptorRaspberryRaspberry8G, class 10 3.21Aeon Labs Z-Stick0ConsignConsignConsign 3.22 Wall Adapter 2.1mmx5.5mm 5V, 1.5A+, positive center, cable length 1.8M1KPTECKPTECK09S050150U 3.23Exp Board to Pi Ribbon 26PIN 105mm1JINDAJINDADWE-HX-026 3.24Raspberry Pi Model B1ConsignRaspberry Pi Model BConsign 4 Indirect Materials AR 5Packaging : 5.1Corrugated Box1 5.2Serial number label (SD card/PI/Exp. Board)3 5.3Barcode Serial number label (Top Cabinet)1 5.4Product label1 5.5Date Code Label (on product label)1 5.6Large anti-static bubble bag (for product)1 5.7Anti-static bubble bag (for adaptor)1 5.8Anti-static bubble sheet (for USB Stick)0 5.9PE bag for screws 1 5.10Export carton B=B1/240.04 1

Evolve Guest Controls, Inc. FCC ID: Y3K-ROCM / IC: 8622A-ROCM Page 2 of 25 Technical Information Report Number: R-2271P, Rev. A Customer: Evolve Guest Controls Address: 16 S. Maryland Avenue Port Washington, NY 11050 Manufacturer: Mega World Manufacturer Address: Unit J, 13/F, World Tech Center, 95 How Ming Street Kwan Tong, Kowloon, Hong Kong Test Sample: 908 MHz Transceiver Model Number: ROC[m] v2.0 FCC ID: Y3K-ROCM IC: 8622A-ROCM Type: Unlicensed Radio Apparatus Power Requirements: 5 VDC derived from 115 VAC, 60 Hz Adapter Frequency of Operation: 908 MHz Equipment Class: DXT Equipment Use: Mobile >20cm Test Specification: FCC Rules and Regulations Part 15, Subpart C, Section 15.249 Radio Standards Specification, RSS-210, Issue 8, June, 2010 Test Procedure: ANSI C63.4:2009 RSS-GEN, Issue 4, November 2014 Test Facility: Retlif Testing Laboratories 3131 Detwiler Road Harleysville, PA 19438 FCC Registered Test Site Number: 98314 Evolve Guest Controls, Inc. FCC ID: Y3K-ROCM / IC: 8622A-ROCM Page 3 of 25 Tests Performed The test methods performed on the 908 MHz Transceiver are shown below: FCC Part 15, Subpart C Industry Canada RSS-210 Industry Canada RSS-GEN Test Method 15.249(a) A2.9 N/A Field Strength of Emissions 15.249(d) A2.9(b) N/A Field Strength of Spurious Emissions 15.249(d) A2.9(b) N/A Field Strength of Emissions- Band Edge 15.107 / 15.207(a) N/A 7.2.2 Conducted Emissions 15.109(a) N/A 7.2.3 Receiver Radiated Emissions General Test Requirements 1. The measurement procedures of ANSI C63.4:2009 were utilized as specified in FCC Part 15, Subpart C, Section 15.31(a)(3) and IC RSS-GEN Section 4.1. 2. All radiated emissions measurements were performed on an Open Area Test Site (OATS), listed with the FCC and IC, in accordance with FCC Section 15.31(d) and IC Section 4.2. 3. The level of the fundamental field strength was measured with the AC input varied from 85 to 115% of rated. The worst case results were reported in accordance with FCC Section 15.231(e) and IC Section 4.3(e). 4. All measurements were performed at the specified 3 meter test distance as required by FCC Section 15.31(f) and IC Section 7.25. 5. The EUT was rotated throughout 360 degrees for all radiated emissions measurements as specified in FCC Section 15.31(f)(5) and IC Section 4.3(h). 6. All readily accessible EUT controls were adjusted in such a manner as to maximize the level of emissions in accordance with FCC Section 15.31(g) and IC Section 4.3(h). 7. Appropriate accessories were attached to all EUT ports during the performance of radiated emissions measurements as required by FCC Section 15.31(i) and IC Section 4.3(d). 8. AC line conducted emissions were measured utilizing a 50 Ohm / 50 MicroHenry LISN as specified in FCC Section 15.31(l) and IC Section 7.2.2. 9. The EUT operated at the frequency of 908 MHz. Testing was performed with the device operating at 1 frequency in the middle of the range of operation in accordance with FCC Section 15.31(m) and IC Section 4.3(f)(g). 10. The frequency spectrum was investigated from the lowest frequency generated in the device up to the 10 th harmonic of the highest fundamental frequency in accordance with FCC Section 15.33(a)(1) and IC Section 4.9. 11. Measurements below 1000 MHz were taken utilizing a Quasi-Peak Detector. Measurements above 1 GHz were taken utilizing an Average Detector in accordance with FCC Section 15.35(a) and IC Section 4.9. The peak value of emissions above 1 GHz was verified to meet the 20 dB requirement of FCC Section 15.35(b) and IC Section 7.2.1. Evolve Guest Controls, Inc. FCC ID: Y3K-ROCM / IC: 8622A-ROCM Page 5 of 25 Requirements and Test Results Requirement: FCC Section 15.249(a) and (d) - Operation within the bands 902 - 928 MHz, 2400 - 2483.5 MHz, 5725 - 5875 MHz and 24.0 - 24.25 GHz IC RSS-210, A2.9(a) and (b): This section provides standards for low-power devices that can be used for any application provided the following condition is met: FCC Section 15.249(a): Except as provided in paragraph (b) of this section, the field strength of emissions from intentional radiators operated within these frequency bands shall comply with Table 1. IC A2.9(a): The field strengths measured at 3 meters shall not exceed the limits specified in Table 1. Table 1 - Field Strength of Emissions Fundamental Frequency Field Strength - Fundamental (millivolts/meter) Field Strength - Harmonics (microvolts/meter) 902 to 928 MHz 50 500 2400 to 2483.5 MHz 50 500 5725 to 5875 50 500 24.0 to 24.25 GHz 250 2500  Results: The EUT was operated at 908 MHz. The field strength of the fundamental did not exceed 50 mV/m peak. The field strength of the harmonics did not exceed 500 μV/m peak. FCC Section 15.249(d): Emissions radiated outside of the specified frequency bands, except for harmonics, shall be attenuated by at least 50 dB below the level of the fundamental or to the general radiated emission limits in Section 15.209, whichever is the lesser attenuation. IC A2.9(b): Emissions radiated outside of the frequency bands, except for harmonics, shall be attenuated by at least 50 dB below the level of the fundamental or to the limits of Table 2 (RSS-210), whichever is the less stringent.  Results: Emissions radiated at the Band Edges and outside the specified frequency band were attenuated in accordance with the general radiated emissions limits of 15.209. Evolve Guest Controls, Inc. FCC ID: Y3K-ROCM / IC: 8622A-ROCM Page 6 of 25 Requirements and Test Results (con’t) Requirement: FCC Section 15.107/15.207(a) - Conducted Limits For an intentional radiator that is designed to be connected to the public utility (AC) power line, the radio frequency voltage that is conducted back onto the AC power line on any frequency or frequencies within the band 150 kHz to 30 MHz shall not exceed the limits shown in Table 2, as measured using a 50 μH/50 ohms line impedance stabilization network (LISN). Compliance with the provisions of the paragraph shall be based on the measurement of the…

Text truncated - open the document above for the full version.

Test Setup Photographs Evolve Guest Controls, LLC FCC ID: Y3K-ROCM / IC: 8622A-ROCM Field Strength of Emissions EUT Test Setup Below 1 GHz EUT Test Setup Above 1 GHz Field Strength of Emissions Horizontal Antenna Polarization Below 1 GHz Vertical Antenna Polarization Below 1 GHz Field Strength of Emissions Horizontal Antenna Polarization Above 1 GHz Vertical Antenna Polarization Above 1 GHz Field Strength of Spurious Emissions EUT Test Setup Below 1 GHz EUT Test Setup Above 1 GHz Field Strength of Spurious Emissions Parallel Antenna Polarization 9 kHz to 30 MHz Perpendicular Antenna Polarization 9 kHz to 30 MHz Horizontal Antenna Polarization Below 1 GHz Vertical Antenna Polarization Below 1 GHz Field Strength of Spurious Emissions Horizontal Antenna Polarization Above 1 GHz Vertical Antenna Polarization Above 1 GHz Field Strength of Emissions – Band Edge EUT Test Setup Below 1 GHz EUT Test Setup Above 1 GHz Field Strength of Emissions – Band Edge Horizontal Antenna Polarization Below 1 GHz Vertical Antenna Polarization Below 1 GHz Field Strength of Emissions – Band Edge Horizontal Antenna Polarization Above 1 GHz Vertical Antenna Polarization Above 1 GHz Conducted Emissions EUT Test Setup EUT Test Configuration Receiver Radiated Emissions EUT Test Setup Below 1 GHz EUT Test Setup Above 1 GHz Receiver Radiated Emissions Horizontal Antenna Polarization Below 1 GHz Vertical Antenna Polarization Below 1 GHz Receiver Radiated Emissions Horizontal Antenna Polarization Above 1 GHz Vertical Antenna Polarization Above 1 GHz
