Cisco USC 8718 Installation Guide Cisco USC 8718 InstallationGuide2 BeforeYou Begin2 InstallYour SmallCell Module5 SafetyInstructions11 Revised: March 26, 2015, Cisco USC 8718 Installation Guide Before You Begin The CiscoUniversalSmallCell (USC)8718 moduleprovides3G or 4G cellularcoveragein an indoorenvironmentwhereimproved coverageand capacityis desiredfor cellularservices.The smallcell moduleis specificallydesignedto workwith CiscoAironet 3600/3700seriesWi-Fi accesspoints(APs)or the USC 5030 smallcell chassis.The smallcell moduleis capableof supportingeither UniversalMobileTelecommunicationsSystem(UMTS)or LongTerm Evolution(LTE) radioprotocolsin a singleplatform,is 3GPP compliantand supportsUMTSRelease7 and LTE Release9 standards. Each smallcell modulecan supporteither: • up to 32 simultaneousUMTSvoiceand data channels,a peak downlinkrate of 21 Mbpsand a peak uplinkrate of 5 Mbps • up to 32 activeLTE usersper radio,a peak downloadrate of 100 Mbps,and a peak uploadof 50 Mbpswhenused with 20 MHz channelbandwidth 2 The smallcell moduleenablesmobileoperatorsto offer dedicated,in-buildingcoverageand capacityfor UMTSand LTE services. Theyare managedby the CiscoUSC 8088 controllerinstalledin the enterprise. Figure 1: Small Cell Relationship to Enterprise and Mobile Operator Core Networks System Requirements The varioussmallcell modulesare designedfor use with the followinghardware: Table 1: Small Cell Modules and Supported Hardware Supported HardwareMonitor BandsTransmit BandsSmall Cell Module Aironet3700 AP Rev 2 USC 5030 Rev 2 UMTSBands1, 8 LTE Bands3, 7, 20 UMTSBand1 LTE Band7 USC8718-M17-K9 3 Supported HardwareMonitor BandsTransmit BandsSmall Cell Module Aironet3600 AP Aironet3700 AP USC 5030 Rev 2 UMTSBands2, 5 LTE Bands2, 4 UMTSBand2 LTE Band4 USC 8718-M24-K9 Aironet3600 AP Aironet3700 AP USC 5030 Rev 2 UMTSBands1, 8 LTE Bands3, 7, 20 UMTSBand1 LTE Band3 USC8718-M13-K9 The smallcell modulesare not designedfor use with otheraccesspoints.The smallcell modulesare managedby the CiscoUSC 8088 controllerinstalledin the enterprise. Power Considerations Installationof your smallcell modulecan requirean additional10 wattsto powerthe CiscoAironetaccesspoint.With a smallcell moduleinstalled,the accesspointrequiresthe full Powerover EthernetPlus (PoE+)of 25.5 Watts at the egressswitchport and a cablerun of less than 300 feet (100 meters). Poweroptionsfor the accesspointinclude: • IEEE802.3atPOE+25.5 W deliveredfrom the upstreamEthernetswitch • Cisco3600 SeriesPowerInjector(AIR-PWRINJ4=) • Cisco3600 Serieslocal powersupply(AIR-PWR-B=) The smallcell modulehas a powerlimit circuitrythat shutsdownthe moduleif it drawsmorepowerthan allowed. Installation Considerations Installyour smallcell: • in a centrallocation,in an area wherepeopleare most likelyto makecalls • awayfrom windows,to avoidthe signalleakingoutsideor externalsignalsleakingin • in an open area with airflow;not in a closedcabinetwhichreducesthe signalstrength • at least 5 meters(16 feet) from an externalwall. This distancemaximizesindoorcoverageand minimizesRF leakageoutside the building.Referto the CiscoUSC 8000 SeriesDeploymentPlanningGuidefor Dual-ModeSystemsand CiscoUSC 8000 SeriesDeploymentPlanningGuidefor LTE Systemsfor moreinformationaboutsmallcell placement. If you have thick internalwalls,or metal,fire or rotatingdoors,plan to placeunits at eitherside of the obstructionat a distanceshorter than 49 feet (15 m). Installa unit acrossfrom a cornerto providecoverageon both sides of the corner. For moreinformation,refer to the "CiscoAironetAP Modulefor WirelessSecurityand SpectrumIntellgence(WSSI)Deployment Guide"at the followingURL:http://www.cisco.com/en/US/products/ps11983/products_tech_note09186a0080bed15d.shtml. 4 Install Your Small Cell Module The smallcell modulecan be installedin eithera CiscoAironet3600 seriesaccesspoint(AP),a CiscoAironet3700 seriesAP or the CiscoUSC 5030 chassisaccordingto theseinstructions: Procedure Step 1 Removethe modulefrom the packaging. Step 2 Powerdownthe accesspointif you are installingthe smallcell moduleinto an operationalaccesspoint. Step 3 Peel off the label from the back of the AP to revealthe moduleport connector. Figure 2: Backside of Cisco Aironet 3600 Access Point Openingsfor module'santennas1 Labelcoveringport connector2 The Cisco3600 and 3700 APs have one moduleport connector. The USC 5030 has two moduleport connectors.Note 5 Step 4 Alignthe moduleconnectorwith the connectoron the back of the AP or USC 5030 chassissuch that the male and female 100-pinmezzanineconnectorsmate. Figure 3: Installing Module in the Cisco 5030 Chassis 10/100Base-TEthernetport4Smallcell module1 Powerport for DC powersource5Openingsfor moduleantennas2 Port connector3 Step 5 Hold both units in your handsand firmlyjoin the moduleto the AP or USC 5030 chassisto fully attachthe two units. 6 Becausethe smallcell moduleis thickerthan the AP, you must hold both units togetherwhenattaching them. Note Step 6 Screwdownthe thumbscrewson the module. If the screwsare not tightened,the modulewill not be recognizedand may not operatecorrectly. Makesure not to over-tightenthe screws;they shouldbe only hand-tightened. Note Step 7 Powerup the accesspoint. Step 8 If necessary, mountthe accesspointor USC 5030 chassis,with the smallcell moduleinstalled,usingthe universalbracket (AIR-AP-BRACKET-2). The universalbracketworkswith electricalboxes,can be used for wall mounting,and adaptsto ceilinginstallations. It leavesa larger gap betweenthe mountingsurfaceand the accesspoint,whichallowsspacefor the smallcell module. For moreinformation,refer to "AccessPointMountingInstructions"at the followingURL: http://www.cisco.com/en/US/docs/wireless/access_point/mounting/guide/apmount.html Note 7 Boot Sequence and USC 8088 Controller Communication On initialboot,the smallcell moduleperformsthe followingboot sequence.Whenfinished,the moduleis reachable. Figure 4: Small Cell Boot Sequence Boot Sequence: 1 Whenthe smallcell is poweredon, the devicesends…

Text truncated - open the document above for the full version.

775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (current) 2.0 3.0 Jan-31-2012 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 3.0 May 5, 2015 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, SpiderCloud Wireless, hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Product Description: Universal Small Cell 8718, Model Number: USC8718-M24-K9 We affirm that between SIEMIC and SpiderCloud Wireless, any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Tassos Michail / Director Product Management SpiderCloud Wireless 408 E. Plumeria Drive, San Jose 95134 [email protected] / 408-235-2910

775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (obsolete) 2.0 3.0 Jan-31-2012 Added IC confidentiality letter form (current) 3.0 4.0 March-26-2015 SCS-F19: Confidentiality Request Letter Page 2 of 3 Rev 4.0 04/28/2015 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: Y478718M24 We hereby request confidential treatment of information accompanying this application as outlined below: - e.g. Block Diagram - e.g. Schematics - e.g. Operational Description - e.g. Tune up Procedure - e.g. Part List The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Title Director Product Management Name: Tassos Michail Address 408 E. Plumeria Drive, San Jose CA 95134 SCS-F19: Confidentiality Request Letter Page 3 of 3 Rev 4.0 04/29/2015 To: Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: Short Term Confidentiality Request for FCC ID: Y478718M24 To Whom It May Concern: Pursuant to sections 0.457 and 0.459 of CFR 47 and to avoid premature release of sensitive information prior to marketing or release of the product to the public, the applicant requests the following documents contained in this certification application be temporarily withheld from public disclosure for an initial period of 45 or 180 days (please check one). - e.g. User Manual - Internal Photos - The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Sincerely, Title Director Product Management Name: Tassos Michail Address 408 E. Plumeria Drive, San Jose CA 95134

Top View Bottom View Front View Rear View Left Side View Right Side View

1 234 567 D C B AA B C D 765 432 1 MODIFICATIONS REVISIONDESCRIPTIONDATE C SIZEDRAWING BY TITLE SPIDERCLOUD ENGINEER DATE DRAWING NUMBER TOLERANCES REV © 2015 SPIDERCLOUD WIRELESS 02397-0101 SEE NOTES TAC GRAPHICSSTANLEY MERCADO LABEL, COMPLIANCE, USC8718-M24-K9, C250 Sheet 1 of 1 408 E. PLUMERIA SAN JOSE, CA 95134 NOTES: 1. ALL DIMENSIONS ARE IN INCHES. INTERPRET DIMENSIONS AND TOLERANCES PER ANSI Y14.5 1994. 2. TOLERANCES: DECIMALS .X = ± 0.05 .XX = ± 0.025 ANGLES = ± 0.5 DEGREES 3. MATERIAL: .002” MATTE SILVER POLYESTER WITH .001” MATTE LAMINATION. 4. ADHESIVE: CLEAR, PERMANENT, ACRYLIC ADHESIVE. 5. COLOR: BACKGROUND: SILVER. GRAPHICS: PMS BLACK 6. LABEL MATERIAL, ADHESIVE AND PRINTING PROCESS TO CONFORM TO UL STANDARDS FOR USE ON ABS PLASTIC AND METAL SURFACES. 7. VISUAL INSPECTION OF PART TO MEET CLASS A PER SPIDERCLOUD COSMETIC SPECIFICATION. 8. OUTLINES AND FEATURE LINES ARE FOR REFERENCE ONLY AND DO NOT PRINT. THIS FILE CONTAINS ARTWORK AND ART SPECIFICATIONS. 01INITIAL RELEASE 04/14/15 04/14/15 APPROVED BY: DATE: ENGINEERING SCALE 1:1 28.0 1.0 ARTWORK STATUSARTWORK STATUS XX/XX/201X XXXX MANUFACTURING XXXX XX/XX/201X THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF SPIDERCLOUD WIRELESS. ANY REPRODUCTION IN PART OR WHOLE WITHOUT THE WRITTEN PERMISSION OF SPIDERCLOUD WIRELESS IS PROHIBITED. ALL RIGHTS RESERVED TÜV Rheinland CUS This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Product Name: Universal Small Cell 8718 3G/LTE Module Country of Origin: USA Model (Modèle): USC8718 Input Rating: 48V 0.2A PID: USC8718-M24-K9 FCC ID: Y478718M24IC: 9424A-8718M24 TAN: 74-104024-01 TÜV Rheinland CUS This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Product Name: Universal Small Cell 8718 3G/LTE Module Country of Origin: USA Model (Modèle): USC8718 Input Rating: 48V 0.2A PID: USC8718-M24-K9 FCC ID: Y478718M24IC: 9424A-8718M24 TAN: 74-104024-01 200% for reference only 100% 1.587 (40.31) 1.587 (40.31) 4X R.094 (2.38)

Label Location Label Location

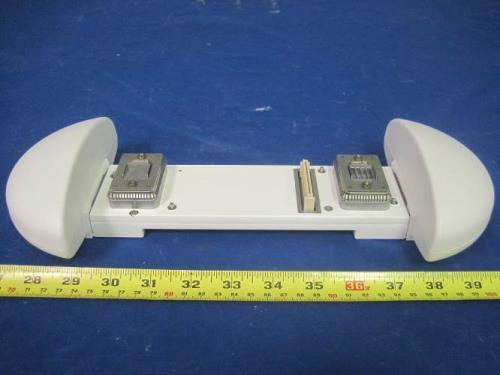

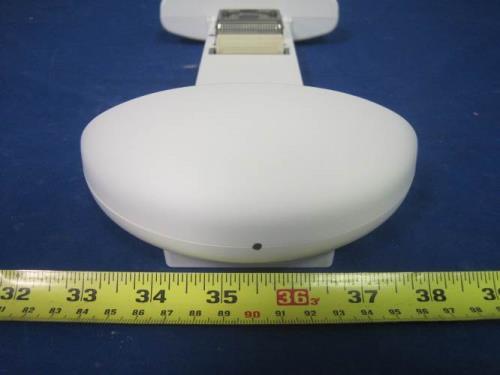

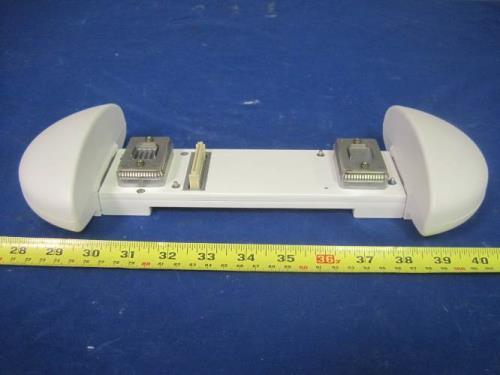

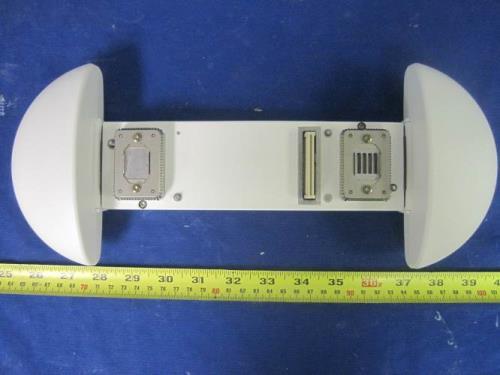

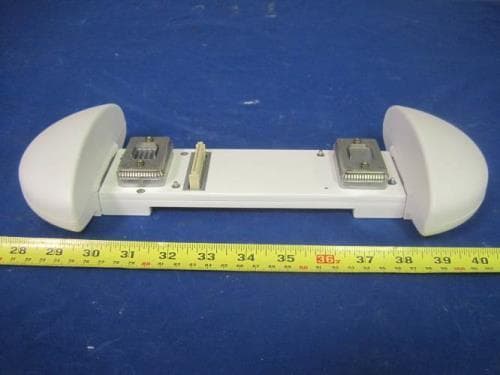

Top View Top Cover Open Antenna Close View Main PCB - Top View Main PCB - Botom View Main PCB - Top View without shielding Main PCB - Botom View without shielding LTE Antenna A UMTS Antenna LTE Antenna B

775 Montague Expressway, Milpitas, CA 95035, USA • Phone: (+1) 408 526 1188 • Facsimile (+1) 408 526 1088 Visit us at: www.siemic.com; Follow us at: Issued By: SIEMIC Laboratories 775 Montague Expressway, Milpitas, 95035 CA RF Exposure Report Report No.: FCC-IC_MPE_SL15030401-SPC-017_0402 Supersede Report No.: None This Test Report is Issued Under the Authority of: David Zhang Nima Molaei Test Engineer Reviewer Engineer This test report may be reproduced in full only Test result presented in this test report is applicable to the tested sample only Applicant : SpiderCloud Wireless, Inc. Product Name : SpiderCloud Radio Node Model No. : USC8718-M24-K9 RF Exposure Requirements : 47 CFR §1.1307(b), RSS-102 Issue 5, March 2015 RF Exposure Limits : 47 CFR §1.1310, RSS-102 Issue 5, March 2015 RF Radiation Exposure Guidelines : FCC OST/OET Bulletin Number 65 RSS-102 Issue 5, March 2015 Issue Date : 05/11/2015 Test Result : ☒ Pass ☐ Fail Equipment complied with the specification [ X ] Equipment did not comply with the specification [ ] Test report No. FCC-IC_MPE_SL15030401-SPC-017_0402 Page 2 of 11 775 Montague Expressway, Milpitas, CA 95035, USA • Phone: (+1) 408 526 1188 • Facsimile (+1) 408 526 1088 Visit us at: www.siemic.com; Follow us at: Laboratory Introduction SIEMIC, headquartered in the heart of Silicon Valley, with superior facilities in US and Asia, is one of the leading independent testing and certification facilities providing customers with one-stop shop services for Compliance Testing and Global Certifications. In addition to testing and certification, SIEMIC provides initial design reviews and compliance management throughout a project. Our extensive experience with China, Asia Pacific, North America, European, and International compliance requirements, assures the fastest, most cost effective way to attain regulatory compliance for the global markets. Accreditations for Conformity Assessment Country/Region Accreditation Body Scope USA FCC, A2LA EMC, RF/Wireless, Telecom Canada IC, A2LA, NIST EMC, RF/Wireless, Telecom Taiwan BSMI, NCC, NIST EMC, RF, Telecom, Safety Hong Kong OFTA, NIST RF/Wireless, Telecom Australia NATA, NIST EMC, RF, Telecom, Safety Korea KCC/RRA, NIST EMI, EMS, RF, Telecom, Safety Japan VCCI, JATE, TELEC, RFT EMI, RF/Wireless, Telecom Mexico NOM, COFETEL, Caniety Safety, EMC, RF/Wireless, Telecom Europe A2LA, NIST EMC, RF, Telecom, Safety Israel MOC, NIST EMC, RF, Telecom, Safety Accreditations for Product Certifications Country Accreditation Body Scope USA FCC TCB, NIST EMC, RF, Telecom Canada IC FCB, NIST EMC, RF, Telecom Singapore iDA, NIST EMC, RF, Telecom EU NB EMC & R&TTE Directive Japan MIC (RCB 208) RF, Telecom Hong Kong OFTA (US002) RF, Telecom Test report No. FCC-IC_MPE_SL15030401-SPC-017_0402 Page 3 of 11 775 Montague Expressway, Milpitas, CA 95035, USA • Phone: (+1) 408 526 1188 • Facsimile (+1) 408 526 1088 Visit us at: www.siemic.com; Follow us at: CONTENTS 1 REPORT REVISION HISTORY ....................................................................................................................................... 4 2 EXECUTIVE SUMMARY ................................................................................................................................................. 5 3 CUSTOMER INFORMATION .......................................................................................................................................... 5 4 TEST SITE INFORMATION ............................................................................................................................................ 5 5 MODIFICATION ............................................................................................................................................................. 5 6 EUT INFORMATION ...................................................................................................................................................... 6 6.1 EUT Description ........................................................................................................................................................ 6 7 FCC RF EXPOSURE EVALUATION ................................................................................................................................ 7 7.1 Limits ....................................................................................................................................................................... 7 7.2 MPE Calculation Formula ........................................................................................................................................... 7 7.3 MPE Calculations ...................................................................................................................................................... 7 7.4 MPE Calculation Results ............................................................................................................................................ 7 8 IC RF EXPOSURE EVALUATION ................................................................................................................................... 8 8.1 RSS-102 2.5.1, Exemption from Routine Evaluation Limits – SAR Evaluation .................................................................. 8 8.2 RSS-102, 2.5.2, Exemption from Routine Evaluation Limits – RF Exposure Evaluation .................................................... 9 8.3 RF Exposure Evaluation ............................................................................................................................................ 9 8.4 RF Exposure Evaluation Result .................................................................................................................................. 9 ANNEX A. SIEMIC ACCREDITATION ................................................................................................................................... 10 Test report No. FCC-IC_MPE_SL15030401-SPC-017_0402 Page 4…

Text truncated - open the document above for the full version.

775 Montague Expressway, Milpitas, CA 95035, USA • Phone: (+1) 408 526 1188 • Facsimile (+1) 408 526 1088 Visit us at: www.siemic.com; Follow us at: Report No.: FCC-IC_RF_SL15030401-SPC-017_0402 Rev1.0 Supersede Report No.: FCC-IC_RF_SL15030401-SPC-017_0402 Applicant SpiderCloud Wireless, Inc. Product Name Universal Small Cell 8718 LTE/UMTS Module Model No. USC8718-M24-K9 Test Standard 47CFR Part24 47CFR Part27 RSS-Gen Issue4: 2014, RSS-133 Issue 6: 2013, RSS-139 Issue2: 2010 Test Method TIA-603-D: 2009 RSS-Gen Issue4: 2014 FCC ID Y478718M24 IC ID 9424A-8718M24 Date of test 04/13/2015 - 05/03/2015 Issue Date 05/15/2015 Test Resut Pass Fail Equipment complied with the specification [ x ] Equipment did not comply with the specification [ ] David Zhang Nima Molaei Test Engineer Engineer Reviewer This test report may be reproduced in full only Test result presented in this test report is applicable to the tested sample only Issued By: SIEMIC Laboratories 775 Montague Expressway, Milpitas, 95035 CA RF TEST REPORT Test report No. FCC-IC_RF_SL15030401-SPC-017_0402 Rev1.0 Page 2 of 80 775 Montague Expressway, Milpitas, CA 95035, USA • Phone: (+1) 408 526 1188 • Facsimile (+1) 408 526 1088 Visit us at: www.siemic.com; Follow us at: Laboratory Introduction SIEMIC, headquartered in the heart of Silicon Valley, with superior facilities in US and Asia, is one of the leading independent testing and certification facilities providing customers with one-stop shop services for Compliance Testing and Global Certifications. In addition to testing and certification, SIEMIC provides initial design reviews and compliance management throughout a project. Our extensive experience with China, Asia Pacific, North America, European, and International compliance requirements, assures the fastest, most cost effective way to attain regulatory compliance for the global markets. Accreditations for Conformity Assessment Country/Region Accreditation Body Scope USA FCC, A2LA EMC , RF/Wireless , Telecom Canada IC, A2LA, NIST EMC, RF/Wireless , Telecom Taiwan BSMI , NCC , NIST EMC, RF, Telecom , Safety Hong Kong OFTA , NIST RF/Wireless ,Telecom Australia NATA, NIST EMC, RF, Telecom , Safety Korea KCC/RRA, NIST EMI, EMS, RF , Telecom, Safety Japan VCCI, JATE, TELEC, RFT EMI, RF/Wireless, Telecom Mexico NOM, COFETEL, Caniety Safety, EMC , RF/Wireless, Telecom Europe A2LA, NIST EMC, RF, Telecom , Safety Israel MOC, NIST EMC, RF, Telecom, Safety Accreditations for Product Certifications Country Accreditation Body Scope USA FCC TCB, NIST EMC , RF , Telecom Canada IC FCB , NIST EMC , RF , Telecom Singapore iDA, NIST EMC , RF , Telecom EU NB EMC & R&TTE Directive Japan MIC (RCB 208) RF , Telecom HongKong OFTA (US002) RF , Telecom Test report No. FCC-IC_RF_SL15030401-SPC-017_0402 Rev1.0 Page 3 of 80 775 Montague Expressway, Milpitas, CA 95035, USA • Phone: (+1) 408 526 1188 • Facsimile (+1) 408 526 1088 Visit us at: www.siemic.com; Follow us at: CONTENTS 1 REPORT REVISION HISTORY ....................................................................................................................................... 4 2 EXECUTIVE SUMMARY ................................................................................................................................................. 5 3 CUSTOMER INFORMATION .......................................................................................................................................... 5 4 TEST SITE INFORMATION ............................................................................................................................................ 5 5 MODIFICATION ............................................................................................................................................................. 5 6 EUT INFORMATION ...................................................................................................................................................... 6 6.1 EUT Description ........................................................................................................................................................ 6 6.2 Radio Description ...................................................................................................................................................... 7 6.3 EUT test modes/configuration Description.................................................................................................................... 8 6.4 EUT Photos - External ............................................................................................................................................... 9 6.5 EUT Photos - Internal .............................................................................................................................................. 10 6.6 EUT Test Setup Photos ........................................................................................................................................... 11 7 SUPPORTING EQUIPMENT/SOFTWARE AND CABLING DESCRIPTION ....................................................................... 12 7.1 Supporting Equipment ............................................................................................................................................. 12 7.2 Test Software Description ........................................................................................................................................ 12 8 TEST SUMMARY ......................................................................................................................................................... 13 9 MEASUREMENT UNCERTAINTY ................................................................................................................................. 14 10 MEASUREMENTS, EXAMINATION AND DERIVED RESULTS .................................................................................. 15 10.1 RF Output Power ...........................................…

Text truncated - open the document above for the full version.

EUT Setup Photos Radiated Emissions (<1GHz) – Front View Radiated Emissions (<1GHz) – Rear View Radiated Emissions (>1GHz) – Front View Radiated Emissions (>1GHz) – Rear View Note: The EUT can be mounted in different orientation. The X, Y, Z orientation of EUT has been evaluated separately and the setup photo only shows the setup with worst case orientation.
