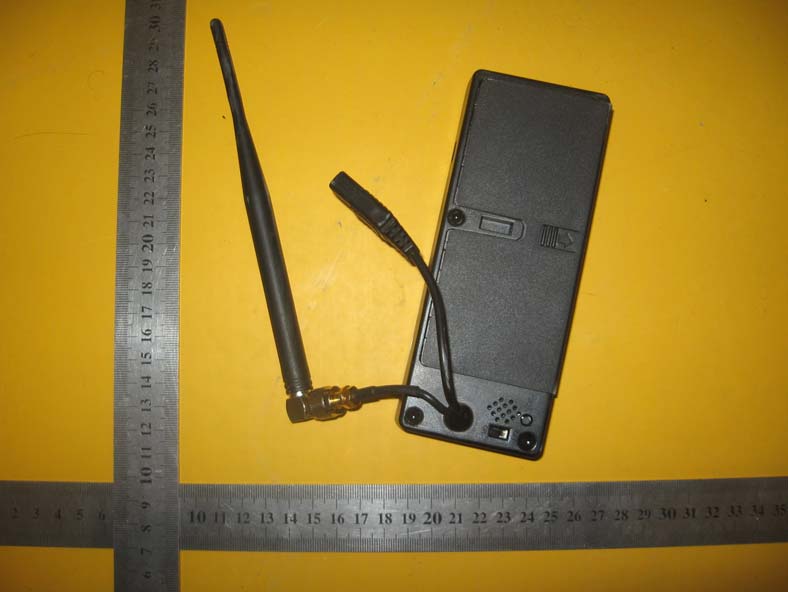

AUTO GENUINE PRODUCTS Application Models: Buses & Trucks & Fleets & OTR ● It is highly appreciated to buy the genuine products of VALOR. ● Please read this user’s manual carefully to make sure correct operation ● Do not use other ways of operating that is not included in this manual User’s Manual for TPMS-203 Display The Third Edition Copyright 2010 reserved VALOR HONG KONG COMPANY LIMITED reserves the right to change the contents of this manual at any time and without notice. The information contained in this manual is proprietary and must not be reproduced without prior written consent from VALOR HONG KONG COMPANY LIMITED. TABLE OF CONTENTS 1.1 INTEGRATED DISPLAY .............................................................................................................................................. 2 1.2 GETTING STARTED ................................................................................................................................................... 3 1.3 CHECKING TYRE CONDITIONS ................................................................................................................................. 4 1.4 TIME SETTING .......................................................................................................................................................... 4 1.5 LOW PRESSURE WARNING ...................................................................................................................................... 5 1.6 HIGH PRESSURE WARNING ..................................................................................................................................... 5 1.7 LEAKAGE WARNING ................................................................................................................................................ 6 1.8 HIGH TEMPERATURE WARNING .............................................................................................................................. 6 1.9 CHANGE ID MODULE POSITION .............................................................................................................................. 6 2.1 TROUBLE SHOOTING ............................................................................................................................................... 8 2.2 PARAMETERS OF THE PRODUCTS .......................................................................................................................... 9 2.3 FCC'S AUTHENTICATION ANNOUNCEMENT ............................................................................................................. 9 2.4 EUROPEAN REGULATIONS ANNOUNCEMENTS ....................................................................................................... 10 2.5 CE DIRECTIVE ANNOUNCEMENT ............................................................................................................................ 10 2 1.1 Integrated Display The display monitors pressure and temperature information of each tyre in a visual form continuously. It can provide 6 axles up to 24 tyres’ data as well as enabling baseline pressure adjustment to suit different tyres. Controls and Indicators Functions Axle Switch Press it to circularly show the data of each axle Pressure & Temperature Switch Press it to scroll through the pressure interface and temperature interface Axle Indicator Display circularly shows the data of six axles Bar Pressure unit °C Temperature unit Leakage icon Abnormality icon: low / high pressure and high temperature Switch Turn on or off the display Buzzer Give audible alert when the tyre is abnormal Set Key Press it to set baseline pressures of truck according to your tyres’ cold inflation pressure ID Module Slot ID modules are used to register Transmitters’ ID code into the display that will recognize wheel positions Mini USB Port To download data from display via USB cable to U-disk. 3 1.2 Getting Started --- For tractor with trailer: turn on the integrated display and trailer ID box, register trailer into integrated display (see 4.1 in this manual) and set the baseline pressure for each axle. 1.2.1 Set the Baseline Pressure of Tractor The baseline pressure has been set in the factory at 6Bar (87PSI) for all wheel positions. We recommend that you set the baseline pressure at the same pressure as standard cold inflation pressure recommended by tire manufacturer. 1.2.1.1 Inflate all tires’ pressures to their standard cold inflation pressure. 1.2.1.2 Find the set key on the back of display. Press the set key briefly to check the baseline pressure set by manufacturer (6Bar/87PSI). 1.2.1.3 Press the SET KEY for 4 seconds, you will hear sound “beep”, all backlights will be on and the screens will show “000”. This means you succeed in deleting the default baseline pressure. 1.2.1.4 The system will exit setting mode automatically after receiving signal from all transmitters. 1.2.1.5 The display will refresh the tire data after receiving signal. The first pressure value received will be saved as new baseline pressure automatically. After the display has received all transmitters’ pressure, then you can press the SET KEY of display briefly to look up all tires’ baseline pressure. --- For bus / straight truck / OTR: turn on the integrated display and set the baseline pressure for each axle (Just the same as tractor). --- The screen will remain “000” until the data from its transmitter is received. After data from all transmitters is received the display will be in the state shown until an alert or warning condition is detected. Set Key 4 1.3 Checking Tyre Conditions --- After data from all transmitters is received, the display will show each axle’s data for 5 seconds and automatically shift to next axle when all tyres are normal. You can also press Axle Switch to look up tyre data quickly. --- The display just circularly shows the axles with abnormality when there are abnormal tyres. --- If the pressure warning and temperature warning exist in the …
