  1. Home/
  2. Fuzhou Smart Digital Science & Technology Co., Ltd./
  3. Y5VMW0812

Y5VMW0812AOC TABLET

Fuzhou Smart Digital Science & Technology Co., Ltd.

Application Details

Equipment Class
JBP - Part 15 Class B Computing Device Peripheral
Date of Grant
May 16, 2011
Application Purpose
Original Equipment
Date of Application
May 16, 2011
Equipment Note
AOC TABLET
Company
Fuzhou Smart Digital Science & Technology Co., Ltd.
Country
China

Documents & Files

Select a file to view

Users Manual

↗

Block Diagram

↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

Operational Description

↗

Schematics

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Table of Contents CHAPTER 1 PRODUCT OVERVIEW .....................................................................................1 1.1 FUNCTIONS OVERVIEW..................................................................................................1 1.2 NOTES.........................................................................................................................1 1.3 PACKAGING LIST..........................................................................................................2 1.4 TECHNICAL SPECIFICATIONS..........................................................................................3 CHAPTER 2 BUTTONS AND APPEARANCE.......................................................................5 CHAPTER 3 EASYCONFIG....................................................................................................7 CHAPTER 4 BASIC OPERATIONS .....................................................................................10 4.1 BOOTING UP...............................................................................................................10 4.2 SHUTDOWN................................................................................................................10 4.3 NETWORK..................................................................................................................10 4.4 LOCKING KEY.............................................................................................................11 4.5 RESET.......................................................................................................................11 4.6 CONNECTING TO PC AND FILE TRANSFER....................................................................11 4.7 VOLUME ADJUSTMENT................................................................................................11 4.7.1 Adjusting the media volume ......................................................................11 4.7.2 Adjusting the notification volume .............................................................12 4.8 CHARGING.................................................................................................................12 4.9 TOUCH SCREEN OPERATIONS......................................................................................13 4.10 SEARCH BUTTON......................................................................................................13 CHAPTER 5 COMMON FEATURES ....................................................................................14 5.1 LANDSCAPE/PORTRAIT DISPLAY SWITCHING................................................................14 5.2 USING VIRTUAL KEYBOARD TO TYPE............................................................................15 5.2.1 Android keyboard........................................................................................15 5.2.2 Editing text ...................................................................................................15 5.3 NOTIFICATION PANEL..................................................................................................16 5.3.1 Opening notification panel .........................................................................16 5.3.2 Closing notification panel ..........................................................................16 5.4 RECENTLY RUN APPLICATIONS....................................................................................16 5.5 CHANGING WALLPAPER..............................................................................................16 5.6 POWER CONTROL.......................................................................................................17 CHAPTER 6 MAIN INTERFACE...........................................................................................18 6.1 MAIN INTERFACE........................................................................................................18 6.2 APPLICATIONS INTERFACE..........................................................................................19 6.3 BROWSER..................................................................................................................20 6.3.1 Opening browser .........................................................................................20 6.3.2 Going to a webpage ....................................................................................20 6.3.3 Setting a home page ...................................................................................20 6.3.4 Browsing a webpage...................................................................................20 6.3.5 Managing bookmarks..................................................................................22 6.4 VIDEO PLAYER............................................................................................................25 6.4.1 Video playing ...............................................................................................25 6.4.2 Delete video .................................................................................................27 6.5 AUDIO PLAYER...........................................................................................................27 6.5.1 Playlist ..........................................................................................................28 6.5.2 Playing audio ...............................................................................................28 6.5.3 SOUND EFFECTS......................................................................................................30 CONVERTED FILES TO THE PRODUCT TO PLAY. ...................................................................30 6.6 PICTURE BROWSER....................................................................................................30 6.6.1 Browsing pictures .......................................................................................31 CHAPTER 7 APPLICATIONS.........................................…

Text truncated - open the document above for the full version.

Block Diagram

Fuzhou smart digital Science & Technology co 2011.04.25 CMQ 1/1 CYF RK2918 Buttons HOST Device 8" LCD 800*480 24bit 32.768KHZ 24MHZ 27MHZ G-Sensor MMA8452Q RTCOSC Res-type TouchPanel I2C DDRIII DDRIII 256MB*2 32bit NAND NAND 4GB SD0Micro SD SD1 WIFI I2S0 Codec ALC5621 I2S1 WLAN+BT UART0UART1 Debug PortBlueTooth HY8563 BCM4329 KEYPAD USB_OTG USB_HOST Mini-B A-Type 7 KEY MIC Speaker Earphone 8bit Power Manager AXT192 Breathing Light SN3193 Block Digaram MW0812 Block Digaram DVO WL_SDIO WL_TX WL_DEB WL_RX UG_UART 3.3V 4.9V or Battery OSC 26MHZ WIFI R K 2 9 1 8 LDO Power Manager Sleep_Clock 32.768KHZ SPD Switch BPF Antenna BT_UART BT_TX BT_RX BT_PCM 3.3V 4.9V or Battery OSC 26MHZ Bluetooth R K 2 9 1 8 LDO Power Manager Sleep_Clock 32.768KHZ SPD Switch BPF Antenna

External Photos

External Photo

ID Label/Location Info

FCC Certification Label FCC ID: Y5VMW0812 This device complies with Part 15 of the FCC Rules.Operation is subject to the following two conditions: 1.This device may not cause harmful interference, and 2.This device must accept any interference received,including interference that may cause undesired operation. Label Location on EUT EUT Bottom View/ FCC ID Label Location

Internal Photos

Internal Photo Antenna

Operational Description

Operation Description This product adopts the ROCKCHIPS RK2918 processor with the maximum running speed of up to 816MHz, built- in 512MB flash to run program, with optional 2GB/4GB/8GB/16GB/32GB and TF expansion interface which can support max 32GB TF card. It is 8 inches 800*600 LCD to display the operation interface and playing the video, it is resistance touch screen which is easy to operate. man-machine interface design. It is built in one IC to manage charging a lithium ion polymer battery, charged by DC-IN interface. It is built-in Wi-Fi module, it can connect to the Internet. It is built in 3.5MM earphone interface, audio file will decoded by CPU then converts to audio analogue signal by audio IC, finally output voice by earphone or built in speaker. It come with a USB port connects to a computer, an OTG socket to be used in connection with USB devices. Operation description for wireless combo module with WiFi and Bluetooth The combo module for IEEE 802.11 b/g Wireless LAN with Bluetooth 2.1 + EDR at embedded and mobile applications. It is based on Broadcom BCM4329 solution which comprises single chip IEEE 802.11 b/g MAC/Baseband/Radio with integrated Bluetooth 2.1 + EDR. WiFi: There are 11 channels in Wireless Wi-Fi. This device provides four kinds of RF receiver sensitivity and transmitting modulation accuracy of 1, 2, 5.5 and 11Mbps in 802.11b mode, the modulation of device is BPSK, QPSK and CCK (IEEE 802.11b) and eight kinds of transmit modulation accuracy 6, 9, 12,18, 24, 36, 48 and 54Mbps are provided, the technology of this device used is OFDM(IEEE 802.11g). The device adapts direct sequence spread spectrum modulation.This Wireless Wi-Fi , compliant with IEEE 802.11b and IEEE 802.11g, is a high-efficiency Wireless LAN adapter. It allows your computer to connect to a wireless network and to share resources, such as files or printers without being bound to the network wires. Operation in 2.4GHz Direst Sequence Spread Spectrum (DSSS)radio transmission,.In addition, its standard compliance ensures that it can communicate with any IEEE 802.11b and IEEE 802.11g network. Bluetooth: The Wireless Bluetooth module is a built -in 2.4GHz BluetoothVer.2.1+EDR transmitter. The number of the channels is 79 in 2402-2480MHz. The device adapts the frequency hopping spread spectrummodulation. This device provides wireless technology that revolutionizes personal connectivity. It is the solution for the seamless integration of Bluetooth technology into personal computer enabling short-range wireless connections between desktop/laptop computers, Bluetooth-enabled peripherals, and portable handheld devices.

Schematics

Fuzhou smart digital Science & Technology co Checked By: Created By: Page: Data: Rev: File: Title: E-SMART DDR2 DDR3 Note: According to actual needs, select DDR2 or DDR3. Note: Please pace these components as close to power pin of IC as possible. RK2918-L DDR FILTER Note: These termination resistors must be placed in the middle of trace, and the termination resistor of CLK must be placed in the bifurcation point. 2011.03.20 CMQ 3/9 1.0 CYF A B C D 5 4 3 2 1 D C B A 1 2 3 4 5 C81 102 R11 240R%1 C15 103 G8 DQ0 G2 DQ1 H7 DQ2 H3 DQ3 H1 DQ4 H9 DQ5 F1 DQ6 F9 DQ7 C8 DQ8 C2 DQ9 D7 DQ10 D3 DQ11 D1 DQ12 D9 DQ13 B1 DQ14 B9 DQ15 K2 CKE L8 CS# K9 ODT K7 RAS# L7 CAS# K3 WE# A1 VDD E1 VDD J9 VDD M9 VDD R1 VDD A9 VDDQ C1 VDDQ C3 VDDQ C7 VDDQ C9 VDDQ E9 VDDQ G1 VDDQ G3 VDDQ G7 VDDQ G9 VDDQ J1 VDDL A2 NC E2 NC M8 A0 M3 A1 M7 A2 N2 A3 N8 A4 N3 A5 N7 A6 P2 A7 P8 A8 P3 A9 M2 A10 P7 A11 R2 A12 R8 RFU/A13 L2 BA0 L3 BA1 L1 RFU/BA2 J8 CK K8 CK# F3 LDM B3 UDM F7 LDQS E8 LDQS# B7 UDQS A8 UDQS# A7 VSSQ B2 VSSQ B8 VSSQ D2 VSSQ D8 VSSQ E7 VSSQ F2 VSSQ F8 VSSQ H2 VSSQ H8 VSSQ J7 VSSDL A3 VSS E3 VSS J3 VSS N1 VSS P9 VSS R7 RFU R3 RFU J2 VREF U2_ DDRII-256M-400MHZ C38 102 C36 101 C33 101 R22 NC/100R C16 103 C13 103 C41 101 C66 102 C42 101 C1 106 R14 1K1% R6 1K%1 E3 DQ0 F7 DQ1 F2 DQ2 F8 DQ3 H3 DQ4 H8 DQ5 G2 DQ6 H7 DQ7 D7 DQ8 C3 DQ9 C8 DQ10 C2 DQ11 A7 DQ12 A2 DQ13 B8 DQ14 A3 DQ15 K9 CKE L2 CS# K1 ODT J3 RAS# K3 CAS# L3 WE# B2 VDD D9 VDD G7 VDD K2 VDD K8 VDD A1 VDDQ A8 VDDQ J1 NC J9 NC N3 A0 P7 A1 P3 A2 N2 A3 P8 A4 P2 A5 R8 A6 R2 A7 T8 A8 R3 A9 L7 A10/AP R7 A11 N7 A12/BC# T3 A13 M2 BA0 N8 BA1 M3 BA2 J7 CK K7 CK# E7 LDM D3 UDM F3 LDQS G3 LDQS# C7 UDQS B7 UDQS# B1 VSSQ B9 VSSQ A9 VSS B3 VSS H1 VREFDQ G8 VSS J2 VSS E1 VSS J8 VSS M1 VSS M9 VSS P1 VSS P9 VSS T1 VSS T9 VSS D1 VSSQ D8 VSSQ E2 VSSQ E8 VSSQ F9 VSSQ G1 VSSQ G9 VSSQ C1 VDDQ C9 VDDQ D2 VDDQ E9 VDDQ F1 VDDQ N1 VDD N9 VDD R1 VDD R9 VDD L1 NC L9 NC L8 ZQ M7 NC M8 VREFCA T2 RESET# T7 A14 H2 VDDQ H9 VDDQ U3 DDRIII-256MB C5 106 C31 101 C3 106 R21 NC/100R R5 1K1% C80 102 C14 103 C67 104 C19 103 C69 103 R13 1K%1 C12 103 C72 104 C34 101 R7 1K1% C22 102 C27 102 C133 103 C37 101 C9 103 R10 240R%1 R8 1K%1 C71 106 C29 102 R24 NC/100R C70 102 C6 103 C30 102 C28 102 C20 103 C73 101 C21 101 MEMORY Module K4 DQ0 K3 DQ1 K2 DQ2 K1 DQ3 L4 DQ4 L3 DQ5 M2 DQ6 M1 DQ7 AC4 DQ8 AB5 DQ9 AB6 DQ10 AD5 DQ11 AA6 DQ12 AA7 DQ13 AC7 DQ14 AD7 DQ15 N4 DQ16 M3 DQ17 N2 DQ18 N1 DQ19 P4 DQ20 P3 DQ21 R2 DQ22 R1 DQ23 AC8 DQ24 AD8 DQ25 AB9 DQ26 AA10 DQ27 AA9 DQ28 AC10 DQ29 AB10 DQ30 AD10 DQ31 L1 DQS0 L2 DQS0# AD6 DQS1 AC6 DQS1# P1 DQS2 P2 DQS2# AD9 DQS3 AC9 DQS3# M4 DM0 AC5 DM1 N3 DM2 AB7 DM3 R4 ZQ_PIN R3 BA0 T3 BA1 T4 BA2 U3 NC0 U4 NC1 AB3 NC2 AA4 NC3 AA8 NC4 AB8 NC5 W9 NC6 T2 A0 T1 A1 U1 A2 U2 A3 V3 A4 V4 A5 V1 A6 AC3 A7 AC1 A8 AD3 A9 AB1 A10 AD1 A11 AD4 A12 AC2 A13 AB4 A14 AD2 A15 W4 RET_EN V2 CS_B0 W1 CS_B1 W2 ODT0 W3 CKE1 V6 RESET W6 VREF2 Y4 DLL_TEST_PIN[1] AA5 DLL_TEST_PIN[0] Y3 CKE0 Y2 CK# Y1 CK AA3 ODT1 AA2 CAS_B AA1 WE_B AB2 RAS_B P6 VREF0 U6 VREF1 T6 ANALOG_TEST_PIN U1-L RK2918 G8 DQ0 G2 DQ1 H7 DQ2 H3 DQ3 H1 DQ4 H9 DQ5 F1 DQ6 F9 DQ7 C8 DQ8 C2 DQ9 D7 DQ10 D3 DQ11 D1 DQ12 D9 DQ13 B1 DQ14 B9 DQ15 K2 CKE L8 CS# K9 ODT K7 RAS# L7 CAS# K3 WE# A1 VDD E1 VDD J9 VDD M9 VDD R1 VDD A9 VDDQ C1 VDDQ C3 VDDQ C7 VDDQ C9 VDDQ E9 VDDQ G1 VDDQ G3 VDDQ G7 VDDQ G9 VDDQ J1 VDDL A2 NC E2 NC M8 A0 M3 A1 M7 A2 N2 A3 N8 A4 N3 A5 N7 A6 P2 A7 P8 A8 P3 A9 M2 A10 P7 A11 R2 A12 R8 RFU/A13 L2 BA0 L3 BA1 L1 RFU/BA2 J8 CK K8 CK# F3 LDM B3 UDM F7 LDQS E8 LDQS# B7 UDQS A8 UDQS# A7 VSSQ B2 VSSQ B8 VSSQ D2 VSSQ D8 VSSQ E7 VSSQ F2 VSSQ F8 VSSQ H2 VSSQ H8 VSSQ J7 VSSDL A3 VSS E3 VSS J3 VSS N1 VSS P9 VSS R7 RFU R3 RFU J2 VREF U3_ DDRII-256M-400MHZ C26 102 C68 106 C2 106 C39 226 C24 102 C4 106 R15 NC/100R R3 NC/100R C75 103 C8 103 C11 103 C10 103 C18 103 C132 101 E3 DQ0 F7 DQ1 F2 DQ2 F8 DQ3 H3 DQ4 H8 DQ5 G2 DQ6 H7 DQ7 D7 DQ8 C3 DQ9 C8 DQ10 C2 DQ11 A7 DQ12 A2 DQ13 B8 DQ14 A3 DQ15 K9 CKE L2 CS# K1 ODT J3 RAS# K3 CAS# L3 WE# B2 VDD D9 VDD G7 VDD K2 VDD K8 VDD A1 VDDQ A8 VDDQ J1 NC J9 NC N3 A0 P7 A1 P3 A2 N2 A3 P8 A4 P2 A5 R8 A6 R2 A7 T8 A8 R3 A9 L7 A10/AP R7 A11 N7 A12/BC# T3 A13 M2 BA0 N8 BA1 M3 BA2 J7 CK K7 CK# E7 LDM D3 UDM F3 LDQS G3 LDQS# C7 UDQS B7 UDQS# B1 VSSQ B9 VSSQ A9 VSS B3 VSS H1 VREFDQ G8 VSS J2 VSS E1 VSS J8 VSS M1 VSS M9 VSS P1 VSS P9 VSS T1 VSS T9 VSS D1 VSSQ D8 VSSQ E2 VSSQ E8 VSSQ F9 VSSQ G1 VSSQ G9 VSSQ C1 VDDQ C9 VDDQ D2 VDDQ E9 VDDQ F1 VDDQ N1 VDD N9 VDD R1 VDD R9 VDD L1 NC L9 NC L8 ZQ M7 NC M8 VREFCA T2 RESET# T7 A14 H2 VDDQ H9 VDDQ U2 DDRIII-256MB R9 NC C17 103 C35 101 C64 104 C65 104 R1 240R%1 C23 102 C40 102 VCCDR VCCDR VCCDR VREF_DDRII VREF_DDRII VREF_MCU VCCDR VCCDR VREF_DDRII VCCDR VCCDR VCCDR VCCDR VREFA_DDRII VREF_DDRII VREFA_DDRII VREF_DDRII VREFA_DDRII VREF_DDRII VREFA_DDRII VCCDR VCCDR DDR_A6 DDR_DM1 DDR_D2 DDR_D24 DDR_CKE0 DDR_D27 DDR_D30 DDR_D17 DDR_A5 DDR_D29 DDR_CLKN DDR_WEN DDR_D3 DDR_D26 DDR_D15 DDR_A4 DDR_CLK DDR_D6 DDR_A12 DDR_D8 DDR_A3 DDR_BA2 DDR_D7 DDR_D14 DDR_D16 DDR_A14 DDR_D25 DDR_A2 DDR_BA1 DDR_DQS3M DDR_D13 DDR_D5 DDR_RST DDR_D12 DDR_DQS0P DDR_DQS2M DDR_A9 DDR_D11 DDR_DM3 DDR_A1 DDR_CS0N DDR_D18 DDR_A13 DDR_BA0 DDR_D0 DDR_RASN DDR_DQS2P DDR_D10 DDR_ODT0 DDR_A11 DDR_A10 DDR_D9 DDR_A0 DDR_D1 DDR_CASN DDR_A7 DDR_DQS3P DDR_DQS1M DDR_D23 DDR_DQS1P DDR_D22 DDR_A8 DDR_DM0 DDR_D21 DDR_D20 DDR_D19 DDR_D28 DDR_DQS0M DDR_D4 DDR_DM2 DDR_D31 DDR_A6 DDR_A6 DDR_A6 DDR_A6 DDR_DM1 DDR_DM1 DDR_D2 DDR_D2 DDR_D24 DDR_D24 DDR_CKE0 DDR_CKE0 DDR_CKE0 DDR_CKE0 DDR_D27 DDR_D27 DDR_D30 DDR_D30 DDR_D17 DDR_D17 DDR_A5 DDR_A5 DDR_A5 DDR_A5 DDR_D29 DDR_D29 DDR_CLKN DDR_CLKN DDR_CLKN DDR_CLKN DDR_CLKN DDR_WEN DDR_WEN DDR_WEN DDR_WEN DDR_D3 DDR_D3 DDR_D26 DDR_D26 DDR_D15 DDR_D15 DDR_A4 DDR_A4 DDR_A4 DDR_A4 DDR_CLK DDR_CLK DDR_CLK DDR_CLK DDR_CLK DDR_D6 DDR_D6 DDR_A12 DDR_A12 DDR_A12 DDR_A12 DDR_D8 DDR_D8 DDR_A3 DDR_A3 DDR_A3 DDR_A3 DDR_BA2 DDR_BA2 DDR_BA2 DDR_BA2 DDR_D7 DDR_D7 DDR_D14 DDR_D14 DDR_D16 DDR_D16 DDR_A14 DDR_A14 DDR_D25 DDR_D25 DDR_A2 DDR_A2 DDR_A2 DDR_A2 DDR_BA1 DDR_BA1 DDR_BA1 DDR_BA1 DDR_DQS3M DDR_DQS3M DDR_DQS…

Text truncated - open the document above for the full version.

Test Report

FCC PART 15 CLASS B EMI MEASUREMENT AND TEST REPORT For Fuzhou Smart Digital Science & Technology Co., Ltd. No.8 Building, Hongshan Science & Technology Zone, Gulou District, Fuzhou, Fujian, China FCC ID: Y5VMW0812 May 9, 2011 This Report Concerns: Original Report Equipment Type: AOC TABLET Test Engineer: Jack Liu Report No.: BST11050059Y-1ER-3 Receive EUT Date/Test Date: April 29, 2011/ May 4-7, 2011 Reviewed By: Christina Prepared By: Shenzhen BST Technology Co.,Ltd. 3F,Weames Technology Building, No. 10 Kefa Road,Science Park, Nanshan District,Shenzhen,Guangdong,China Tel: 0755-267477513 Fax: 0755-267477513 ext.826 Note: The test report is specially limited to the above company and this particular sample only. It may not be duplicated without prior written consent of Shenzhen BST Technology Co.,Ltd. This report must not be used by the client to claim product certification,approval,or endorsement by NVLAP, NIST or any agency of the US Government. Fuzhou Smart Digital Science & Technology Co., Ltd. FCC ID: Y5VMW0812 BST11050059Y-1ER-3 Page 2/15 TABLE OF CONTENTS 1. GENERAL INFORMATION .................................................................................................... 3 1.1. Report information............................................................................................................ 3 1.2. Measurement Uncertainty................................................................................................. 3 2. PRODUCT DESCRIPTION ...................................................................................................... 4 2.1. EUT Description ............................................................................................................... 4 2.2. Block Diagram of EUT Configuration ............................................................................. 4 2.3. Support Equipment List .................................................................................................... 4 2.4. Test Conditions .................................................................................................................4 3. FCC ID LABEL........................................................................................................................... 5 4. TEST RESULTS SUMMARY ................................................................................................... 6 Modifications ................................................................................................................................ 6 5. TEST EQUIPMENT USED ....................................................................................................... 7 5.1. For Conducted Emission Test ........................................................................................... 7 5.2. For Radiated Emission Measurement ............................................................................... 7 6. CONDUCTED EMISSION TEST............................................................................................. 8 6.1. Block Diagram of Test Setup............................................................................................ 8 6.2. Test Standard .................................................................................................................... 8 6.3. Conducted Emission Limit(Class B) ................................................................................ 9 6.4. EUT Configuration on Test .............................................................................................. 9 6.5. Operating Condition of EUT ............................................................................................ 9 6.6. Test Procedure ..................................................................................................................9 6.7. Test Result ........................................................................................................................ 9 7. RADIATED EMISSION MEASUREMENT ......................................................................... 12 7.1. Block Diagram of EUT Configuration ........................................................................... 12 7.2. Test Standard ..................................................................................................................12 7.3. Radiated Emission Limit(Class B) ................................................................................. 13 7.4. EUT Configuration on Test ............................................................................................ 13 7.5. Operating Condition of EUT .......................................................................................... 13 7.6. Test Procedure ................................................................................................................ 13 7.7. Test Result ...................................................................................................................... 13 Fuzhou Smart Digital Science & Technology Co., Ltd. FCC ID: Y5VMW0812 BST11050059Y-1ER-3 Page 3/15 1. GENERAL INFORMATION 1.1. Report information 1.1.1.This report is not a certificate of quality; it only applies to the sample of the specific product/equipment given at the time of its testing. The results are not used to indicate or imply that they are application to the similar items. In addition, such results must not be used to indicate or imply that BST approves recommends or endorses the manufacture, supplier or use of such product/equipment, or that BST in any way guarantees the later performance of the product/equipment. 1.1.2.The sample/s mentioned in this report is/are supplied by Applicant, BST therefore assumes no responsibility for the accuracy of information on the brand name, model number, origin of manufacture or any information supplied. Additional copies of the report are available to the Applicant at an additional fee. No third part can obtain a copy of this report through BST, unless the applicant has a…

Text truncated - open the document above for the full version.

Test Setup Photos

FCC Part 15C Radiated emissions test Conducted emissions test FCC Part 15B Radiated emissions test Conducted emissions test

Contact Information

Applicant

Wei Lin(Assistant R&D Director)
[email protected](86) 591-83772650Fax: (86) 591-83772651

Test Firm

Shenzhen BST Technology Co.,Ltd.bill Zhao
[email protected]755-26747751Fax: 755-26747751

Technical Specifications

#Rule PartsFrequency RangePower Output
115B--

Other Applications from Fuzhou Smart Digital Science & Technology Co., Ltd.

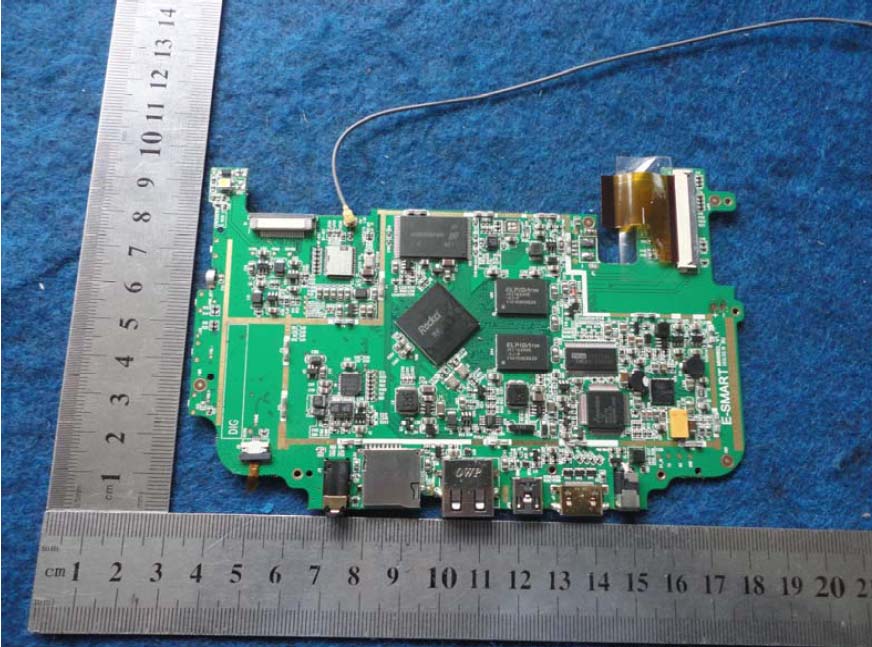

AOC Tablet - FCC ID Y5VMW0922 - Fuzhou Smart Digital Science & Technology Co., Ltd.
Y5VMW0922

AOC Tablet

May 08, 2012

Equipment Class

DTS - Digital Transmission System
AOC Tablet - FCC ID Y5VMW0821 - Fuzhou Smart Digital Science & Technology Co., Ltd.
Y5VMW0821

AOC Tablet

Sep 15, 2011

Equipment Class

DTS - Digital Transmission System

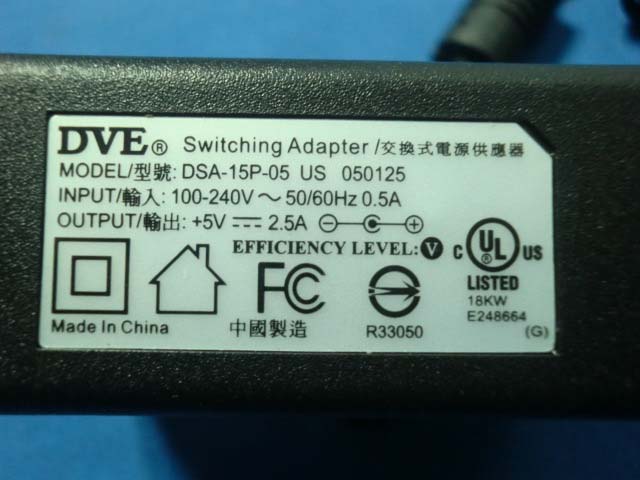

AOC TABLET - FCC ID Y5VMW0811 - Fuzhou Smart Digital Science & Technology Co., Ltd.
