Y5VMW0922AOC Tablet

-1- Table of Contents CHAPTER 1 PRODUCT OVERVIEW ................................................................................ 1 1.1 Functions overview..............................................................................................................1 1.2 Notes .....................................................................................................................................1 1.3 Packaging list .......................................................................................................................2 1.4 Technical specifications ......................................................................................................2 CHAPTER 2 BUTTONS AND APPEARANCE .................................................................. 4 CHAPTER 3 EASYCONFIG.............................................................................................. 5 CHAPTER 4 BASIC OPERATIONS .................................................................................. 8 4.1 Booting up ............................................................................................................................8 4.2 Shutdown ..............................................................................................................................8 4.4 Standby Mode.......................................................................................................................8 4.5 Reset......................................................................................................................................8 4.6 Connecting to PC and file transfer .....................................................................................8 4.7 Volume adjustment ..............................................................................................................9 4.7.1 Adjusting the media volume.....................................................................................9 4.7.2 Adjusting the alarm volume......................................................................................9 4.7.3 Adjusting the notification volume............................................................................9 4.8 Charging................................................................................................................................9 4.9 Touch screen operations ..................................................................................................10 4.10 HDMI output......................................................................................................................10 4.11 Search icon .......................................................................................................................10 CHAPTER 5 COMMON FEATURES ............................................................................... 11 5.1 Landscape/Portrait display switching.............................................................................. 11 5.2 Using virtual keyboard to type.......................................................................................... 11 5.2.1 Android keyboard .................................................................................................... 11 5.2.2 Editing text ...............................................................................................................12 5.3 Notification bar ...................................................................................................................12 5.3.1 Opening notification bar .........................................................................................12 5.4 Recently run apps ..............................................................................................................13 Touch the app in the window and slide your finger towards right to close the corresponding app. ..................................................................................................................13 5.5 Changing wallpaper ...........................................................................................................13 5.6 Power control .....................................................................................................................13 -2- CHAPTER 6 MAIN INTERFACE...................................................................................... 14 6.1 Main interface .....................................................................................................................14 6.2 Apps interface ....................................................................................................................15 6.3 Browser ...............................................................................................................................15 6.3.1 Opening browser .....................................................................................................15 6.3.2 Going to a webpage.................................................................................................16 6.3.3 Setting a home page................................................................................................16 6.3.4 Browsing a webpage ...............................................................................................16 6.3.5 Managing bookmarks..............................................................................................17 6.3.6 Other functions ........................................................................................................18 6.4 Video player ........................................................................................................................18 6.4.1 Video playing ...........................................................................................................18 6.4.2 Delete video..............................................................................................................19 6.5 Audio player.........................................................…

Text truncated - open the document above for the full version.

FCC Confidentiality Request To the FCC and FCC TCB handling this application for certification Pursuant to 47 CFR Section 0.459(a) & (b), we, (the applicant / grantee) Company name Fuzhou Smart Digital Science & Technology Co., Ltd Addresss No.8 Building, Hongshan Science & Technology Zone, Gulou District City Fuzhou,Fujian Country China request non-disclosure and confidential treatment for our certification under: Grantee Code Product Number FCC ID: Y5V MW0922 of the following materials submitted within this certification application: (please cross what is applicable, or add other documents) x Operational Description x Block Diagrams x Schematics Diagrams Bill of Materials Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. We understand that pursuant to 47 CFR section 0.457(d)(1)(ii) disclosure of the applicant and all accompanying documentation will not be made before the date of the grant. Attestation: City and Country: Date: Name: (this must be a person) Function: Signature: (or official company stamp) Fuzhou 2012/3/28 Wei Lin Manager

Fuzhou Smart Digital Science & Technology Co., Ltd No.8 Building, Honshan Science & Technology Zone, Gulou District, Fuzhou, Fujian, China Tel: 86-591-83756390; Fax: 86-591-83796522 Date: Apr.11, 2012 We, Fuzhou Smart Digital Science & Technology Co., Ltd, declare that this EUT (FCC ID: Y5VMW0922) does not have Ad Hoc Mode function on “non-US/Canada frequencies”. In addition, the frequency selection feature is disabled by firmware for devices marketed to the US/Canada. For DTS part of this device, only channels 1~11 will be used in North America. Country code selection is disabled. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely yours, Contact Person: Wei Lin Company: Fuzhou Smart Digital Science & Technology Co., Ltd TEL: 86-591-83756390 FAX: 86-591-83796522 E-mail: [email protected]

Fuzhou Smart Digital Science & Technology Co., Ltd No.8 Building, Honshan Science & Technology Zone, Gulou District, Fuzhou, Fujian, China Tel: 86-591-83756390; Fax: 86-591-83796522 Date: Apr.11, 2012 We, Fuzhou Smart Digital Science & Technology Co., Ltd, declare that this EUT (FCC ID: Y5VMW0922) only supports WiFi part without BT function Should you have any questions or comments regarding this matter, please have my best attention. Sincerely yours, Contact Person: Wei Lin Company: Fuzhou Smart Digital Science & Technology Co., Ltd TEL: 86-591-83756390 FAX: 86-591-83796522 E-mail: [email protected]

FCC ID LABEL FCC ID: Y5VMW0922 This device complies with Part 15 of the FCC Rules.Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received,including interference that may cause undesired operation. Label Location on EUT EUT Bottom View/ FCC ID Label Location

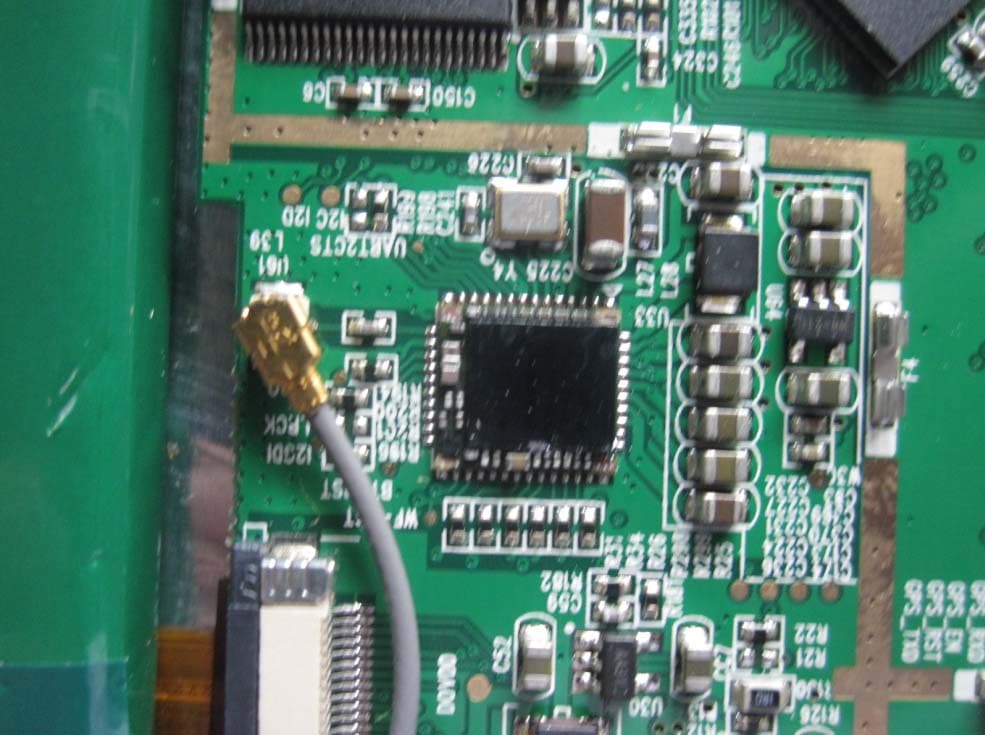

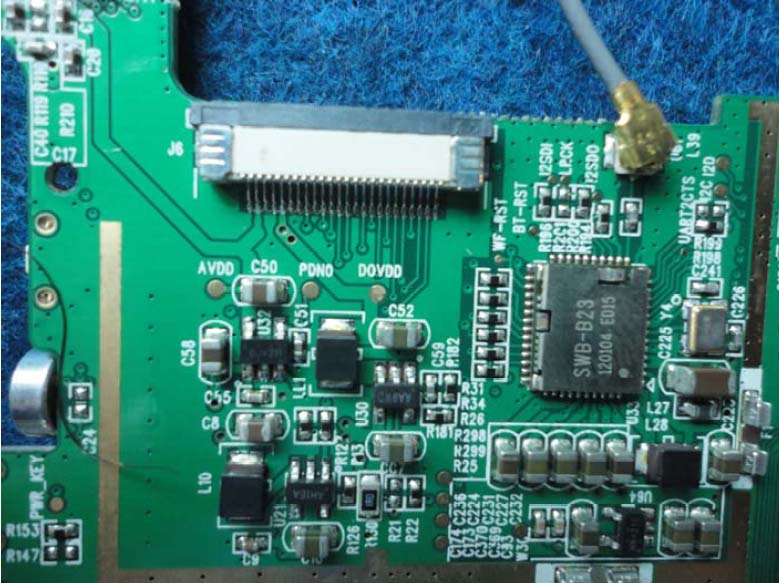

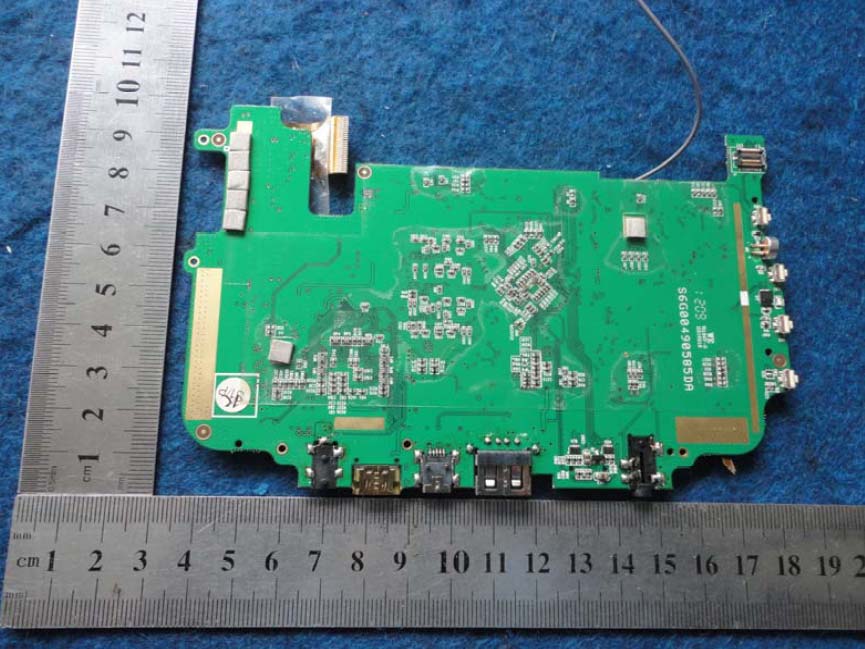

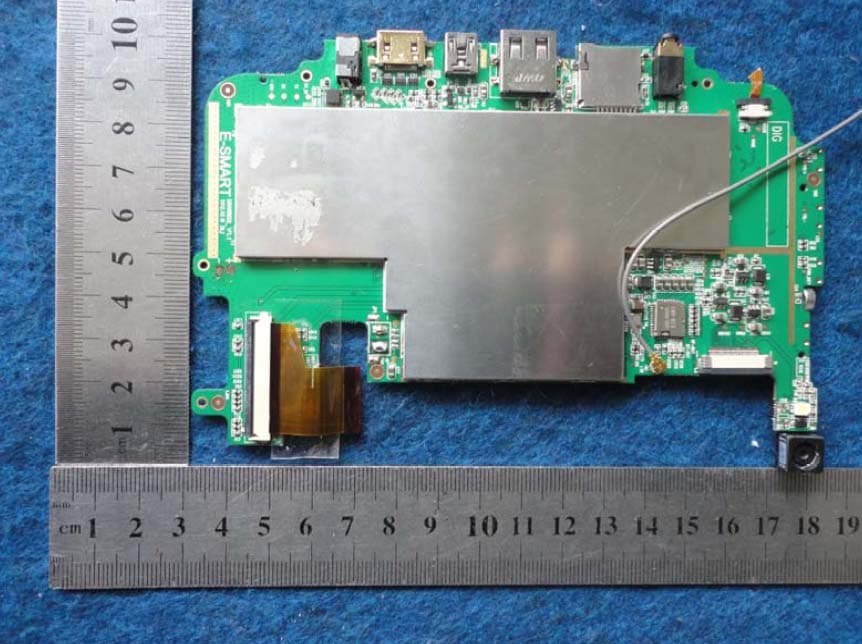

Antenna

FCC ID : Y5VMW0922 Portable device According to §15.247(e)(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to KDB 447498 (2)(a)(i) Frequency Range Center frequency (MHz) 60/f SAR Limitation (mw) Low Frequency (MHz) High Frequency(MHz) 2412 2462 2437 25 Maximum measured transmitter power for 802.11b Mode Conducted Power (dBm) Max Antenna Gain (dBi) EIRP (mw) 11.960 15.70 11.140 13.00 12.100 14.06 Maximum measured transmitter power 802.11g Mode Conducted Power (dBm) Max Antenna Gain (dBi) EIRP (mw) 12.240 16.75 11.430 13.90 12.100 16.22 Maximum measured transmitter power 802.11n Mode Conducted Power (dBm) Max Antenna Gain (dBi) EIRP (mw) 12.230 16.71 11.440 13.93 12.110 16.26 Threshold at which no SAR required is 25 mw. Maximum Tx power is 16.75mW EIRP. Conclusion: No SAR is required. SIMULTANEOUS TRANSMISSION EVALUATION N/A

Page 1 FCC ID TEST REPORT for AOC Tablet MODEL: MW0922 Trade Mark: N/A FCC ID: Y5VMW0922 Test Report Number: WSCT-12030161E_FCC 15B Issued Date: March 19, 2012 Issued for: Fuzhou Smart Digital Science & Technology Co., Ltd. No.8 Building, Honshan science & Technology Zone, Gulou District, Fuzhou, Fujian, China Issued by: World Standardization Certification & Testing CO., LTD. Building A, Baoshi Road, Baoshi Science & Technology Park, Bao’an District, Shenzhen, Guangdong, China TEL: +86-755-26996192 FAX: +86-755-26996253 Note: This report shall not be reproduced except in full, without the written approval of World Standardization Certification& Testing CO., LTD. This document may be altered or revised by World Standardization Certification& Testing CO., LTD. personnel only, and shall be noted in the revision section of the document. The test results in the report only apply to the tested sample. Report reference No.: WSCT-12030161E_FCC 15B Issued: March 19, 2012 Revised: None TRF No.: FCC Part 15B-13/A0 Page 2 of 31 FCC ID: Y5VMW0922 This report shall not be reproduced except in full, without the written approval of World Standardization Certification & Testing CO., LTD. Revision History Rev. Issue No. Revisions Effect Page Revised By 00 WSCT-12030161E_FCC 15B Initial Issue ALL Kallen Wang Report reference No.: WSCT-12030161E_FCC 15B Issued: March 19, 2012 Revised: None TRF No.: FCC Part 15B-13/A0 Page 3 of 31 FCC ID: Y5VMW0922 This report shall not be reproduced except in full, without the written approval of World Standardization Certification & Testing CO., LTD. TABLE OF CONTENTS 1 TEST RESULT CERTIFICATION ................................................................................................. 4 2 EUT DESCRIPTION ..................................................................................................................... 5 3 TEST METHODOLOGY ................................................................................................................ 6 3.1. DECISION OF FINAL TEST MODE ........................................................................................................ 6 3.2. Justification .............................................................................................................................................. 6 3.3. Configuration of Test Setup ..................................................................................................................... 6 4 SETUP OF EQUIPMENT UNDER TEST ...................................................................................... 7 4.1. DESCRIPTION OF SUPPORT UNITS ................................................................................................... 7 4.2. CONFIGURATION OF SYSTEM UNDER TEST .................................................................................... 8 5 FACILITIES AND ACCREDITATIONS ......................................................................................... 9 5.1. FACILITIES ............................................................................................................................................. 9 5.2. ACCREDITATIONS ................................................................................................................................. 9 5.3. MEASUREMENT UNCERTAINTY .......................................................................................................... 9 6 CONDUCTED EMISSION MEASUREMENT ........................................................................... 10 6.1. LIMITS OF CONDUCTED EMISSION MEASUREMENT ..................................................................... 10 6.2. TEST INSTRUMENTS .......................................................................................................................... 10 6.3.TEST PROCEDURES ............................................................................................................................ 11 6.4. TEST SETUP ........................................................................................................................................ 12 6.5. TEST RESULTS .................................................................................................................................... 12 7 RADIATED EMISSION MEASUREMENT .................................................................................. 15 7.1. LIMITS OF RADIATED EMISSION MEASUREMENT .......................................................................... 15 7.2. TEST INSTRUMENTS .......................................................................................................................... 15 7.3. TEST PROCEDURES ........................................................................................................................... 16 7.4. TEST SETUP ........................................................................................................................................ 18 7.5. TEST RESULTS .................................................................................................................................... 19 8 PHOTOGRAPHS OF THE TEST CONFIGURATION ................................................................ 23 9 PHOTOGRAPHS OF EUT .......................................................................................................... 26 Report reference No.: WSCT-12030161E_FCC 15B Issued: March 19, 2012 Revised: None TRF No.: FCC Part 15B-13/A0 Page 4 of 31 FCC ID: Y5VMW0922 This report shall not be reproduced except in full, without the written approval of World Standardization Certification & Testing CO., LTD. 1 TEST RESULT CERTIFICATION Product: AOC Tablet Model: MW0922 Trade Mark: N/A Applicant: Fuzhou Smart Digital Science & Technology Co., Ltd. No.8 Building, Honshan science & Technology Zone, Gulou District, Fuzhou, Fujian, China Manufacturer: Fuzhou Smart Digital Science & Technology Co., Ltd. No.8 Building, Honshan science & Technology Zone, Gulou District, Fuzhou, Fu…

Text truncated - open the document above for the full version.

Page 1 FCC ID TEST REPORT for AOC Tablet MODEL: MW0922 Trade Mark: N/A FCC ID: Y5VMW0922 Test Report Number: WSCT-12030161E_wifi Issued Date: March 19, 2012 Issued for Fuzhou Smart Digital science & Technology Co., Ltd No.8 Building, Honshan science & Technology Zone, Gulou District, Fuzhou,Fujian,China Issued By: World Standardization Certification & Testing CO., LTD. Building A, Baoshi Road, Baoshi Science & Technology Park, Bao’an District, Shenzhen, Guangdong, China TEL: +86-755-26996192 FAX: +86-755-26996253 Note: This report shall not be reproduced except in full, without the written approval of World Standardization Certification& Testing CO., LTD. This document may be altered or revised by World Standardization Certification& Testing CO., LTD. Personnel only, and shall be noted in the revision section of the document. The test results in the report only apply to the tested sample. Report reference No.: WSCT-12030161E_wifi Issued: March 19, 2012 Revised: None TRF No.: FCC PART 15C-15.247/A0 Page 2 of 60 FCC ID: Y5VMW0922 This report shall not be reproduced except in full, without the written approval of World Standardization Certification & Testing CO., LTD. Revision History Of Report Rev. Issue No. Revisions Effect Page Revised By 00 WSCT-12030161E_wifi Initial Issue ALL Kallen Wang Report reference No.: WSCT-12030161E_wifi Issued: March 19, 2012 Revised: None TRF No.: FCC PART 15C-15.247/A0 Page 3 of 60 FCC ID: Y5VMW0922 This report shall not be reproduced except in full, without the written approval of World Standardization Certification & Testing CO., LTD. TABLE OF CONTENTS 1 TEST CERTIFICATION .................................................................................................. 4 2 TEST RESULT SUMMARY ....................................................................................... 5 3 EUT DESCRIPTION ....................................................................................................... 6 4 SETUP OF EQUIPMENT UNDER TEST AND TEST EQUIPMENTS USED ............. 7 4.1. DESCRIPTION OF SUPPORT UNITS ................................................................................. 8 4.2. CONFIGURATION OF SYSTEM UNDER TEST .................................................................. 9 5 FACILITIES AND ACCREDITATIONS .................................................................... 10 5.1. FACILITIES ......................................................................................................................... 10 5.2. ACCREDITATIONS ............................................................................................................ 10 5.3. MEASUREMENT UNCERTAINTY ...................................................................................... 10 §15.203 - ANTENNA REQUIREMENT ............................................................................ 11 Standard Applicable ................................................................................................................... 11 Antenna Connector Construction ............................................................................................... 11 §15.207 - CONDUCTED EMISSIONS ............................................................................. 12 Applicable Standard ................................................................................................................... 12 Test Procedure .......................................................................................................................... 12 Plot(s) of Test Data .................................................................................................................... 12 §15.209, §15.205, §15.247(d) - SPURIOUS EMISSIONS ............................................... 15 Test Equipment .......................................................................................................................... 15 Test Procedure .......................................................................................................................... 15 Radiated Test Setup .................................................................................................................. 15 Radiated Emission Limit............................................................................................................. 16 Radiated Emission Test Result .................................................................................................. 16 §15.247(a) (2) – 6dB BANDWIDTH TESTING ................................................................ 31 Test Equipment .......................................................................................................................... 31 Test Procedure .......................................................................................................................... 31 Applicable Standard ................................................................................................................... 31 Test Result: Pass. ...................................................................................................................... 31 §15.247(b) (3) - MAXIMUM PEAK OUTPUT POWER .................................................... 37 Test Equipment .......................................................................................................................... 37 Test Procedure .......................................................................................................................... 37 Applicable Standard ................................................................................................................... 37 Test Result ................................................................................................................................. 38 §15.247(d) – 100 kHz BANDWIDTH OF FREQUENCY BAND EDGE ........................... 39 Test Equipment ....................................................................................................…

Text truncated - open the document above for the full version.

CONDUCTED EMISSION TEST RADIATED EMISSION TEST BELOW 1GHz RADIATED EMISSION TEST ABOVE 1GHz
