Y7ZDL4109TReomte control

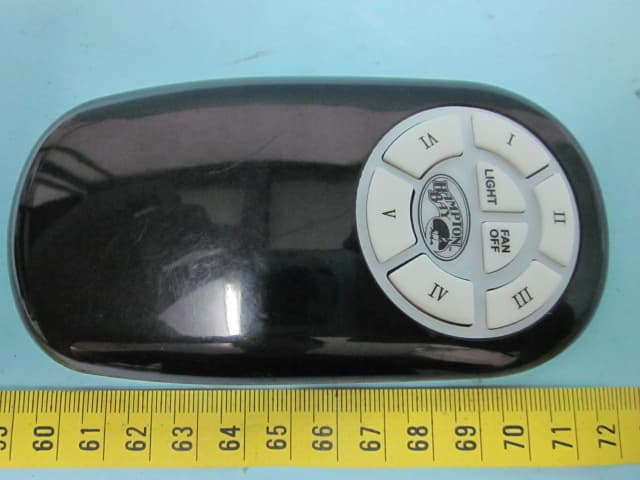

Owner’s Guide 1. " I , II , III , IV , V , VI " buttons: These six buttons are used to set the fan speed as follows: I = One speed II = Tow speed III= Three speed IV=Four speed V=Five speed VI = Six speed 2. "OFF" button: This button turns the fan off. 3. The "LIGHT" button turns the light ON or OFF . Press and release the button to turn the light ON or OFF Notice : The changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. IMPORTANT NOTE: To comply with the FCC RF exposure compliance requirements, no change to the antenna or the device is permitted. Any change to the antenna or the device could result in the device exceeding the RF exposure requirements and void user’s authority to operate the device.

S.Q.M CO LTD. NO.1599 GUANGXING RD.TAIPING CITY TAICHUNG COUNTY 41149 TAIWAN(R.O.C) Date:2012-07-16 Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: We, the undersigned, hereby authorize ELECTRONICS TESTING CENTER, TAIWAN, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by ELECTRONICS TESTING CENTER, TAIWAN on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing ELECTRONICS TESTING CENTER, TAIWAN as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; PDF created with pdfFactory Pro trial version www.pdffactory.com d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. PDF created with pdfFactory Pro trial version www.pdffactory.com PDF created with pdfFactory Pro trial version www.pdffactory.com

PDF created with pdfFactory Pro trial version www.pdffactory.com

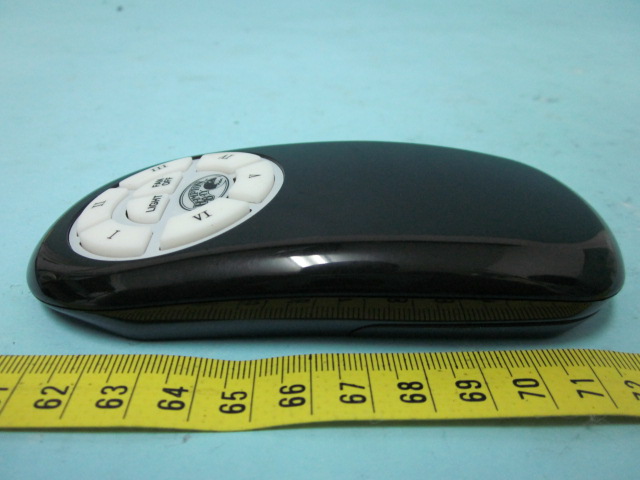

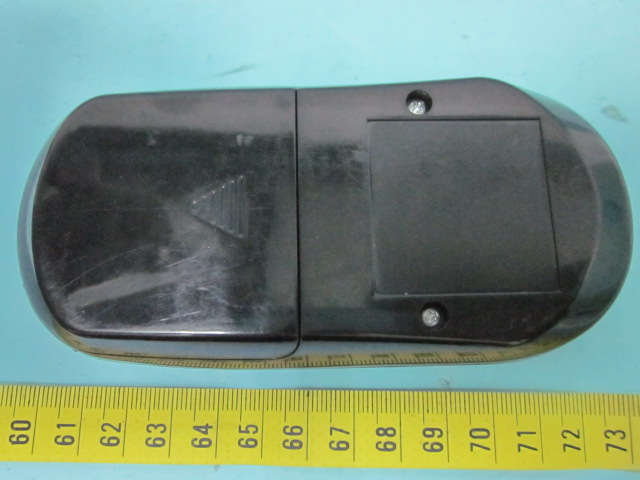

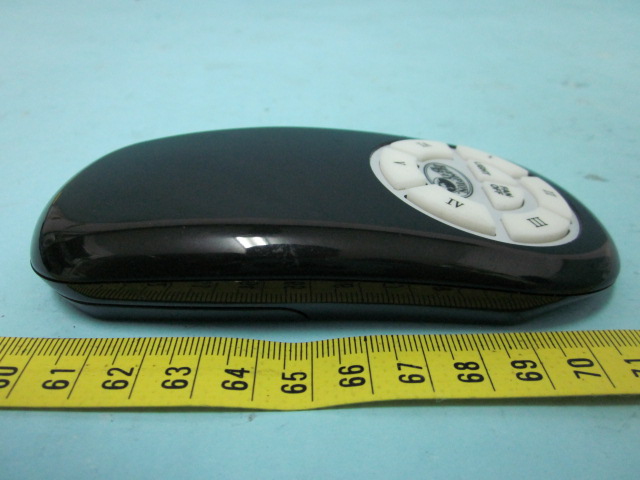

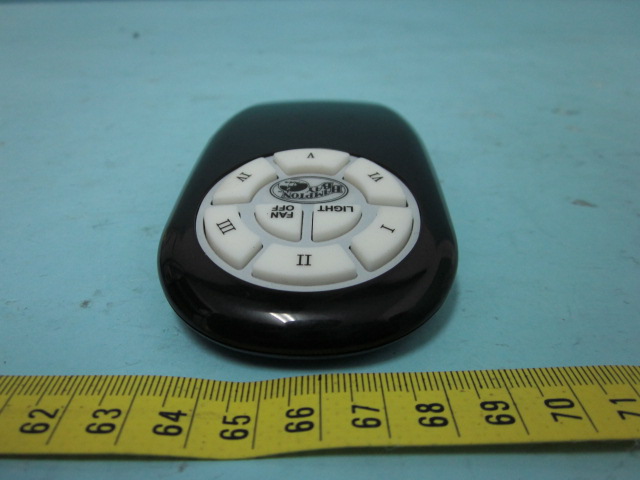

ETC Report No.:12-07-RBF-009 Sheet 1 of 5 Sheets FCC ID.: Y7ZDL4109T Rev. No 1.0 CONSTRUCTED PHOTOS of EUT 1. 2. ETC Report No.:12-07-RBF-009 Sheet 2 of 5 Sheets FCC ID.: Y7ZDL4109T Rev. No 1.0 CONSTRUCTED PHOTOS of EUT 3. 4. ETC Report No.:12-07-RBF-009 Sheet 3 of 5 Sheets FCC ID.: Y7ZDL4109T Rev. No 1.0 CONSTRUCTED PHOTOS of EUT 5. 6.

ETC Report No.:12-07-RBF-009 Sheet 4 of 5 Sheets FCC ID.: Y7ZDL4109T Rev. No 1.0 CONSTRUCTED PHOTOS of EUT 7. 8. ETC Report No.:12-07-RBF-009 Sheet 5 of 5 Sheets FCC ID.: Y7ZDL4109T Rev. No 1.0 CONSTRUCTED PHOTOS of EUT 9.

Rev. No 1.0 FCC Part 15 EMI TEST REPORT of E.U.T. : Remote Control FCC ID : Y7ZDL4109T MODEL : DL-4109T Working Frequency : 315.152MHz for APPLICANT : S.Q.M CO LTD. ADDRESS : NO. 1599 GUANGXING RD. TAIPING CITY TAICHUNG COUNTY 41149 TAIWAN(R.O.C) Test Performed by ELECTRONICS TESTING CENTER, TAIWAN NO. 34. LIN 5, DINGFU VIL., LINKOU DIST., NEW TAIPEI CITY, TAIWAN, 24442, R.O.C. TEL : (02)26023052 Fax : (02)26010910 http://www.etc.org.tw ; e-mail: [email protected] Report Number : 12-07-RBF-009 ETC Report No.:12-07-RBF-009 FCC ID.:Y7ZDL4109T Rev. No 1.0 TEST REPORT CERTIFICATION Applicant : S.Q.M CO LTD. NO. 1599 GUANGXING RD. TAIPING CITY TAICHUNG COUNTY 41149 TAIWAN(R.O.C) Manufacturer : S.Q.M CO LTD. NO. 1599 GUANGXING RD. TAIPING CITY TAICHUNG COUNTY 41149 TAIWAN(R.O.C) Description of EUT : a) Type of EUT : Remote Control b) Trade Name : --- c) Model No. : DL-4109T d) FCC ID : Y7ZDL4109T e) Working Frequency : 315.152MHz f) Power Supply : DC 12V Battery Regulation Applied : FCC Rules and Regulations Part 15 Subpart C I HEREBY CERTIFY THAT; The data shown in this report were made in accordance with the procedures given in ANSI C63.4 and the energy emitted by the device was founded to be within the limits applicable. I assume full responsibility for accuracy and completeness of these data. Note : 1. The results of the testing report relate only to the items tested. 2. The testing report shall not be reproduced except in full, without the written approval of ETC. ETC Report No.:12-07-RBF-009 FCC ID.:Y7ZDL4109T Rev. No 1.0 Date Test Item Received : Jul. 11, 2012 Date Test Campaign Completed : Jul. 31, 2012 Date of Issue : Aug. 03, 2012 Test Engineer : ( Jiapeng Chen, Engineer ) Approve & Authorized : S. S. Liou, Section Manager EMC Dept. II of ELECTRONICS TESTING CENTER, TAIWAN ETC Report No.:12-07-RBF-009 FCC ID.:Y7ZDL4109T Rev. No 1.0 Table of Contents Page 1. GENERAL INFORMATION ............................................................................................................................... 1 1.1 PRODUCT DESCRIPTION........................................................................................................................................... 1 1.2 CHARACTERISTICS OF DEVICE:................................................................................................................................ 1 1.3 TEST METHODOLOGY.............................................................................................................................................. 1 1.4 TEST FACILITY........................................................................................................................................................ 1 2. DEFINITION AND LIMITS ................................................................................................................................ 2 2.1 DEFINITION............................................................................................................................................................. 2 2.2 RESTRICTED BANDS OF OPERATION........................................................................................................................ 2 2.3 LIMITATION............................................................................................................................................................. 2 2.4 LABELING REQUIREMENT........................................................................................................................................ 4 2.5 USER INFORMATION................................................................................................................................................ 4 3 SYSTEM TEST CONFIGURATION ................................................................................................................... 5 3.1 JUSTIFICATION........................................................................................................................................................ 5 3.2 DEVICES FOR TESTED SYSTEM................................................................................................................................5 4. RADIATED EMISSION MEASUREMENT ...................................................................................................... 6 4.1 APPLICABLE STANDARD.......................................................................................................................................... 6 4.2 MEASUREMENT PROCEDURE................................................................................................................................... 6 4.3 TEST DATA.............................................................................................................................................................. 8 4.4 FIELD STRENGTH CALCULATION........................................................................................................................... 10 4.5 ACTIVATE TIME.................................................................................................................................................... 10 4.6 CALCULATION OF DUTY FACTOR.......................................................................................................................... 10 4.7 RADIATED TEST EQUIPMENT................................................................................................................................. 15 4.7 RADIATED TEST EQUIPMENT................................................................................................................................. 16 4.8 MEASURING INSTRUMENT SETUP.......................................................................................................................... 16 4.9 RADIATED MEASUREMENT PHOTOS...................................................................................................................... 17 5. BANDWIDTH OF EMISSION...........................................................…
