Y8R-Z30111DOOR CONTACT SWITCH WITH ZIGBEE RADIO

NCZ-3011 DOOR / WINDOW SENSOR User Guide Product Summary: Nyce Control’s NCZ-3011 is a wireless Door / Window sensor using the ZigBee radio protocol. It is used in conjunction with a low RF transmit power wireless ZigBee network to monitor the open or closed state of doors or windows. The NCZ-3011 can only detect the state of the item that it is attached to. • Button functions: Identify/join Network • Switch functions: Dry reed switch actuated by the movement of an external permanent magnet • Accurate battery voltage level measurement and reporting back to co-ordinator • Network operation based on the ZigBee open profile Home Automation • 4-5 years projected battery life Correct installation orientation of magnet and sensor Magnet Sensor Installation Guidelines: Note: Installing the sensor on metal can reduce its transmission range. Test the sensor from its desired location prior to permanent installation. • If using double sided tape for mounting sensor and magnet, thoroughly clean the surface to ensure proper adhesion because dust and particles can reduce the adhesion of the tape • Mount the rear cover housing on door frame using double sided tape or supplied screws • Place the NCZ-3011 indoors and away from sources of water/moisture and extreme weather conditions • Mount the magnet on the door such that it is spaced no more than 2 cm from the sensor when the door is closed. Use double sided tape or screws. • Insert the coin cell battery into the front cover (see diagram), noting the correct polarity of the battery • Press the button once to join the network • Snap in front cover to mounted rear cover. Battery Removal / Replacement Troubleshooting: To improve communication: • Reposition the sensor • Relocate the sensor • Move a ZigBee router / range extender closer to the sensor • If necessary, replace the sensor Technical Specifications: • Model Number: NCZ-3011 • Battery Type: 3.0 V CR2032 Lithium coin cell • RF Frequency: ZigBee channels 11-26, 2.48 GHz • Operating Temperature: -10 o C to 50 o C (14 o F to 122 o F) • Dimensions (LxWxH): 1.2 in. (30mm) x 1.2 in. (30mm) x 0.37 in. (9.4mm) Battery Replacement: • Remove front cover to expose battery • Replace with 3.0 volt CR2032 Lithium coin cell battery, noting the correct polarity of the battery MODEL #: NCZ-3011 FCC ID: Y8R-Z30111 IC ID: 9488A-Z30111 Compliance Statements: For complete declarations and certifications please visit: www.nycecontrol.com/compliance Notices This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note: the manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment. Changes or modifications not expressly approved by NYCE Control, Inc can void the user’s authority to operate the equipment. This device complies with Industry Canada license-exempt RSS standard(s). Operation is Subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Warranty: For product warranty information please visit: www.nycecontrol.com Support: For product support please email: [email protected]

103 – 8525 Baxter Place Burnaby, B.C., Canada, V5A 4V7 Tel: 604-473-9800 Fax: 604-473-9801 NCZ-3011_Confidentiality.doc page 1 of 1 Copyright © 2007-11, NYCE Control Inc. Date: March 18, 2011 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request NYCE Control Submission (Y8R-Z30111) Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, NYCE Control Inc. hereby requests confidential treatment of the information accompanying this Application as outlined below: • Schematics • Block Diagrams • Operational Descriptions The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to NYCE Control Inc. and provide unjustified benefits to our competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, M. Vogel Design Engineer, NYCE Control Inc.

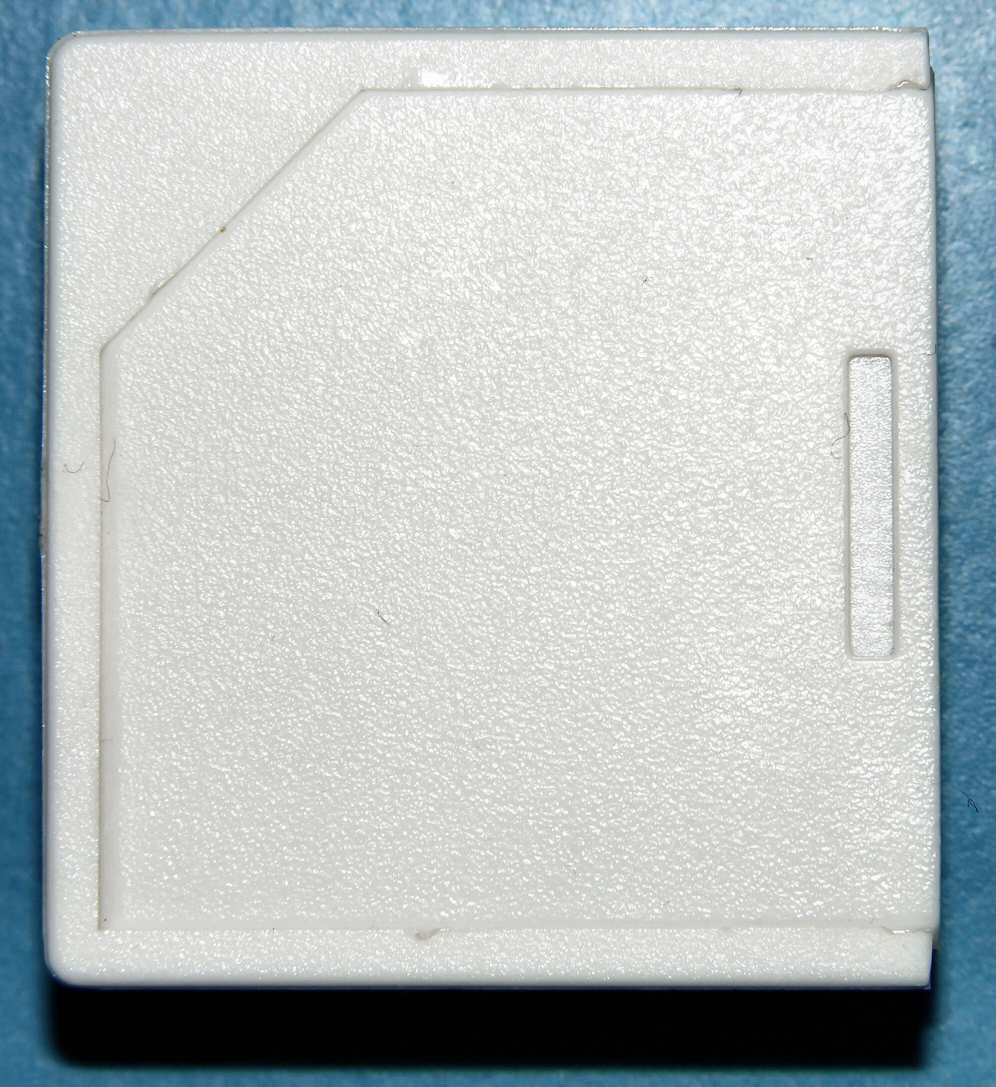

103 – 8525 Baxter Place Burnaby, B.C., Canada, V5A 4V7 Tel: 604-473-9800 Fax: 604-473-9801 NCZ-3011_ExtPho.doc page 1 of 1 Copyright © 2007-11, NYCE Control Inc. FCC ID: Y8R-Z30111 IC ID: 9488A-Z30111 External Photograph Exhibit Figure 1: Side Profile Figure 2: External Front. Figure 3: 2nd Side Profile Figure 4: External Back.

103 – 8525 Baxter Place Burnaby, B.C., Canada, V5A 4V7 Tel: 604-473-9800 Fax: 604-473-9801 NCZ-3011_LabelLoc.doc page 1 of 1 Copyright © 2007-11, NYCE Control Inc. FCC ID: Y8R-Z30111 IC ID: 9488A-Z30111 Label and Location Exhibit Figure 1: Sample Label Figure 2: Label location on back of NCZ-3011

103 – 8525 Baxter Place Burnaby, B.C., Canada, V5A 4V7 Tel: 604-473-9800 Fax: 604-473-9801 NCZ-3011_IntPho.doc page 1 of 1 Copyright © 2007-11, NYCE Control Inc. FCC ID: Y8R-Z30111 IC ID: 9488A-Z30111 Internal Photograph Exhibit Figure 1: Internal Front. Figure 2: Internal Back.

TEST REPORT IC/FCC IC RSS-Gen Issue 3 and RSS-210 Issue8 FCC 47CFR Part 15/C Section 15.249 Transmitter Intentional Radiator Report Reference No. .................... : E10385-1102 Date of issue ..................................... : Original Total number of pages................ : 29 Testing Laboratory.................................. : Tranzeo EMC Labs Inc. Address................................................................................................................................... : 19473 Fraser Way, Pitt Meadows, BC, V3Y 2V4, Canada FCC registration number................: 960532 Industry Canada Number:.............. : 5181A Applicant’s name ............................ : Nyce Control Inc. A d d r e s s ................................................................................................................................. : 103-8525 Baxter Place, Burnaby, BC, V5A 4V7, Canada C o n t a c t ................................................................................................................................. : M i chael Vogel [email protected] Industry Canada Registration : 9488A-Z30111 FCC Registration: Y8R-Z30111 Test specification: Standard........................................... : RSS-Gen; RSS-210; FCC Part 15.249 Test procedure ................................. : RSS-Gen; FCC Part15/C; ANSI C63.4-2009 Non-standard test method..............: N/A Test item description..................... : Wireless Door Contact Sensor Trade Mark....................................... : N/A Manufacturer .................................... : Nyce Control Inc. Model/Type reference ...................... : NCZ3011 Ratings ............................................. : 1 X CR2032 Coin cell Lithium battery Testing procedure and testing location: Testing Laboratory: Tranzeo EMC Labs Inc. Testing location/ address .......................: 19473 Fraser Way, Pitt Meadows, BC, V3Y 2V4, Canada Associated Laboratory: QAI Laboratories Compiling location/ address .......................: #16 – 211 Schoolhouse Street, BC, V3K 4X9, Canada Tested & Reported by.................. : David Johanson Checked by.................................. : Parminder Singh Approved by................................. : Edwin Hodson Testing procedure: Tested by (name + signature)...... : David Johanson Approved by (+ signature) ............: Edwin Hodson Testing location/ address ...............: 19473 Fraser Way, Pitt Meadows, BC, V3Y 2V4, Canada EMISSIONS North America Regions: • CFR 47, Part 15 Subpart C, Section 15.249 • Industry Canada RSS-Gen and RSS-210 Tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with Industry Canada and and FCC Regulations for and Intentional Radiator. Nyce Controls Inc. is responsible for the tested product configuration, continued product compliance with these standards listed, and for the appropriate auditing of subsequent products, as required. This is to certify that the following report is true and correct to the best of our knowledge. X Tested By David Johanson RF/EMC Test Engineer X Reviewed By Parminder Singh Senior RF/ EMC Engineer X Approved By Edwin Hodson, Div ision Manager Nyce Control Inc. Report Number:E10385-1102 Page 3 of 29 Measurement Uncertainty Radio Frequency ....................................................: ±1,5 x 10-5 Total RF power, conducted....................................: ±1 dB RF power density, conducted.................................: ±2.75 dB Spurious emissions, conducted.............................: ±3 dB All emissions, radiated...........................................: ±3.5 dB Temperature...........................................................: ±1ºC Humidity.................................................................: ±5 % DC and low frequency voltages..............................: ±3 % Test Equipment List Emissions Manufacturer Model Description Serial No. Cal Due Date ETS Lindgren S201 3M Chamber 40GHz 1030 N/R ETS Lindgren Custom Mast with Motor N/R N/R ETS Lindgren Custom Turntable N/R N/R Sunol Sciences JB3 Antenna 20MHz-3GHz A120106 28-Oct-2011 Sunol Sciences DRH-118 Antenna 1-18GHz A050905 04-Dec-2011 AH Systems PAM0118 Pre-Amp 0.1-18GHz 189 04-Dec-2011 Com-Power LI-115 LISN 241036 11-Feb-2012 Rohde & Schwarz ESU EMI Receiver 100011 29-Mar-2011 Nyce Control Inc. Report Number:E10385-1102 Page 4 of 29 Product Description Operational Description The NCZ3011 is a wireless door contact sensor that is used as part of a security system that is manufactured by Nyce Controls Inc. It is designed to produce a momentary transmission indicating the change in the Door position using a Zigbee transmitter. The Transmitter is installed with a +3Vdc Coin Cell Battery. EUT Testing Configuration For the purpose of compliance testing, the EUT was powered using the +3Vdc power supply since the battery would not have enough power to complete the testing. The transmitter was set for continuous operation on various frequencies in both C.W. mode and modulated modes of operation. Manufacturer Nyce Controls Inc. Product Name Door Contact Sensor Model No. NCZ3011 Serial No. 6 Product Software/Firmware Revision N/A Nyce Control Inc. Report Number:E10385-1102 Page 5 of 29 Index Product Description....................................................................................................................................... 4 Operational Description ...................................................................................................... 4 EUT Testing Configuration.................................................................................................. 4 Section I: Requirements for the Canadian Market- (IC)..................................................................... 6 Part 1 - Radiated Emission Testing .................................................................................... 7 Part 2 - Antenna Requirements ................................…

Text truncated - open the document above for the full version.

Project E10385-1102 Industry Canada Registration : 9488A-Z30111 FCC Registration: Y8R-Z3011 Photos during testing Nyce Control Inc. Report Number:E10385-1102 Page 2 of 3 Nyce Control Inc. Report Number:E10385-1102 Page 3 of 3
