Y8R-Z30411MOTION SENSOR WITH ZIGBEE RADIO

NCZ-3041 MOTION SENSOR User Guide Product Summary: Nyce Control’s NCZ-3041 is a wireless motion sensor using the ZigBee radio protocol. It is used in conjunction with a low RF transmit power wireless ZigBee network to monitor the occupancy state of indoor areas, and provide this information to other devices operating in a ZigBee Home Automation network. • Button functions: Identify/join Network • Accurate battery voltage level measurement and reporting back to co-ordinator • Network operation based on the ZigBee open profile Home Automation • Up to 4 years projected battery life Specifications: Detection Range 5m Horizontal Detection Range +/- 47 ° Vertical Detection Range +/- 41° Installation Guidelines: • If using double sided tape for mounting sensor, thoroughly clean the surface to ensure proper adhesion because dust and particles can reduce the adhesion of the tape • Open the case and insert the battery, noting the correct polarity. Close the cover. • Place the NCZ-3041 indoors and away from sources of water/moisture and extreme weather conditions • Press the button once to join the network • Snap in front cover to mounted rear cover. Placement Guidelines: Place the motions sensor facing where you want to detect motion. Measurements below are approximate. 100° Top View Bottom View 41° 6’ 2.9’ 15’ Troubleshooting: To improve communication: • Reposition the sensor • Relocate the sensor • Move a ZigBee router / range extender closer to the sensor • If necessary, replace the sensor Technical Specifications: • Model Number: NCZ-3041 • Battery Type: 3.0 V CR2 850 mAhr Lithium • RF Frequency: ZigBee channels 11-26, 2.48 GHz • Operating Temperature: -10 o C to 50 o C (14 o F to 122 o F) • Dimensions: 20mm x 29mm x 65mm Battery Replacement: • Remove front cover to expose battery • Replace with 3.0 volt CR2 850 mAhr Lithium, noting the correct polarity of the battery Button Functionality: Action ZED State Description Not joined to any network Attempt to join the a Home Automation profile network (Open Standard) Joined to the network Identify to the network Press and release once Identifying to the network Stop Identifying, form Group. Press and release two times Any state LED flashes indicate whether ZED is joined to a network or not. Press and release four times Not joined to any network Attempt to join a Control 4 network Press and release six times Joined to a Control 4 or Open Standard network Leave the network Press and release ten times Any state Reset to factory settings. Press and hold for 4 seconds Joined to a Control 4 network Leave Control 4 network LED Indicators: Colour Behaviour Description Flash 2 times Failed to join a network, or forced to leave, or not joined when queried (2 button presses) Flash once Initial detection of Occupancy or Motion Red Flash 3 times Provisioning failed Flash 2 times Successfully joined a Home Automation Network, or is currently joined Flash 3 times Provisioning succeeded Green Flash 5 times Successfully reset to factory defaults Flash 2-5 Hz Identify mode Flash 1 time Unsupported button command Orange Flash 5 times Communication or device error MODEL #: NCZ-3041 FCC ID: Y8R-Z30411 IC ID: 9488A-Z30411 Compliance Statements: For complete declarations and certifications please visit: www.nycecontrol.com/compliance Notices This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note: the manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment. Changes or modifications not expressly approved by NYCE Control, Inc can void the user’s authority to operate the equipment. This device complies with Industry Canada license-exempt RSS standard(s). Operation is Subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Warranty: For product warranty information please visit: www.nycecontrol.com Support: For product support please email: [email protected]

103 – 8525 Baxter Place Burnaby, B.C., Canada, V5A 4V7 Tel: 604-473-9800 Fax: 604-473-9801 NCZ-3041_Confidentiality page 1 of 1 Copyright © 2007-11, NYCE Control Inc. Date: November 25, 2011 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request NYCE Control Submission (Y8R-Z30411) Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, NYCE Control Inc. hereby requests confidential treatment of the information accompanying this Application as outlined below: • Schematics • Block Diagrams • Operational Descriptions The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to NYCE Control Inc. and provide unjustified benefits to our competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, B. Kelly CTO, NYCE Control Inc.

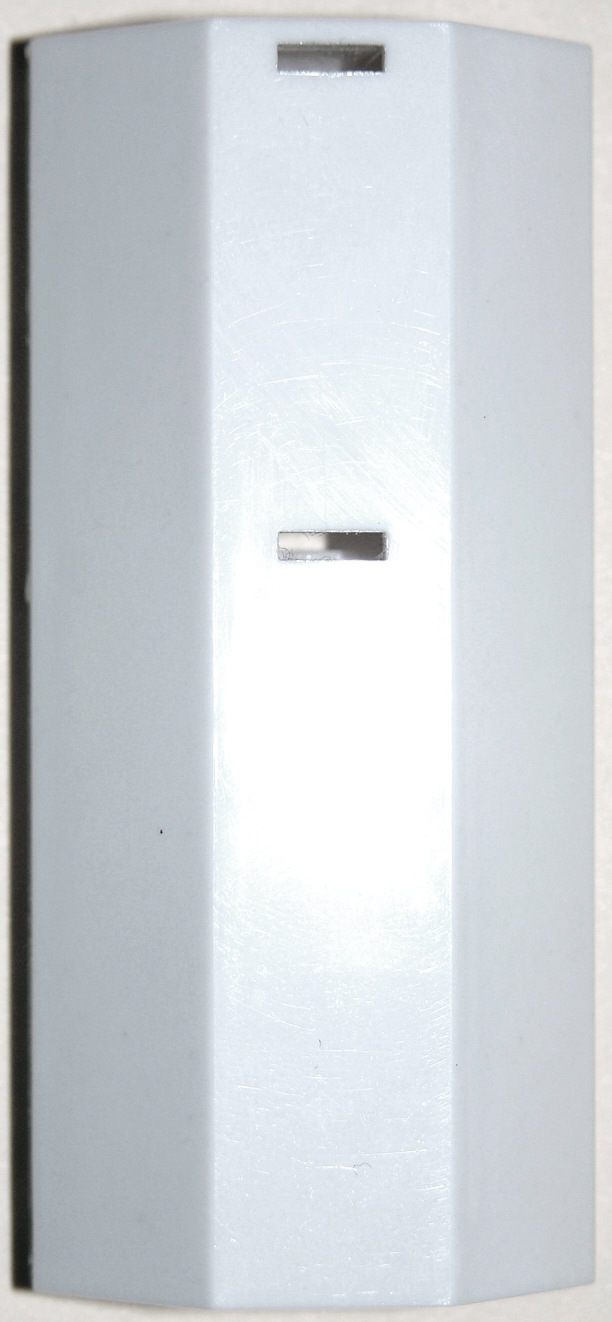

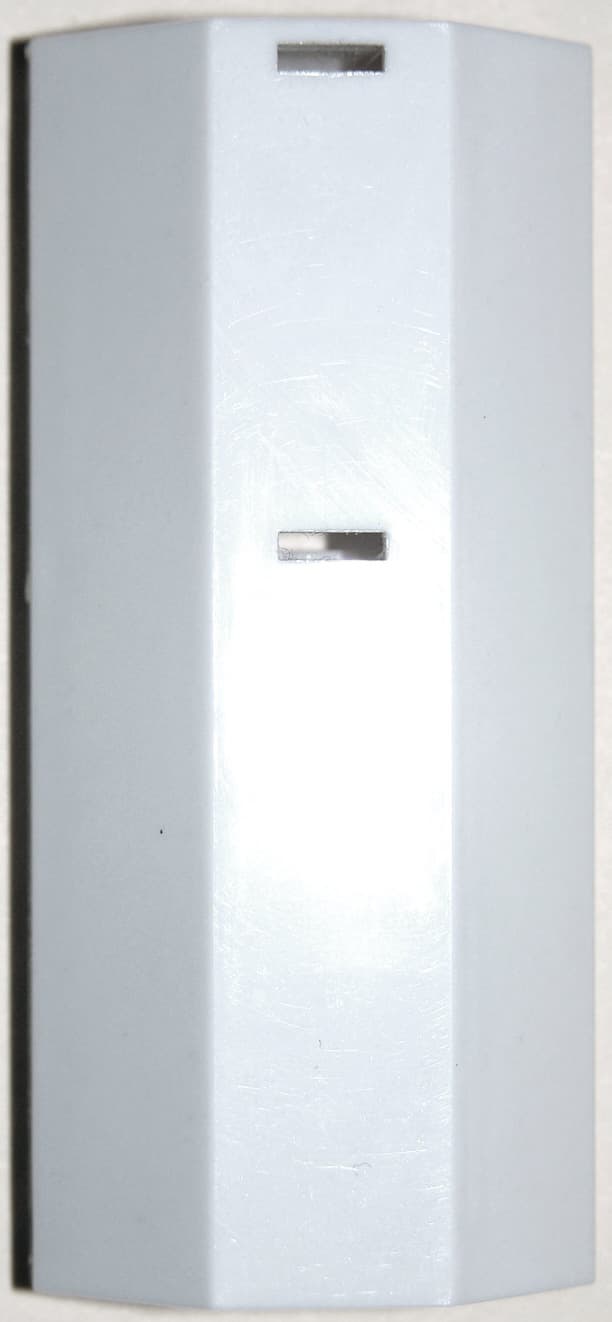

103 – 8525 Baxter Place Burnaby, B.C., Canada, V5A 4V7 Tel: 604-473-9800 Fax: 604-473-9801 NCZ-3041_ExtPho.doc page 1 of 1 Copyright © 2007-11, NYCE Control Inc. FCC ID: Y8R-Z30411 IC ID: 9488A-Z30411 External Photograph Exhibit Figure 1: Side Profile Figure 2: External Front. Figure 3: Top End Profile Figure 4: External Back. Figure 5: Battery Cover End Profile

103 – 8525 Baxter Place Burnaby, B.C., Canada, V5A 4V7 Tel: 604-473-9800 Fax: 604-473-9801 NCZ-3041_LabelLoc.doc page 1 of 1 Copyright © 2007-11, NYCE Control Inc. FCC ID: Y8R-Z30411 IC ID: 9488A-Z30411 Label and Location Exhibit Figure 1: Sample Label Figure 2: Label location on back of NCZ-3041

103 – 8525 Baxter Place Burnaby, B.C., Canada, V5A 4V7 Tel: 604-473-9800 Fax: 604-473-9801 NCZ-3041_IntPho.doc page 1 of 2 Copyright © 2007-11, NYCE Control Inc. FCC ID: Y8R-Z30411 IC ID: 9488A-Z30411 Internal Photograph Exhibit Figure 1: Internal showing battery. 103 – 8525 Baxter Place Burnaby, B.C., Canada, V5A 4V7 Tel: 604-473-9800 Fax: 604-473-9801 NCZ-3041_IntPho.doc page 2 of 2 Copyright © 2007-11, NYCE Control Inc. Figure 2: PCB Front. Figure 3: PCB Back.

CANADA: 16 - 211 Schoolhouse Street Coquitlam, British Columbia Canada V3K 4X9 TEST REPORT IC/FCC IC RSS-Gen Issue 3 and RSS-210 Issue8 FCC 47CFR Part 15/C Section 15.249 Transmitter Intentional Radiator Report Reference No. .................... : E10385-1106 Date of issue ..................................... : Revision 5.0 December 09, 2011 Total number of pages. . . . . . . . . . . . . . . . : 27 Testing Laboratory.................................. : Quality Auditing Institute Address................................................................................................................................... : 16 – 211 Schoolhouse Street, Coquitlam, BC, V3K 4X9, Canada Accreditations.........................: IAS ISO17025 Accredited Laboratory No TL-239 This report has been completed in accordance with the requirements of ISO/IEC 17025. Test results contained in this report are with in QAI Laboratories ISO/IEC 17025 accreditation. QAI Laboratories authorizes the applicant to reproduce this report provided it is reproduced entirely and for the use by company’s employees only. Applicant’s name ............................ : Nyce Control Inc. Address................................................................................................................................. : 103 – 8525 Baxter Place Burnaby BC, V5A 4V7, Canada Contact................................................................................................................................. : Matthew Battistel [email protected] Industry Canada Registration : 9488A-Z30411 FCC Registration: Y8R-Z30411 Test specification: Standard........................................... : RSS-Gen; RSS-210; FCC Part 15.249 Test procedure ................................. : RSS-Gen; FCC Part15/C; ANSI C63.4-2009 Non-standard test method..............: N/A CANADA: 16 - 211 Schoolhouse Street Coquitlam, British Columbia Canada V3K 4X9 Test item description..................... : Occupancy sensor for Zigbee home automation system Trade Mark....................................... : Manufacturer .................................... : Nyce Control Inc. Model/Type reference ...................... : NCZ3041 Ratings ............................................. : +3Vdc Type CR2 Lithium Battery Testing procedure and testing location: Testing Laboratory: Quality Auditing Institute Testing location/ address ............: 16 – 211 Schoolhouse Street, Coquitlam, BC, 3K 4X9, Canada Associated Laboratory: Quality Auditing Institute (Remote location) Testing location/ address ............: 19473 Fraser Way, Pitt Meadows, BC, V3Y 2V4, Canada FCC Test Site Registration Number (OATS 10m and SAC-3m): 226383 Industry Canada Site Registration Number (SAC-3m)............: 9543B-1 Industry Canada Test Site Registration Number (OATS-10m)..: 9543C-1 Testing procedure: Tested by (name + signature)...... : Bruce Balston / David Johanson Approved by (+ signature) ............: Parminder Singh Testing location/ address ...............: 19473 Fraser Way, Pitt Meadows, BC, V3Y 2V4, Canada Sample Information: Model Number........................: NCZ3041 Company:..............................: Nyce Control Inc. Received Date:........................: September 26, 2011 Received By............................: Bruce Balston Sample Log.............................: QAI Product Control Log (QM 1301 - Sample Inventory) Environmental Conditions: Day 1: Sep 26-2011 Indoor Temperature: 23ºC R.H.: 65% Day 2: Sep 27-2011 Indoor Temperature: 23ºC R.H.: 55% Day 3: Sep 28-2011 Indoor Temperature: 22ºC R.H.: 52% Nyce Control Inc. Report Number:E10385-1106 Rev 5.0 Page 4 of 27 The following tests demonstrate the testimony to FCC and IC Electromagnetic compatibility testing for this product. EMISSIONS North America Regions: • CFR 47 Part 15 Subpart B and Subpart C, Section 15.249 • Industry Canada ICES-003, RSS-Gen and RSS-210 Tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with Industry Canada and FCC Regulations for an un-licensed Intentional Radiator. Nyce Control Inc. is responsible for the tested product configuration, continued product compliance with these standards listed, and for the appropriate auditing of subsequent products, as required. This is to certify that the following report is true and correct to the best of our knowledge. X Tested By David Johanson RF/EMC Test Engineer X Reviewed By Aman Jathaul RF/ EMC Engineer Nyce Control Inc. Report Number:E10385-1106 Rev 5.0 Page 5 of 27 Measurement Uncertainty Radio Frequency ....................................................: ±1,5 x 10-5 Total RF power, conducted....................................: ±1 dB RF power density, conducted.................................: ±2.75 dB Spurious emissions, conducted.............................: ±3 dB All emissions, radiated...........................................: ±3.5 dB Temperature...........................................................: ±1ºC Humidity.................................................................: ±5 % DC and low frequency voltages..............................: ±3 % Test Equipment List Emissions Manufacturer Model Description Serial No. Cal Due Date ETS Lindgren S201 3M Chamber 40GHz 1030 N/R ETS Lindgren Custom Mast with Motor N/R N/R ETS Lindgren Custom Turntable N/R N/R Sunol Sciences JB3 Biconilog Antenna 20MHz-3GHz A120106 28-Oct-2011 Com-Power AHA-118 Horn Antenna 1- 18GHz 711041 11-Mar-2014 AH Systems SAS-562B 18” Loop Antenna 9kHz-30MHz 252 02-Feb-2013 Com-Power LI-115 LISN 241036 11-Feb-2012 Rohde & Schwarz ESU EMI Receiver 100011 29-Mar-2012 Nyce Control Inc. Report Number:E10385-1106 Rev 5.0 Page 6 of 27 Product Description The NYCE Control HomeWatch Wireless Contact Switch combines the features of a passive infrared motion detector and ZigBee® (802.15.4) radio into a single, small device. Packed with intelligent features, the Wireless Occupation /Motion Sensor enables the detectio…

Text truncated - open the document above for the full version.

Nyce Control Inc. Report Number:E10385-1106 Page 1 of 2 Appendix A: NCZ-3041 EUT photos during the testing Nyce Control Inc. Report Number:E10385-1106 Page 2 of 2
