Y8R-Z32011KEY FOB WITH ZIGBEE RADIO

NCZ-3201 KEY FOB User Guide Product Summary: Nyce Control’s NCZ-3201 is a wireless key fob using the ZigBee radio protocol. It is used in conjunction with a low RF transmit power wireless ZigBee network for access control to other devices operating in a ZigBee Home Automation network. • Button functions: network commands, state change commands for other devices • Accurate battery voltage level measurement and reporting back to co-ordinator • Network operation based on the ZigBee open profile Home Automation • Up to 4 years projected battery life Troubleshooting: To improve communication:  Operate the device closer to the router / director  Move a ZigBee router / range extender closer to the desired operating area  Replace battery Technical Specifications:  Model Number: NCZ-3201  Battery Type: 3.0 V CR2032 Lithium coin cell  RF Frequency: ZigBee channels 11-26, 2.405 - 2.48 GHz  Operating Temperature: -10 o C to 50 o C (14 o F to 122 o F)  Dimensions: 32mm x 56mm x 6mm Battery Replacement:  Remove back cover to expose battery  Replace with 3.0 volt CR2032 Lithium coin cell battery, noting the correct polarity of the battery Button Functionality (Generic Commands): Button Function Lock Button Unlock Button Star Button 1 Tap ACE: Arm all zones (Endpoint 1) ACE: Disarm (Endpoint 1) ACE: Panic (Endpoint 1) 2 Taps ACE: Arm all zones (Endpoint 2) ACE: Disarm (Endpoint 2) ACE: Panic (Endpoint 2) 3 Taps ACE: Arm all zones (Endpoint 3) ACE: Disarm (Endpoint 3) ACE: Panic (Endpoint 3) Press ACE: Arm all zones (Endpoint 4) ACE: Disarm (Endpoint 4) ACE: Panic (Endpoint 4) Release ACE: Arm all zones (Endpoint 5) ACE: Disarm (Endpoint 5) ACE: Panic (Endpoint 5) Button Functionality (Network Commands): Action Mode Action Press button 1 and button 2 together, then button 1 once Un-associated to any network Network Join to Open Std network Press button 1 and button 2 together, then Button 1 four times Un-associated to any network Network Join to C4 Network Press button 1 and button 2 together, then Button 1 six times Associated to the network Leave network Press button 1 and button 2 together, then Button 1, 10 times Associated to the network Restore defaults, leave network Press button 1 and button 2 together, then Button 1, 10 times Un-associated to any network Restore defaults Press button 1 and button 2 together, then Button 1 two times any Indicate network connectivity Press other than 1,2,4,6 10 times or other button combination any Single orange LED flash – unsupported command. The next press of multiple presses must occur within 1 seconds of the end of the last button press. Any button held down for more than 1 second will cause the keyfob to disregard the button press. Press-hold functionality will not be supported – only multi-press. LED Indicators: LED Response Definition One green flash Message acknowledged by Coordinator, or button pressed (command mode) Two green flash Network join succeeded, or status = joined One red flash button pressed (network mode) 2 red flashes Network leave or status = not joined 3 slow Red flashes, 1 second after other LED signalling is complete Low battery One Orange flashes Unsupported button command Two Orange Flashes Network Error Five Green flash Successfully reset to factory defaults All flashes are 250ms in duration. Repeated flashes are each followed by a 250ms pause, unless otherwise indicated. A “slow” flash is 250ms in duration followed by a 1sec pause. MODEL #: NCZ-3201 FCC ID: Y8R-Z32011 IC ID: 9488A-Z32011 Compliance Statements: For complete declarations and certifications please visit: www.nycecontrol.com/compliance Notices This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note: the manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment. Changes or modifications not expressly approved by NYCE Control, Inc can void the user’s authority to operate the equipment. This device complies with Industry Canada license-exempt RSS standard(s). Operation is Subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Warranty: For product warranty information please visit: www.nycecontrol.com Support: For product support please email: [email protected]

103 – 8525 Baxter Place Burnaby, B.C., Canada, V5A 4V7 Tel: 604-473-9800 Fax: 604-473-9801 NCZ-3201_Confidentiality.doc page 1 of 1 Copyright © 2007-11, NYCE Control Inc. Date: August 15, 2012 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request NYCE Control Submission (Y8R-Z32011) Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, NYCE Control Inc. hereby requests confidential treatment of the information accompanying this Application as outlined below:  Schematics  Block Diagrams  Operational Descriptions The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to NYCE Control Inc. and provide unjustified benefits to our competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, B. Kelly CTO, NYCE Control Inc.

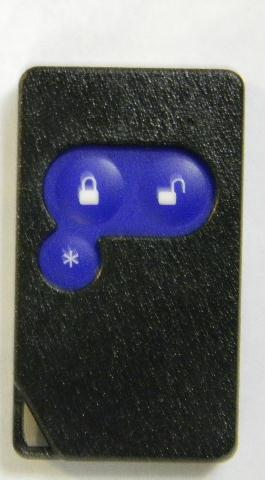

103 – 8525 Baxter Place Burnaby, B.C., Canada, V5A 4V7 Tel: 604-473-9800 Fax: 604-473-9801 TODO NCZ-3201_ExtPho.doc page 1 of 1 Copyright © 2007-12, NYCE Control Inc. FCC ID: Y8R-Z32011 IC ID: 9488A-Z32011 External Photograph Exhibit Figure 1: Side Profile Figure 2: External Front. Figure 3: External Back.

103 – 8525 Baxter Place Burnaby, B.C., Canada, V5A 4V7 Tel: 604-473-9800 Fax: 604-473-9801 NCZ-3201_LabelLoc.doc page 1 of 1 Copyright © 2007-12, NYCE Control Inc. FCC ID: Y8R-Z32011 IC ID: 9488A-Z32011 Label and Location Exhibit Figure 1: Sample Label Figure 2: Label location on back of NCZ-3201

103 – 8525 Baxter Place Burnaby, B.C., Canada, V5A 4V7 Tel: 604-473-9800 Fax: 604-473-9801 NCZ-3201_IntPho.doc page 1 of 2 Copyright © 2007-12, NYCE Control Inc. FCC ID: Y8R-Z32011 IC ID: 9488A-Z32011 Internal Photograph Exhibit Figure 1: Internal of enclosure & front of PCB Figure 2: Back of PCB 103 – 8525 Baxter Place Burnaby, B.C., Canada, V5A 4V7 Tel: 604-473-9800 Fax: 604-473-9801 NCZ-3201_IntPho.doc page 2 of 2 Copyright © 2007-12, NYCE Control Inc. Figure 3: Rear showing battery.

CANADA: 16 - 211 Schoolhouse Street Coquitlam, British Columbia Canada V3K 4X9 Nyce Control Inc. Report Number:E10456-1202 FCC Page 1 of 33 TEST REPORT IC/FCC IC RSS-Gen Issue 3 and RSS-210 Issue8 FCC 47CFR Part 15/C Section 15.249 Transmitter Intentional Radiator Report Reference No. .................... : E10456-1202 FCC Date of issue ..................................... : Release - Revision 2.0 September 17, 2012 Total number of pages. . . . . . . . . . . . . . . . : 33 Testing Laboratory.................................. : Quality Auditing Institute Address................................................................................................................................... : 16 – 211 Schoolhouse Street, Coquitlam, BC, V3K 4X9, Canada Accreditations (ISO 17025): Standard Council of Canada: Accredited Laboratory No. 743 International Accreditation Service Inc: Accredited Laboratory: No. TL-239 This report has been completed in accordance with the requirements of ISO/IEC 17025. Test results contained in this report are within QAI Laboratories ISO/IEC 17025 accreditation. QAI Laboratories authorizes the applicant to reproduce this report provided it is reproduced in its entirety and for the use by the company’s employees only. Applicant’s name ............................ : Nyce Control Inc. Address................................................................................................................................ : 103-8525 Baxter Place, Burnaby, BC, V5A 4V7, Canada Contact................................................................................................................................. : Matthew Battistel [email protected] Phone: ................................................................................................................................ : (604) 473-9800 x250 Industry Canada Registration : 9488A-Z32011 FCC Registration: Y8R-Z32011 CANADA: 16 - 211 Schoolhouse Street Coquitlam, British Columbia Canada V3K 4X9 Nyce Control Inc. Report Number:E10456-1202 FCC Page 2 of 33 Test specification: Standard........................................... : RSS-Gen; RSS-210; FCC Part 15.249 Test procedure ................................. : RSS-Gen; FCC Part15/C; ANSI C63.4-2009 Non-standard test method..............: N/A Test item description..................... : Wireless key fob Trade Mark....................................... : N/A Manufacturer .................................... : Nyce Control Inc. Model/Type reference ...................... : NCZ-3201 Ratings ............................................. : +3Vdc 2032 Coin Cell Lithium Battery Nyce Control Inc. Report Number:E10456-1202 FCC Page 3 of 33 Index Product Description ....................................................................................................................................... 7 Operational Description ....................................................................................................... 7 EUT Testing Configuration .................................................................................................. 7 Section I: Requirements for the Canadian Market- IC ........................................................................ 8 Part 1 - Digital Circuits Radiated Emission Testing ............................................................. 9 Part 2 - Antenna Requirements ......................................................................................... 10 Part 3 - Radiated Peak Power of the Fundamental and Harmonics ................................. 11 Part 4 - Spurious Radiated Emissions Testing.................................................................. 12 Part 5 - Occupied Bandwidth Testing ................................................................................ 13 Part 6 - Transmitter Frequency Stability ............................................................................ 14 Section II: Requirements for the US Market - FCC ............................................................................ 15 Part 1 - Digital Circuits Radiated Emission Testing ........................................................... 16 Part 2 - Antenna Requirements ......................................................................................... 17 Part 3 - Radiated Peak Power of the Fundamental and Harmonics ................................. 18 Part 4 - Spurious Radiated Emissions and Bandedge Testing ......................................... 19 Part 5 - Transmitter Frequency Stability ............................................................................ 20 Appendix A: Report of Measurements Data and Plots .......................................................................... 21 Appendix B: Bandwidth and Bandedge Plots ........................................................................................ 25 Appendix C: EUT photos during the testing ........................................................................................... 30 Nyce Control Inc. Report Number:E10456-1202 FCC Page 4 of 33 Testing procedure and testing location: Testing Laboratory: Quality Auditing Institute Testing location/ address ............: 16 – 211 Schoolhouse Street, Coquitlam, BC, 3K 4X9, Canada Associated Laboratory: Quality Auditing Institute (Remote location) Testing location/ address ............: 19473 Fraser Way, Pitt Meadows, BC, V3Y 2V4, Canada FCC Test Site Registration Number (OATS 10m and SAC-3m): 226383 Industry Canada Site Registration Number (SAC-3m)............: 9543B-1 Industry Canada Test Site Registration Number (OATS-10m)..: 9543C-1 Testing procedure: Tested by (name + signature)...... : David Johanson Approved by (+ signature) ............: Aman Jathaul Testing location/ address ...............: 19473 Fraser Way, Pitt Meadows, BC, V3Y 2V4, Canada Sample Information: Model Number........................: NCZ-3201 Company:..............................: Nyce Control Inc. Receiv…
