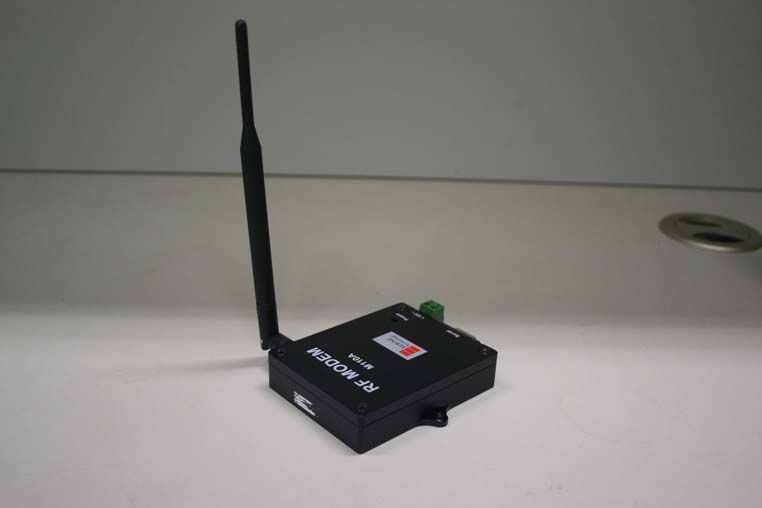

Y9AM110ARF MODEM

M110A M110A_20110725.hwp1 RF MODEM M110A User's Manual Ver 2.0 SEBINE Technology, Inc. M110A M110A_20110725.hwp2 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. M110A M110A_20110725.hwp3 CONTENTS 1. Summary 1.1 Product Introduction 1.2 Specification 2. Operation Mode 2.1 PC MODE 2.2 DEVICE MODE 3. Device Connection 3.1 Power Supply 3.2 RS232 Communication Connection 3.3 RS485 Communication Connection 3.4 Serial Communication Speed Setup 3.5 RS232/RS485 Communication Setup 4. Environment Setup 4.1 Hardware Connection 4.2 Setup List of Each Mode 5. Examples Appendix 1. Dimension Appendix 2. R&TTE Appendix 3. Document Information M110A M110A_20110725.hwp4 1. Summary 1.1 Product Introduction M110A is a RF MODEM which uses ISM 433MHz frequency bandwidth. M110A has a function of RF transmission and reception and provides serial communication interface. When a user transmits data through a serial port by designated protocol, M110A transmits data by wireless communication. M110A allows users to set PC MODE, DEVICE MODE, and communication channels via environment setting. Usable frequency number, channel number, and serial number are printed in shipping products. Figure 1. M110A M110A M110A_20110725.hwp5 1.1.1 Application examples Figure 2. Wireless Serial Communication 1.1.2 Product usage lCable system replacement : Maintenance difficulty with cables is solved lHard environment for cable installation : Environment that requires long and co mplicated cable installation is solved lUneasy area for data acquisition by cable : Outdoor tank monitoring system 1.1.3 Product application area lPump, pipeline, liquid flow monitoring system lTank level, temperature monitoring system lPoison gas detection and monitoring system lWeather data (rainfall, wind direction, wind velocity, humidity, temperature) monitoring system 1.1.4 Product parts M110A main body, one λ/4 dipole antenna, one power connector M110A M110A_20110725.hwp6 1.2 Specification ItemSpecification Name M110A Dimension 88.1mm(L)×85mm(W)×19.6mm(H) (w/o Antenna, Connector) Housing Aluminum Weight 140g (w/o Antenna) Power Supply +12Vdc ±10%, Reverse Power/Overvoltage/Overcurrent Protection Current Consumption Tx 94mA, Rx 88.5mA, WDT Reset 114mA (@12Vdc) Operating Temperature -10°C ~ +60°C RF Features • Frequency : 433.0625MHz ~ 434.7625MHz • Channel Spacing : 25KHz • Transmitter Power : 73dBuV/m • Receiver Sensitivity : -116 ~ -120dBm(-116dBm typ.) • Modulation : FSK • Bandwidth : < 14KHz Performance • Expected Line-Of-Sight Range : Up To 1.5km with λ/4 Dipole Antenna • RF Data Rate : 4.8K Baud, 7.2K Baud I/O Interface • RS232/RS485 Selectable • Serial Communication Basic Setting(User Selectable) : Data Bit 8bit, No Parity, 1 Stop Bit • User Selectable Baud Using DIP Switch: 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200 • 9Pin D-SUB Female Connector Antenna Interface • SMA(Female, Reverse)Connector • Impedance 50Ω Table 1. M110A Specification M110A M110A_20110725.hwp7 2. Operational mode M110A allows PC MODE and DEVICE MODE for users' personal need. Function Code and its functionality is restricted based upon selected mode. Refer the Programmer guide for detailed protocol and Function Code. 2.1 PC MODE 2.1.1 Definition of PC MODE Data is transmitted when data is sent through serial port by selected protocol function. Figure 3. PC MODE of M110A 2.1.2 Function Code available at PC MODE - WRITE : WDAS device output DO[Digital Output], AO[Analog Output] - WRITE_SERIAL : Transmit control signal data to RF MODEM or W110A where serial port is available - READ : WDAS device reads the status of DI[Digital Input], AI[Analog Input] - READ_RESPONSE : Function Code of READ_RESPONSE is used when WDAS device receives READ Function Code and transmits current input status. - STATUS_READ : WDAS device reads the status of DO[Digital Output], AO[Analog Output] - STATUS_RESPONSE : Function Code of READ_RESPONSE is used when WDAS device receives STATUS_READ Function Code and transmits current output status. M110A M110A_20110725.hwp8 2.1.3 Environment setting list before PC MODE use - Select PC MODE at PC/DEVICE MODE Setting 2.2 DEVICE MODE 2.2.1 Definition of DEVICE MODE When the device that has usable PC MODE/DEVICE MODE as Serial Port is set as DESTINATION and control signal data is input to Serial Port at once, control signal data are transmitted automatically. Figure 4. DEVICE MODE of M110A 2.2.2 Function Code available at DEVICE MODE - WRITE_SERIAL : When Control Signal Data obtained through Serial Port are transmitted to established DESTINATION device, Function Code of WRITE_SERIAL is used. 2.2.3 Environment setting list before DEVICE MODE use - DEVICE MODE selection at PC/DEVICE MODE Setting - DESTINATION ID set up at DESTINATION ID Setting M110A M110A_20110725.hwp9 3. Device Connection Figure 5. M110A Outer Figure 6. M110A Inner M110A M110A_20110725.hwp10 3.1 Power Supply M110A works at +12Vdc and equipped with Reverse Power / Overvoltage / Overcurrent Protection circuitry. Power is supplied by power connector provided at product purchase as shown in figure below. M110A has no external power switch and it becomes in working mode when the power is supplied. If normal power is supplied, power supply indicator LED is on.  As shown in Figure 7, remove the skin of wire about 7mm and put it into the terminal and tighten it by turning the left screw using screwdriver. ‚ As shown in Figure 8, connect it to power. ƒ As shown in Figure 9, connect the terminal to power port of M110A, Make sure the direction is exact as shown in Figure 9. Figure7. Power Supply-1 Figure8. Power Supply-2 Figure9. Power Supply-3 ※ Notice Readily accessible disconnect device shall be incorporated external to the equipment. M110A M110A_20110725.hwp11 3.2 RS232 Com…
